Stock #
43567021

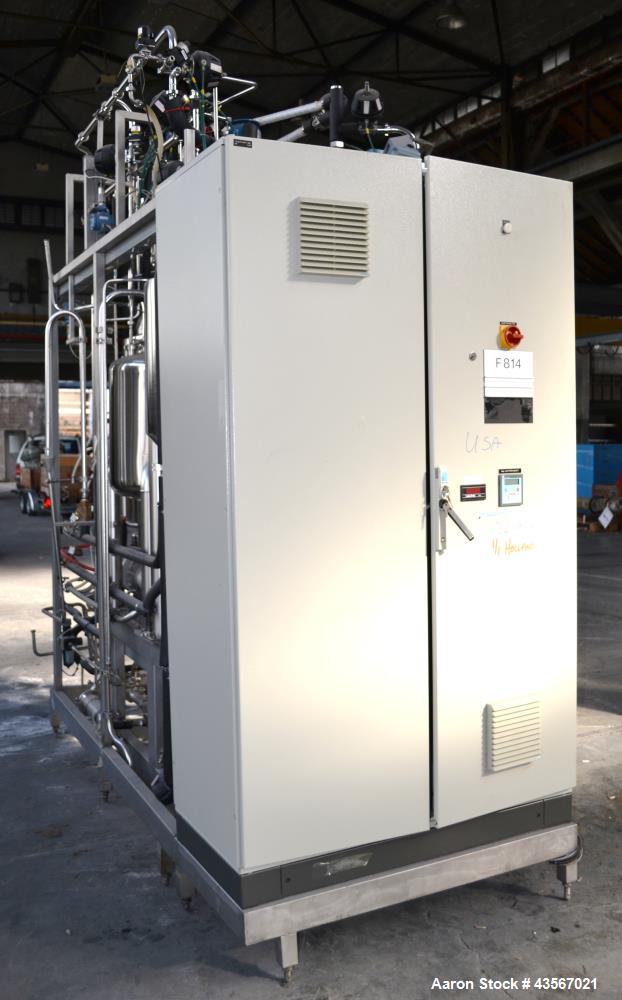

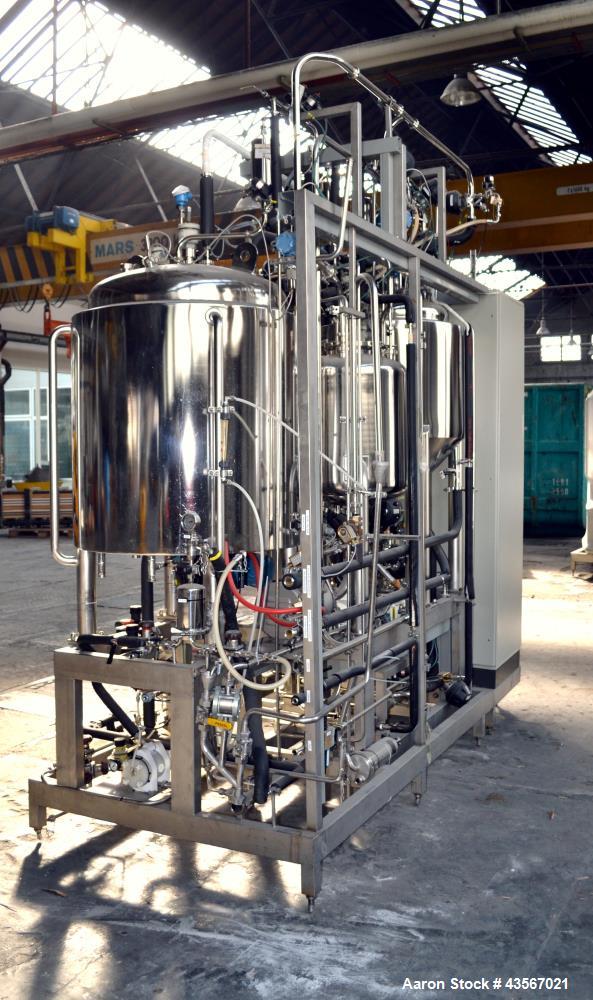

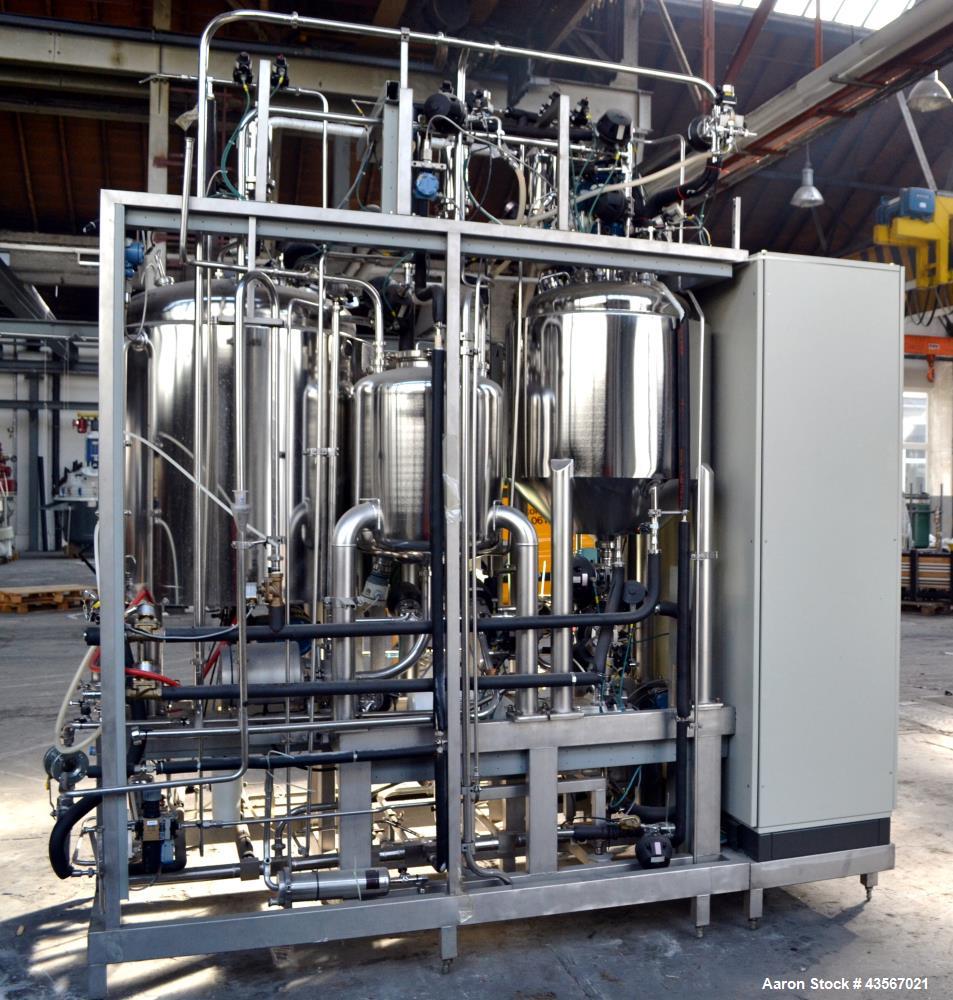

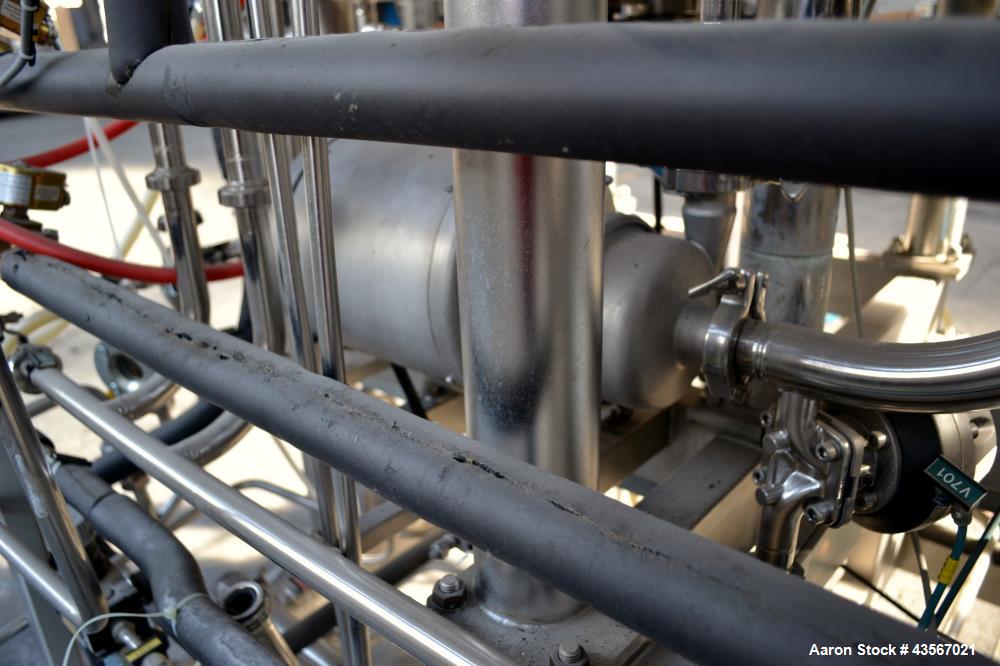

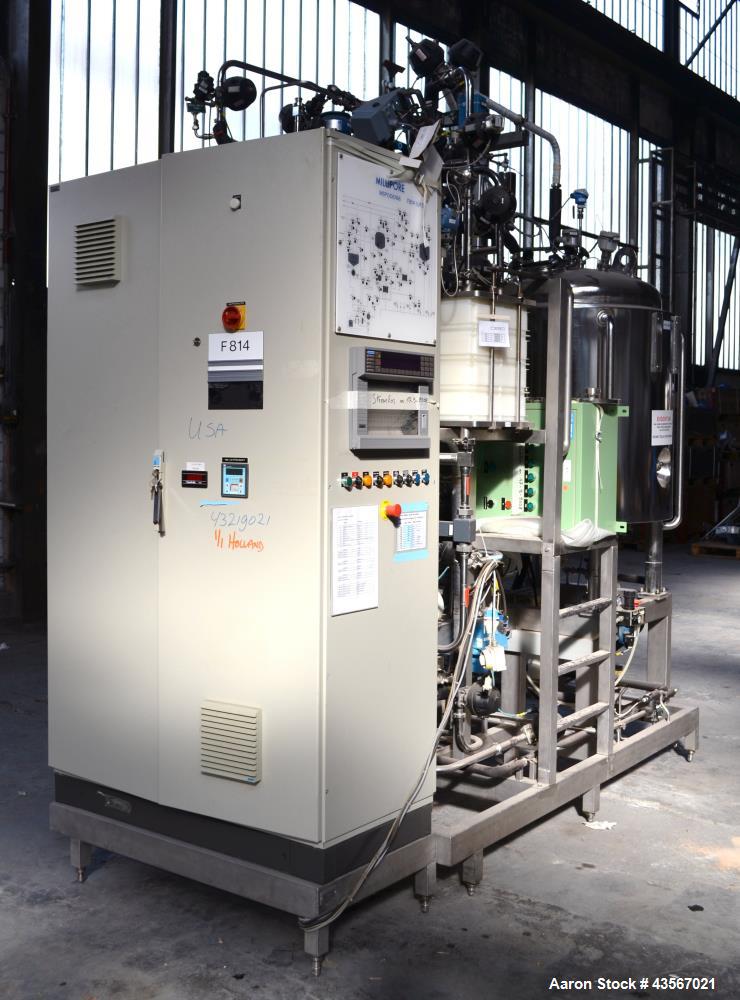

Used Millipore Type MSP 006166 Ultra Filtration System. Consisting Of: (1) Mavag Reactor, 200 Liter (52.85 Gallon), 316L stainless steel. Internal rated -1/3.2 bar (-14.50/46.4 psi) at -10 to 130 degrees C.(14 to 266 F.), jacket rated 6/-1 bar (87/-14.50 psi) at -10 to 130 degrees C.(14 to 266 F.). Top entering agitator, (1) Mavag pressure tank, 100 liter (26.42 gallon), 316 L stainless steel. Internal rated -1/3 bar (-14.50/43.5 psi) at -10 to 130 degrees C.(14 to 266 F.), (1) Hanag reactor, 400 liter (105.70 gallon), 316L stainless steel. Internal rated -1/3.2 bar (-14.50/46.4 psi) at -10 to 130 degrees C.(14 to 266 F.), jacket rated 6/-1 bar (87/-14.50 psi) at -10 to 130 degrees C.(14 to 266 F.). Bottom entering agitator. (2) Millipore Prostak fixed end plate filter, model PSKPUFEP-1. (1) Waukesha positive displacement pump, model 30, (1) centrifugal pump, (1) control panel. Mounted on a stainless steel frame.
Used Equipment Facts About This Machine
Manufacturer Information:

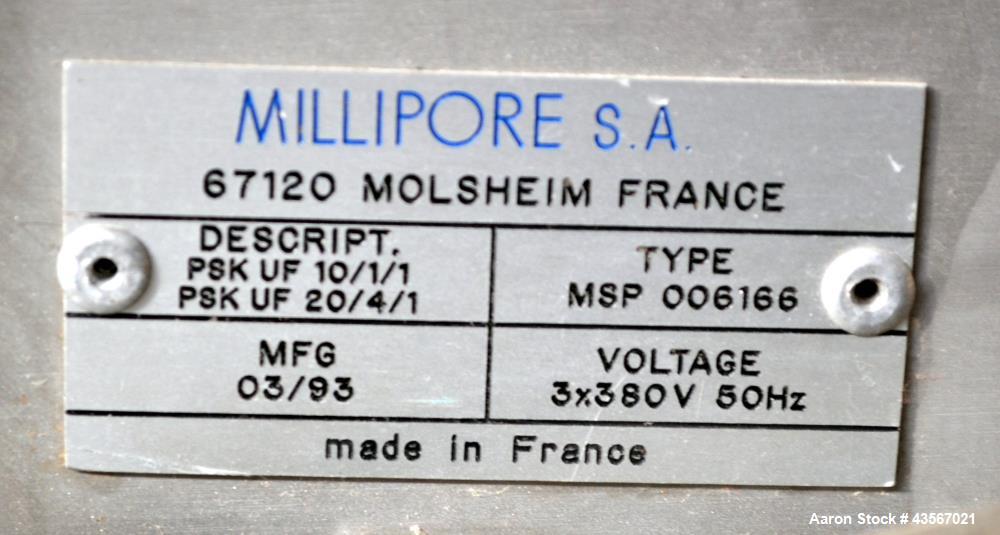

- Brand: Millipore
- Type: Ultra Filtration System
- Model: MSP 006166
Description:
This used Millipore Type MSP 006166 Ultra Filtration System is a high-precision liquid filtration and separation unit, ideal for biotech, pharmaceutical, food, and chemical processing applications. Designed for efficient purification and concentration of process liquids, this system includes stainless steel reactors, a pressure tank, and integrated filtration components.
System Components:
-

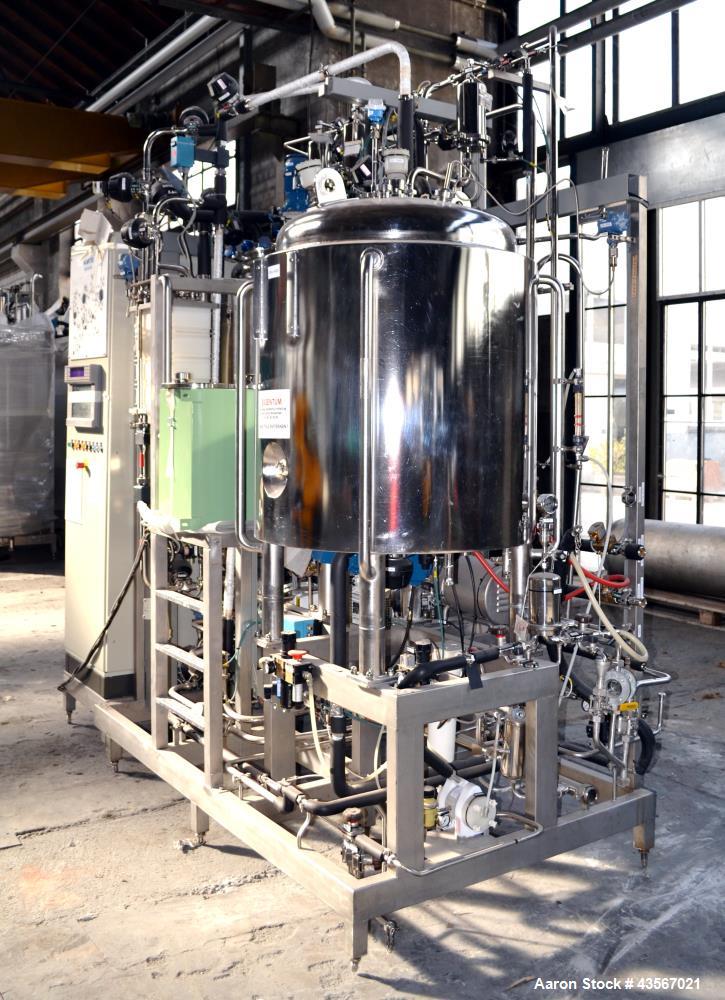

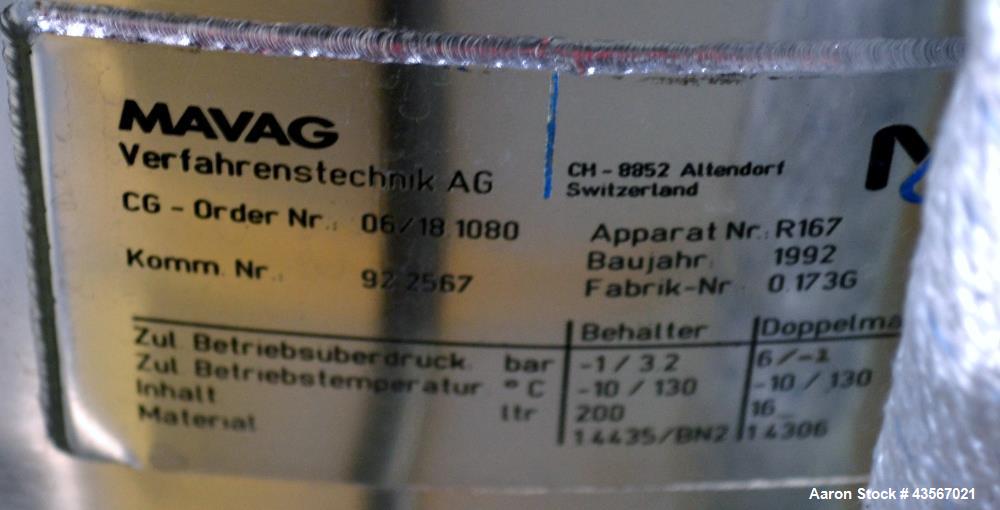

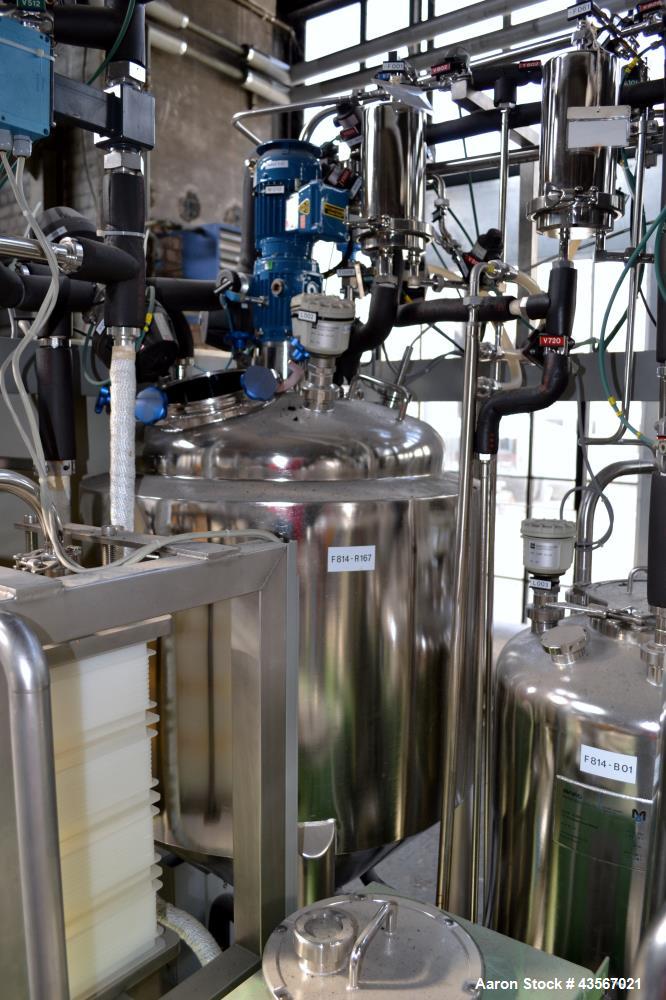

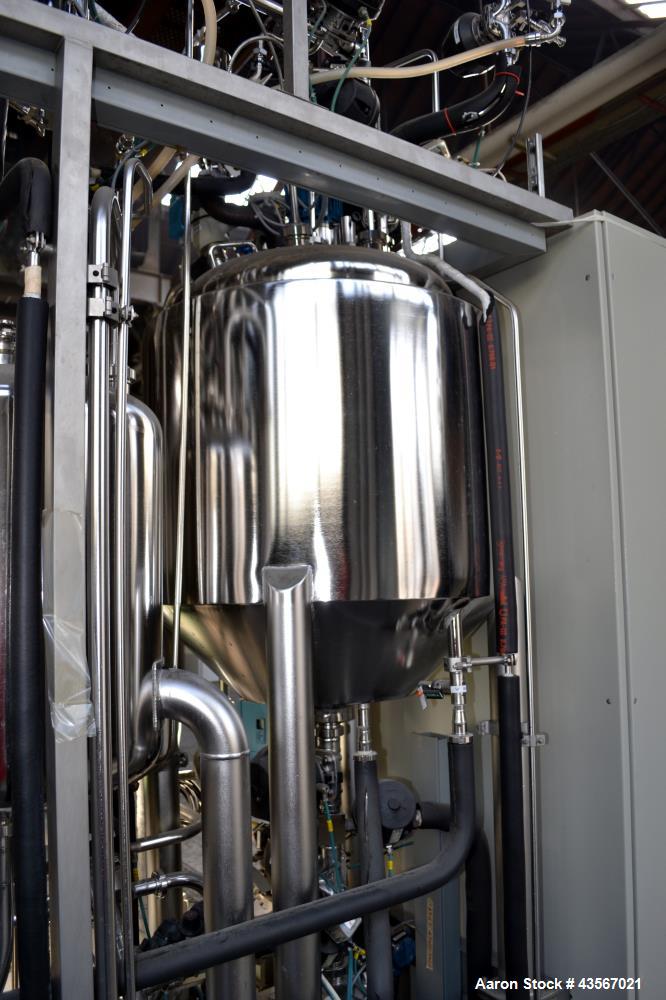

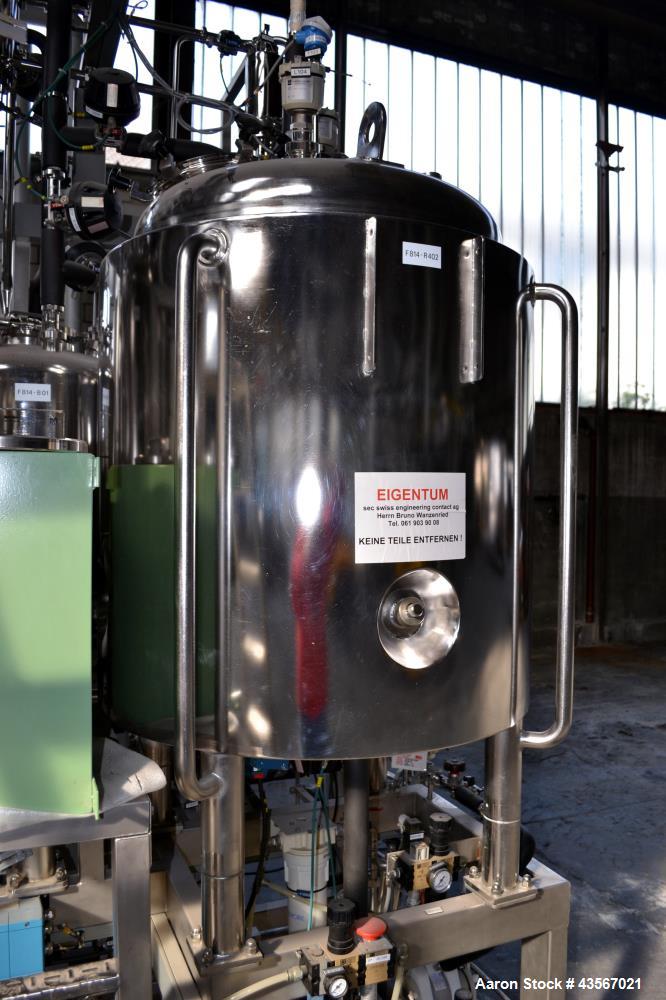

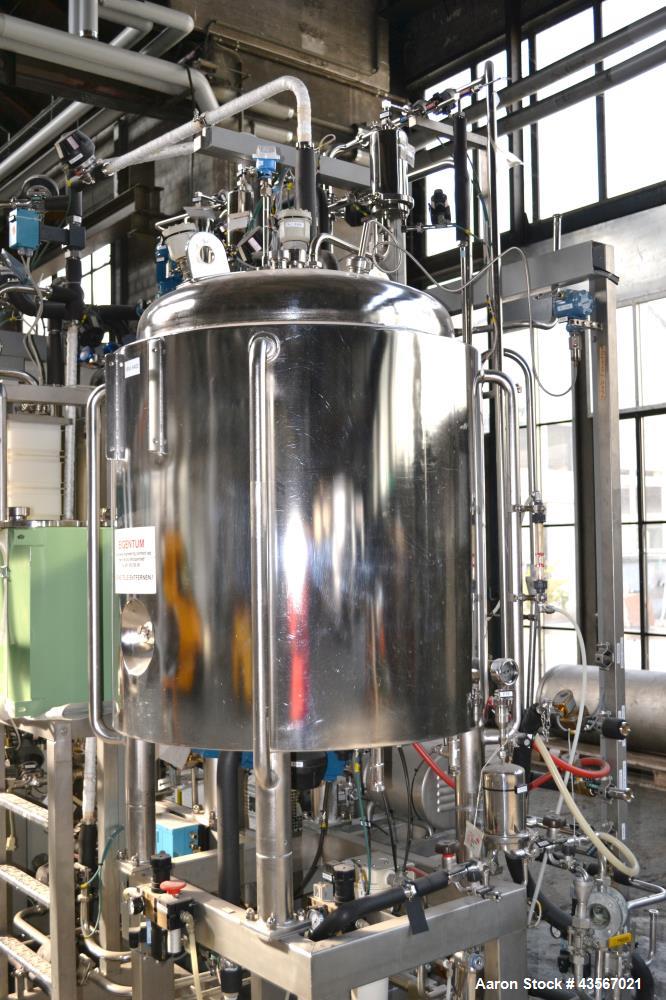

Mavag 200L (52.85 Gallon) 316L Stainless Steel Reactor
- Internal Pressure Rating: -1 to 3.2 bar (-14.5 to 46.4 psi)
- Temperature Range: -10 to 130°C (14 to 266°F)
- Jacket Rating: 6/-1 bar (87/-14.5 psi)

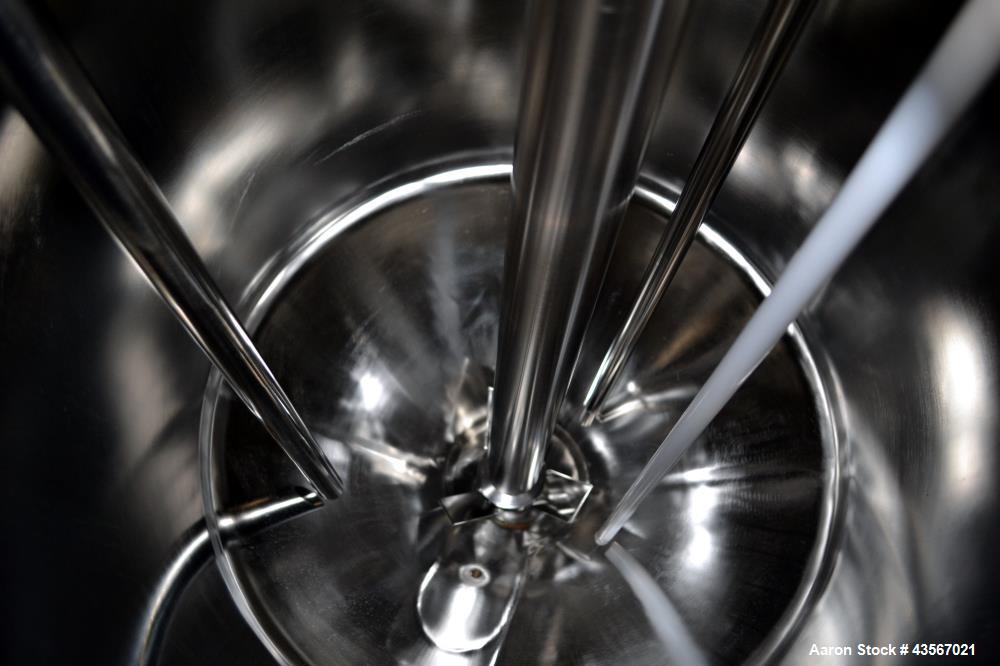

- Top-Entering Agitator
-

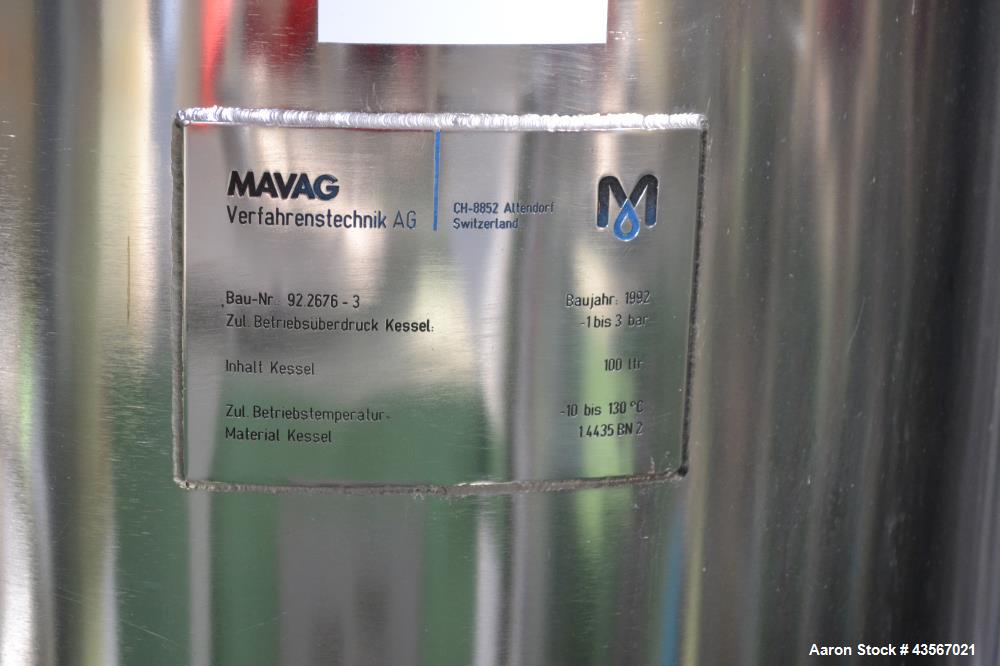

Mavag 100L (26.42 Gallon) 316L Stainless Steel Pressure Tank
- Internal Pressure Rating: -1 to 3 bar (-14.5 to 43.5 psi)
- Temperature Range: -10 to 130°C (14 to 266°F)
-

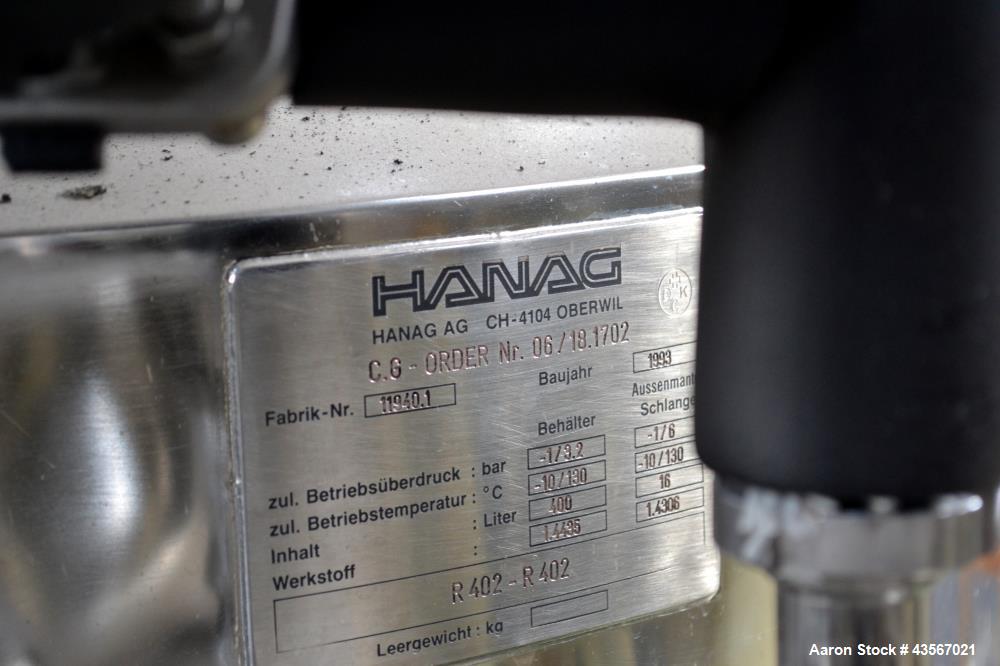

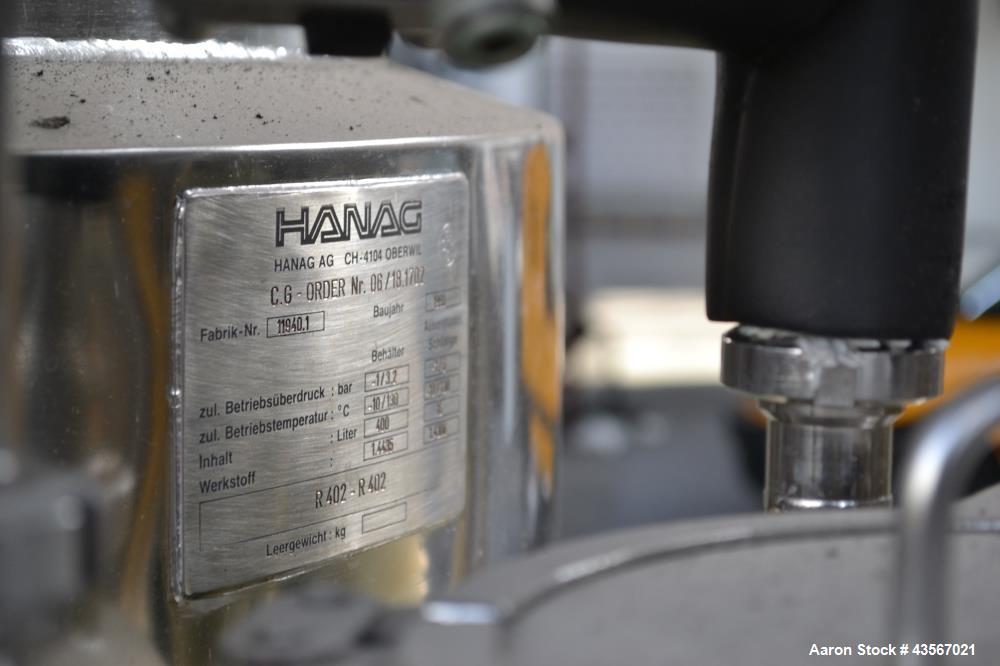

Hanag 400L (105.70 Gallon) 316L Stainless Steel Reactor
- Internal Pressure Rating: -1 to 3.2 bar (-14.5 to 46.4 psi)
- Temperature Range: -10 to 130°C (14 to 266°F)
- Jacket Rating: 6/-1 bar (87/-14.5 psi)

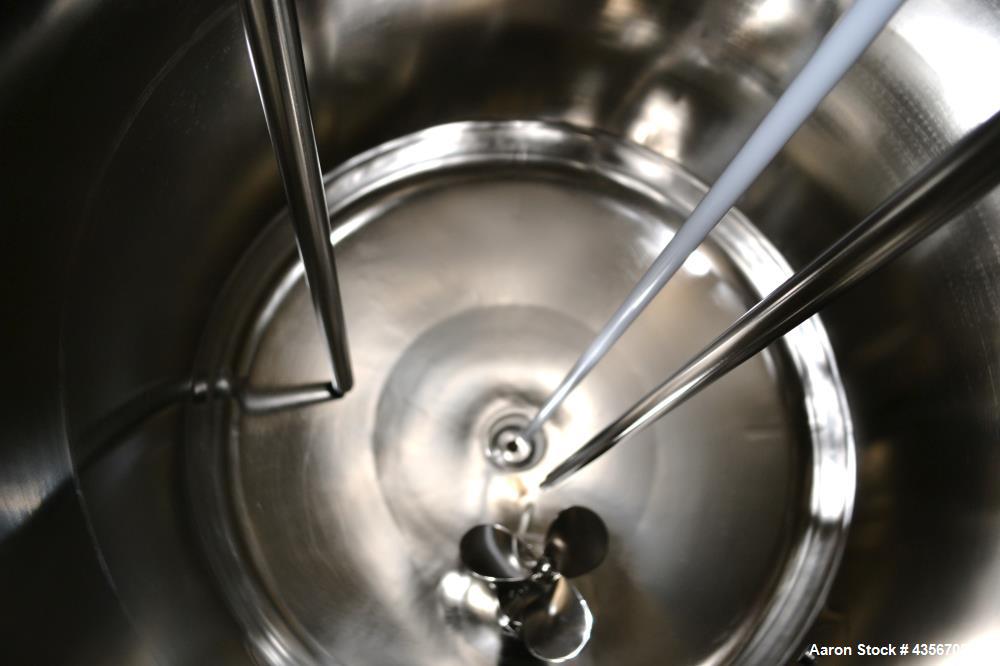

- Bottom-Entering Agitator
-
Filtration System:

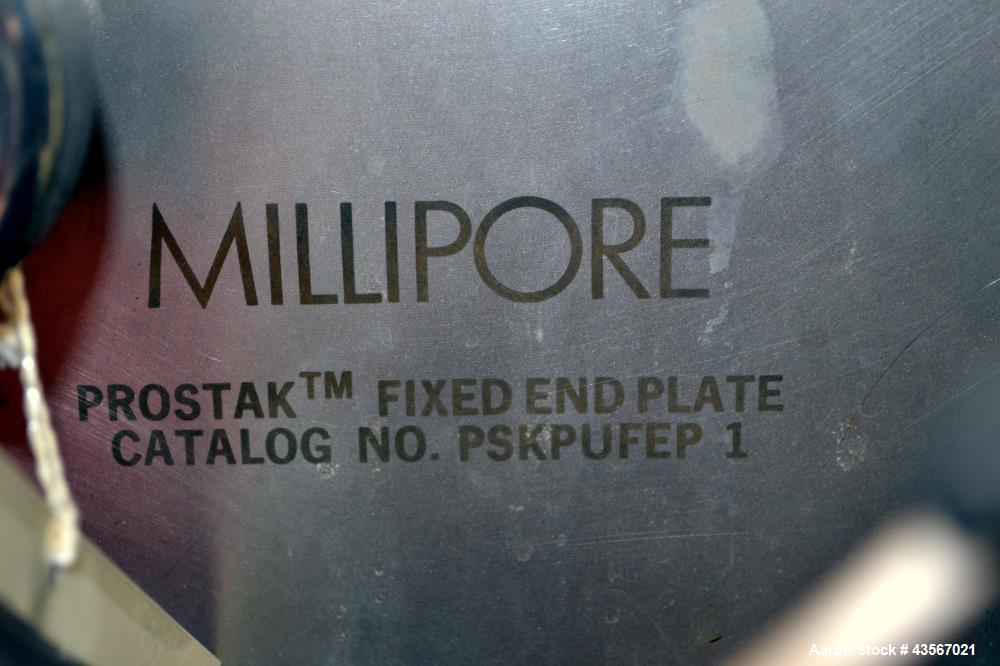

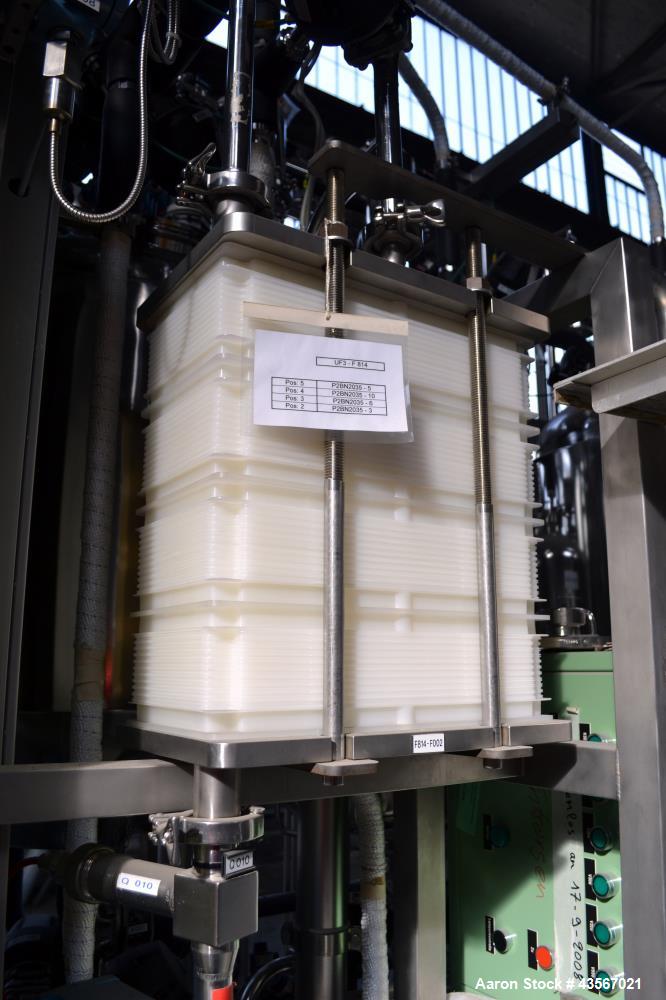

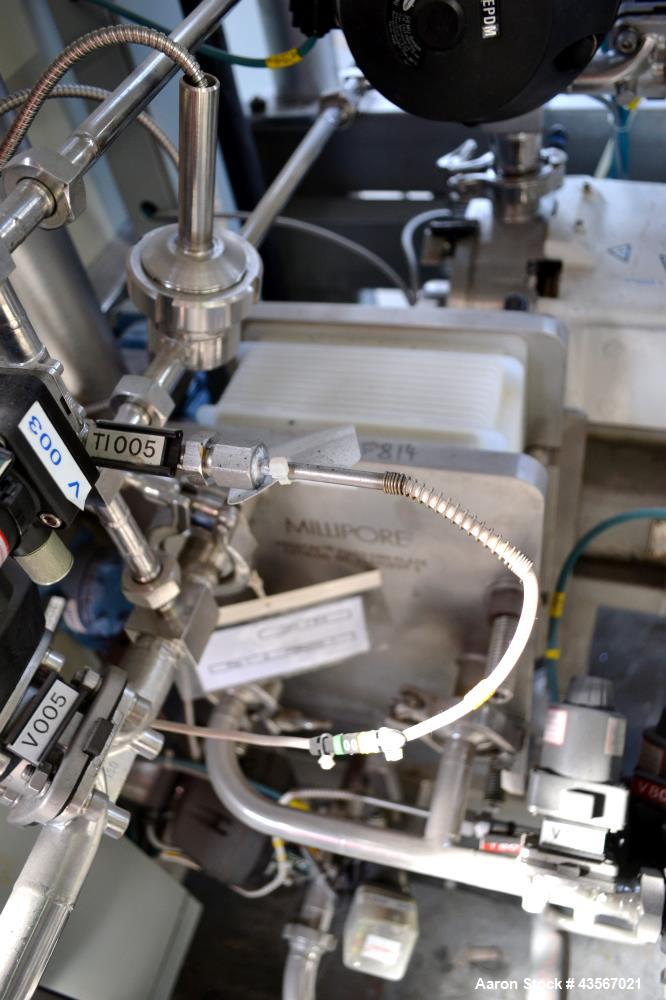

- (2) Millipore Prostak Fixed End Plate Filters (Model PSKPUFEP-1)
-

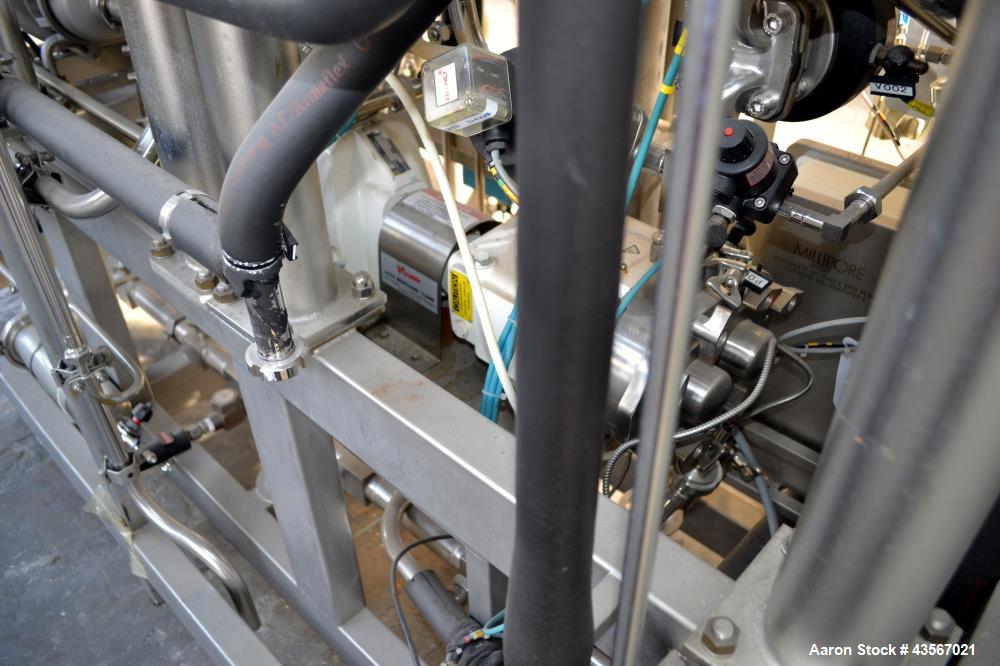

Pumping System:

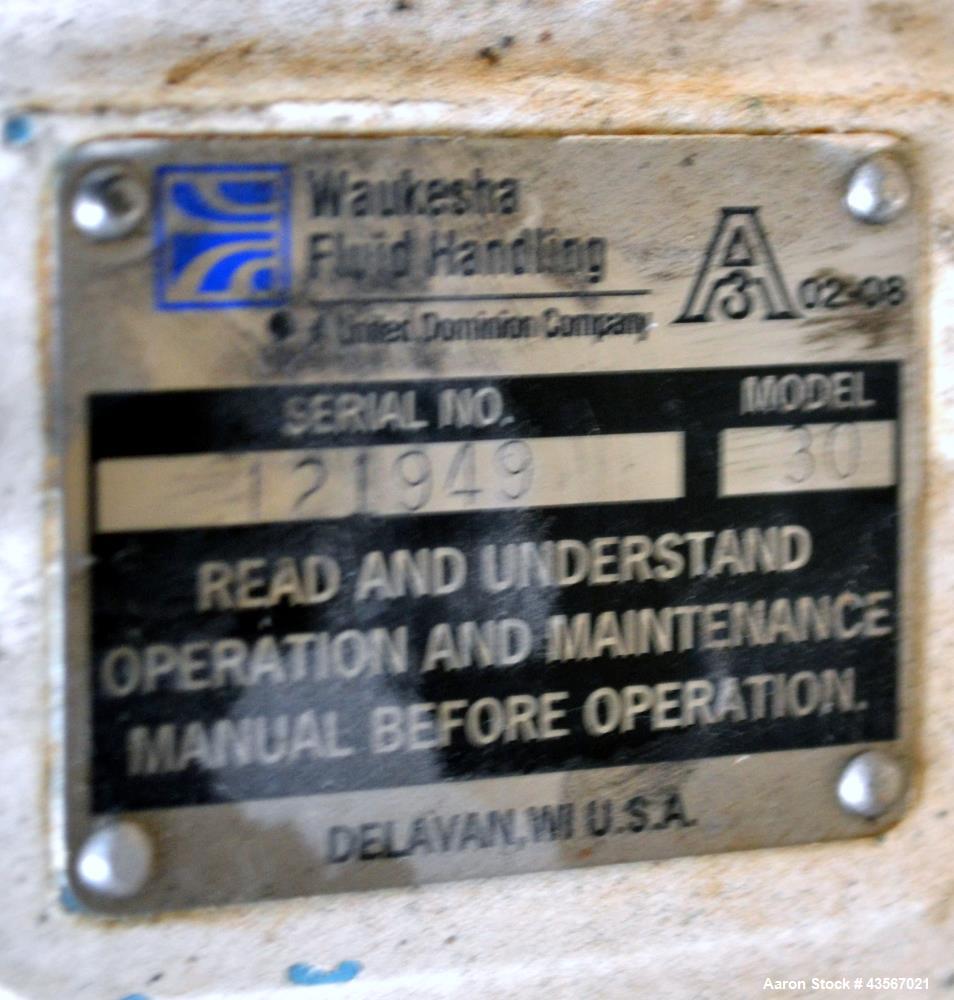

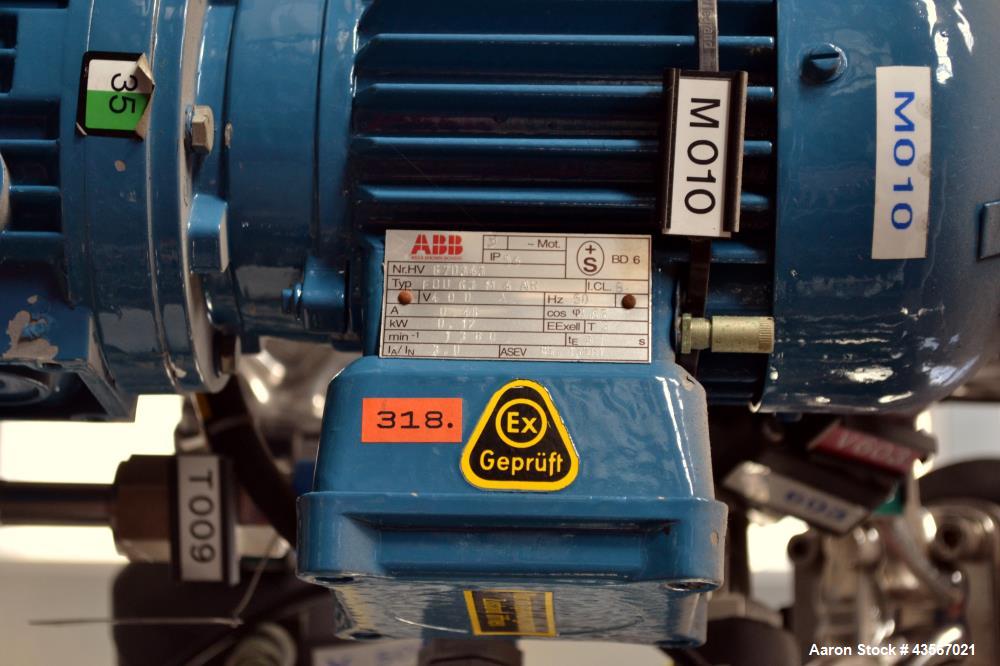

- (1) Waukesha Model 30 Positive Displacement Pump
- (1) Centrifugal Pump
-

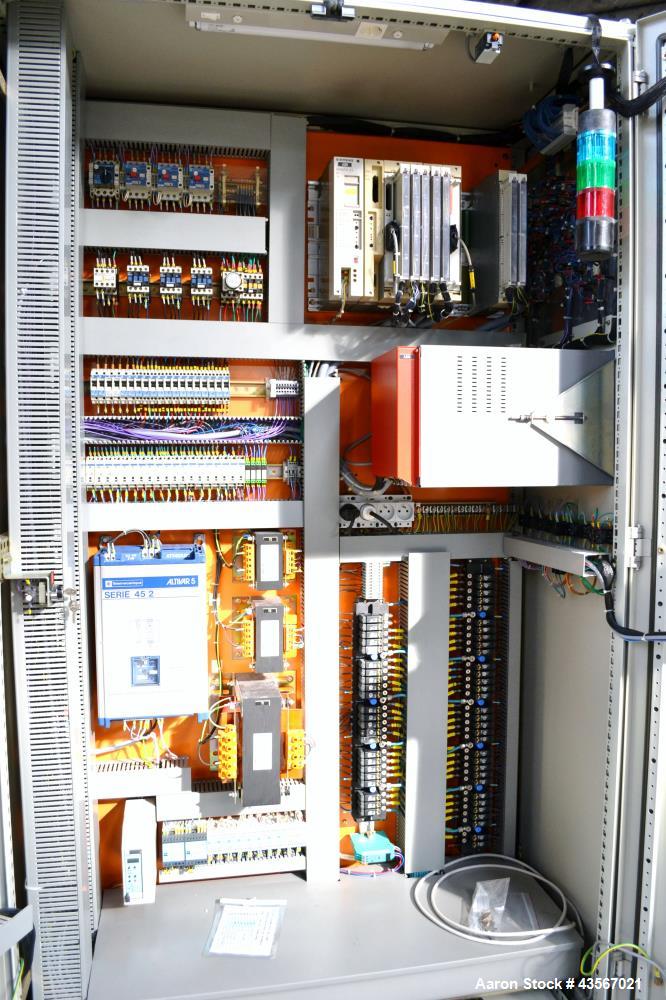

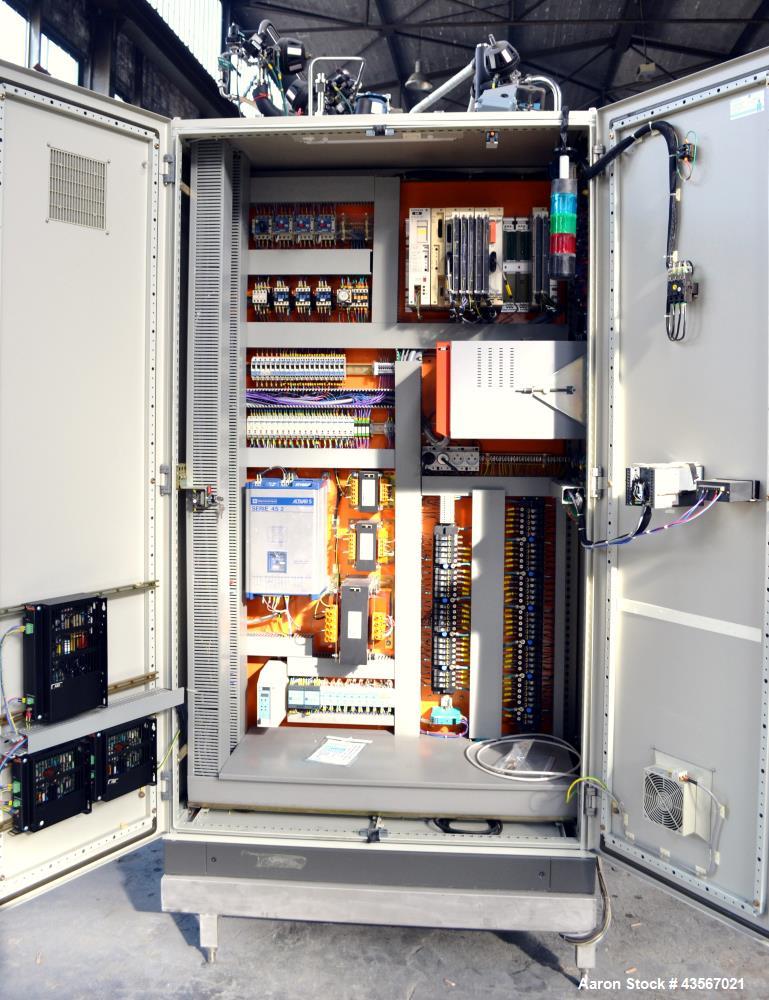

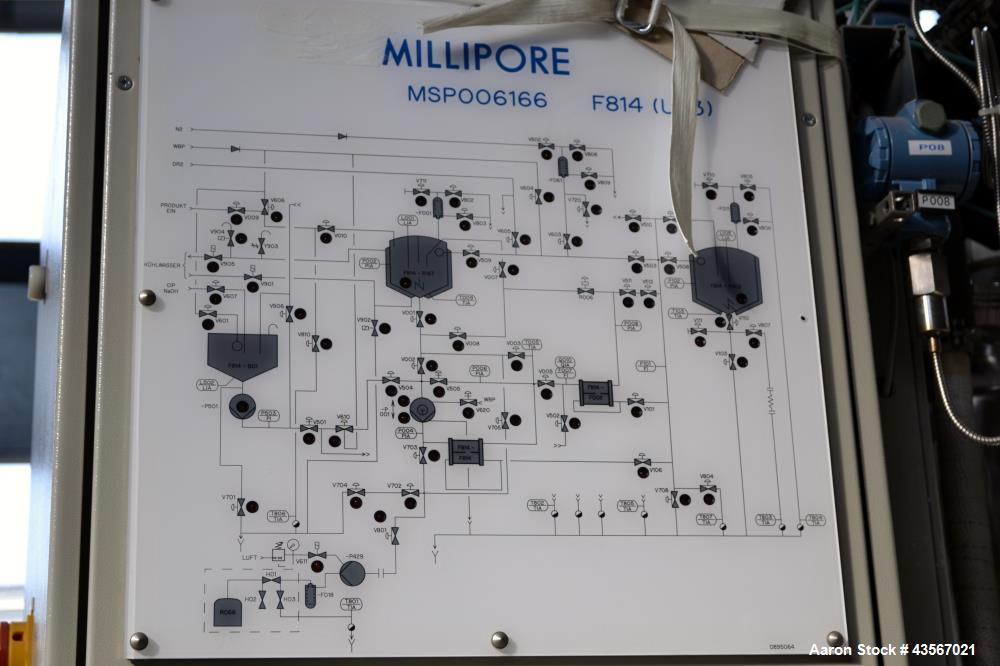

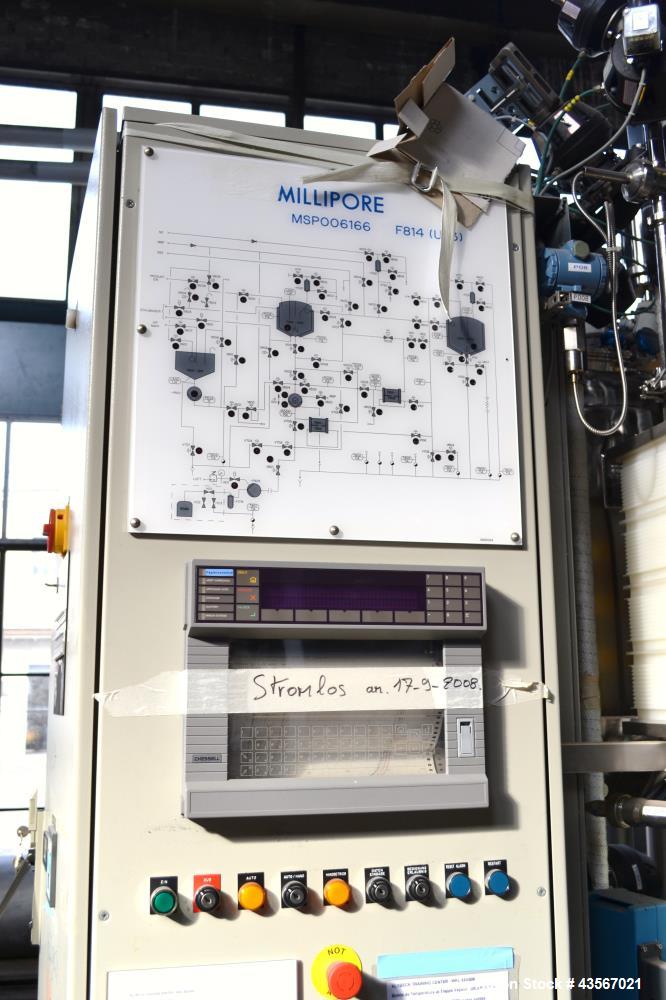

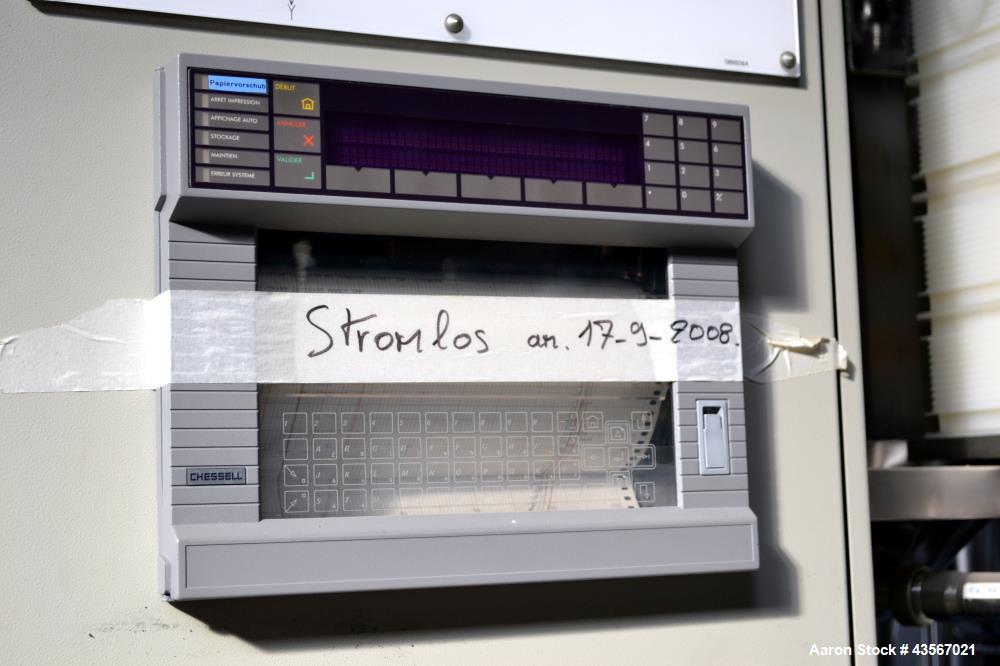

Control System:
-
Frame & Mobility:
- Mounted on a Stainless Steel Frame
This system is ideal for high-purity filtration, liquid separation, and purification applications in pharmaceutical, biotech, food, and industrial processing.
Specifications:
- System Type: Ultra Filtration System
- Reactor Capacities: 200L & 400L (52.85 & 105.7 Gallons)
- Pressure Tank Capacity: 100L (26.42 Gallons)
- Material: 316L Stainless Steel
- Pressure Ratings: -1 to 3.2 bar (-14.5 to 46.4 psi)
- Jacket Ratings: 6/-1 bar (87/-14.5 psi)
- Temperature Range: -10 to 130°C (14 to 266°F)
- Filtration System: Millipore Prostak Fixed End Plate Filters
- Pumps: Waukesha Positive Displacement Pump & Centrifugal Pump
- Mounting: Stainless Steel Frame
- Control System: Control Panel Included
Applications:
- Pharmaceutical & Biotech – Separation and purification of APIs, biological solutions, and process liquids
- Food & Beverage Processing – Filtration of dairy, juice, and liquid concentrates
- Chemical & Industrial Processing – High-purity liquid separation and solvent recovery
- Water Treatment & Filtration – Removal of impurities and contaminants
- Cosmetic & Personal Care – Processing of emulsions, lotions, and high-viscosity liquids
What Products Would This Be Used For?
- Ultrafiltration of pharmaceuticals and active ingredients
- Clarification of food and beverage products
- High-purity solvent and chemical filtration
- Water purification for laboratory and industrial applications
- Biotech and life sciences process filtration
