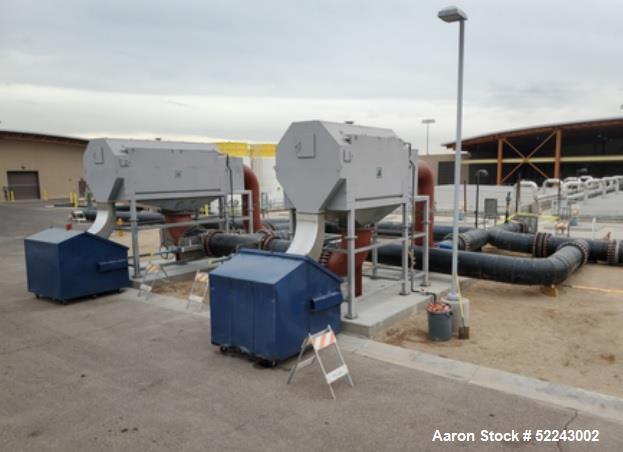

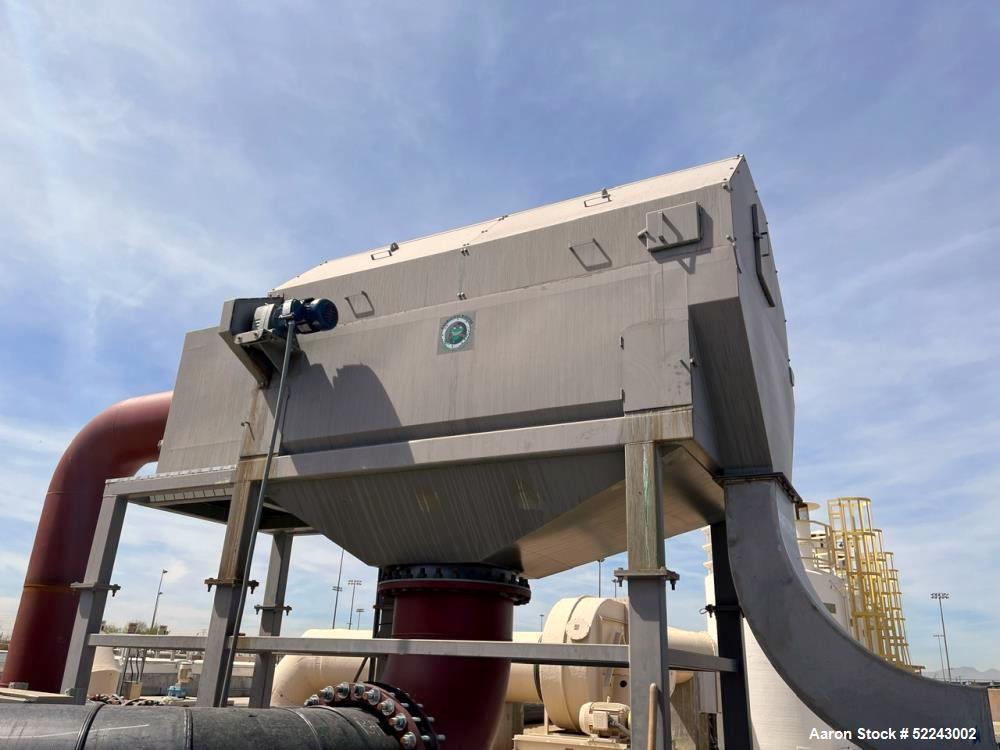

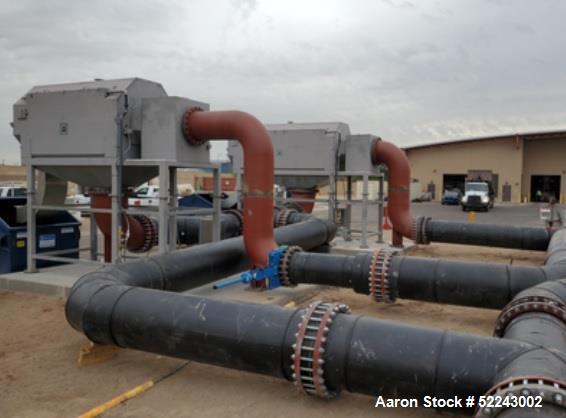

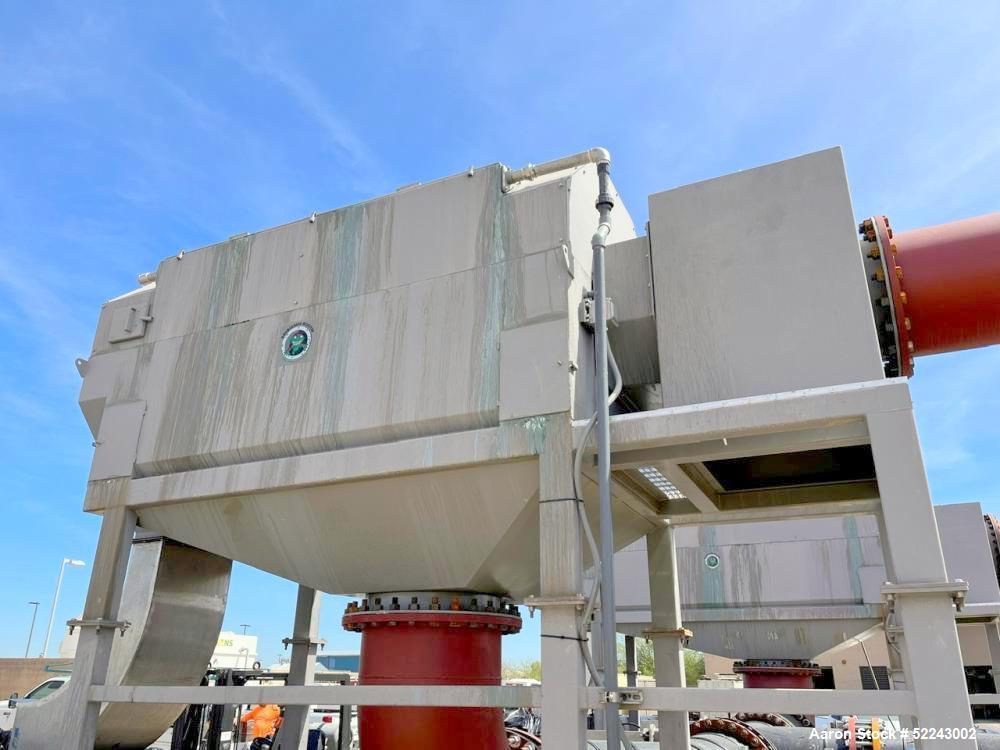

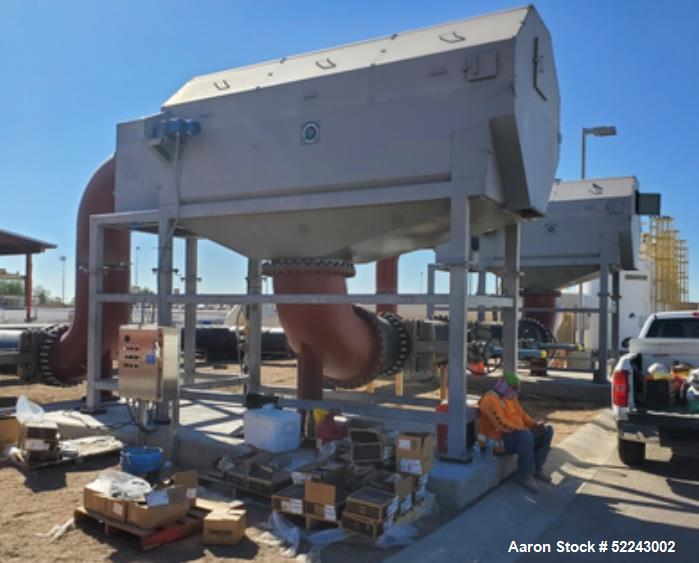

Used JWCE - IPEC Model IFM 6096P Internally Fed Rotary Screen, 304 stainless steel construction. 60" diameter by 96" long, perforated screen drum; 3mm screen perforations; headbox tank assembly, extending 2/3 the length of the drum, in 3/16" plate, c/w flanged inlet; housing in 10 gauge plate; 24" inlet connection c/w 304 stainless steel ANSI flange; 30"outlet connection c/w 304 stainless steel ANSI flange; splash guards in 11 gauge plate; integral drainage pan in 11 gauge construction; integrated solids discharge chute in 11 gauge construction; fully enclosed, cover panels in 11 gauge plate; 10" diameter by 3" wide, UHMW polyurethane, roll wheels, with 40MM double roll ball bearings; housing covers in 12 gauge construction; external spray bar, 2" SCH 40, 304 stainless steel c/w 31 fan jet, spray nozzles (1 USGPM per nozzle @ 40 psi), NC Class 1 Div 1 solenoid valve, PRV, ball valve, pressure gauge, manifold and hinged splash cover; #80 stainless steel roller chain, stainless steel driven sprocket and drive sprocket; helical gear drive c/w 2 hp, TEFC EX Class 1 Div 1 motor, 460V/3Ph/60Hz (additional voltages and classifications available, additional cost may apply); c/w epoxy coating to wetted internal parts; odor vent flange; 6 support stand. Includes: One (1) only Control Panel / MCC to operate JWCE- IPEC Model IFM 6096; NEMA 4X enclosure; stainless steel panel box c/w hinged door. 30 amp, fused main disconnect; 150 Va control transformer, 460 - 115; one (1) IEC motor contactor c/w overload; operator switch for: E stop, control power, hand/off/auto switches for screen; two (2) sequencing timers for operating motors and valves; dry contacts for system start, alarms and run status.
Used JWCE - IPEC Model IFM 6096P Internally Fed Rotary Screen, 304 stainless steel construction. 60" diameter by 96" long, perforated screen drum; 3mm screen perforations; headbox tank assembly, extending 2/3 the length of the drum, in 3/16" plate, c/w flanged inlet; housing in 10 gauge plate; 24" inlet connection c/w 304 stainless steel ANSI flange; 30"outlet connection c/w 304 stainless steel ANSI flange; splash guards in 11 gauge plate; integral drainage pan in 11 gauge construction; integrated solids discharge chute in 11 gauge construction; fully enclosed, cover panels in 11 gauge plate; 10" diameter by 3" wide, UHMW polyurethane, roll wheels, with 40MM double roll ball bearings; housing covers in 12 gauge construction; external spray bar, 2" SCH 40, 304 stainless steel c/w 31 fan jet, spray nozzles (1 USGPM per nozzle @ 40 psi), NC Class 1 Div 1 solenoid valve, PRV, ball valve, pressure gauge, manifold and hinged splash cover; #80 stainless steel roller chain, stainless steel driven sprocket and drive sprocket; helical gear drive c/w 2 hp, TEFC EX Class 1 Div 1 motor, 460V/3Ph/60Hz (additional voltages and classifications available, additional cost may apply); c/w epoxy coating to wetted internal parts; odor vent flange; 6 support stand. Includes: One (1) only Control Panel / MCC to operate JWCE- IPEC Model IFM 6096; NEMA 4X enclosure; stainless steel panel box c/w hinged door. 30 amp, fused main disconnect; 150 Va control transformer, 460 - 115; one (1) IEC motor contactor c/w overload; operator switch for: E stop, control power, hand/off/auto switches for screen; two (2) sequencing timers for operating motors and valves; dry contacts for system start, alarms and run status.
