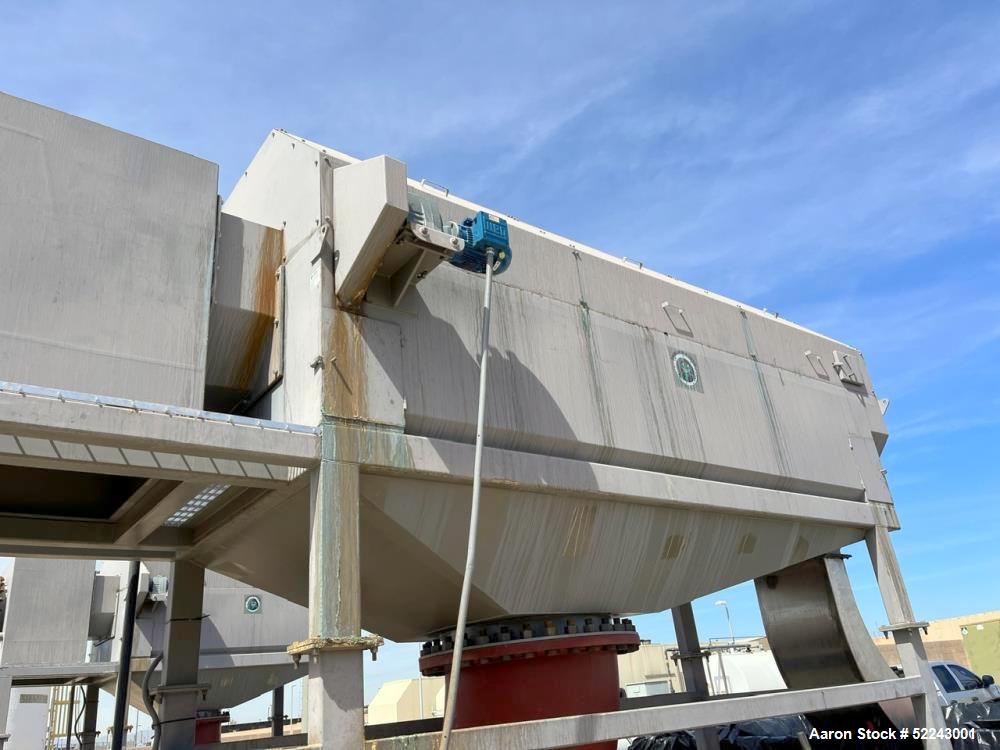

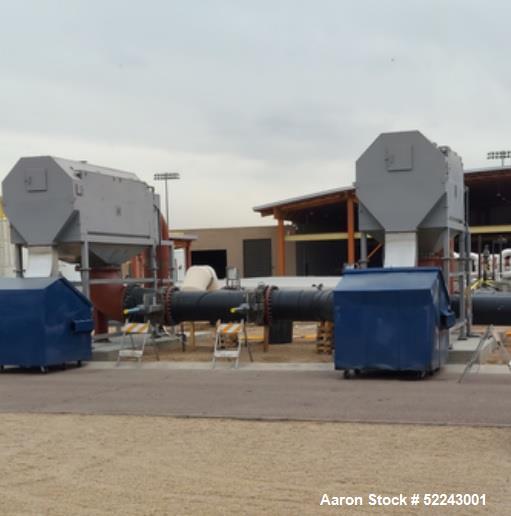

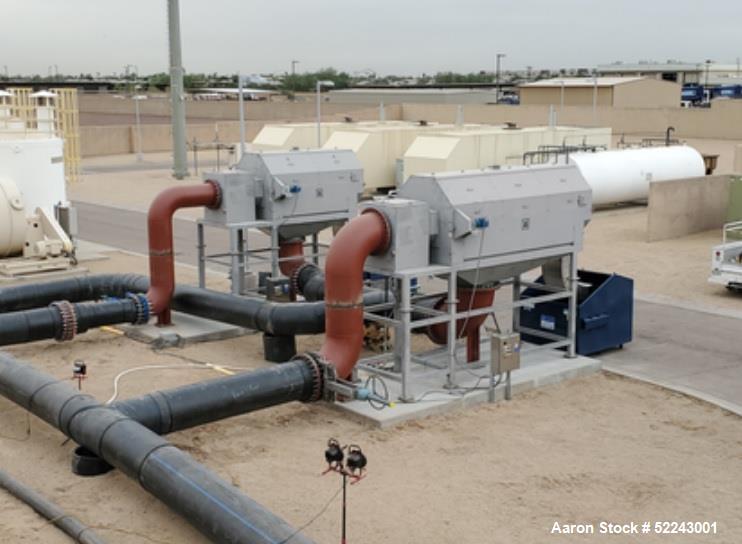

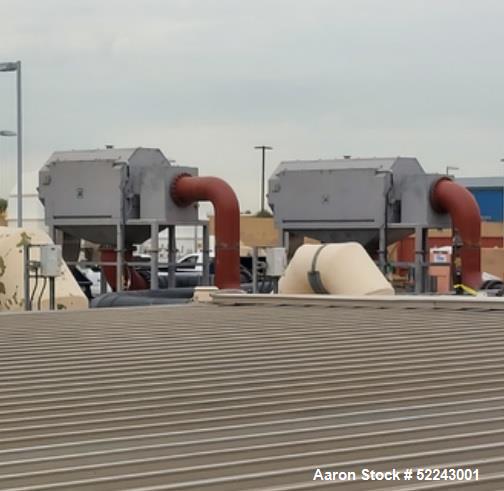

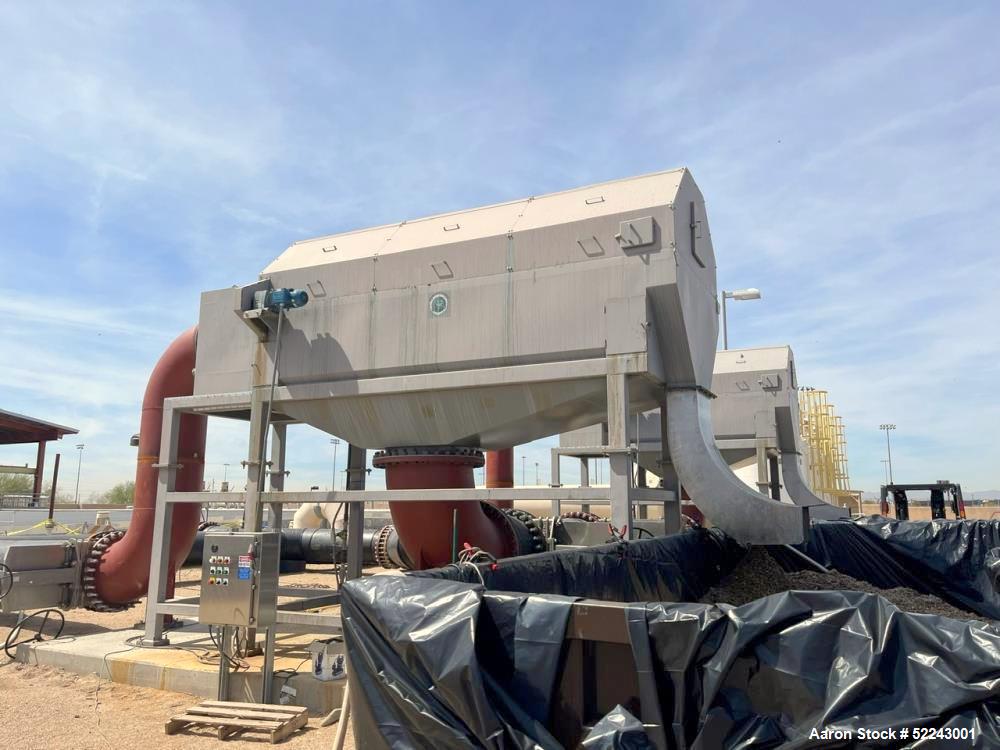

Used JWCE - IPEC Model IFM 60144P Internally Fed Rotary Screen, 304 stainless steel construction. 60" diameter by 144" long, perforated screen drum; 3mm screen perforations; headbox tank assembly, extending 2/3 the length of the drum, in 3/16" plate, c/w flanged inlet; 30" inlet connection c/w 304 stainless steel ANSI flange; 36" outlet connection c/w 304 stainless steel ANSI flange; splash guards in 10 gauge plate; integral drainage pan in 11 gauge construction; integrated solids discharge chute in 11 gauge construction; shaft mounted, 10" diameter by 3-1/2" wide UHMW polyurethane, roll wheels, supported by trunnion bearing assembly; external spray bar 2" Sch.40, 304 stainless steel pipe c/w 47 fan jet spray nozzles (1 USGPM per nozzle @ 40 psi), NC Class 1 Div 1 solenoid valve, PRV, ball valve, pressure gauge, manifold and hinged splash cover; #80 stainless steel roller chain, stainless steel driven sprocket and drive sprocket; helical gear drive c/w 2 hp, TEFC EX Class 1 Div 1 motor, 460V/3Ph/60Hz (additional voltages and classifications available, additional cost may apply); c/w epoxy coating to wetted internal parts; odor vent flange; 6 support stand. Includes: One (1) only Control Panel / MCC to operate JWCE- IPEC Model IFM 60144, NEMA 4X enclosure; stainless steel panel box c/w hinge; 30 amp, fused main disconnect; 150 Va controltransformer, 460 - 115; one (1) IEC motor contactor c/w overload; operator switch for: E stop, control power, hand/off/auto switches for screen; two (2) sequencing timers for operating motors and valves; dry contacts for system start, alarms and run status.
Used JWCE - IPEC Model IFM 60144P Internally Fed Rotary Screen, 304 stainless steel construction. 60" diameter by 144" long, perforated screen drum; 3mm screen perforations; headbox tank assembly, extending 2/3 the length of the drum, in 3/16" plate, c/w flanged inlet; 30" inlet connection c/w 304 stainless steel ANSI flange; 36" outlet connection c/w 304 stainless steel ANSI flange; splash guards in 10 gauge plate; integral drainage pan in 11 gauge construction; integrated solids discharge chute in 11 gauge construction; shaft mounted, 10" diameter by 3-1/2" wide UHMW polyurethane, roll wheels, supported by trunnion bearing assembly; external spray bar 2" Sch.40, 304 stainless steel pipe c/w 47 fan jet spray nozzles (1 USGPM per nozzle @ 40 psi), NC Class 1 Div 1 solenoid valve, PRV, ball valve, pressure gauge, manifold and hinged splash cover; #80 stainless steel roller chain, stainless steel driven sprocket and drive sprocket; helical gear drive c/w 2 hp, TEFC EX Class 1 Div 1 motor, 460V/3Ph/60Hz (additional voltages and classifications available, additional cost may apply); c/w epoxy coating to wetted internal parts; odor vent flange; 6 support stand. Includes: One (1) only Control Panel / MCC to operate JWCE- IPEC Model IFM 60144, NEMA 4X enclosure; stainless steel panel box c/w hinge; 30 amp, fused main disconnect; 150 Va controltransformer, 460 - 115; one (1) IEC motor contactor c/w overload; operator switch for: E stop, control power, hand/off/auto switches for screen; two (2) sequencing timers for operating motors and valves; dry contacts for system start, alarms and run status.
