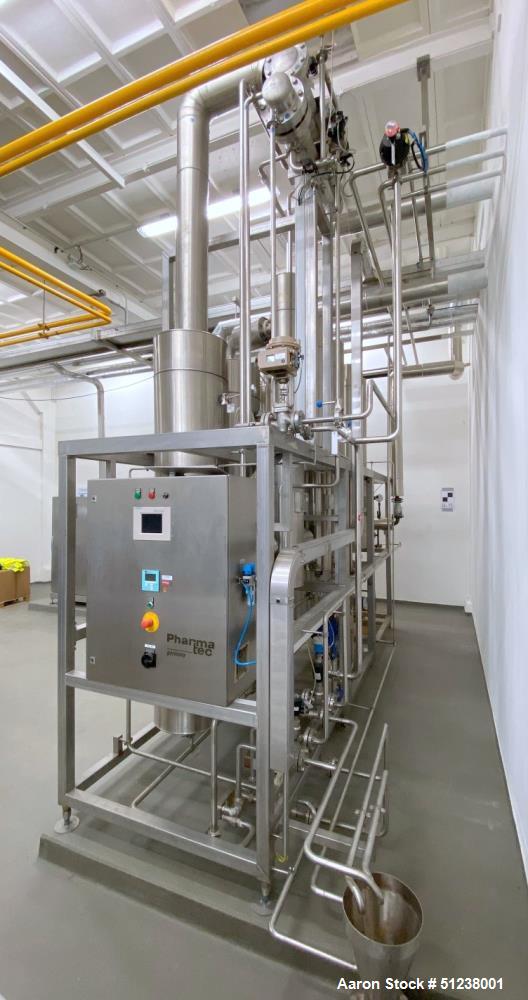

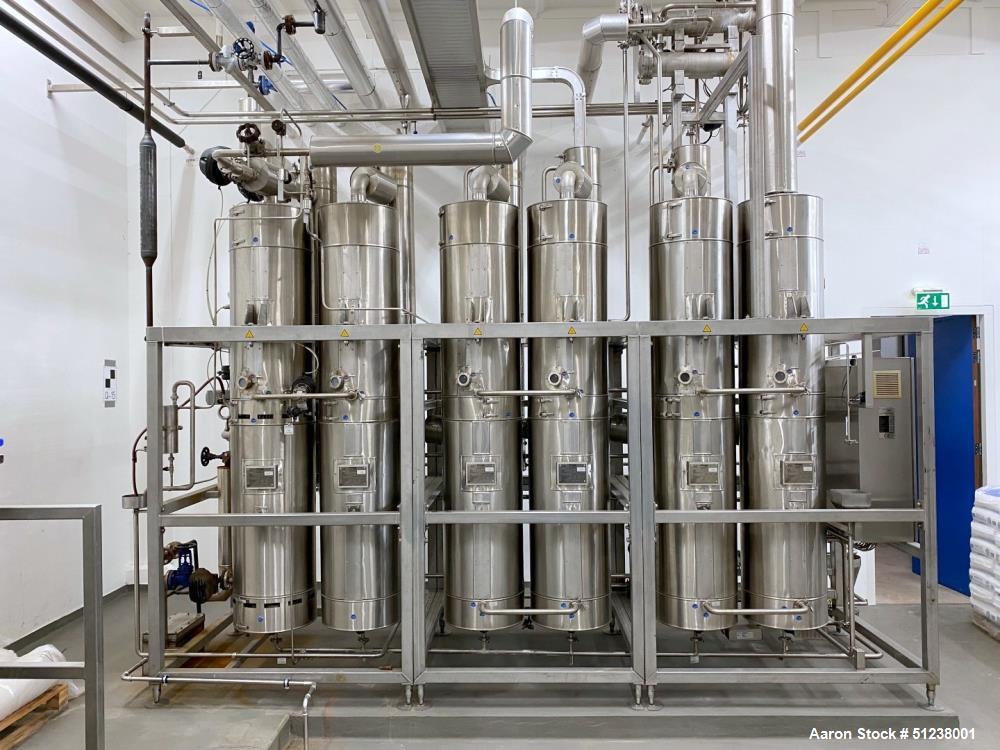

Used- Bosch PharmaTec, WFI Still 6 Effect/Stage Multi Pressure Distillation Unit

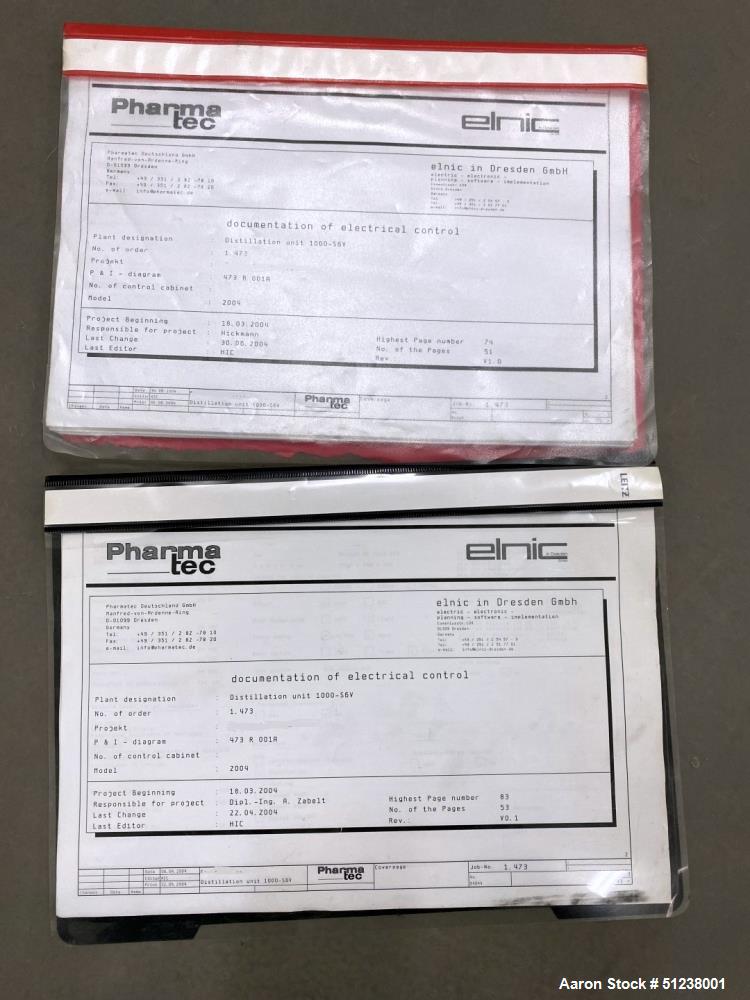

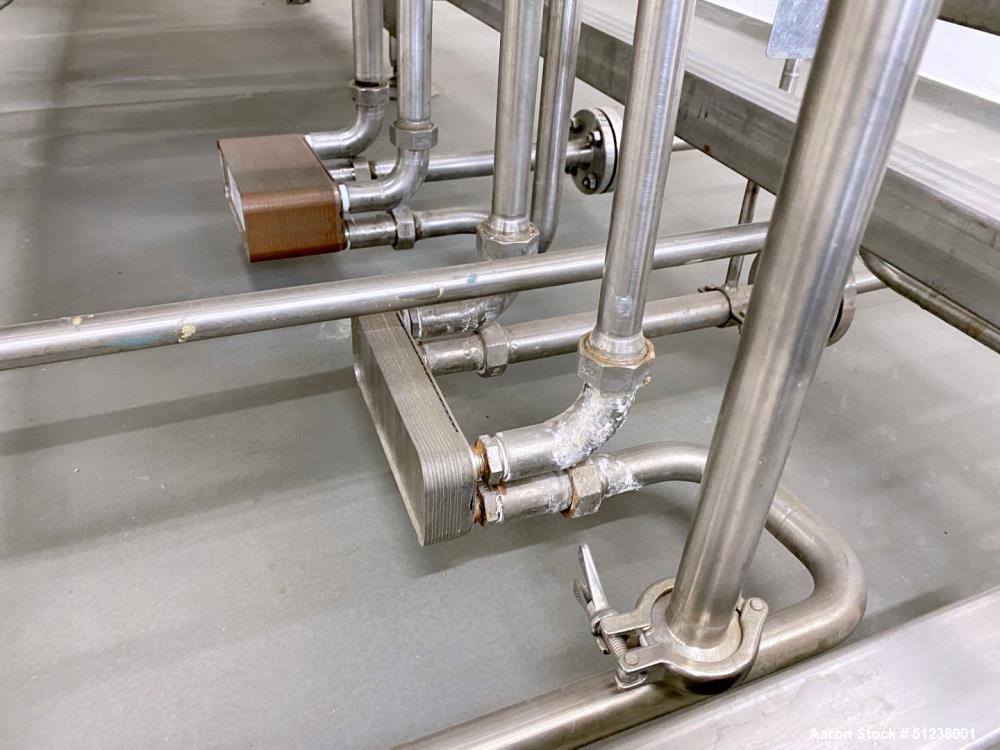

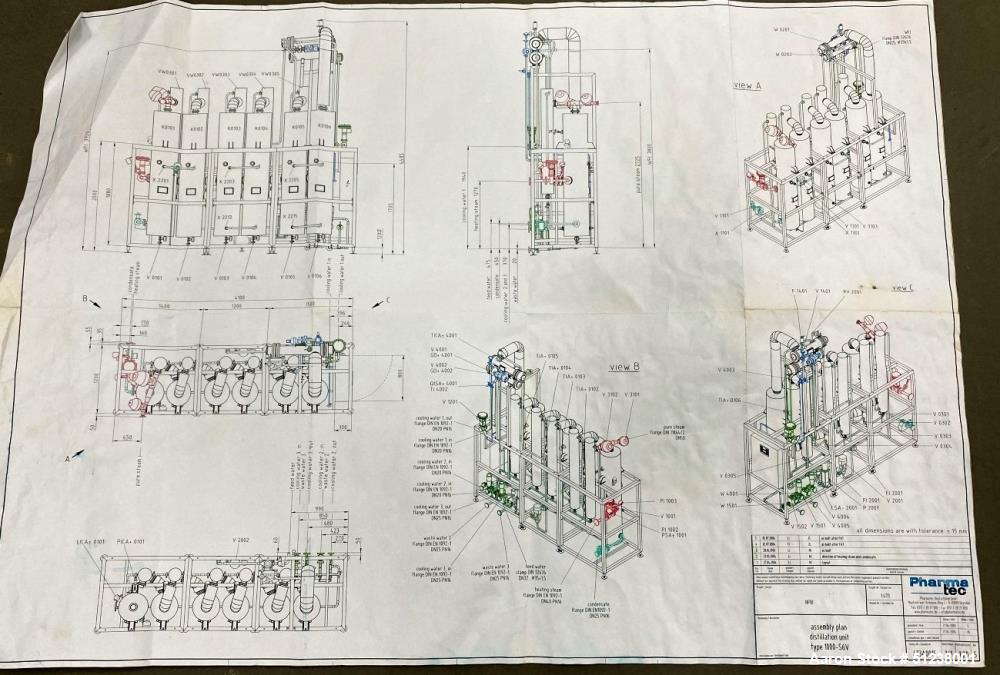

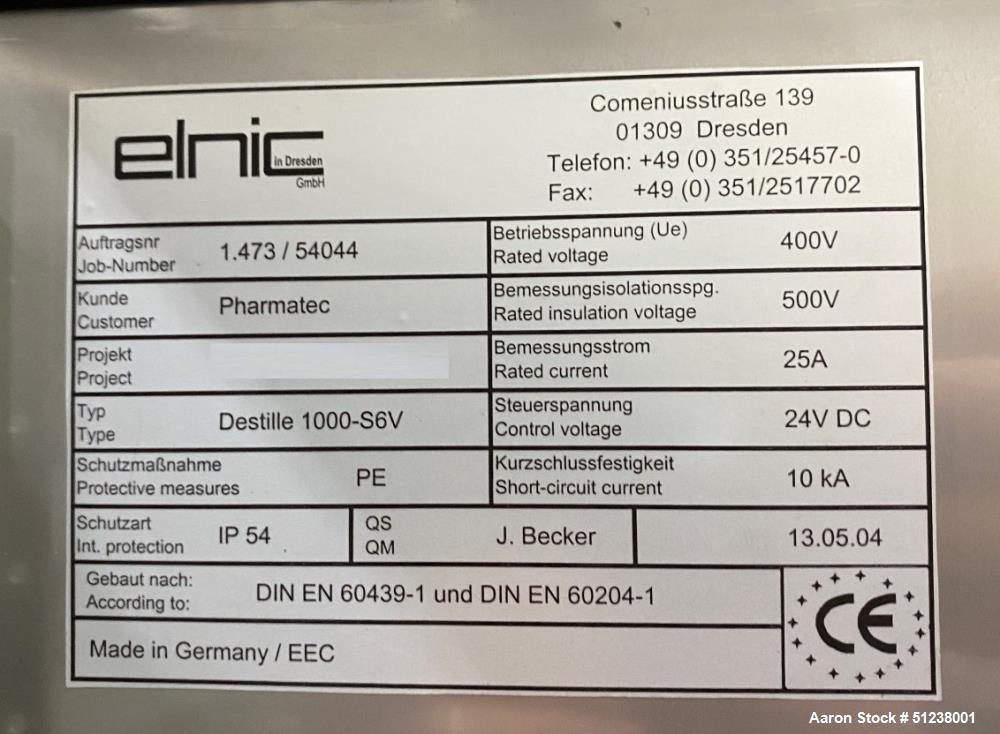

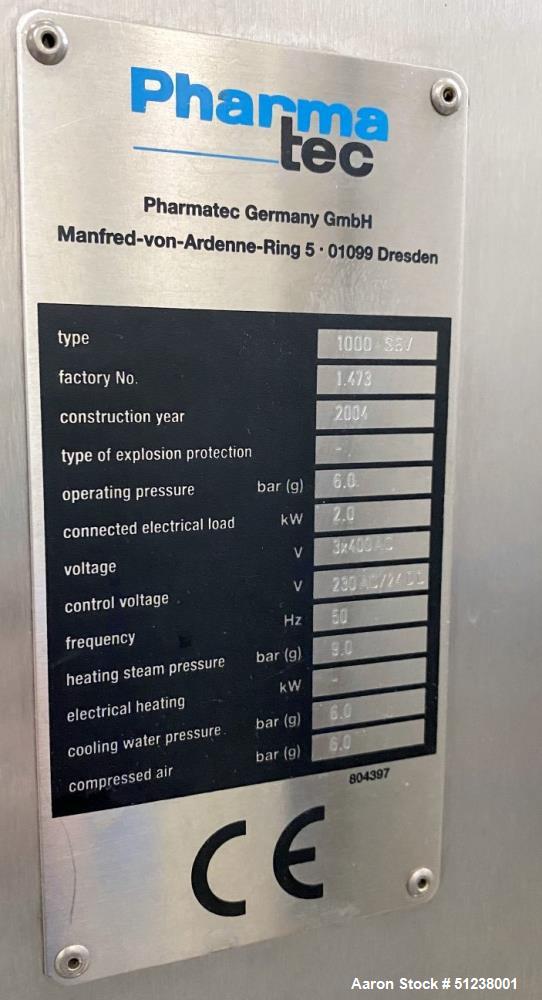

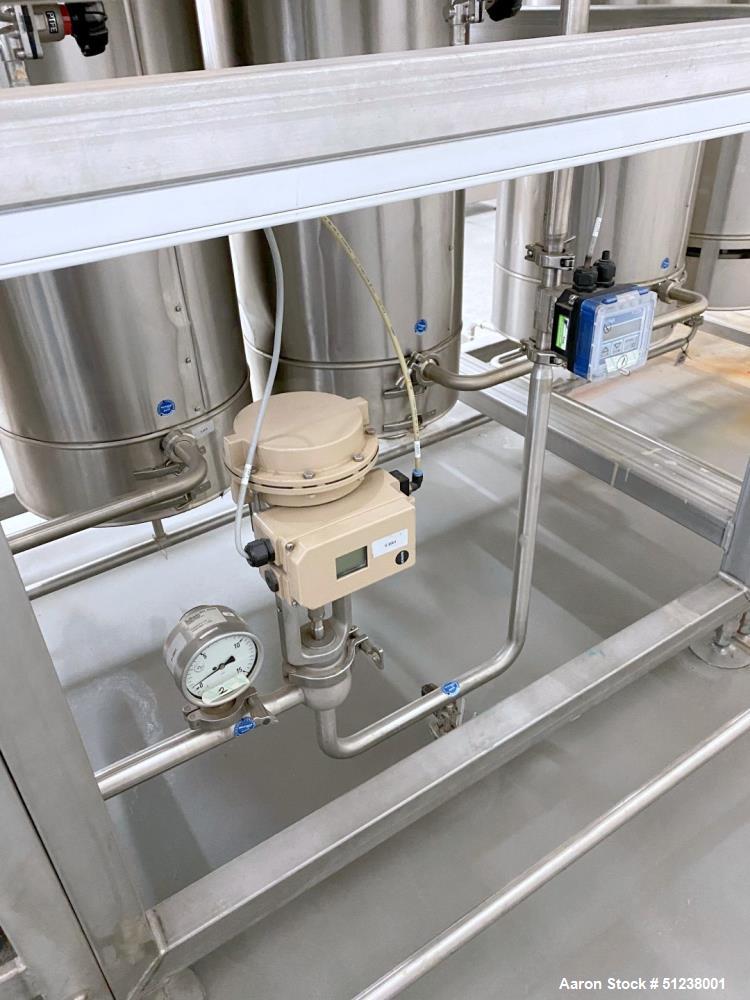

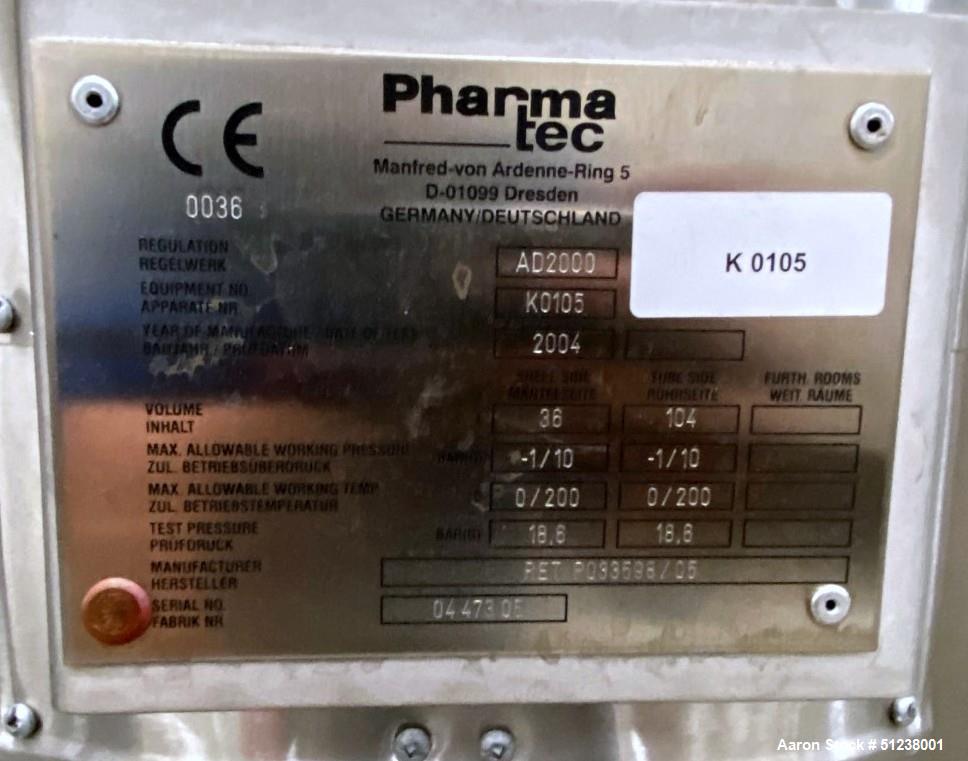

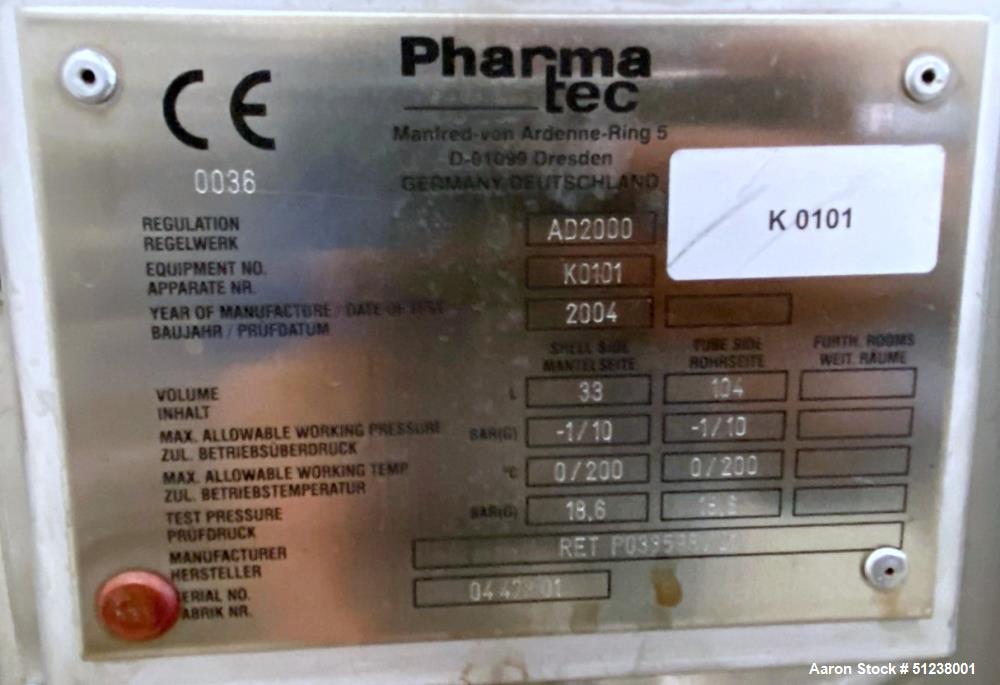

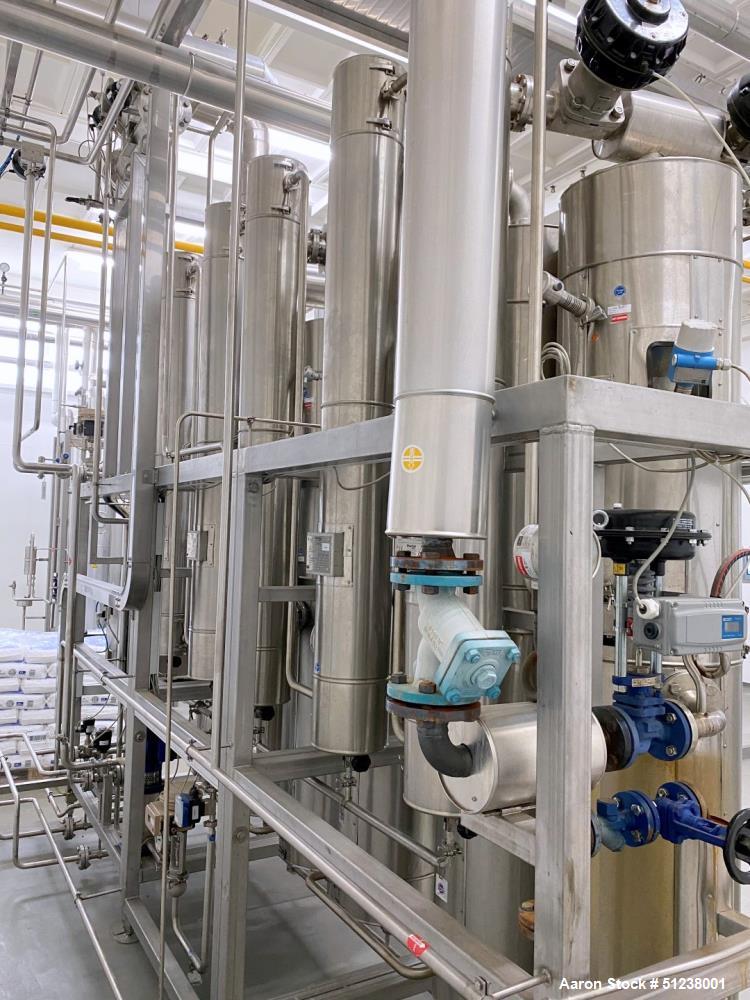

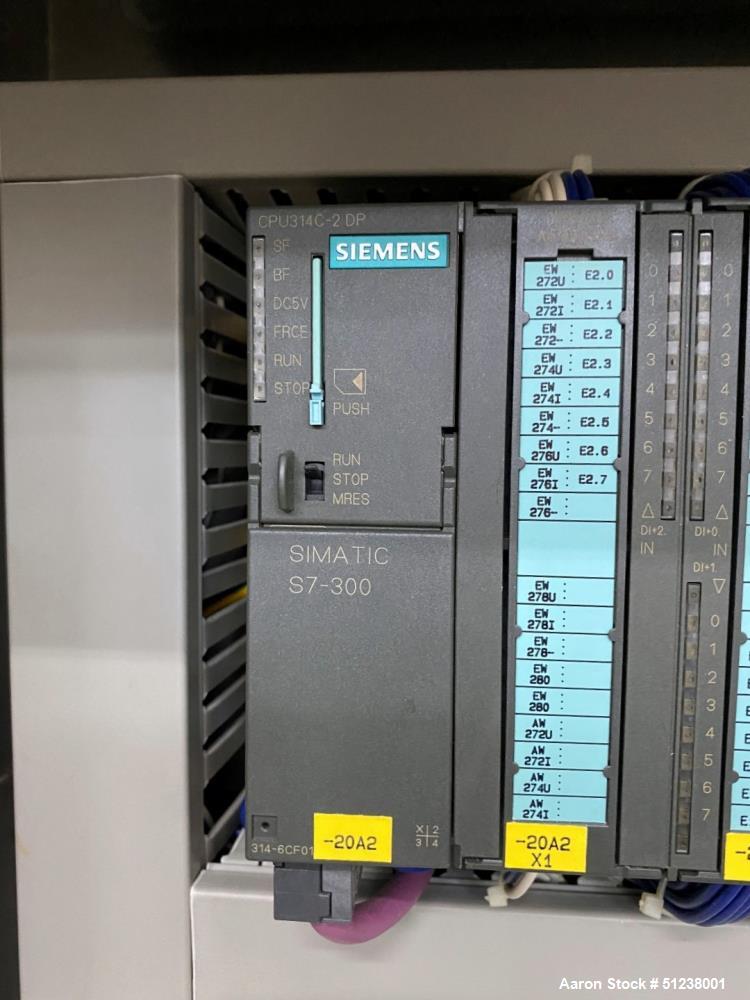

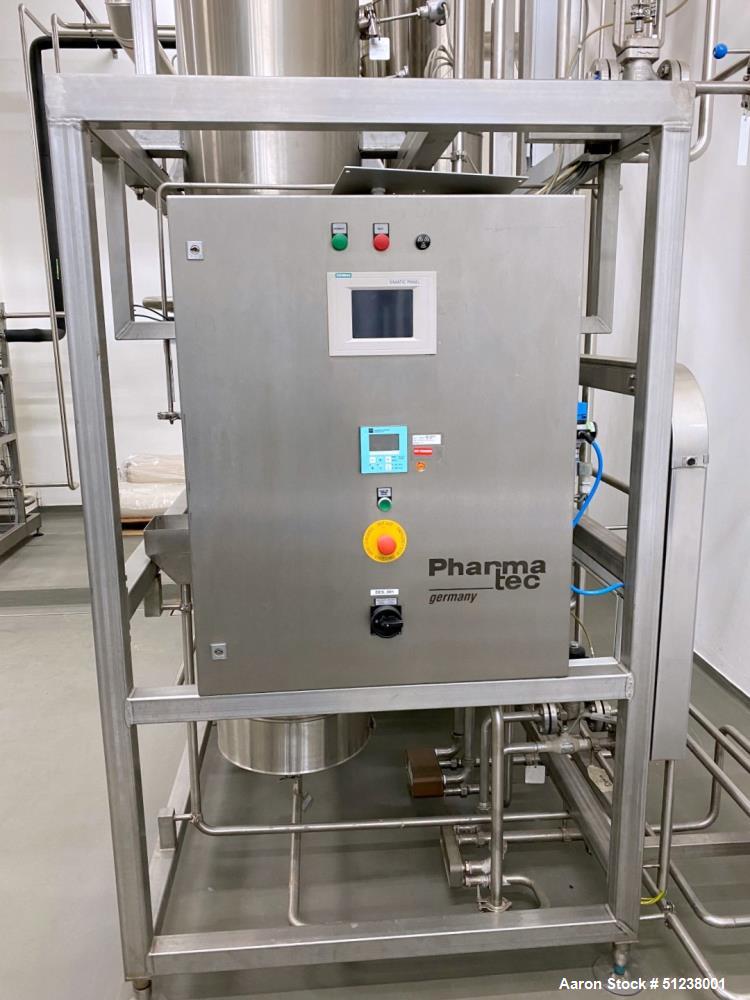

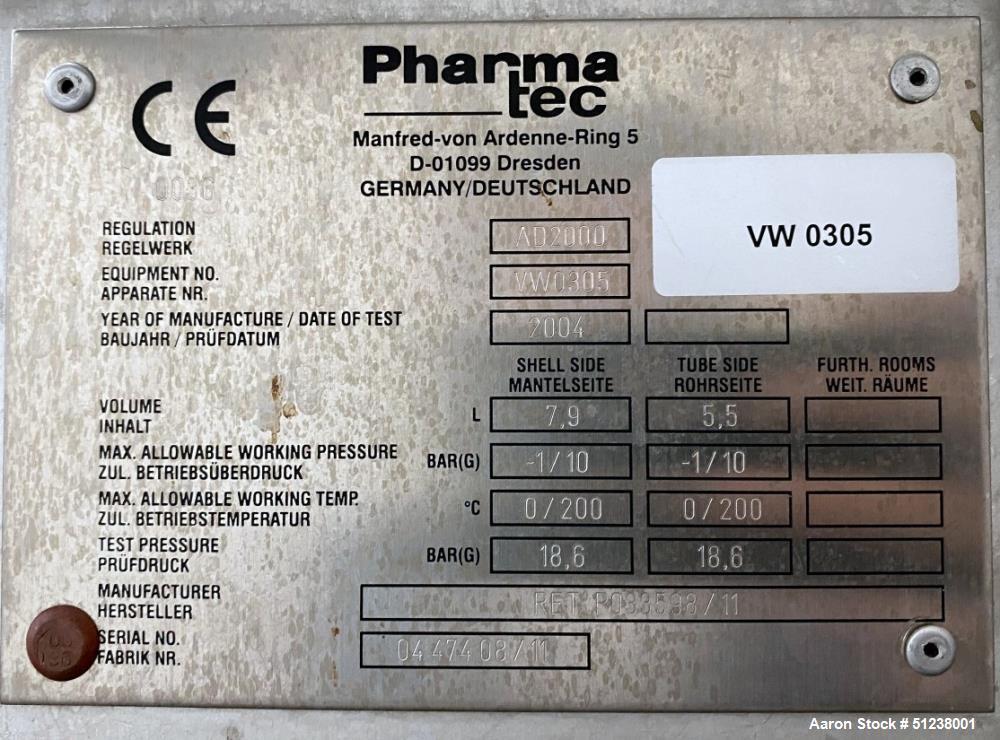

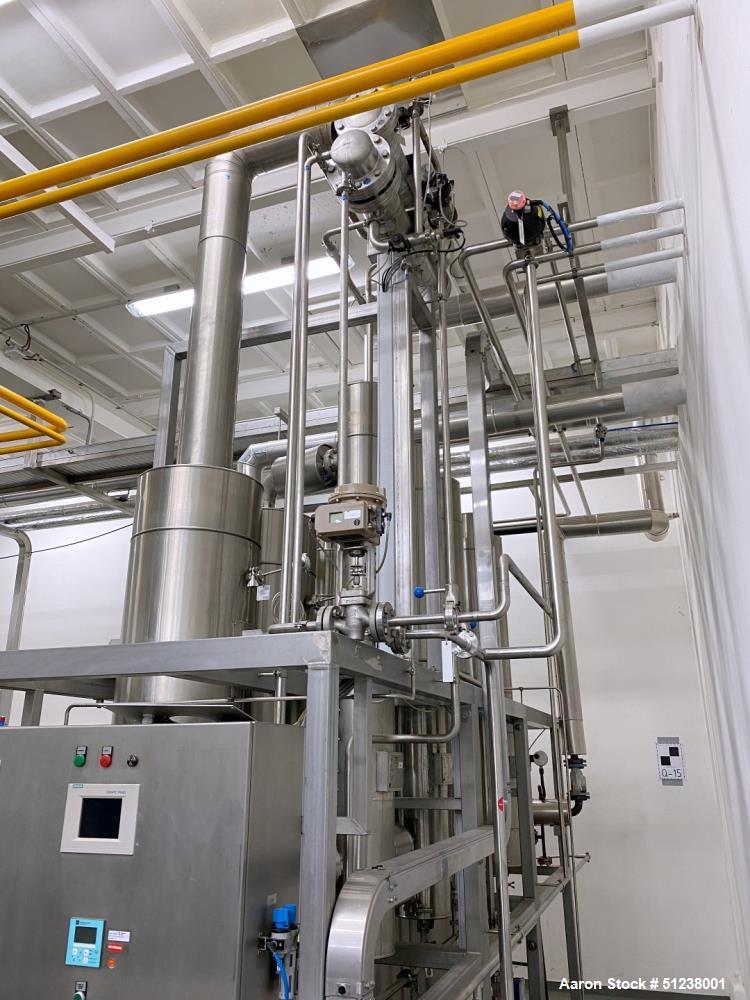

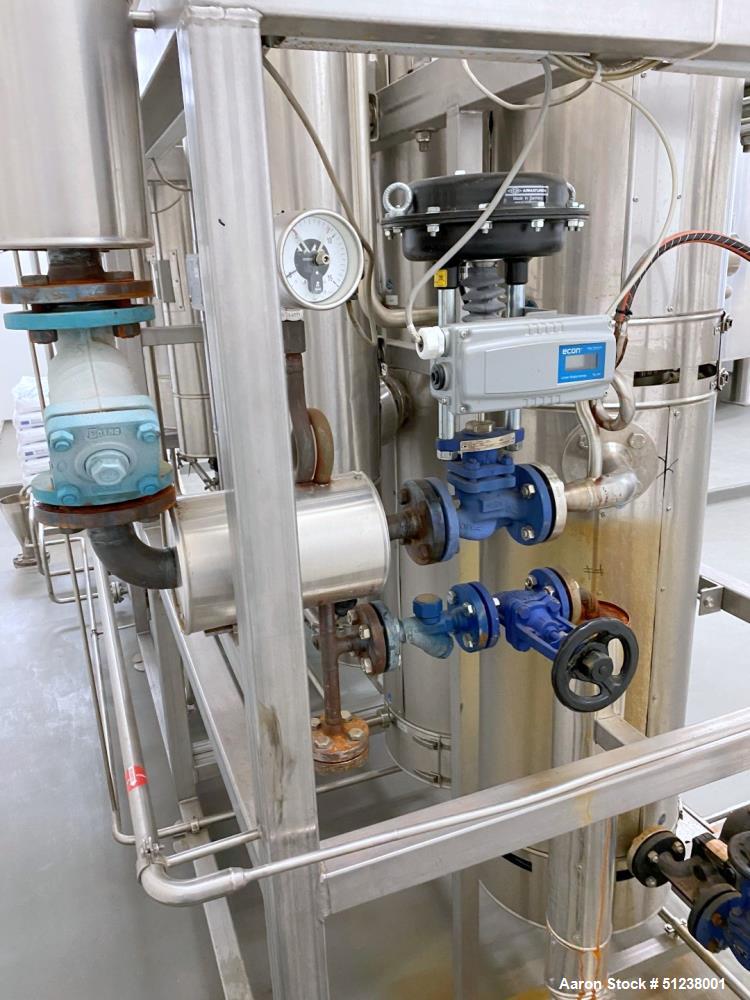

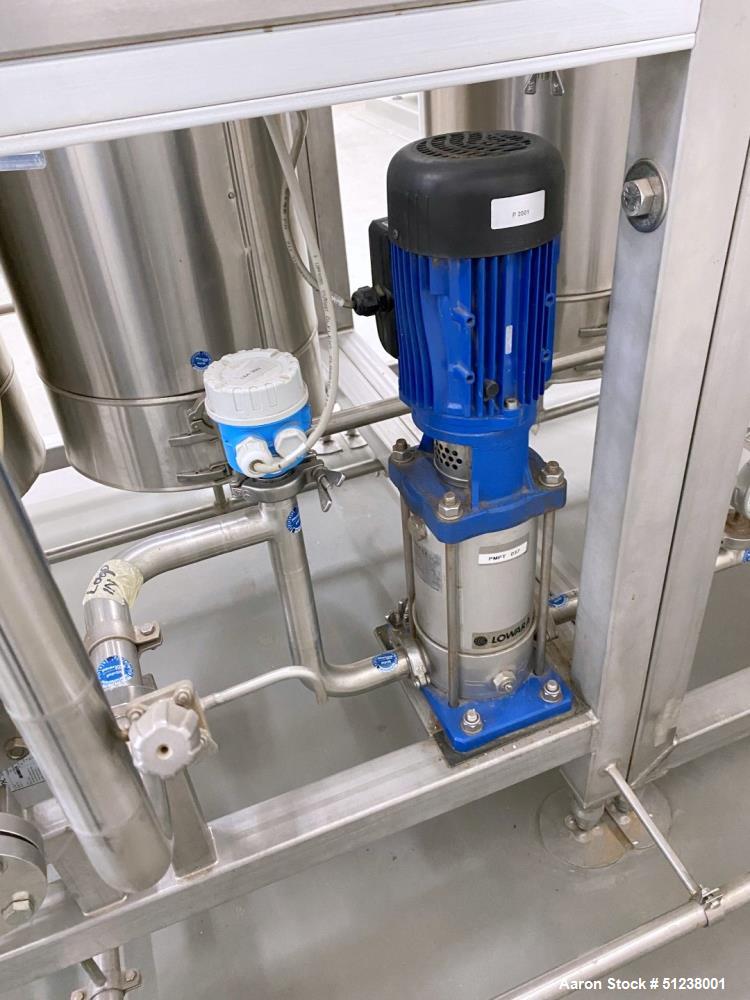

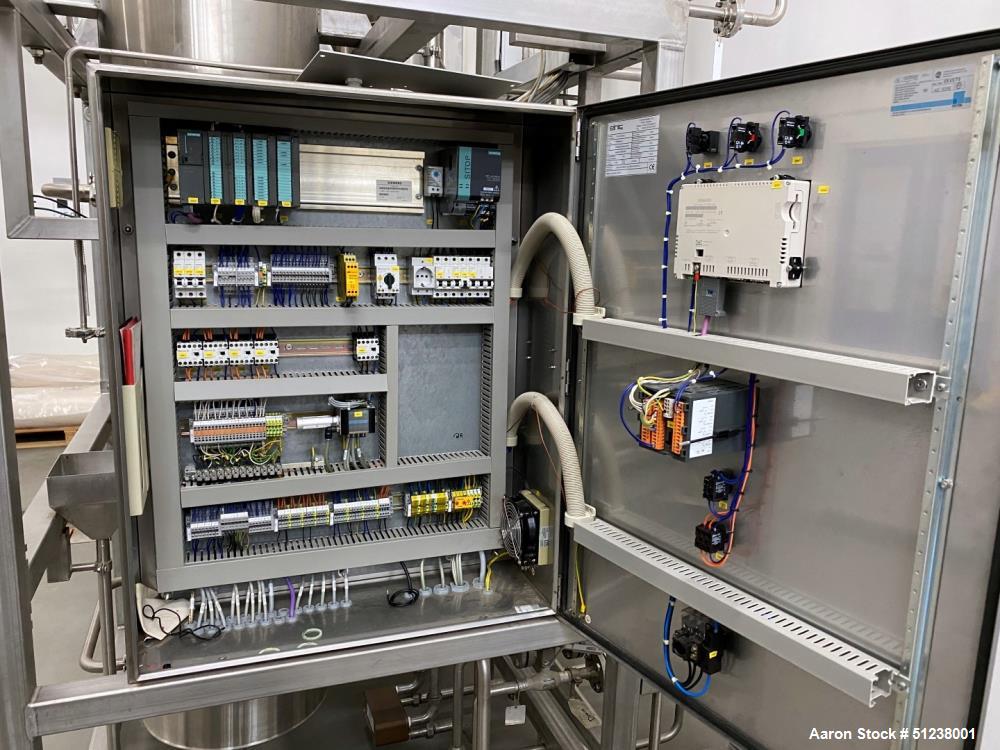

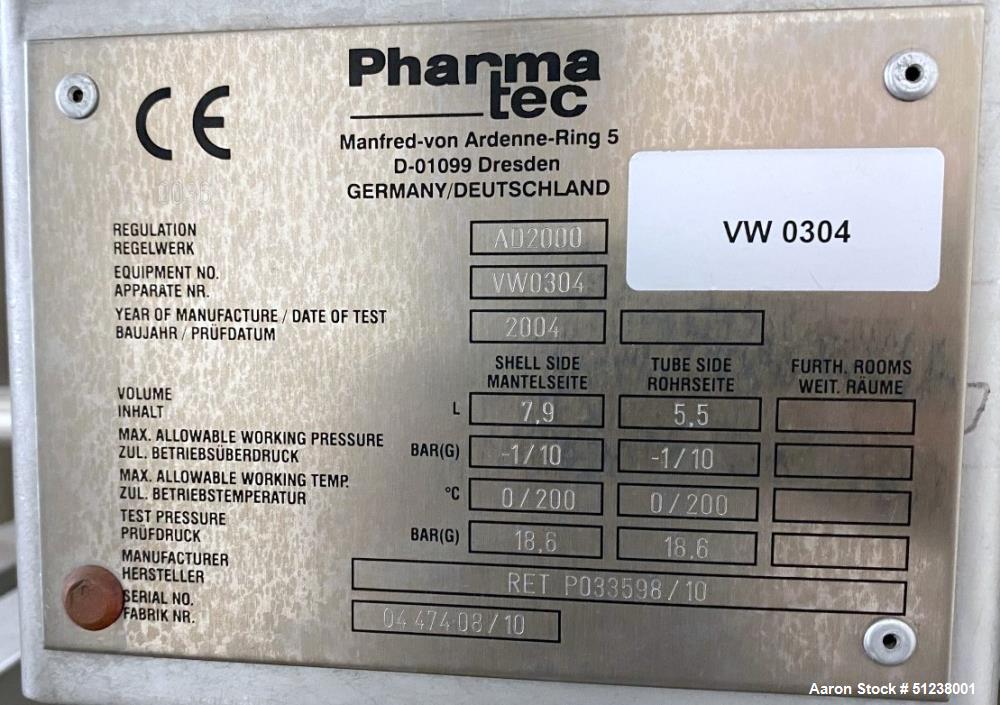

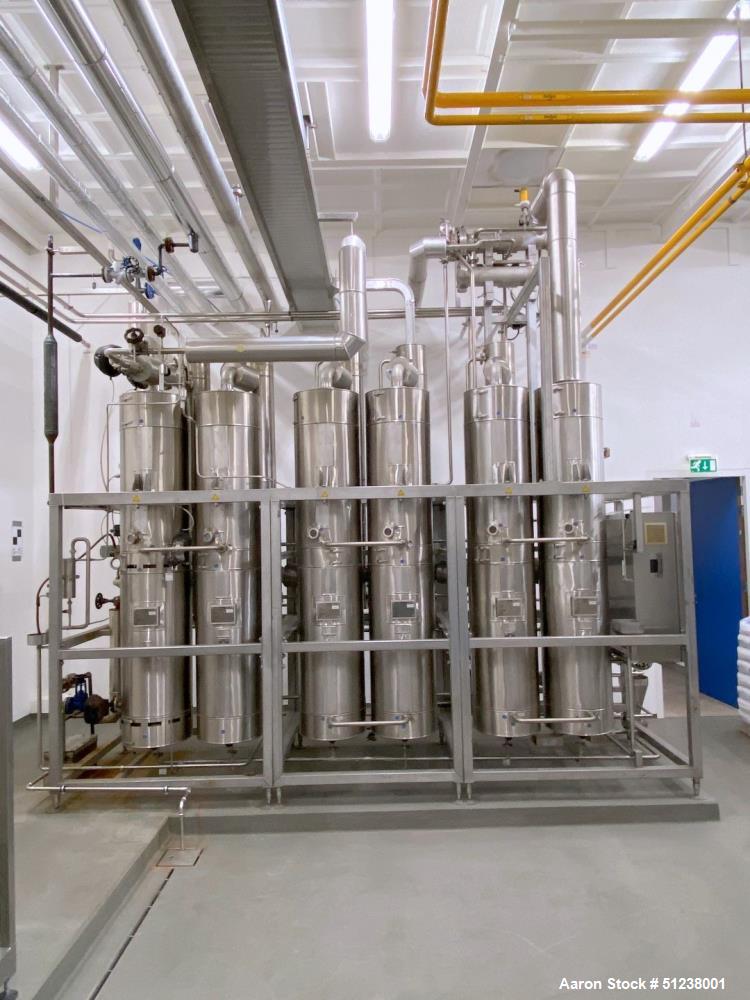

Used- Bosch PharmaTec, Type Distille 1000-S6V 6 Stage Multi Pressure Distillation Unit. For infusion liquids with a capacity of 280.4-542.3 gallon/hour (1060-2050 liter/hour). Designed to produce sterile, non-pyrogenic water for injection (WFI). (6) Columns/shell-and-tube heat exchangers 27.5-gallon (104 liter) tube capacity. Inside rated for 150 psi (10 bar) and full vacuum (-1) at 32-392 degree F (0-200 degree C). Test pressure 276 psi (18.6 bar). System operation pressure: 90 psi (6 bar). Heating steam pressure: 135 psi (9 bar). Cooling water pressure: 90 psi (6 bar). Compressed air: 90 psi (6 bar). Only the first column of the distillation unit needs to be heated with plant steam. Control panel with Siemens S7-300 PLC and touch screen panel. Complete with pumps, valves, and additional pipe infrastructure. Frame/Skid mounted in 3 sections. On leg. Serial # 1.473. New year 2004. Overall dimensions: 134" (100 mm) long x 39" (1200 mm) width x 146" (4485 mm) high. Weight: 3 tonnes. Previous used in a Pharma application on infusion liquid food for hospitals.
