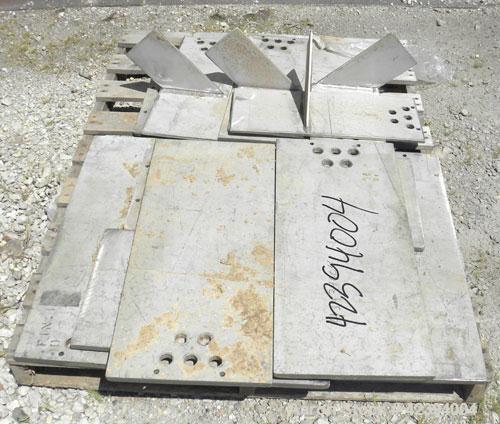

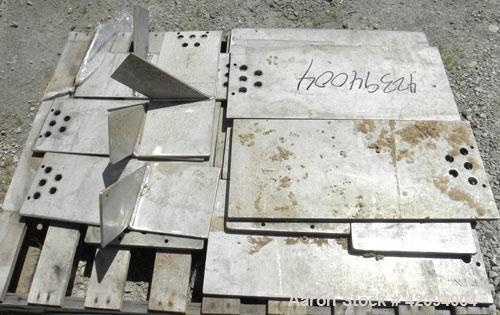

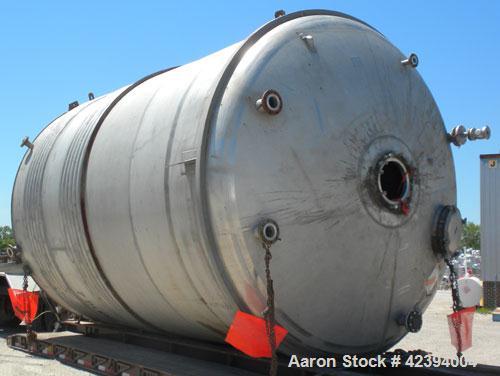

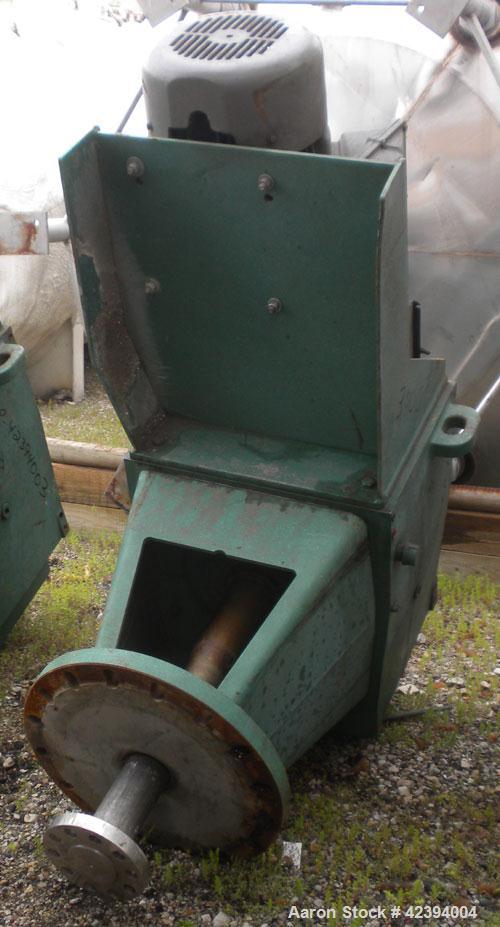

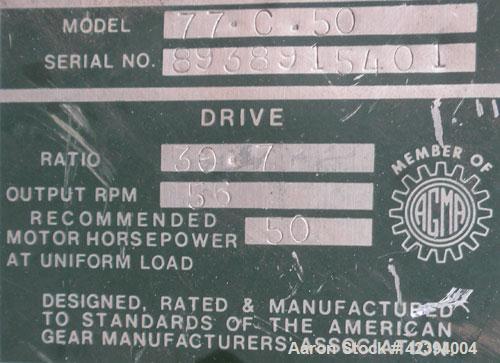

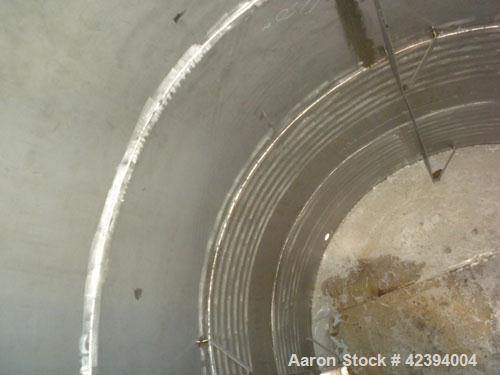

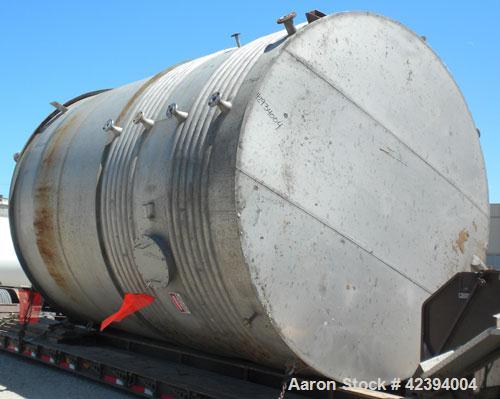

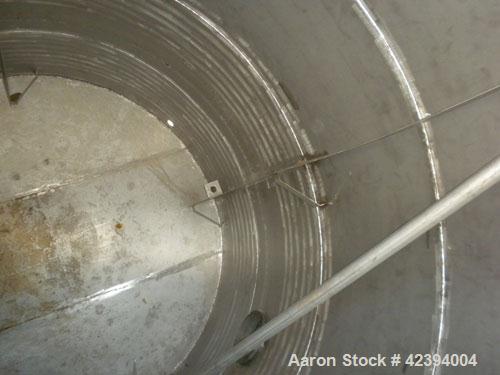

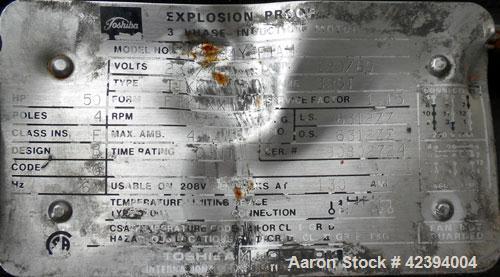

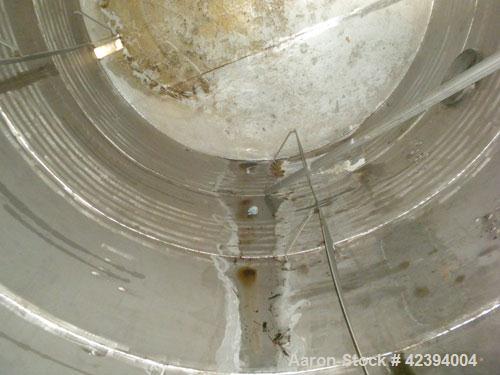

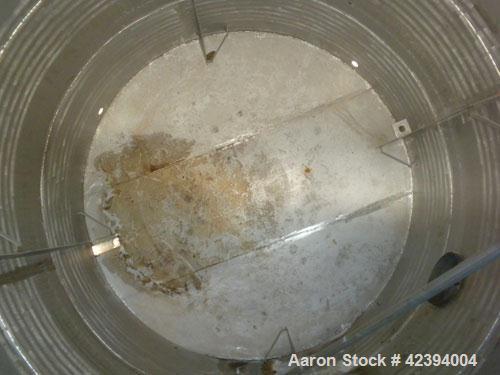

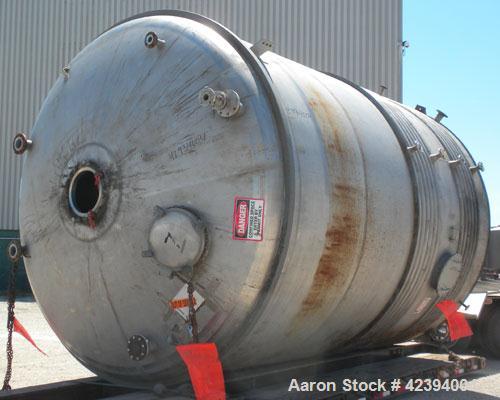

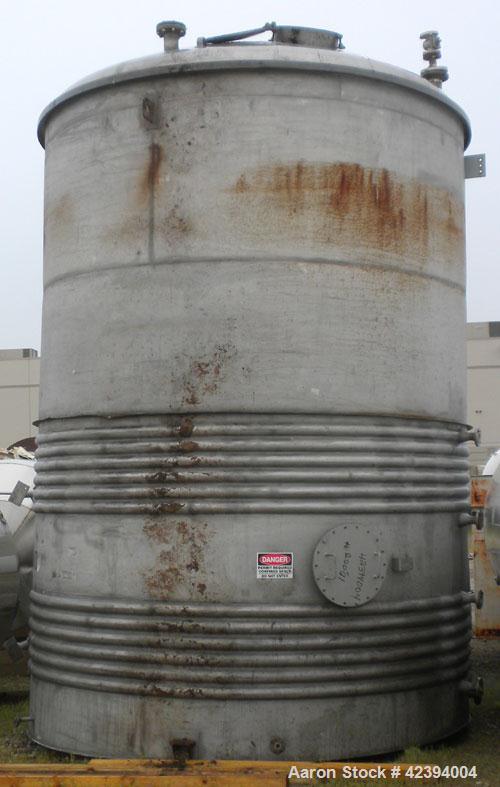

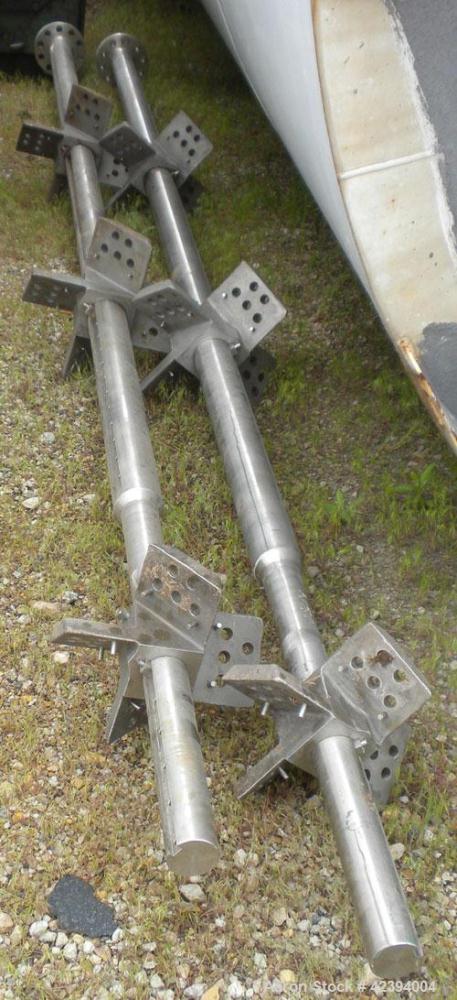

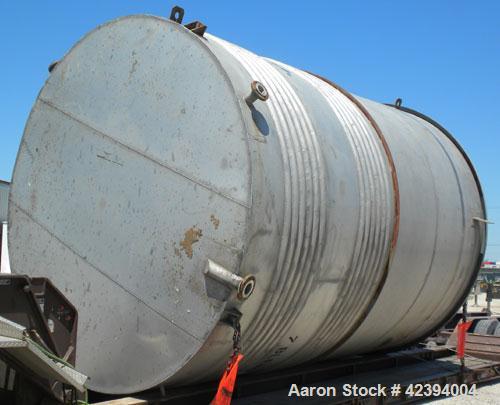

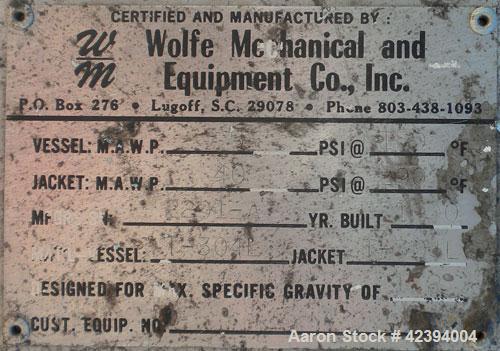

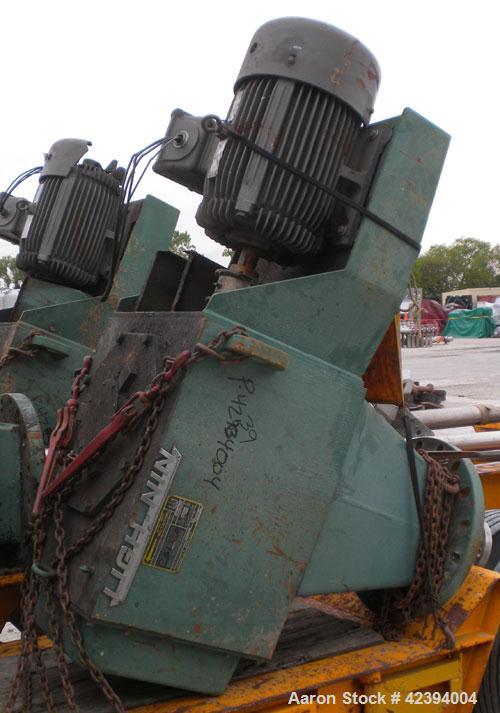

Used Wolfe Mechanical and Equipment Tank, 14,000 gallon, 304L stainless steel, vertical. Approximately 144" diameter x 192" straight side, dished top, sloped bottom. Internal rated 5 psi at 150 deg F. (2) Approximately 24" wide sections of 1/2 pipe coil jacket on the bottom portion of the tank rated 40 psi at 290 deg F. Top entering Lightnin agitator, model 77-C-50, ratio 30.7 to 1, output 56 rpm. Approximate 4" diameter shaft with (3) 4 bolt on blade turbines, driven by a 50 hp, 3/60/230/460 volt, 1755 rpm XP motor. (4) Side wall baffles. Openings: top 2", (4) 4", 16" drive, 20" manway with cover; side (3) 1", 3", 4", 18" manway with cover; 4" side bottom outlet.
Used Wolfe Mechanical and Equipment Tank, 14,000 gallon, 304L stainless steel, vertical. Approximately 144" diameter x 192" straight side, dished top, sloped bottom. Internal rated 5 psi at 150 deg F. (2) Approximately 24" wide sections of 1/2 pipe coil jacket on the bottom portion of the tank rated 40 psi at 290 deg F. Top entering Lightnin agitator, model 77-C-50, ratio 30.7 to 1, output 56 rpm. Approximate 4" diameter shaft with (3) 4 bolt on blade turbines, driven by a 50 hp, 3/60/230/460 volt, 1755 rpm XP motor. (4) Side wall baffles. Openings: top 2", (4) 4", 16" drive, 20" manway with cover; side (3) 1", 3", 4", 18" manway with cover; 4" side bottom outlet.
