Stock No.: 13140144

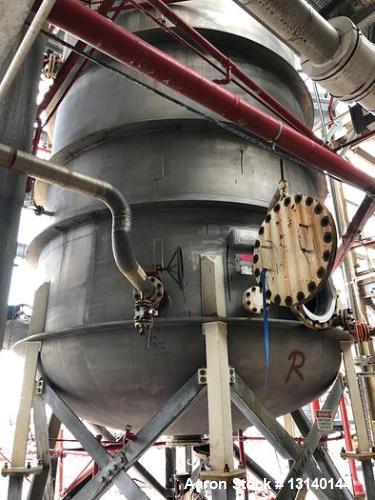

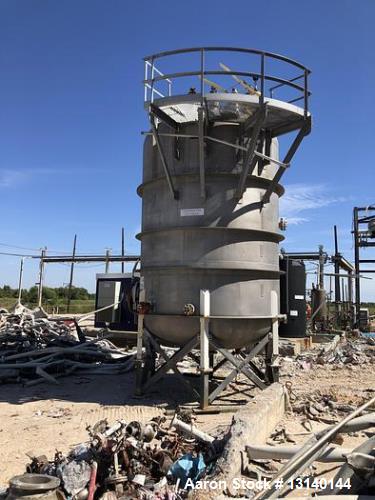

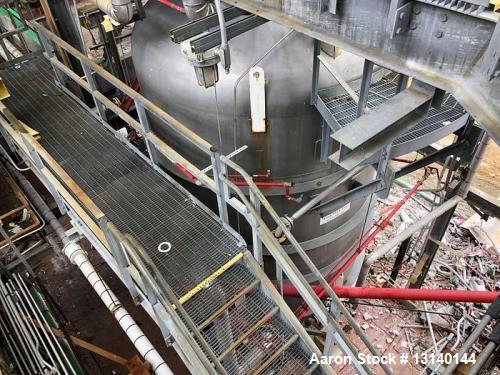

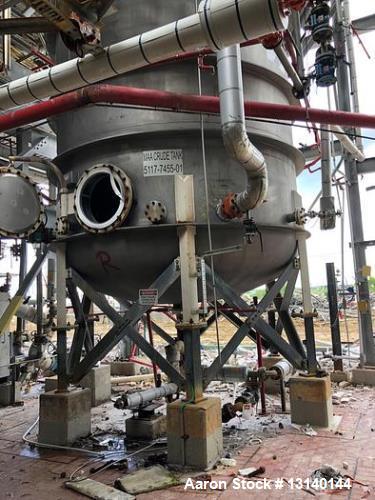

Sistersville Tank Works Approximately 15,444 Gallon C276 Hastelloy Vertical

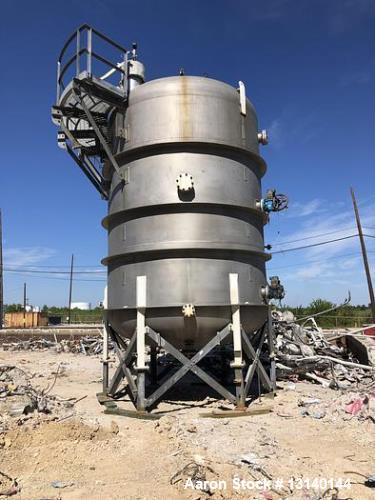

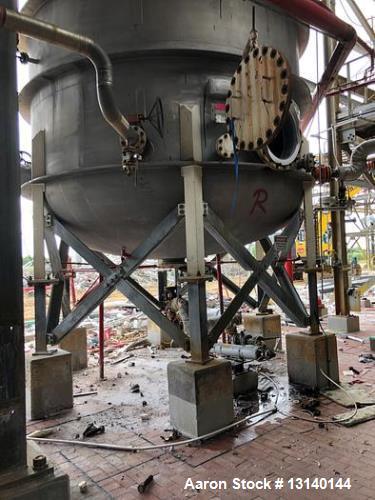

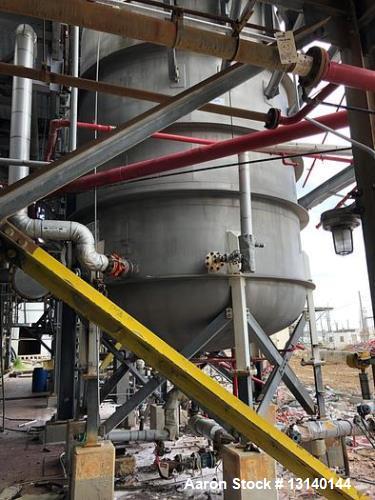

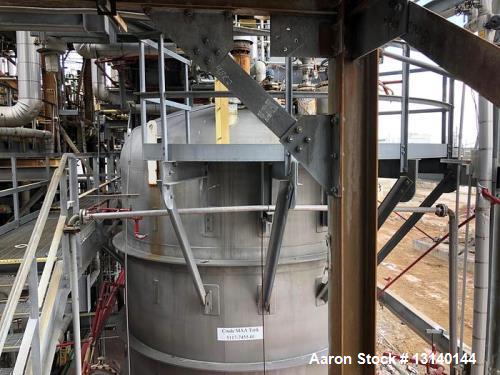

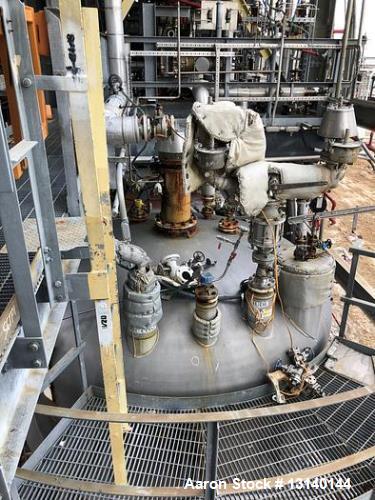

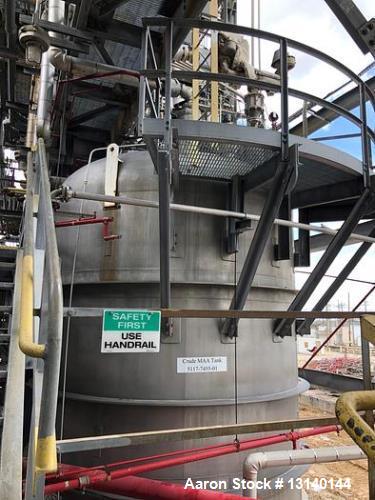

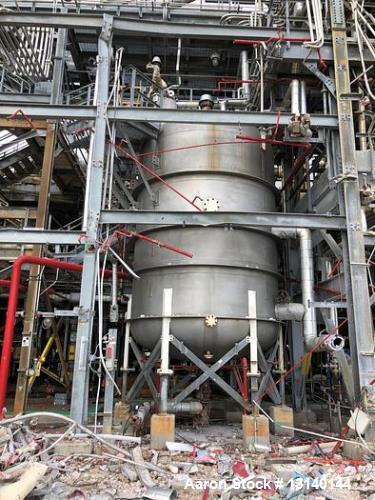

Used- Sistersville Tank Works Approximately 15,444 Gallon C276 Hastelloy Vertical Tank. 144" diameter X 168" high straight side. Internal rated 15 PSIG @ 212 degrees F. Shell max external pressure 13.07 PSIA. Dished top and bottom head. Top fittings: 4" with 2" diptube, 4", 3", 4", 12", 4" with 1" diptube, and 2". 12" center bottom drain reduced to 3" and (1) 3" off-center drain. Side fittings: 8", 8", 8", 4", 8", 24" manway, 4" with 1" inlet, 4" with 2" inlet, 4" with 1" inlet, 4", 4", and 4". Has (3) 304 stainless steel stiffening rings. Mounted on (4) carbon steel legs. Serial# 95-131, National Board# 3265.
-
ManufacturerSisterville Tank Works
-
Serial #95-131
-
CategoryTanks
-
SubcategoryStainless 5000 Gal and up
-
Gallons15444
-
Material Of ConstructionHastelloy
-
Horizontal Or VerticalVertical
-
Diameter144"
-
Straight Side168"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure15psi
-
Internal Temperature212 F
-
OpeningTop fittings: 4" with 2" diptube, 4", 3", 4", 12", 4" with 1" diptube, and 2". 12" center bottom drain reduced to 3" and (1) 3" off-center drain. Side fittings: 8", 8", 8", 4", 8", 24" manway, 4" with 1" inlet, 4" with 2" inlet, 4" with 1" inlet, 4", 4", and 4"
-
Opening CoverYes
-
Outlet Size3"
-
Outlet LocationBottom
-
MountedMounted on 4 Legs
-

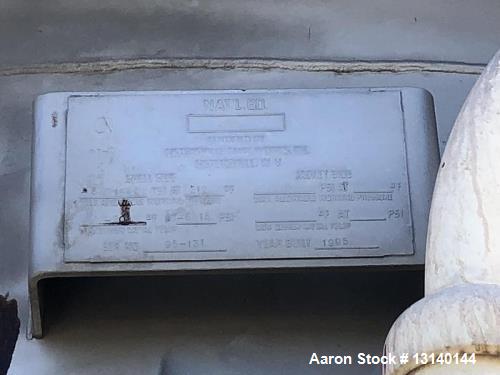

National Board No.3265
-
Year Built1995
