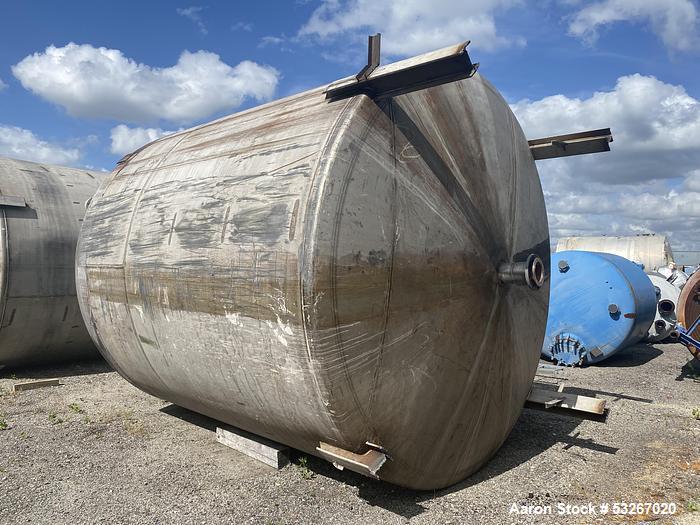

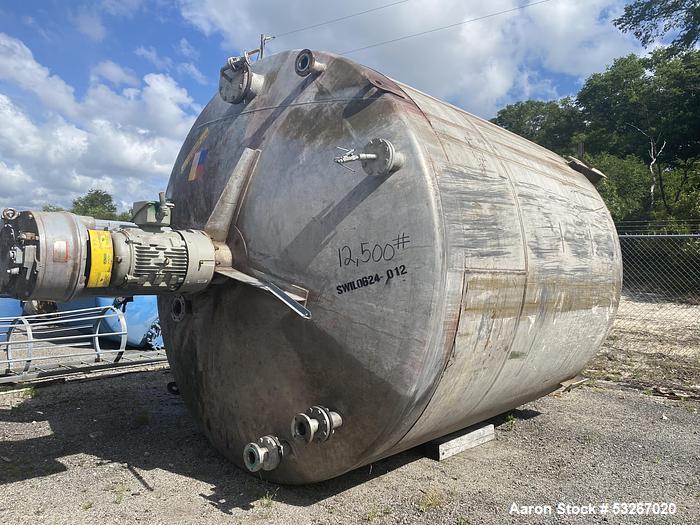

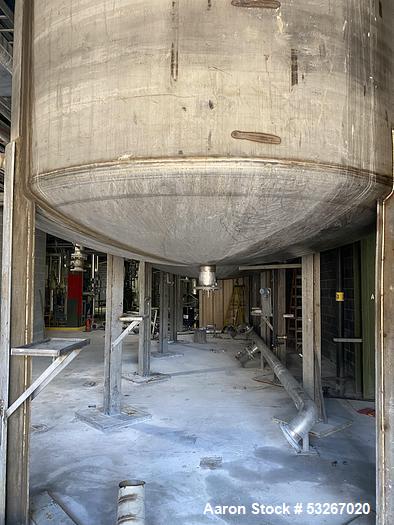

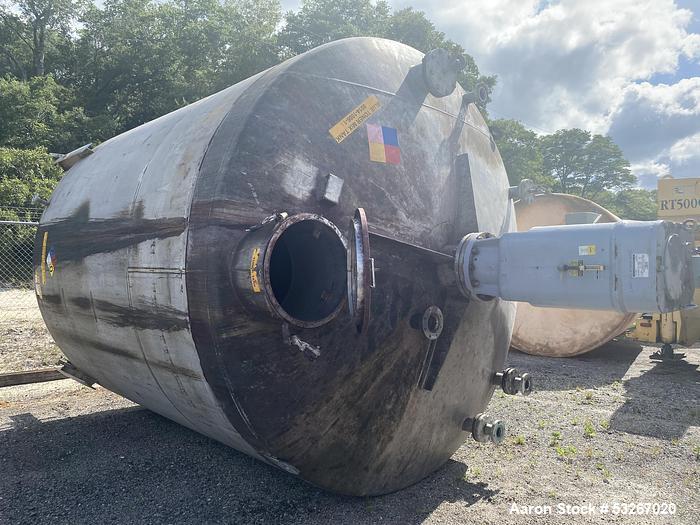

Used IPSCO 9300 Gallon 304 Stainless Steel Vertical Mix Tank

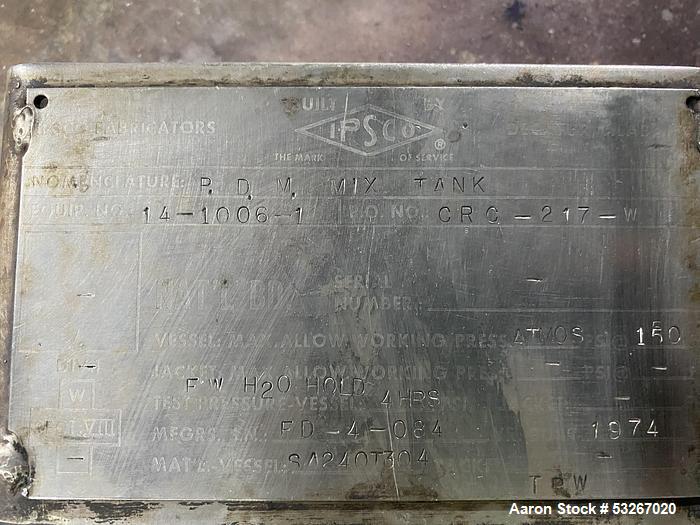

Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank. 138" diameter X 144" high straight side. Internal rated ATMOS @ 150 F. S/N FD-4-084 Dished heads. Top fittings: 24" manway, (1) 3", (4) 4", and (1) 10". 6" center bottom drain. Equipped with (4) blade agitator driven by Philadelphia Type PTERSS-16 drive S/N 305651- I&R. Rated 1750 RPM input, 45 RPM output. Powered by 30HP 3/60/460 volt motor. Mounted on (4) stainless steel legs that give 64" clearance. NOTE: LEGS WERE CUT FOR REMOVAL OF TANK.
| Manufacturer | IpscoIpsco |
| Category | TanksTanks |
| Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
| Gallons | 9300 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 138" |
| Straight Side | 144" |
| Top Head Style | Dished Head |
| Bottom | Dished Bottom |
| Internal Pressure | Atmospheric |
| Internal Temperature | 150 F |
| Agitator HP | 30 |
| Agitator Phase | 3 |
| Agitator Cycle | 60 |
| Agitator Voltage | 208-230/460 Volt |
| Agitator Rpm | 1750 |
| Opening | 24" manway, (1) 3", (4) 4", and (1) 10" |
| Opening Cover | Yes |
| Outlet Size | 6" |
| Outlet Location | Bottom |
Description:
This used IPSCO 9300-gallon 304 stainless steel vertical mix tank is designed for industrial mixing applications, featuring a 138" diameter and a 144" straight side height. It is internally rated for ATMOS pressure at 150°F and constructed with dished heads for durability. The tank includes a 24" manway and multiple top fittings for easy access and processing flexibility. It is equipped with a 4-blade agitator, powered by a Philadelphia Type PTERSS-16 drive and a 30HP 3/60/460V motor. The tank stands on four stainless steel legs, offering 64" clearance (Note: legs were cut during removal).
Specifications:
- Capacity: Approx. 9300 gallons
- Material: 304 stainless steel
- Dimensions:
- Diameter: 138”
- Straight Side Height: 144”
- Pressure Rating: Atmospheric (ATMOS) at 150°F
- Top Fittings:
- Manway: 24”
- Other Ports: (1) 3", (4) 4", and (1) 10"
- Bottom Drain: 6” center bottom drain
- Agitation System:

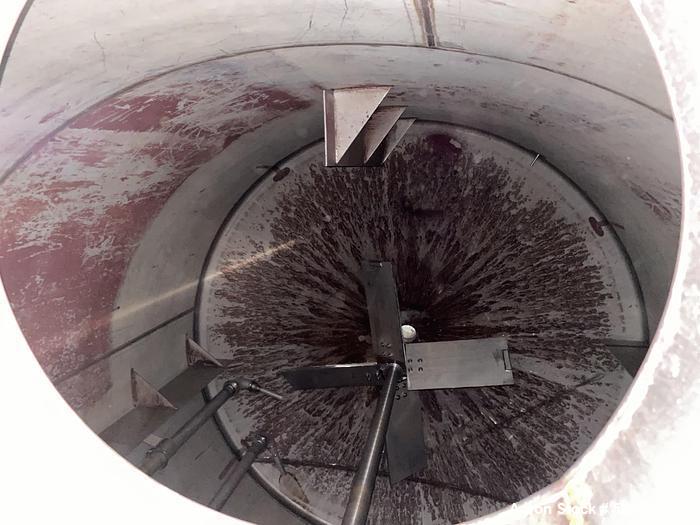

- Agitator: 4-blade
- Drive Type: Philadelphia Type PTERSS-16
- Drive S/N: 305651-I&R
- Speed: 1750 RPM input, 45 RPM output
- Motor Power: 30HP, 3-phase, 60 Hz, 460V
- Mounting:
- Supported by four stainless steel legs (cut for removal)
- 64” clearance under the tank
Applications:
This IPSCO stainless steel mix tank is ideal for industries requiring large-scale liquid processing and agitation, including:
- Chemical processing
- Pharmaceutical manufacturing
- Food and beverage production
- Dairy and dairy product mixing
- Cosmetic and personal care product formulation
- Water treatment and wastewater processing
- Petrochemical and industrial fluid blending
Compatible Products:
- Bulk liquid chemicals
- Food-grade liquids (e.g., syrups, dairy)
- Pharmaceutical formulations
- Paints, coatings, and adhesives
- Water and wastewater treatment solutions
- Essential oils and cosmetics mixtures
- Used IPSCO mix tank
- 9300-gallon stainless steel tank
- Industrial mixing tank
- Philadelphia agitator tank
- Stainless steel vertical tank
- Stainless steel mix tank for sale
- 304 stainless steel mixing tank
- Large capacity mix tank
- Heavy-duty stainless steel tank
- Food-grade mixing tank
- 9300-gallon stainless steel industrial tank
- Used vertical stainless steel mix tank
- Heavy-duty industrial mixing tank for sale
- 304 stainless steel agitation tank
- Stainless steel chemical mixing tank
- Used IPSCO tank with agitator
- High-capacity stainless steel mix tank
- Large-volume liquid processing tank
- Stainless steel tank with bottom drain
- Industrial mixing tank with Philadelphia drive
- Used IPSCO 9300-gallon 304 stainless steel vertical mix tank with agitator
- Industrial chemical mixing tank with 4-blade agitator for sale
- Stainless steel mixing tank with 30HP motor and Philadelphia drive
- Used stainless steel tank with center bottom drain and multiple top fittings
- Heavy-duty 9300-gallon stainless steel mix tank for food, pharma, and chemical use
- Vertical stainless steel tank with agitator and 64-inch clearance
- Used large-capacity stainless steel mixing tank with industrial motor
- Food and beverage-grade stainless steel agitation tank for sale
- Pharmaceutical-grade stainless steel mix tank with high-capacity motor
- Chemical processing tank with industrial agitator and stainless steel legs
Used IPSCO approximately 9300 gallon 304 stainless steel vertical mix tank. 138" diameter X 144" high straight side. Internal rated ATMOS @ 150 F. S/N FD-4-084 Dished heads. Top fittings: 24" manway, (1) 3", (4) 4", and (1) 10". 6" center bottom drain. Equipped with (4) blade agitator driven by Philadelphia Type PTERSS-16 drive S/N 305651- I&R. Rated 1750 RPM input, 45 RPM output. Powered by 30HP 3/60/460 volt motor. Mounted on (4) stainless steel legs that give 64" clearance. NOTE: LEGS WERE CUT FOR REMOVAL OF TANK.
Description:
This used IPSCO 9300-gallon 304 stainless steel vertical mix tank is designed for industrial mixing applications, featuring a 138" diameter and a 144" straight side height. It is internally rated for ATMOS pressure at 150°F and constructed with dished heads for durability. The tank includes a 24" manway and multiple top fittings for easy access and processing flexibility. It is equipped with a 4-blade agitator, powered by a Philadelphia Type PTERSS-16 drive and a 30HP 3/60/460V motor. The tank stands on four stainless steel legs, offering 64" clearance (Note: legs were cut during removal).
Specifications:
- Capacity: Approx. 9300 gallons
- Material: 304 stainless steel
- Dimensions:
- Diameter: 138”
- Straight Side Height: 144”
- Pressure Rating: Atmospheric (ATMOS) at 150°F
- Top Fittings:
- Manway: 24”
- Other Ports: (1) 3", (4) 4", and (1) 10"
- Bottom Drain: 6” center bottom drain
- Agitation System:
- Agitator: 4-blade
- Drive Type: Philadelphia Type PTERSS-16
- Drive S/N: 305651-I&R
- Speed: 1750 RPM input, 45 RPM output
- Motor Power: 30HP, 3-phase, 60 Hz, 460V
- Mounting:
- Supported by four stainless steel legs (cut for removal)
- 64” clearance under the tank
Applications:
This IPSCO stainless steel mix tank is ideal for industries requiring large-scale liquid processing and agitation, including:
- Chemical processing
- Pharmaceutical manufacturing
- Food and beverage production
- Dairy and dairy product mixing
- Cosmetic and personal care product formulation
- Water treatment and wastewater processing
- Petrochemical and industrial fluid blending
Compatible Products:
- Bulk liquid chemicals
- Food-grade liquids (e.g., syrups, dairy)
- Pharmaceutical formulations
- Paints, coatings, and adhesives
- Water and wastewater treatment solutions
- Essential oils and cosmetics mixtures
| Manufacturer | Ipsco |
| Category | Tanks |
| Subcategory | Stainless 5000 Gal and up |
| Gallons | 9300 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 138" |
| Straight Side | 144" |
| Top Head Style | Dished Head |
| Bottom | Dished Bottom |
| Internal Pressure | Atmospheric |
| Internal Temperature | 150 F |
| Agitator HP | 30 |
| Agitator Phase | 3 |
| Agitator Cycle | 60 |
| Agitator Voltage | 208-230/460 Volt |
| Agitator Rpm | 1750 |
| Opening | 24" manway, (1) 3", (4) 4", and (1) 10" |
| Opening Cover | Yes |
| Outlet Size | 6" |
| Outlet Location | Bottom |
