Used Industrial Alloy Receiver Tank, 5,000 Gallon, Horizontal, 304L Stainless Steel construction. Approximately 96" diameter x 168" straight side, dished ends. Internal rated 50 psi and full vacuum at -20 to 350 F internal, with (2) bolt on side belly jacket panels, mounted on saddles. National Board# 2428, Serial# F1178-3
Manufacturer | Industrial Alloy FabIndustrial Alloy Fab |
Serial # | F1178-3 |
Category | TanksTanks |
Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
Gallons | 5000 |
Material of Construction | 304L Stainless Steel |
Horizontal or Vertical | Horizontal |
Diameter | 96" |
Straight Side | 168" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 50 psi |
Internal Temperature | -20 to 350 degrees F |

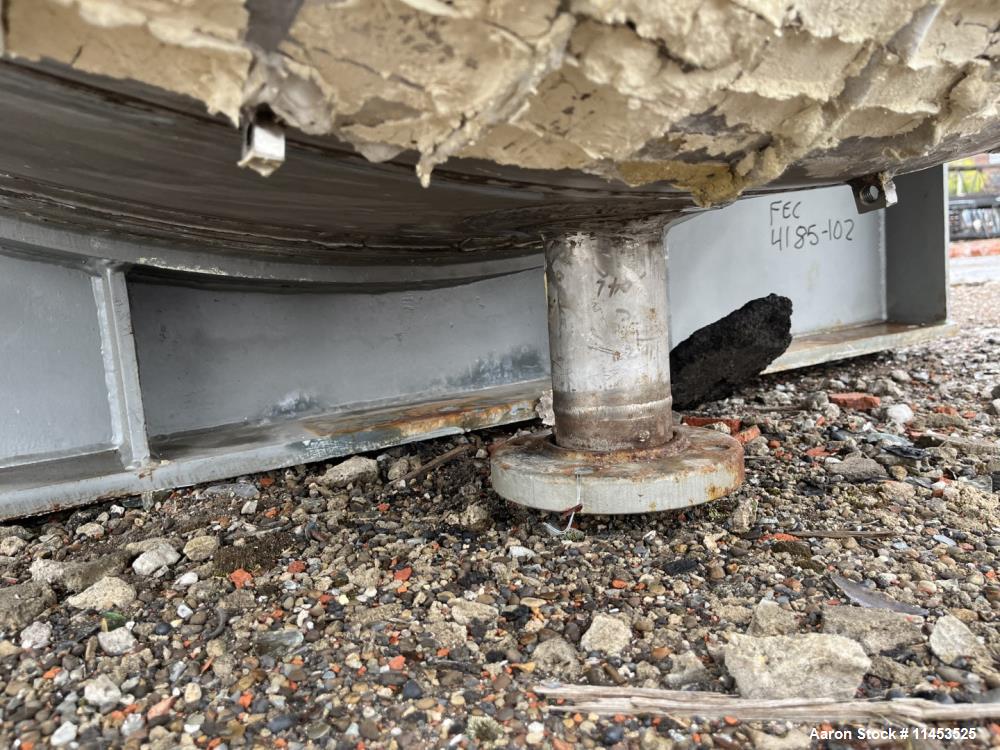

Mounted | Saddle Mounted |

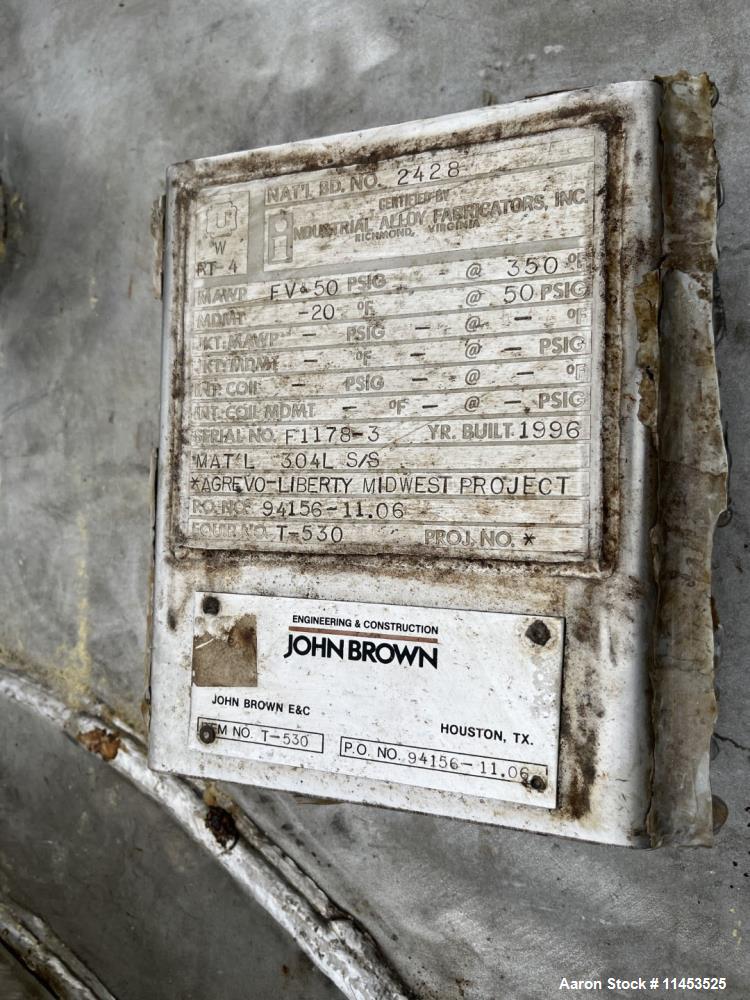

National Board No. | 2428 |
Year Built | 1996 |
The Industrial Alloy 5,000-Gallon Horizontal Receiver Tank is a high-capacity stainless steel pressure vessel, designed for industrial, food, chemical, and pharmaceutical applications requiring high-pressure and vacuum-rated storage.
Constructed from 304L stainless steel, this tank provides excellent corrosion resistance and durability. It features a 96" diameter and 168" straight side, along with dished ends for enhanced structural integrity and efficient pressure handling.

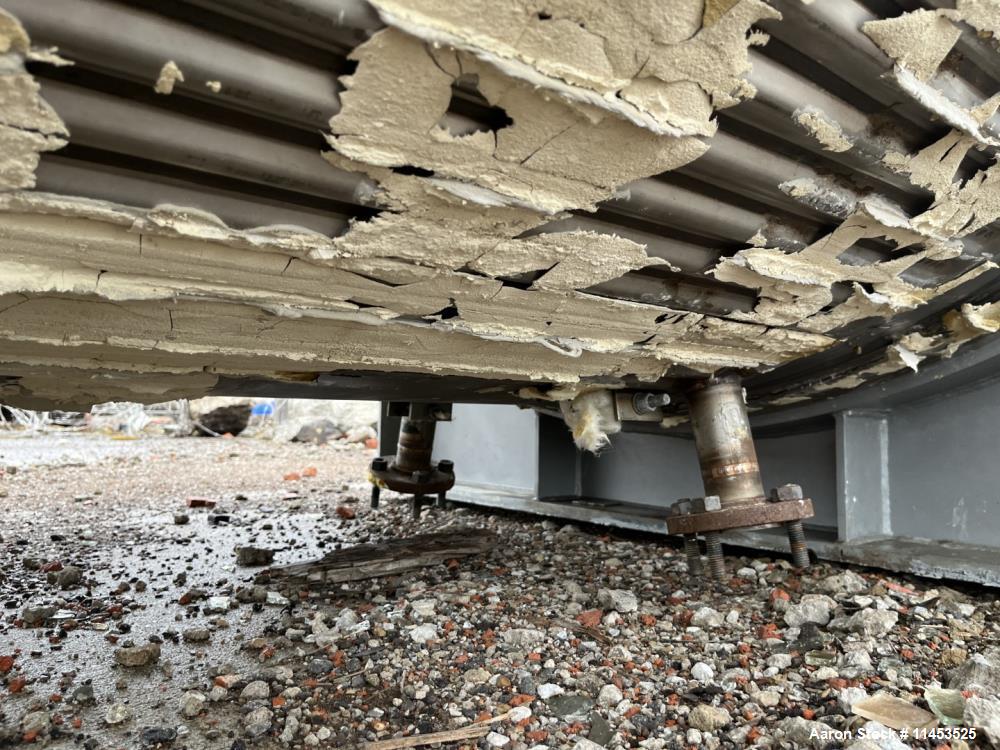

With an internal rating of 50 psi and full vacuum, and an operating temperature range from -20°F to 350°F, this tank is well-suited for pressurized and vacuum storage applications. It is mounted on saddles for stability and includes (2) bolt-on side belly jacket panels, allowing for precise temperature control via heating or cooling.
Used Industrial Alloy Receiver Tank, 5,000 Gallon, Horizontal, 304L Stainless Steel construction. Approximately 96" diameter x 168" straight side, dished ends. Internal rated 50 psi and full vacuum at -20 to 350 F internal, with (2) bolt on side belly jacket panels, mounted on saddles. National Board# 2428, Serial# F1178-3
The Industrial Alloy 5,000-Gallon Horizontal Receiver Tank is a high-capacity stainless steel pressure vessel, designed for industrial, food, chemical, and pharmaceutical applications requiring high-pressure and vacuum-rated storage.
Constructed from 304L stainless steel, this tank provides excellent corrosion resistance and durability. It features a 96" diameter and 168" straight side, along with dished ends for enhanced structural integrity and efficient pressure handling.
With an internal rating of 50 psi and full vacuum, and an operating temperature range from -20°F to 350°F, this tank is well-suited for pressurized and vacuum storage applications. It is mounted on saddles for stability and includes (2) bolt-on side belly jacket panels, allowing for precise temperature control via heating or cooling.
Manufacturer | Industrial Alloy Fab |
Serial # | F1178-3 |
Category | Tanks |
Subcategory | Stainless 5000 Gal and up |
Gallons | 5000 |
Material of Construction | 304L Stainless Steel |
Horizontal or Vertical | Horizontal |
Diameter | 96" |
Straight Side | 168" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 50 psi |
Internal Temperature | -20 to 350 degrees F |
Mounted | Saddle Mounted |
National Board No. | 2428 |
Year Built | 1996 |
