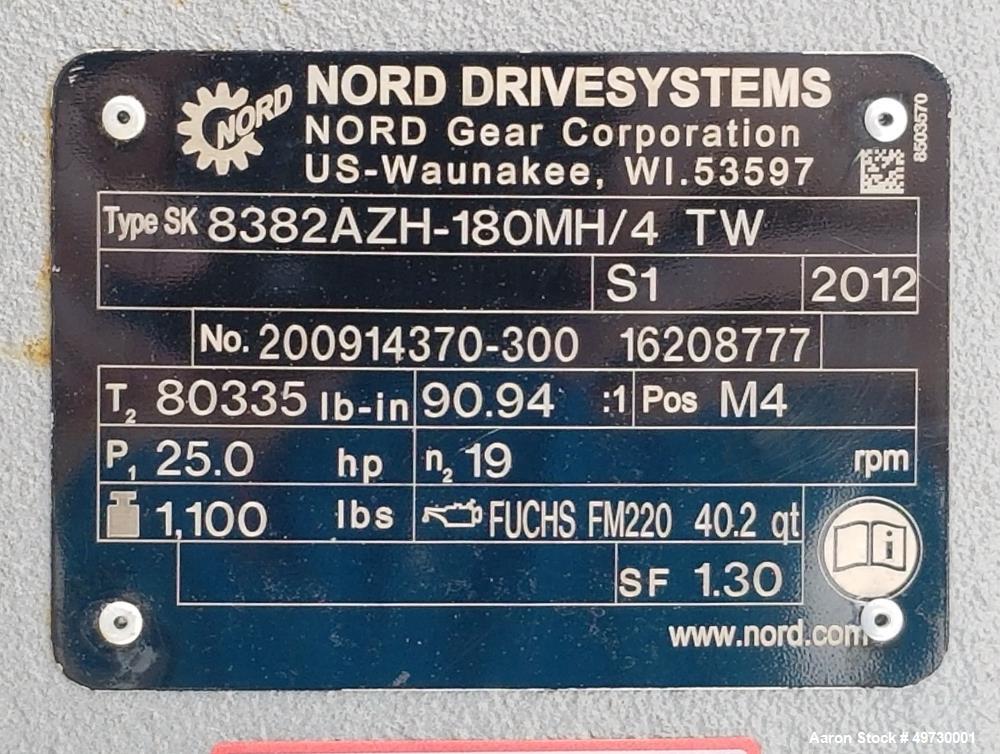

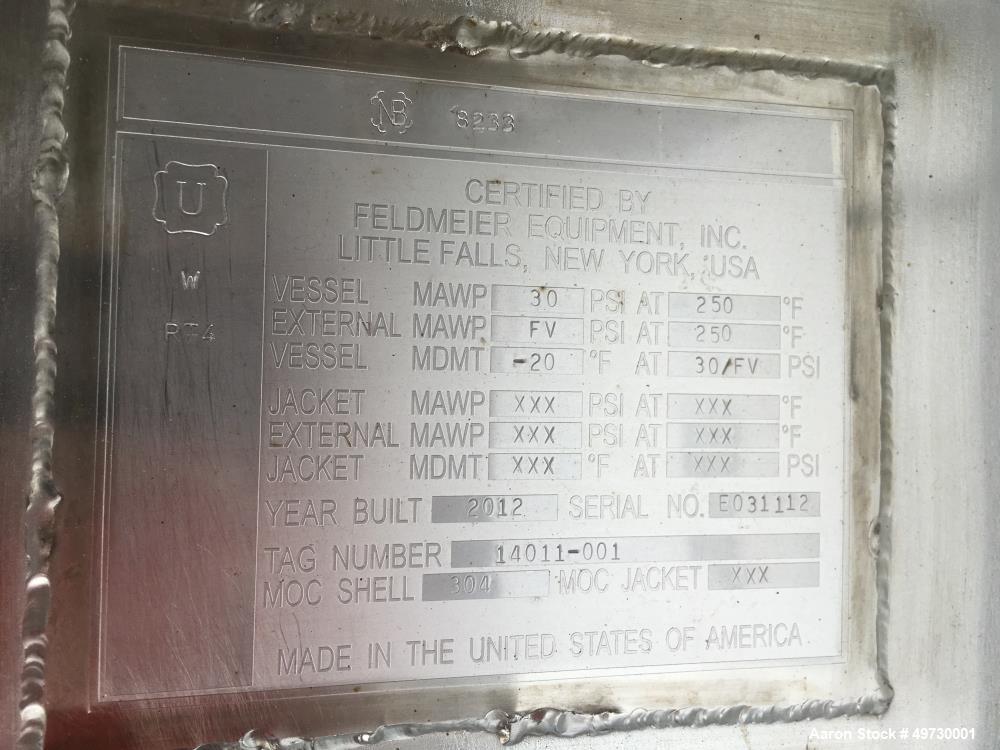

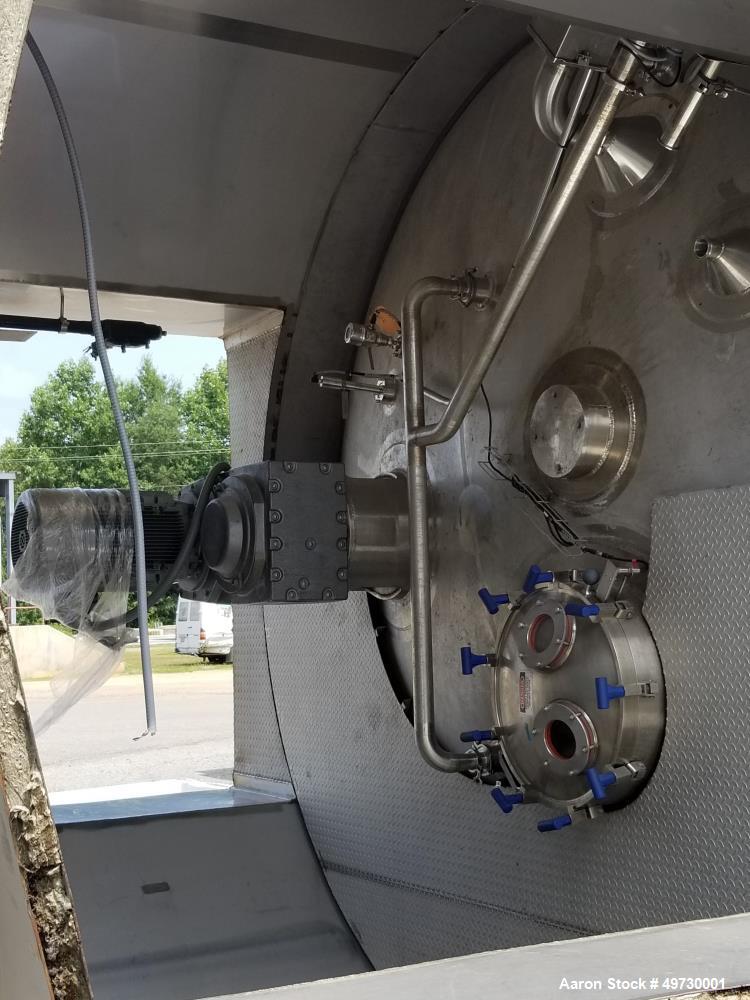

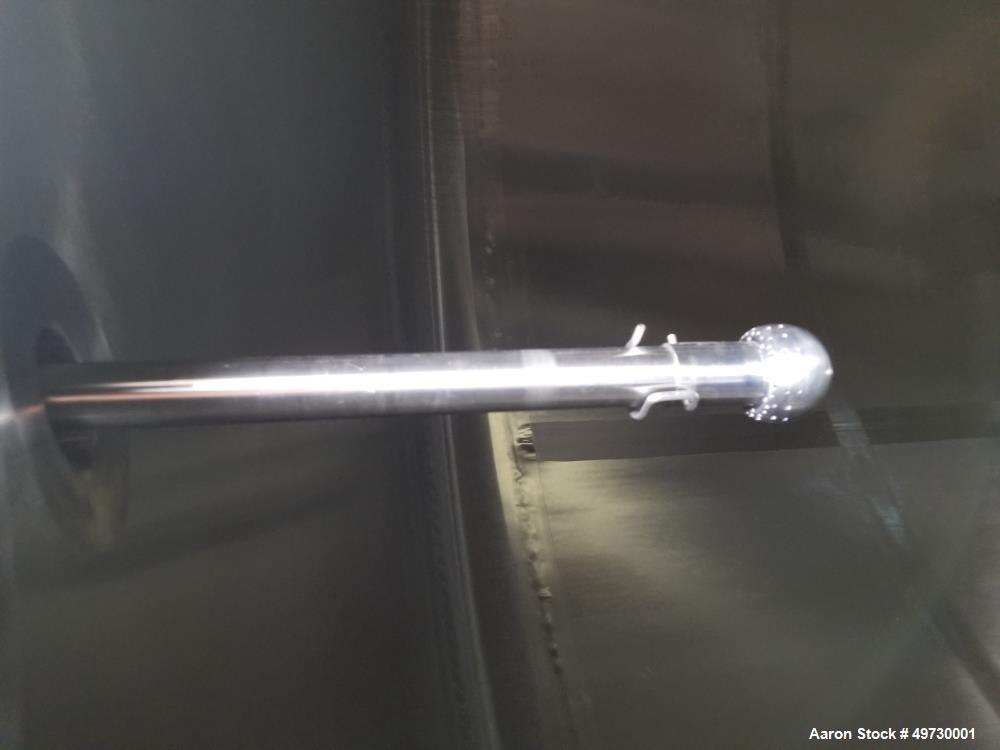

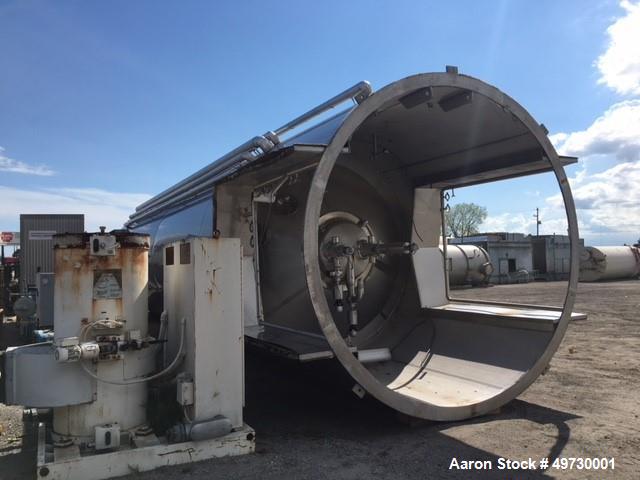

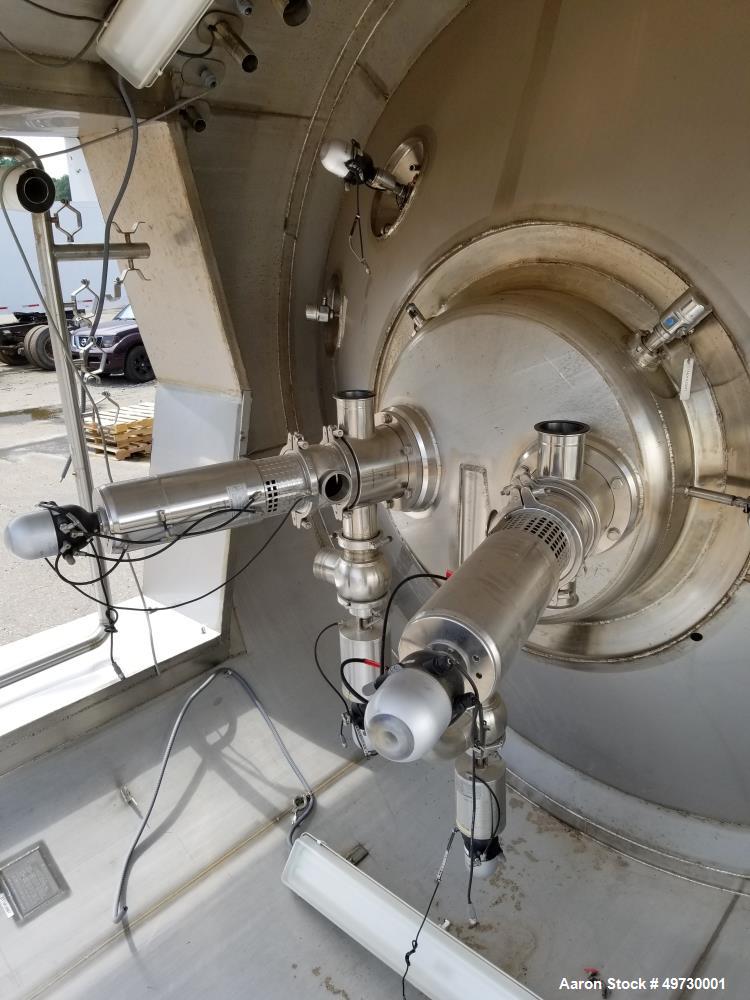

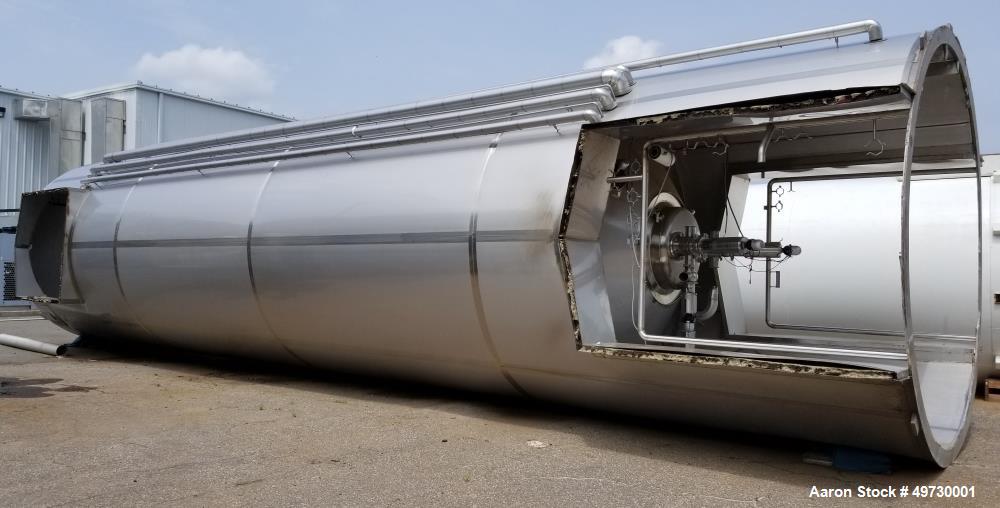

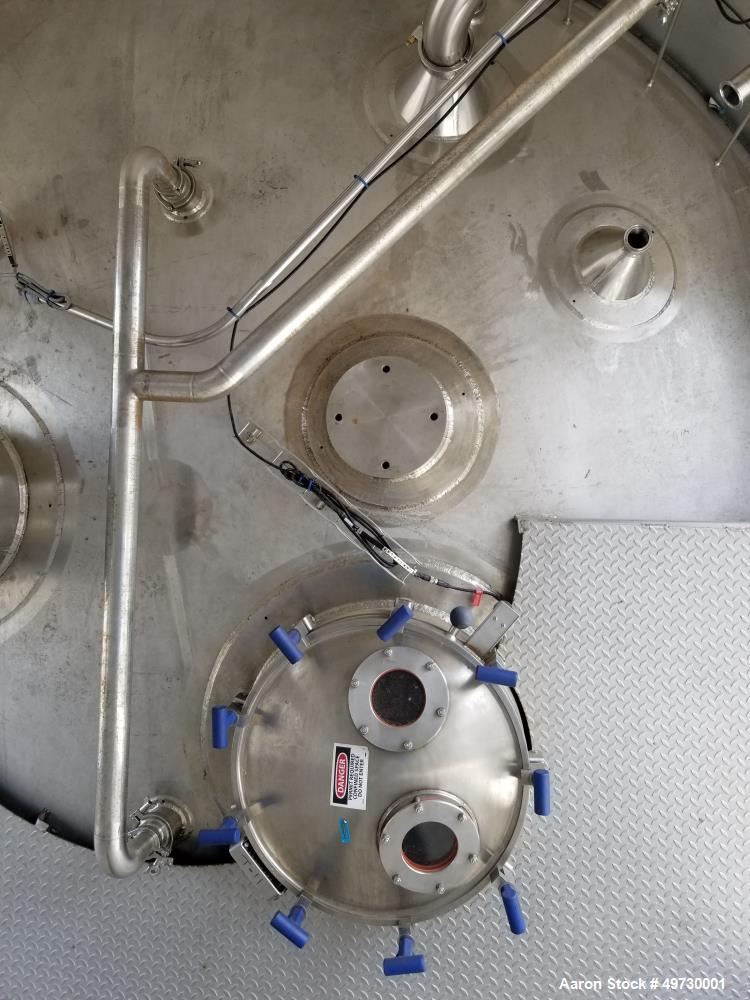

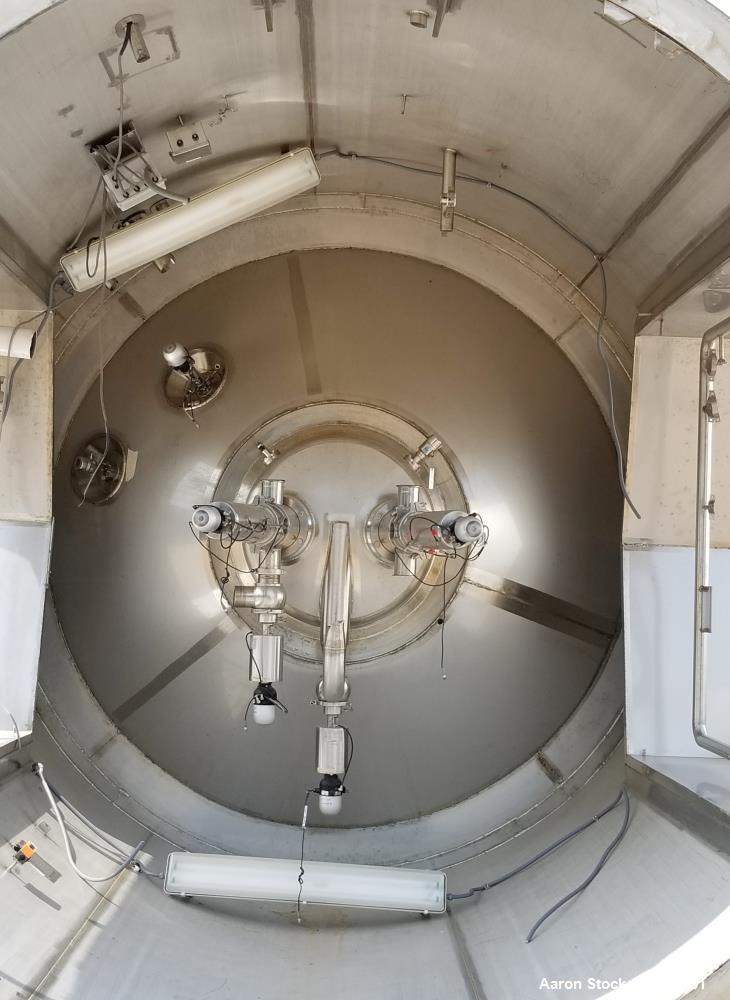

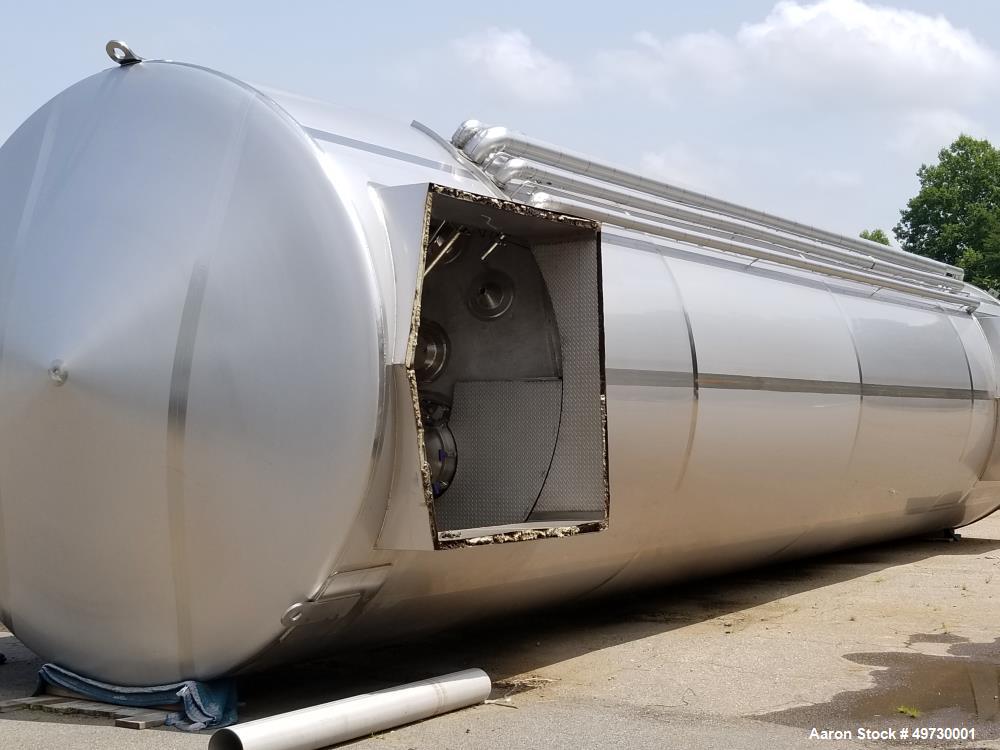

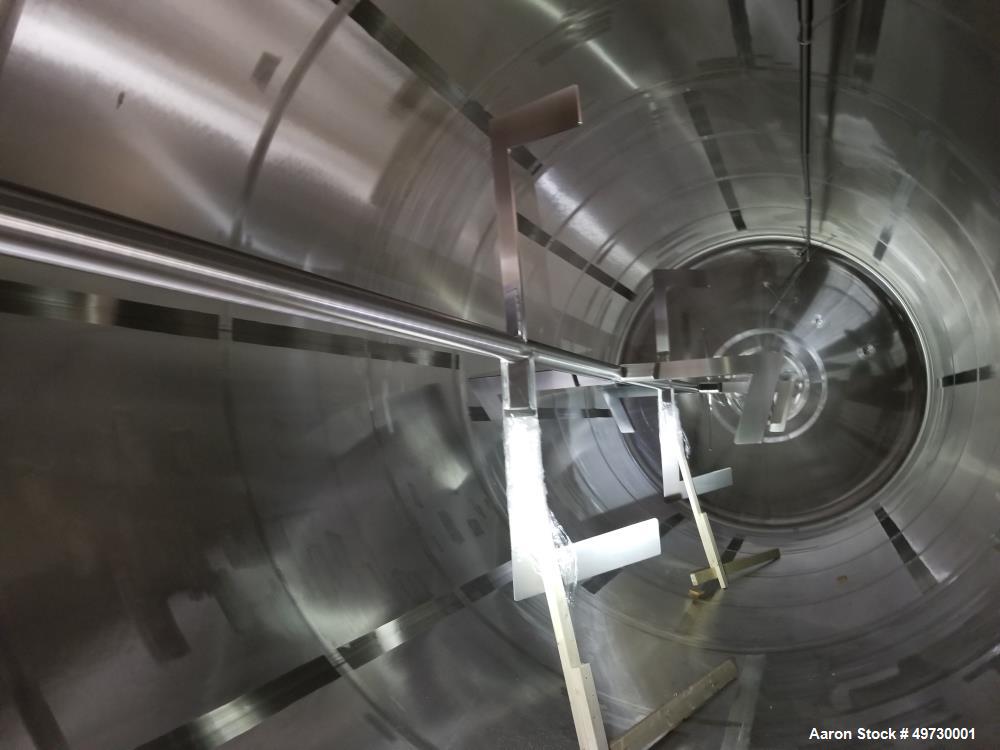

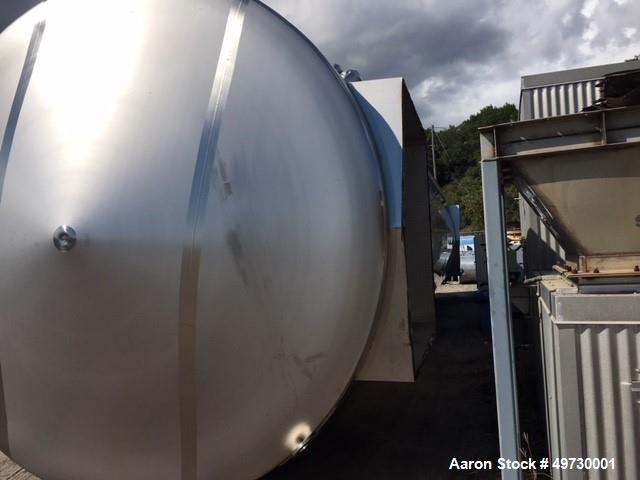

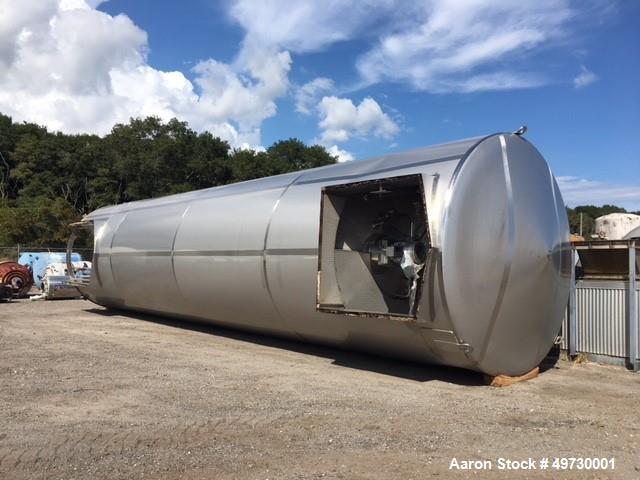

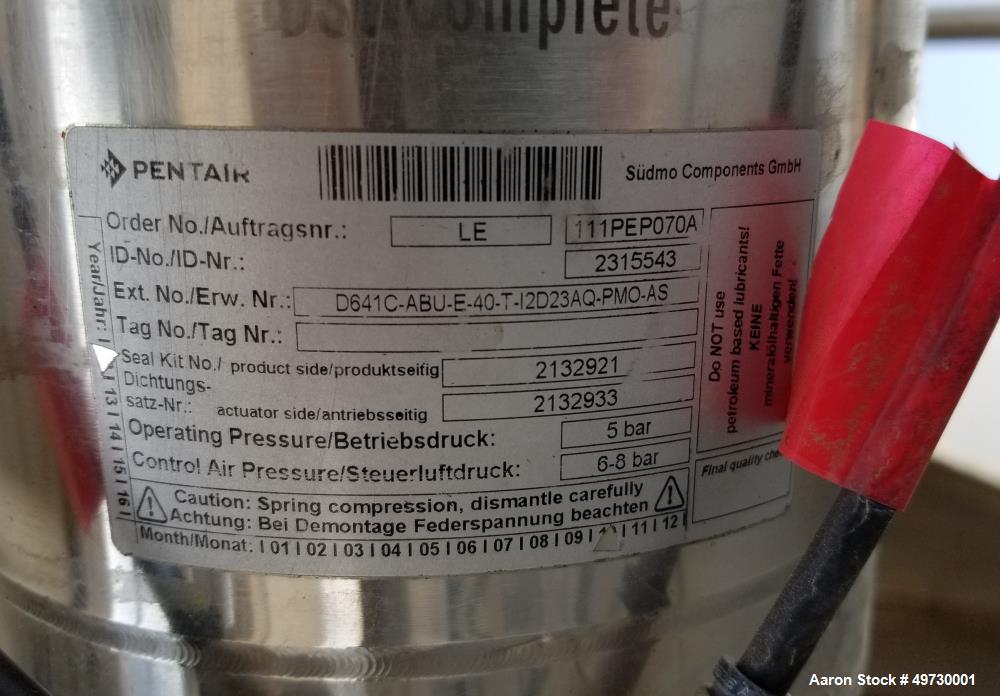

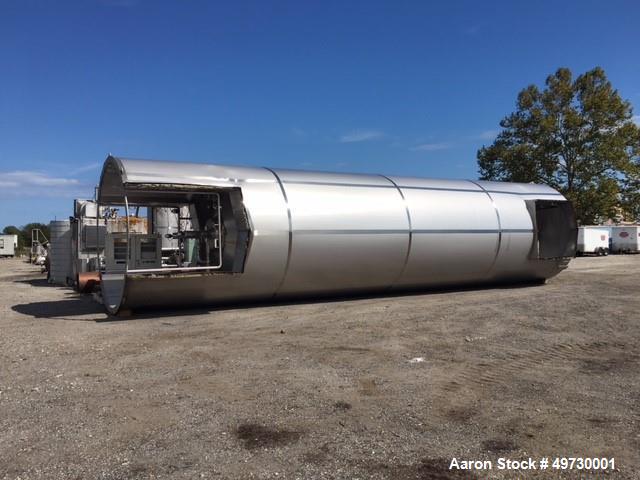

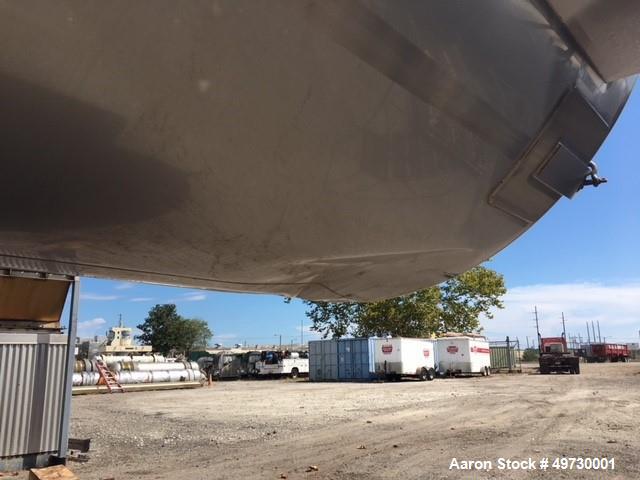

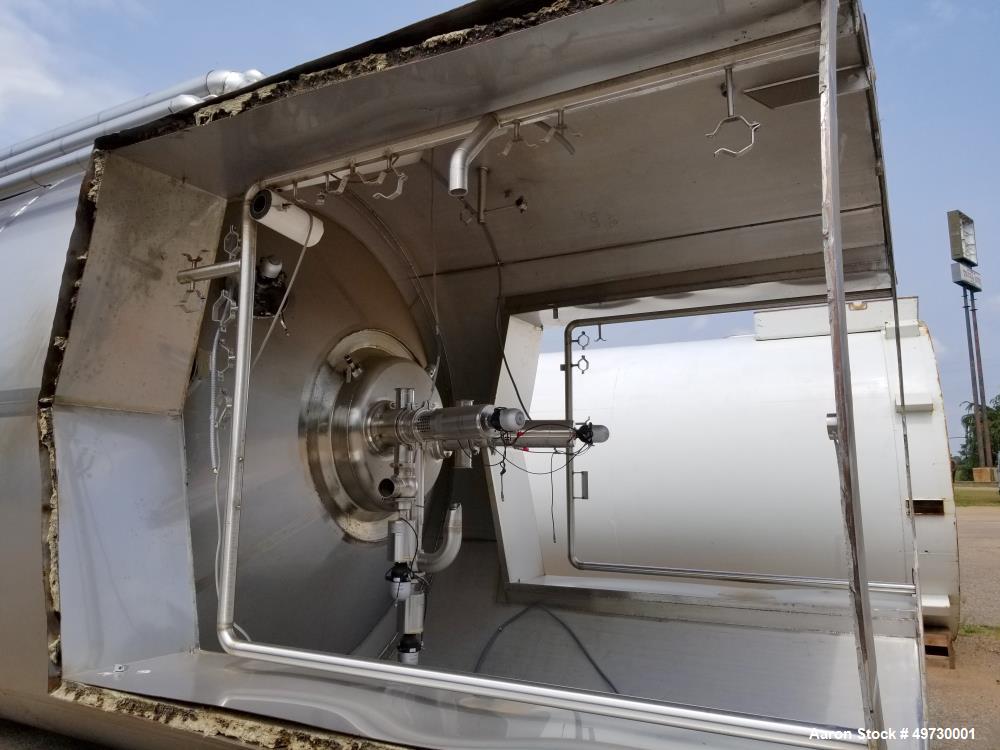

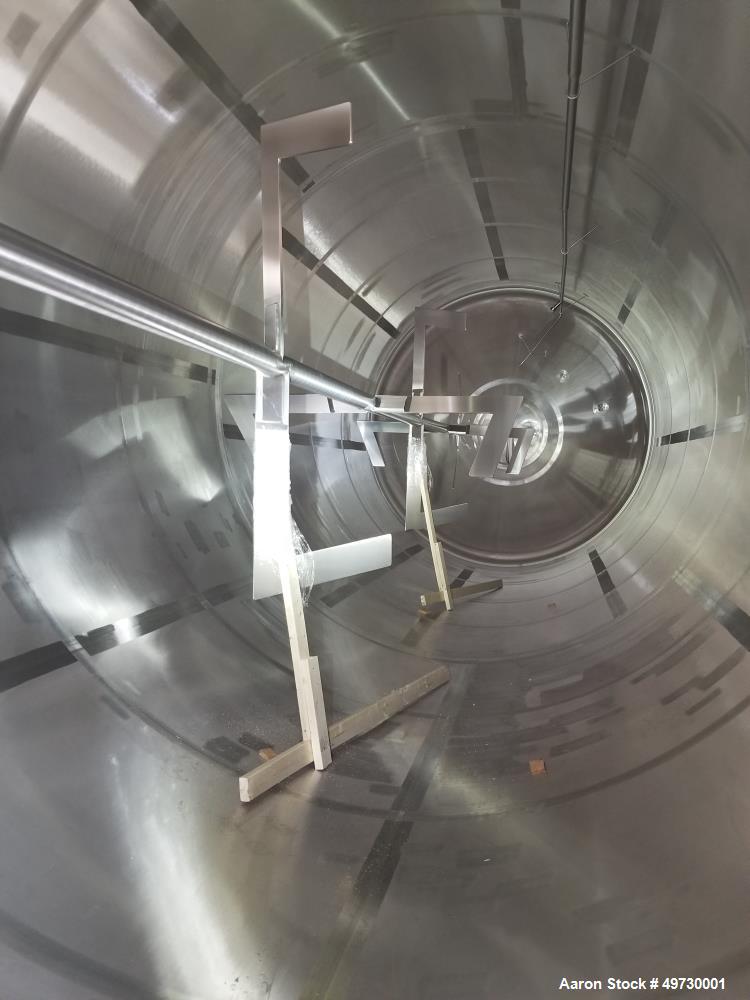

Used Feldmeier Equipment Inc. Pressure Mix Tank, Approximately 25,000 gallon, Aseptic VSP, 304 Stainless Steel, Vertical. Approximately 12' diameter X 30' straight side, dished heads. Internal rated 30 psi/FV at -20 to 250 degrees F. Top fittings: 24" manway, (1) 2.5" fill, (1) 2.5" connected to side/bottom washout, (1) 4" fill, (2) 3" connected to CIP spray balls, (1) pressure indicator, and (1) level switch. Bottom fittings: (2) 4" outlets equipped with Pentair bottom mount flush valves, (1) 5" tangential center bottom outlet reduced to a 4" Pentair ball valve. Bottom also has (1) temperature gauge, (1) level indicator, (1) level switch, (1) temperature indicator, and (1) 2" sample port. Equipped with top entering stainless steel agitator with (4) flight dual blade impellers, bottom supported, driven by a Nord Drivesystems Type SK8382AZH-180MH/4 TW, powered by Siemens 25 HP 3/60/230-460 volt motor. Tank covered with 2" of insulation and stainless steel sheathing. Mounted on stainless steel bottom skirt. Serial# EO31112, National Board# 8233, Built 2012.
