Alloy Fabricatorss Approximately 8,000 Gallon 316L Stainless Steel Jacketed Mix

• Brand: Alloy Fabricators
• Serial Number: 1-132A
• Year Built: 1991
• Condition: Used

Description

The Alloy Fabricators 8,000-Gallon Jacketed Mix Tank is a high-capacity stainless steel processing vessel, designed for chemical, pharmaceutical, food, and industrial liquid applications. Built with 316L stainless steel, it provides superior corrosion resistance and hygienic processing capabilities.

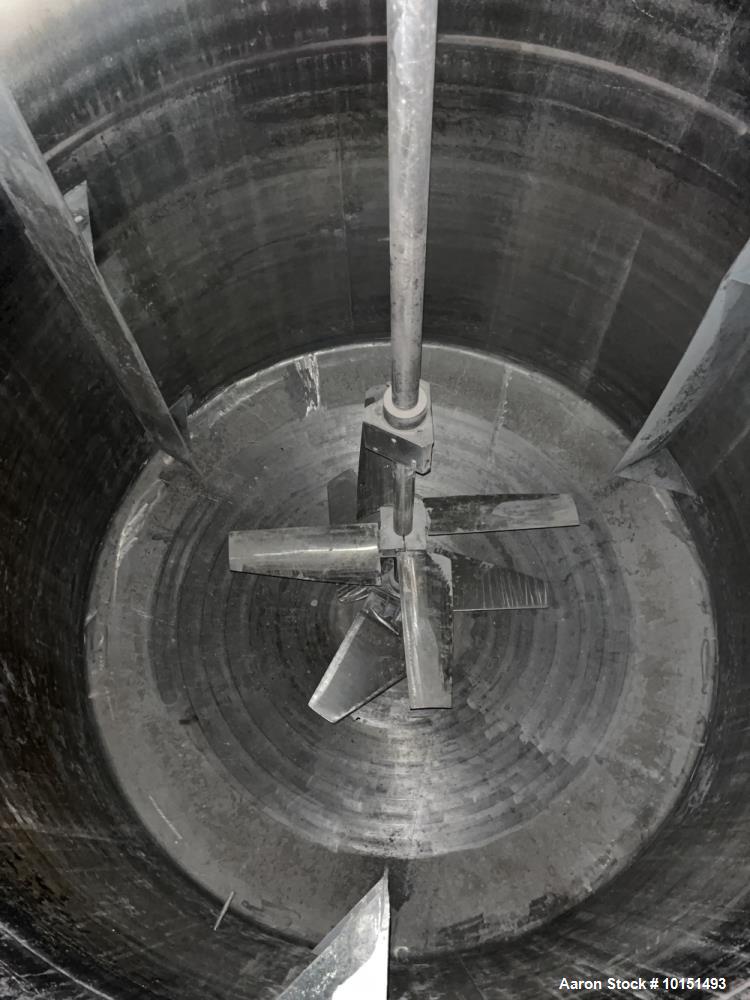

The dished top and bottom ensure structural integrity and optimal mixing performance. The tank includes a 7.5 HP axial-type agitator, featuring a dual hub with three blades each (56" diameter) and a two-blade, 18" radial flow impeller at the bottom, ensuring efficient and uniform mixing.

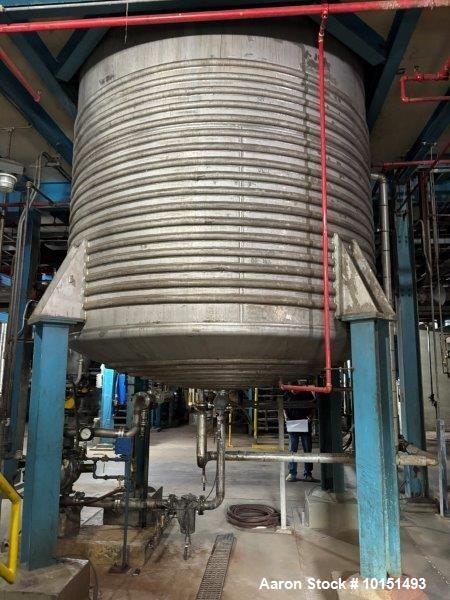

The 304 stainless steel half-pipe jacket is rated for 85 psi at 210°F, enabling precise heating or cooling of tank contents. The internal pressure rating is 15 psi at 210°F, making it suitable for pressurized processing applications.

Specifications

• Capacity: ~8,000 Gallons
• Material: 316L Stainless Steel (Tank), 304 Stainless Steel (Half-Pipe Jacket)
• Tank Dimensions:
  • Diameter: 126"
  • Straight Side Height: 128"
• Top & Bottom: Dished
• Internal Pressure Rating: 15 psi at 210°F
• Jacket Rating: 85 psi at 210°F
• Agitator:
  • Motor Power: 7.5 HP
  • Construction: 316 Stainless Steel
  • Design: Axial Type
  • Blade Configuration:
    • Dual Hub with 3 Blades Each (56" Diameter)
    • Two-Blade Radial Flow (18" Diameter) at Bottom

Applications

• Food & Beverage Processing – Mixing and blending of dairy, juice, and liquid ingredients
• Pharmaceutical & Biotech – High-purity formulation and batch processing
• Chemical Processing – Bulk storage and reaction processes requiring temperature control
• Industrial Wastewater Treatment – Chemical conditioning and sludge mixing
• Cosmetic & Personal Care – Production of lotions, creams, and emulsions
