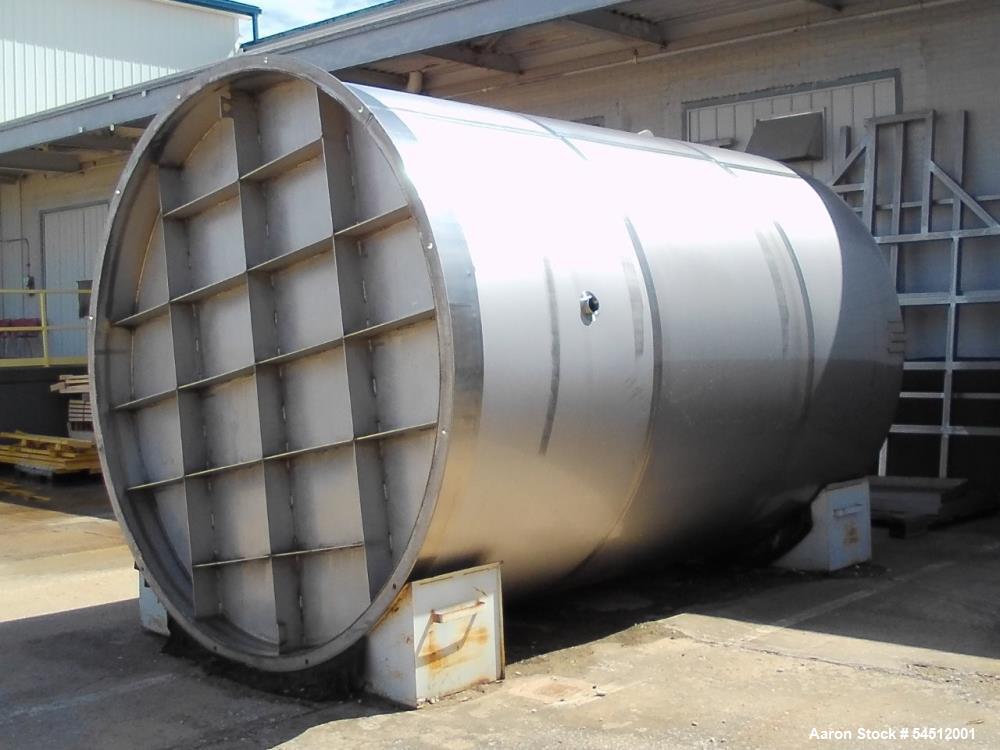

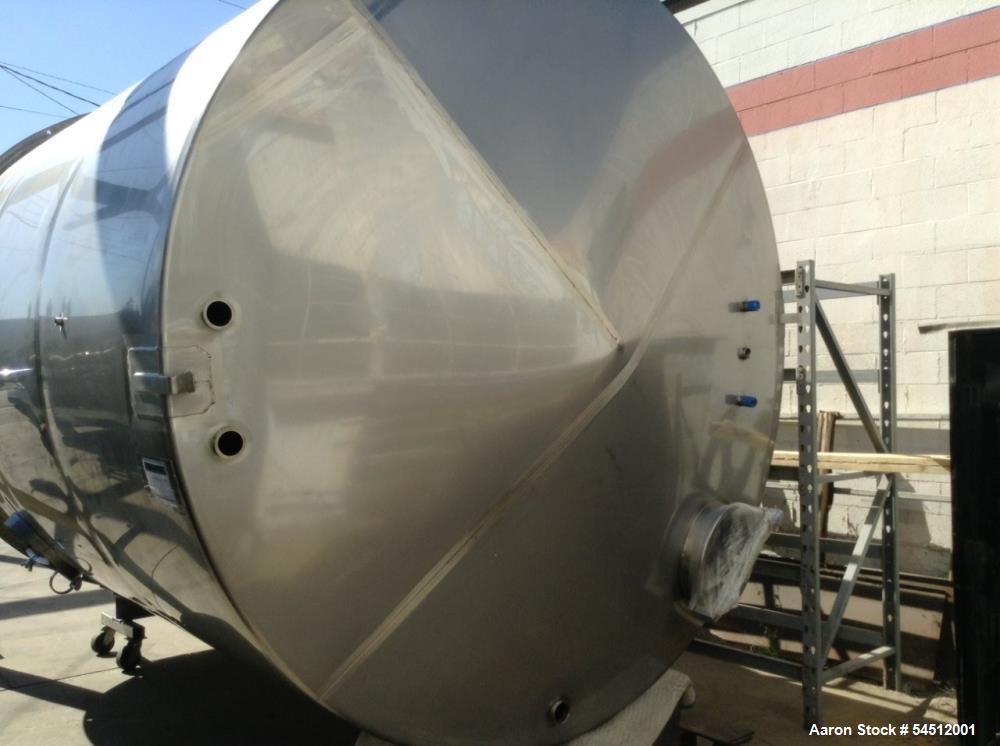

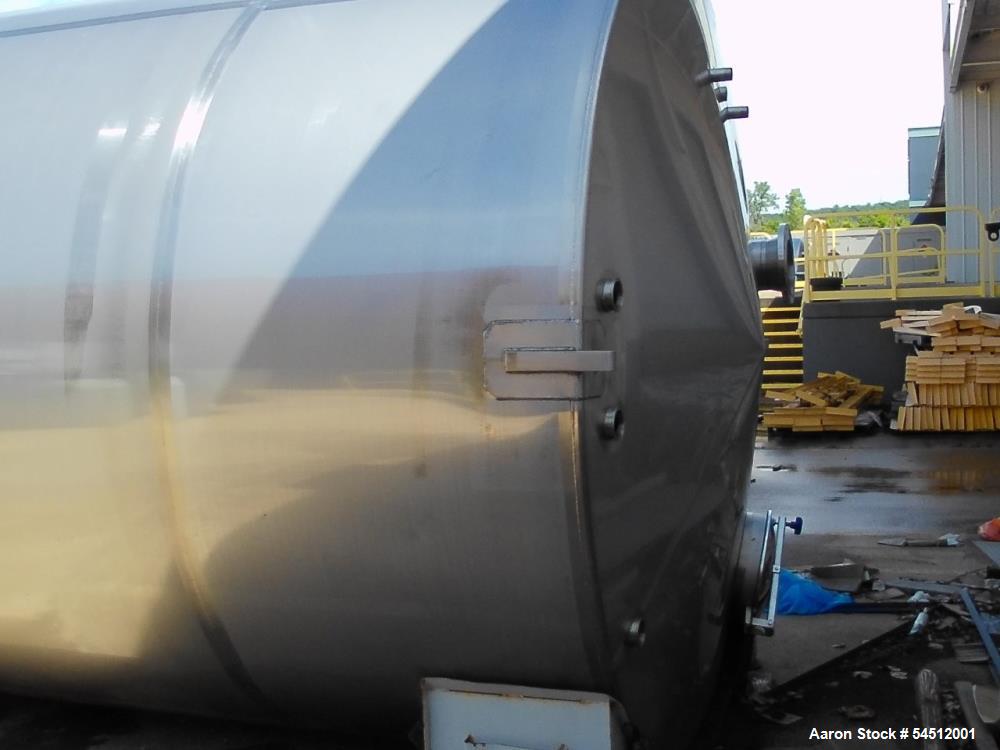

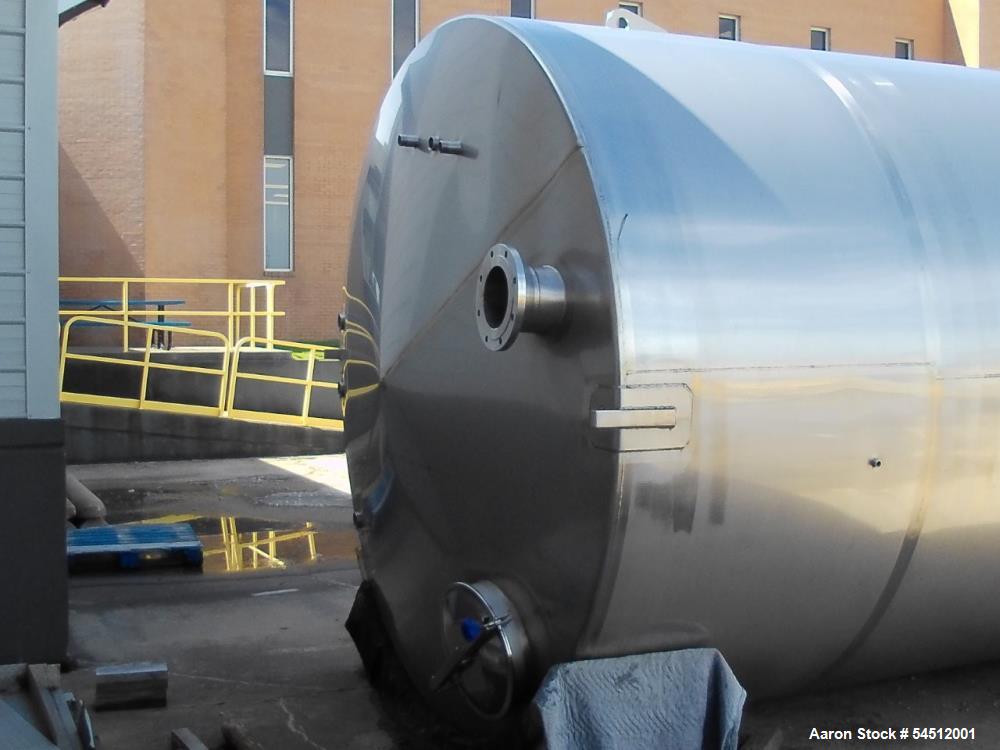

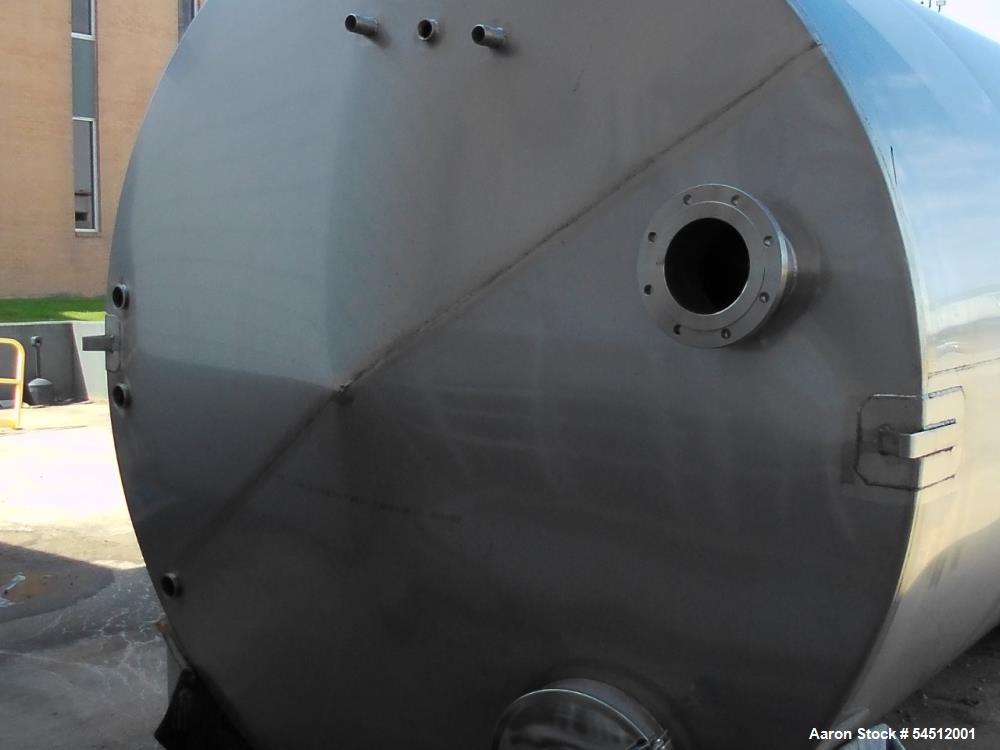

Unused TSI 7,000 Gallon Vertical Stainless Steel Holding Tank

Manufacturer Information

TSI, listed as Todd Street Inc on the Aaron Equipment page, is the manufacturer of this 7,000 gallon vertical stainless steel holding tank. The listing does not provide additional manufacturer background, so any extended company history should be verified before adding it to the live product page.

Main Product Description

Unused TSI / Todd Street Inc model 7000 vertical stainless steel holding tank with 7,000 gallon capacity, 304 stainless steel construction, and 2B finish. This tank is designed with a conical top head, sloped bottom head, top and side hinged manways, sanitary tri-clamp fittings, ground and polished interior welds, brushed exterior weld finish, stainless lifting lugs, and seismic-rated construction. With approximate tank dimensions of 96" diameter x 14' overall height, this stainless steel holding tank is suitable for sanitary storage, process holding, blending support, and bulk liquid storage applications where corrosion-resistant stainless construction is required. Stock #54512001.

Product Details

• Manufacturer: TSI / Todd Street Inc
• Model: 7000
• Stock Number: 54512001
• Condition: Unused
• Equipment Type: Vertical stainless steel holding tank
• Capacity: 7,000 gallons
• Material of Construction: 304 stainless steel
• Finish: 2B finish
• Approximate Dimensions: 96" diameter x 14' overall height
• Top Head: Conical top head
• Top Head Material: 12 gauge SS T304
• Bottom Head: Sloped bottom
• Bottom Head Material: 7 gauge SS T304
• Shell Construction: Three levels
• Bottom Shell Level: 10 gauge SS T304
• Center Shell Level: 12 gauge SS T304
• Top Shell Level: 12 gauge SS T304
• Manways: One 18" round top manway with pivot hinge

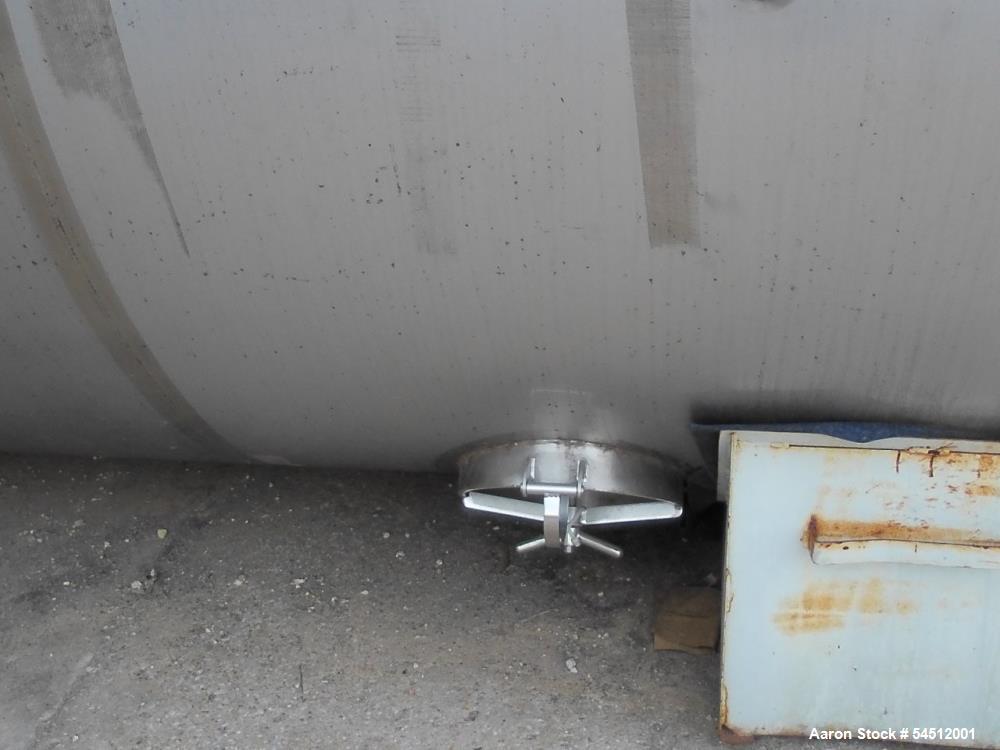

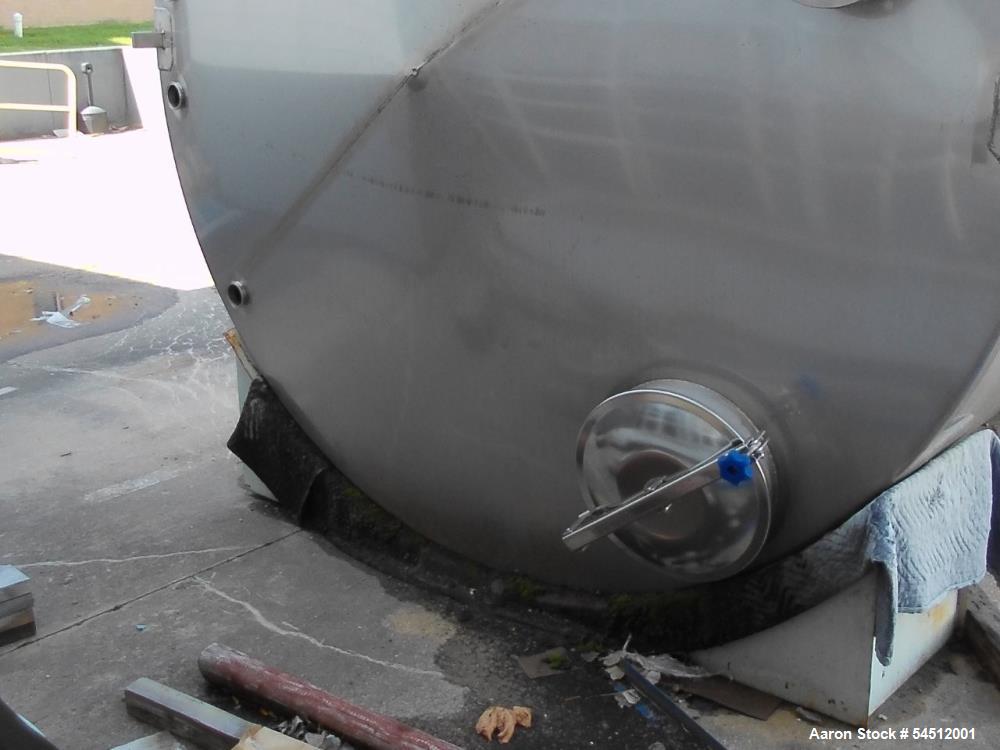

• Side Manway: One 17" x 21" side manway with hinge-out mechanism
• Vents: Two 3" tri-clamp vents
• Inlet: One 3" tri-clamp inlet
• Outlet: One 3" tri-clamp outlet
• Overflow: One 3" tri-clamp overflow fitting
• Thermowell Couplings: Two couplings, size not specified
• Lifting Lugs: Two stainless steel lifting lugs, size not specified
• Interior Weld Finish: Ground and polished to 180 grit finish
• Exterior Weld Finish: Cleaned to brushed finish
• Reinforcement: Reinforcing flat bars and angle bar with mounting holes for anchoring tank
• Seismic Rating: Listed as seismic rated
• Pressure Rating: Not specified
• Temperature Rating: Not specified
• Serial Number: Not specified

Applications

• Sanitary liquid storage
• Bulk ingredient holding
• Process liquid holding
• Food and beverage production
• Pharmaceutical processing support
• Cosmetic and personal care manufacturing
• Chemical processing where 304 stainless steel is suitable
• Water-based product storage
• Intermediate process storage
• Batch production support
• Tank farm installation
• Plant utility and process storage

Suitable Products / Materials

• Water
• Process water
• Liquid ingredients
• Syrups
• Sauces
• Beverage products
• Dairy-compatible liquids, subject to process requirements
• Personal care liquids
• Cosmetic liquids
• Mild chemicals compatible with 304 stainless steel
• Cleaning solutions compatible with 304 stainless steel
• Non-corrosive bulk liquids

FAQs

• What is the capacity of this stainless steel tank?
  This tank is listed with a 7,000 gallon capacity.
• Who is the manufacturer?
  The listing identifies the manufacturer as TSI / Todd Street Inc.
• What is the model number?
  The listed model is 7000.
• What material is the tank made from?
  The tank is constructed of 304 stainless steel.
• Is this tank new or used?
  The listing describes the tank as unused.
• What are the approximate dimensions?
  The listed approximate tank dimensions are 96" diameter x 14' overall height.
• Does the tank have manways?
  Yes. The tank includes one 18" round top manway with pivot hinge and one 17" x 21" side manway with hinge-out mechanism.
• What fittings are included?
  The listing includes two 3" tri-clamp vents, one 3" tri-clamp inlet, one 3" tri-clamp outlet, one 3" tri-clamp overflow fitting, and two thermowell couplings with size not specified.
• Is the tank seismic rated?
  Yes. The listing states that the tank is seismic rated.
• Can Aaron Equipment help with shipping?
  Yes. Aaron Equipment can help coordinate freight quotes, loading, and logistics for large stainless steel tanks. Final freight planning should account for the tank’s 96" diameter, 14' overall height, site access, rigging requirements, and carrier restrictions.
• How can Aaron Equipment help me with this tank?
  Aaron Equipment can help answer equipment questions, provide additional photos when available, coordinate inspection requests, confirm available documentation, quote pricing, and assist with buying or selling similar stainless steel tanks and process equipment.
