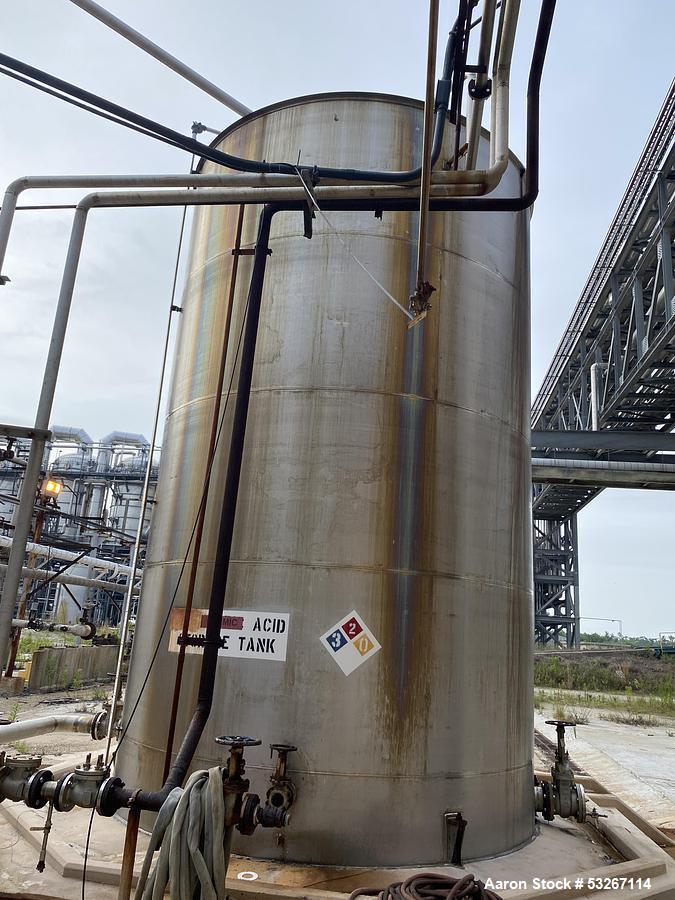

Used 22,000 Gallon 316L Stainless Steel Vertical Tank – Advance Vessel, API-650, Built 2008

🏭 Manufacturer

Advance Vessel and Alloy
A U.S.-based manufacturer of heavy-duty stainless steel tanks and API-650 vessels, serving the industrial, chemical, and food processing sectors with corrosion-resistant containment solutions.

📝 Description

This 22,000-gallon vertical tank, built in 2008 by Advance Vessel and Alloy, is a high-capacity storage vessel constructed of 316L stainless steel and fabricated to meet API-650 standards. With a 13'-6" diameter and a 22' straight side height, this tank is designed for atmospheric pressure (ATM) up to 200°F, and supports a specific gravity (SG) of 1.6, making it suitable for denser liquids and chemicals.

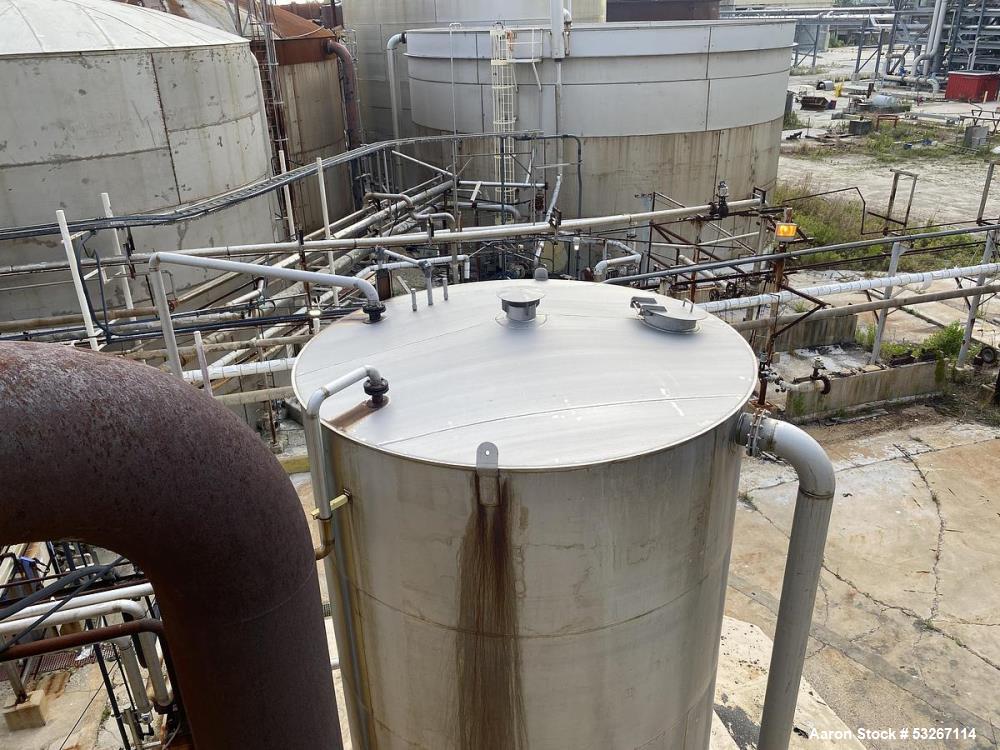

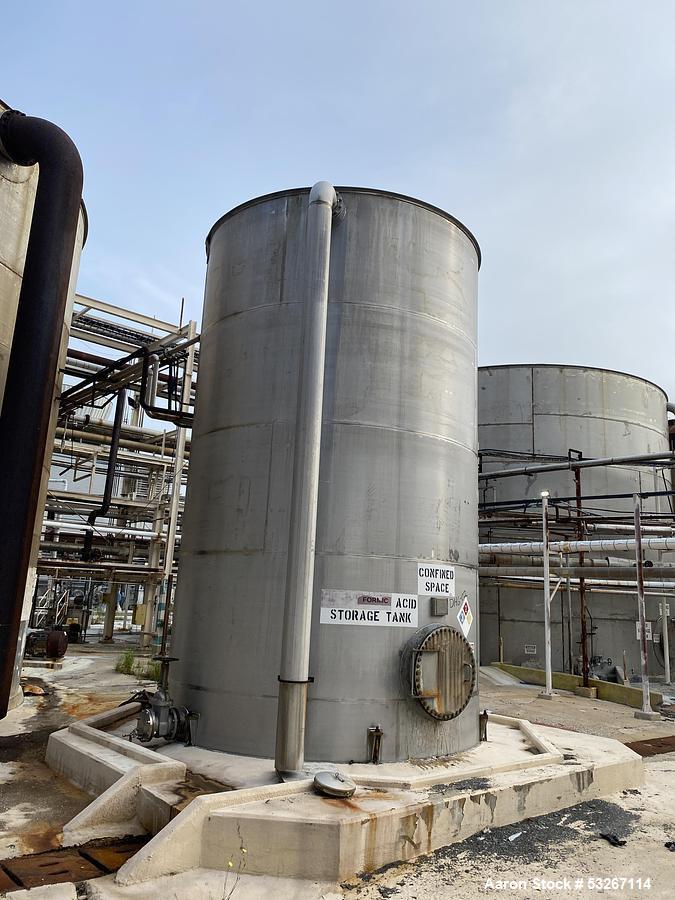

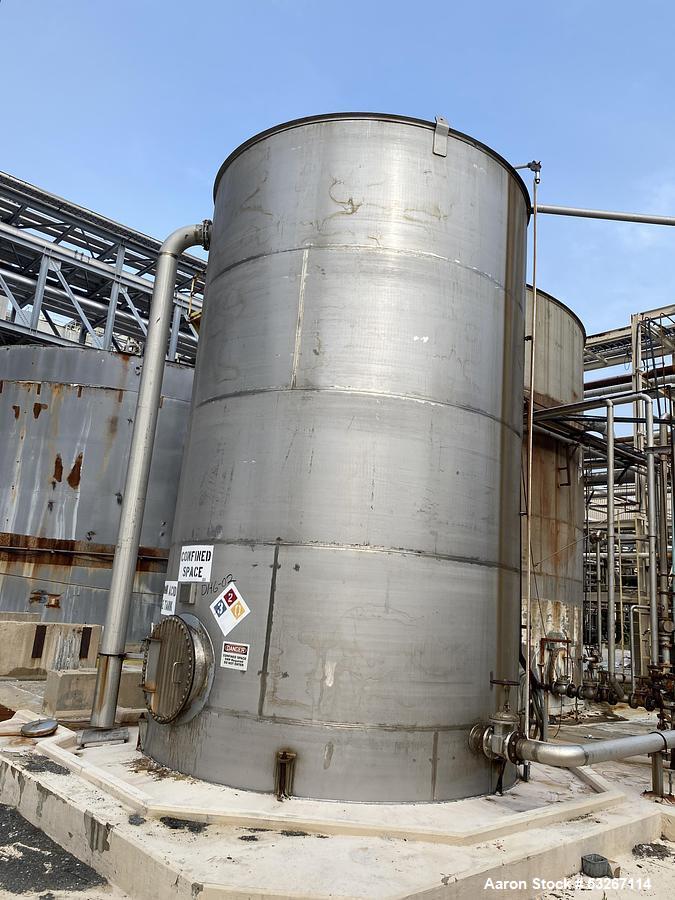

The tank includes a slight cone top for runoff and a flat bottom for stable ground installation. It is fitted with a 24" top manway, 12" vent, multiple smaller top inlets, and a 30" side bottom manway for service access. Three bottom outlets (6", 8", and 3") provide flexibility for fluid discharge and system integration.

⚙️ Specifications

• Manufacturer: Advance Vessel and Alloy

• Year Built: 2008

• Capacity: 22,000 gallons

• Material: 316L Stainless Steel

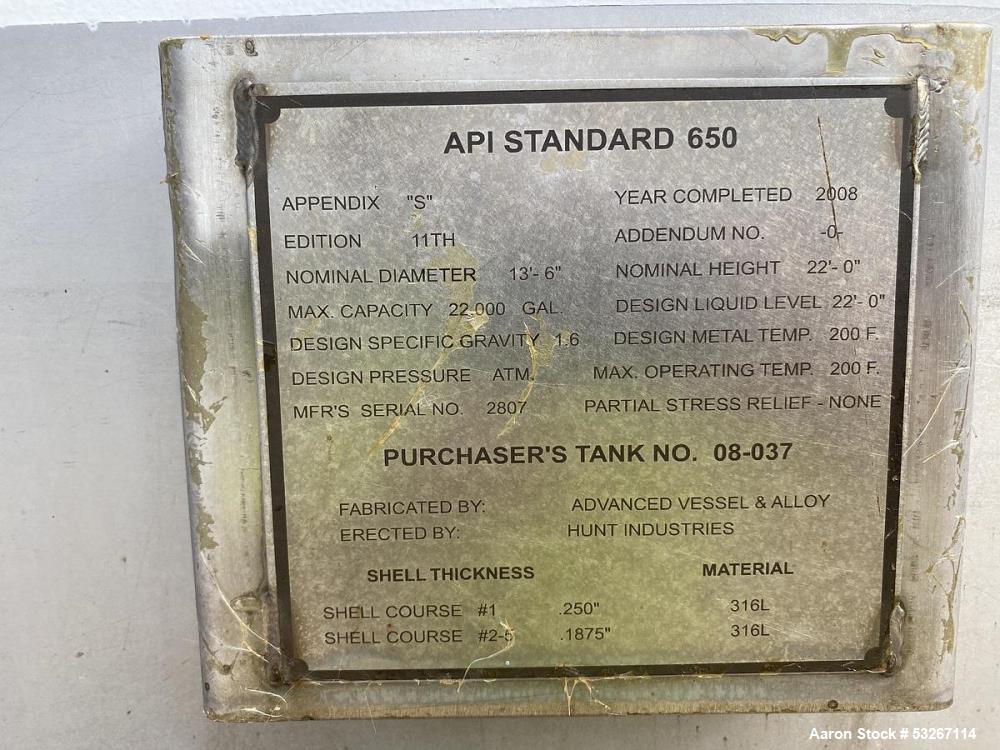

• Design Standard: API-650

• Shape: Vertical with slight cone top and flat bottom

• Diameter: 13 feet 6 inches

• Straight Side Height: 22 feet

• Pressure Rating: Atmospheric (ATM) @ 200°F

• Specific Gravity Rating: 1.6

• Top Fittings:

  • (1) 4"

  • (1) 3"

  • (3) 2"

  • (1) 12" vent

  • (1) 24" manway

• Side/Bottom Fittings:

  • 30" side bottom manway

  • (1) 6" outlet

  • (1) 8" outlet

  • (1) 3" outlet

• Serial Number: 2807

🧩 Applications

Ideal for storing and handling:

• Dense chemicals and heavy process fluids

• Food-grade syrups and oils

• High-SG liquid fertilizers or nutrient blends

• Industrial wastewater and treatment chemicals

• Solvent and intermediate chemical storage

• Buffer or surge tanks in manufacturing systems

• Blending tanks with external agitators (optional)

• CIP system reservoirs

• Bulk alcohol or sanitizing fluid storage

• Storage for heat-sensitive liquids (up to 200°F)

🔧 What Might This Be Used For?

• Storing high-SG fluids like brine, sugar syrup, or caustics

• Housing temperature-sensitive materials up to 200°F

• Temporary holding in a batch mixing or processing system

• Industrial wastewater containment with chemical additives

• Pre-mix or finished product storage in food or beverage plants

• Clean-in-place fluid storage in pharmaceutical operations

• Sanitizer or alcohol-based solution tanks for hygiene applications

• Solvent or specialty chemical blending tank

• Emergency overflow tank for large-scale systems

• Storage of alternative fuels or biodiesel
