Used 19,600 Gallon 316L Stainless Steel Vertical Tank – Fabricators & Carolina Integrated, API-650, Built 2018
Used Fabricators & Carolina Integrated Solutions 316L Stainless Steel Vertical Tank, 19,600 gallon. 13' diameter X 19'-10" high straight side. Internal rated 0.73 PSIG @ 34 to 329 F. S.G. 1.0 API-650 standard. S/N 0326. Cone top and flat bottom. Top fittings: (2) 3"and (1) 6". (1) 1" side top inlet, 24" side bottom manway, (3) 1", (1) 1.5" and (1) 2" side bottom outlet. Built 2018. Previously stored Methanol.
| Serial # | 0326 |
| Category | TanksTanks |
| Subcategory | Stainless 5000 Gal and upStainless 5000 Gal and up |
🏭 Manufacturer
Fabricators & Carolina Integrated Solutions
A reputable U.S.-based provider of large-scale, API-650 compliant stainless steel tanks and engineered containment systems, specializing in chemical and industrial applications.
📝 Description

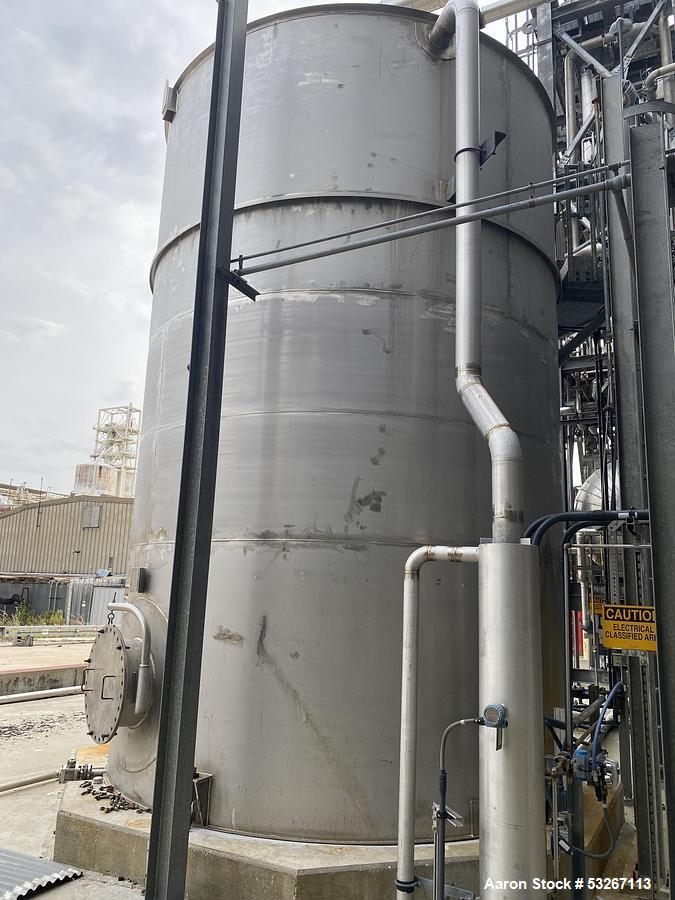

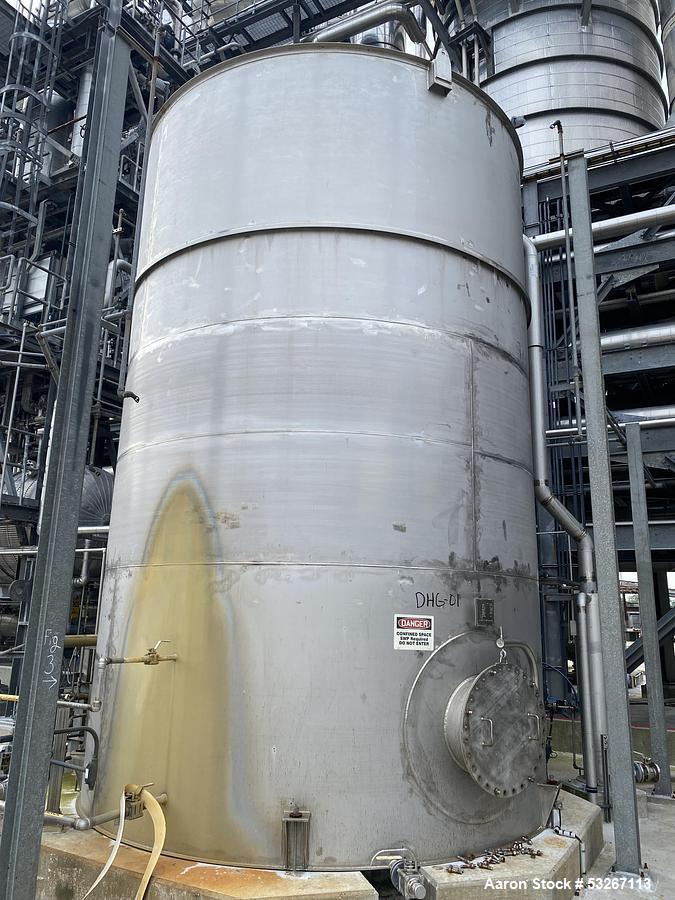

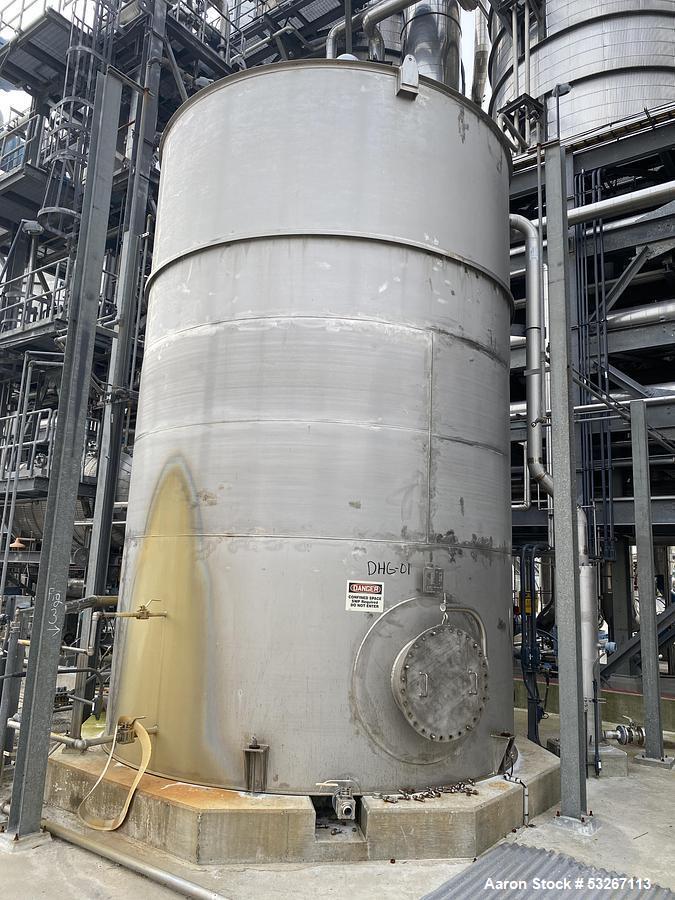

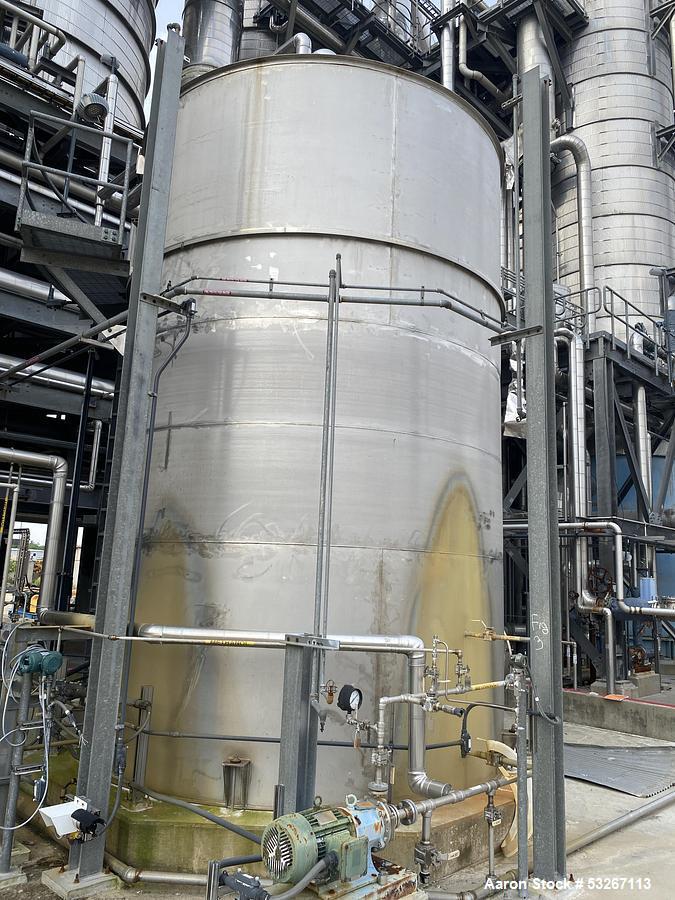

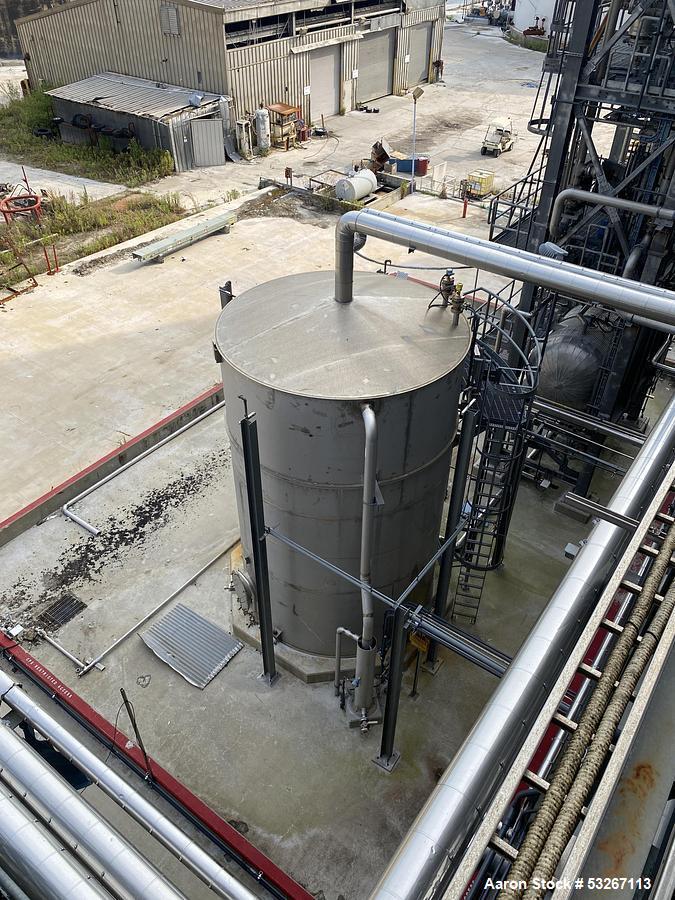

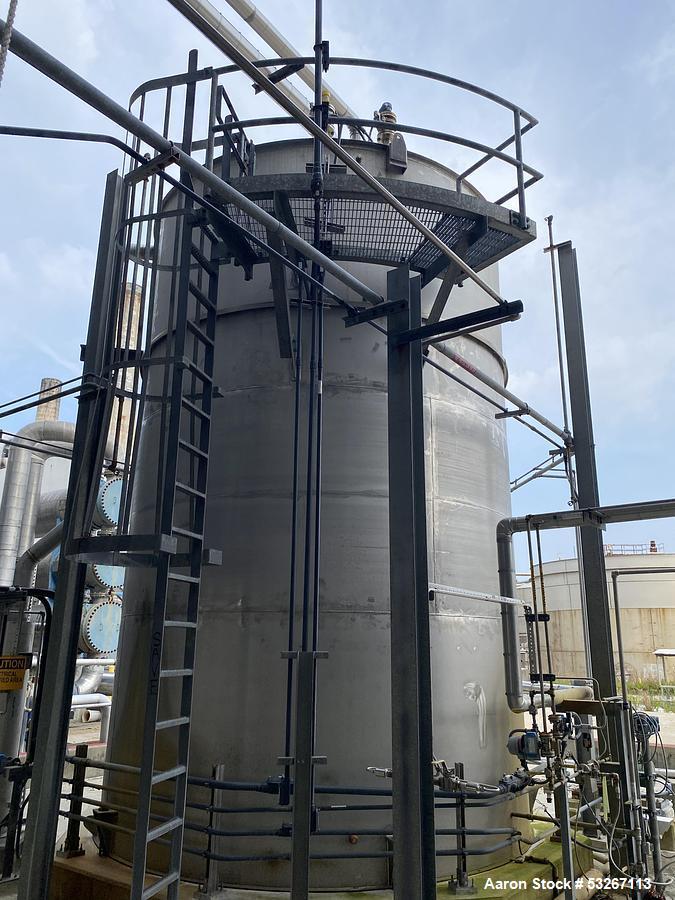

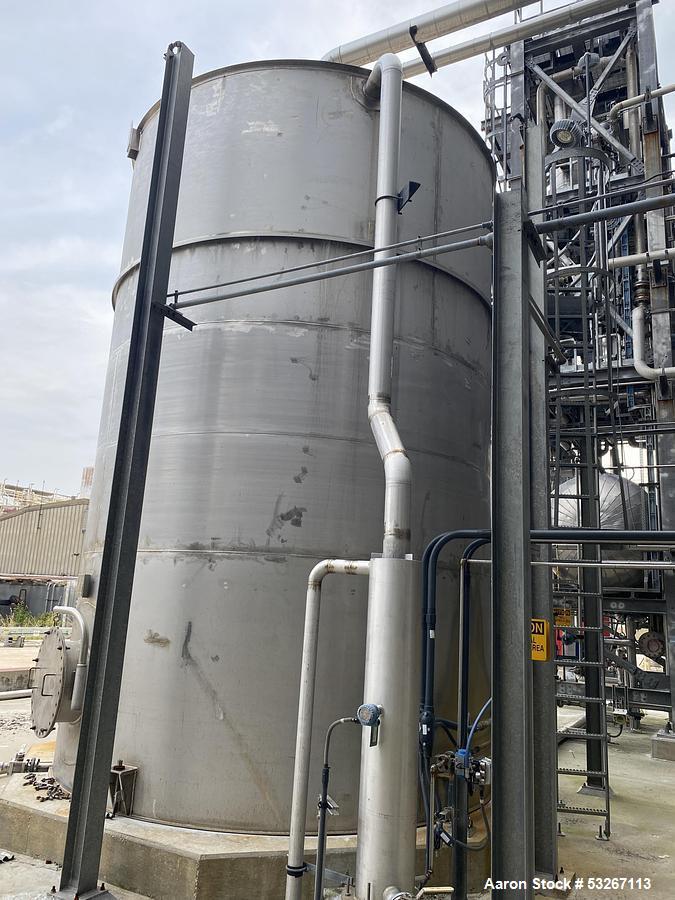

This 19,600-gallon vertical tank, built in 2018 by Fabricators & Carolina Integrated Solutions, is constructed of 316L stainless steel and fabricated to API-650 standards. It features a 13-foot diameter and a 19-foot 10-inch straight side height, offering maximum storage capacity for industrial liquids. The tank has a cone top for efficient fluid shedding and a flat bottom, ideal for floor-mounted installations.
Rated for 0.73 PSIG internal pressure from 34°F to 329°F, and designed for a specific gravity of 1.0, the tank previously stored methanol and is suitable for flammable or corrosive liquids. Equipped with multiple top and bottom fittings, including a 24" side bottom manway, this tank is ideal for high-volume, low-pressure chemical or fluid storage.
⚙️ Specifications
-

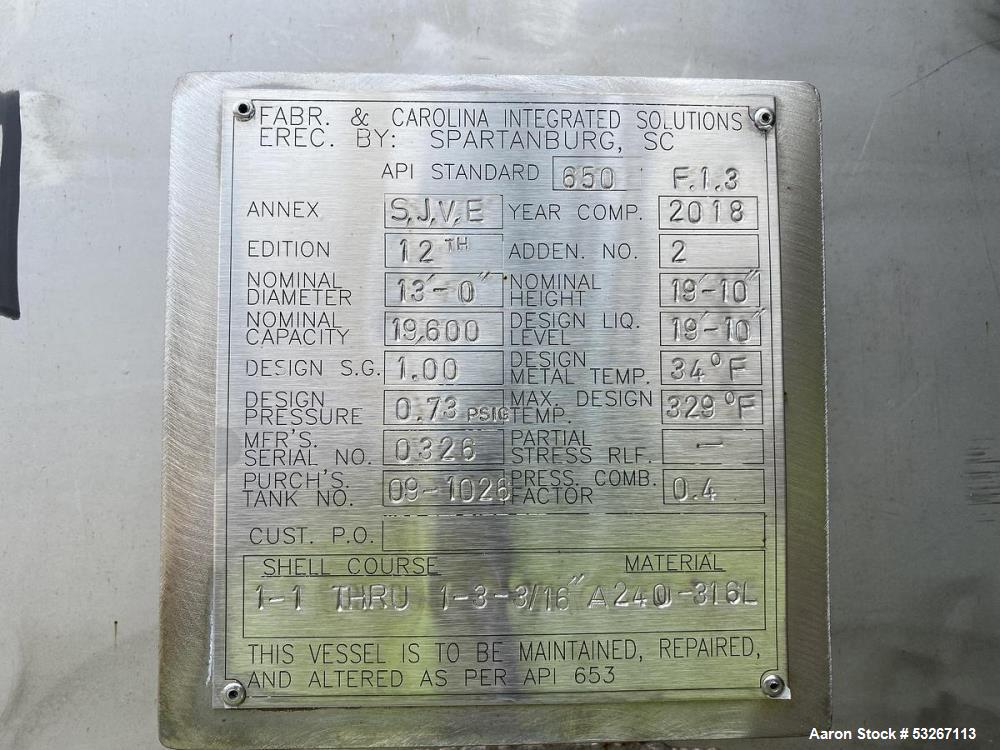

Manufacturer: Fabricators & Carolina Integrated Solutions
-
Year Built: 2018
-
Capacity: 19,600 gallons
-
Material: 316L Stainless Steel
-
Design Standard: API-650
-
Shape: Vertical tank with cone top and flat bottom
-
Straight Side Height: 19' 10"
-
Diameter: 13 feet
-
Pressure Rating: 0.73 PSIG @ 34°F to 329°F
-
Specific Gravity Rating: 1.0
-
Top Fittings:
-
(2) 3" ports
-
(1) 6" port
-
-
Side Top Inlet:
-
(1) 1"
-
-
Side Bottom Fittings:
-
24" bottom manway
-
(3) 1" outlets
-
(1) 1.5" outlet
-
(1) 2" outlet
-
-
Previous Service: Methanol
-
Serial Number: 0326
🧩 Applications
Ideal for chemical and fluid storage in:
-
Methanol or alcohol storage systems
-
Chemical manufacturing and blending
-
Solvent or flammable liquid containment
-
Pharmaceutical intermediate storage
-
Fuel-grade alcohol or ethanol handling
-
Cosmetic or personal care ingredient storage
-
Biofuel or alternative energy feedstock tanks
-
Process liquid staging for sanitary systems
-
Specialty chemical formulation and batching
-
Industrial solvent recovery or collection
🔧 What Might This Be Used For?
-
Storing methanol or similar solvents in a production facility
-
Containing intermediate chemicals in pharmaceutical production
-
Acting as a buffer tank in a blending or batching process
-
Serving as part of a closed-loop flammable liquid system
-
Holding alcohol-based cleaning agents for industrial use
-
Supporting biofuel refining or pre-treatment storage
-
Integrating into a tank farm for methanol or chemical feedstock
-
Storage in corrosive or harsh environment applications
-
Temporary containment for plant maintenance flushing
-
Collecting and transferring reclaimed solvent streams
-
