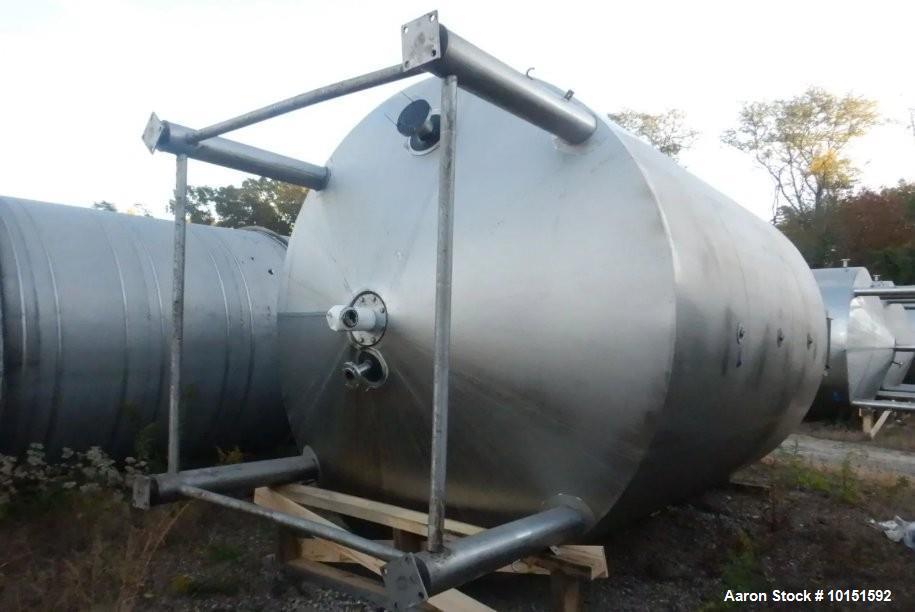

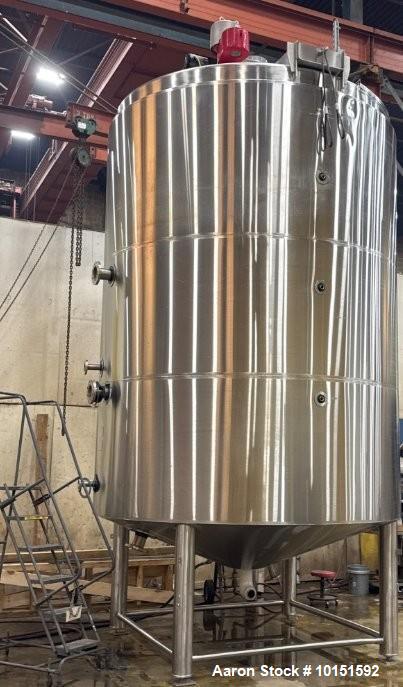

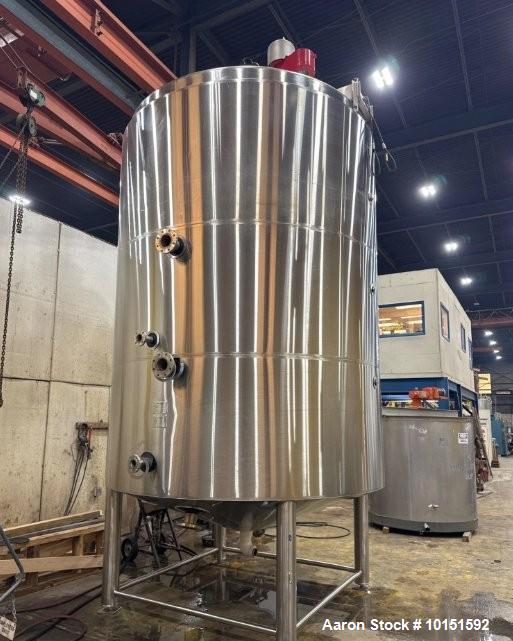

Used ICC Northwest 6,000 Gallon Jacketed Kettle – 304 Stainless Steel ASME U-Stamped Mixing Vessel (2020)

Manufacturer: ICC Northwest
Type: Jacketed Kettle / Mixing Vessel
Condition: Used
Year: 2020
Certification: ASME U-Stamped

Description

Used ICC Northwest 304 Stainless Steel Jacketed Kettle, approximately 6,000 gallon capacity, designed for heating, mixing, and processing viscous or temperature-sensitive materials. Built to ASME U-stamped pressure vessel standards, this unit ensures safe and reliable operation in demanding industrial environments.

Constructed from T304 stainless steel, the kettle features a multi-zone jacket system for precise thermal control. The jacket is rated up to 69 psi (top) and 180 psi (bottom) at 300°F, allowing for efficient heating using steam or other thermal media.

Equipped with a bridge-mounted sweep/scrape agitation system, driven by a 10 HP motor, this unit ensures continuous product movement, preventing buildup on vessel walls and improving heat transfer efficiency.

The kettle includes a flat hinged top for easy access and a cone bottom for complete discharge, making it ideal for food, chemical, and industrial processing applications.

Specifications

• Manufacturer: ICC Northwest
• Machine Type: Jacketed Kettle / Mixing Vessel
• Capacity: Approx. 6,000 gallons
• Construction: T304 Stainless Steel
• Certification: ASME U-Stamped
• Year: 2020

Vessel Dimensions

• Diameter (Internal): 118"
• Straight Side Height: 160"
• Overall Diameter: 127"
• Overall Height: 240"

Jacket System

• Multi-zone jacket design
• Top Jacket Rating: 69 psi @ 300°F
• Bottom Jacket Rating: 180 psi @ 300°F

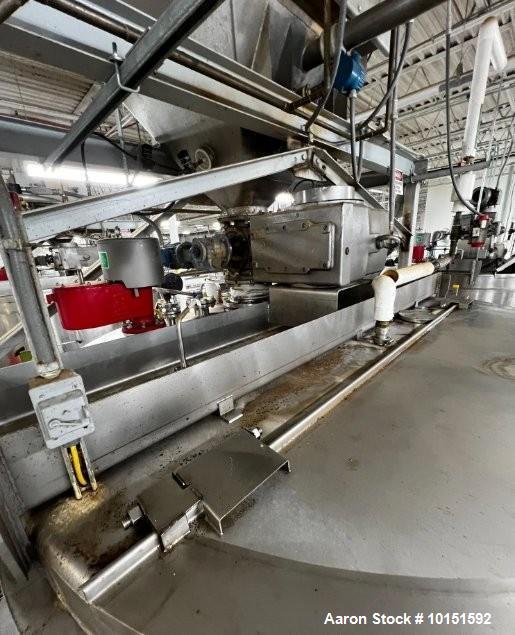

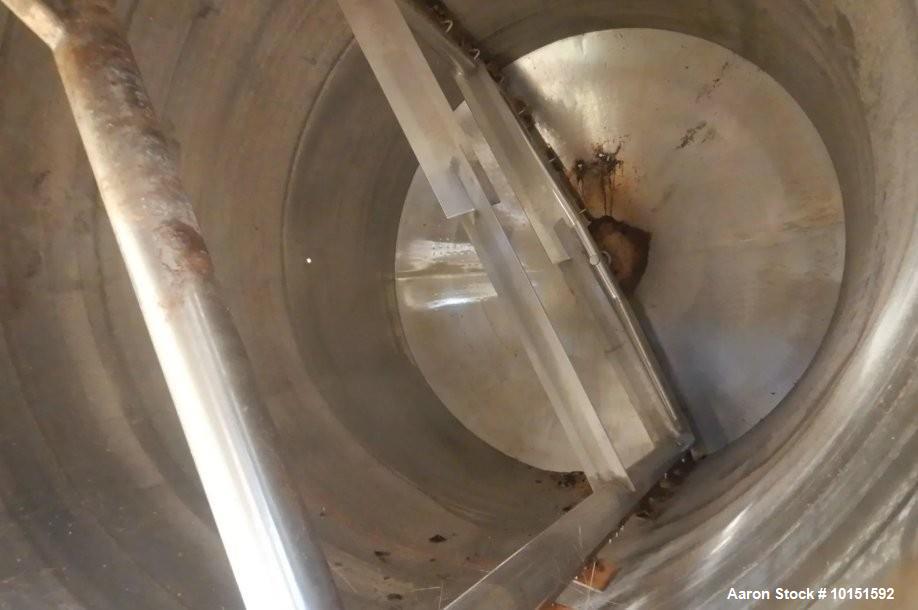

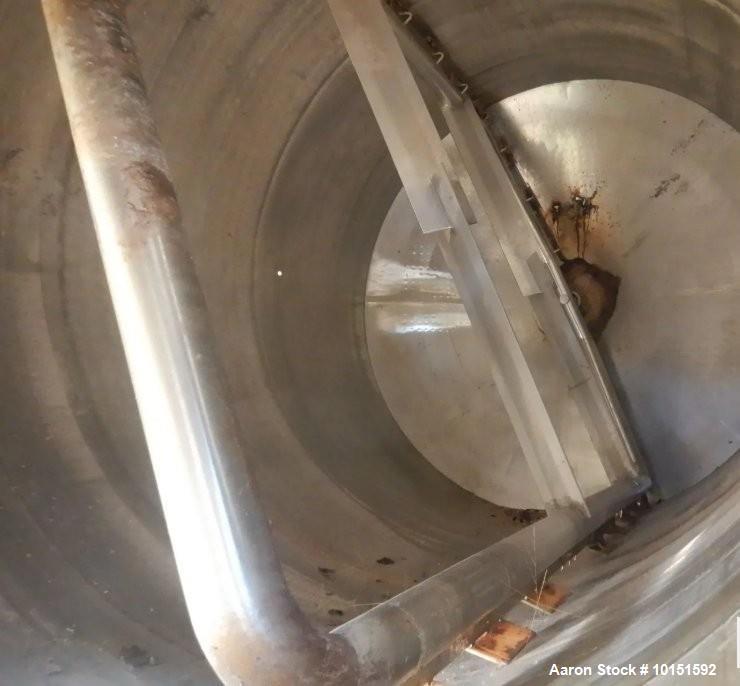

Agitation System

• Bridge-mounted sweep/scrape agitator
• Designed for viscous materials
• Prevents product buildup and improves heat transfer

Drive System

• Motor: 10 HP
• Voltage: 230/460 V
• Speed: 1865 RPM

Mechanical Features

• Flat hinged top cover
• Cone bottom discharge
• Mounted on legs

Applications

• Food processing (sauces, syrups, soups)
• Chemical mixing and heating
• Pharmaceutical processing
• Adhesive and resin production
• Cosmetic formulation
• Nutraceutical processing
• Industrial liquid blending
• High-viscosity material processing
• Batch heating and mixing
• Thermal processing systems

What might this be used for

• Heating and mixing viscous liquids
• Cooking and blending food products
• Maintaining temperature-controlled processes
• Mixing chemicals or industrial solutions
• Producing sauces, pastes, or syrups
• Preventing material buildup with scrape agitation
• Batch processing large volumes
• Preparing materials for further processing
• Handling temperature-sensitive formulations
• Improving consistency in large-scale mixing

Products this machine would be used for

• Sauces and condiments
• Syrups and sweeteners
• Creams and lotions
• Adhesives
• Resins
• Chemical mixtures
• Nutraceutical products
• Food pastes
• Liquid concentrates
• Industrial formulations
