Used Approximately 2,500 Gallon Lee Industries 304 Stainless Steel Jacketed Dou

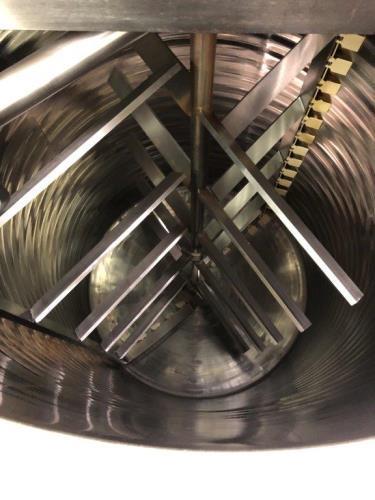

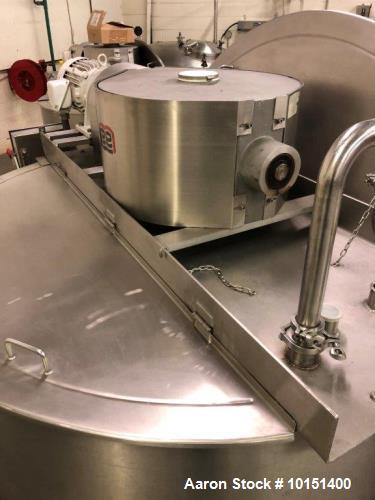

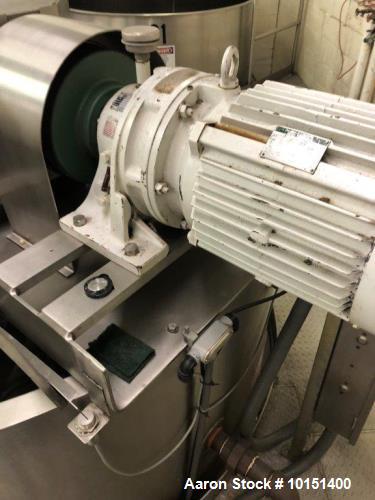

Used- Approximately 2,500 Gallon Lee Industries 304 Stainless Steel Jacketed Double Motion Tank. Model: 2500U9MS, Jacket rated 100 psi @ 338F. Top-mounted double motion agitator with scrape Agitator driven by a 20 hp motor, 230/460 volt. Flat, hinge top, dish bottom. Mounted on (4) stainless steel legs

ManufacturerLee Ind
Model2500U9MS
Serial #C1379N
CategoryTanks
SubcategoryStainless 1000-4999 Gal
Gallons2500
Material Of Construction304 Stainless Steel
Horizontal Or VerticalVertical
Top Head StyleFlat Top
BottomDished Bottom
Agitator LocationTop Center
Agitator TypeTop Entering

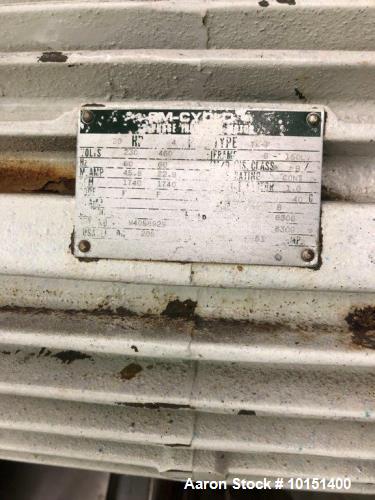

Agitator Hp20
Agitator Voltage208-230/460 Volt
MountedMounted on 4 Legs

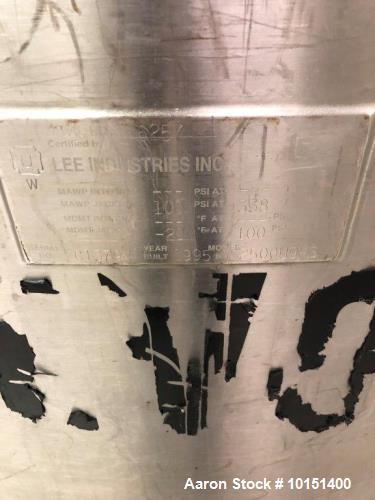

National Board No.6257
Year Built1995

We offer a variety of finance programs. Please contact your sales person for more information.
