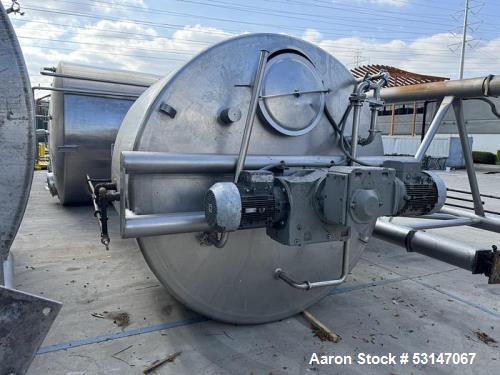

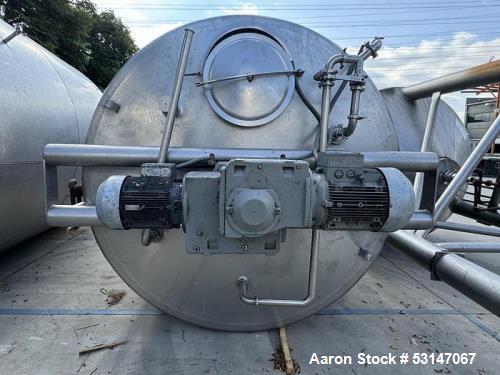

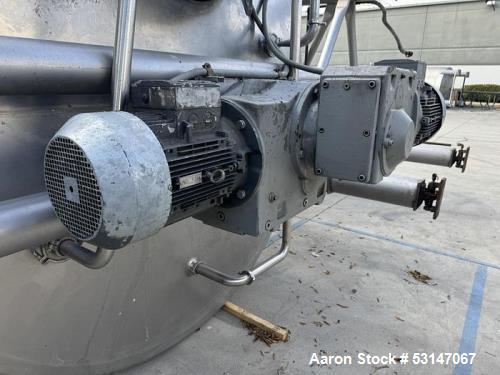

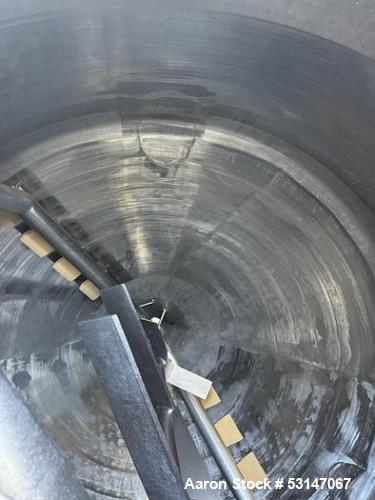

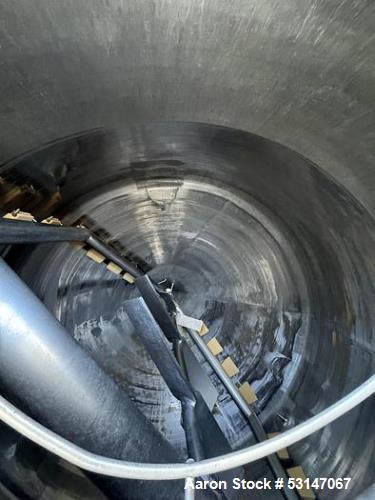

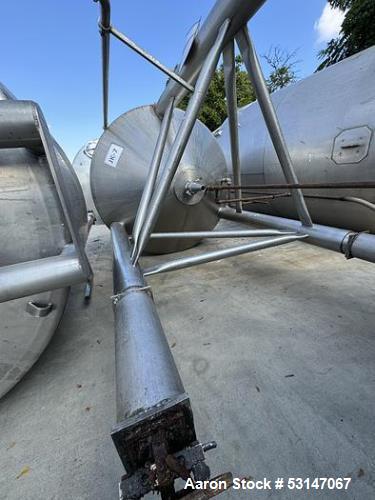

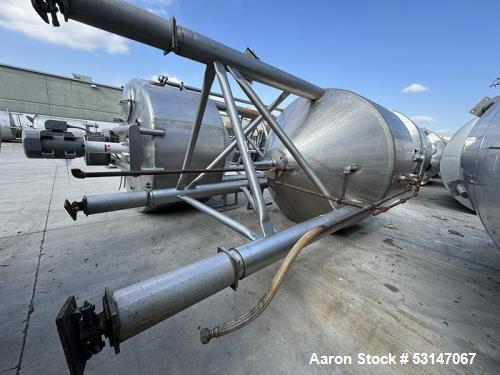

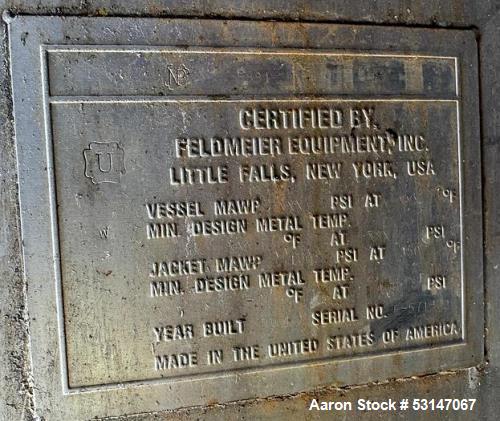

Used- Feldmeier 1,700 Gallon 316 Stainless Steel Jacketed Tank. Double motion scraper agitation. Approximate 8' diameter X 4' straight side with approximate 45 degree cone bottom with 4" center bottom outlet, tapered to 2" with manual butterfly valve. Jacket is rated for 100 PSI at 350 degrees Fahrenheit, ASME code, National Board # 5881. Top head includes 24" manway with cover, (2) 4" top openings tapered to to 2" and (1) 2" opening. Mounted on (3) 9" diameter pipe legs, approximate 5-1/2' discharge height. Tank is offered with dual motion agitation, driven by (2) 15 HP motors thru heavy duty gearbox for scraper agitation and turbine agitation. Previously used in cosmetics industry.
