Cherry Burrell Approximately 1500 Gallon 304 Stainless Steel Jacketed Proce

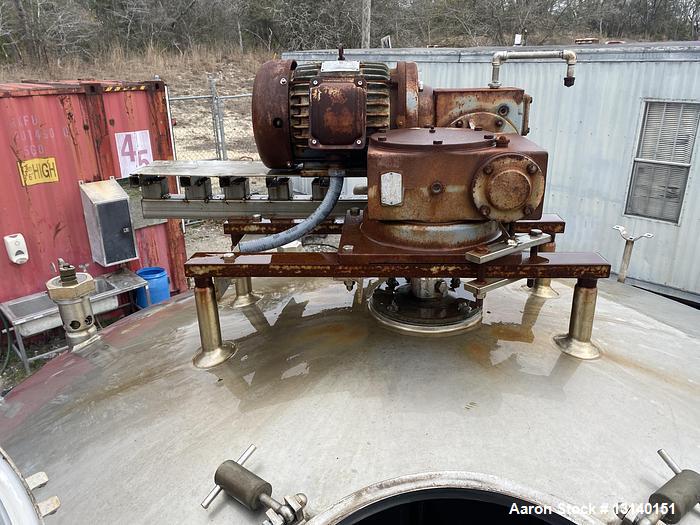

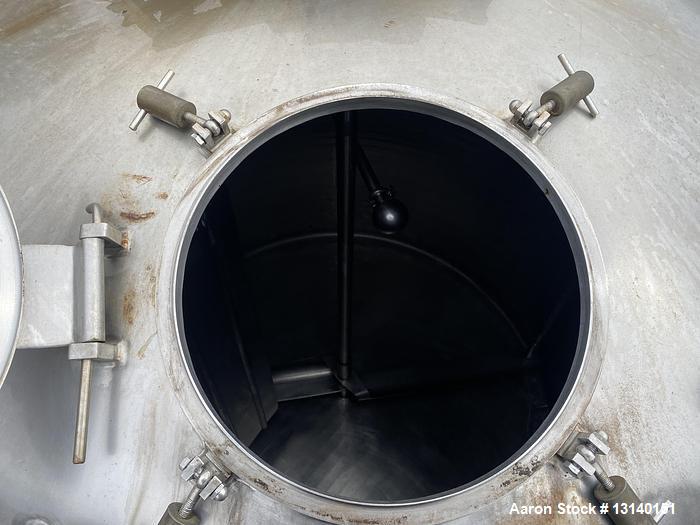

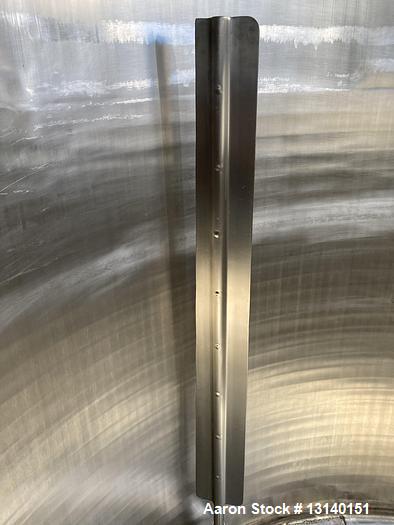

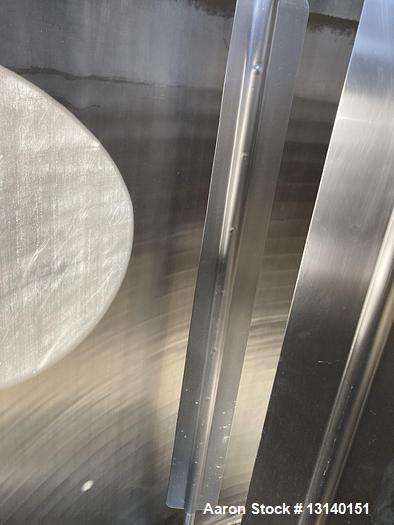

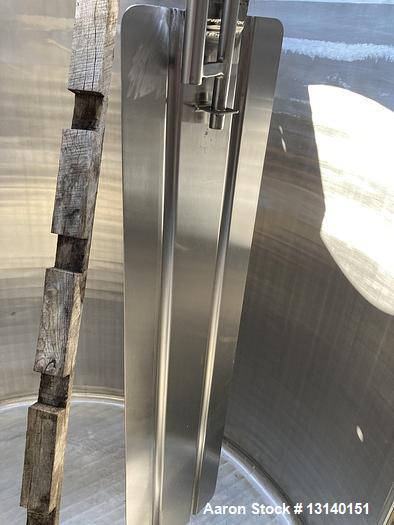

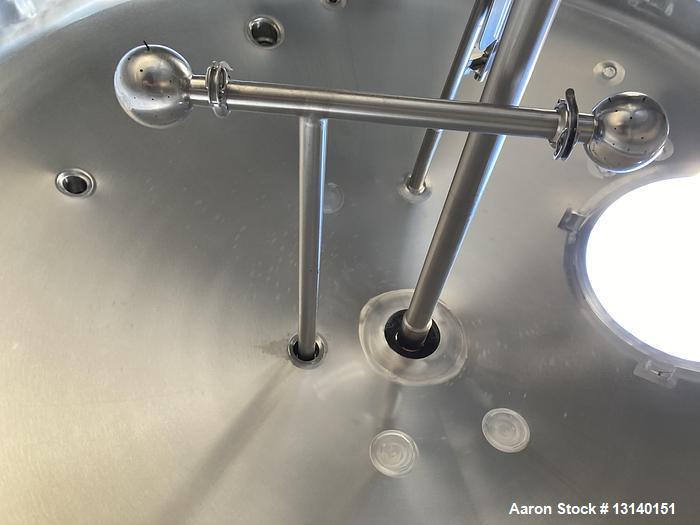

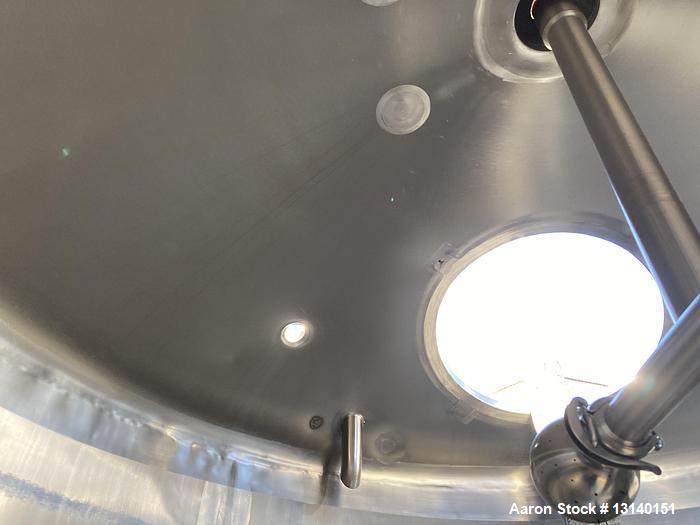

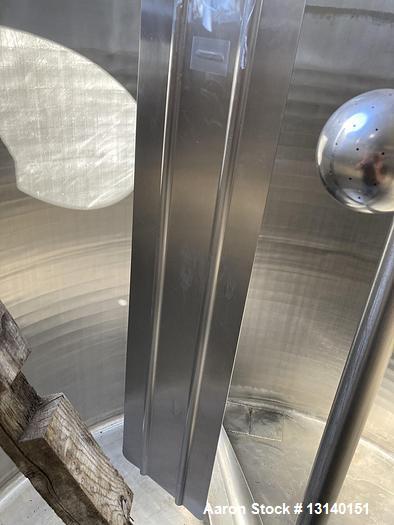

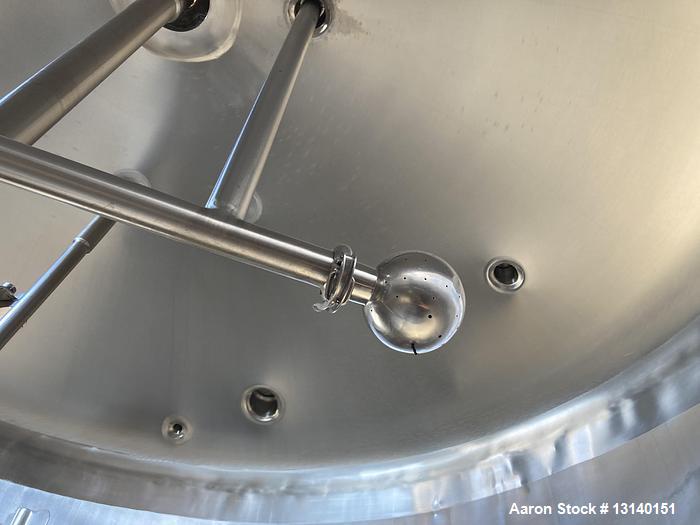

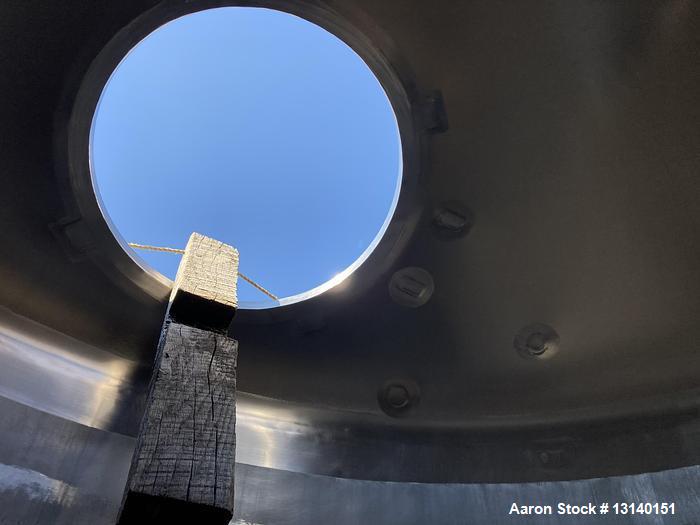

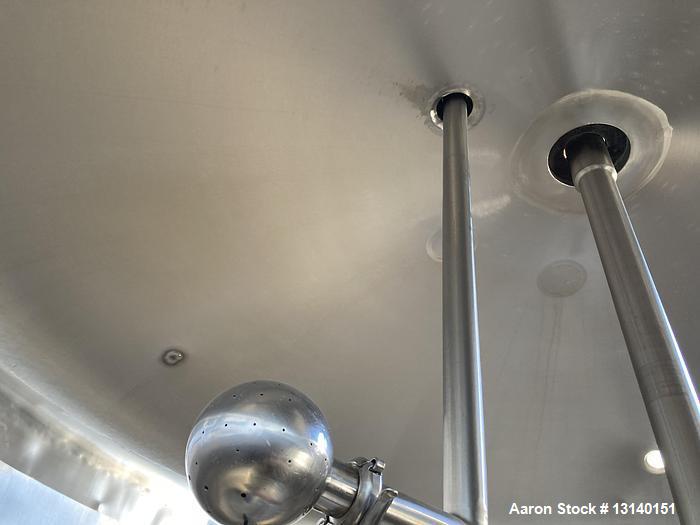

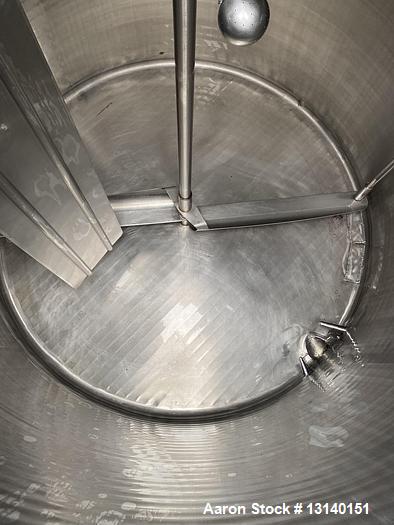

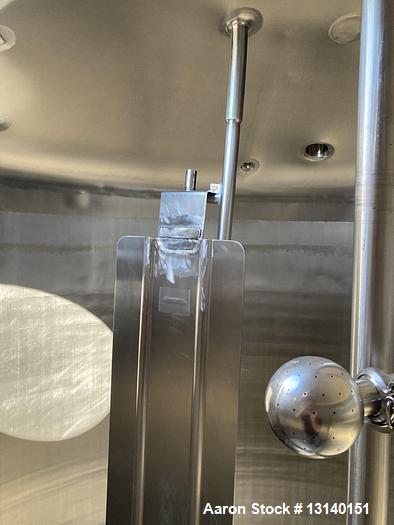

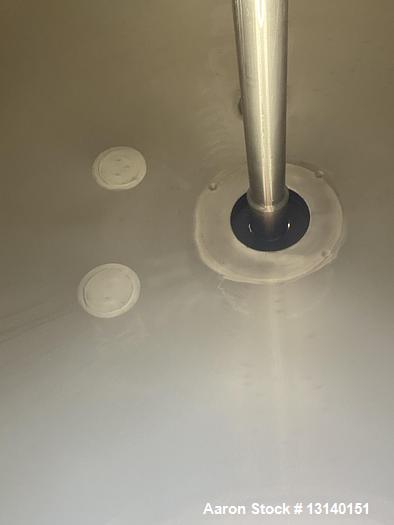

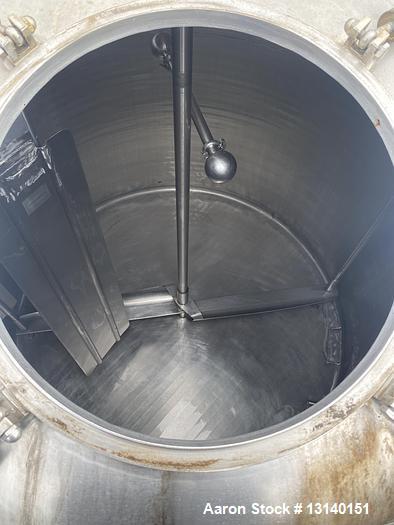

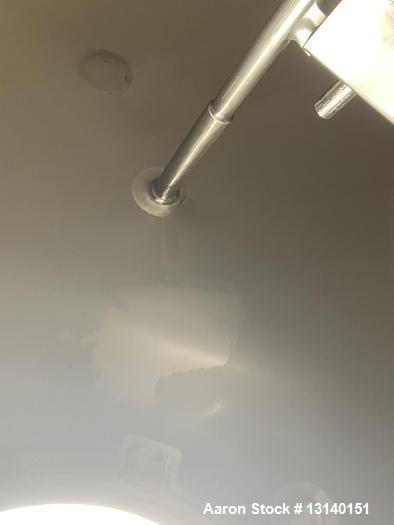

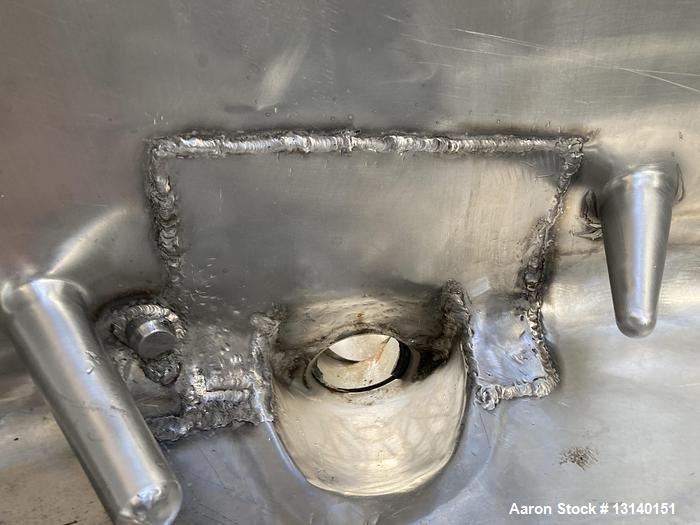

Used Cherry Burrell Approximately 1500 Gallon 304 Stainless Steel Jacketed Processor. Vertical, Dished top Sloping bottom. 80" diameter X 80" high straight side. Model EPD. Equipped with multi-zone panel coil jacket on sides and bottom head. Jacket is insulated and covered with stainless steel sheathing. Top Openings: 20" manway, (3) 1 1/2", (1) 2", and (1) 3/4". 3" side bottom drain with valve. Has spray-balls and baffle. Equipped with wide bottom and side sweep agitator, driven thru a Hub City, model 4510 geardrive with a 150:1 ratio, powered by a 5HP 3/60/230-460 volt motor. Has (2) thermowells. Mounted on stainless steel legs and equipped with stainless steel ladder. Previously used in Milk Production.
| Manufacturer | Cherry BurrellCherry Burrell |
| Model | EPD |
| Serial # | 1500EPD-63-1027 |
| Category | TanksTanks |
| Subcategory | Stainless 1000-4999 GalStainless 1000-4999 Gal |
| Gallons | 1500 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 80" |
| Straight Side | 80" |
| Top Head Style | Dished Head |
| Bottom | Pitched Sloped Bottom |
| Agitator HP | 5 |
| Agitator Phase | 3 |
| Agitator Cycle | 60 |
| Agitator Voltage | 208-230/460 Volt |
| Opening | Fittings: 20" manway, (3) 1 1/2", (1) 2", and (1) 3/4". |
| Opening Cover | Yes |
| Outlet Size | 3" |
| Outlet Location | Side bottom |
Manufacturer Information
- Brand: Cherry-Burrell
- Model: EPD
- Condition: Used
- Capacity: ~1,500 Gallons
- Material: 304 Stainless Steel
- Previous Use: Milk Production
Description
This 1,500-gallon Cherry-Burrell jacketed processor is a sanitary-grade, high-performance mixing and processing tank, ideal for food, dairy, beverage, and pharmaceutical applications.
Built from 304 stainless steel, the tank is corrosion-resistant and easy to clean. It features a multi-zone panel coil jacket on the sides and bottom head, allowing for precise temperature control via heating or cooling. The jacket is insulated and wrapped with stainless steel sheathing to maintain thermal efficiency.
The tank is equipped with a wide bottom and side sweep agitator, driven by a Hub City Model 4510 gear drive (150:1 ratio) and a 5HP motor (3/60/230-460V), ensuring consistent product mixing and heat distribution.
Additional features include a spray-ball cleaning system, internal baffle, and two thermowells for temperature monitoring. The stainless steel legs and an integrated stainless steel ladder provide stability and accessibility.
Specifications
- Total Capacity: 1,500 Gallons
- Material: 304 Stainless Steel
- Tank Orientation: Vertical
- Tank Dimensions:
- Diameter: 80”
- Straight Side Height: 80”
- Top Design: Dished Top
- Bottom Design: Sloping Bottom
- Jacket Type: Multi-Zone Panel Coil (Sides & Bottom Head)
- Insulated & Covered with Stainless Steel Sheathing
- Top Openings:
- 20” Manway
- (3) 1.5” Openings
- (1) 2” Opening
- (1) ¾” Opening
- Drain: 3” Side Bottom Drain with Valve
- Agitation System:
- Wide Bottom & Side Sweep Agitator
- Hub City Model 4510 Gear Drive (150:1 Ratio)
- 5HP 3/60/230-460V Motor
- Additional Features:
- Spray-Ball Cleaning System
- Internal Baffle
- (2) Thermowells
- Mounted on Stainless Steel Legs
- Equipped with Stainless Steel Ladder
Applications
- Dairy & Beverage Processing – Milk, cream, yogurt, juice, plant-based beverages
- Food Production – Soups, sauces, confectionery, prepared foods
- Pharmaceutical & Biotech – Mixing and processing of sterile liquid formulations
- Cosmetic & Personal Care – Lotions, creams, gels, and emulsions
- Chemical & Specialty Processing – Precise temperature-controlled mixing applications
Compatible Products
- Jacketed stainless steel mixing tanks
- Sanitary-grade food & dairy processing equipment
- High-performance industrial agitators & mixing vessels
- Automated CIP (clean-in-place) processing tanks
- Jacketed processor, stainless steel mixing tank, food-grade processing vessel
- : Used Cherry-Burrell 1,500-gallon stainless steel jacketed tank, industrial dairy processing tank, sanitary mixing tank with agitation system
- 1,500-gallon Cherry-Burrell 304 stainless steel jacketed processor with bottom and side sweep agitator, used milk production tank with multi-zone panel coil jacket and 5HP agitator, sanitary stainless steel food processing vessel with integrated cleaning system and thermowells
Used Cherry Burrell Approximately 1500 Gallon 304 Stainless Steel Jacketed Processor. Vertical, Dished top Sloping bottom. 80" diameter X 80" high straight side. Model EPD. Equipped with multi-zone panel coil jacket on sides and bottom head. Jacket is insulated and covered with stainless steel sheathing. Top Openings: 20" manway, (3) 1 1/2", (1) 2", and (1) 3/4". 3" side bottom drain with valve. Has spray-balls and baffle. Equipped with wide bottom and side sweep agitator, driven thru a Hub City, model 4510 geardrive with a 150:1 ratio, powered by a 5HP 3/60/230-460 volt motor. Has (2) thermowells. Mounted on stainless steel legs and equipped with stainless steel ladder. Previously used in Milk Production.
Manufacturer Information
- Brand: Cherry-Burrell
- Model: EPD
- Condition: Used
- Capacity: ~1,500 Gallons
- Material: 304 Stainless Steel
- Previous Use: Milk Production
Description
This 1,500-gallon Cherry-Burrell jacketed processor is a sanitary-grade, high-performance mixing and processing tank, ideal for food, dairy, beverage, and pharmaceutical applications.
Built from 304 stainless steel, the tank is corrosion-resistant and easy to clean. It features a multi-zone panel coil jacket on the sides and bottom head, allowing for precise temperature control via heating or cooling. The jacket is insulated and wrapped with stainless steel sheathing to maintain thermal efficiency.
The tank is equipped with a wide bottom and side sweep agitator, driven by a Hub City Model 4510 gear drive (150:1 ratio) and a 5HP motor (3/60/230-460V), ensuring consistent product mixing and heat distribution.
Additional features include a spray-ball cleaning system, internal baffle, and two thermowells for temperature monitoring. The stainless steel legs and an integrated stainless steel ladder provide stability and accessibility.
Specifications
- Total Capacity: 1,500 Gallons
- Material: 304 Stainless Steel
- Tank Orientation: Vertical
- Tank Dimensions:
- Diameter: 80”
- Straight Side Height: 80”
- Top Design: Dished Top
- Bottom Design: Sloping Bottom
- Jacket Type: Multi-Zone Panel Coil (Sides & Bottom Head)
- Insulated & Covered with Stainless Steel Sheathing
- Top Openings:
- 20” Manway
- (3) 1.5” Openings
- (1) 2” Opening
- (1) ¾” Opening
- Drain: 3” Side Bottom Drain with Valve
- Agitation System:
- Wide Bottom & Side Sweep Agitator
- Hub City Model 4510 Gear Drive (150:1 Ratio)
- 5HP 3/60/230-460V Motor
- Additional Features:
- Spray-Ball Cleaning System
- Internal Baffle
- (2) Thermowells
- Mounted on Stainless Steel Legs
- Equipped with Stainless Steel Ladder
Applications
- Dairy & Beverage Processing – Milk, cream, yogurt, juice, plant-based beverages
- Food Production – Soups, sauces, confectionery, prepared foods
- Pharmaceutical & Biotech – Mixing and processing of sterile liquid formulations
- Cosmetic & Personal Care – Lotions, creams, gels, and emulsions
- Chemical & Specialty Processing – Precise temperature-controlled mixing applications
Compatible Products
- Jacketed stainless steel mixing tanks
- Sanitary-grade food & dairy processing equipment
- High-performance industrial agitators & mixing vessels
- Automated CIP (clean-in-place) processing tanks
| Manufacturer | Cherry Burrell |
| Model | EPD |
| Serial # | 1500EPD-63-1027 |
| Category | Tanks |
| Subcategory | Stainless 1000-4999 Gal |
| Gallons | 1500 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 80" |
| Straight Side | 80" |
| Top Head Style | Dished Head |
| Bottom | Pitched Sloped Bottom |
| Agitator HP | 5 |
| Agitator Phase | 3 |
| Agitator Cycle | 60 |
| Agitator Voltage | 208-230/460 Volt |
| Opening | Fittings: 20" manway, (3) 1 1/2", (1) 2", and (1) 3/4". |
| Opening Cover | Yes |
| Outlet Size | 3" |
| Outlet Location | Side bottom |
- Jacketed processor, stainless steel mixing tank, food-grade processing vessel
- : Used Cherry-Burrell 1,500-gallon stainless steel jacketed tank, industrial dairy processing tank, sanitary mixing tank with agitation system
- 1,500-gallon Cherry-Burrell 304 stainless steel jacketed processor with bottom and side sweep agitator, used milk production tank with multi-zone panel coil jacket and 5HP agitator, sanitary stainless steel food processing vessel with integrated cleaning system and thermowells
