Used 4,500 Gallon Apache Receiver Tank

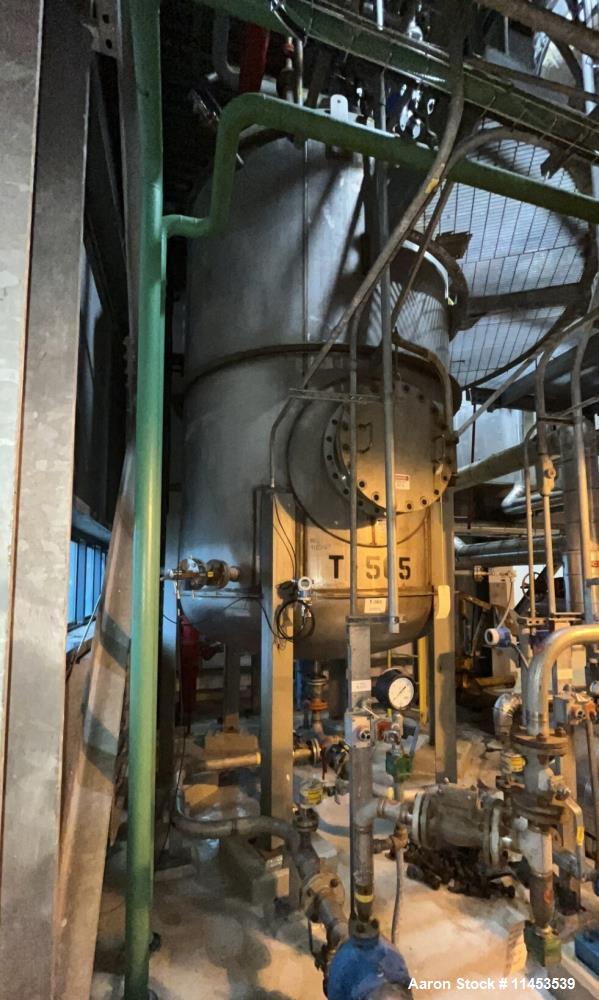

Used-4,500 Gallon Apache Receiver Tank, stainless steel construction, approximately 8' diameter x 11' straight side, 2:1 elliptical dish top and bottom, rated 90 psi and full vacuum at 350 f internal, on legs.

ManufacturerApache

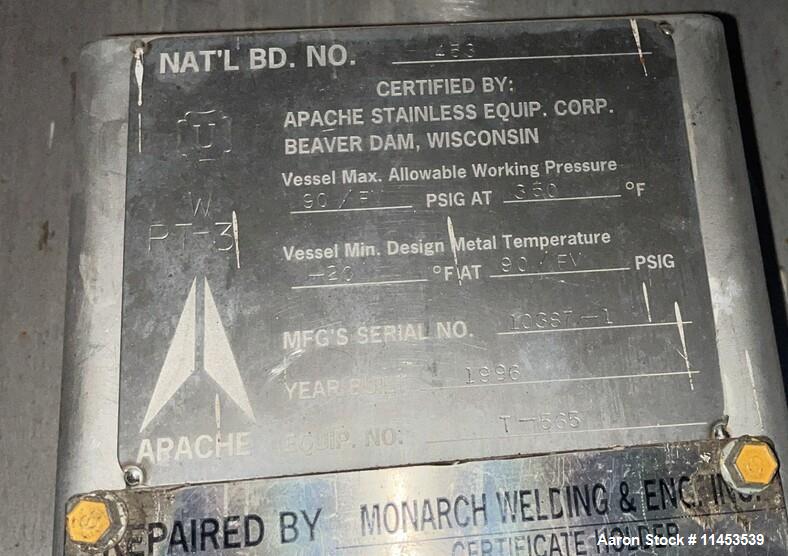

Serial #10387-1
CategoryTanks
SubcategoryStainless 1000-4999 Gal
Gallons4500
Material Of ConstructionStainless Steel
Horizontal Or VerticalVertical
Diameter84"
Straight Side132"
Top Head StyleEliptical
BottomEliptical Bottom
Internal Pressure90
Internal Temperature350 F
Year Built1996

We offer a variety of finance programs. Please contact your sales person for more information.
