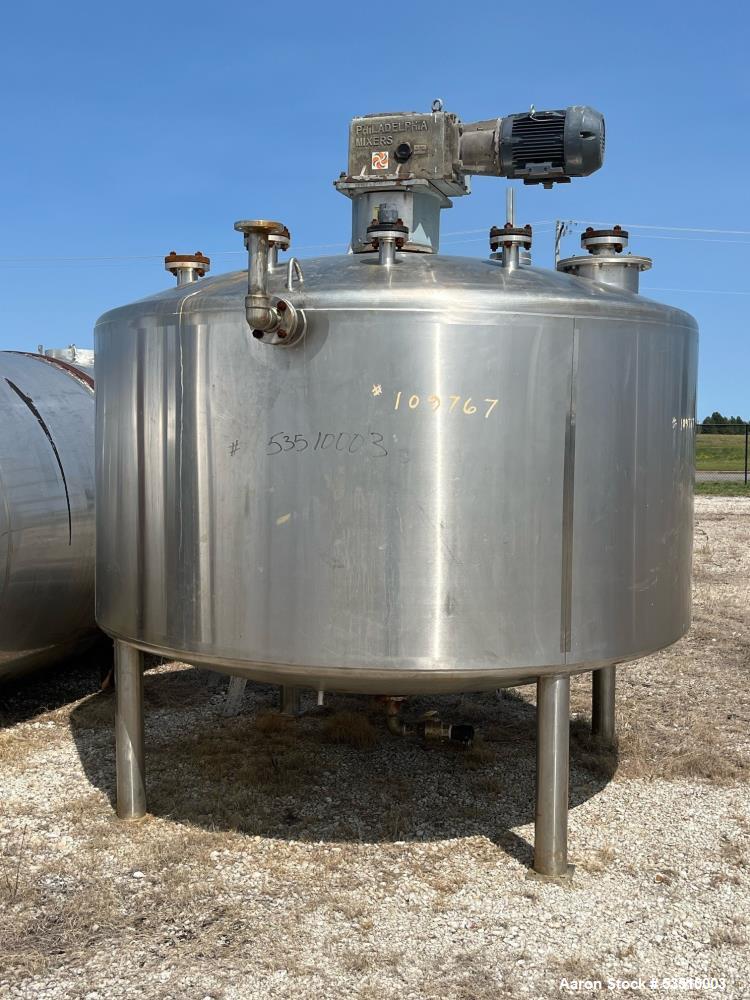

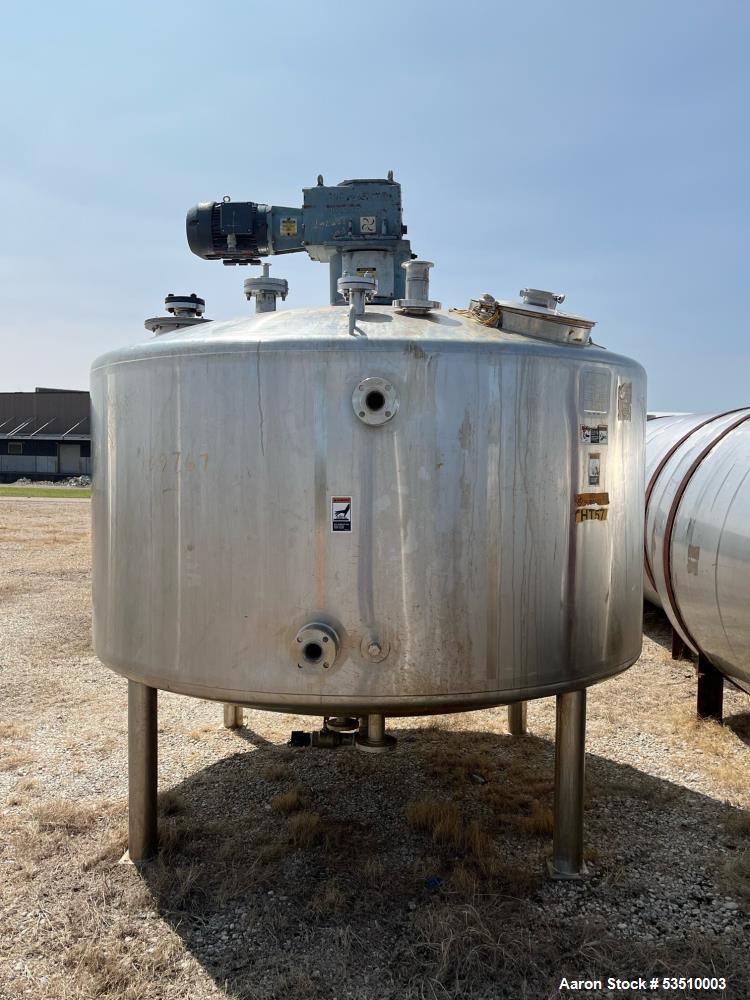

Walker Stainless 1,500 Gallon Mix Tank

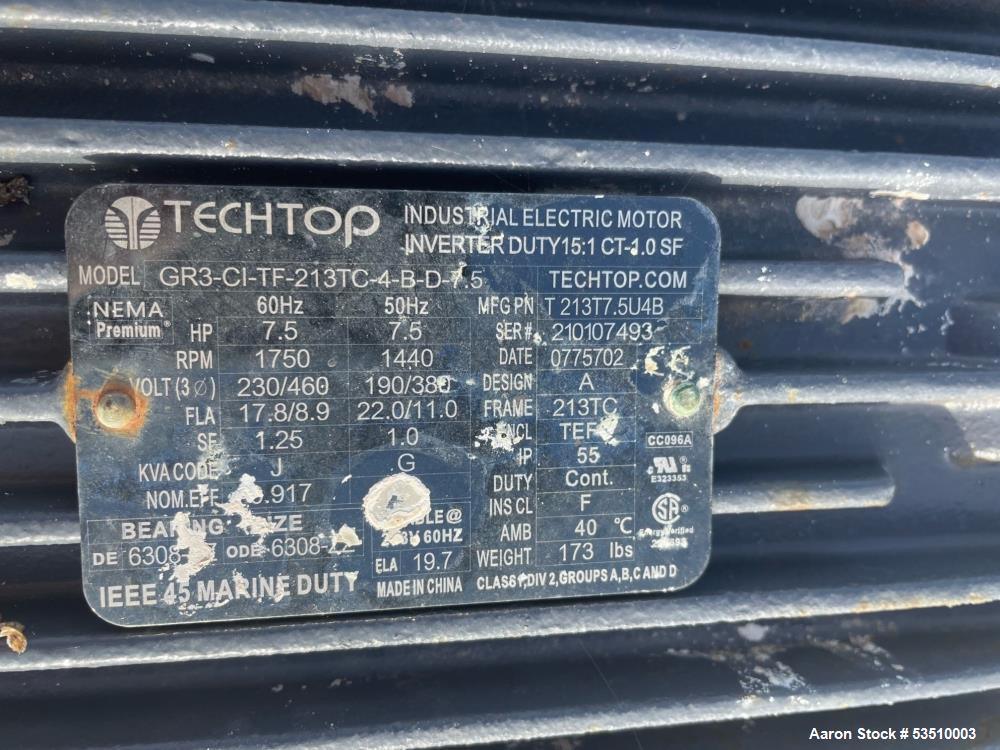

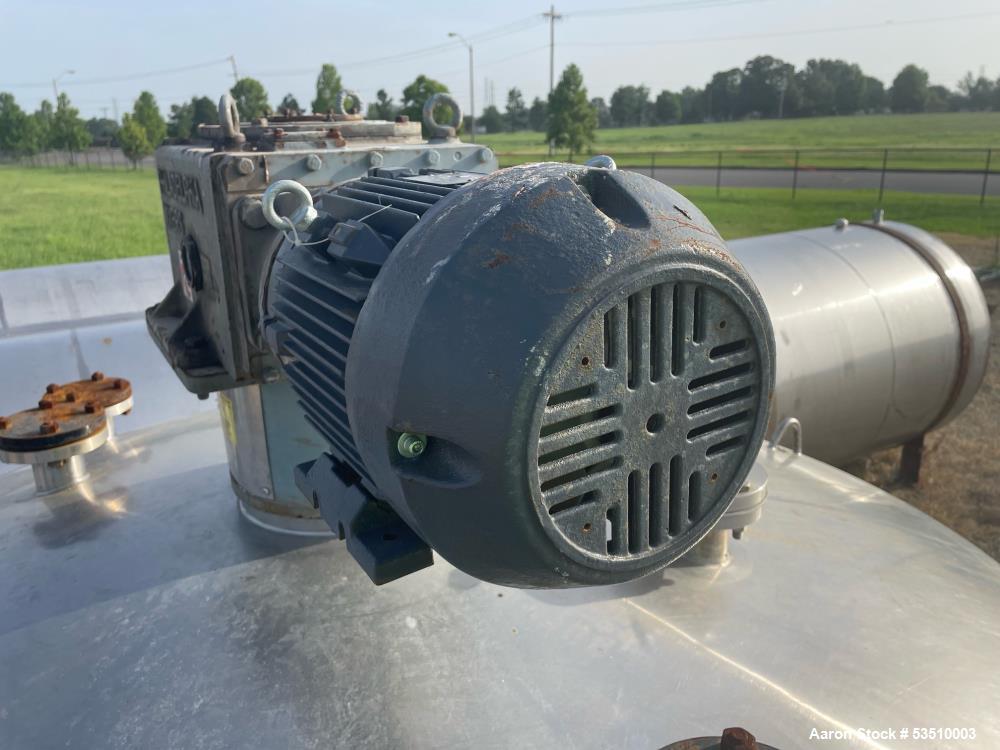

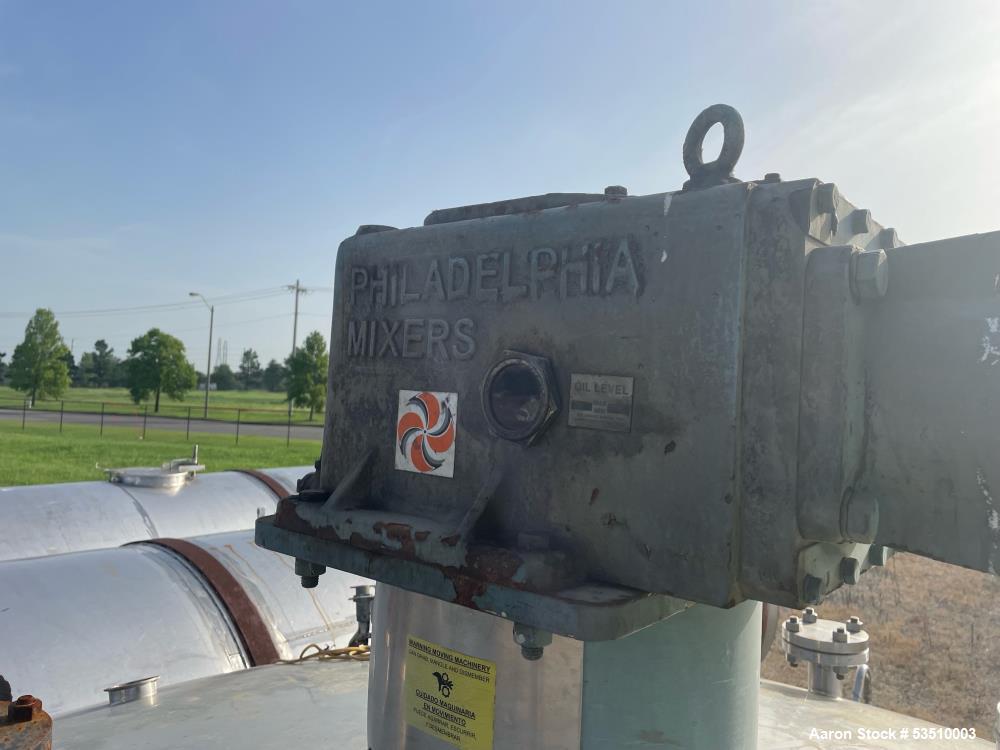

Used- Walker Stainless Equipment 1,500 Gallon Jacketed Mix Tank, 304L Stainless Steel, Vertical. 96" diameter x 43" straight side. Internal rated Atmos at 250 degrees F. Jacket rated 150 psi at -20 to 250 degrees F. Top entering Philadelphia mixer, driven by 7.5hp, 3/60/230/460 volt, 1750 rpm gear motor. Openings top: 19" manway with cover, approximate 2" center bottom outlet, 15" discharge height. Mounted on (4) legs. Serial# SPG-21585, Built 2000.

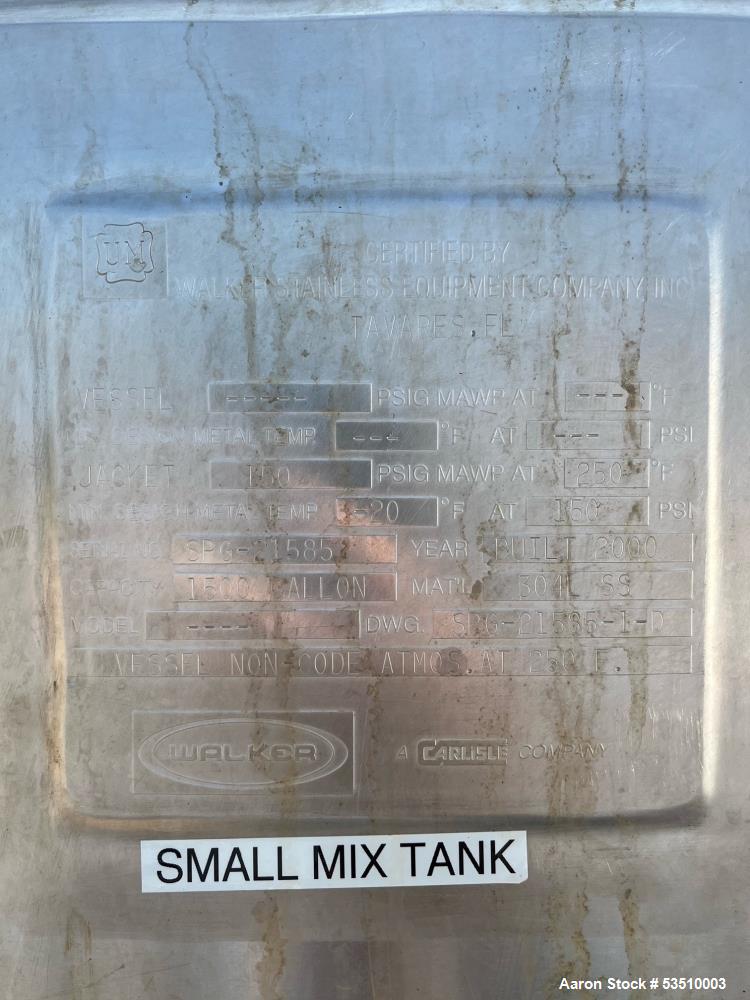

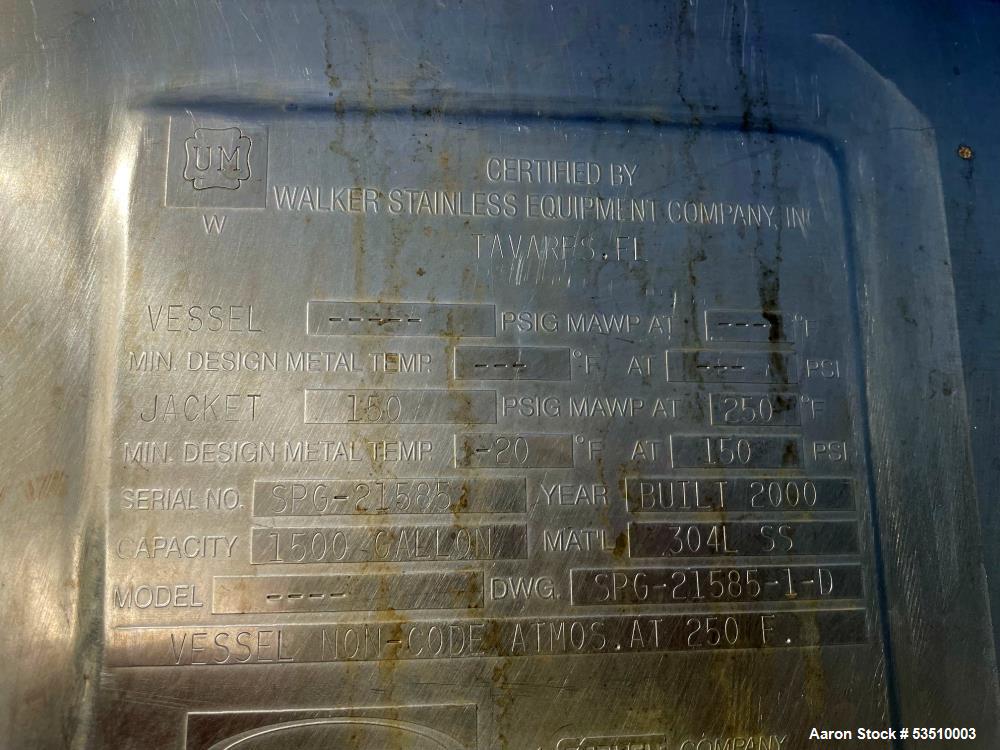

Serial #SPG-21585
CategoryTanks
SubcategoryStainless 1000-4999 Gal
Gallons1500
Material Of Construction304L Stainless Steel
Horizontal Or VerticalVertical
Top Head StyleDished Head
BottomDished Bottom
Internal PressureAtmos
Internal Temperature250 degrees F

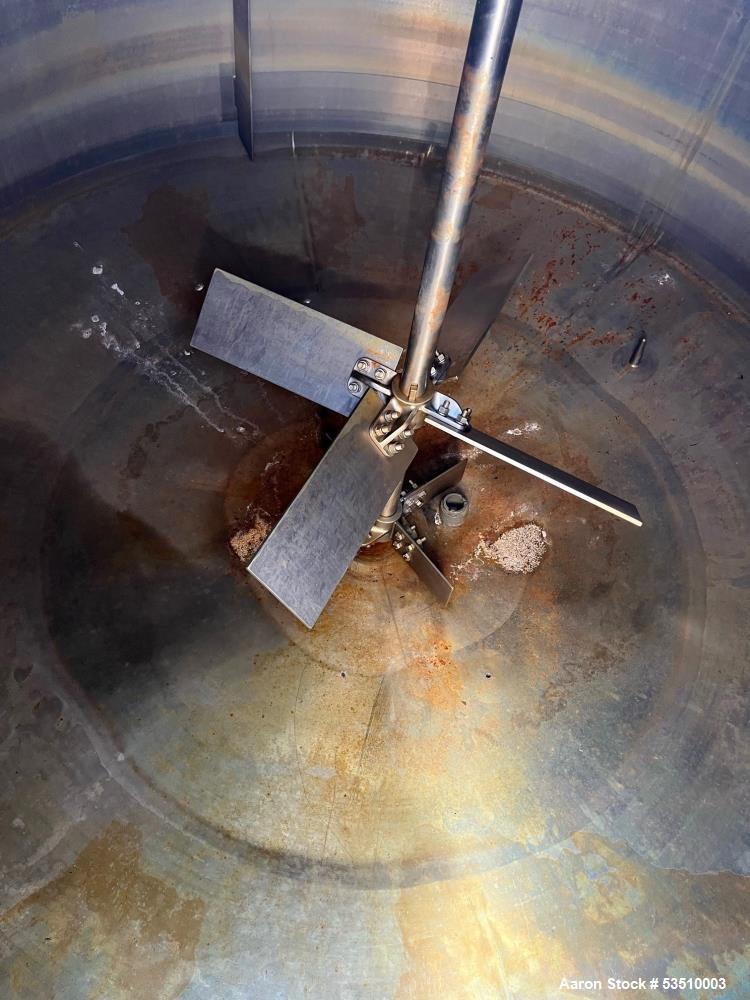

Agitator LocationTop Center
Agitator TypeFixed Mount
Agitator ManufacturerPhiladelphia Mixers
Agitator Hp7.5
Agitator Phase3
Agitator Cycle60
Agitator Voltage208-230/460 Volt
Agitator Rpm1750
MountedMounted on 4 Legs
Year Built2000

We offer a variety of finance programs. Please contact your sales person for more information.
