Used 1600 Gallon Mix Tank, 316 Stainless Steel, Vertical. 84" Diameter x 103" Straight Side. 1/4" and 3/16" thick single wall; Includes platform with 12" steel beams. Does not include agitator or dis...

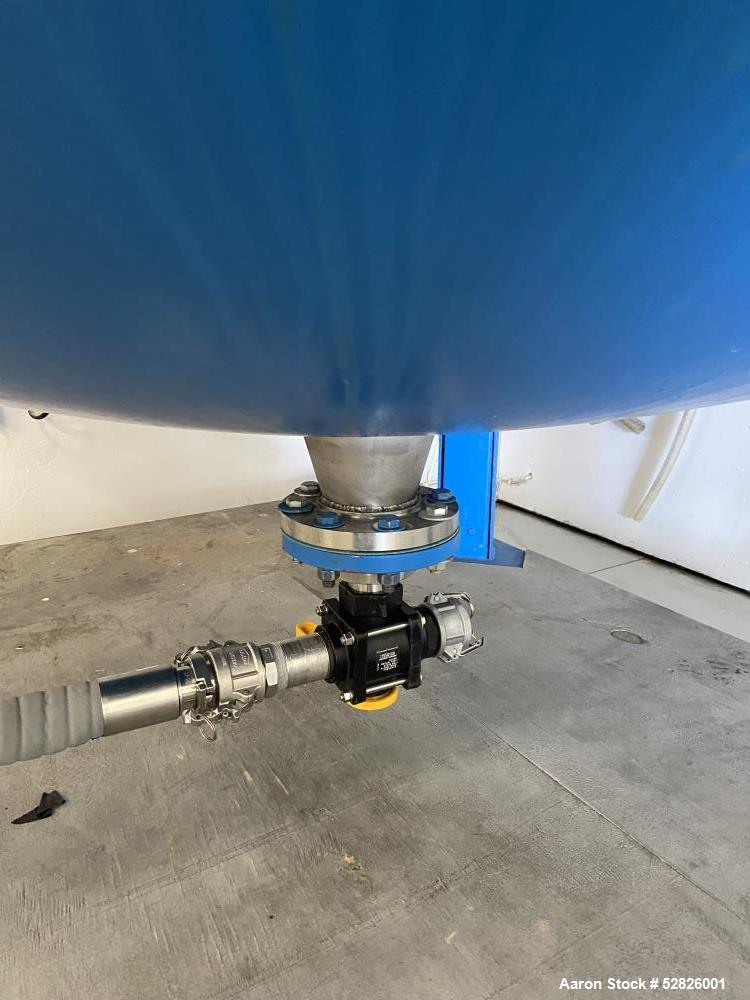

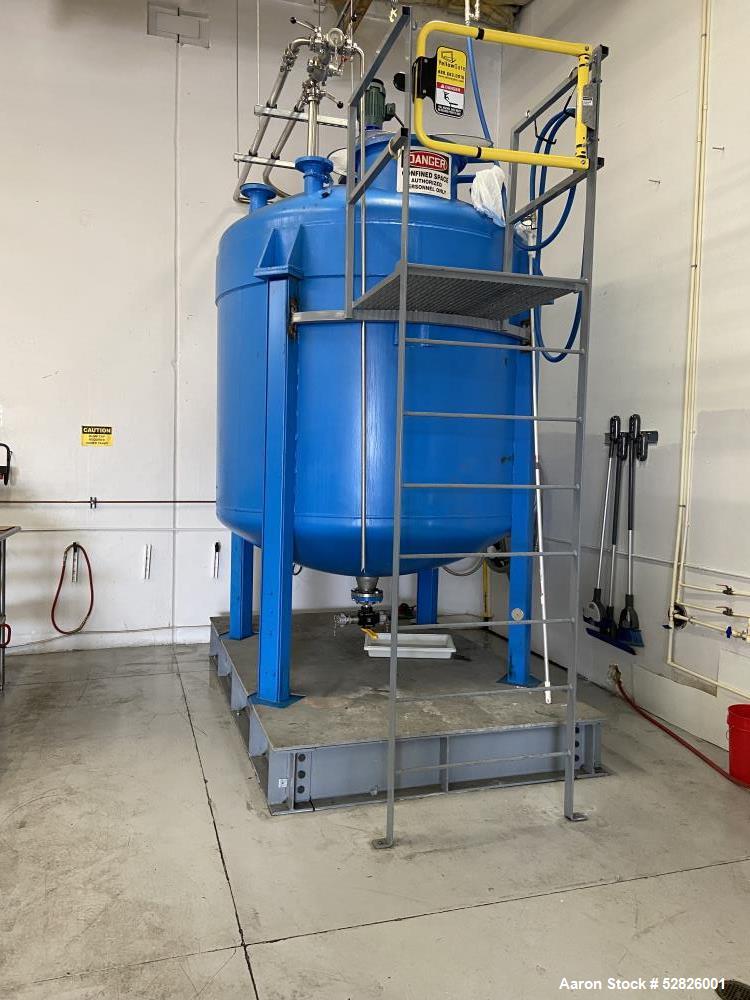

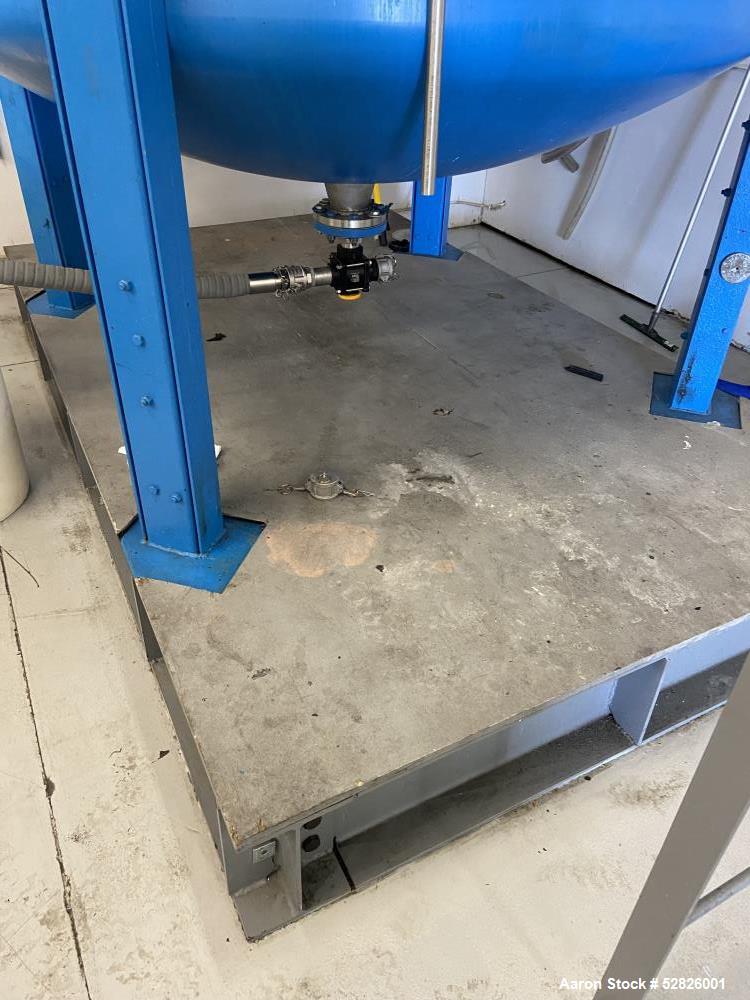

Used- 1600 Gallon Mix Tank, 316 Stainless Steel, Vertical. 84" Diameter x 103" Straight Side. 1/4" and 3/16" thick single wall; Includes platform with 12" steel beams. Does not include agitator or discharge valve. Mounted on (4) Stainless Steel Legs. Approximately 2,790 lbs.

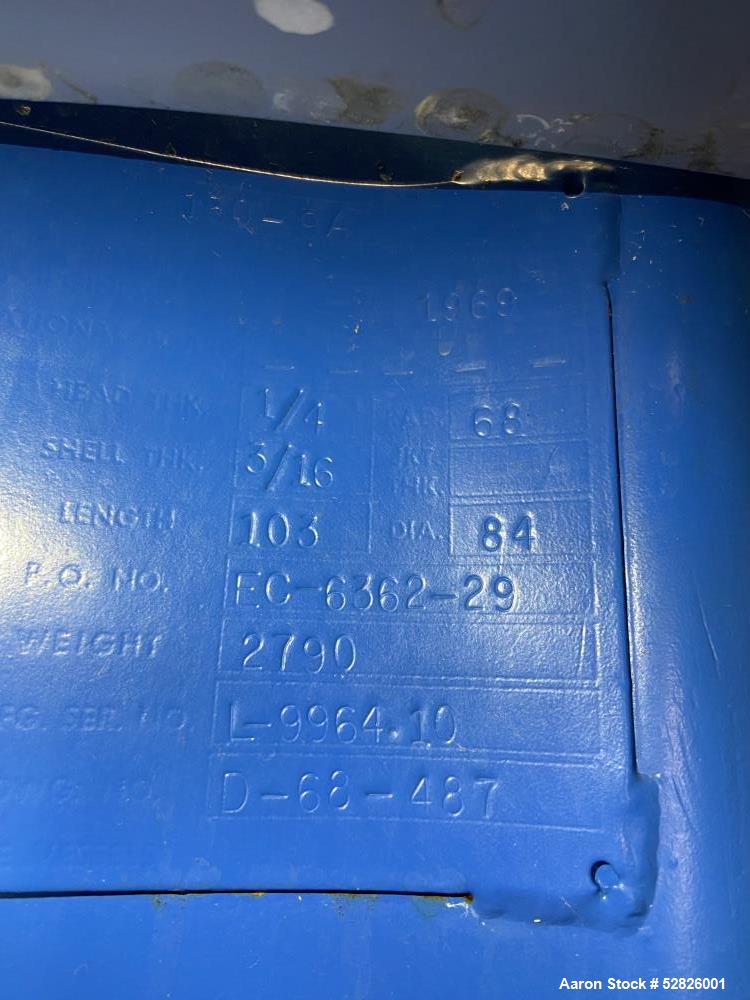

Serial #L-9964.10
CategoryTanks
SubcategoryStainless 1000-4999 Gal
Gallons1600
Material Of Construction316 Stainless Steel
Horizontal Or VerticalVertical
Diameter84"
Straight Side103"
Top Head StyleDished Head
BottomDished Bottom
MountedMounted on 4 Legs

We offer a variety of finance programs. Please contact your sales person for more information.
