THIS ITEM HAS SOLD!
View similar equipment
Stock No.: 52783001
10,000 Liters (approximately 2,642 Gallon) Stainless Steel Insulated Process Tank
Used- 10,000 Liters (approximately 2,642 Gallon) Stainless Steel Insulated Process Tank; 304 Stainless Steel construction, inside finish is Sanitary; Top mechanical seal position (Mechanical seal not included); 83 1/2" diameter x 198" High x 120'' Straight shell; 2" insulation; 19" Diameter Manhole; Agitator with two level with a small bottom one, 55" diameter; Conical bottom 30 degrees; Thermometer wells; Spray ball connections (2) on top (spray ball not included), and washing device (1) at bottom; Lifting eye (120 deg.); (1) x 4" connection; (2) x 3po connections; (1) x 2" connection; 1 vent on 4" SMS connection. Last used in a Yogurt application. Reported to be reconditioned. DRIVE NOT INCLUDE BUT CAN BE PROVIDED FOR ADDITIONAL COST or we can give you the model and specifications.
-
CategoryTanks
-
SubcategoryStainless 1000-4999 Gal
-
Gallons2642
-
Material Of Construction304 Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter83.5"
-
Straight Side198"
-
Top Head StyleDished Head
-
BottomConed Bottom
-
MountedMounted on 4 Legs
Used equipment facts about this machine
Manufacturer Information
- Capacity: 10,000 Liters (Approx. 2,642 Gallons)
- Material: 304 Stainless Steel
- Condition: Used (Reported Reconditioned)
- Previous Use: Yogurt Processing
Description
This 10,000-Liter Stainless Steel Process Tank is a sanitary-grade processing vessel, ideal for dairy, food, beverage, pharmaceutical, and chemical applications. Constructed from 304 stainless steel with a sanitary interior finish, this tank is well-suited for hygienic liquid processing.
With an 83.5" diameter and 120" straight shell height, this vertical tank stands 198" overall height and features a conical bottom (30° slope) for efficient drainage and product flow. The tank is insulated with 2" insulation, helping maintain temperature stability.
The unit is equipped with multiple process and cleaning features, including:

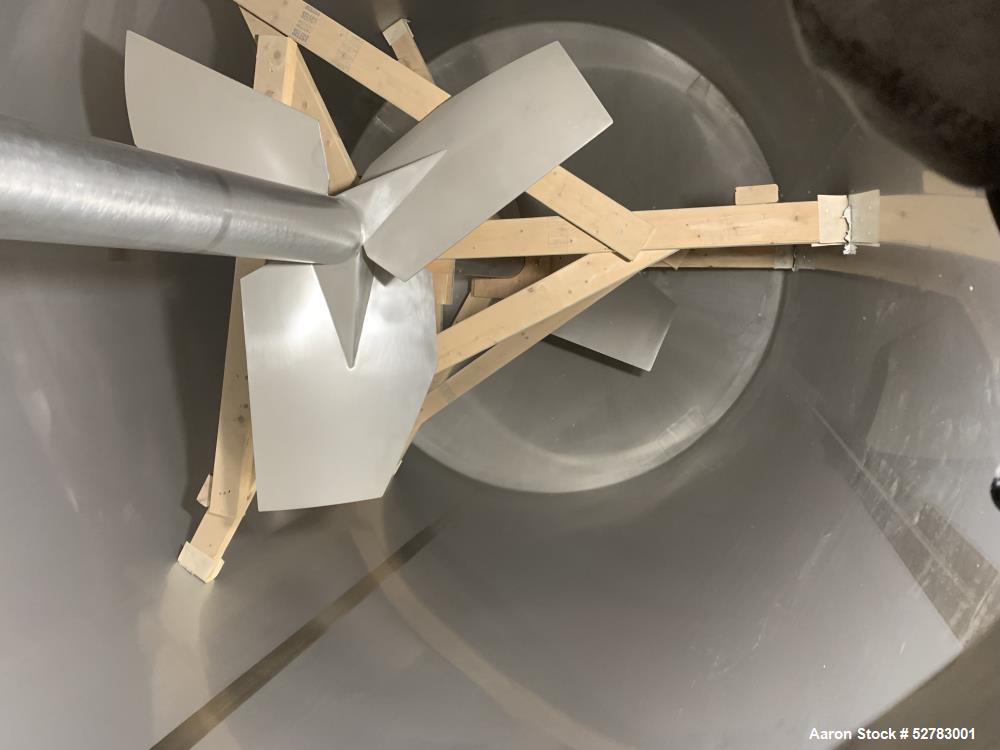

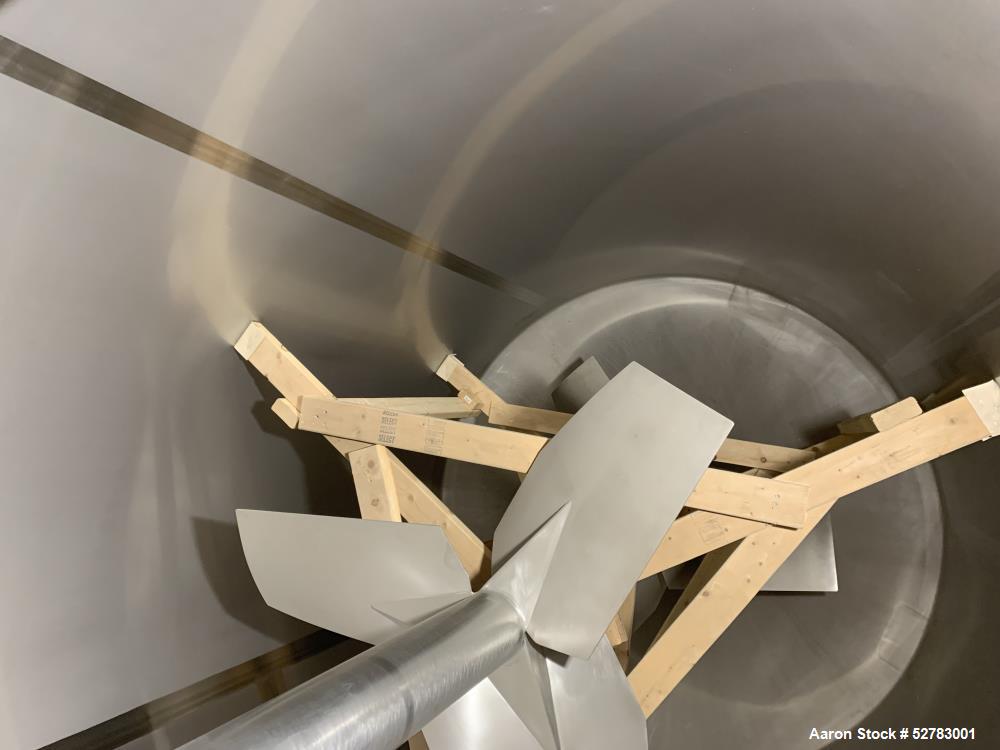

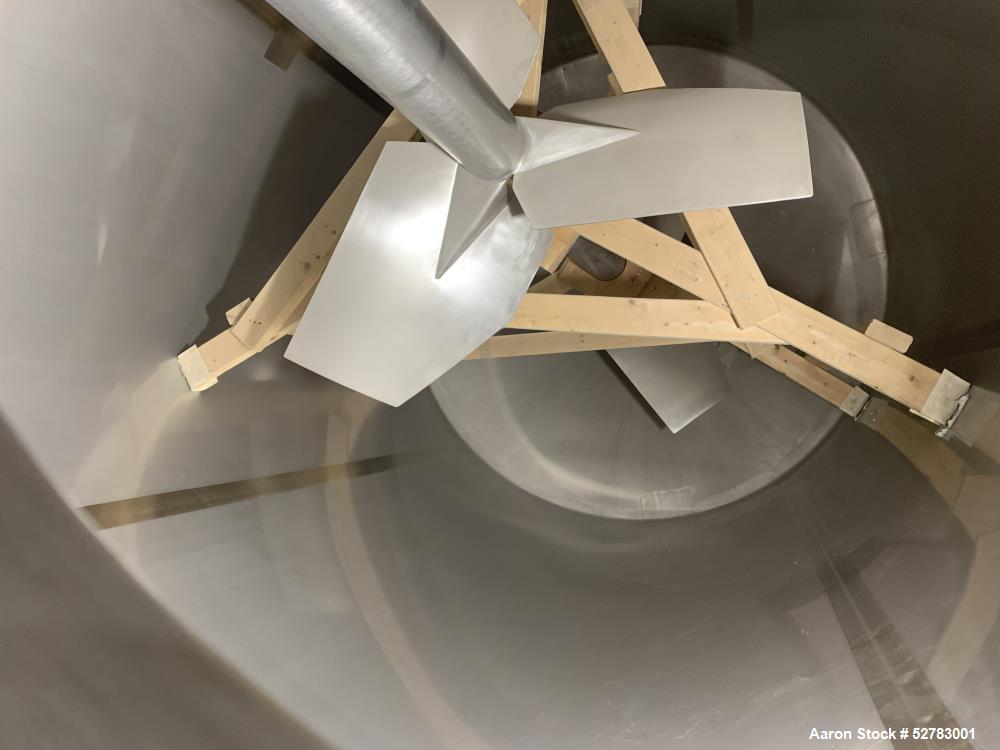

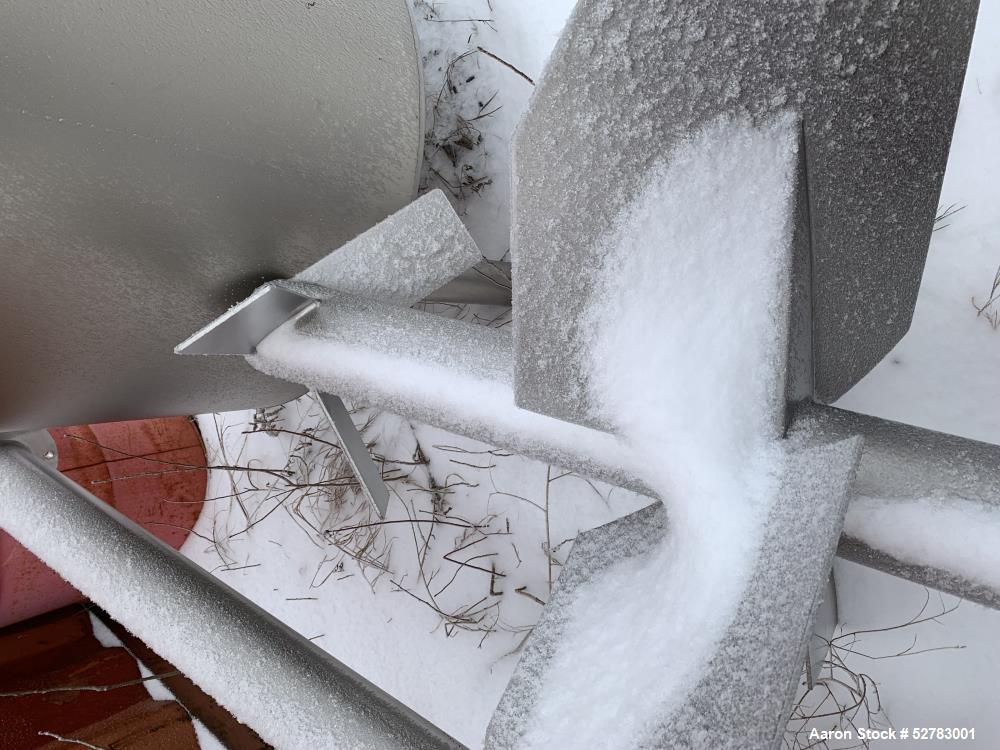

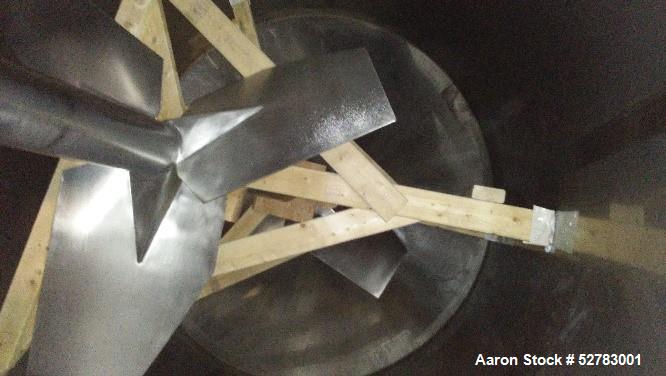

- Agitator System (Two Levels, Small Bottom One, 55" Diameter)
- Top Mechanical Seal Position (Mechanical Seal Not Included)
- Thermometer Wells for Temperature Monitoring
- Spray Ball Connections (2) on Top (Spray Ball Not Included)

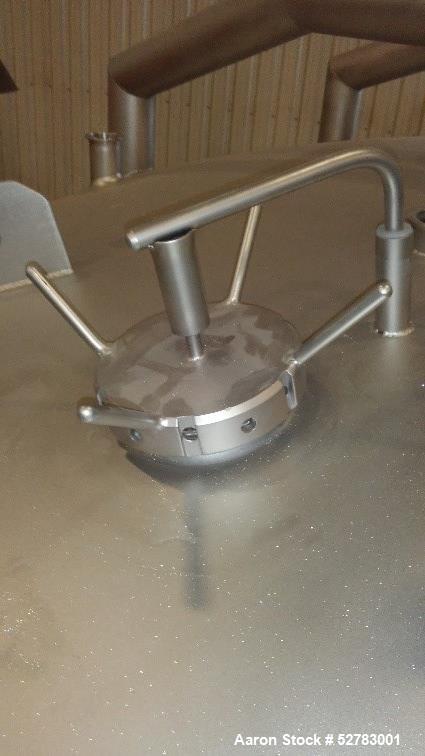

- Washing Device (1) at Bottom
- Lifting Eye at 120° Position
Multiple Inlet/Outlet Connections for Processing Flexibility:
- (1) 4" Connection
- (2) 3" Connections
- (1) 2" Connection
- (1) Vent on 4" SMS Connection
Important Note: Drive Not Included but can be provided at an additional cost.
Specifications
- Capacity: 10,000 Liters (~2,642 Gallons)
- Material: 304 Stainless Steel
- Interior Finish: Sanitary
- Tank Orientation: Vertical
- Tank Dimensions:
- Diameter: 83.5"
- Straight Shell Height: 120"
- Overall Height: 198"
- Bottom Design: 30° Conical Bottom
- Insulation: 2"
- Agitation System:
- Two-Level Agitator with Small Bottom Blade (55" Diameter)
- Drive Not Included (Available for Additional Cost)
- Cleaning & Monitoring Features:
- Spray Ball Connections (2) on Top (Spray Ball Not Included)
- Washing Device at Bottom
- Thermometer Wells
- Access & Fittings:

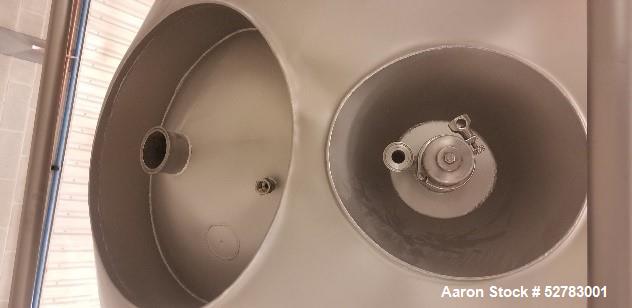

- 19" Diameter Manhole
- (1) 4" Connection
- (2) 3" Connections
- (1) 2" Connection
- (1) 4" SMS Vent Connection
- Lifting Eye at 120° Position
Applications
- Dairy Processing – Yogurt, milk, cream, and fermented dairy production
- Food & Beverage Processing – Mixing and storage of liquid ingredients, juices, and syrups
- Pharmaceutical & Biotech – High-purity liquid formulations and fermentation applications
- Chemical Processing – Controlled blending and reaction vessel for specialty chemicals
- Industrial Liquid Processing – Large-scale liquid processing requiring sanitary conditions
Compatible Products
- Stainless steel sanitary process tanks
- High-capacity fermentation and mixing tanks
- Food and pharmaceutical-grade storage vessels
- Agitated process tanks with heating/cooling capabilities
Product Details
- Stainless steel tank, process tank, insulated mixing tank
- Used 10,000-liter stainless steel tank, reconditioned yogurt processing tank, sanitary insulated mixing vessel
- 10,000-liter stainless steel process tank with agitator for dairy applications, used high-capacity sanitary mixing tank with thermometer wells and spray ball connections, reconditioned insulated yogurt processing vessel with multiple connections
We offer a variety of finance programs. Please contact your sales person for more information.
