Stock No.: 52551001

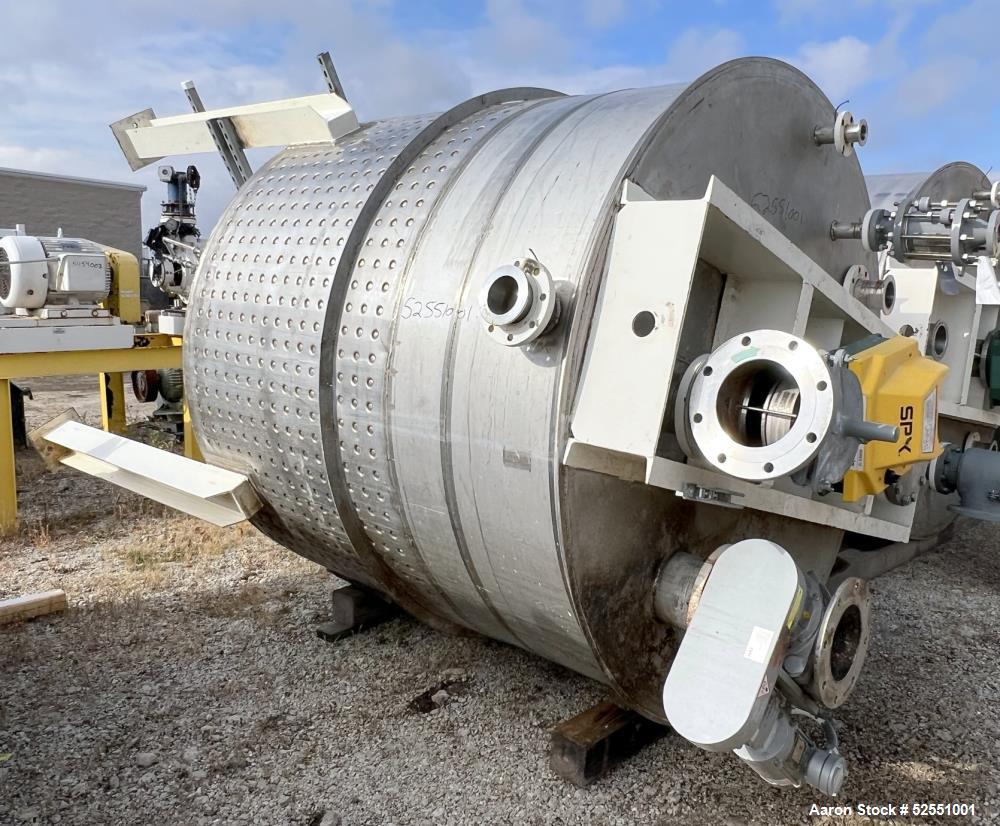

304 Stainless Steel Jacketed Mix Tank

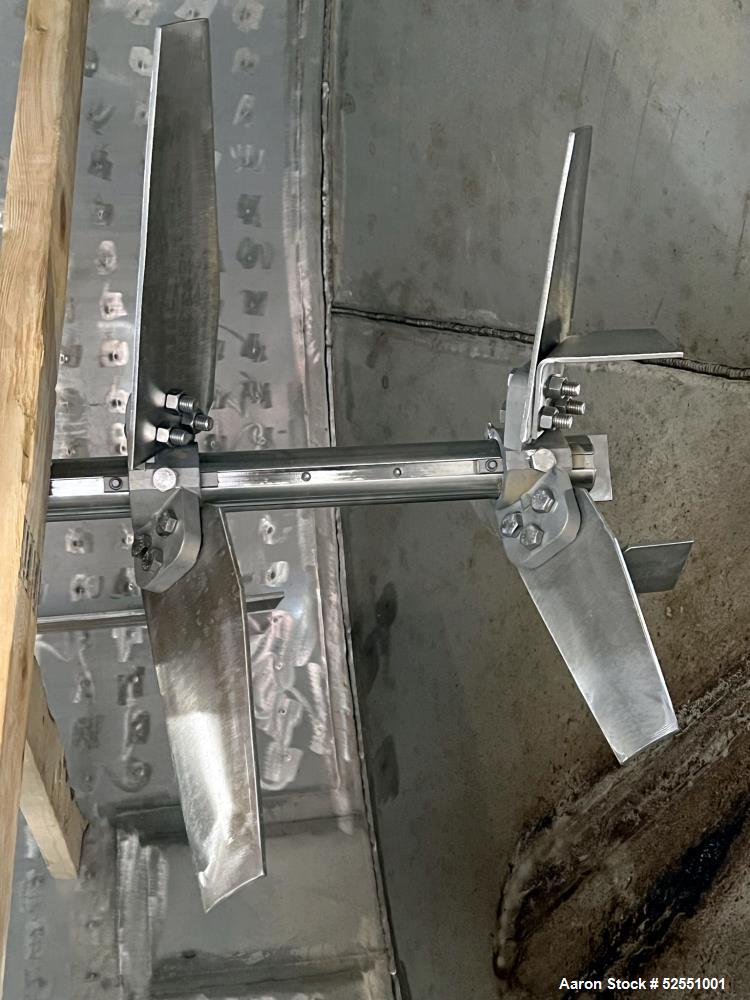

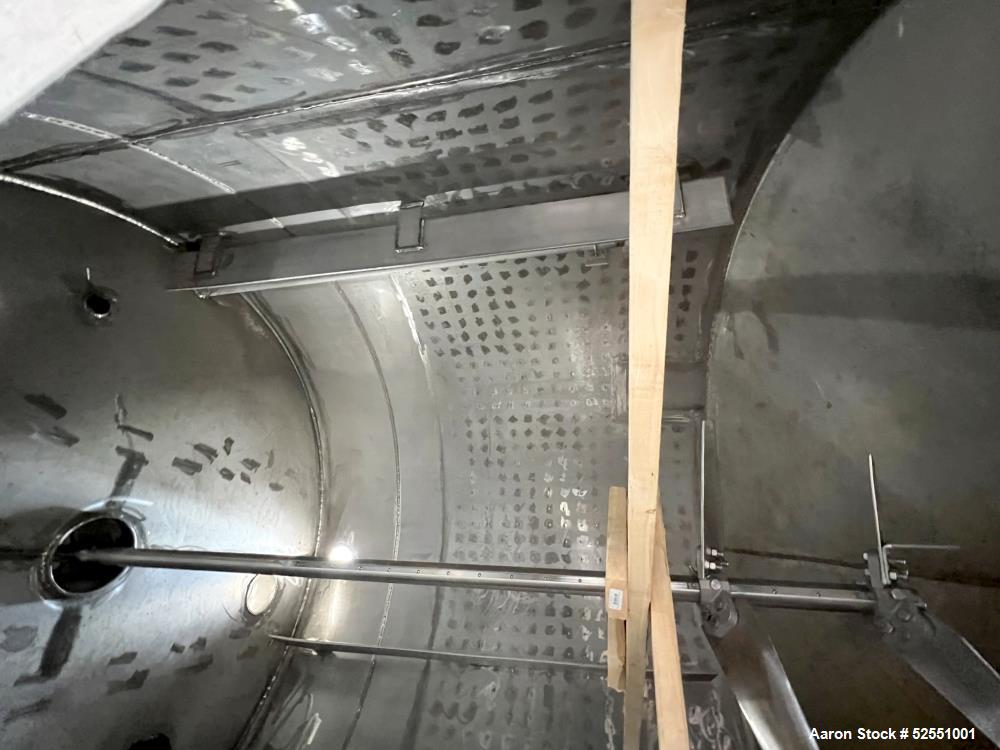

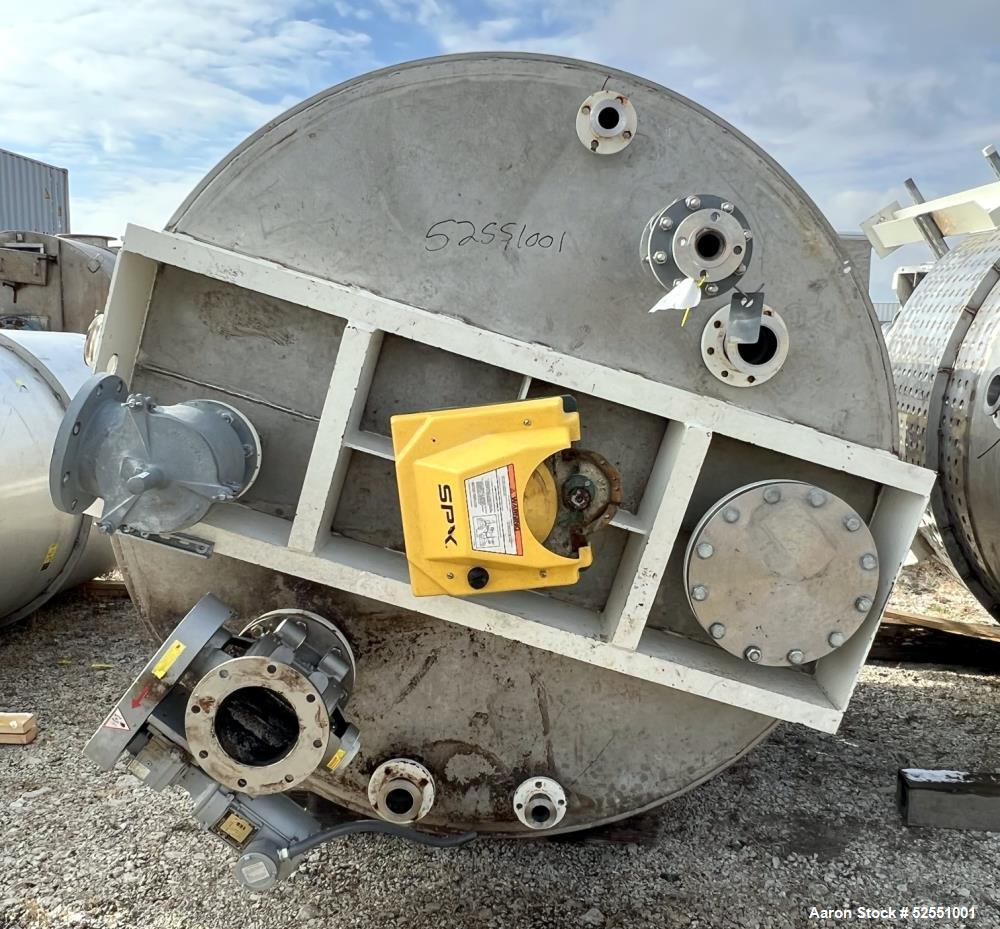

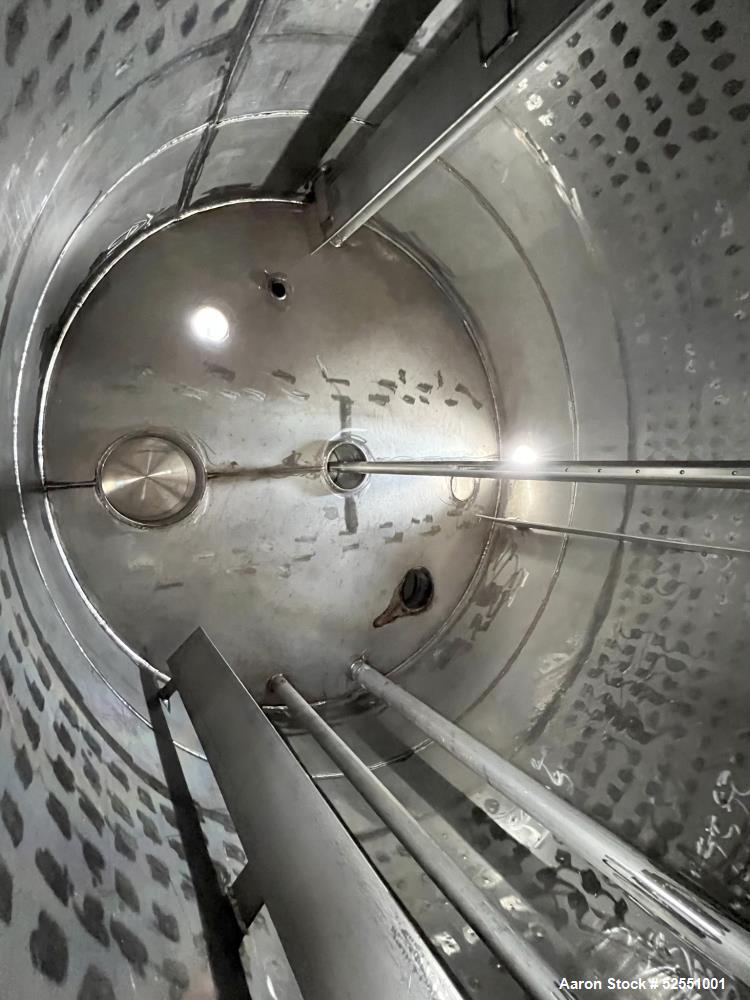

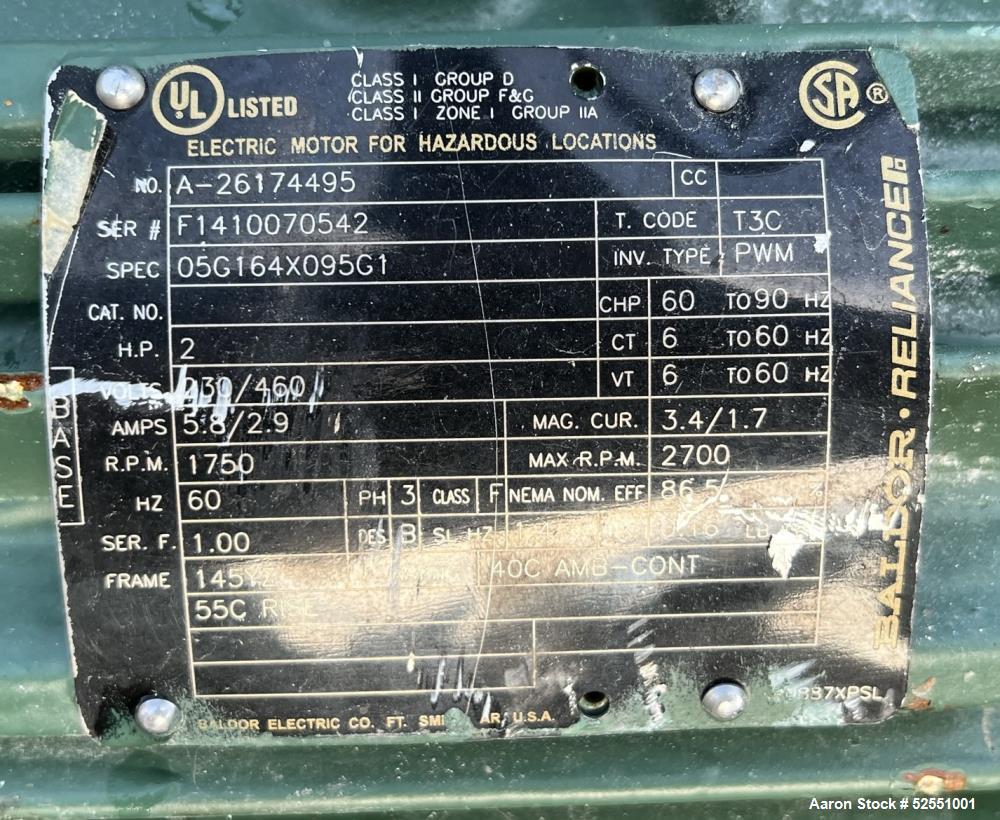

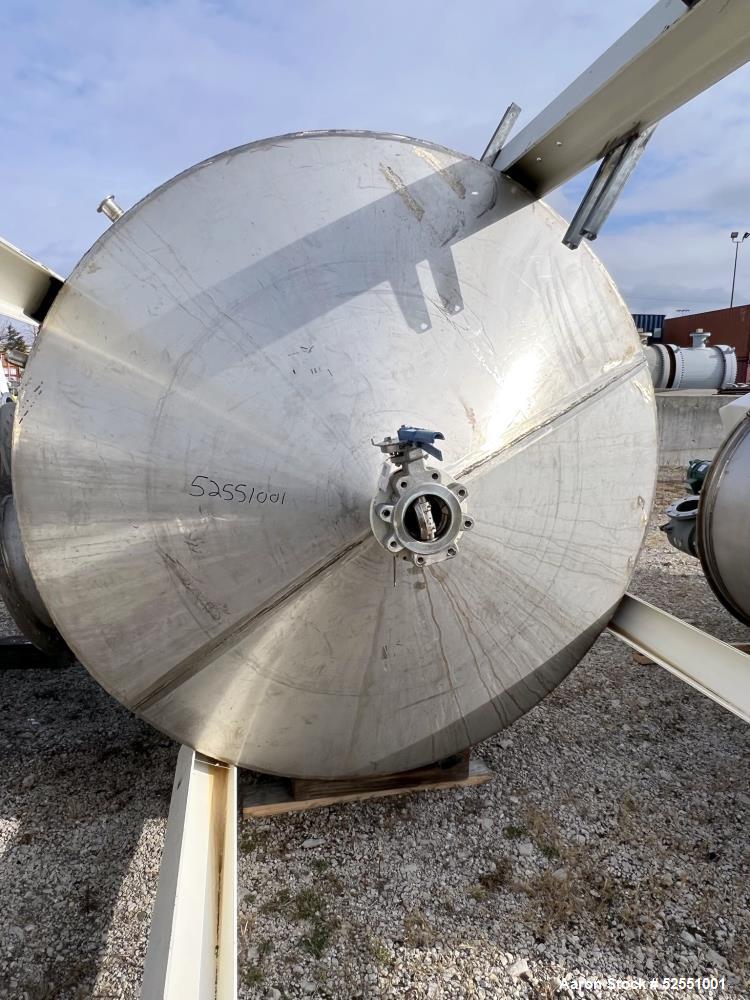

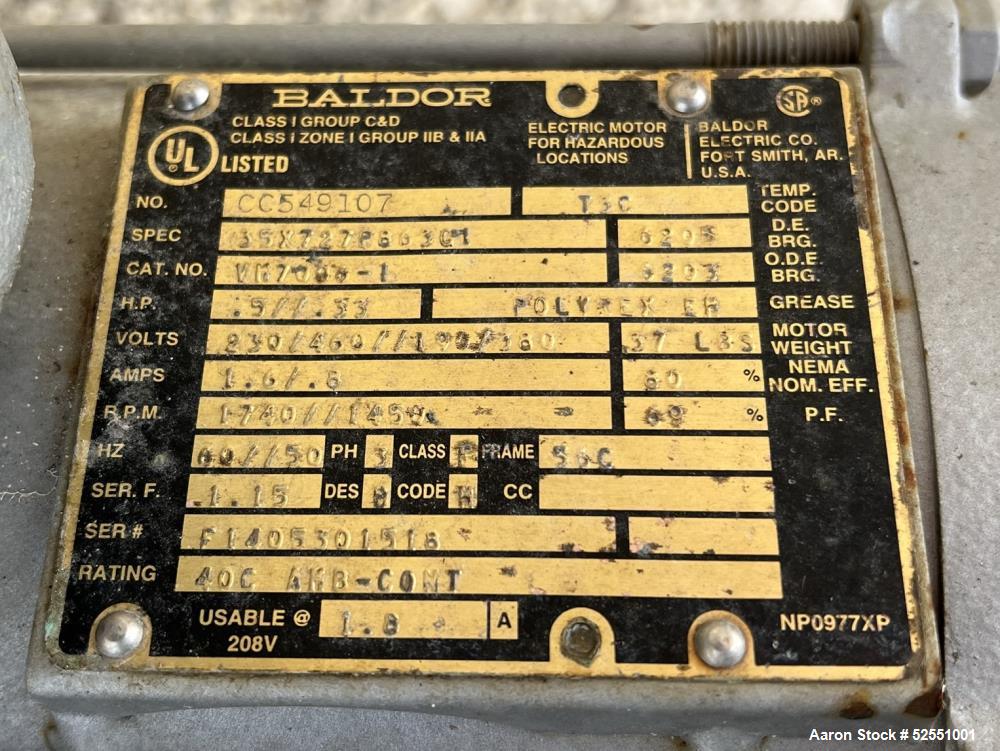

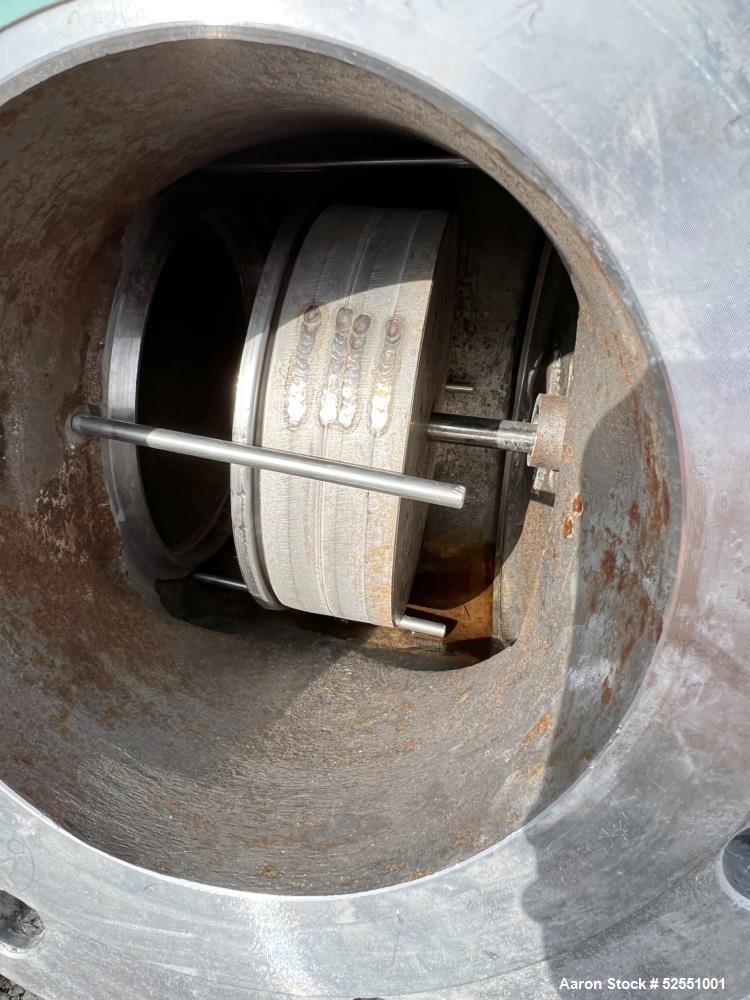

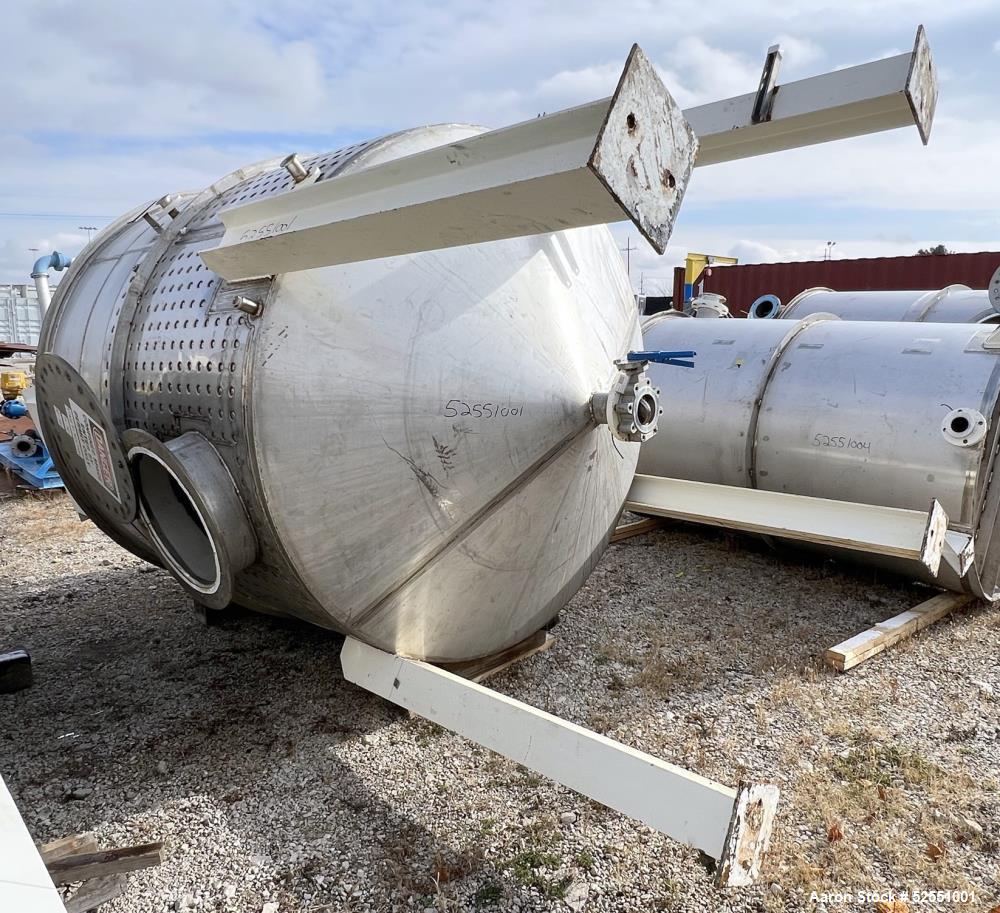

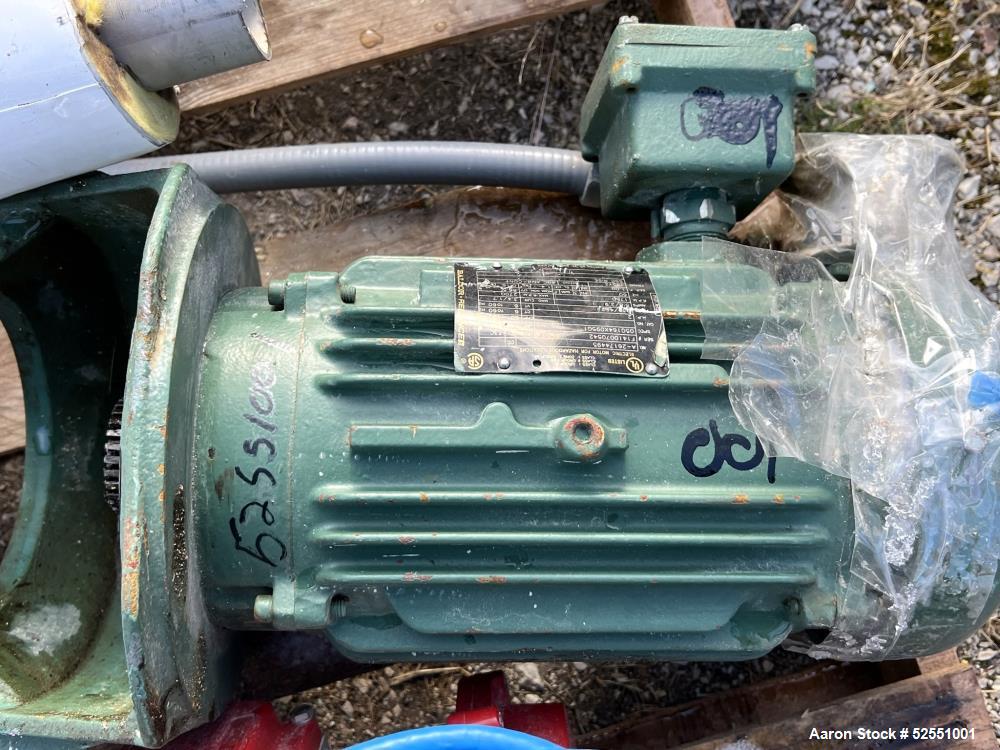

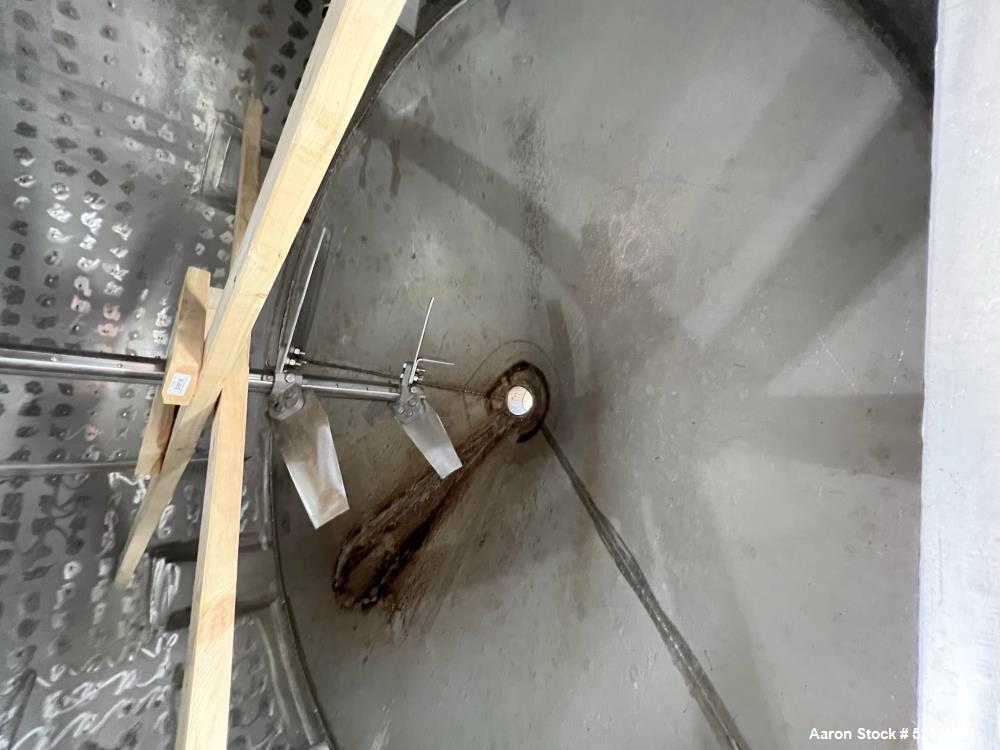

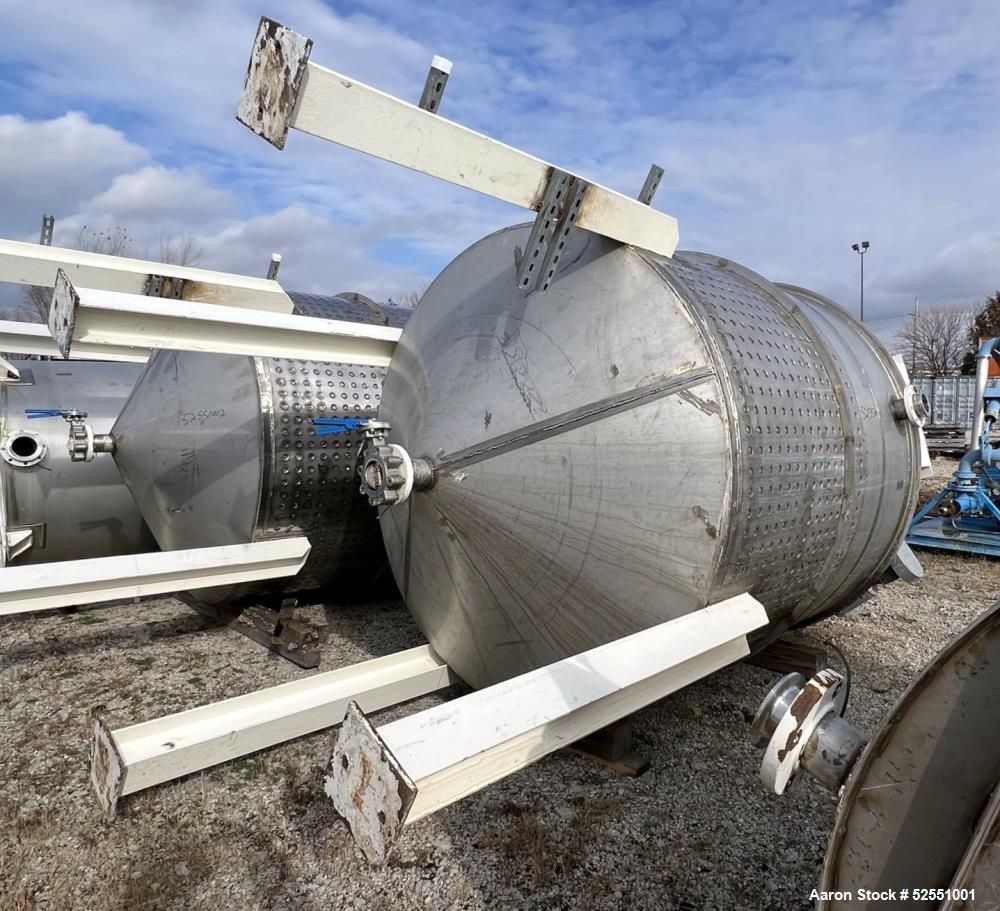

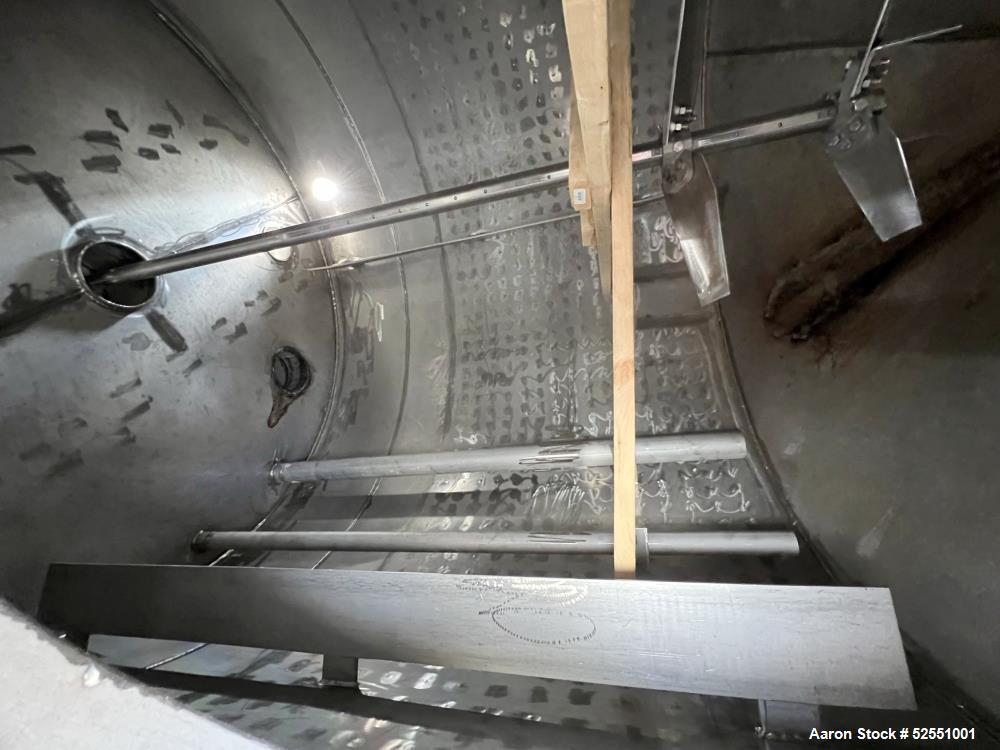

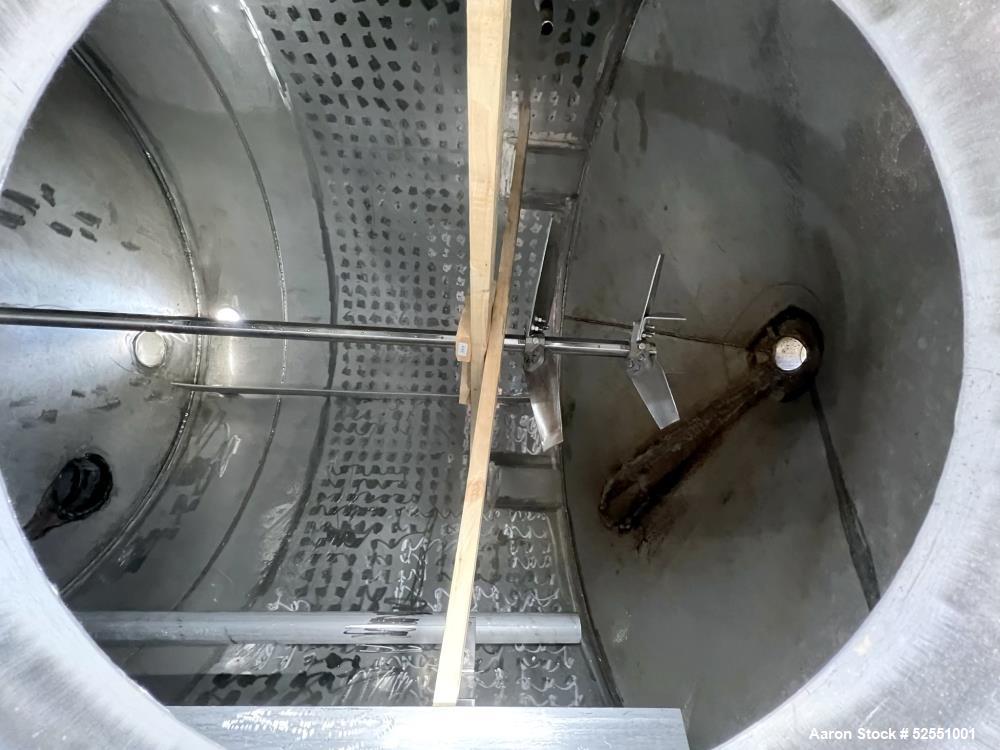

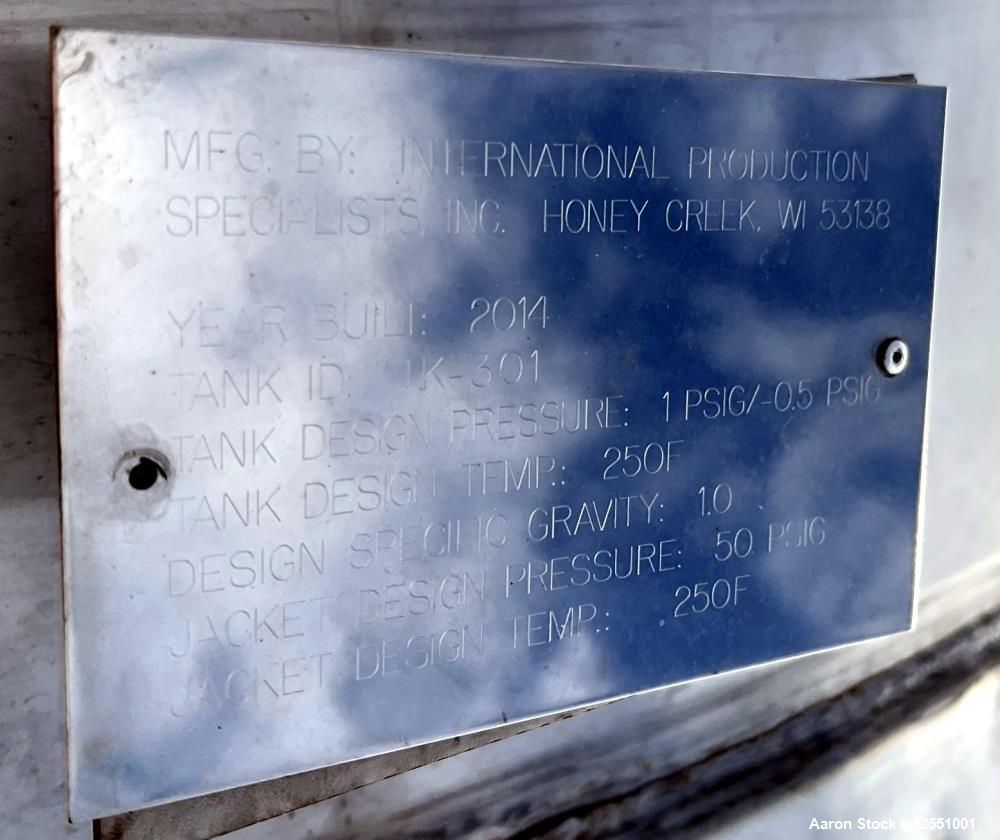

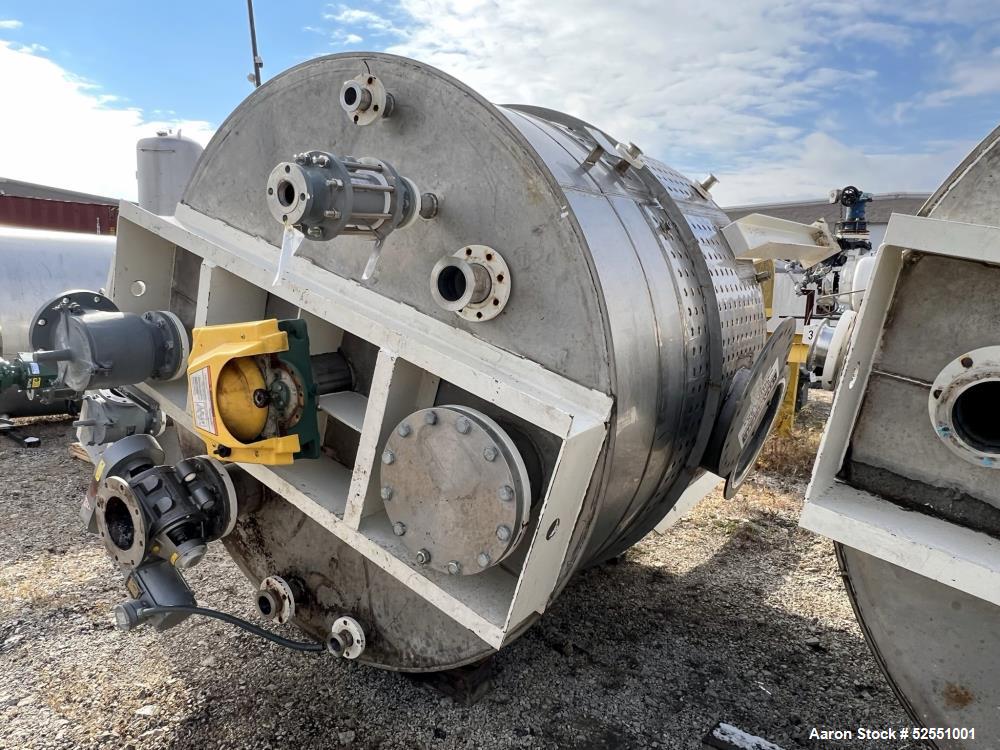

Used- International Production Specialists Jacketed Tank, 2040 Gallons, T-304L Stainless, Vertical. Approximate 84" Diameter x 76" straight side, 21" Deep Cone. Flat top, coned bottom. Internal Rated 1psi/-0.5 at 250 degrees F. Sidewall dimple jacket rated 50psi at 250 degrees F. Painted carbon steel agitator bridge with top center entering Lightnin agitator, model 14S2, serial# 1000002932711, (2) 3-blade turbines, driven by a 2hp 3/60/230/460 volt, 1750rpm motor, 17.31 to 1 ratio. Openings Top: 12", 8" for agitator, (2) 6", 4", 3", (3) 2", Side Opening: 4", 20" manway with bolt on cover. Approximate 4" center bottom outlet with manual butterfly valve. (3) 7"W x 72"L Anti-Swirl Baffles. Mounted on (4) carbon steel legs. Built 2014.
-
CategoryTanks
-
SubcategoryStainless 1000-4999 Gal
-
Gallons2040
-
Material Of Construction304 Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter84"
-
Straight Side76"
-
Top Head StyleFlat Top
-
BottomConed Bottom
-
Internal Pressure1
-
Internal Temperature250 F
-
Agitator LocationTop Center
-
Agitator TypeTop Entering
-
Mixer TypeDual 3 Blade Turbine
-

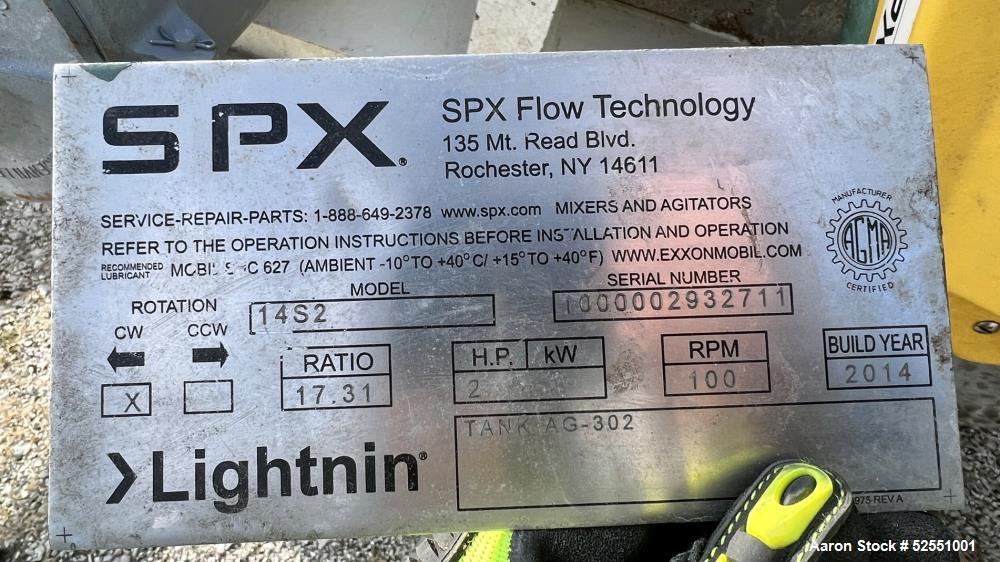

Agitator ManufacturerLightnin
-
Agitator Model14S2
-
Agitator Serial No.1000002932711
-
Agitator Hp2
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm100
-
Agitator Ratio17.31:1
-
OpeningOpenings Top: 12", 8" for agitator, (2) 6", 4", 3", (3) 2", Side Opening: 4", 20" manway with bolt on cover
-
Opening CoverYes
-
Outlet Size4"
-
Outlet LocationBottom
-
MountedMounted on 4 Legs
-
Overall Dimensions160" x 102" x 102"T
-
Year Built2014
