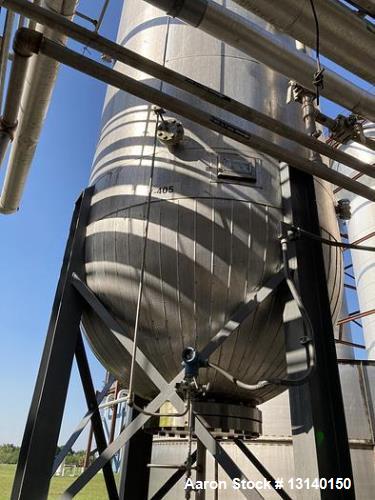

ExceleTech Inc. Approximately 2500 Gallon 304 Stainless Steel Vertical Pre

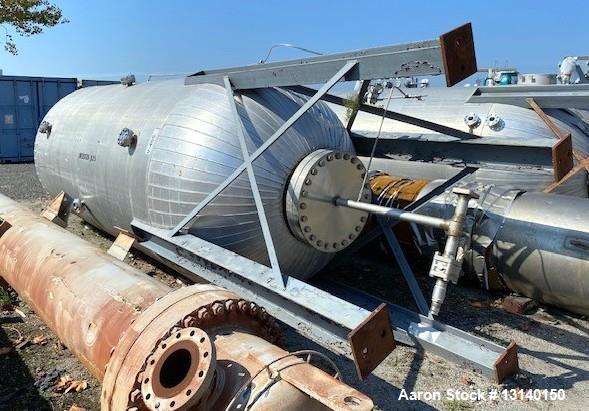

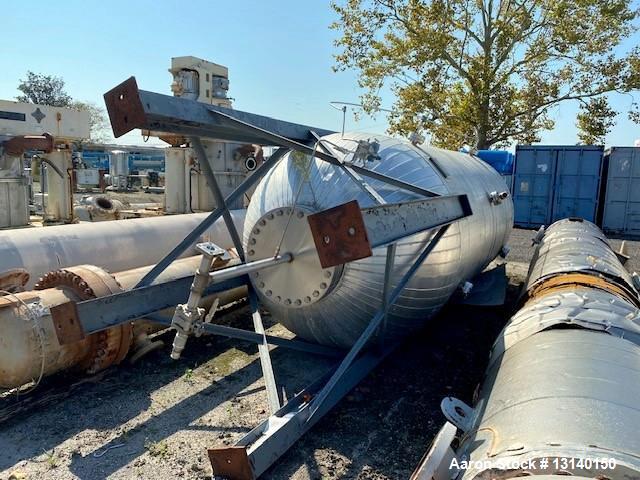

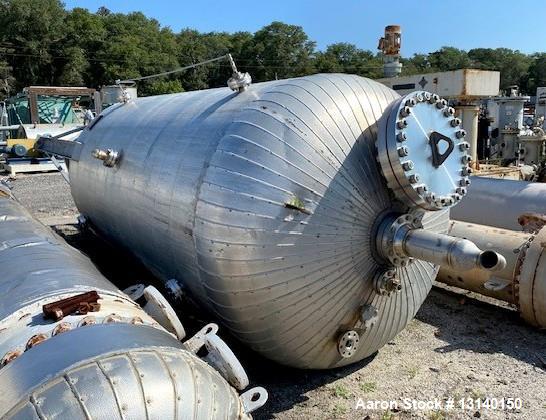

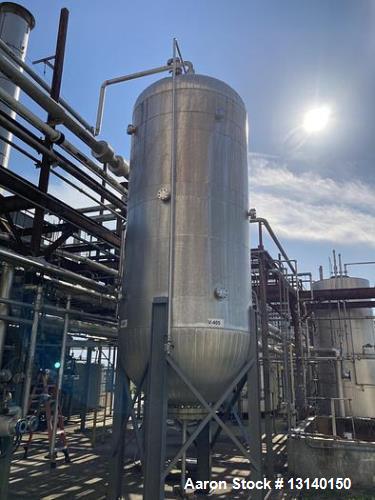

Used ExceleTech Inc. Approximately 2500 Gallon 304 Stainless Steel Vertical Pressure Tank. 72" diameter X 144" high straight side. Internal rated 104 PSI @ 375 F. Welded hemispherical heads. Shell Thickness 0.625", bottom head 0.500", Top head 0.625". Top fittings: 18" manway, (1) 1", (2) 2",and (1) 6" agitator nozzle. 20" center bottom drain. (12) 2" side injection ports. Weight approximately 16,500#. Mounted on (4) carbon steel legs. Insulated and wrapped with sheathing.
Manufacturer Information
- Brand: ExceleTech Inc.
- Condition: Used
- Capacity: ~2,500 Gallons
- Material: 304 Stainless Steel
Description
This ExceleTech 2,500-gallon vertical pressure tank is a heavy-duty, high-pressure storage vessel, ideal for chemical, food, pharmaceutical, and industrial applications requiring pressurized liquid or gas containment.
Constructed from 304 stainless steel, the tank features welded hemispherical heads for enhanced structural integrity and pressure resistance. The shell thickness is 0.625", with a 0.500" bottom head and 0.625" top head, ensuring durability under high pressure and temperature conditions.

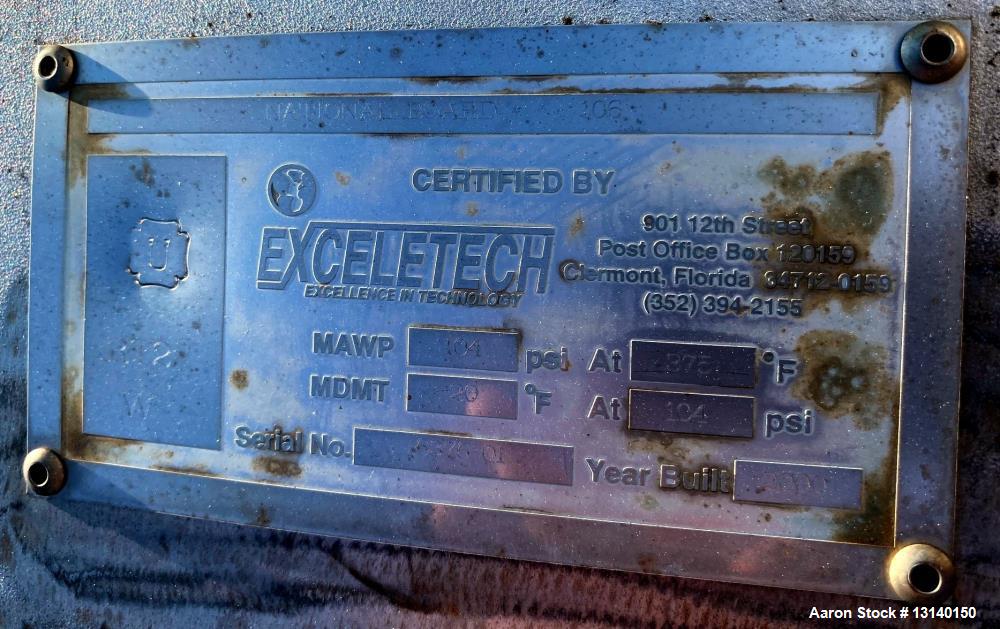

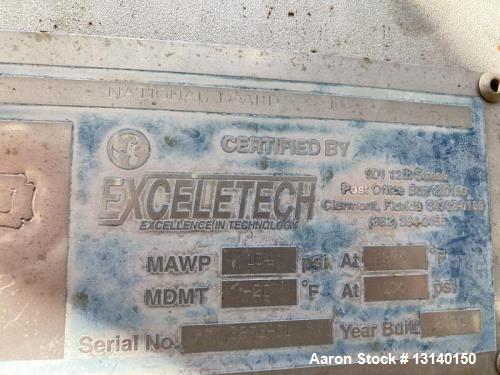

The tank is internally rated for 104 PSI at 375°F and is insulated and wrapped with sheathing for temperature stability and energy efficiency.
Mounted on four carbon steel legs, the unit provides stability and structural support for industrial operations.
Tank Openings & Fittings
- Top Fittings:

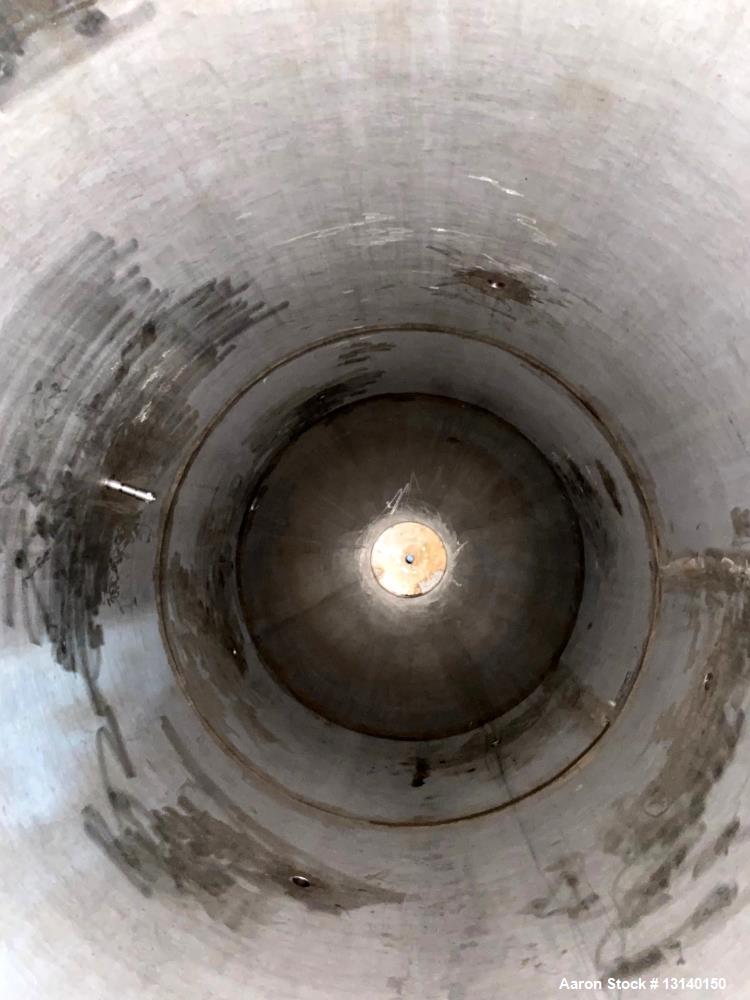

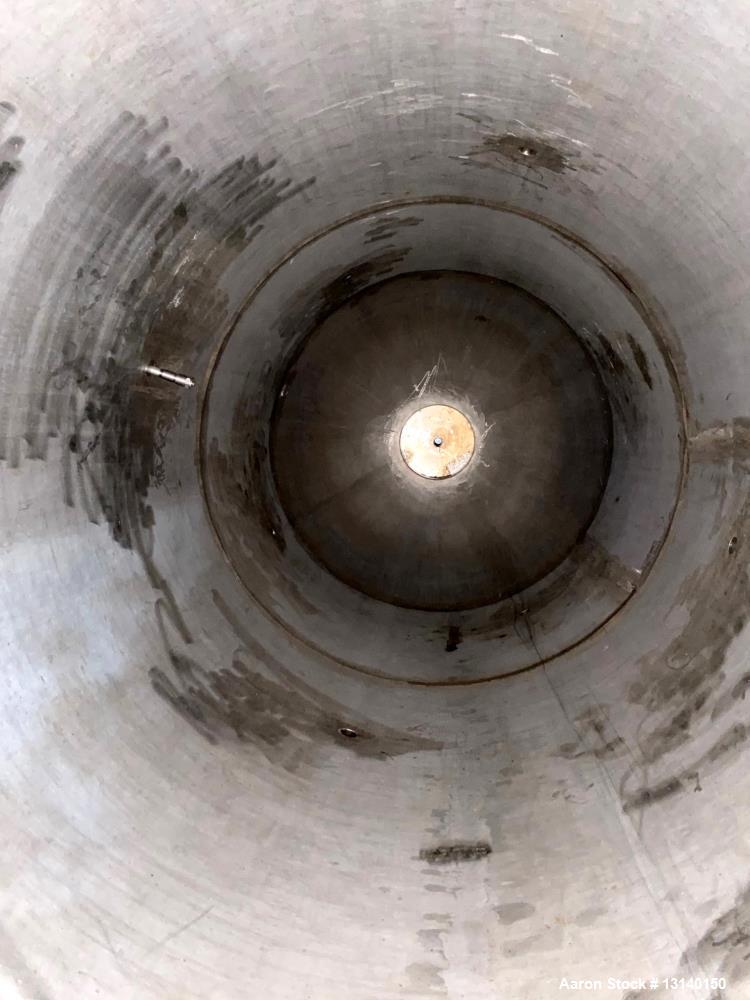

- 18” Manway – Easy internal access for cleaning and maintenance
- (1) 1" Nozzle
- (2) 2" Nozzles
- (1) 6" Agitator Nozzle – Designed for mixing applications
- Side Ports:
- (12) 2" Side Injection Ports – Suitable for process integration
- Bottom Drain:
- 20” Center Bottom Drain – Ensures efficient emptying of contents
Specifications
- Total Capacity: ~2,500 Gallons
- Material: 304 Stainless Steel
- Tank Orientation: Vertical
- Tank Dimensions:
- Diameter: 72”
- Straight Side Height: 144”
- Pressure Rating: 104 PSI @ 375°F
- Shell Thickness: 0.625”
- Bottom Head Thickness: 0.500”
- Top Head Thickness: 0.625”
- Weight: ~16,500 lbs
- Mounting: (4) Carbon Steel Legs
- Insulation: Yes, wrapped with protective sheathing
Applications
- Chemical Processing – Pressurized storage and reaction vessel for industrial chemicals
- Food & Beverage – High-temperature liquid storage for food-grade applications
- Pharmaceutical & Biotech – Sterile liquid containment and process integration
- Industrial Manufacturing – High-pressure storage for compressed gases or process fluids
- Petrochemical & Refining – Storage of specialty fuels, solvents, or process chemicals
Compatible Products
- High-capacity pressure-rated stainless steel tanks
- Industrial mixing vessels with agitator nozzles
- Insulated process tanks for temperature-sensitive applications
- Chemical & pharmaceutical-grade pressure vessels
- Pressure tank, stainless steel vessel, industrial storage tank
- Used ExceleTech 2,500-gallon stainless steel pressure tank, high-pressure insulated storage vessel, 304 SS pressurized tank with injection ports
- ExceleTech 2,500-gallon vertical stainless steel pressure tank rated for 104 PSI at 375°F with insulated sheathing, used industrial pressurized storage tank with 12 side injection ports and 6” agitator nozzle, high-capacity 304 stainless steel vessel for chemical and food processing
