Approximately 1500 Gallon Vertical Stainless Steel Food Grade Mix Tank

DOWNLOAD ALL PHOTOS FOR THIS ITEM WITHOUT AARON WATERMARK

SELL US YOURS

Stock # 11585092

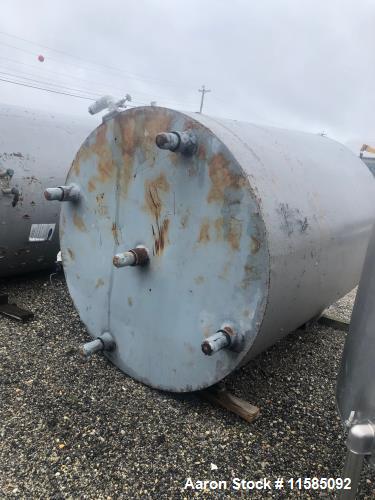

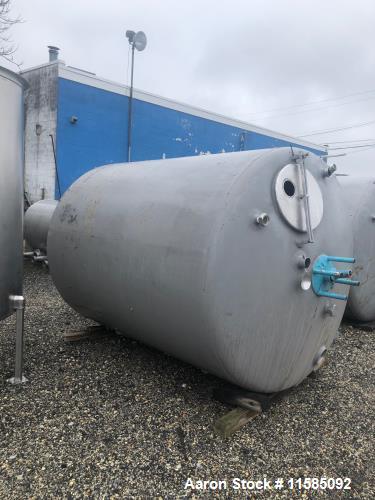

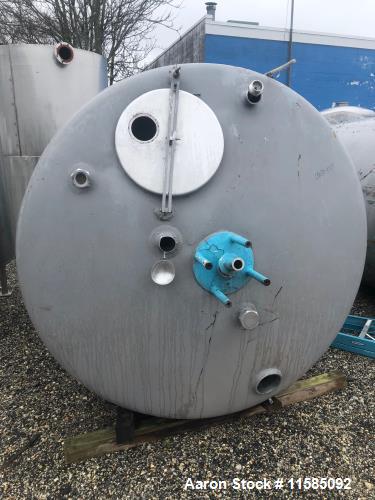

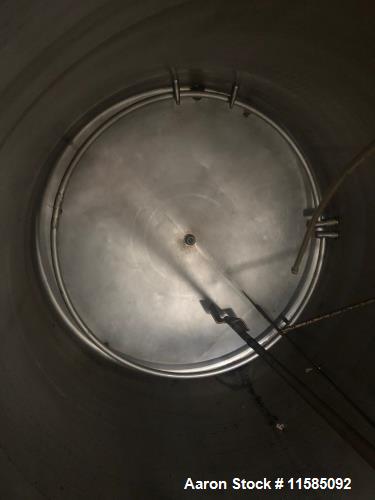

Used Approximately 1500 Gallon Vertical Stainless Steel Food Grade Mix Tank. Approximately 72" diameter X 93" straight side. Stainless steel internal. Internal coil 1 turn 1.5". Top mounted agitator (requires drive) and baffle. Unit is insulated and sheathed. 5 legs. Dished top with manway. Side bottom outlet 1.5".

SPECIFICATIONS

Category	TanksTanks
Subcategory	Stainless 1000-4999 GalStainless 1000-4999 Gal
Gallons	1500
Material of Construction	Stainless Steel
Horizontal or Vertical	Vertical
Diameter	72"
Straight Side	93"
Top Head Style	Dished Head
Bottom	Dished Bottom
Outlet Size	1.5"
Outlet Location	Side bottom
Mounted	Mounted on 5 Legs

Used Equipment Facts About This Machine

Manufacturer Information

Condition: Used
Capacity: ~1,500 Gallons
Material: Stainless Steel (Food Grade)

Description

This 1,500-gallon vertical stainless steel mix tank is a food-grade processing vessel, ideal for mixing, blending, and temperature-controlled processing in the food, beverage, and pharmaceutical industries.

The tank features stainless steel internal construction with an internal coil (1 turn, 1.5” diameter) for heating or cooling applications. It is insulated and sheathed, ensuring efficient temperature control and energy efficiency.

The unit includes a top-mounted agitator (drive required) and an internal baffle, providing enhanced mixing and uniform product consistency. The dished top with a manway allows for easy access and cleaning, while the side bottom outlet (1.5”) ensures efficient product discharge.

The tank is mounted on five sturdy legs, offering stability and durability in industrial applications.

Specifications

Total Capacity: ~1,500 Gallons
Material: Stainless Steel (Food Grade)
Tank Orientation: Vertical
Tank Dimensions:
- Diameter: 72”
- Straight Side Height: 93”
Top Design: Dished Top with Manway
Bottom Design: Side Bottom Outlet (1.5”)
Internal Coil: 1 Turn, 1.5” Diameter
Agitation System:
- Top-Mounted Agitator (Drive Required)
- Internal Baffle
Insulation: Yes, with Stainless Steel Sheathing
Mounting: (5) Legs

Applications

Food & Beverage Processing – Dairy, sauces, syrups, flavorings
Pharmaceutical & Nutraceuticals – Liquid vitamins, supplements, and sterile mixing
Brewery & Distillery – Fermentation and ingredient blending
Chemical Processing – Specialty ingredient mixing with controlled temperature
Cosmetic & Personal Care – Lotion, cream, and liquid formulation

Compatible Products

Jacketed and insulated stainless steel mix tanks
Industrial-grade agitators and mixing systems
Temperature-controlled processing vessels
Food and pharmaceutical-grade sanitary tanks

PRODUCT DETAILS

Mix tank, food-grade tank, stainless steel processor
Used 1,500-gallon stainless steel mix tank, insulated food-grade processing vessel, vertical stainless steel blending tank
Used 1,500-gallon food-grade stainless steel mix tank with internal coil and top-mounted agitator, insulated vertical mixing vessel with baffle and stainless steel sheathing, industrial blending tank for food, beverage, and pharmaceutical applications
