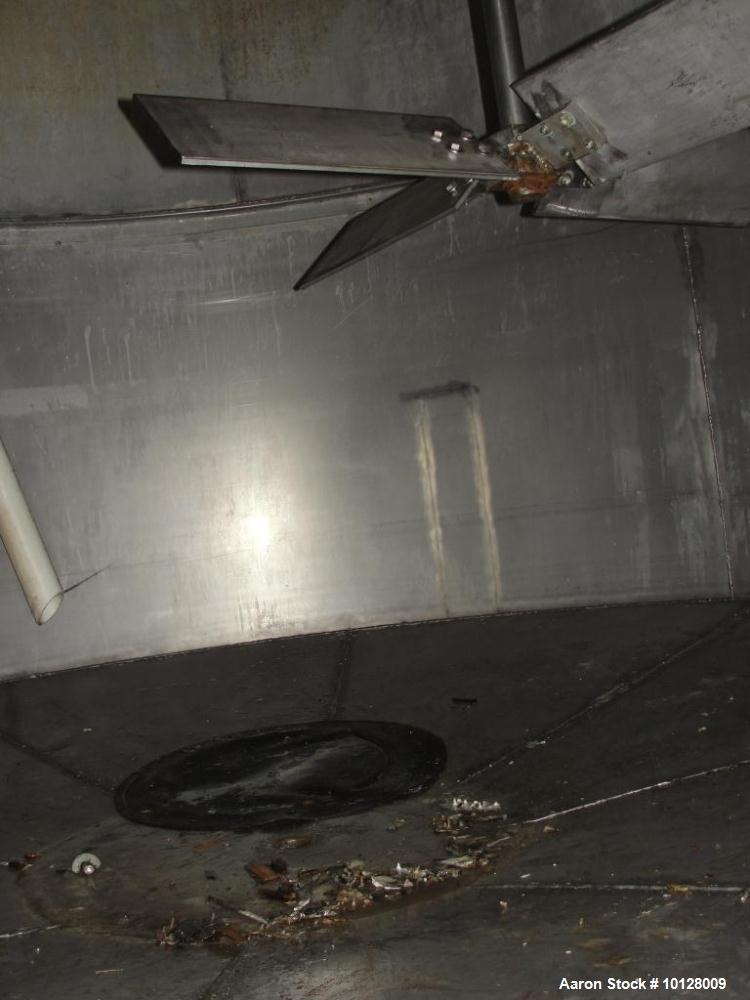

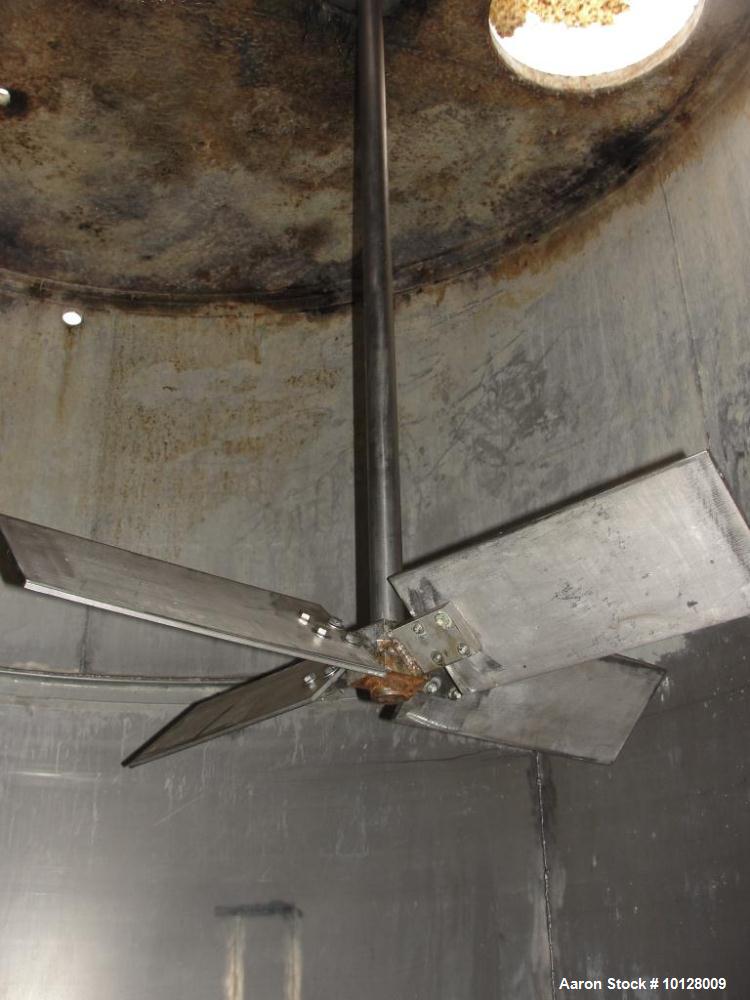

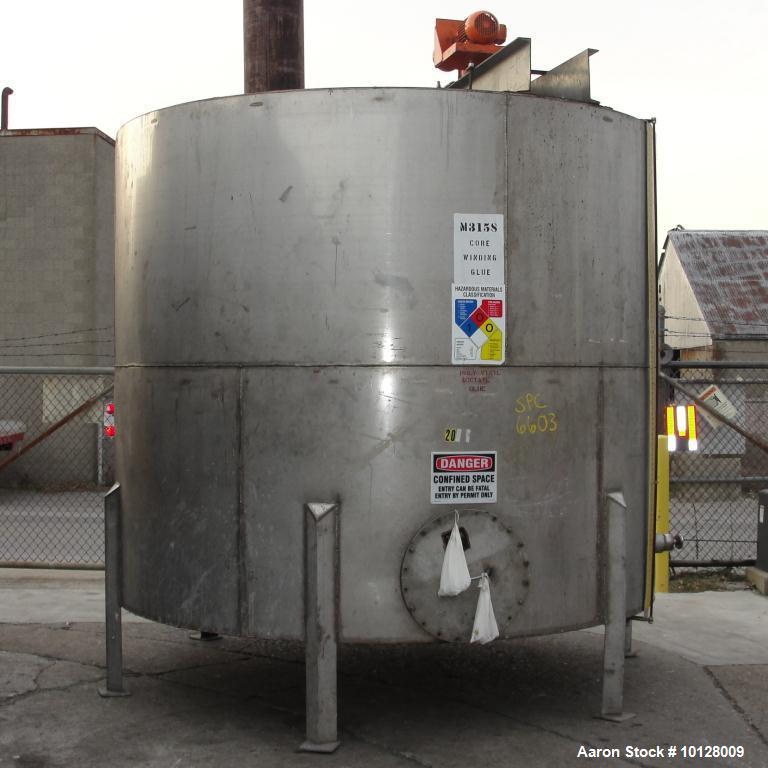

Used 4200 Gallon Stainless Steel Conical Bottom Tank. The stainless steel tank has a 96" straight side height, an 8" conical bottom, and a 112" diameter. The tank has an off center 2 hp, 35 rpm agitator drive mounted on an agitator bridge. The agitator has a 70" long x 2" diameter shaft with a 44" diameter, 4 blade propeller with each blade measuring 21" x 8". The conical bottom has a 2.5" center discharge. The side has a 20" bolted on manway, a 2" diameter NPT threaded fitting, a 3" NPT threaded fitting, and a 3" fitting with a thermowell. The bolted on top has a 2" vent pipe and an 18" manway. The tank sits on 6 stainless steel legs and has an overall height of 138" with the agitator. Requires 230/460 VAC, 3 phase electrical supply. Reported to be in good condition.
Used 4200 Gallon Stainless Steel Conical Bottom Tank. The stainless steel tank has a 96" straight side height, an 8" conical bottom, and a 112" diameter. The tank has an off center 2 hp, 35 rpm agitator drive mounted on an agitator bridge. The agitator has a 70" long x 2" diameter shaft with a 44" diameter, 4 blade propeller with each blade measuring 21" x 8". The conical bottom has a 2.5" center discharge. The side has a 20" bolted on manway, a 2" diameter NPT threaded fitting, a 3" NPT threaded fitting, and a 3" fitting with a thermowell. The bolted on top has a 2" vent pipe and an 18" manway. The tank sits on 6 stainless steel legs and has an overall height of 138" with the agitator. Requires 230/460 VAC, 3 phase electrical supply. Reported to be in good condition.
