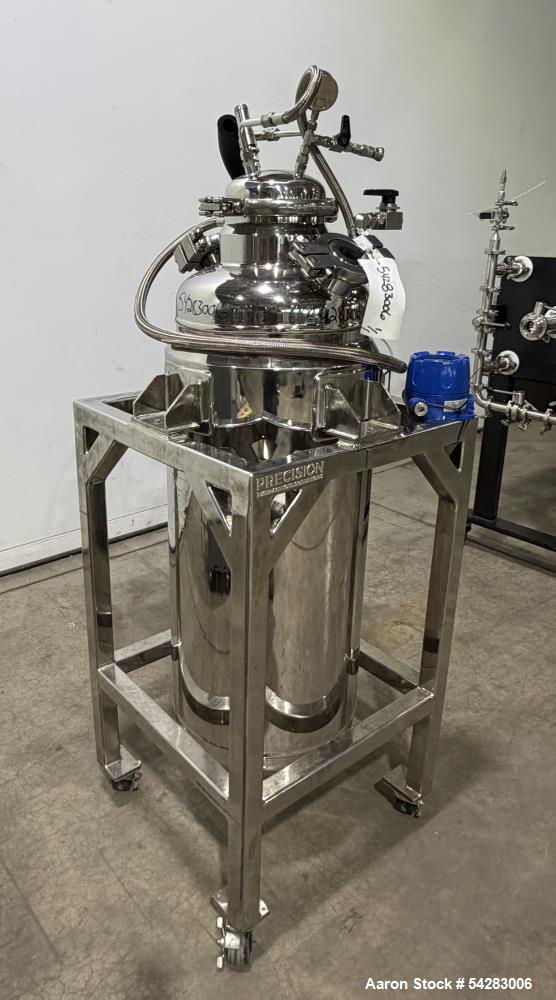

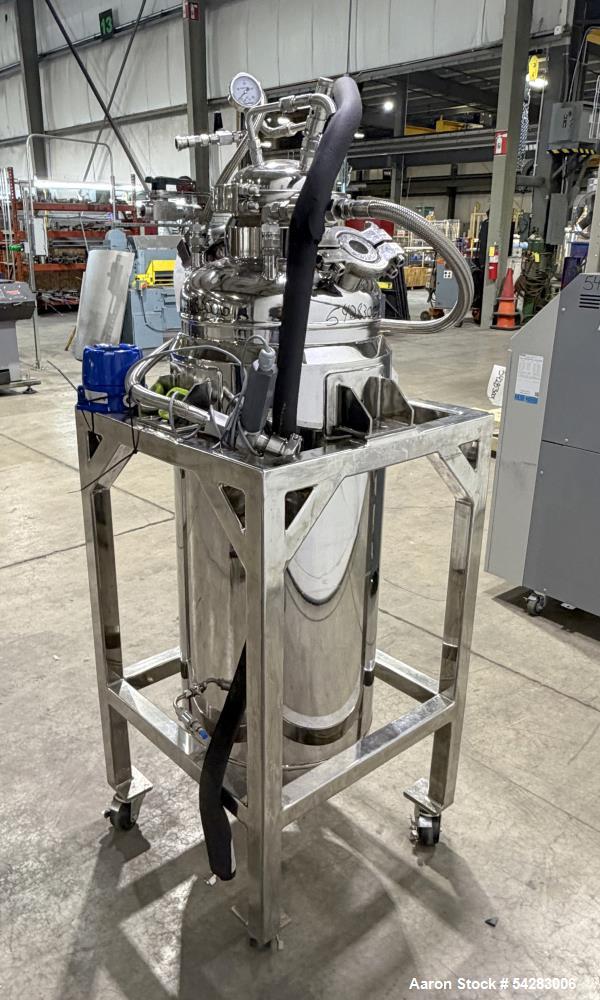

Used Precision Extraction 23 Gallon Jacketed Pressure Vessel – Cold Extraction R

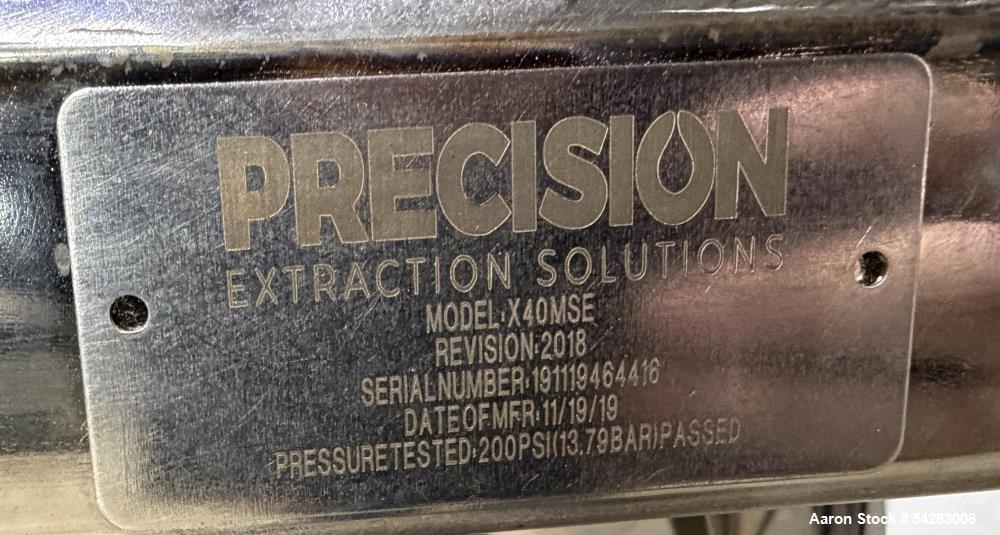

Manufacturer Information

• Manufacturer: Precision Extraction Solutions

• Equipment Type: Jacketed Pressure Vessel for Cold Extraction

• Capacity: Approximately 23 Gallons

• Year Built: 2019

• Serial Number: A2019464

• Mounting: Side-lug mounted on frame with casters

Description

This used Precision Extraction 23 gallon jacketed pressure vessel is engineered for low-temperature, high-pressure extraction applications requiring precise control and robust pressure ratings. Built in 2019, this vessel is well suited for pilot-scale production, R&D environments, and small-to-medium batch cold extraction processes.

The vessel features a dished top and bottom for optimal pressure distribution, an 8-inch clamp-on top cover for ease of loading and cleaning, and dual sight glass ports for visual process monitoring. A 1-inch threaded center bottom outlet with valve allows controlled discharge. The vessel is side-lug mounted on a mobile frame with casters, enabling flexible placement within processing facilities.

Specifications

Vessel

• Capacity: Approx. 23 gallons

• Internal Dimensions: Approx. 14" diameter x 34" straight side

• Top & Bottom: Dished

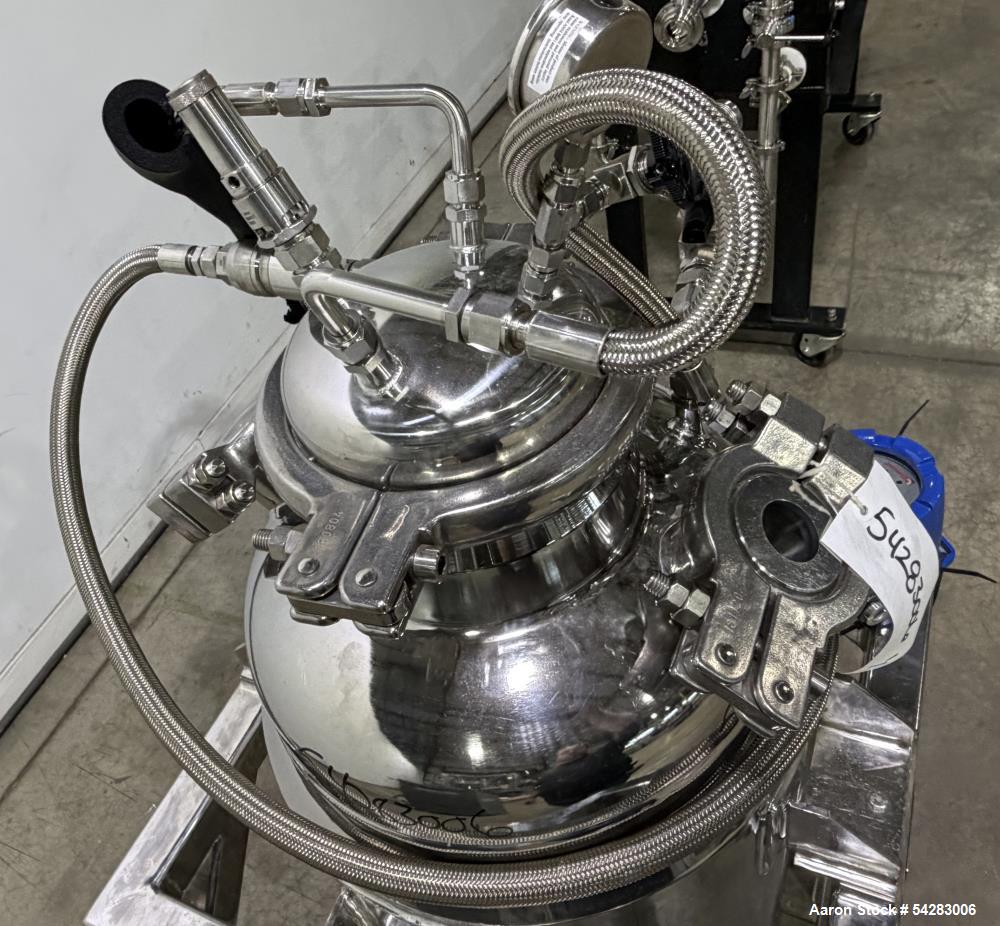

• Top Cover: 8" diameter clamp-on lid

• Top Openings:

  • (2) 3" diameter ports with sight glass

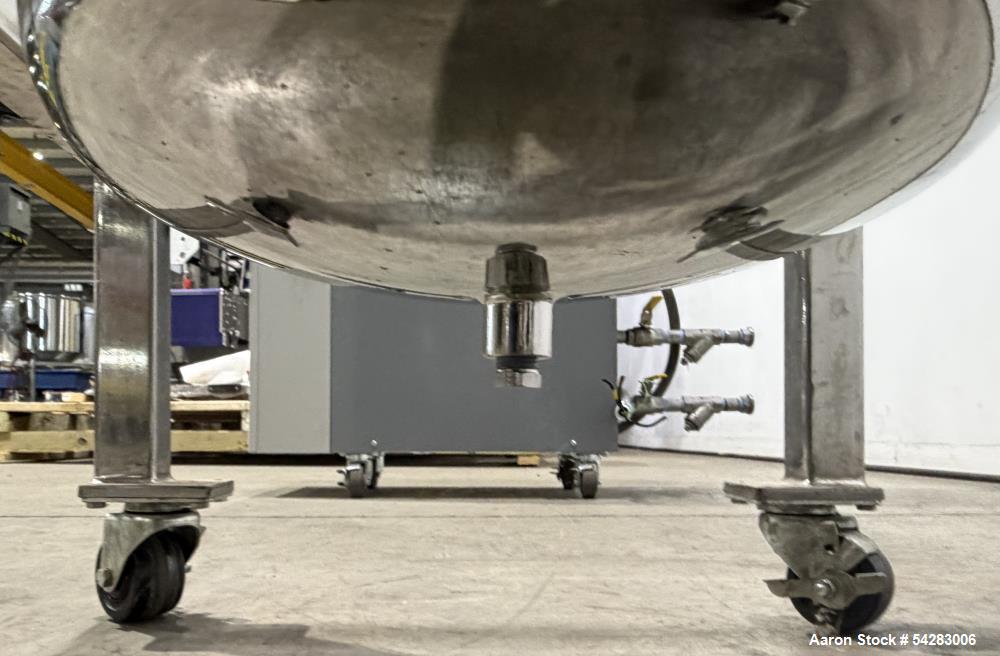

• Bottom Outlet: 1" threaded center bottom outlet with valve

• Discharge Height: Approx. 7 inches

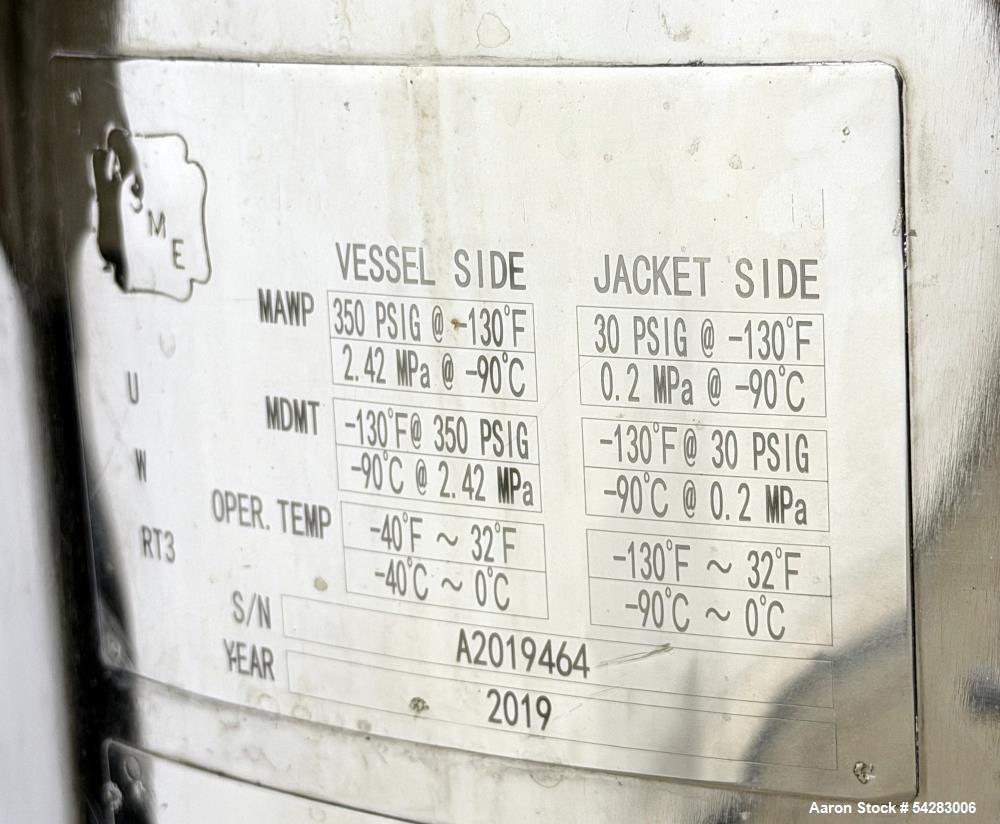

Pressure & Temperature Ratings

• Vessel Rating: 350 PSIG

  • Temperature Range: -130°F to 32°F

• Jacket Rating: 30 PSIG

  • Temperature Range: -130°F to 32°F

Construction & Mounting

• Material: Process-grade stainless steel

• Mounting: Side-lug mounted

• Mobility: Mounted on casters

Applications

• Cold solvent extraction

• Botanical extraction

• Pilot-scale extraction

• R&D processing

• Pressure-rated cold processing

What Might This Be Used For

• Low-temperature extraction processes

• Botanical and plant material extraction

• Research and formulation development

• Solvent-based extraction under pressure

• Controlled cold extraction trials

• Specialty compound separation

Products This Vessel Is Commonly Used For

• Botanical extracts

• Natural oils and resins

• Flavor and fragrance compounds

• Specialty chemical extracts

• Pilot-scale production batches

• R&D samples

• Process intermediates

• Cold-extracted materials

• Laboratory formulations

• Specialty compounds
