Stock #
53147096

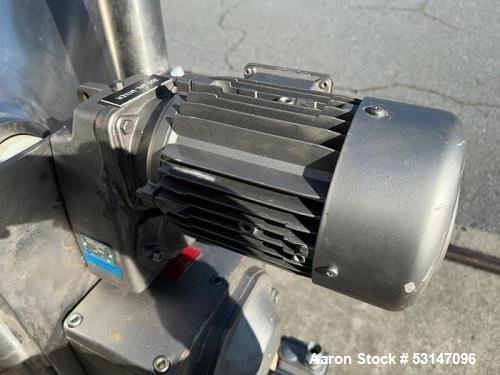

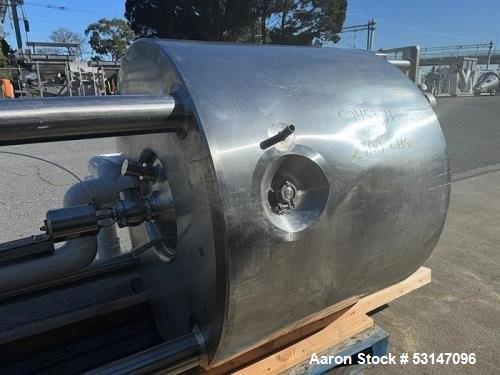

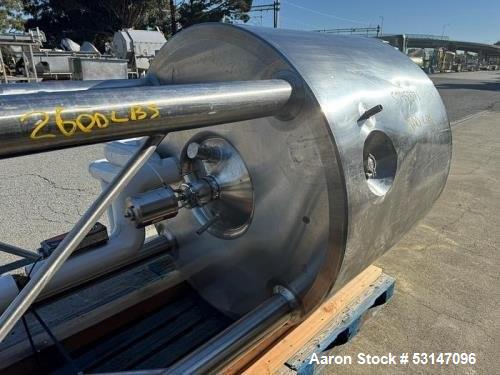

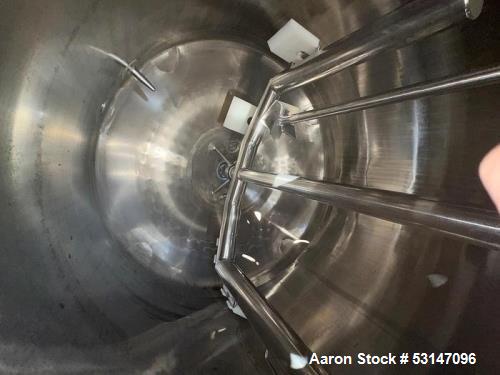

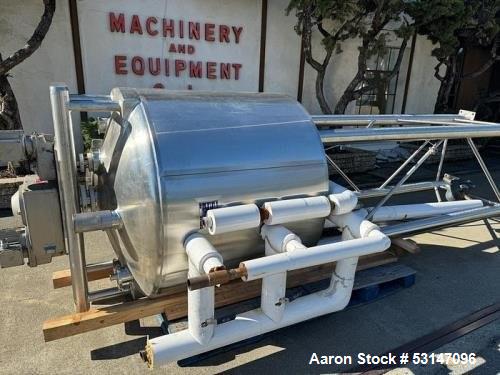

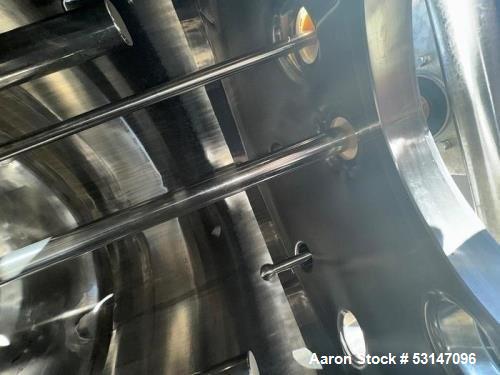

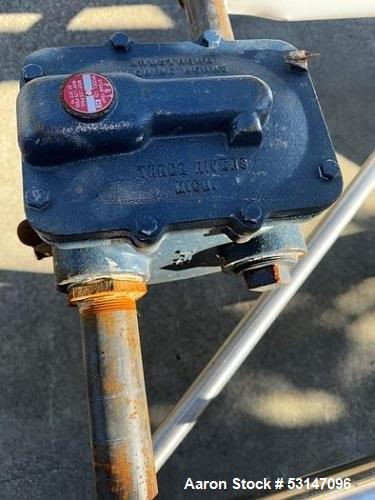

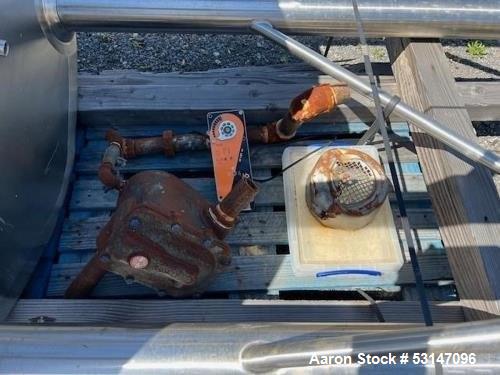

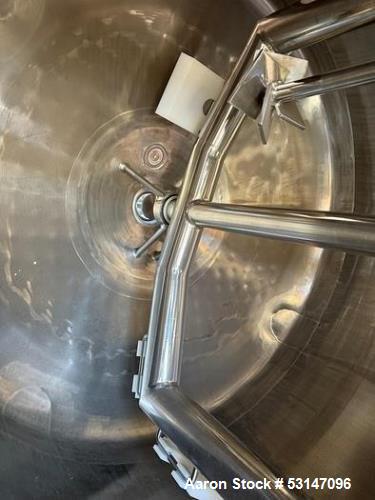

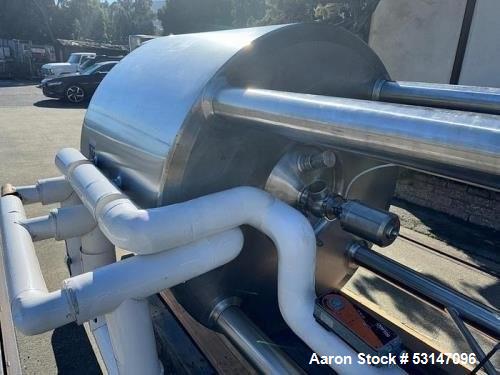

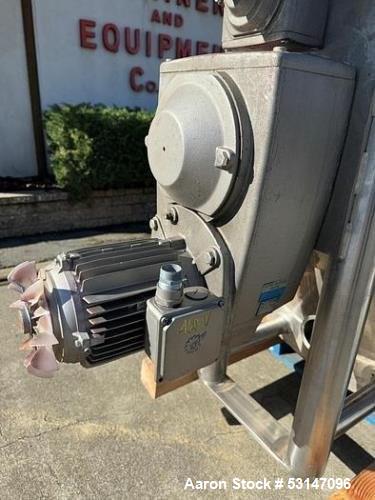

Used 300 Gallon Feldmeier, 316L Stainless Steel, Vertical EPC Processor Tank. Includes 3-zone jacketed & insulated vessel with Dual action mixing: Scrape surface agitation and 4-blade paddle agitator. Scraper agitation is driven by 5 HP, 230/460V, 3-phase, 60 Hz gearmotor, 25 RPM output. Paddle agitator is driven by 2 HP gearmotor, 144 RPM output. Vessel measures 48" diameter X 36" straight side with cone bottom. Jacket is rated for 100 PSI at 350 / -20 degrees Fahrenheit. Top head includes bridge mounted agitator drive, top manway and various inlets. Vessel is mounted on 115" high legs.
Used Equipment Facts About This Machine
Manufacturer Info
-
Manufacturer: Feldmeier Equipment, Inc.
-
Condition: Used
-
Material: 316L Stainless Steel
-
Design: EPC Processor Tank with Dual Agitation
-
Insulation: Jacketed & Insulated (3-Zone)
-

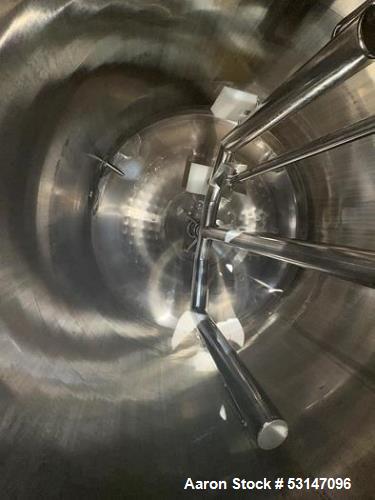

Mixing: Scrape Surface + 4-Blade Paddle Agitator
-
Power: 5 HP & 2 HP Gearmotors
π Description
This used 300-gallon Feldmeier EPC processor tank is constructed from high-grade 316L stainless steel, ideal for sanitary and corrosive applications. Featuring a 3-zone jacket rated to 100 PSI and insulated for precise thermal control, it’s built for heating, cooling, and maintaining process consistency. Dual-action agitation includes a scrape surface agitator (25 RPM, 5 HP) and a 4-blade paddle agitator (144 RPM, 2 HP), offering optimal mixing for viscous or heat-sensitive materials. The vessel includes a top-mounted agitator bridge, multiple inlet ports, and a cone bottom for complete drainage, supported on 115" high legs.
π Specifications
-
Capacity: 300 gallons
-
Material: 316L Stainless Steel
-
Orientation: Vertical
-

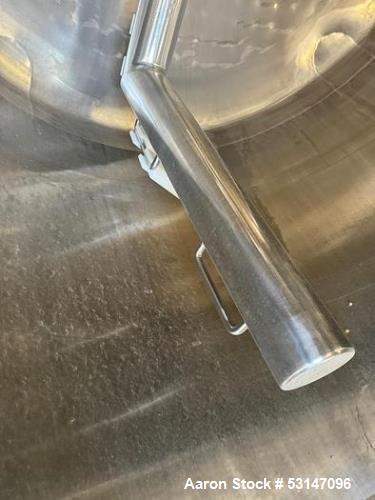

Agitation Type: Scrape Surface + 4-Blade Paddle
-

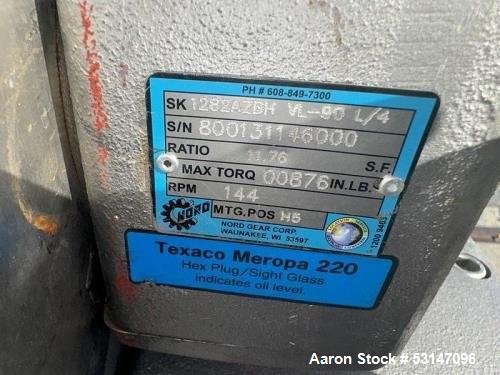

Agitator Drive Motors: 5 HP @ 25 RPM (scrape), 2 HP @ 144 RPM (paddle)
-

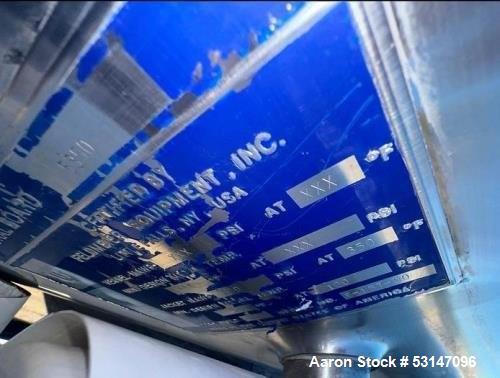

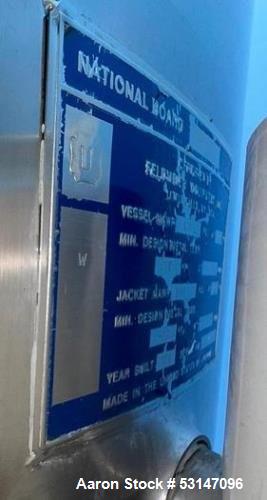

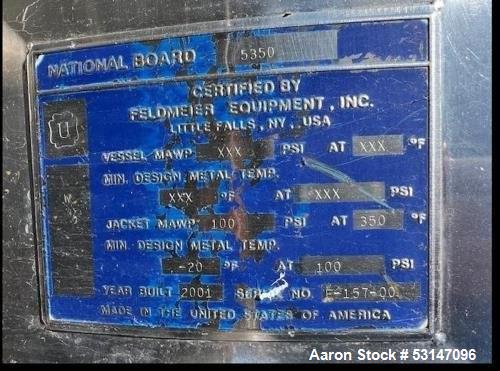

Jacket: 3-Zone, Rated 100 PSI @ 350°F / -20°F
-
Insulation: Yes
-
Diameter: 48 inches
-
Straight Side Height: 36 inches
-
Bottom: Cone Bottom
-

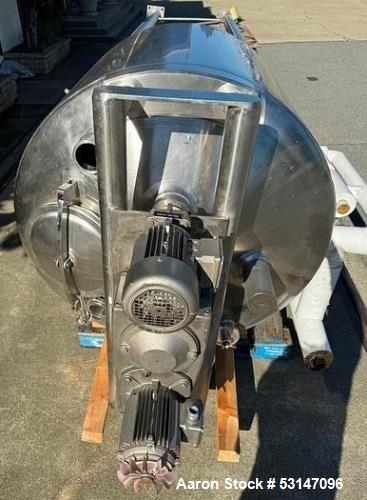

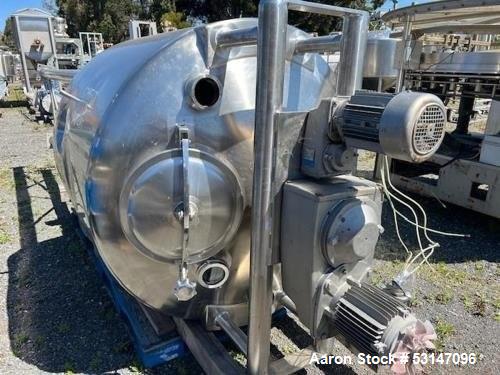

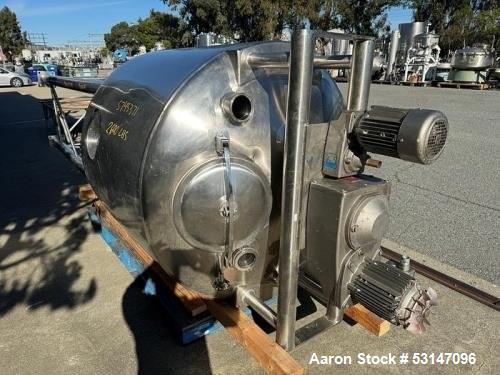

Top Head: Manway + Bridge Mounted Drives + Inlets
-
Mounting: 115" High Legs
-
Power Supply: 230/460V, 3-Phase, 60 Hz
π¬ Applications
-
Pharmaceutical cream and ointment mixing
-
Cosmetic emulsions and gels blending
-
Dairy product pasteurization
-
Food sauce or filling preparation
-
Nutraceuticals or vitamin suspension processing
-
Chocolate and confectionery heating/mixing
-
Chemical compound homogenization
-
Pasteurizing and cooling viscous fluids
-
Active ingredient slurry batching
-
Biotech ingredient processing
π§° What Might This Be Used For
-
Emulsifying cosmetic creams and lotions
-
Preparing and holding viscous pharmaceutical formulations
-
Heating and mixing chocolate or fudge
-
Creating food pastes, sauces, or dressings
-
Blending and heating nutraceutical suspensions
-
Processing specialty chemicals requiring tight thermal control
-
Batching bioactive ingredient mixtures
-
Scraping high-viscosity gels for smooth consistency
-
Pasteurizing dairy-based or plant-based liquids
-
Producing homogenized skincare products
