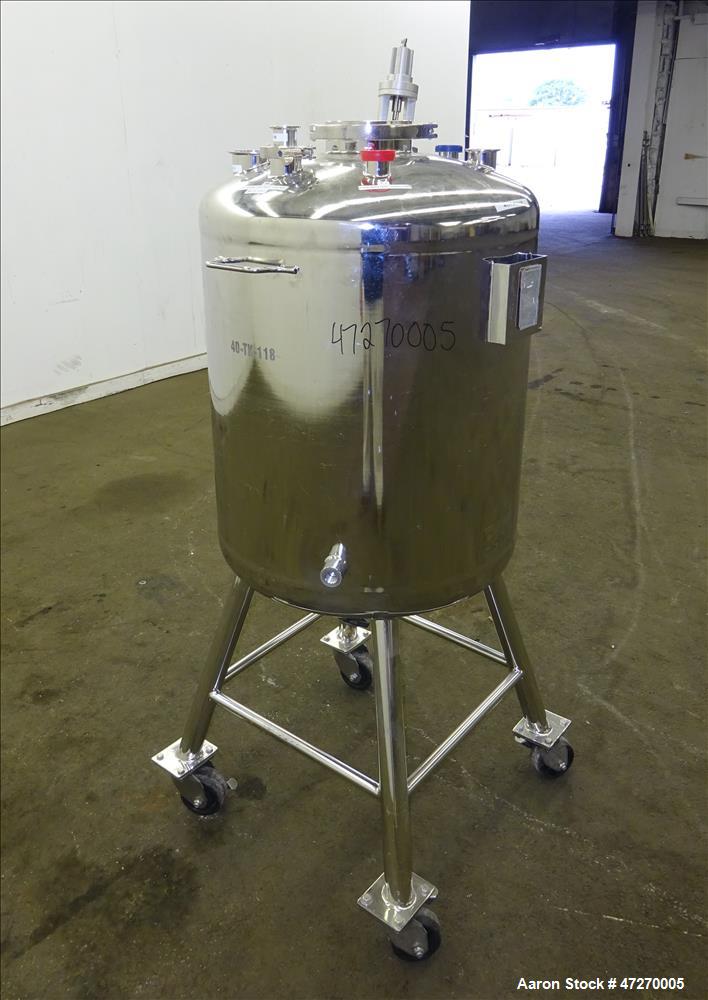

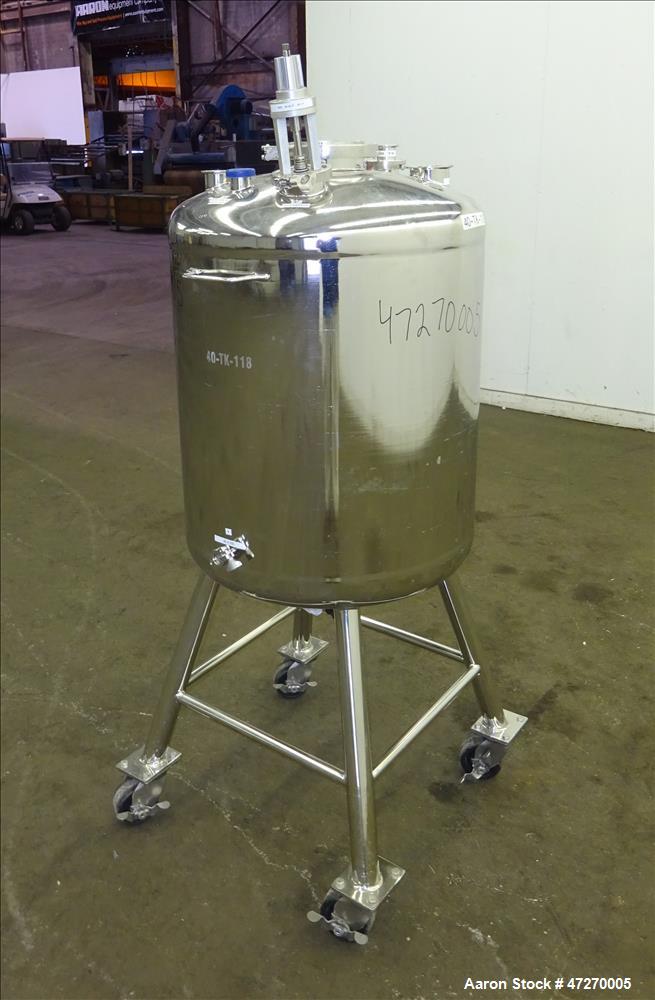

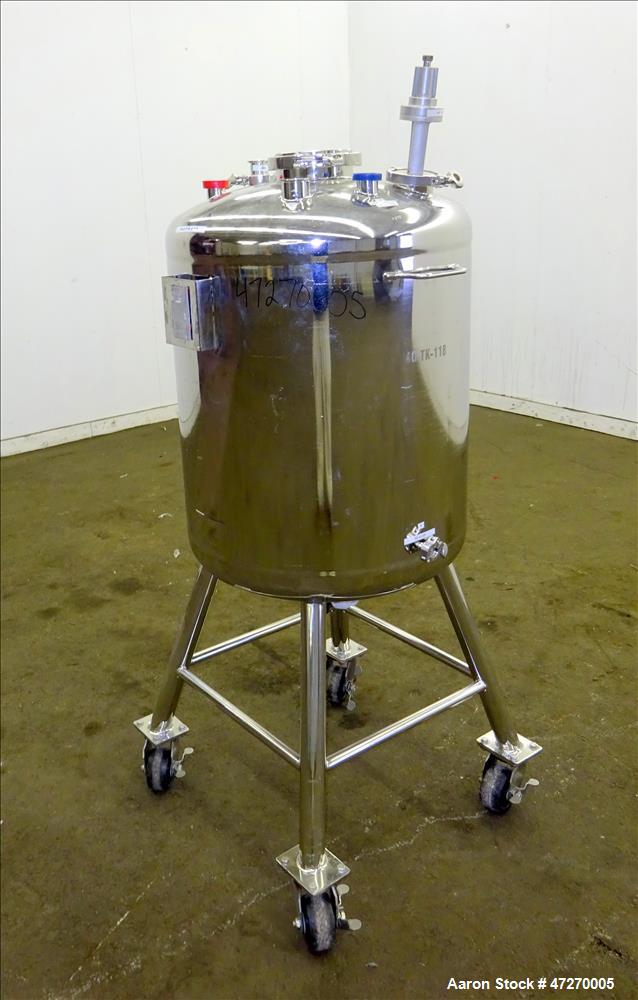

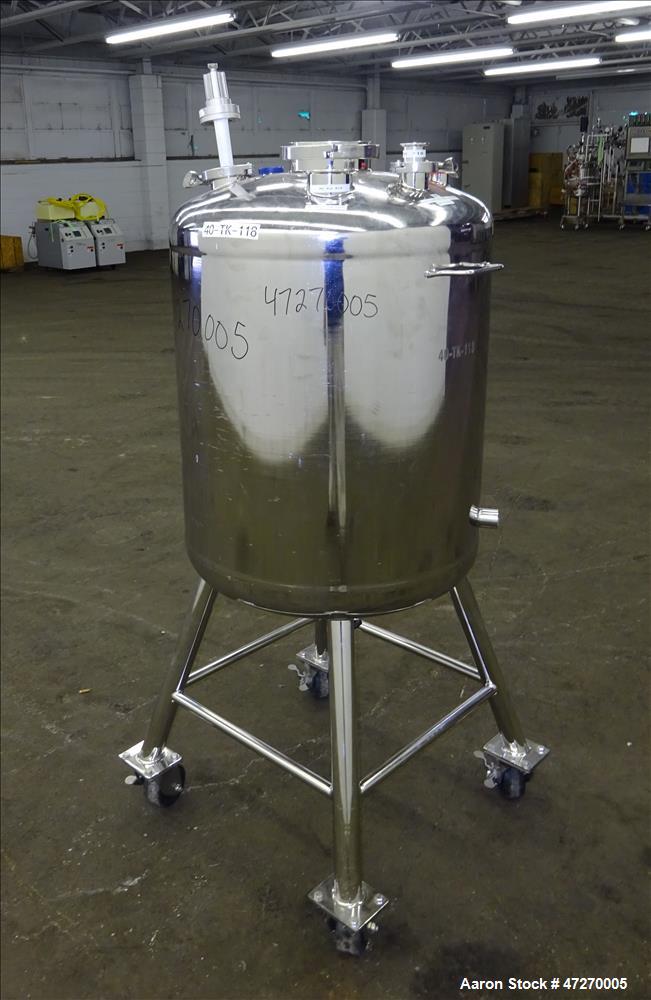

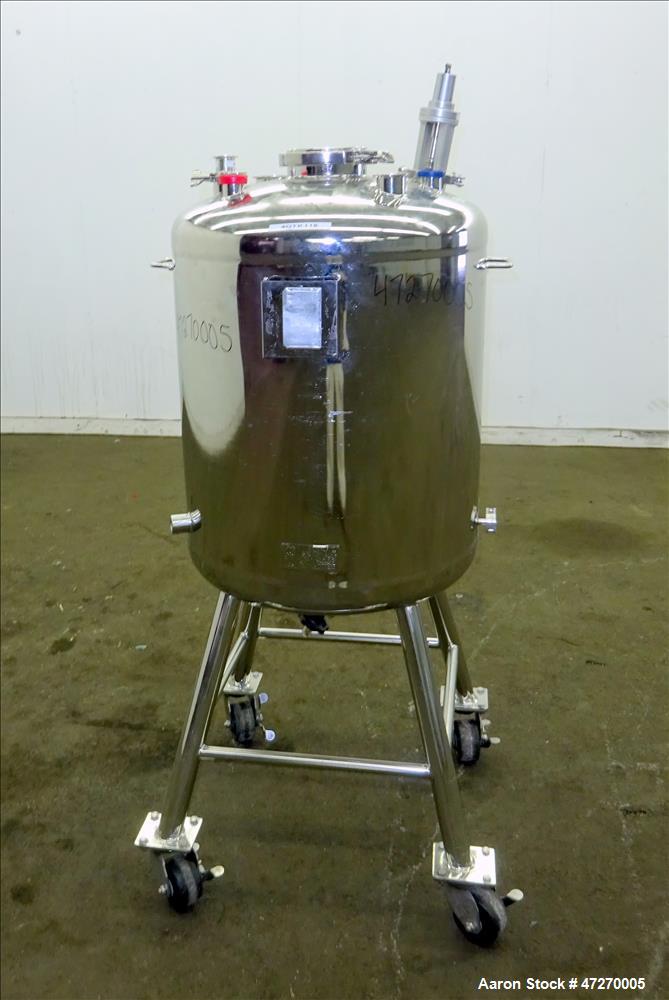

Used- Alloy Products Pressure Tank, Approximate 40 Gallons, 316L Stainless Steel, Vertical. Approximate 22" diameter x 24" straight side. Dished top, dished bottom. Internal rated 60 psi/full vacuum at -20 to 100 degrees F. Offset top entering agitator (no drive motor), approximate 1/2" diameter x 26" long shaft with a 3 blade turbine. Openings top: 6" tri-clamp with 3" sight glass, 3" tri-clamp for agitator, (2) 2" tri-clamp, (2) 1.5" tri-clamp. 1" center bottom outlet. Mounted on (4) stainless steel legs with casters. Serial# 103965-001. Built 2000.
Manufacturer | Alloy Products |

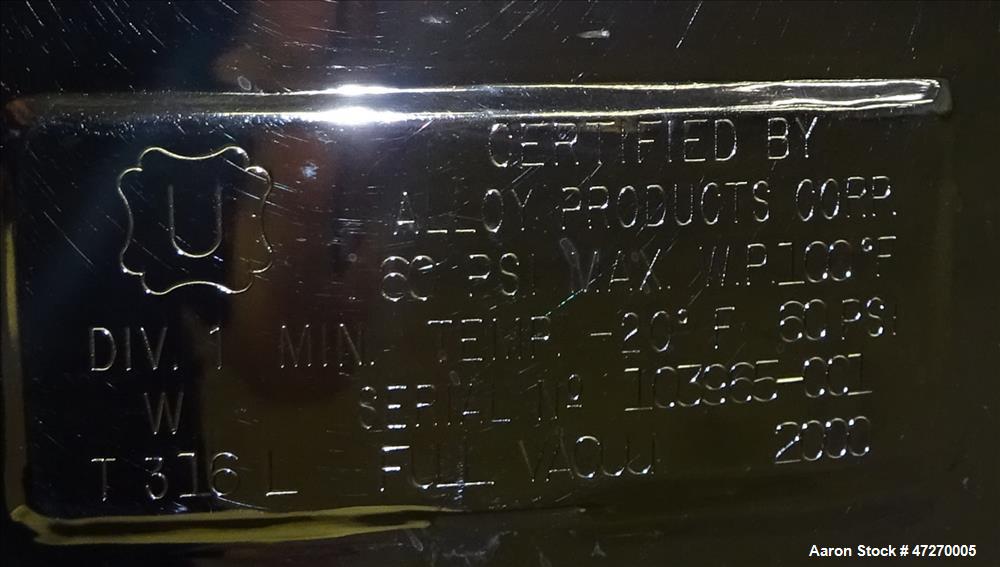

Serial # | 103965-001 |
Category | TanksTanks |
Subcategory | Stainless 0-499 GalStainless 0-499 Gal |
Gallons | 40 |
Material of Construction | 316L Stainless Steel |
Horizontal or Vertical | Vertical |
Diameter | 22" |
Straight Side | 24" |
Top Head Style | Dished Head |
Bottom | Dished Bottom |
Internal Pressure | 60 psi/ Full Vacuum |
Internal Temperature | -20 to 100 degrees F |
Agitator Location | Top Offset |
Agitator Type | Top Entering |

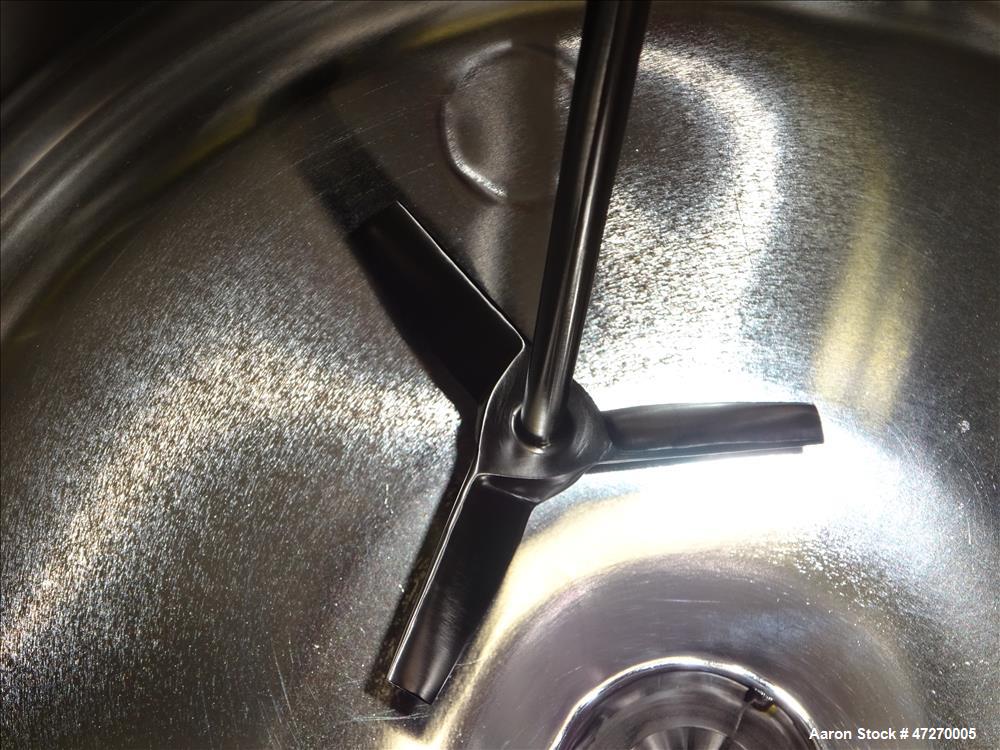

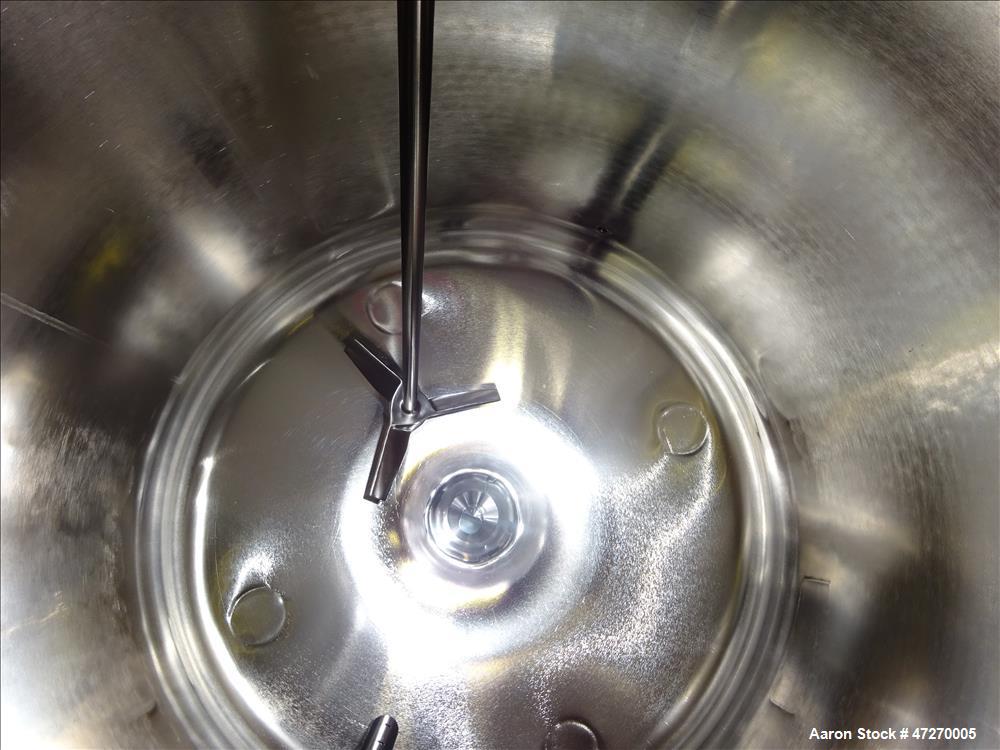

Mixer Type | 3 Blade Turbine |

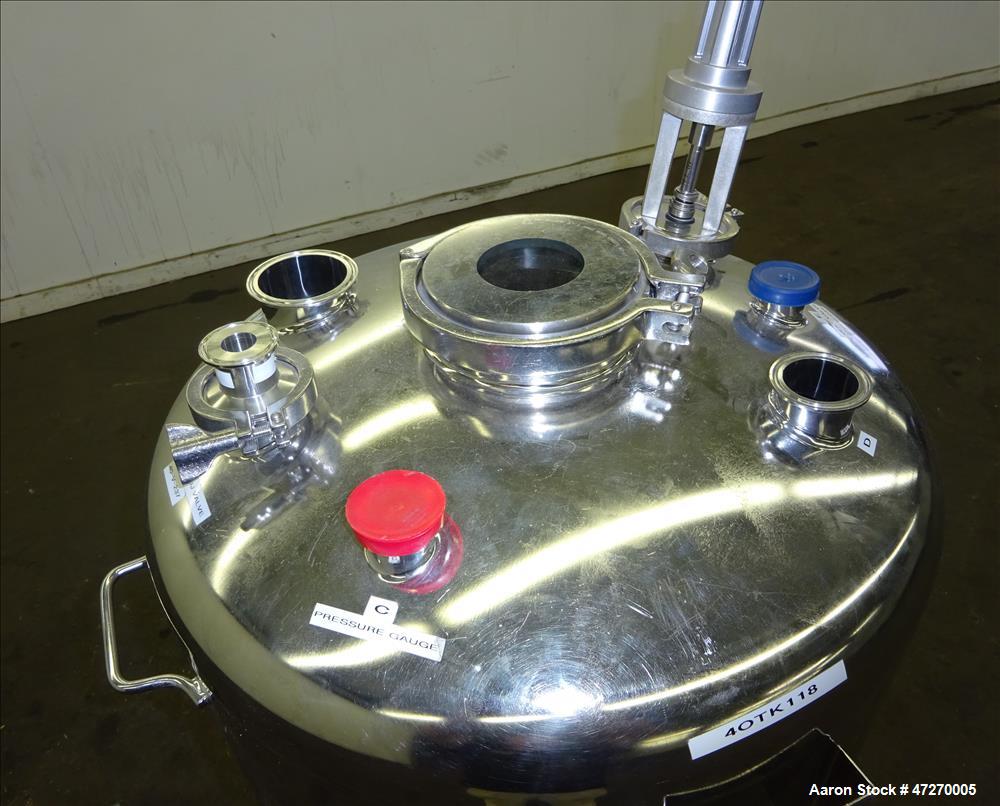

Opening | Top openings: 6" center tri-clamp with 3" sight glass, 3" tri-clamp for agitator, (2) 2" tri-clamp, (2) 1.5" tri-clamp |

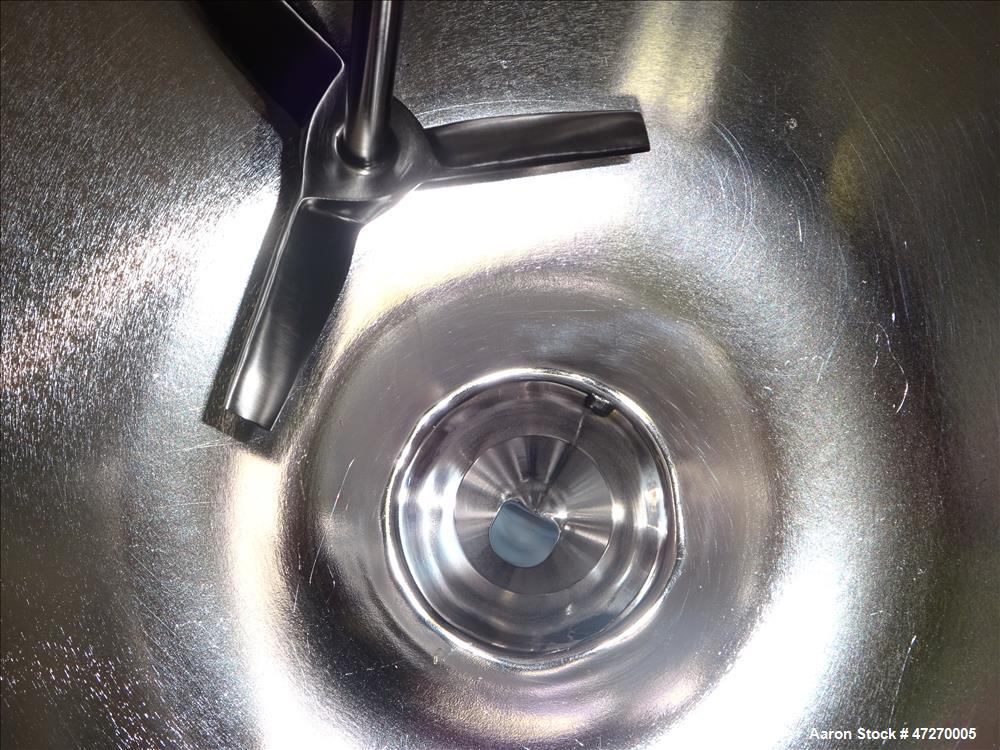

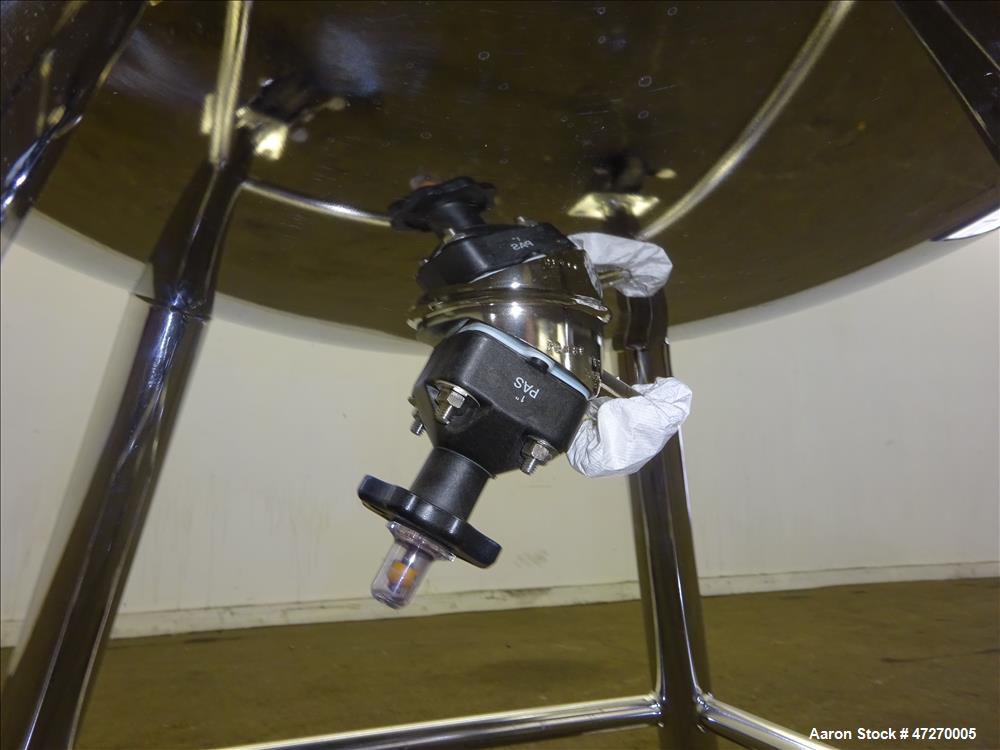

Outlet Size | 1" |
Outlet Location | Bottom |
Overal Dimensions | 27"L x 27"W x 64"T |
Year Built | 2000 |
