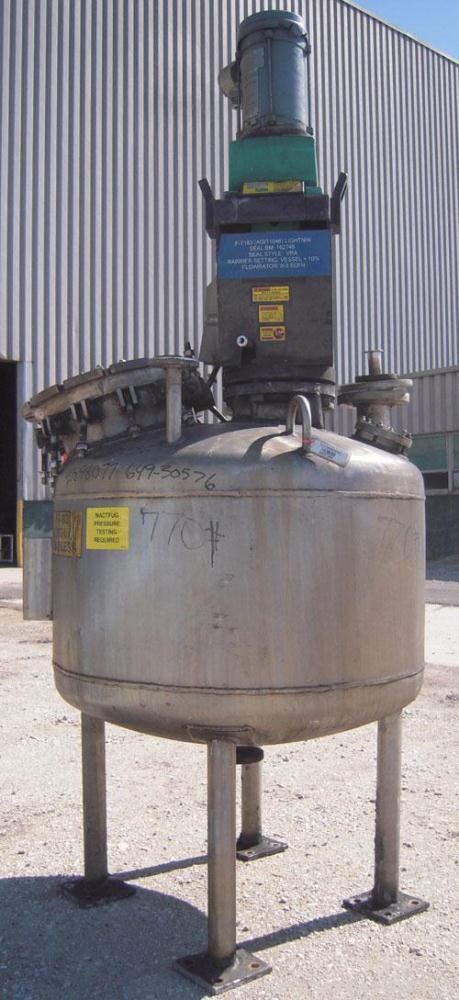

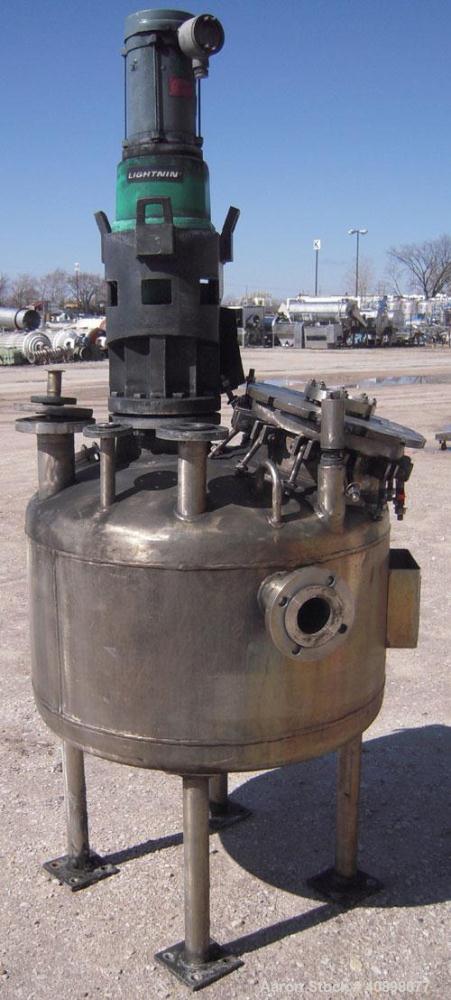

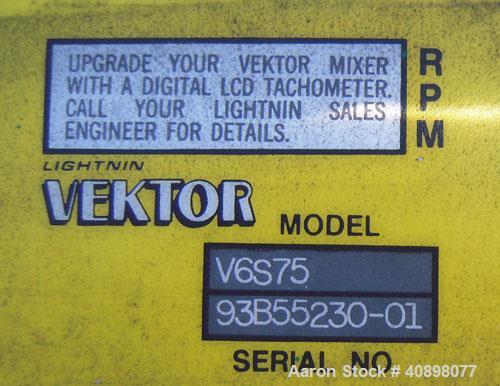

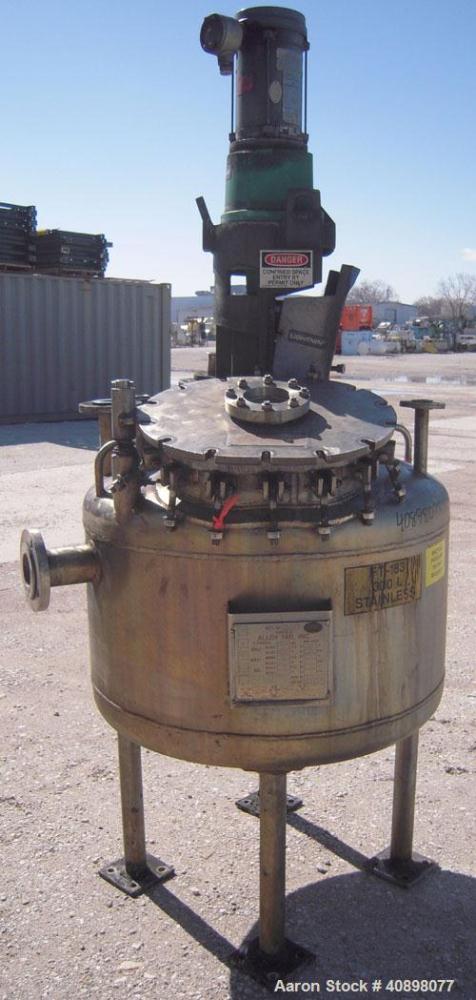

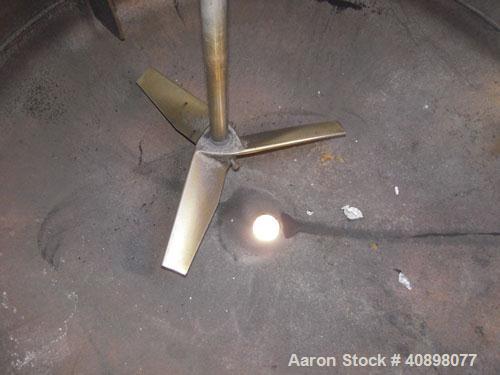

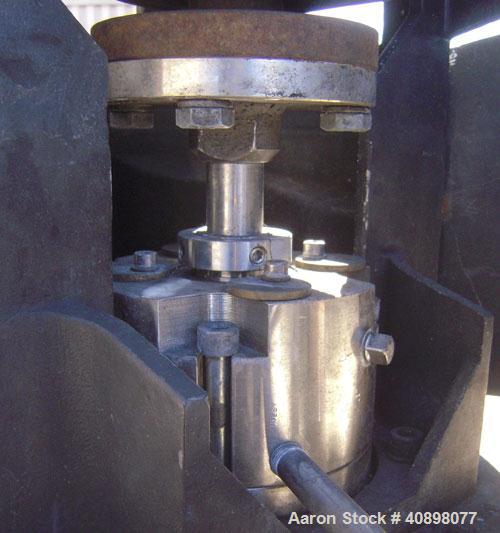

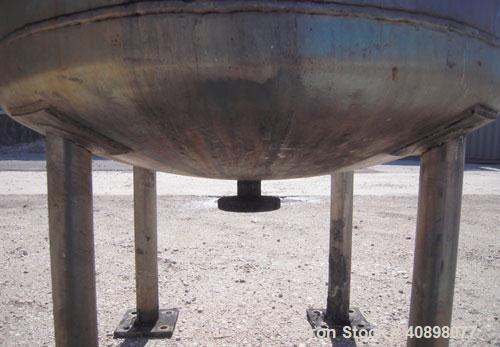

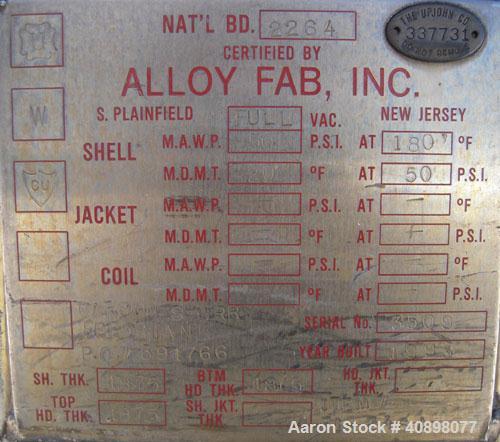

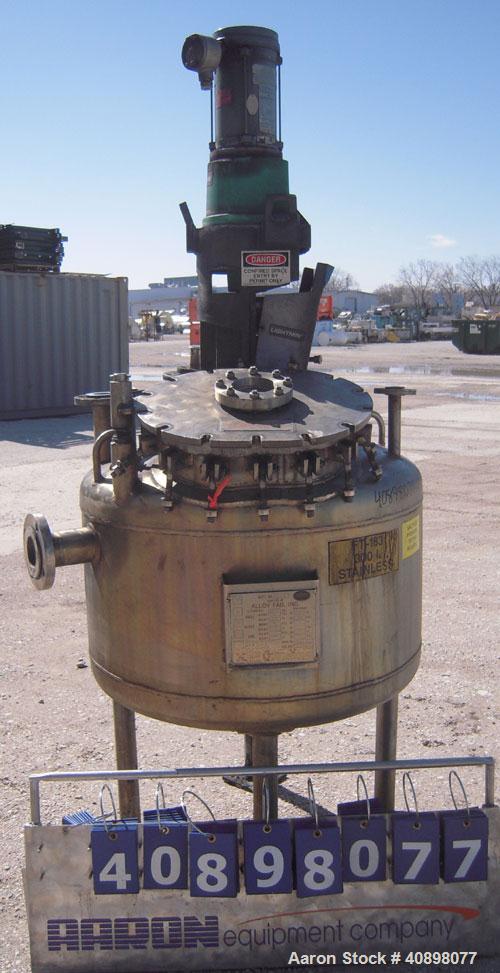

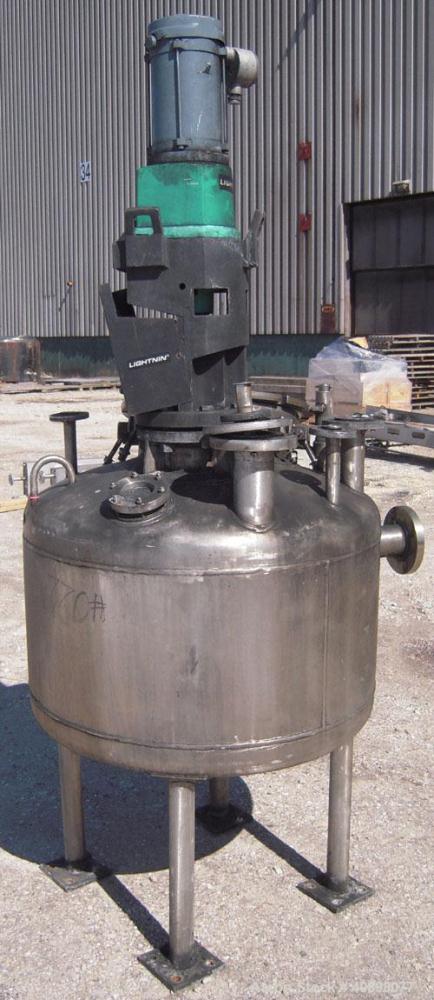

Used Alloy Fab Pressure Tank, 100 gallon, 304L stainless steel, vertical. 36" diameter x 18" straight side, dish top and bottom. Internal rated FV/50 psi at 180 deg F, and -20 deg F at 50 psi. Off center top entering Lightnin agitator, model V6S75 with mechanical seal. 1'' diameter shaft with a 3 blade turbine, driven by a 3 hp, 3/60/460 volt, 1140 rpm XP motor. (3) sidewall baffles, (2) spray nozzles. Openings: top (2) 1'', 2'', 3'', 6'' drive, 3'' sight glass, 12'' x 16'' oval manway with a 4'' sight glass in the cover; side 3''; 1 1/2'' center bottom outlet. Mounted on 4 stainless steel legs, approximately 14'' discharge height. Serial #3509, National Board #2264, built 1993.
Used Alloy Fab Pressure Tank, 100 gallon, 304L stainless steel, vertical. 36" diameter x 18" straight side, dish top and bottom. Internal rated FV/50 psi at 180 deg F, and -20 deg F at 50 psi. Off center top entering Lightnin agitator, model V6S75 with mechanical seal. 1'' diameter shaft with a 3 blade turbine, driven by a 3 hp, 3/60/460 volt, 1140 rpm XP motor. (3) sidewall baffles, (2) spray nozzles. Openings: top (2) 1'', 2'', 3'', 6'' drive, 3'' sight glass, 12'' x 16'' oval manway with a 4'' sight glass in the cover; side 3''; 1 1/2'' center bottom outlet. Mounted on 4 stainless steel legs, approximately 14'' discharge height. Serial #3509, National Board #2264, built 1993.
