Used 36,400 Gallon Fiberglass Storage Tank – Fabricated Plastics, Derakane 510A, Built 2009

🏭 Manufacturer

Fabricated Plastics Limited
A Canadian manufacturer specializing in fiberglass-reinforced plastic (FRP) tanks and equipment for the chemical processing, water treatment, and industrial storage sectors.

📝 Description

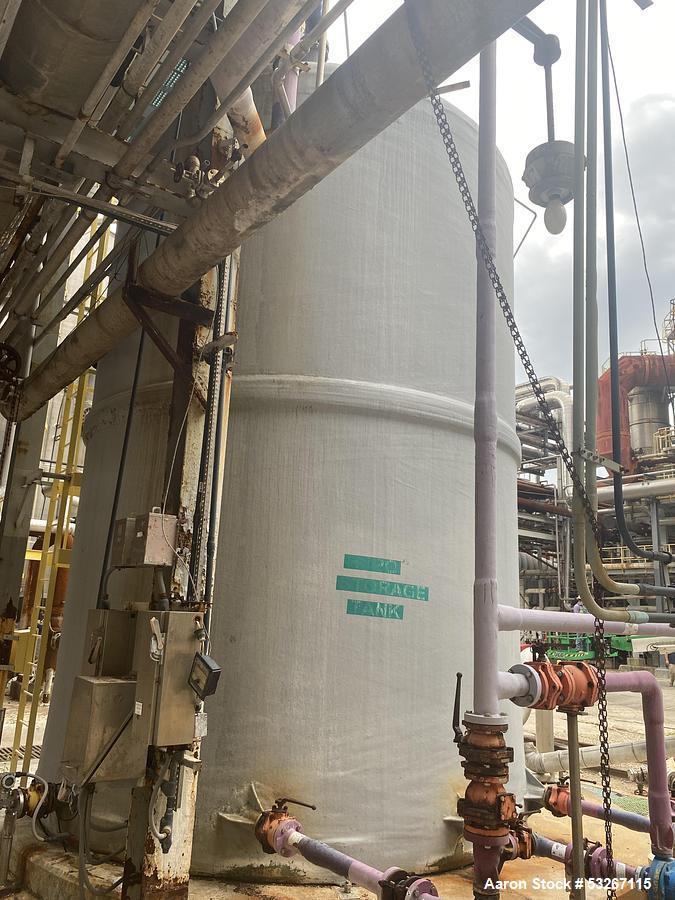

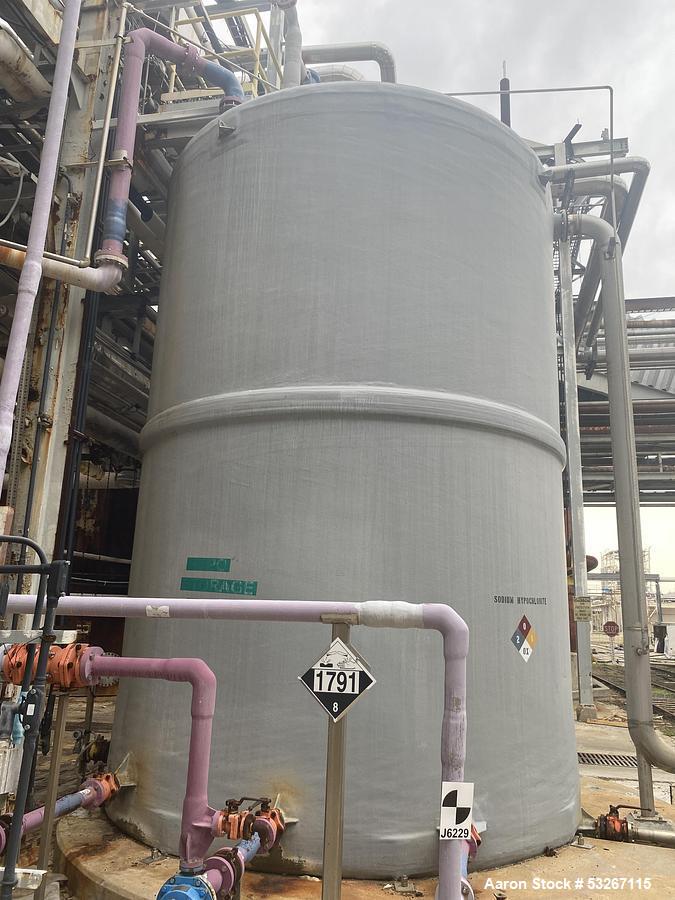

This 36,400-gallon vertical fiberglass storage tank, manufactured by Fabricated Plastics Limited in 2009, is built to store highly corrosive liquids such as sodium hypochlorite, which it previously contained. Constructed with 2-Nexus veil and 3-mat corrosion liner and reinforced with Derakane 510A/411 epoxy vinyl ester resin (BPO/DMA cured), this tank offers superior chemical resistance, mechanical strength, and longevity in aggressive service conditions.

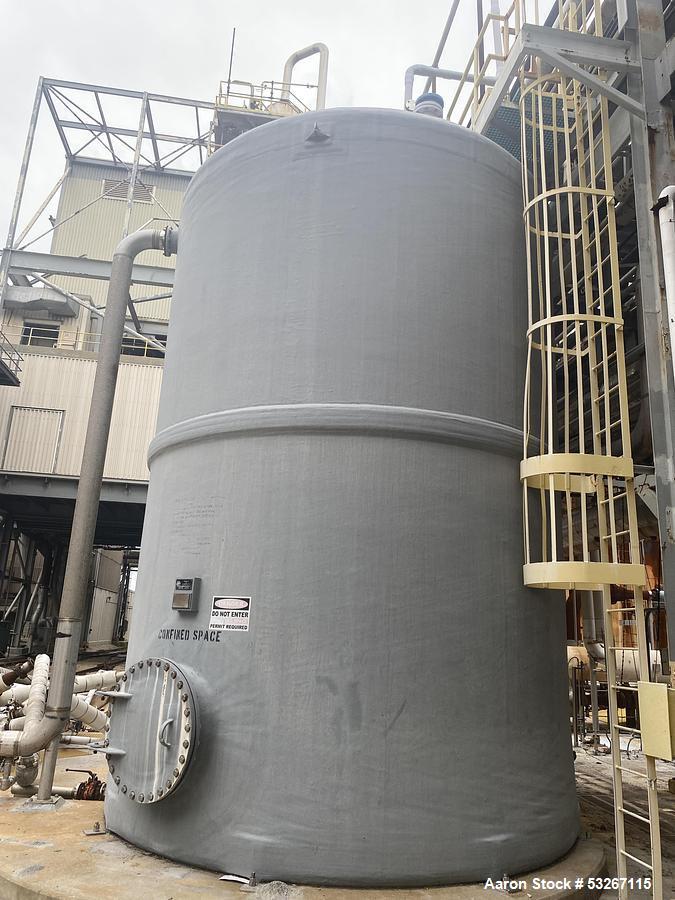

The tank features a 14-foot diameter and 20-foot straight side height, with a dished top and flat bottom. Rated for ±0.25 PSIG and a specific gravity (S.G.) of 1.1–1.2, it includes extensive top and side fittings for integration into plant systems. Manways on both the top and side allow for easy inspection and maintenance access.

⚙️ Specifications

• Manufacturer: Fabricated Plastics Limited

• Year Built: 2009

• Capacity: 36,400 gallons

• Material: Fiberglass (FRP)

• Corrosion Liner:

  • 2 layers Nexus veil

  • 3 layers chopped strand mat

• Resin System: Derakane 510A/411

• Cure: BPO/DMA

• Shape: Vertical with dished top and flat bottom

• Dimensions:

  • Diameter: 14 feet

  • Straight Side Height: 20 feet

• Weight: Approx. 8,700 lbs

• Pressure Rating: ±0.25 PSIG

• Specific Gravity Rating: 1.1–1.2

• Top Fittings:

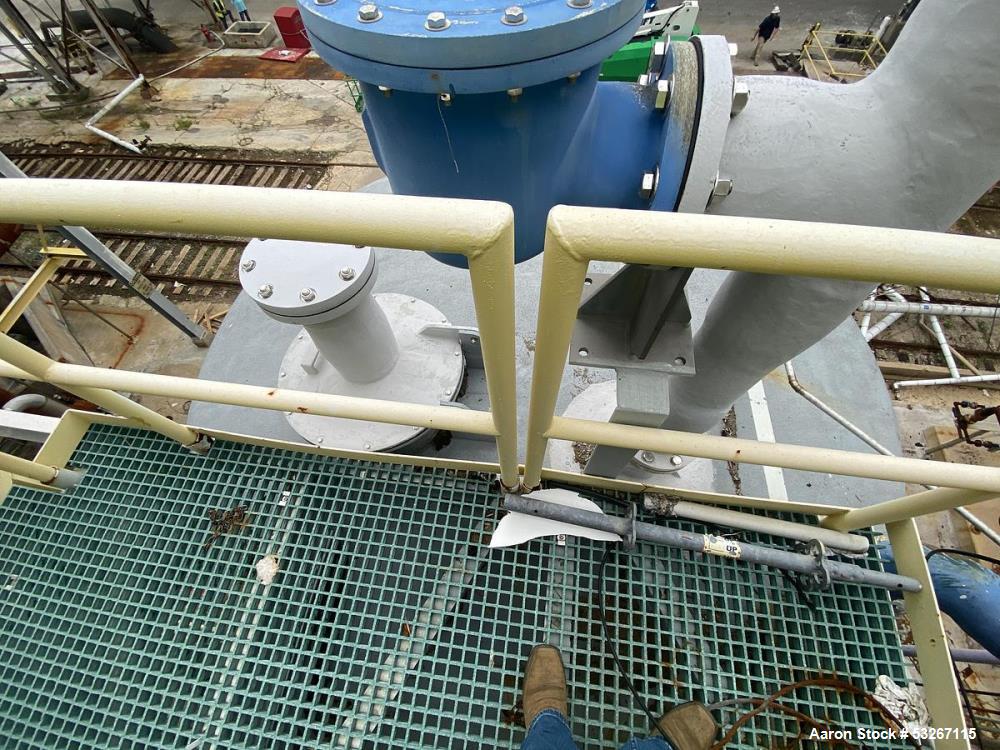

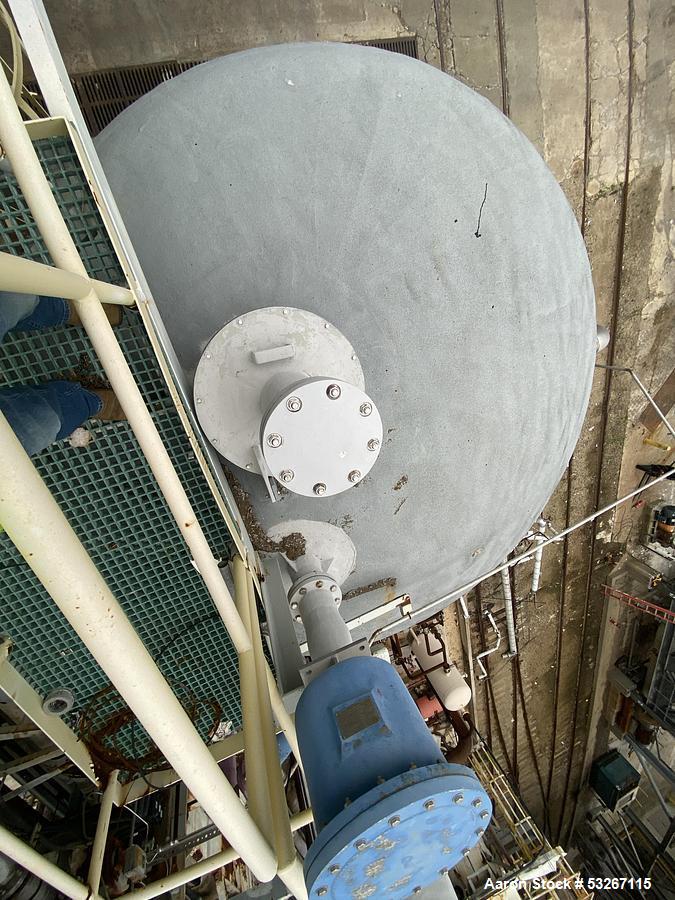

  • 20" manway with 8" nozzle

  • (2) 6" nozzles

• Side Top Inlet: 8"

• Side Bottom Manway: 30"

• Side Bottom Outlets:

  • (1) 1" outlet

  • (4) 3" outlets

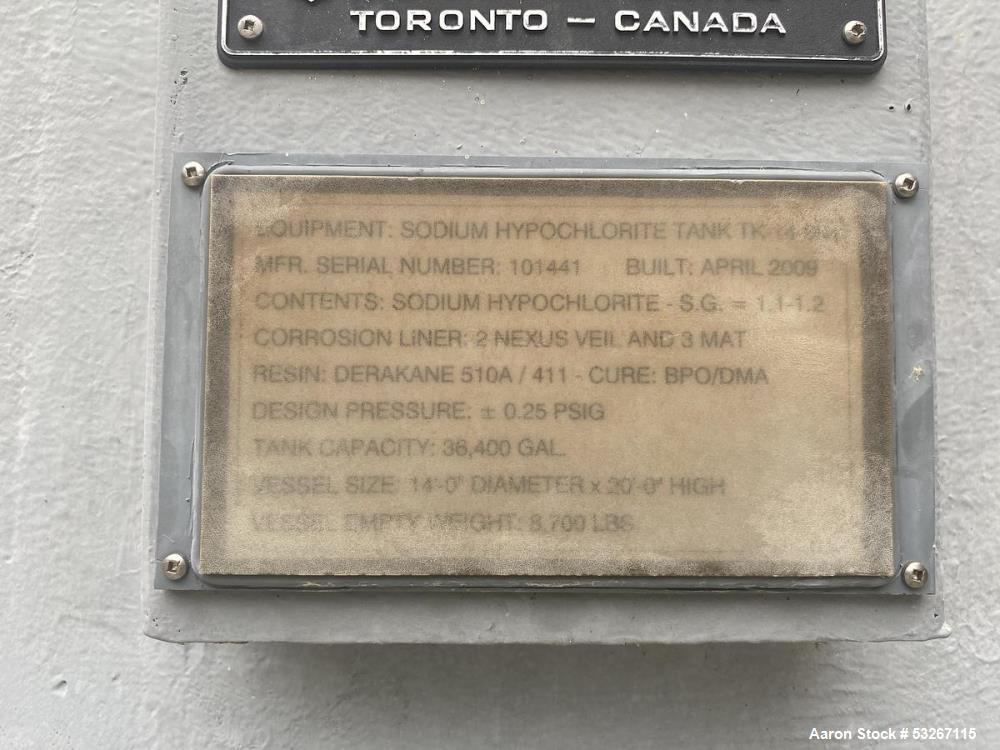

• Serial Number: 101441

• Previous Service: Sodium Hypochlorite

🧩 Applications

This corrosion-resistant tank is ideal for:

• Sodium hypochlorite storage

• Sodium hydroxide or caustic soda storage

• Sulfuric acid dilution systems

• Bleach or chlorine storage

• Industrial wastewater treatment systems

• Chemical feed or neutralization tanks

• Brine or saline storage in water treatment

• Corrosive liquid containment for pulp and paper plants

• Fertilizer or ag-chemical bulk storage

• Municipal or industrial disinfectant storage systems

🔧 What Might This Be Used For?

• Safely storing corrosive chemicals like bleach or caustics

• Holding sodium hypochlorite for water or wastewater treatment

• Providing buffer storage in chemical dosing systems

• Serving as a containment vessel in chlorination systems

• Acting as a large-capacity tank in chemical or food processing plants

• Housing harsh fluids in industrial CIP or sanitation setups

• Long-term storage of fertilizers or pH modifiers

• Integrating into modular skids for water purification

• Chemical storage in paint, pulp, or dye industries

• Environmental containment for hazardous materials
