Stock #
54506007

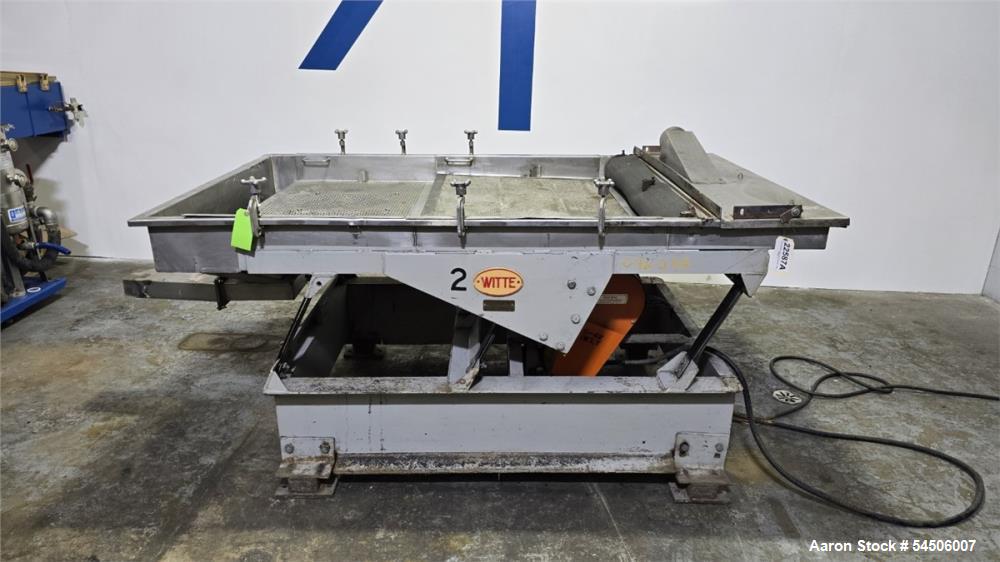

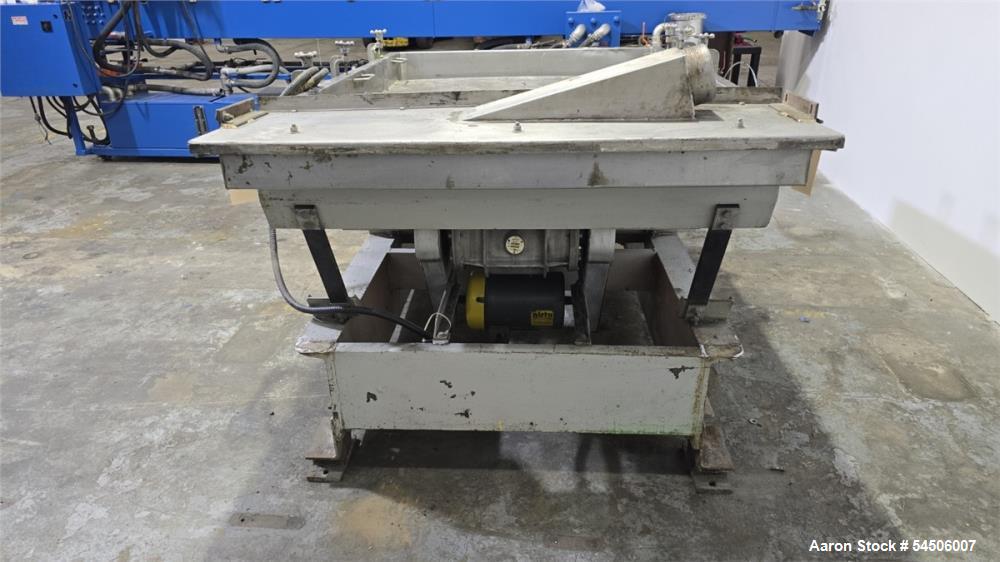

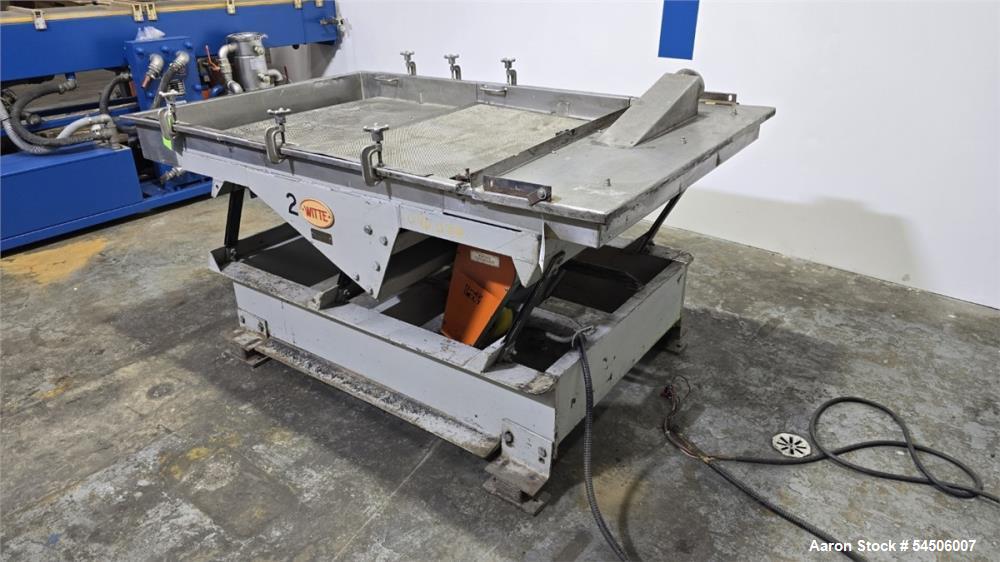

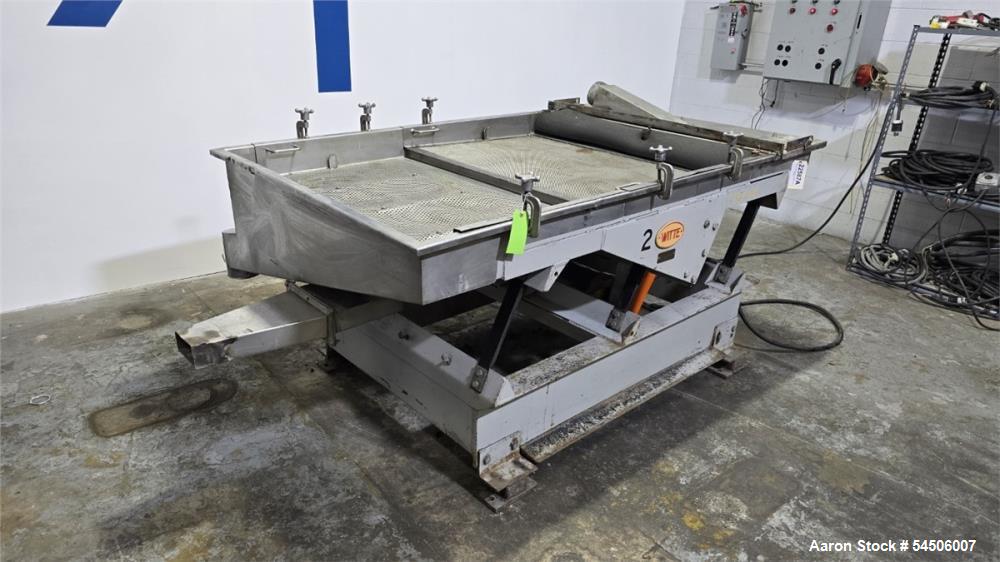

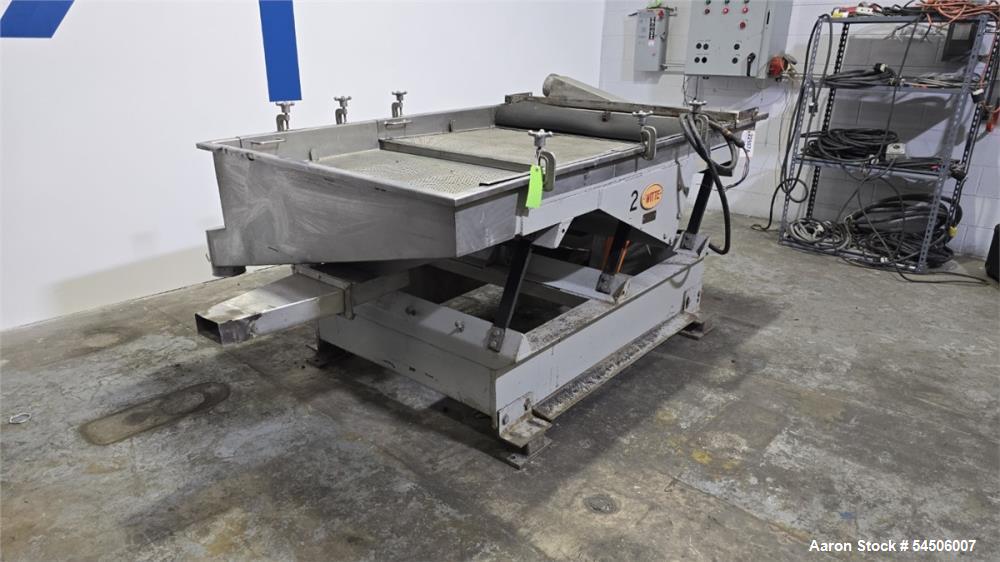

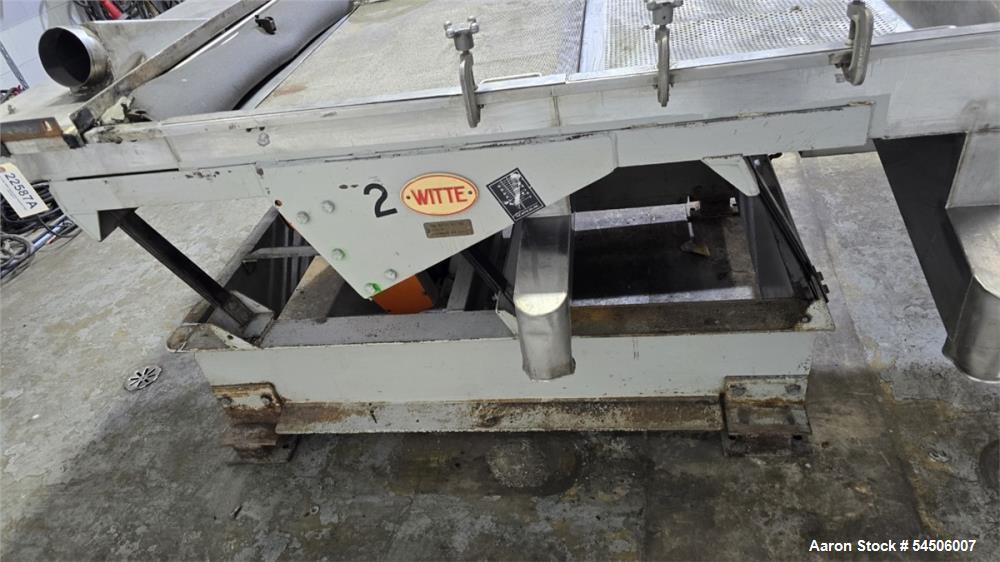

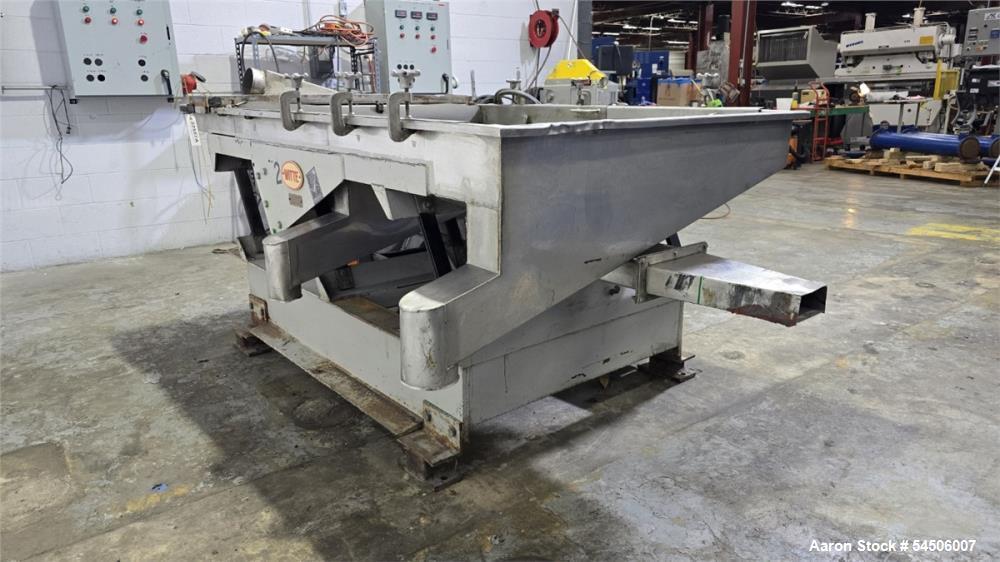

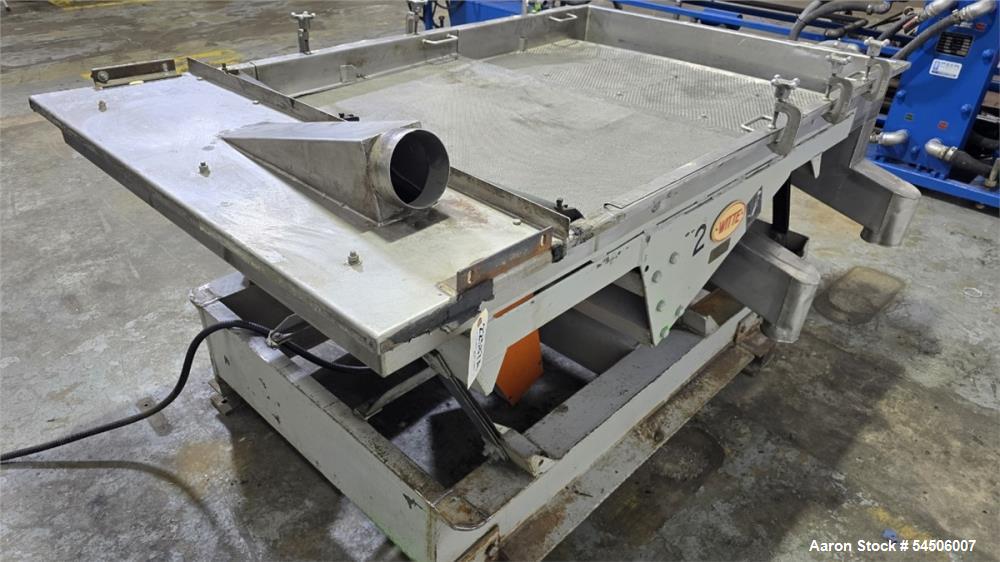

Used Witte 48" x 60" Plastic Pellet Classifier Table Two-Stage Vibratory Pellet Screening System, 1.5 HP. 60" Long Deck, 48" Wide Screen, 36" Deck Height. Mesh Size 5. Hole Diameter: 1/4". 22" Discharge Height For Overs. 18" Discharge For Fines And Right Size. Approximate Vibration Speed: 820 RPM (adjustable 750900 RPM). 1.5 HP Motor Baldor AC Motor, 460/3/60, 2.4A, 1725 RPM, 182TZ Frame. Two-Stage Perforated Deck. Wire Mesh or Perforated Fines" Screen. Configured for Plastic Pellet Classification Applications. Serial# 4027- 2. Approximate Overall Dimensions: 112" L x 55" W x 48" H.
Used Equipment Facts About This Machine
Manufacturer: Witte Company
Condition: Used
Type: Vibratory Plastic Pellet Classifier / Screening Table

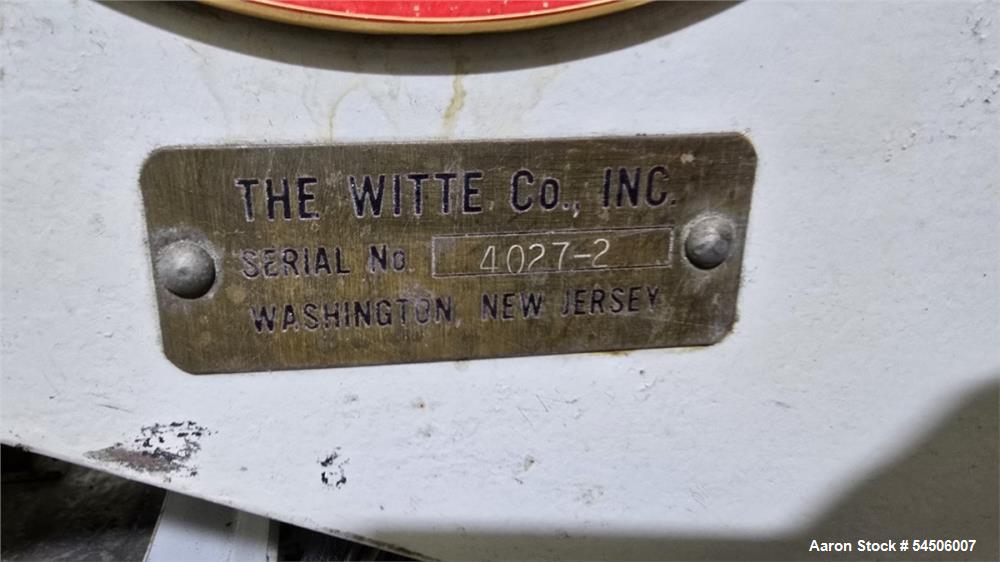

Serial Number: 4027-2

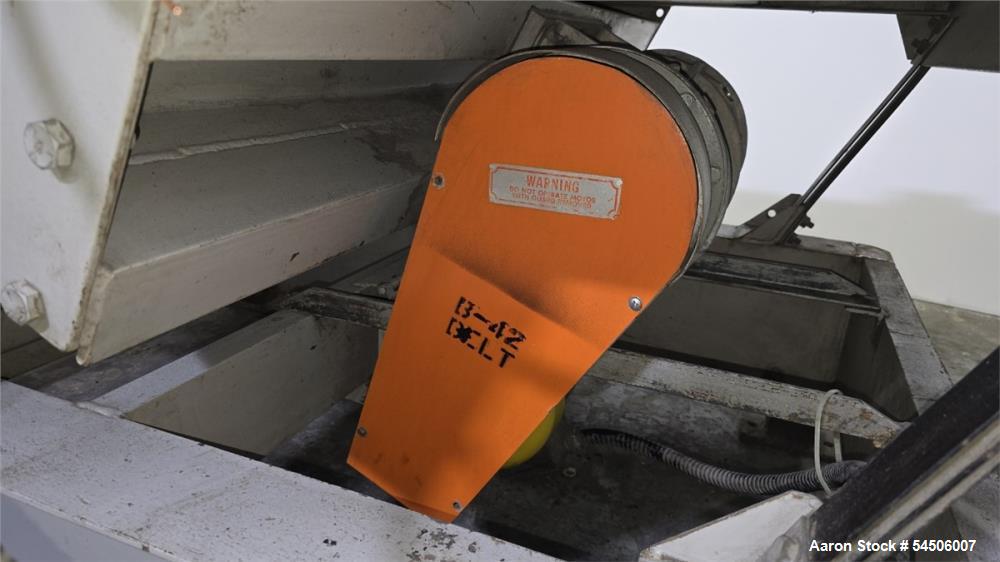

Motor: 1.5 HP Baldor AC Motor
Manufacturer Information
The Witte Company is a recognized manufacturer of industrial screening, classification, drying, cooling, and material handling equipment for plastics, chemicals, food processing, and industrial manufacturing applications. Witte vibratory classifier tables are designed to efficiently separate fines, oversized material, and on-specification product for improved product quality and process efficiency.
Description
Used Witte plastic pellet classifier table designed for high-efficiency pellet screening and classification applications. The system features a two-stage perforated deck with a 48-inch wide screening surface and 60-inch long deck. Configured specifically for plastic pellet classification, the unit separates fines, acceptable product, and oversized material through controlled vibratory screening.
Powered by a 1.5 HP Baldor motor, the classifier operates at approximately 820 RPM with adjustable vibration speeds ranging from 750 to 900 RPM. The screening system includes dedicated discharge points for oversized material, fines, and correctly sized product, making it ideal for resin manufacturers, compounders, recyclers, and plastics processors.
Specifications
General Information
- Manufacturer: Witte Company
- Equipment Type: Plastic Pellet Classifier Table
- Serial Number: 4027-2
- Condition: Used

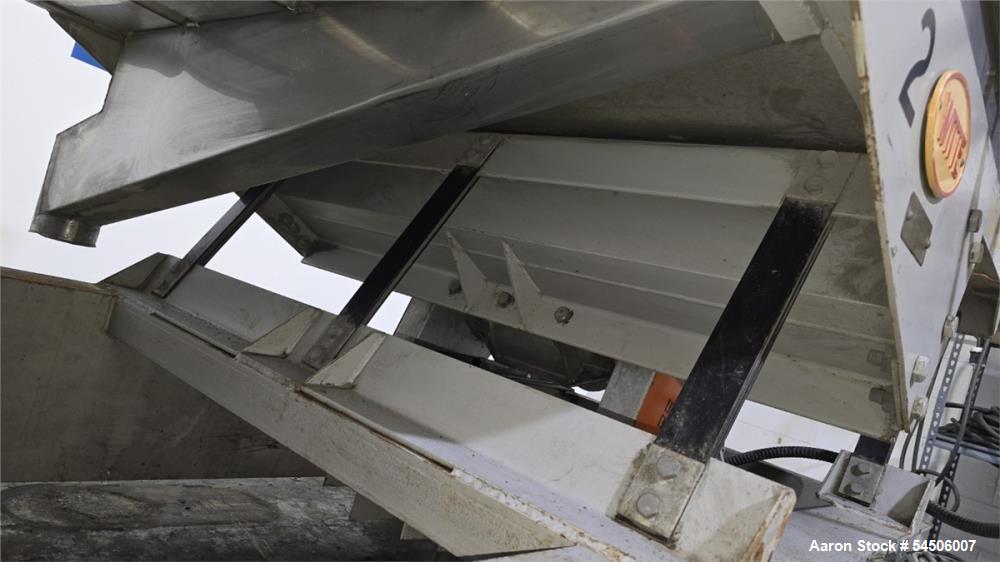

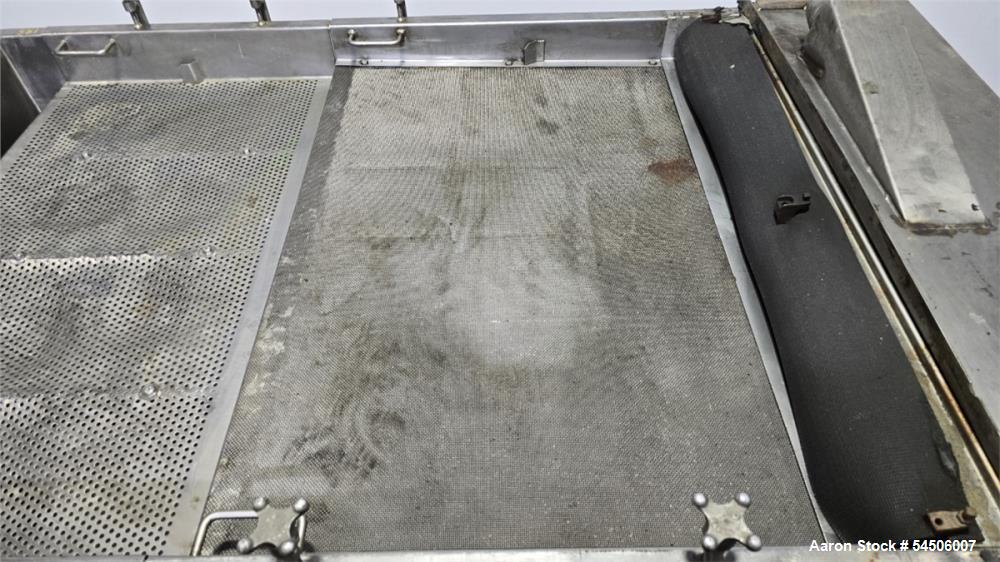

Screening Deck
- Deck Length: 60"
- Screen Width: 48"
- Deck Height: 36"

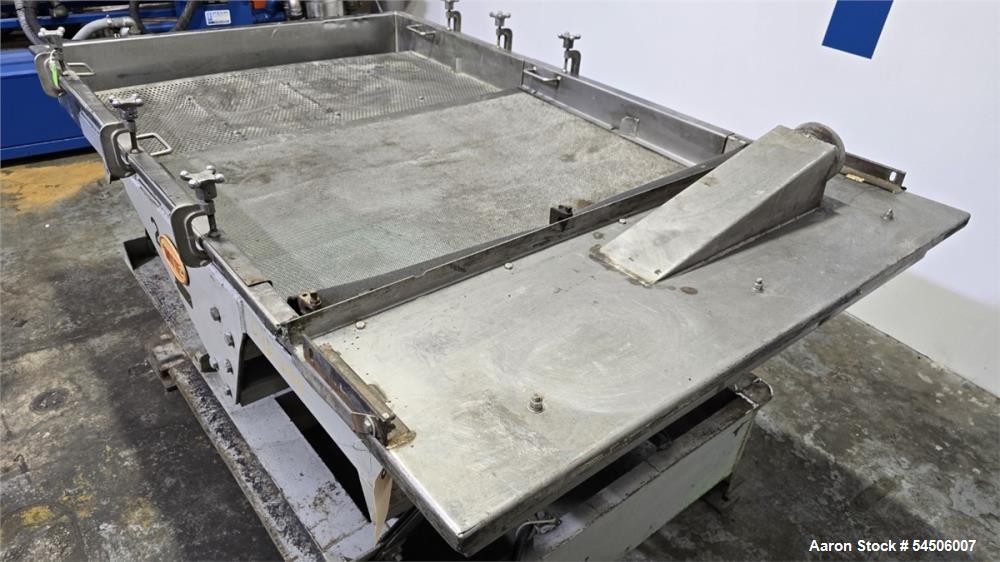

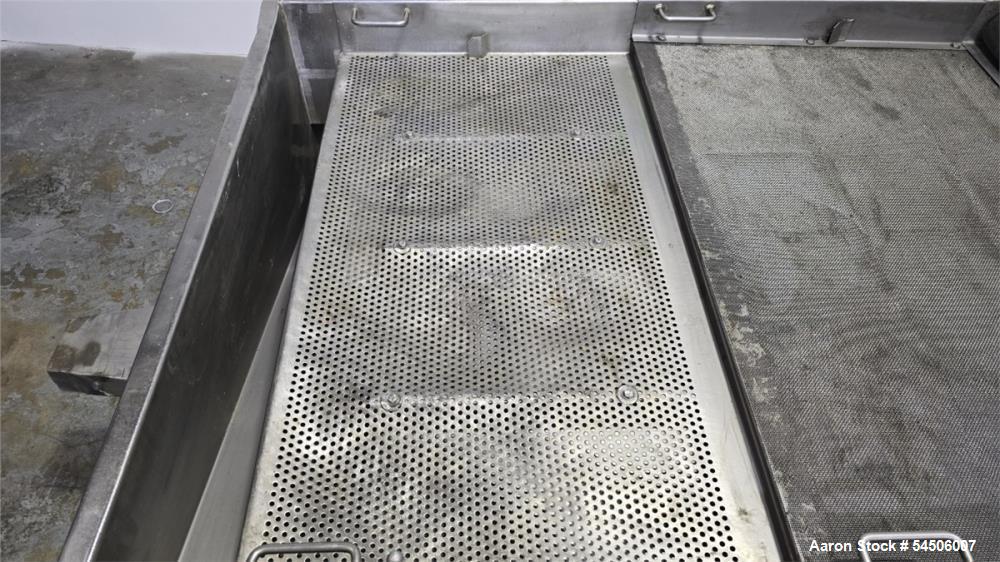

- Deck Configuration: Two-Stage Perforated Deck
- Screen Type: Wire Mesh or Perforated Fines Screen
- Mesh Size: 5

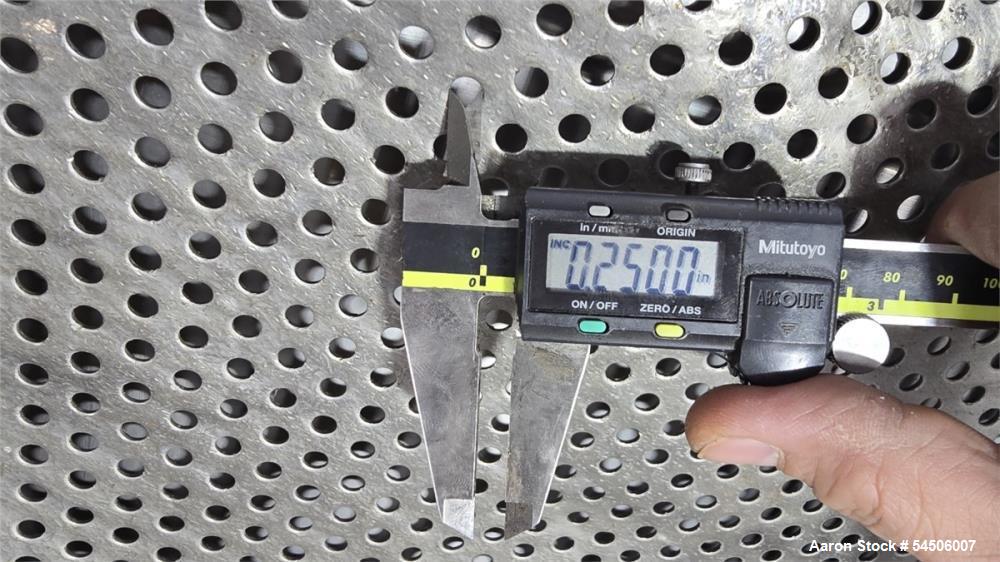

- Hole Diameter: 1/4"
Discharge Heights
- Overs Discharge Height: 22"
- Fines Discharge Height: 18"
- Right-Size Product Discharge Height: 18"
Vibration System
- Approximate Operating Speed: 820 RPM
- Adjustable Speed Range: 750–900 RPM

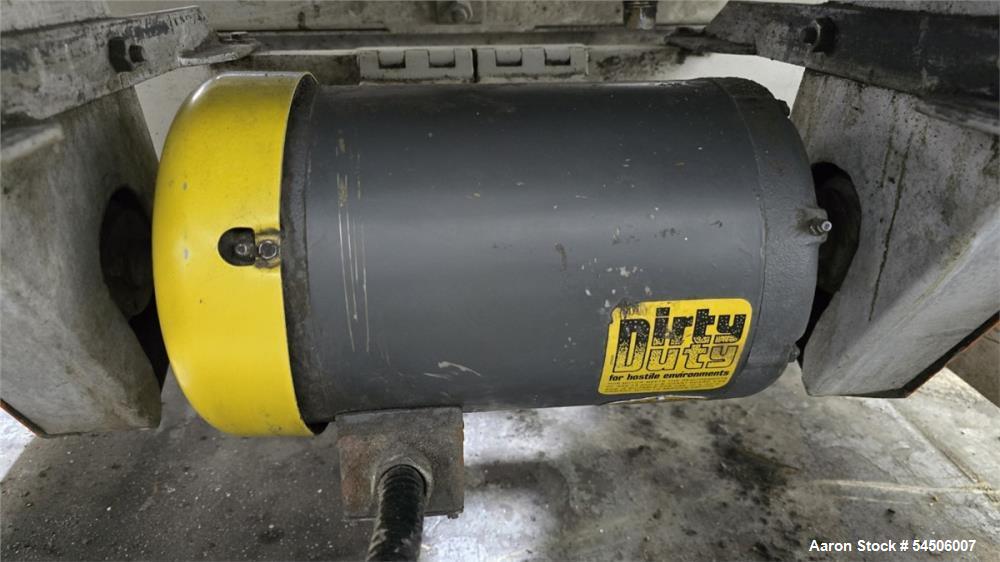

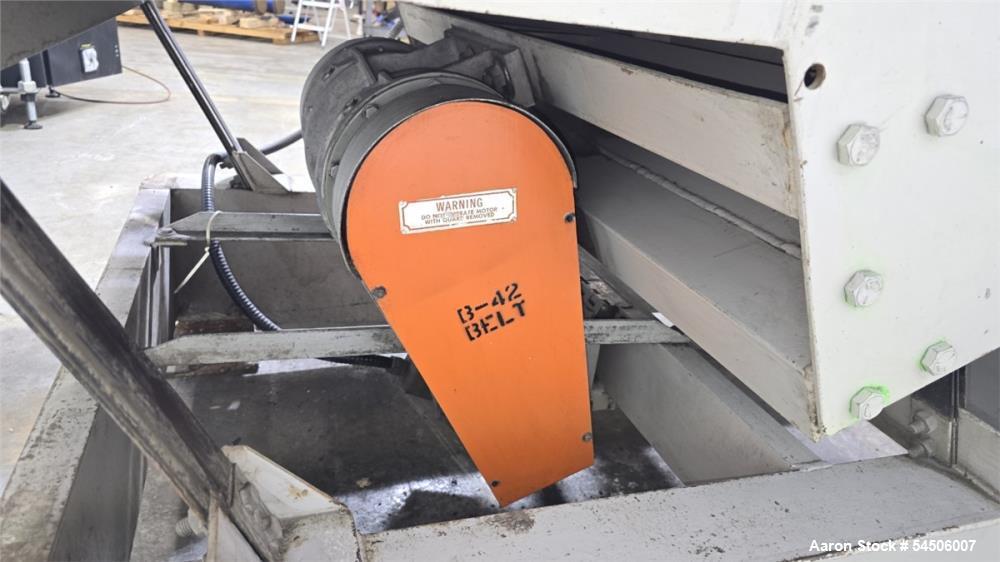

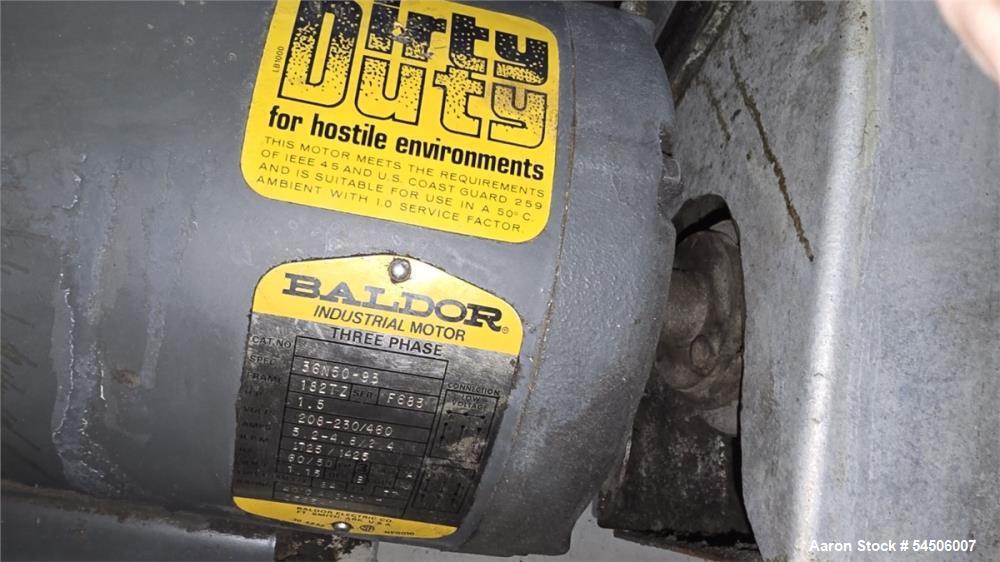

Motor Specifications
- Manufacturer: Baldor
- Horsepower: 1.5 HP
- Voltage: 460 Volt
- Phase: 3 Phase
- Frequency: 60 Hz
- Current: 2.4 Amps
- Motor Speed: 1,725 RPM
- Frame Size: 182TZ
Overall Dimensions
- Length: 112"
- Width: 55"
- Height: 48"
Applications
- Plastic pellet classification
- Resin pellet screening
- Plastic compounding operations
- Masterbatch production
- Recycled plastic processing
- Polymer manufacturing
- Pellet quality control
- Product sizing operations
- Pellet finishing lines
- Material recovery systems
Common Products Processed
- Polyethylene pellets (PE)
- Polypropylene pellets (PP)
- PET resin pellets
- Nylon pellets
- ABS pellets
- Engineering resin pellets
- Masterbatch pellets
- Recycled plastic pellets
- Polymer granules
- Plastic compounds
Key Features
- Designed specifically for plastic pellet classification
- Large 48" x 60" screening surface
- Two-stage screening deck
- Separate discharge streams for overs, fines, and acceptable product
- Adjustable vibration speed
- Heavy-duty industrial construction
- Baldor industrial motor
- Compact processing footprint
- Suitable for continuous production environments
- Easy integration into plastics processing lines
Frequently Asked Questions
What is the screening surface size?
- The classifier features a 48-inch wide screen and a 60-inch long deck.
What materials was this machine designed to process?
- It is configured primarily for plastic pellet classification and sizing applications.
What is the vibration speed?
- The unit operates at approximately 820 RPM and is adjustable between 750 and 900 RPM.
How many product streams does the classifier produce?
- Three streams: oversized material, fines, and correctly sized product.
What motor is installed?
- A 1.5 HP Baldor AC motor rated for 460V, 3-phase, 60 Hz operation.
Can Aaron Equipment assist with shipping and logistics?
- Yes. Aaron Equipment can coordinate dismantling, loading, transportation, export documentation, and worldwide logistics services for screening equipment, plastics processing machinery, and complete production systems.
