Pharmaceutical Grade 316L Stainless Steel Reactor – 2,500 Liter Jacketed Vessel with Agitation

Manufacturer: Precision Stainless
Equipment Type: Jacketed Reactor Vessel
Capacity: 2,500 Liters (660 Gallons)
Material: 316L Stainless Steel
Condition: Used
Previous Use: Pharmaceutical Processing

Description

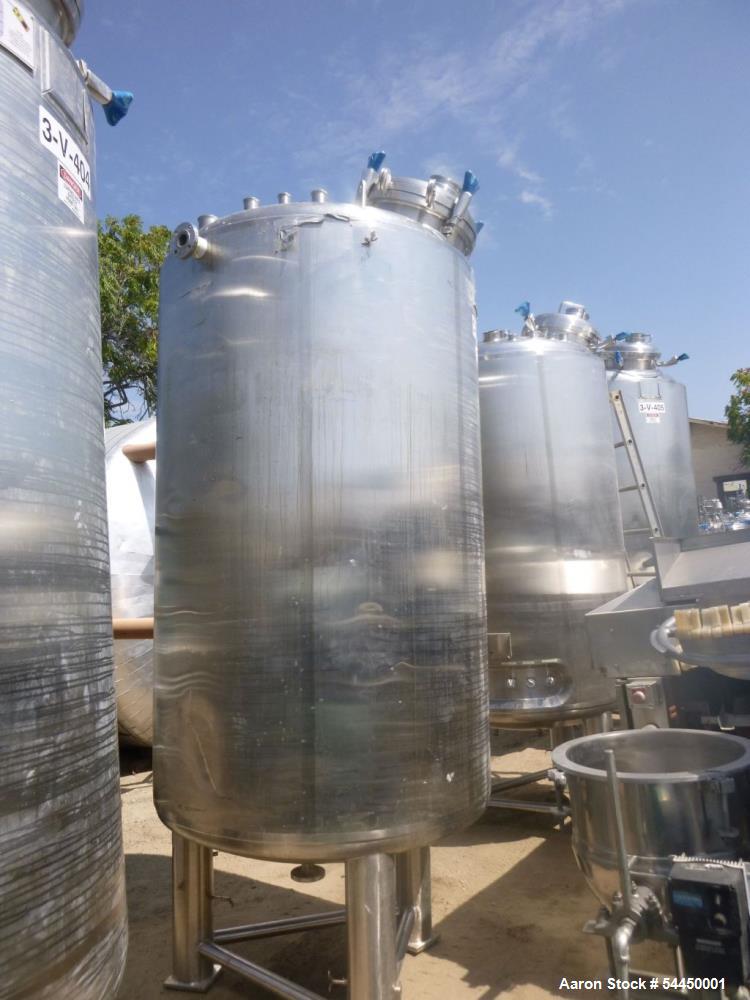

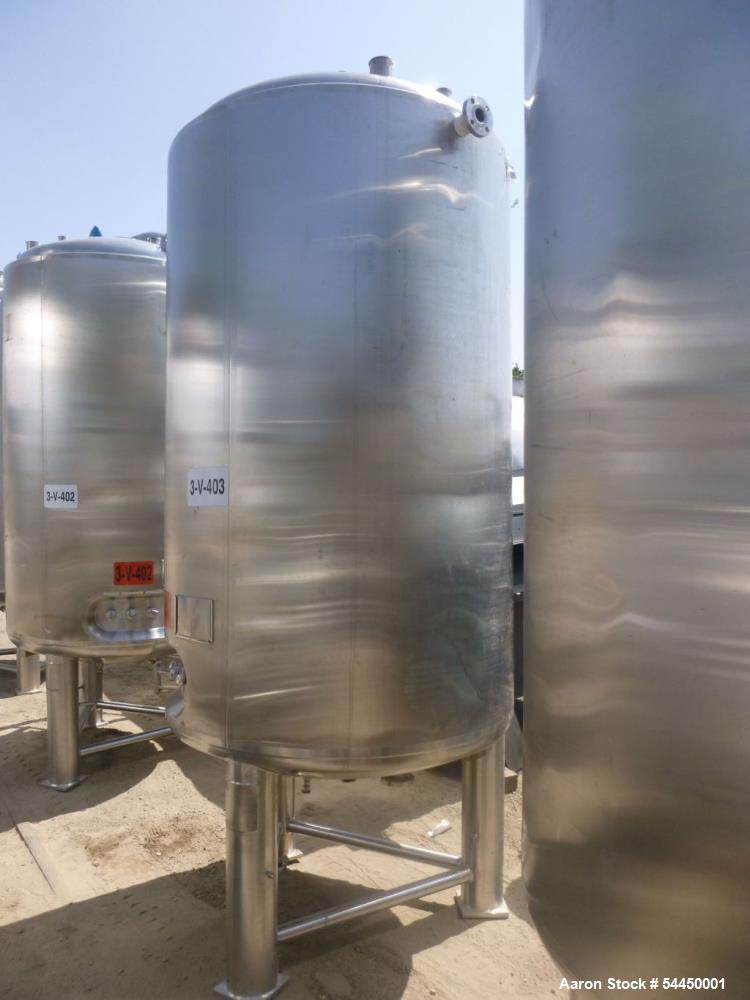

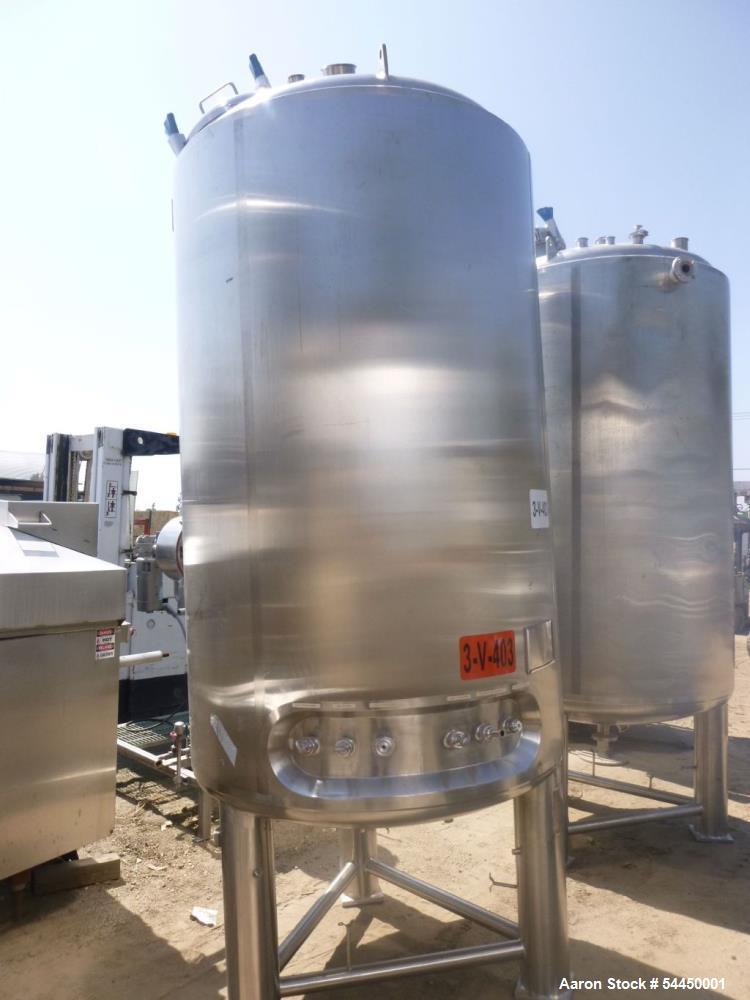

Used Precision Stainless 2,500 liter (660 gallon) pharmaceutical-grade reactor constructed from 316L stainless steel, designed for high-purity and temperature-controlled processing applications. This vertical vessel features a dished top and bottom with a fully integrated dimpled jacket for efficient heating and cooling.

The reactor is rated for 50 PSI internal pressure and full vacuum operation across a wide temperature range from -20°F to 300°F. The jacket is rated for 100 PSI, allowing for precise thermal control using various heating or cooling media.

Equipped with a robust agitation system, the vessel includes a 1" diameter x 7' long stainless steel shaft with (3) 16" diameter disc blades featuring 3" wide paddles, ensuring effective mixing and product uniformity. The tank includes multiple ports and an 18" manway for accessibility, making it ideal for pharmaceutical, biotech, and chemical processing environments.

Specifications

• Manufacturer: Precision Stainless
• Capacity: 2,500 liters (660 gallons)
• Type: Jacketed reactor vessel with agitation
• Orientation: Vertical
• Diameter: 48"
• Height: 6' 7"
• Material: 316L stainless steel
• Top: Dished head
• Bottom: Dished head
• Internal Pressure Rating: 50 PSI / Full Vacuum
• Temperature Range: -20°F to 300°F
• Jacket Type: Dimpled jacket
• Jacket Pressure Rating: 100 PSI

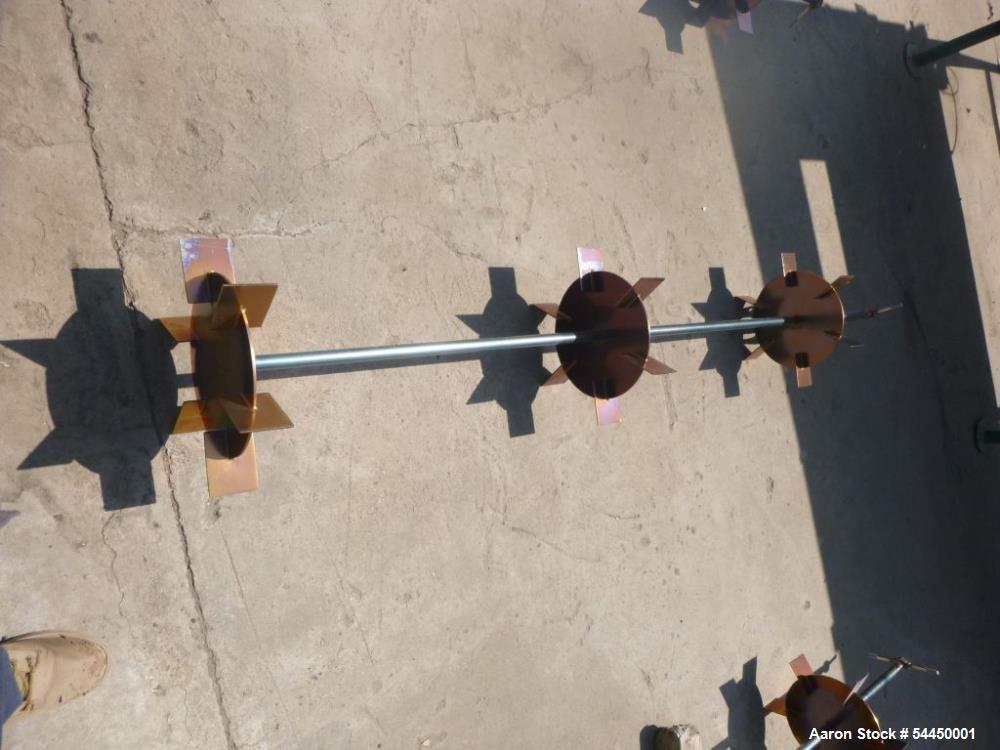

• Agitation System:
  • Shaft: 1" diameter x 7' long

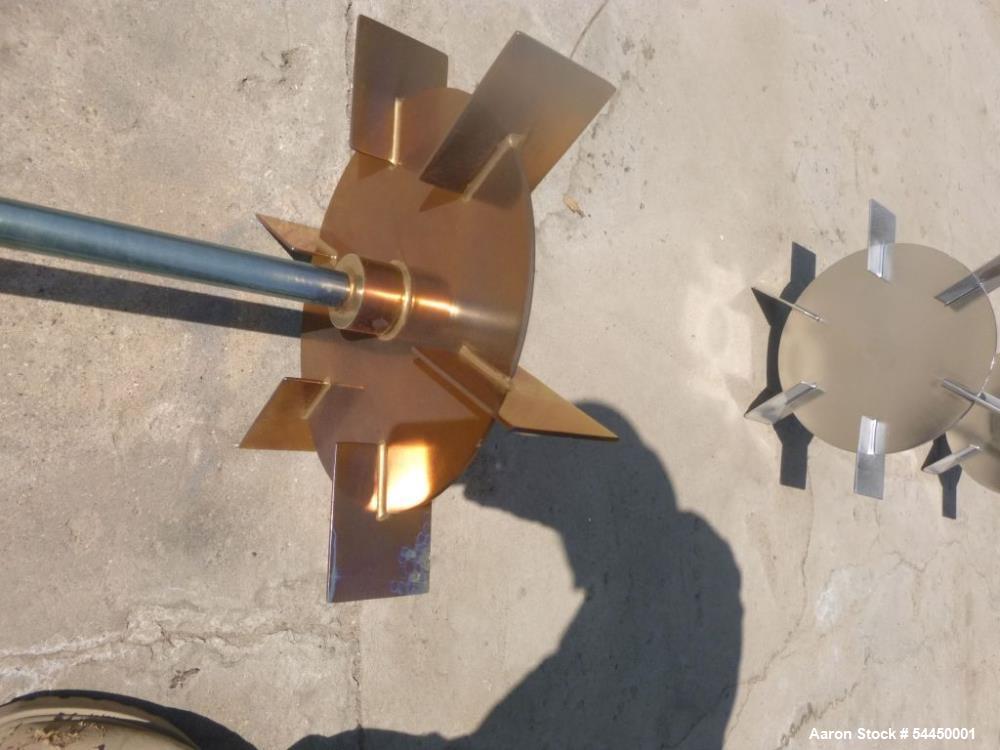

  • Blades: (3) 16" diameter disc blades
  • Paddle Width: 3"

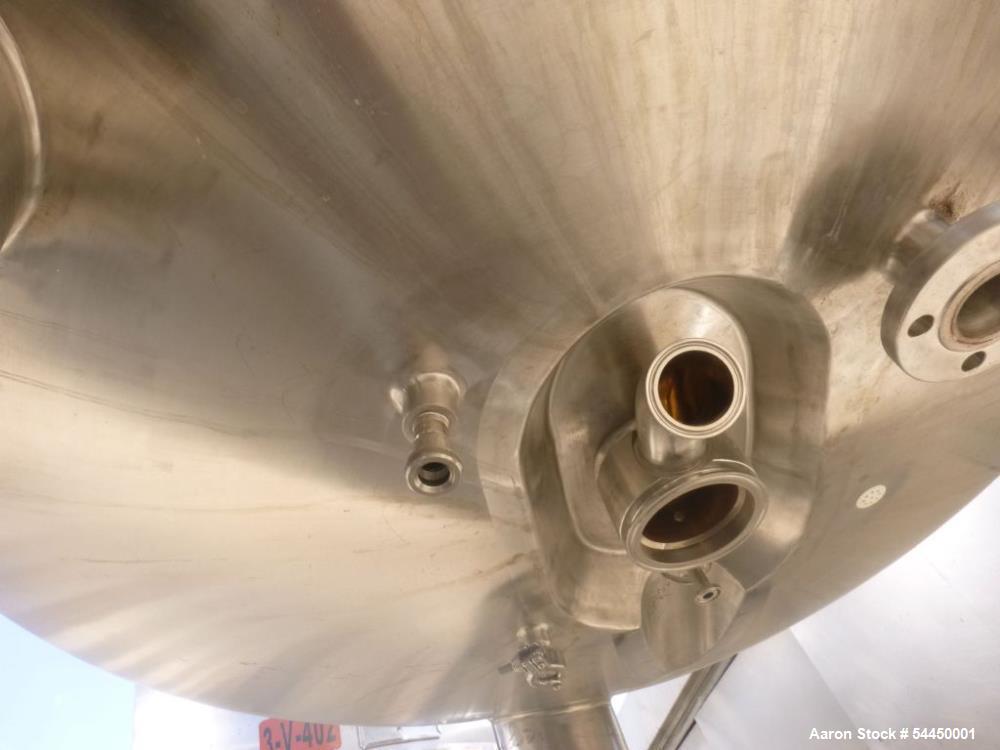

• Bottom Outlet: 2" center outlet

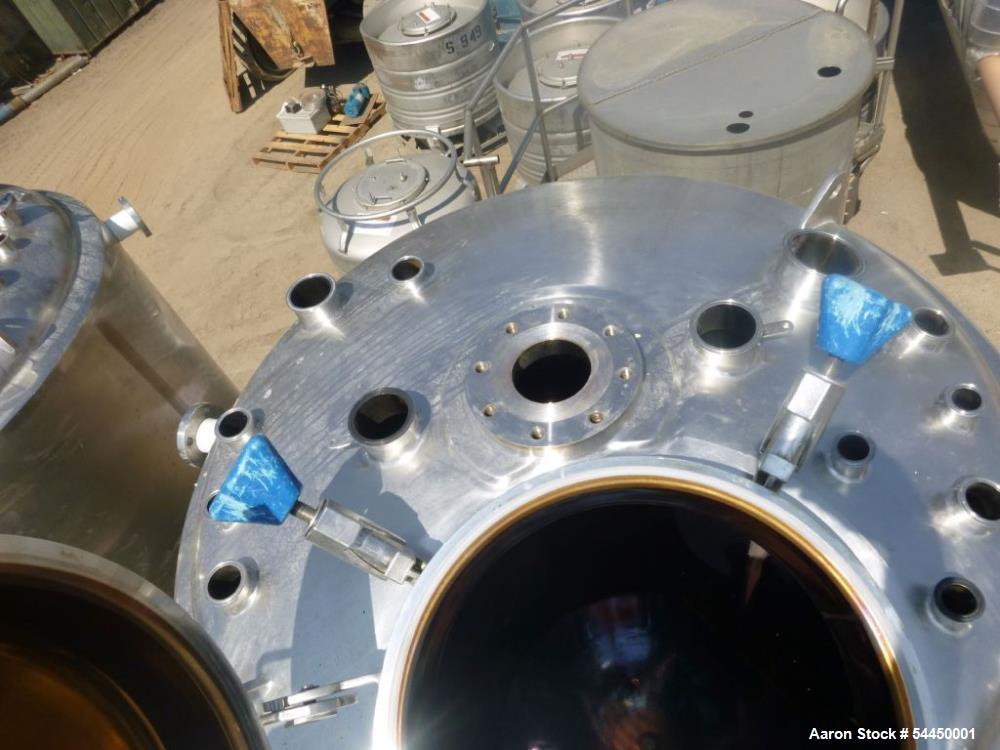

• Top Features:
  • 18" manway
  • 4" agitator port
  • Additional ports: 1-1/2" to 6" diameter
• Previous service: Pharmaceutical operation

Applications

Ideal for controlled mixing, reaction, and processing in pharmaceutical, biotech, and high-purity chemical manufacturing environments.

Products This Equipment Would Be Used For

• Pharmaceutical formulations
• Active pharmaceutical ingredients (API)
• Biotech solutions
• Chemical reactions
• Liquid suspensions
• Emulsions
• Sterile processing fluids
• Specialty chemicals
• Cosmetic formulations
• Nutraceutical liquids
