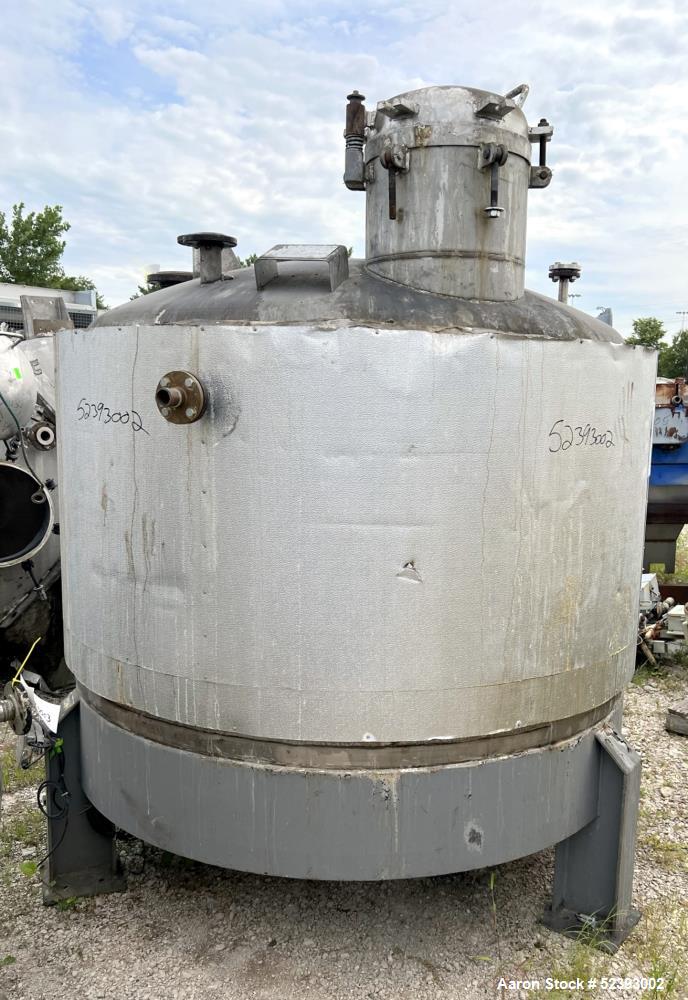

Used Imperial Steel 900 Gallon Reactor – 304 Stainless Steel, 60 PSI
$3,750.00
Used Imperial Steel Reactor, Approximately 900 Gallon Capacity, 304 Stainless Steel. Approximately 75" diameter x 36" straight side. Dished top and bottom. Internal rated 60 psi at -20 to 200 degrees F. Shell 4" half oval coil jacket rated 60 psi at 200 degrees F, bottom head bar type jacket. Openings top: 18" diameter manway with cover, 6", (4) 2", (2) 1". 2" Center bottom outlet. Mounted on (4) carbon steel legs. Serial# Y04-019, National Board# 2167.
| Manufacturer | Imperial SteelImperial Steel |
| Serial # | Y04-010 |
| Category | ReactorsReactors |
| Subcategory | Stainless Steel 500-999 GallonStainless Steel 500-999 Gallon |
| Gallons | 900 |
| Material of Construction | 304 Stainless Steel |
| Horizontal or Vertical | Vertical |
| Diameter | 75" |
| Straight Side | 36" |
| Top Head Style | Dished Head |
| Bottom | Dished Bottom |
| Internal Pressure | 60 psi |
| Internal Temperature | -20 to 200 F |
| Pressure - Jacket | 60 psi |
| Temperature - Jacket | -20 to 200 F |
| Opening | 18" diameter manway with cover, 6", (4) 2", (2) 1” |
| Opening Cover | Yes |
| Outlet Size | 2" |
| Outlet Location | Bottom |
| Mounted | Mounted on 4 Legs |
| Overall Dimensions | 80" x 80" x 102"T |

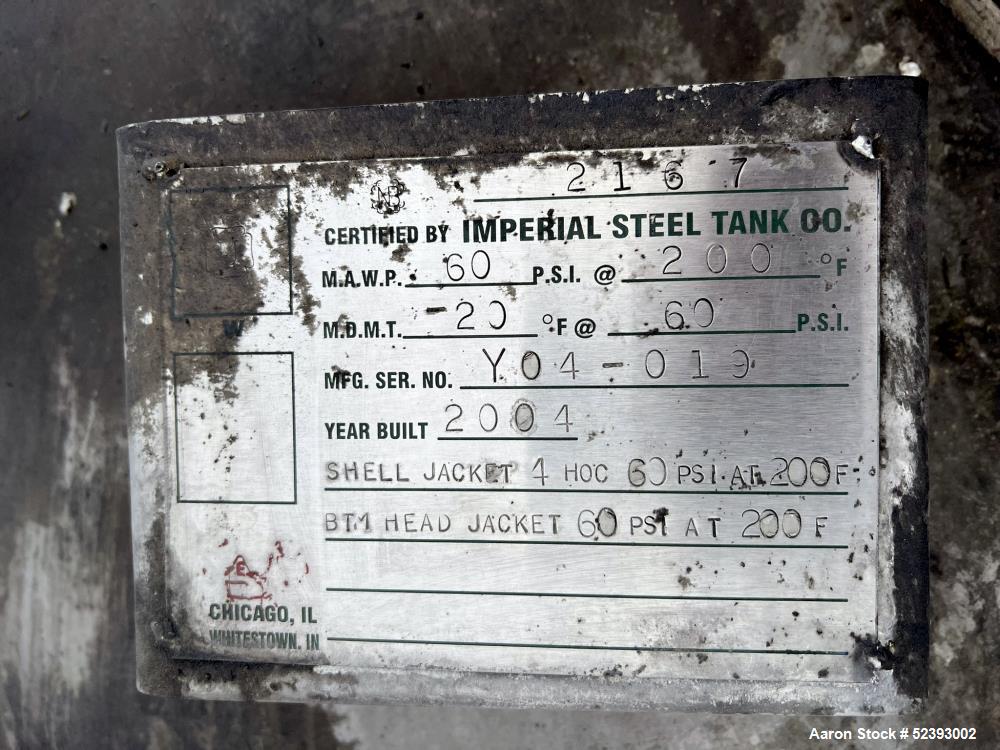

| National Board No. | 2167 |
| Year Built | 2004 |
Manufacturer Information:
- Brand: Imperial Steel
- Material: 304 Stainless Steel
- Capacity: Approximately 900 Gallons
- Serial Number: Y04-019
- National Board Number: 2167
Description:

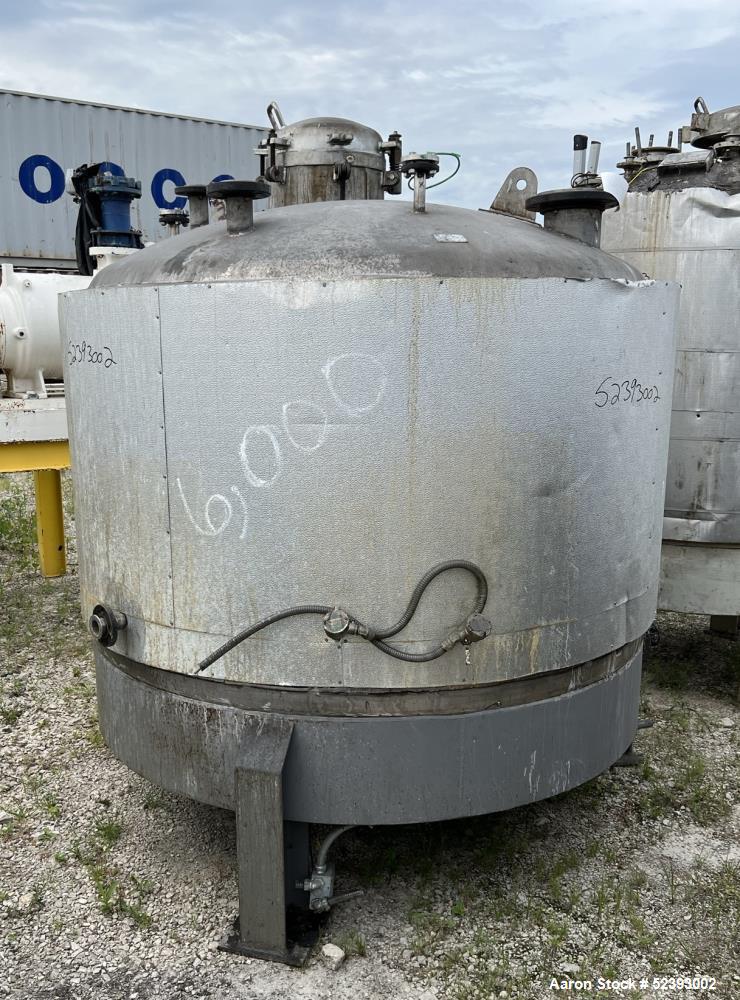

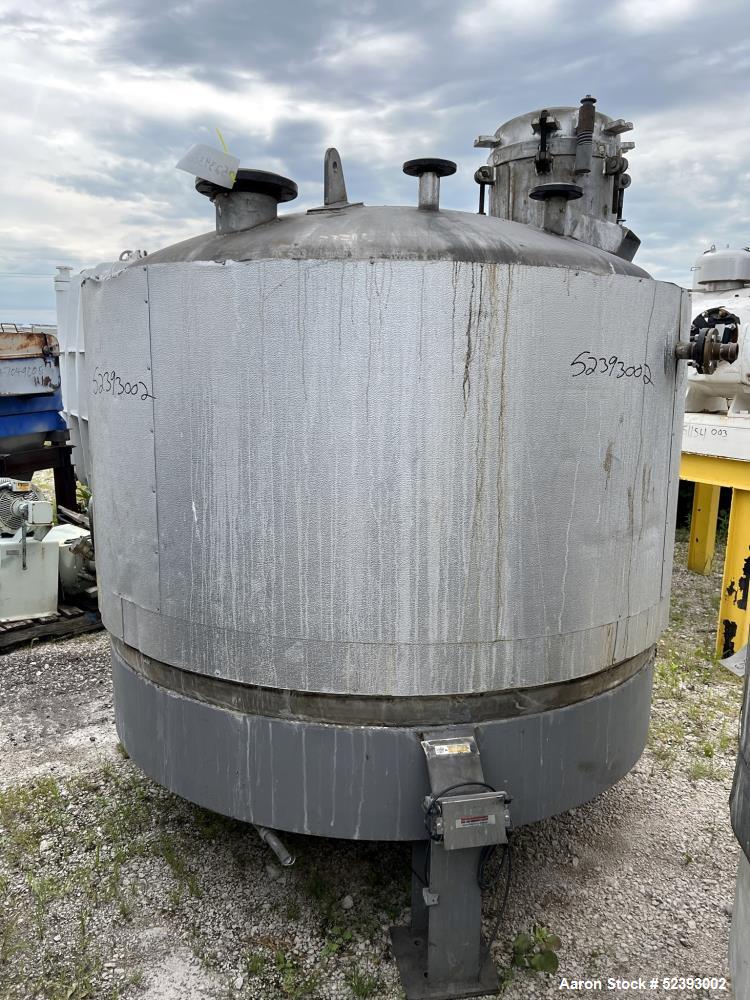

The Imperial Steel 900 Gallon Reactor is a high-quality stainless steel vessel, designed for chemical, pharmaceutical, and industrial processing applications requiring precise temperature and pressure control.
This reactor features a 75” diameter x 36” straight side with a dished top and bottom, ensuring efficient mixing and heating/cooling. The internal pressure rating is 60 PSI, with an operational temperature range from -20°F to 200°F, making it suitable for various chemical and thermal processing tasks.
The shell is equipped with a 4” half-oval coil jacket, rated for 60 PSI at 200°F, and a bottom head bar-type jacket, enhancing heat transfer efficiency. The reactor is mounted on four carbon steel legs, providing stability and durability.
It includes multiple process openings for versatile operation, including an 18” diameter manway with cover, 6” opening, (4) 2” ports, and (2) 1” ports on the top, along with a 2” center bottom outlet.
Key Features:
- 900 Gallon 304 Stainless Steel Reactor for industrial processing
- 75” Diameter x 36” Straight Side with Dished Top & Bottom
- Internal Pressure Rating: 60 PSI at -20°F to 200°F
- 4” Half-Oval Coil Jacket for efficient heating/cooling (60 PSI at 200°F)
- Bottom Head Bar-Type Jacket for additional heat transfer

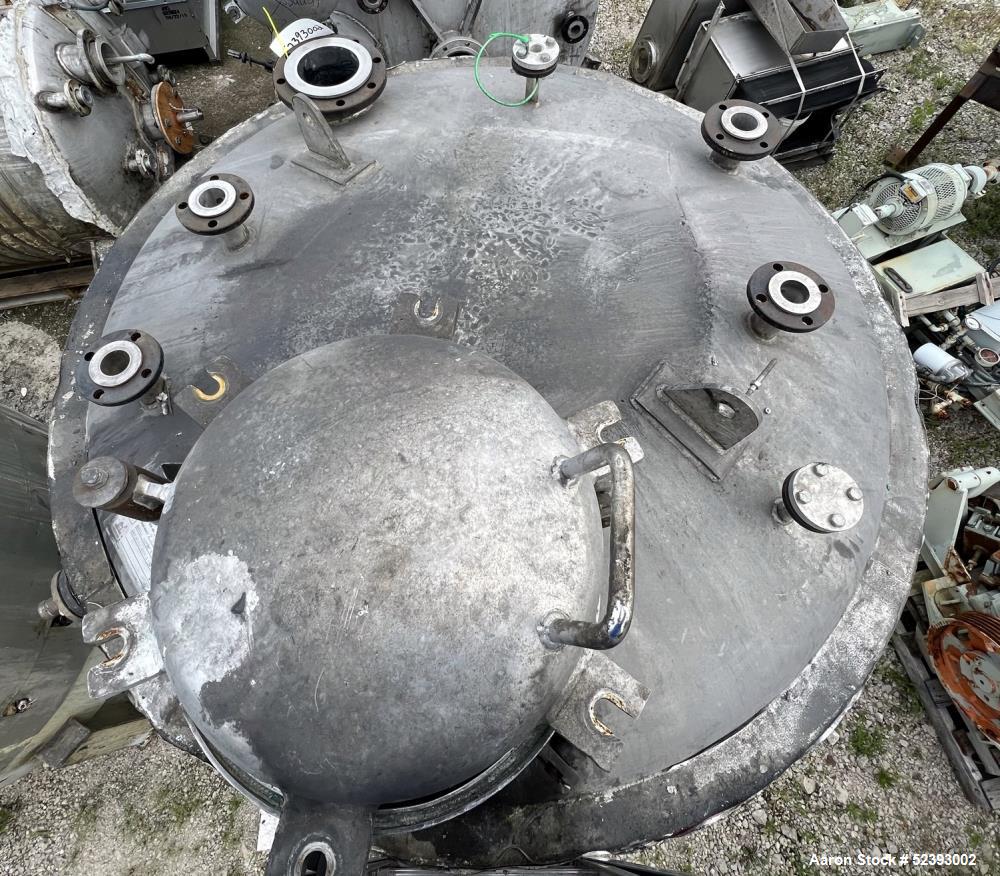

- Top Openings:
- 18” Diameter Manway with Cover
- 6” Opening
- (4) 2” Ports
- (2) 1” Ports

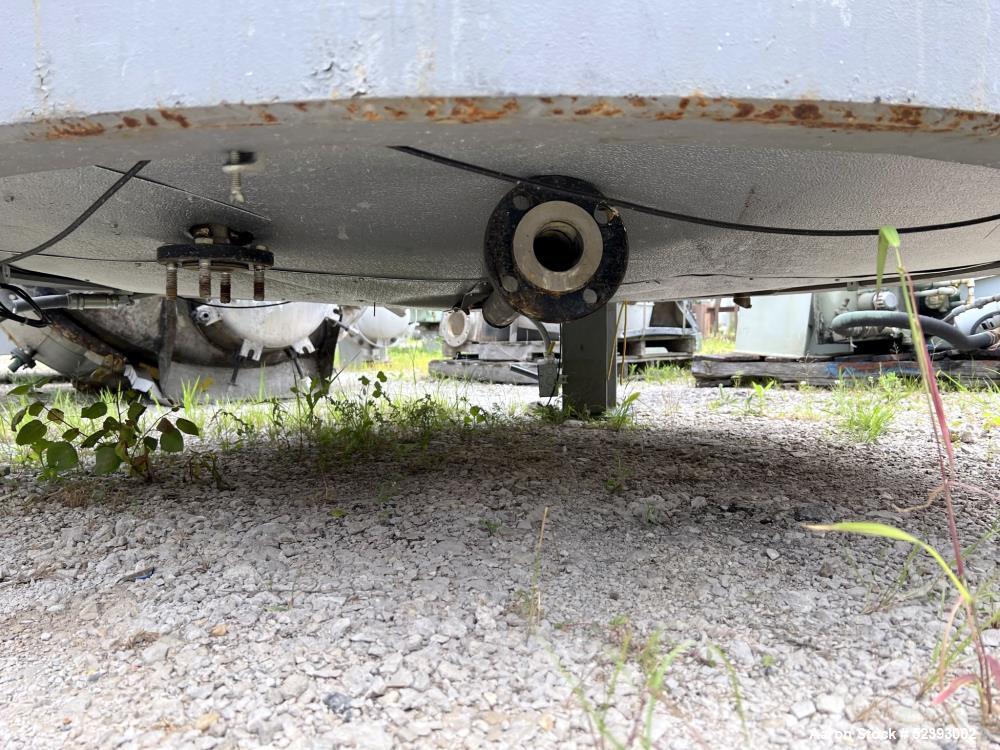

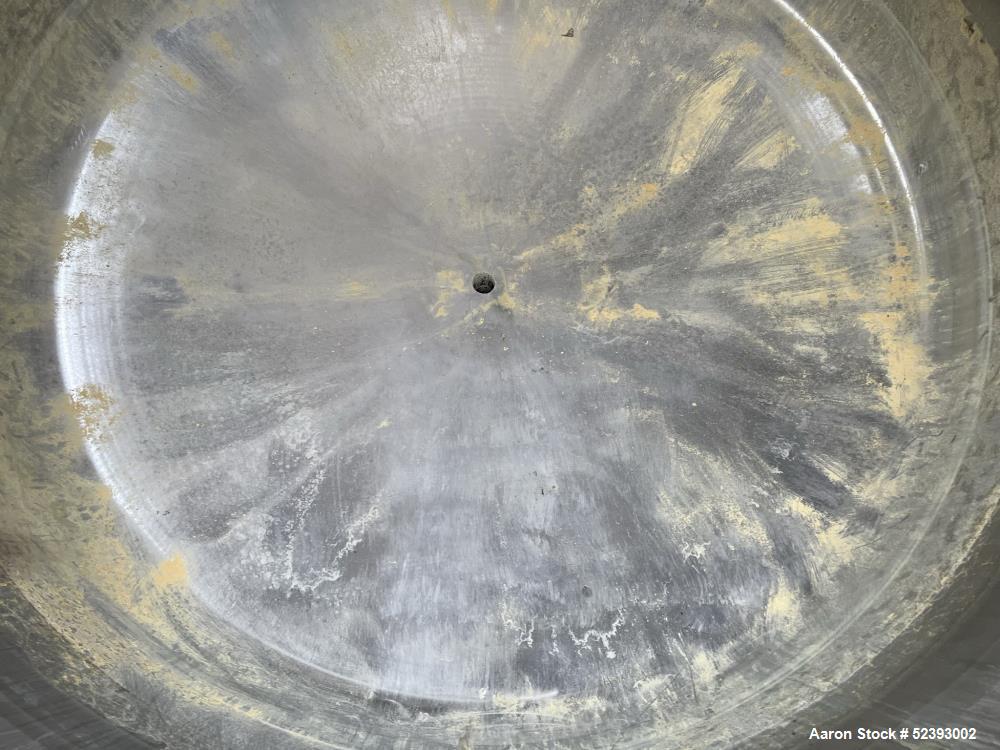

- Bottom Outlet: 2” Center Bottom Outlet
- Mounted on Four Carbon Steel Legs for structural support
- Ideal for Chemical, Pharmaceutical, and Industrial Applications
Specifications:
- Machine Type: Steel Reactor
- Brand: Imperial Steel
- Capacity: 900 Gallons
- Material: 304 Stainless Steel
- Diameter: 75”
- Straight Side Height: 36”
- Top & Bottom: Dished
- Internal Pressure Rating: 60 PSI at -20°F to 200°F
- Shell Jacket: 4” Half-Oval Coil Jacket (60 PSI at 200°F)
- Bottom Jacket: Bar-Type Jacket
- Top Openings:
- 18” Manway with Cover
- 6” Opening
- (4) 2” Ports
- (2) 1” Ports
- Bottom Outlet: 2” Center Bottom Outlet
- Legs: Four Carbon Steel Legs
- Serial Number: Y04-019
- National Board Number: 2167
Applications:
- Chemical Industry: Mixing and reaction processing for specialty chemicals
- Pharmaceutical Manufacturing: Active ingredient processing and formulation
- Food & Beverage Processing: Liquid blending and ingredient preparation
- Industrial Coatings & Paints: Chemical processing and material synthesis
- Oil & Gas Industry: Heating, mixing, and chemical reaction control
What Products Would This Be Used For?
- Chemical reaction and blending
- Pharmaceutical ingredient mixing
- Food and beverage ingredient processing
- Industrial coatings and adhesives production
- Temperature-controlled chemical synthesis
