Stock No.: 54450002
Used Precision Stainless 2,500 Liter 316L Agitated Reactor | Jacketed Pharmaceutical Pressure Vessel

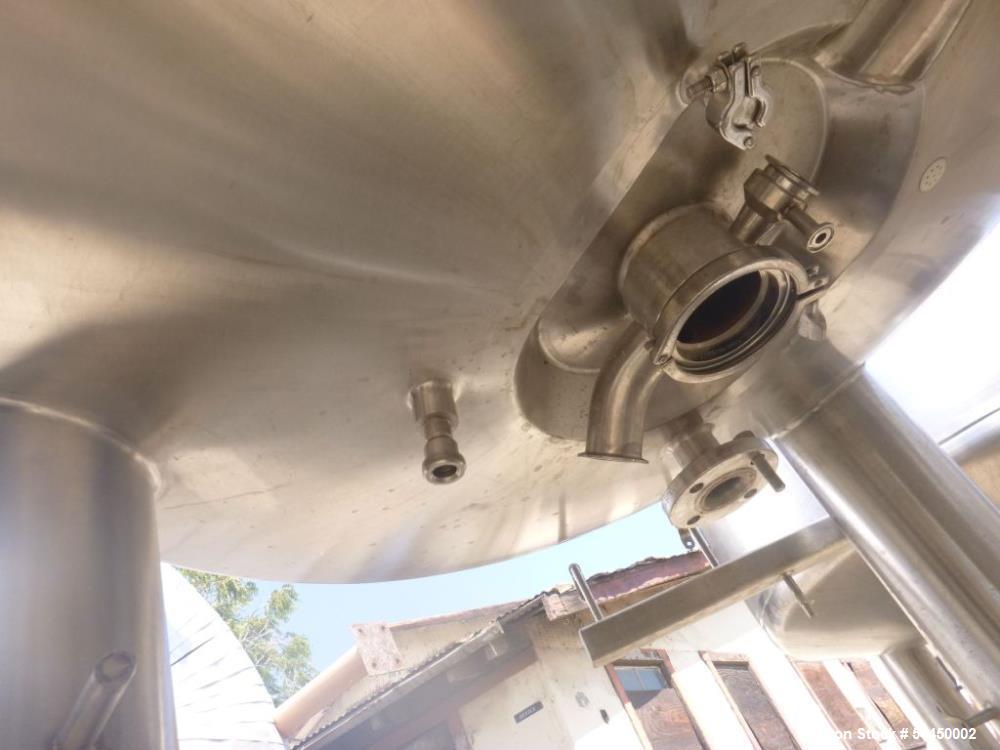

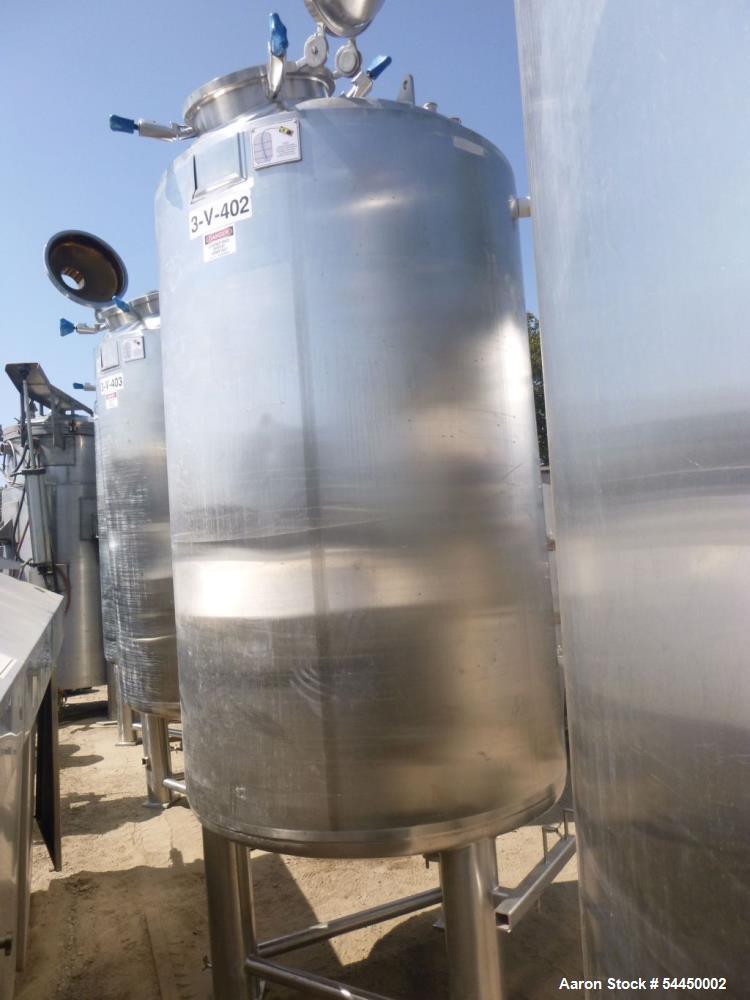

Used- Precision Stainless 2,500 liter (660 gallon) 316L Stainless Steel Agitated Reactor. Pharmaceutical grade. Vessel measures 48" diameter X 6'7" high, dish top and bottom. Internally rated for 50 PSI / Full Vacuum at 300 degrees Fahrenheit to minus 20 degrees Fahrenheit. Complete with dimpled jacket, rated for 100 PSI at 300 degrees Fahrenheit to minus 20 degrees Fahrenheit. Includes agitation with 1" diameter x 7' long stainless steel shaft with (3) 16" diameter disc blades with 3" wide paddles. Bottom head includes 2" diameter center outlet. Top head includes 18" manway, 4" diameter agitator port and various openings ranging from 1-1/2" to 6" diameter. Previously used in pharmaceutical operation.
-
ManufacturerPrecision Stainless
-
CategoryReactors
-
SubcategoryStainless Steel 500-999 Gallon
Used equipment facts about this machine
Manufacturer Information
Manufacturer: Precision Stainless
Equipment Type: Jacketed Agitated Reactor Vessel
Capacity: 2,500 Liters (660 Gallons)
Material: 316L Stainless Steel
Condition: Used
Previous Use: Pharmaceutical Processing
Description
Used Precision Stainless 2,500 liter (660 gallon) 316L stainless steel agitated reactor designed for high-purity pharmaceutical and chemical processing applications. This vertical vessel features dished top and bottom heads and is engineered for both pressure and vacuum service across a wide operating temperature range.

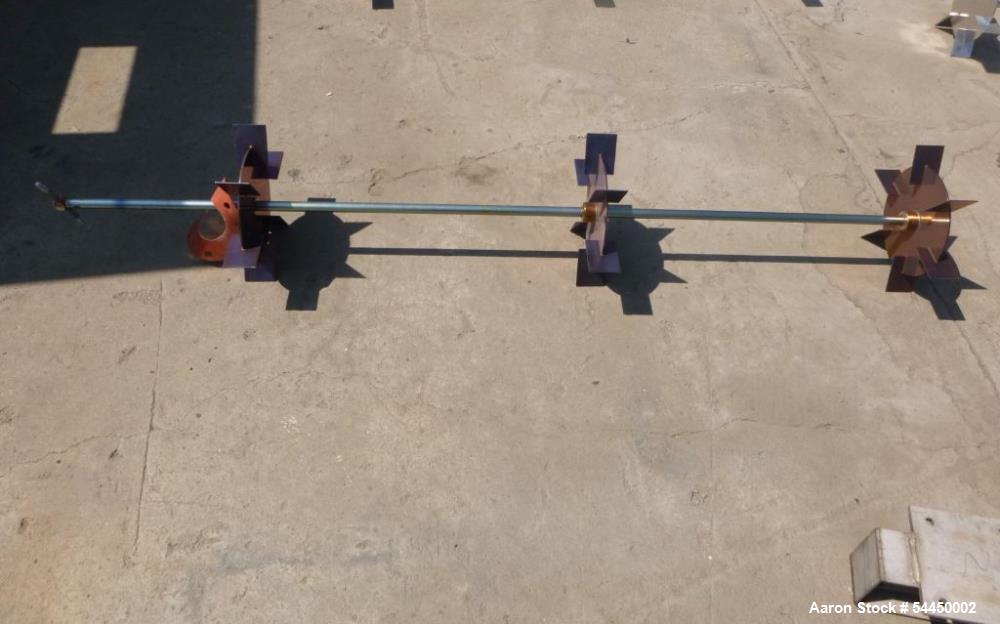

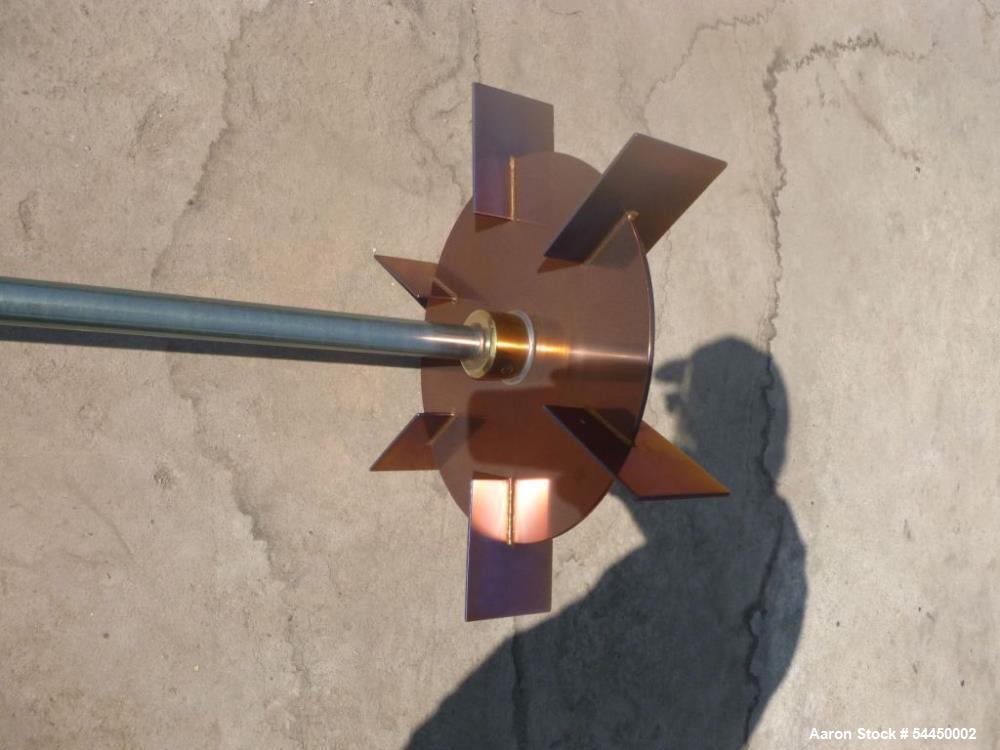

The reactor includes a dimpled jacket rated for 100 PSI, enabling efficient heating and cooling control. Internally rated for 50 PSI and full vacuum, this vessel is built for demanding process conditions. The agitation system features a 1" diameter x 7' long shaft with (3) 16" diameter disc blades with 3" paddles, providing effective mixing and product uniformity.

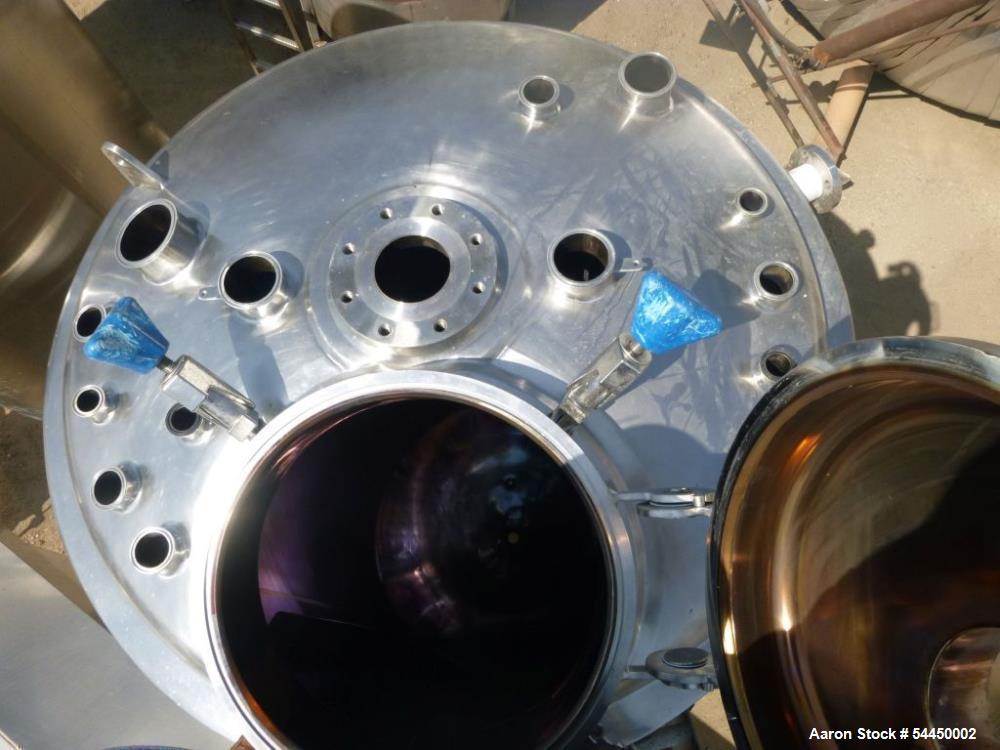

Equipped with an 18" manway and multiple top nozzles, along with a 2" center bottom outlet, this pharmaceutical-grade reactor is ideal for controlled mixing, reaction, and formulation processes.
Specifications
- Manufacturer: Precision Stainless
- Capacity: 2,500 liters (660 gallons)
- Type: Jacketed agitated reactor vessel
- Orientation: Vertical
- Diameter: 48"
- Height: 6' 7"
- Material: 316L stainless steel
- Top: Dished head
- Bottom: Dished head
- Internal Rating: 50 PSI / Full Vacuum
- Temperature Range: -20°F to 300°F
- Jacket Type: Dimpled jacket
- Jacket Rating: 100 PSI
- Agitation System:
- Shaft: 1" diameter x 7' long
- Blades: (3) 16" diameter disc blades
- Paddle Width: 3"
- Bottom Outlet: 2" center outlet
- Top Features:
- 18" manway
- 4" agitator port
- Additional ports: 1-1/2" to 6"
- Previous Service: Pharmaceutical operation
Applications
Designed for high-purity, temperature-controlled mixing and reaction processes in pharmaceutical, biotech, and specialty chemical manufacturing.
Products This Equipment Would Be Used For
- Pharmaceutical formulations
- Active pharmaceutical ingredients (API)
- Biotech solutions
- Liquid suspensions
- Emulsions
- Sterile processing fluids
- Nutraceutical liquids
- Specialty chemicals
- Cosmetic formulations
- Fine chemical reactions
