Kinetics Modular Systems 550 Gallon Reactor

Description

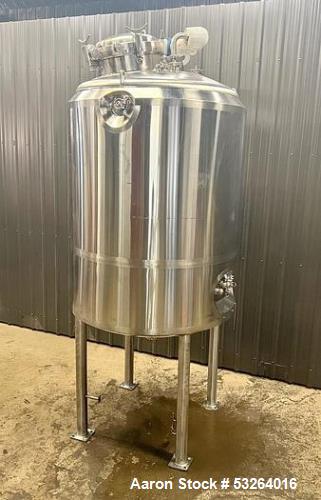

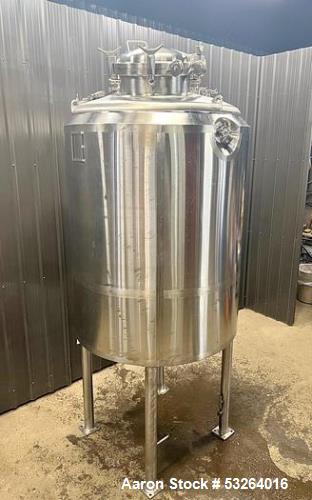

This used Kinetics Modular Systems 550-gallon reactor is constructed from 316 stainless steel and features a vertical, dish top and bottom design. It is full vacuum rated, with a maximum allowable working pressure (MAWP) of 50 psi @ 300°F, making it suitable for a wide range of industrial, pharmaceutical, and chemical processing applications.

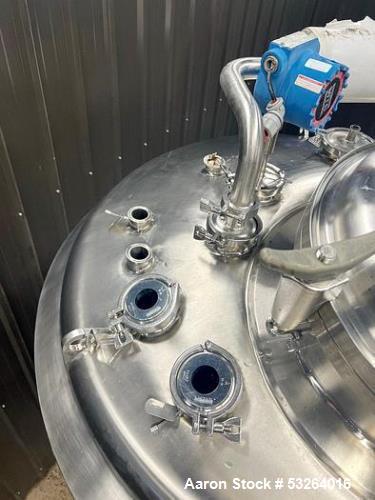

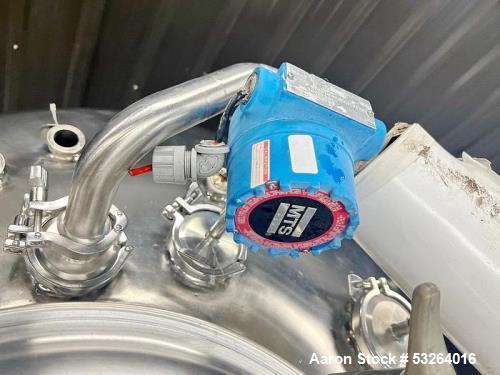

The vessel is insulated for temperature stability and features a sanitary interior polish to meet FDA and GMP standards. Equipped with an 18” manway with a clamp-down lid & gasket, a 2” tri-clamp center discharge with valve, and two top CIP spray balls for effective cleaning. A temperature probe and level gauge are also included. The tank is supported by four stainless steel legs with pads for stability.

Specifications

• Capacity: 550 gallons
• Material: 316 Stainless Steel

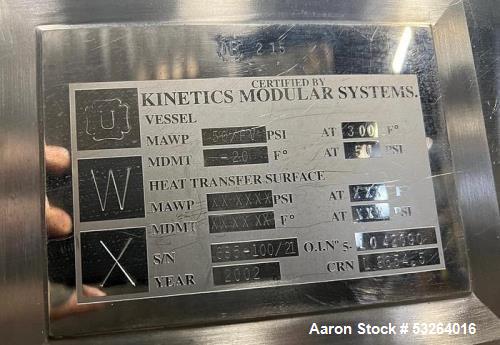

• Vessel MAWP: 50 psi @ 300°F
• Vacuum Rating: Full Vacuum
• Insulation: Yes

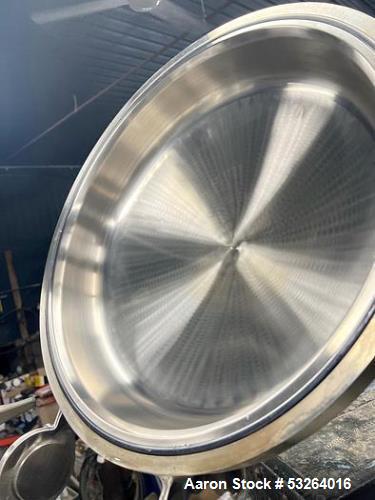

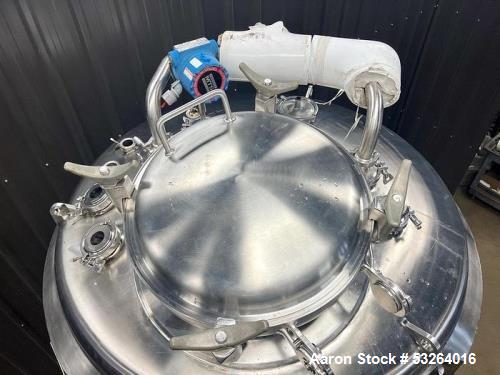

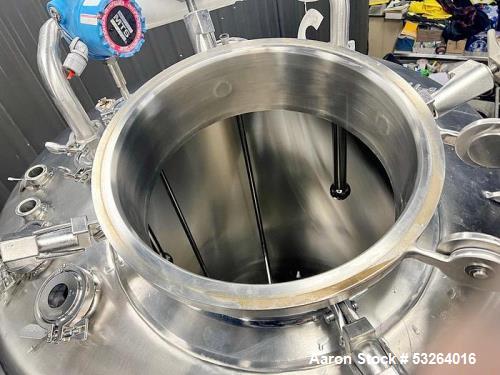

• Manway: 18” with clamp-down lid & gasket

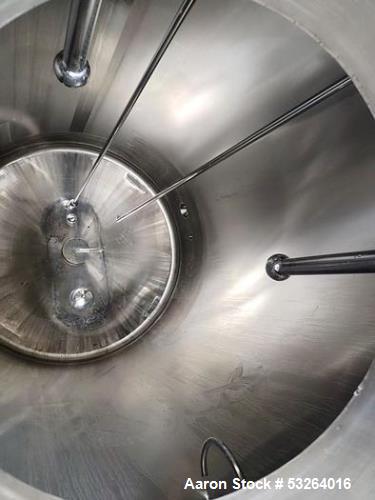

• Interior Finish: Sanitary polished

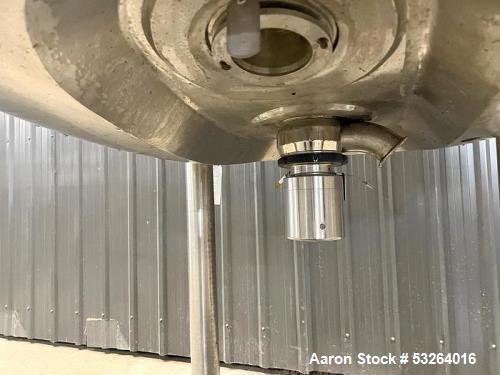

• Discharge: 2” tri-clamp with valve
• Interior Dimensions: 48” diameter x 64” straight side
• Dish Top & Bottom: Yes
• Additional Features:
  • Two Top CIP Spray Balls
  • Temperature Probe
  • Level Gauge

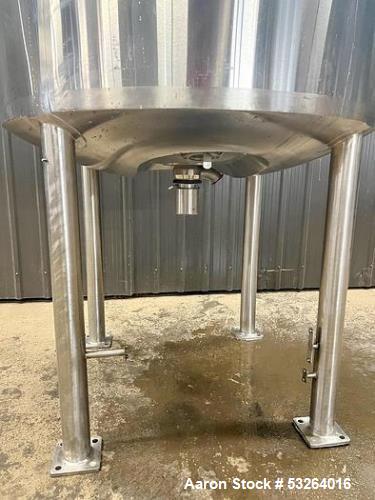

  • Four Stainless Steel Legs with Pads

Applications

This stainless steel reactor is designed for use in:

• Pharmaceutical Processing – Sterile formulation, reaction, and blending.
• Chemical Manufacturing – High-pressure mixing and chemical reactions.
• Food & Beverage Production – Fermentation, blending, and ingredient storage.
• Cosmetic & Personal Care – Emulsification and high-viscosity product processing.
• Biotechnology & Laboratory Applications – Controlled reaction environments.

Compatible Products

This 550-gallon reactor is suitable for processing:

• Liquid pharmaceuticals and biotech formulations
• Chemical and industrial reaction compounds
• Food-grade and dairy processing
• Personal care and cosmetic products
• Vacuum and pressure-based batch processing
