Used Mueller 2,500 Liter (660 Gallon) 316L Sanitary Jacketed Reactor/Fermenter – 51.5 PSI / FV, Inconel Jacket

Manufacturer Information

• Manufacturer: Mueller

• Equipment Type: Sanitary Reactor / Fermenter / Kettle

• Capacity: 2,500 Liters (Approx. 660 Gallons)

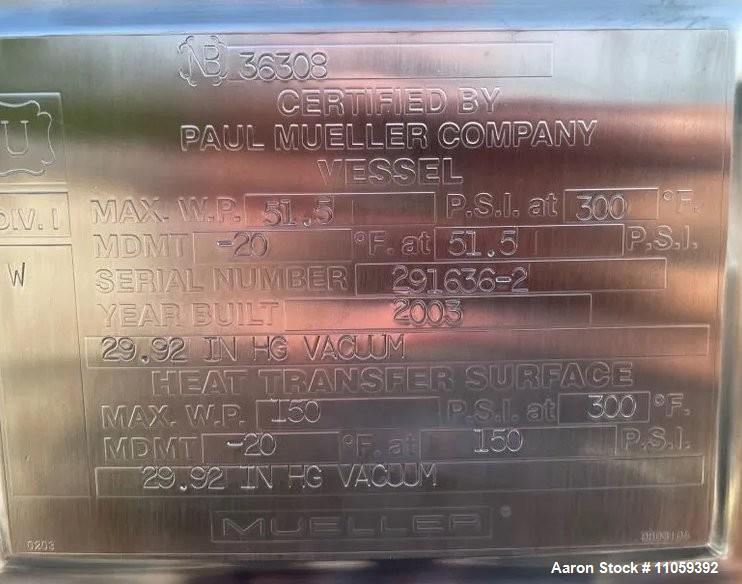

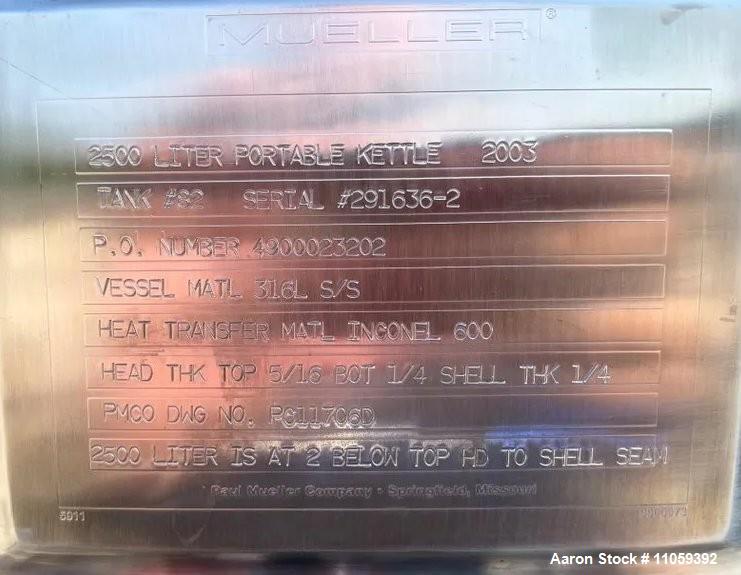

• National Board #: 36308

• Serial #: 291636-2

• Year Built: 2003

• Previous Use: Sanitary Pharmaceutical Facility

• Condition: Used

Description

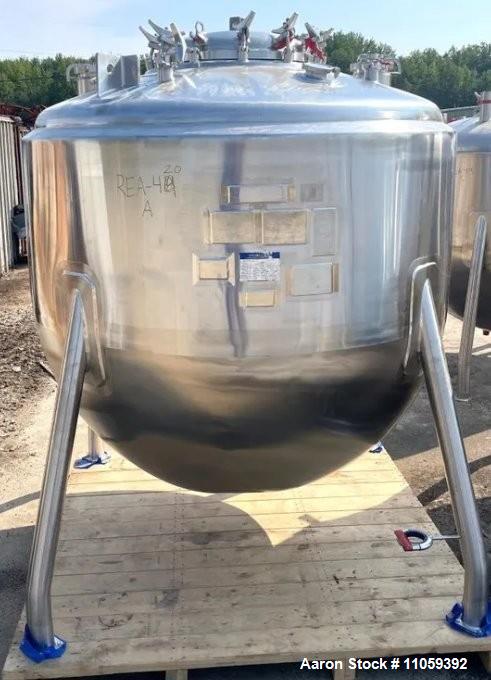

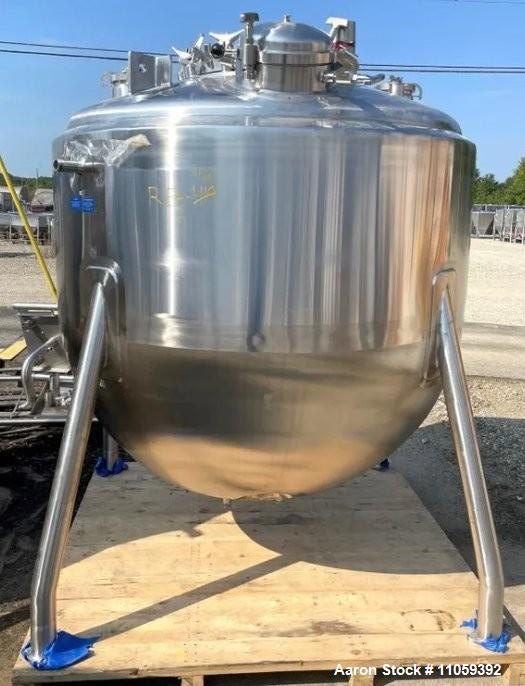

This Used Mueller 2,500 Liter (660 Gallon) Sanitary 316L Stainless Steel Reactor/Fermenter/Kettle is a pressure-rated, pharmaceutical-grade vessel designed for high-purity processing applications.

The vessel is internally rated 51.5 PSI / Full Vacuum at -20°F to 300°F, allowing for both pressurized and vacuum operations. The Inconel 600 jacket is rated 150 PSI / Full Vacuum at -20°F to 300°F, offering exceptional corrosion resistance and thermal performance. The jacket has been hydro-tested, confirming structural integrity.

Features include:

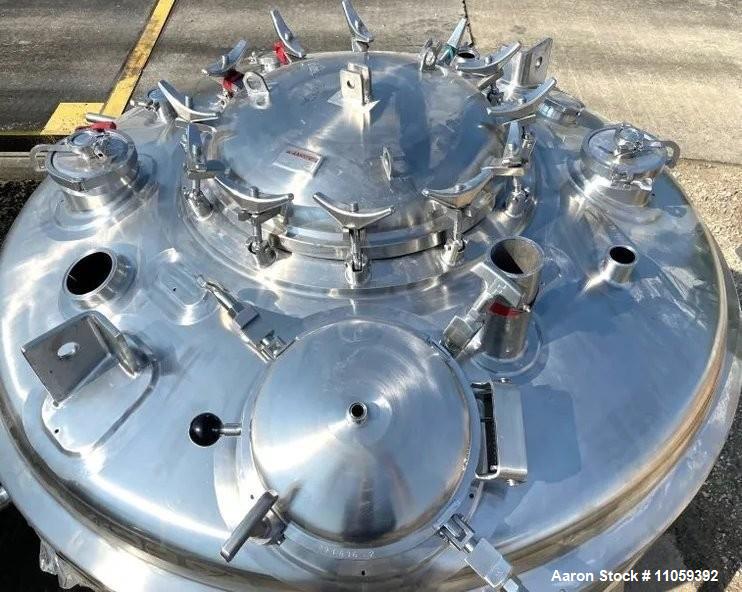

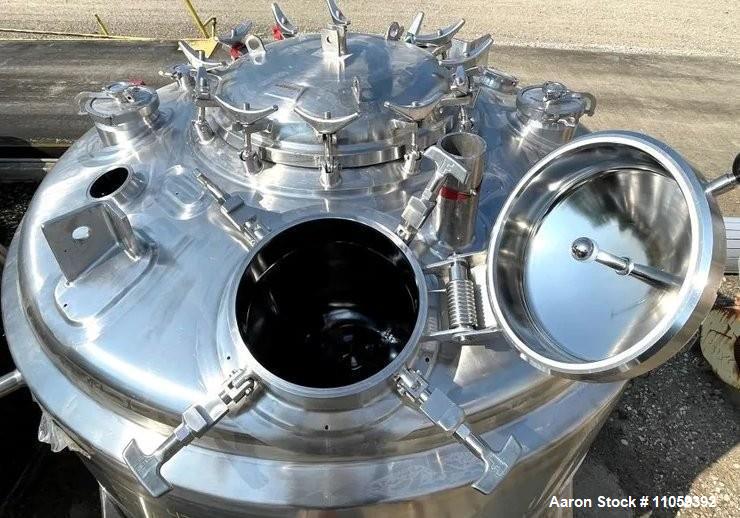

• 24" Top Center Manway

• Additional top nozzles/openings

• Bottom mount provision for mixer (not installed)

• 2" bottom outlet (no valve)

• Approximate 90" overall height

Previously used in a sanitary pharmaceutical facility, this vessel is well suited for GMP-regulated manufacturing requiring premium metallurgy and pressure capability.

Specifications

• Capacity: 2,500 Liters (Approx. 660 Gallons)

• Construction: 316L Stainless Steel

• Internal Rating:

  • 51.5 PSI / Full Vacuum

  • -20°F to 300°F

• Jacket Material: Inconel 600

• Jacket Rating:

  • 150 PSI / Full Vacuum

  • -20°F to 300°F

• Manway: 24" Top Center

• Agitation: Bottom mount provision (no mixer installed)

• Bottom Outlet: 2" (no valve)

• Overall Height: Approx. 90"

• Jacket: Hydro-tested

• National Board #: 36308

• Serial #: 291636-2

• Year Built: 2003

Applications

• Pharmaceutical batch processing

• Biotech fermentation

• Sterile blending

• High-purity chemical reactions

• Temperature-controlled processing

What Might This Be Used For

This sanitary jacketed reactor is typically used for controlled reactions, fermentation, blending, and heating or cooling of high-purity liquids under pressure or vacuum conditions, especially in regulated pharmaceutical environments.

Products This Equipment Is Used For

• Active pharmaceutical ingredients (APIs)

• Sterile intermediates

• Biopharmaceutical cultures

• Nutraceutical products

• Specialty chemical formulations

• Enzyme production

• Cosmetic emulsions

• High-purity liquid compounds

• Research batches

• Pilot-scale pharmaceutical products
