Used INOX Industries 792 Gallon Reactor – 316L Stainless Steel, Dimple Jacketed, ASME Built

Manufacturer Information:

• Brand: INOX Industries
• Type: Reactor
• Capacity: 792 Gallons / 3000 Liters
• Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Jacket)

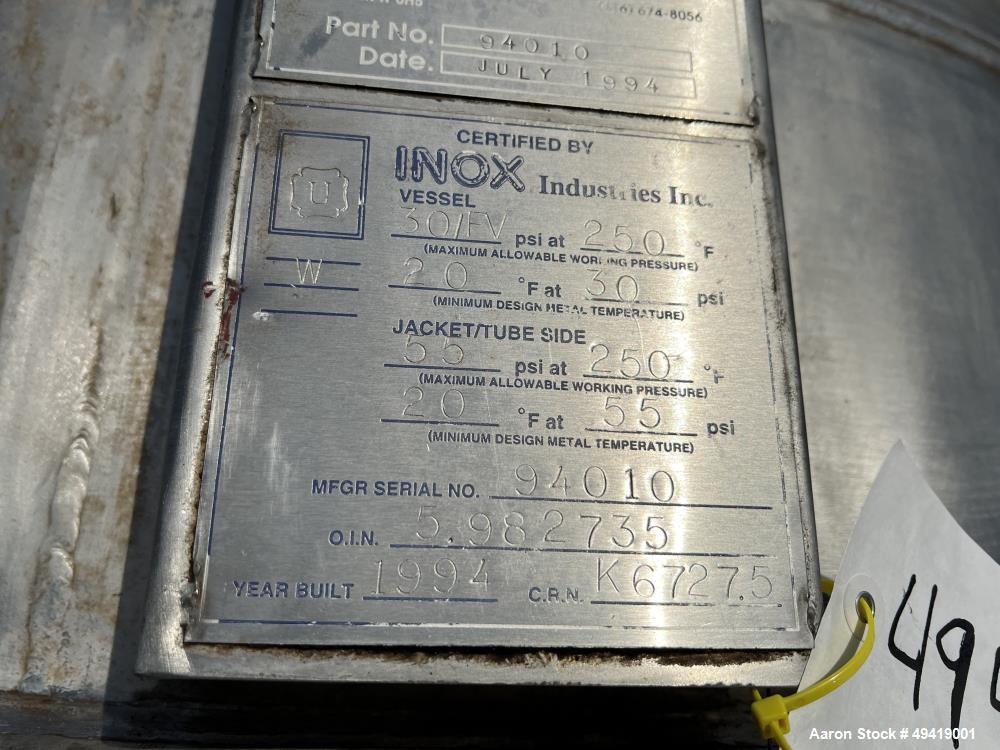

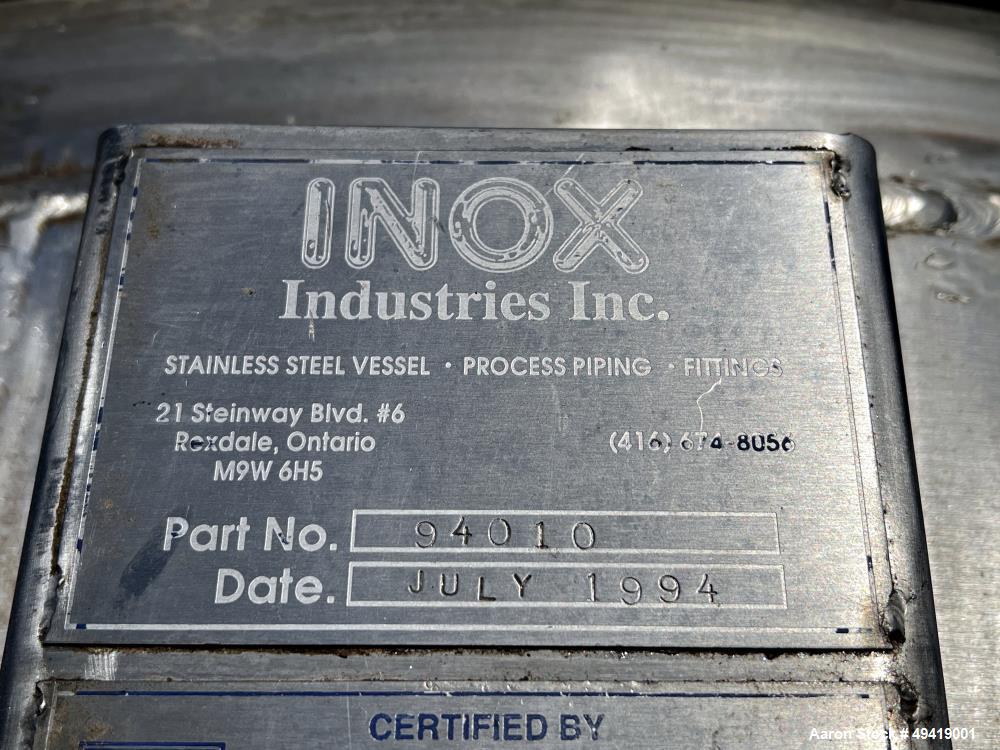

• Serial #: 94010
• CRN #: K6727.5

Description:

This used INOX Industries 792-gallon (3000-liter) stainless steel reactor is a high-quality processing vessel, ideal for chemical, pharmaceutical, and food-grade applications requiring precise temperature and pressure control.

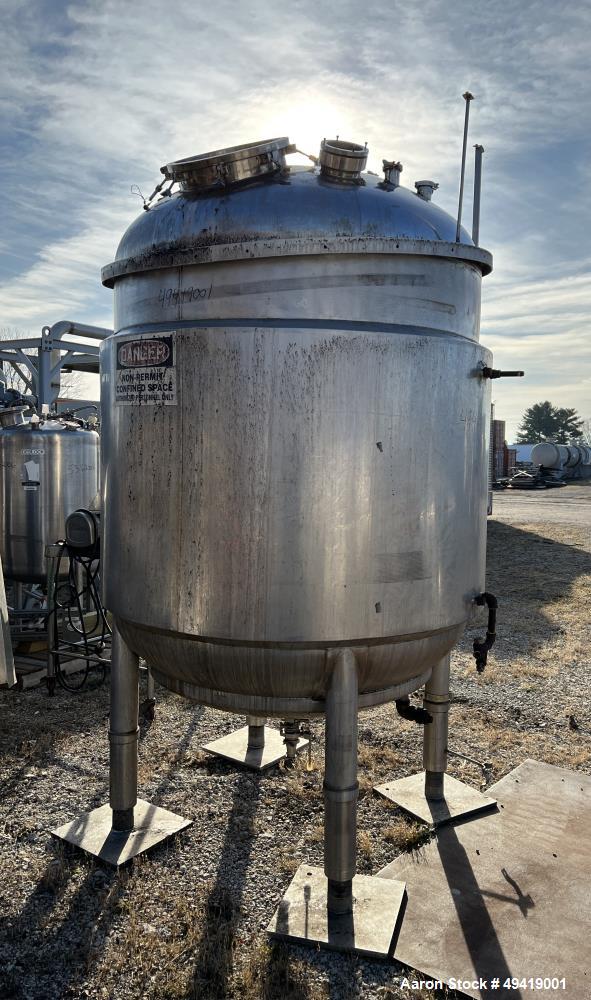

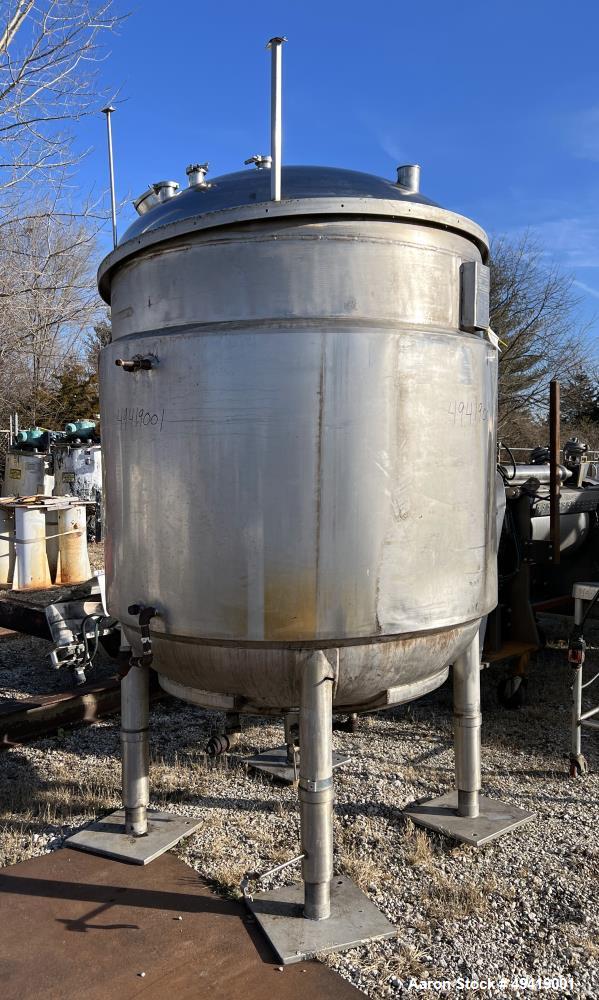

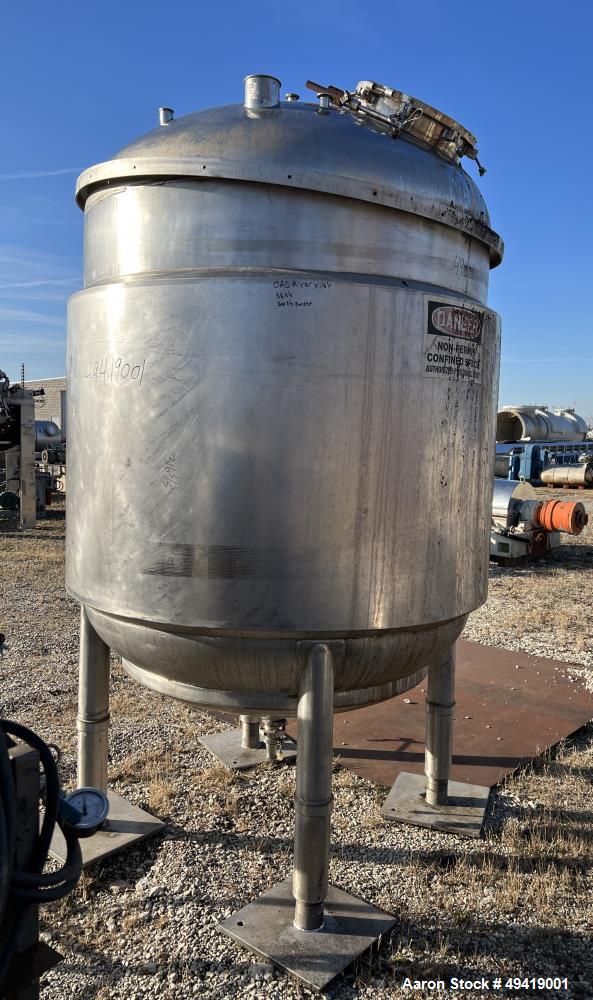

Constructed from 316L stainless steel, this vertical reactor features a 60” diameter x 53” straight side with dished top and bottom heads, providing exceptional strength and durability. The internal chamber is rated for 30 psi/full vacuum at 250°F, while the 304L stainless steel dimple jacket supports 55 psi at -20 to 250°F, ensuring efficient heating and cooling capabilities.

Equipped with multiple process openings, including a 16” manway with cover, sight glass, and various inlet/outlet ports, this reactor allows flexible process integration. A 3” center bottom outlet with 17.5” discharge height facilitates efficient product removal. Additionally, the unit is insulated with 2” thick mineral wool and includes a provision for a bottom-entering sanitary agitator, making it suitable for mixing and reaction processes.

Built to ASME standards (though without an NB#), this reactor is mounted on four sturdy legs, ensuring stability and operational reliability.

Key Features:

• 792-Gallon (3000L) Capacity for Large-Scale Processing
• 316L Stainless Steel Internal Construction for Corrosion Resistance
• Dimple Jacket (304L SS) Rated for 55 PSI at -20 to 250°F
• Internal Rated for 30 PSI / Full Vacuum at 250°F
• 60” Diameter x 53” Straight Side with Dished Top & Bottom Heads
• 16” Manway with Cover for Easy Access
• Multiple Process Ports for Flexible Operation

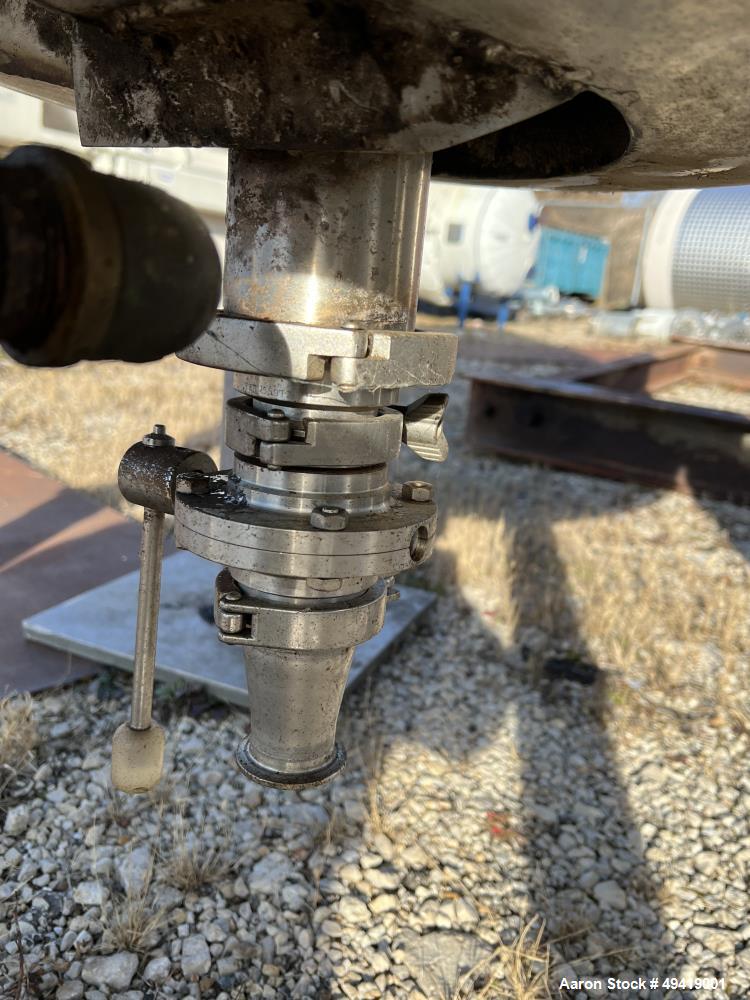

• 3” Center Bottom Outlet with 17.5” Discharge Height
• 2” Thick Mineral Wool Insulation for Thermal Efficiency

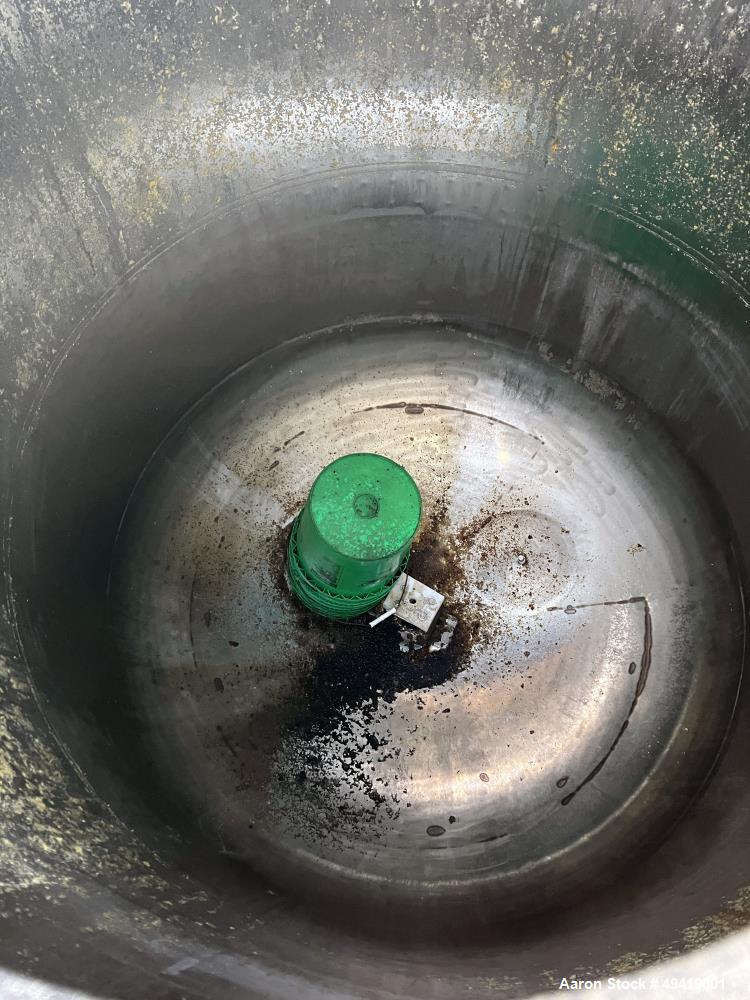

• Provision for Bottom-Entering Sanitary Agitator
• ASME Built (No NB#) | CRN #: K6727.5

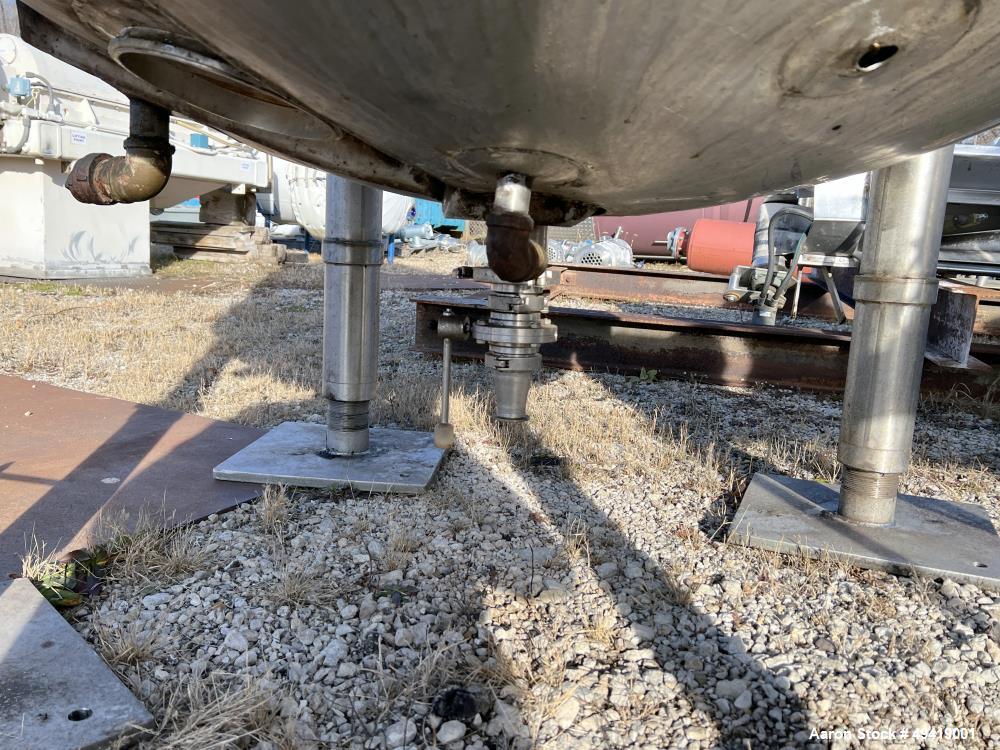

• Mounted on 4 Heavy-Duty Stainless Steel Legs
• Serial #: 94010

Specifications:

• Capacity: 792 Gallons / 3000 Liters
• Material: 316L Stainless Steel (Internal), 304L Stainless Steel (Dimple Jacket)
• Dimensions: 60” Diameter x 53” Straight Side
• Top & Bottom Heads: Dished
• Internal Rating: 30 PSI / Full Vacuum at 250°F
• Jacket Rating: 55 PSI at -20 to 250°F
• Process Openings:

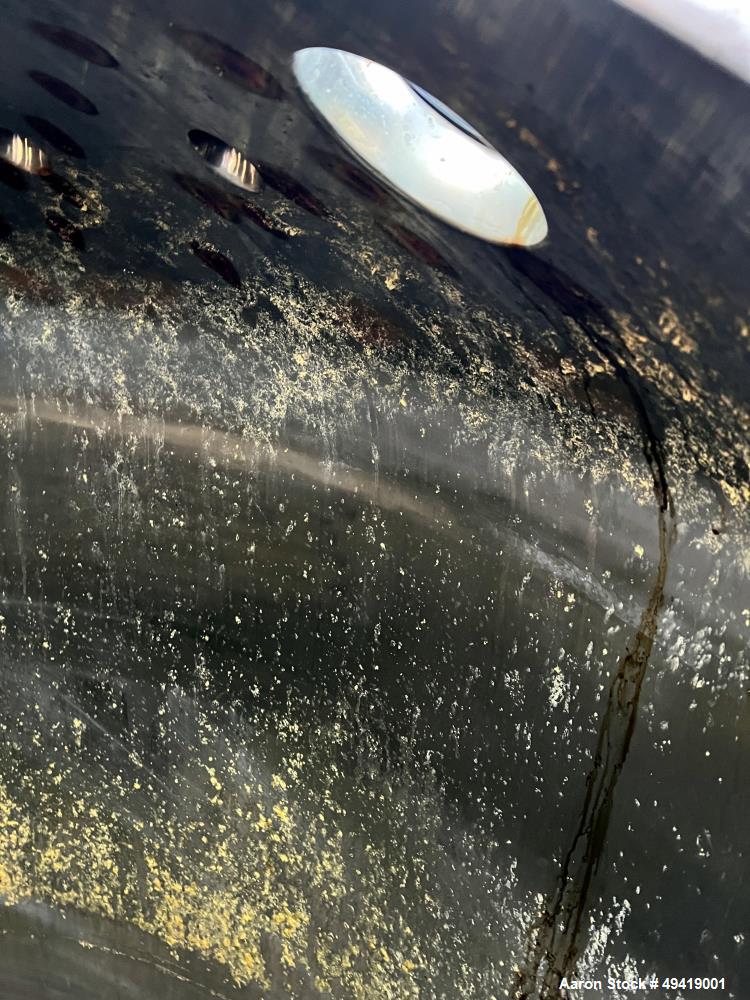

  • Top Openings: 16” Manway with Cover, 5” Sight Glass, (1) 4”, (1) 3”, (3) 2”, (2) 1-1/2”, (2) 1”
  • Bottom Outlet: 3” Center Bottom Outlet, 17.5” Discharge Height
• Insulation: 2” Thick Mineral Wool
• Agitator Provision: Bottom-Entering Sanitary Agitator
• Mounting: 4 Stainless Steel Legs
• ASME Built: Yes (No NB#)
• CRN #: K6727.5
• Serial #: 94010

Applications:

• Chemical Processing – Batch reactions, blending, and temperature-sensitive chemical formulations
• Pharmaceutical Manufacturing – Sterile mixing, drug formulation, and ingredient processing
• Food & Beverage Production – Mixing, blending, and controlled processing of liquids and semi-solids
• Cosmetic & Personal Care Industry – Emulsification and formulation of creams, lotions, and gels
• Biotechnology & Fermentation – Bioprocessing, enzyme reactions, and fermentation applications

What Products Would This Be Used For?

• Chemical formulations and batch reactions
• Food-grade liquid and semi-solid mixing
• Pharmaceutical ingredient processing
• Cosmetics and personal care emulsions
• Fermentation and bioprocessing applications
