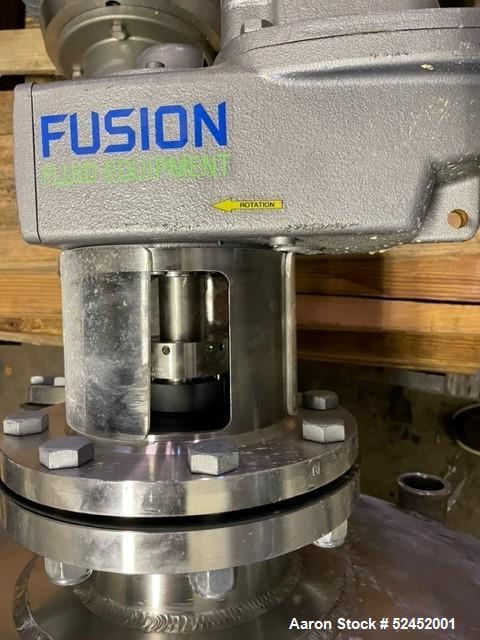

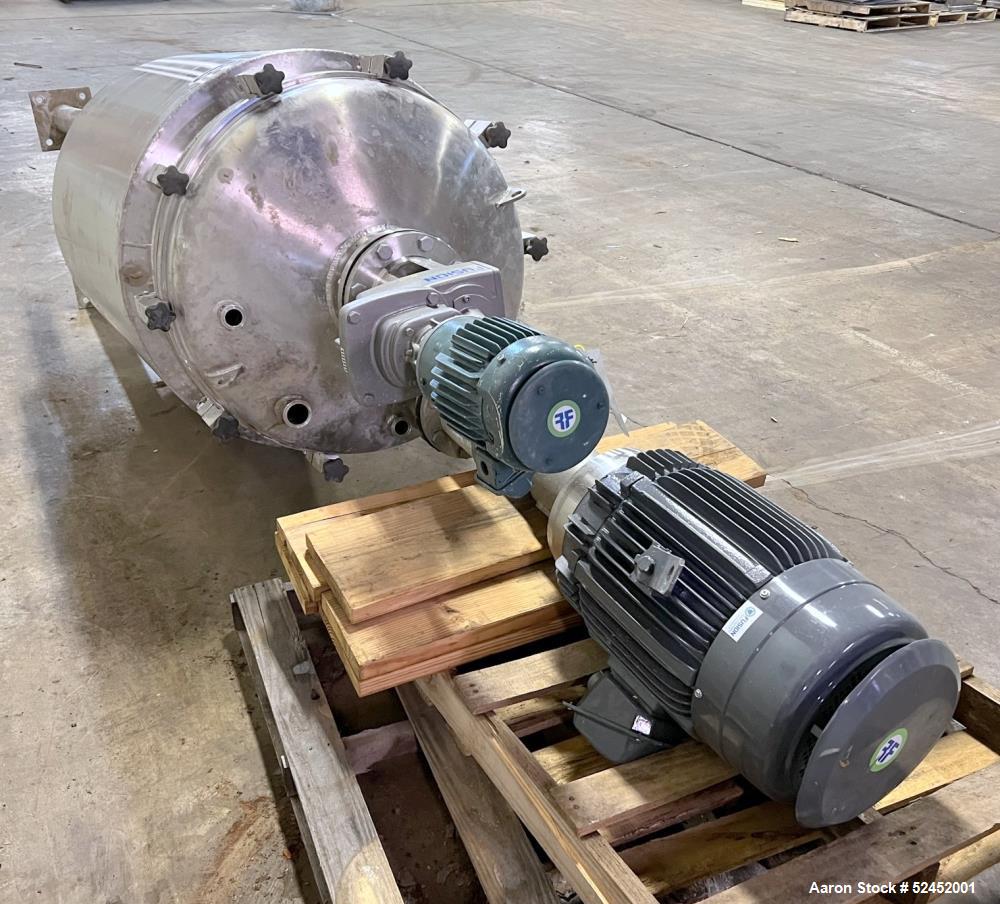

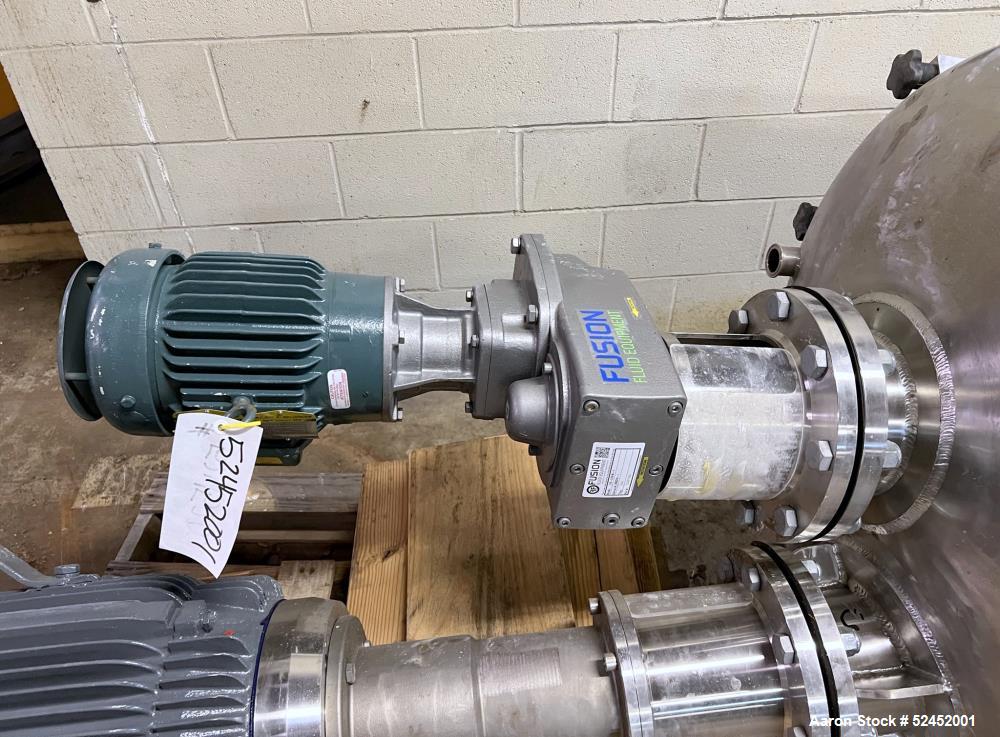

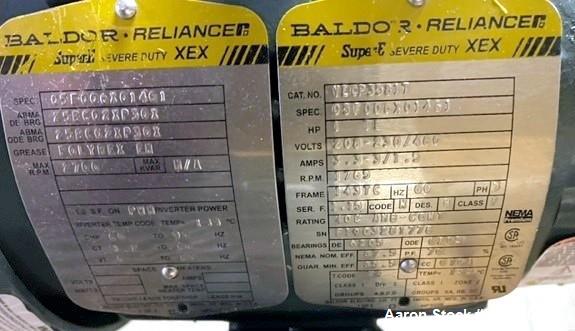

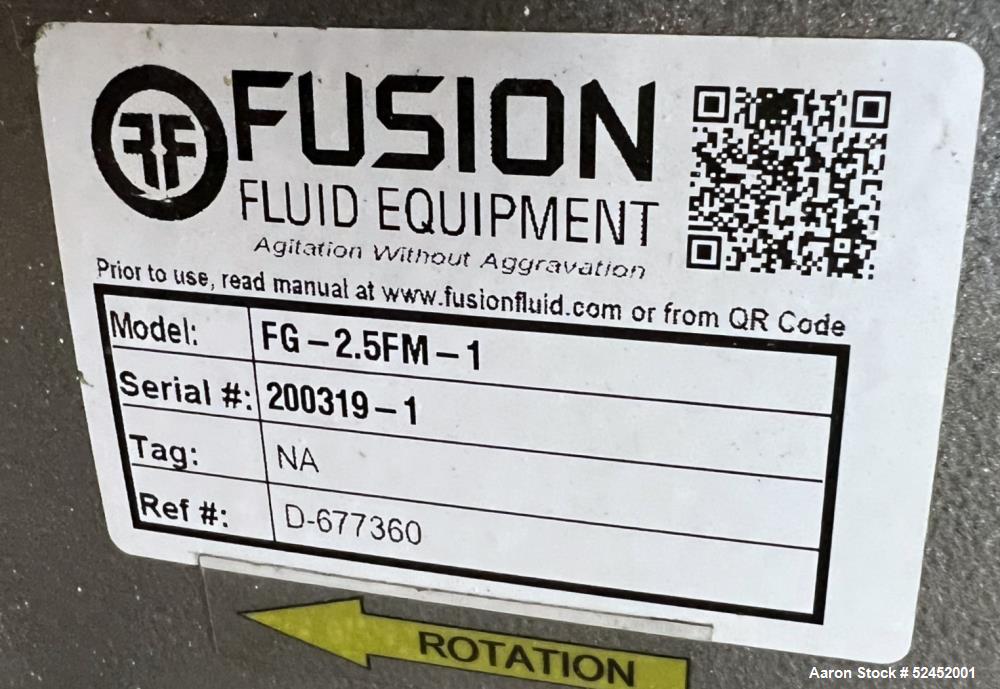

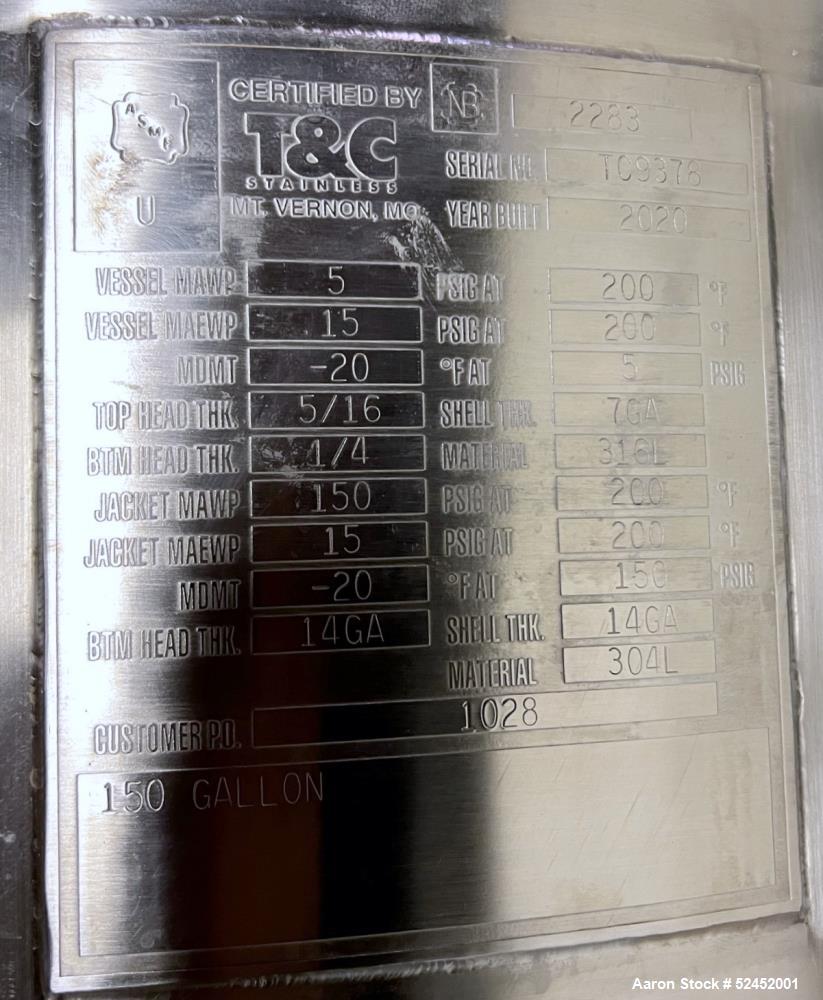

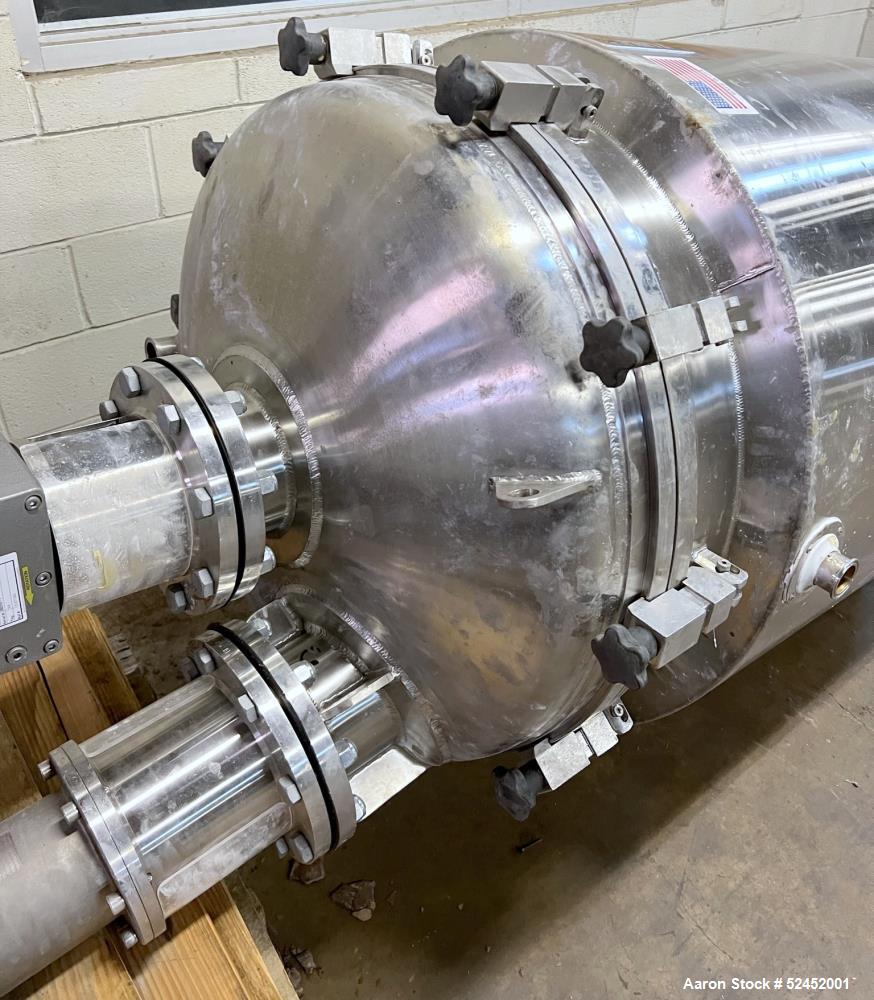

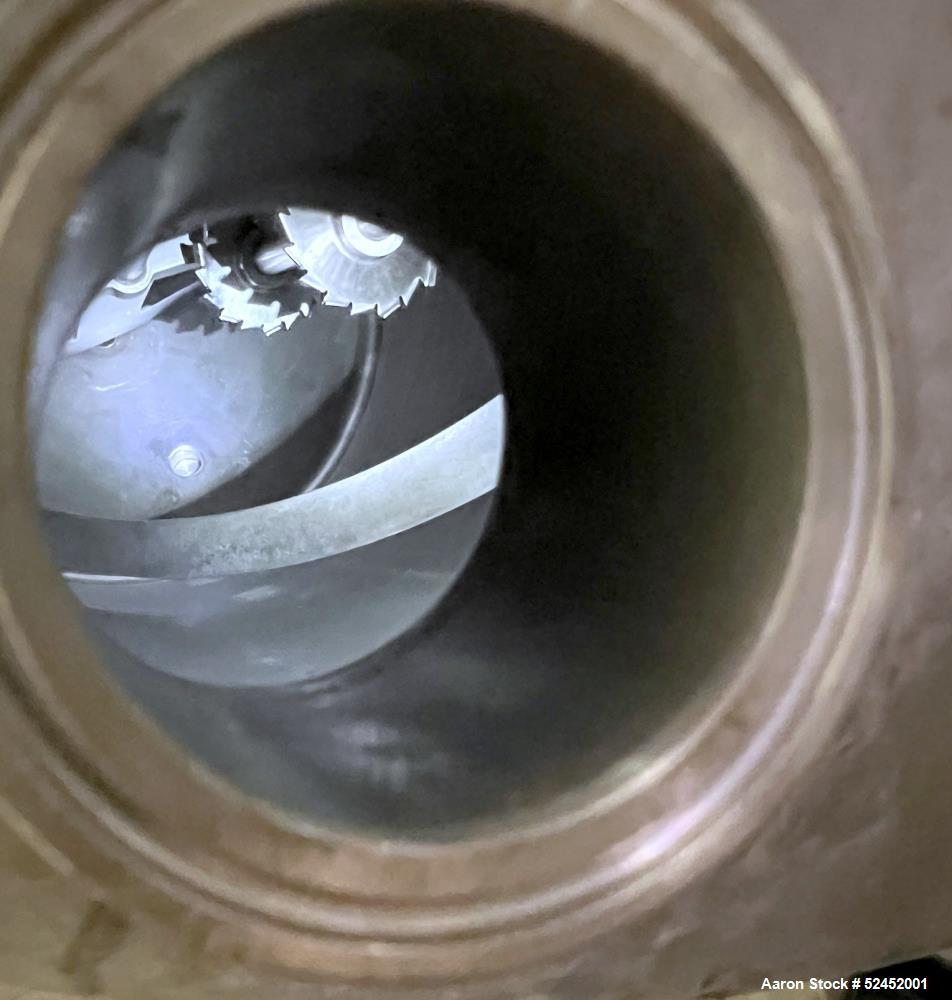

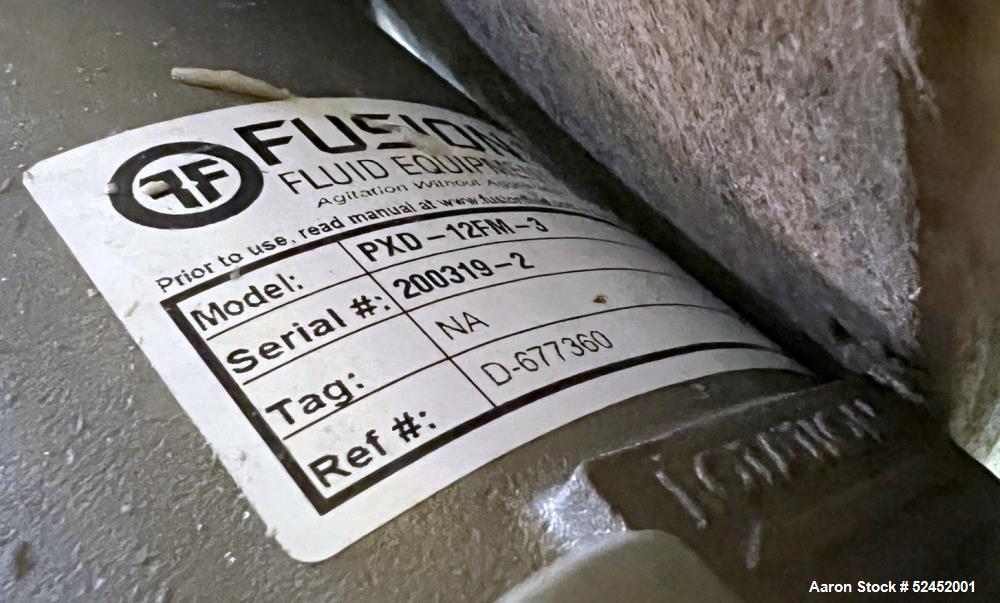

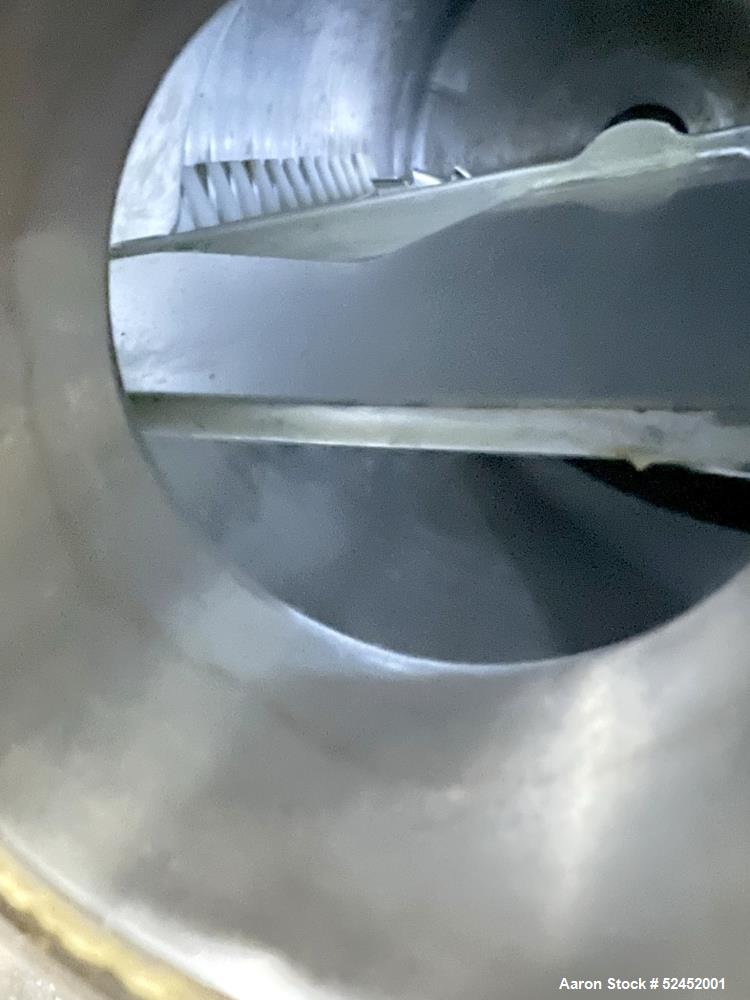

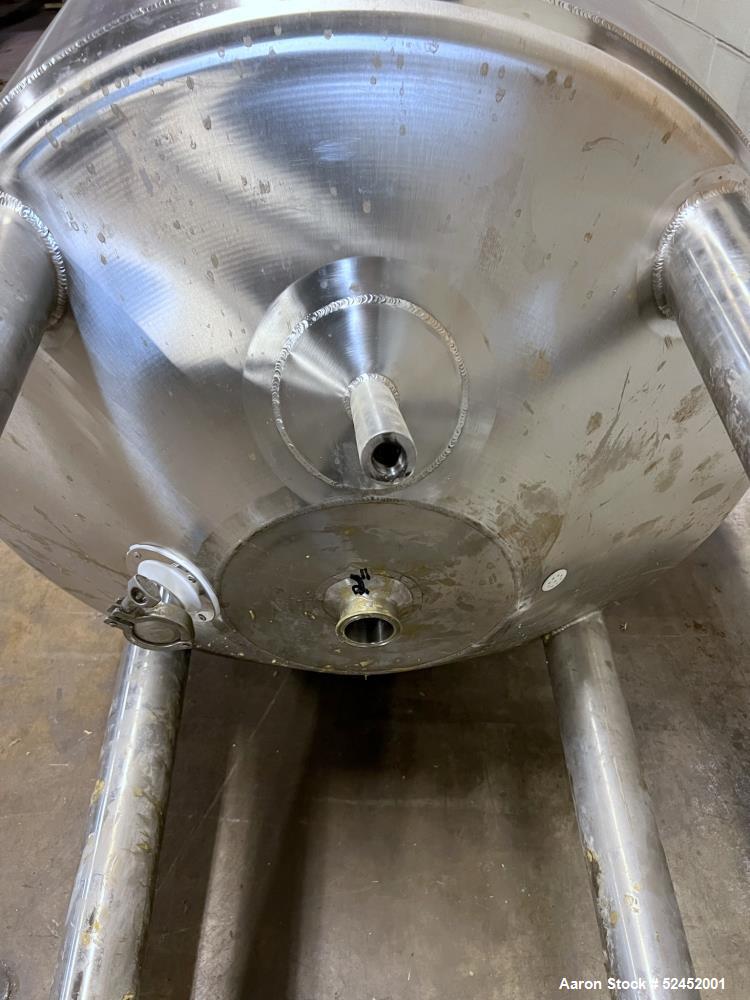

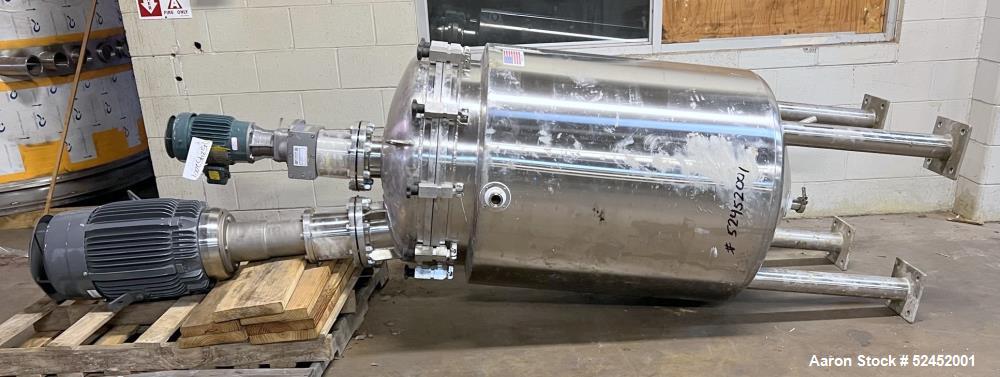

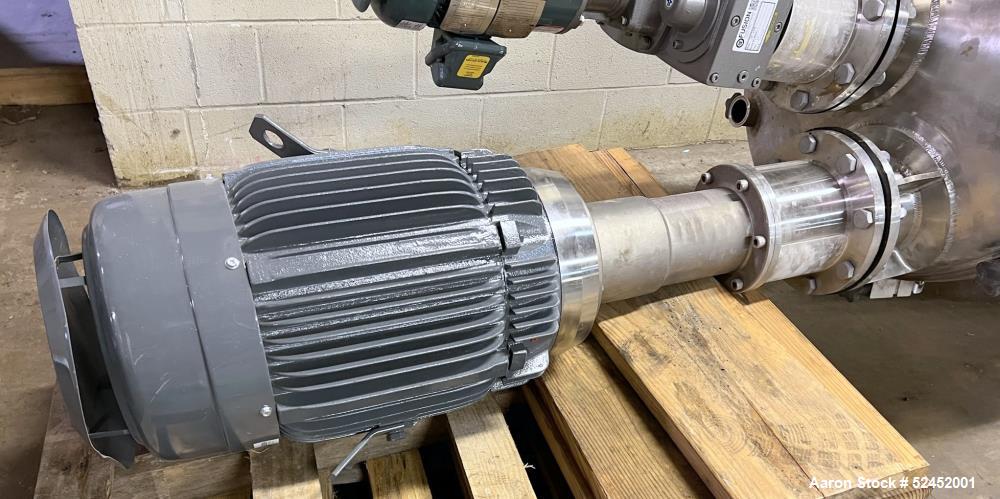

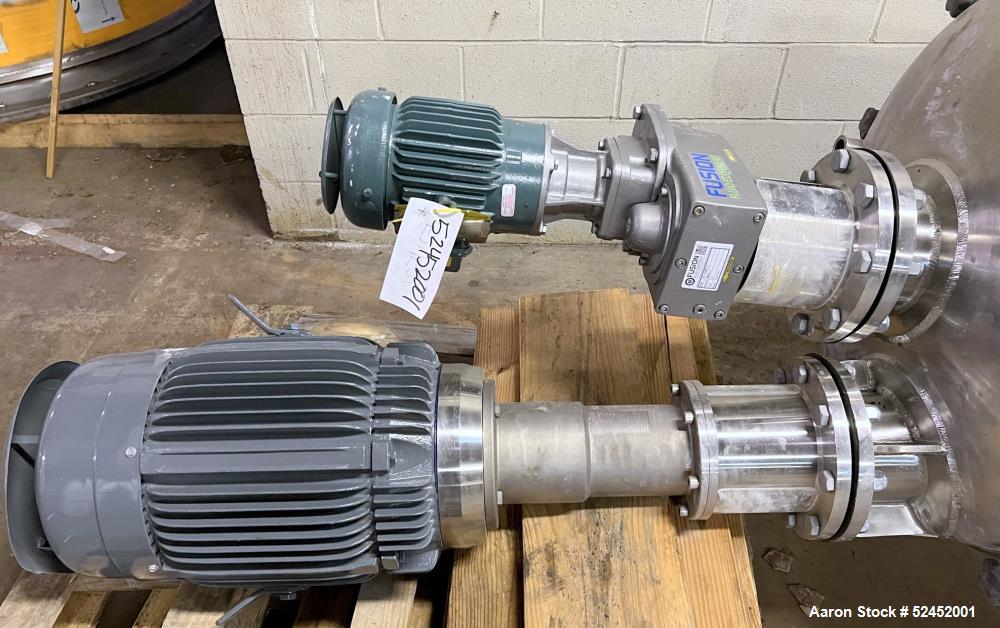

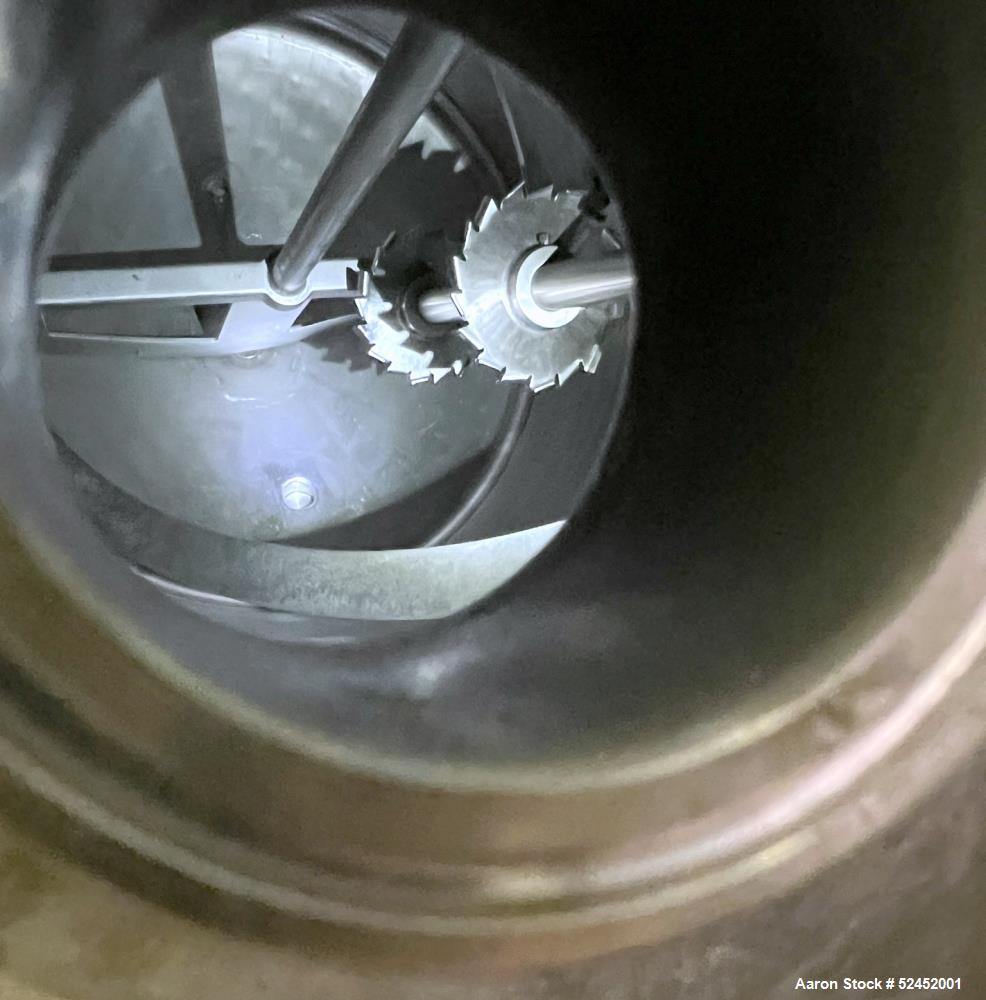

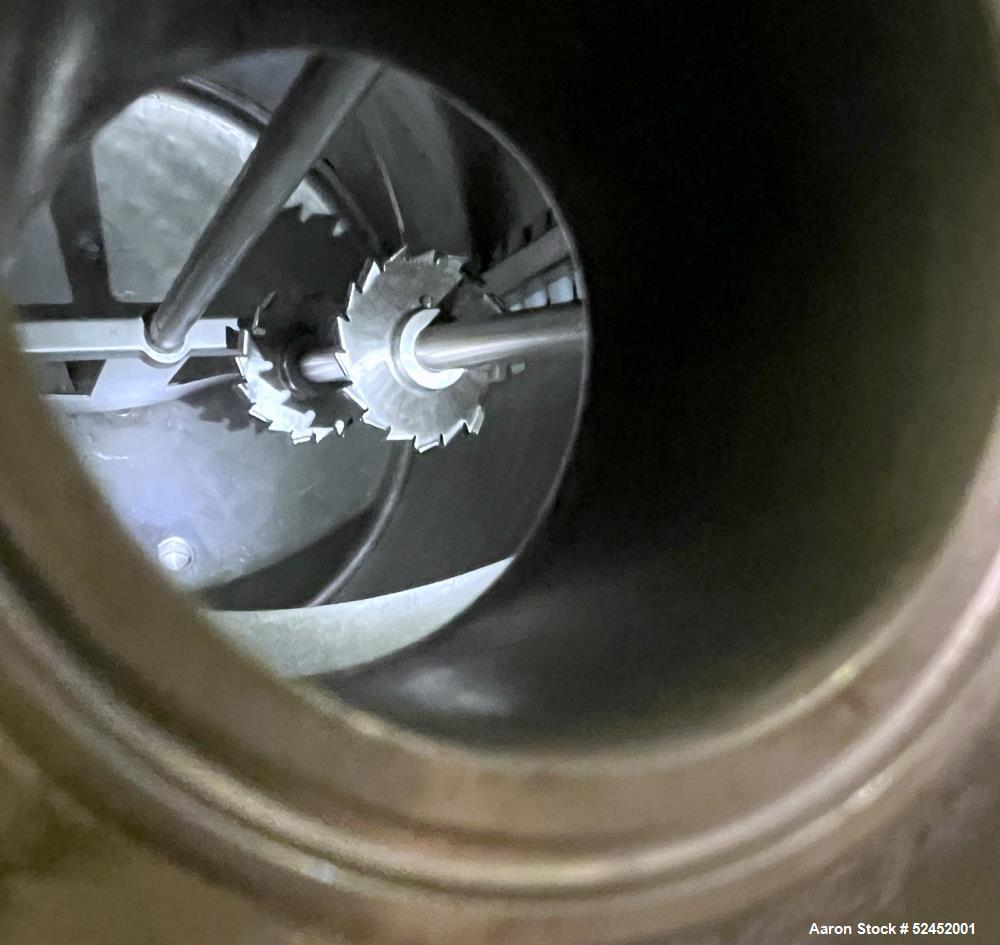

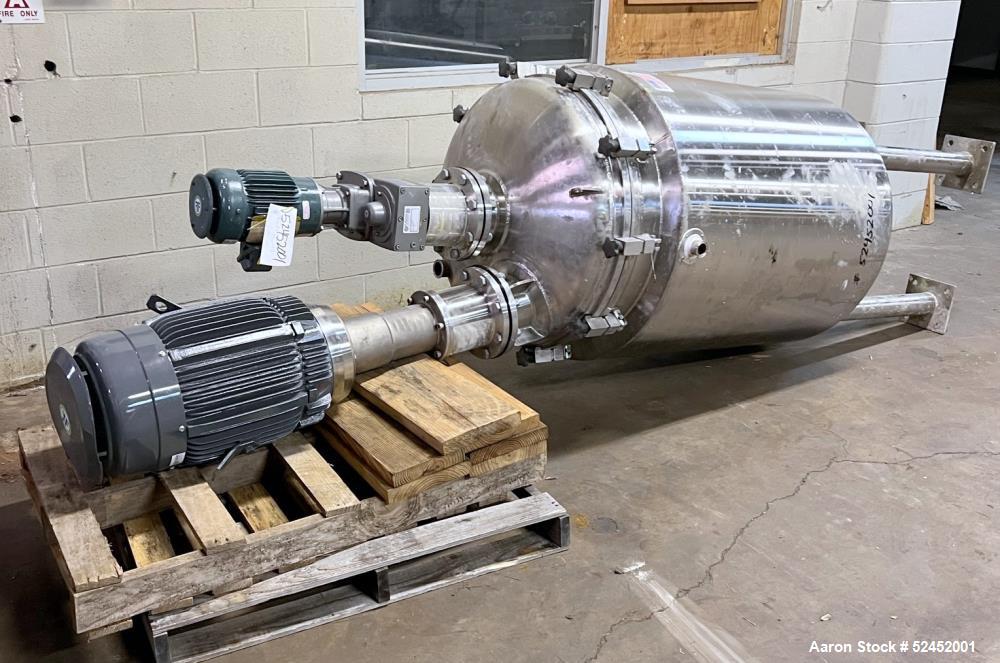

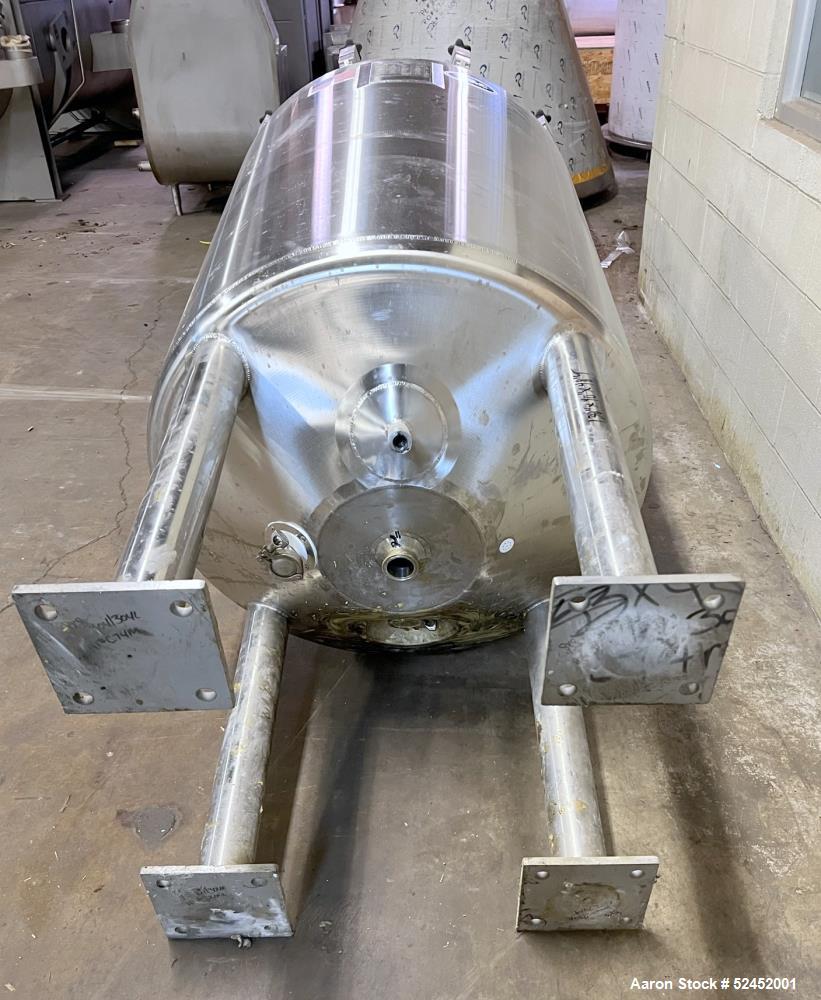

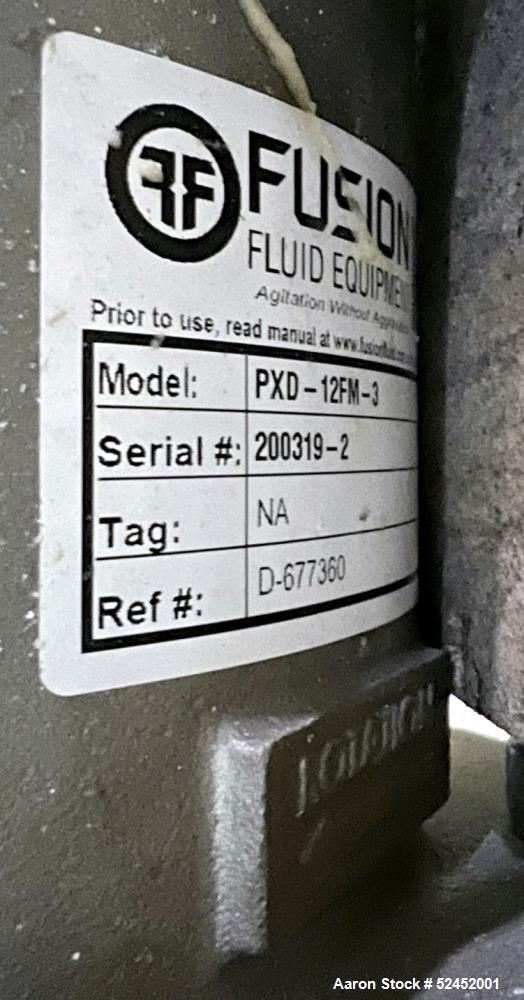

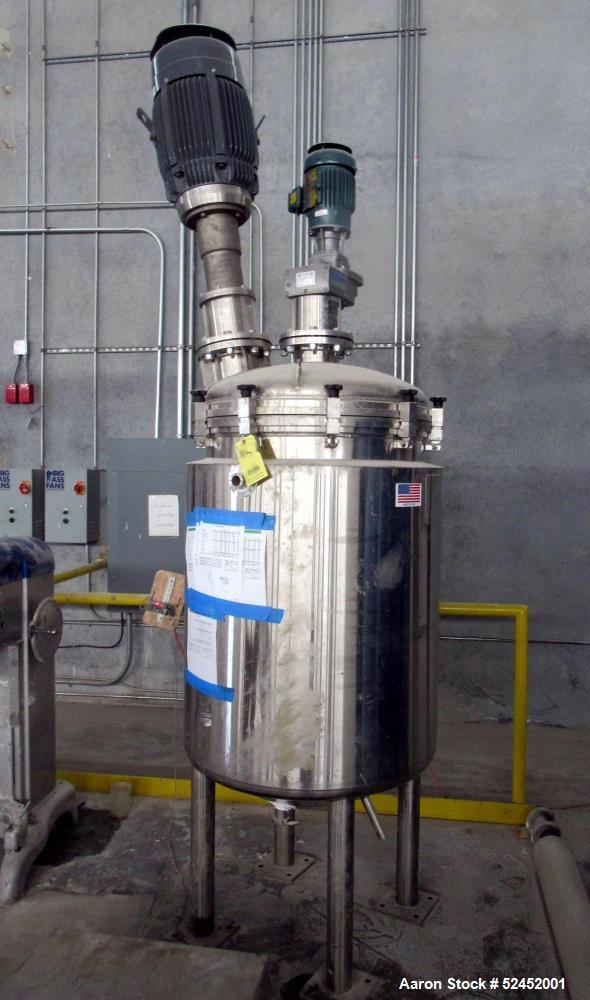

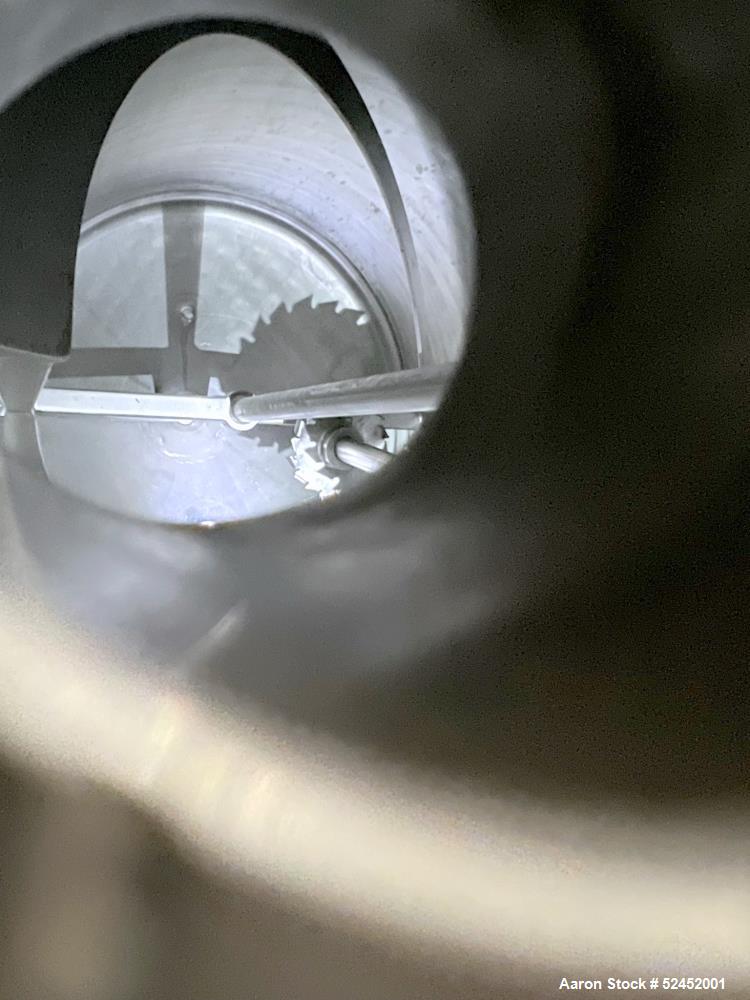

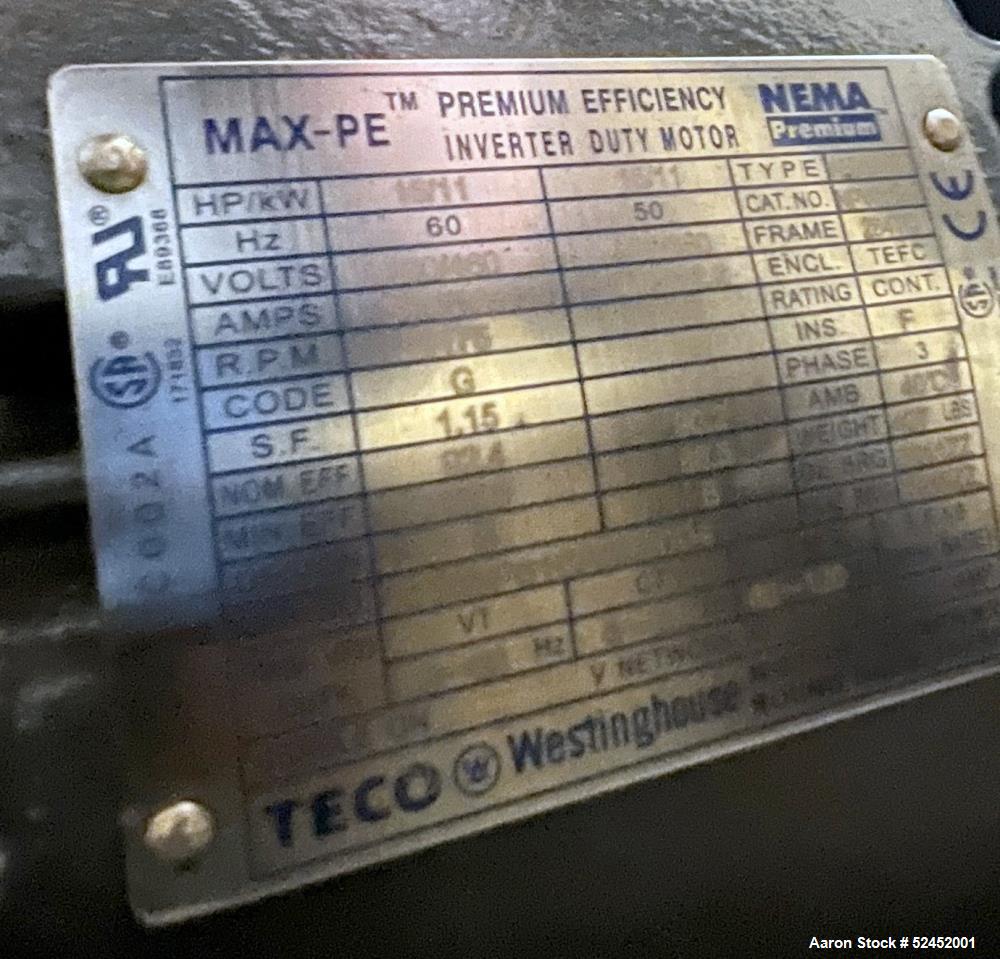

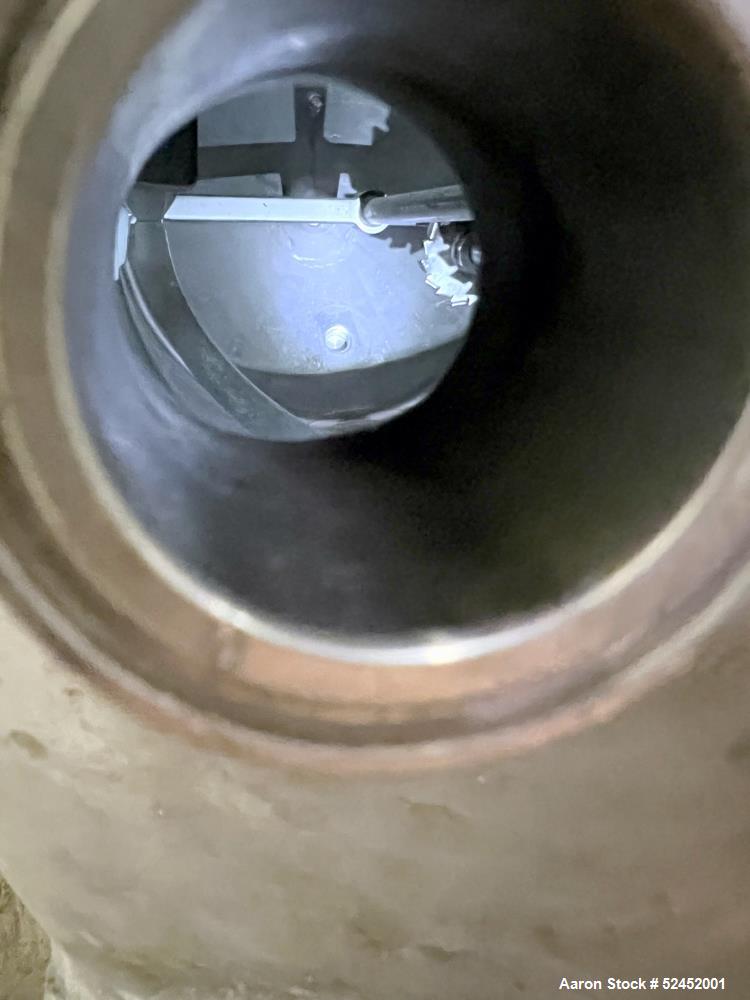

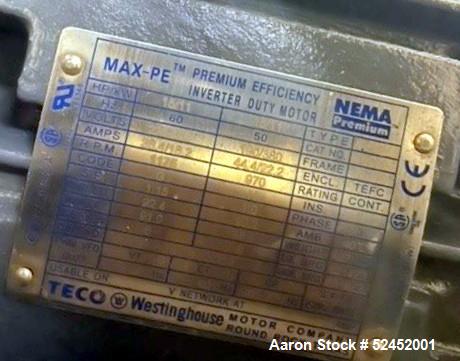

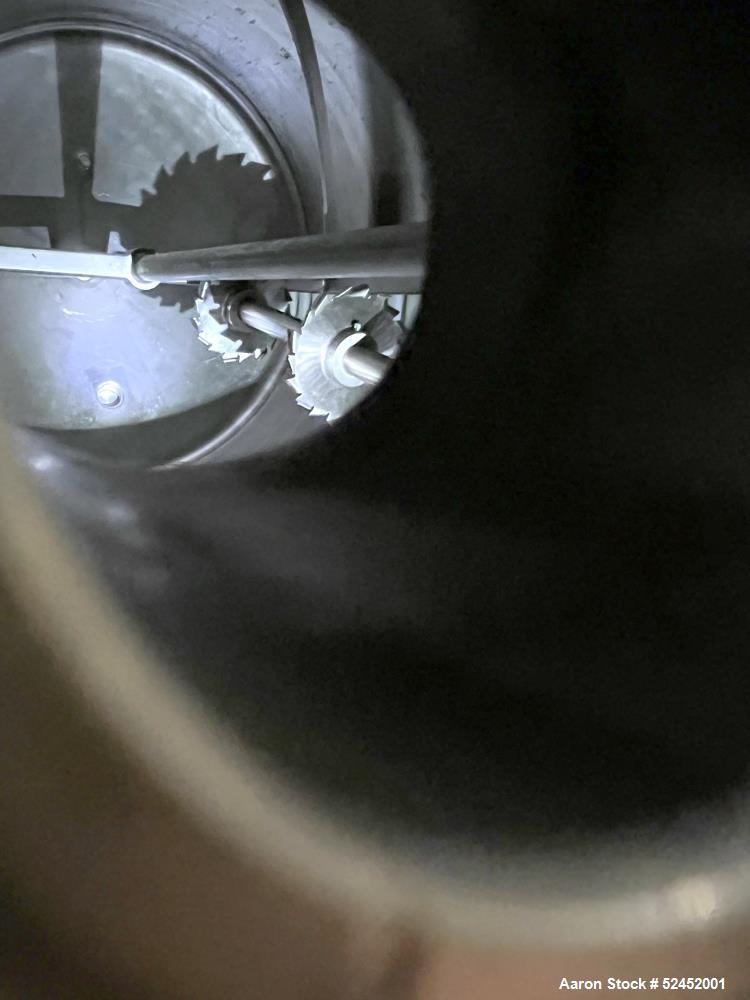

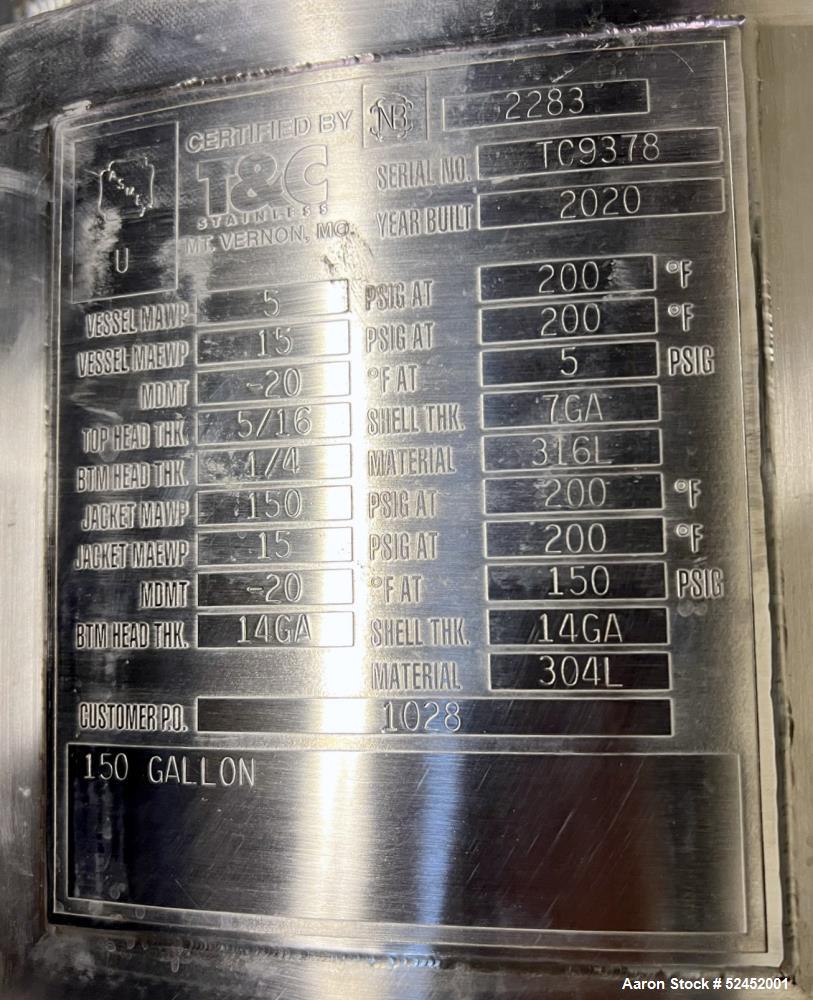

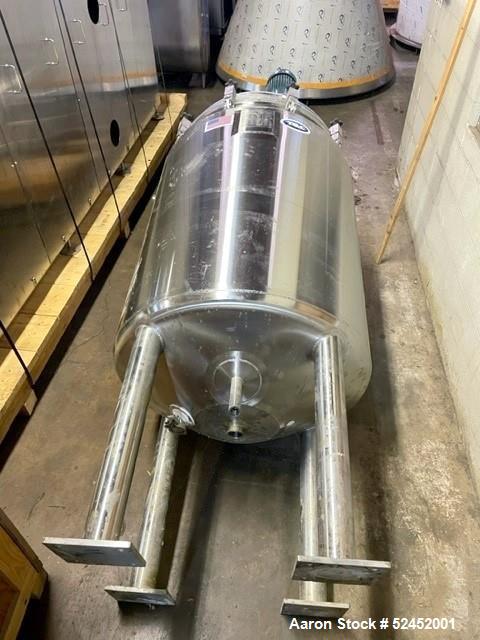

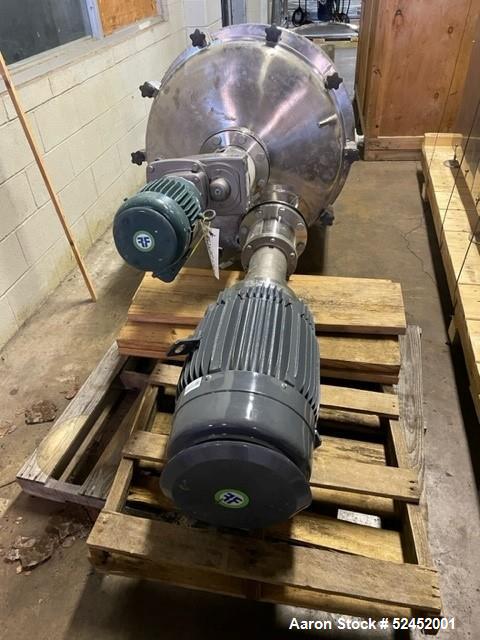

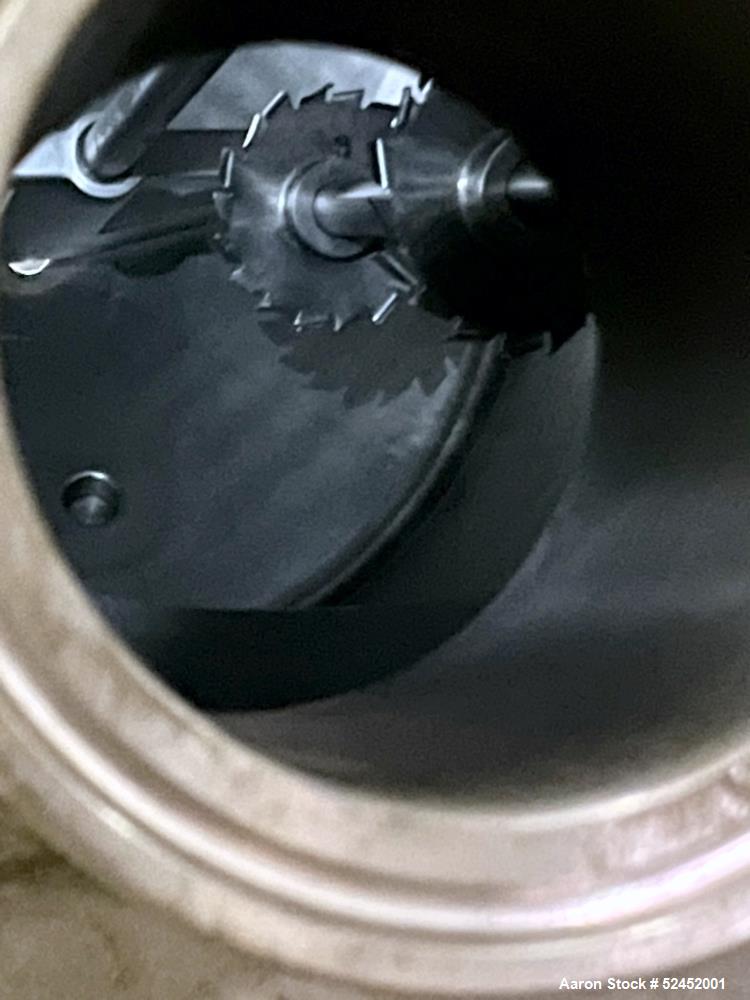

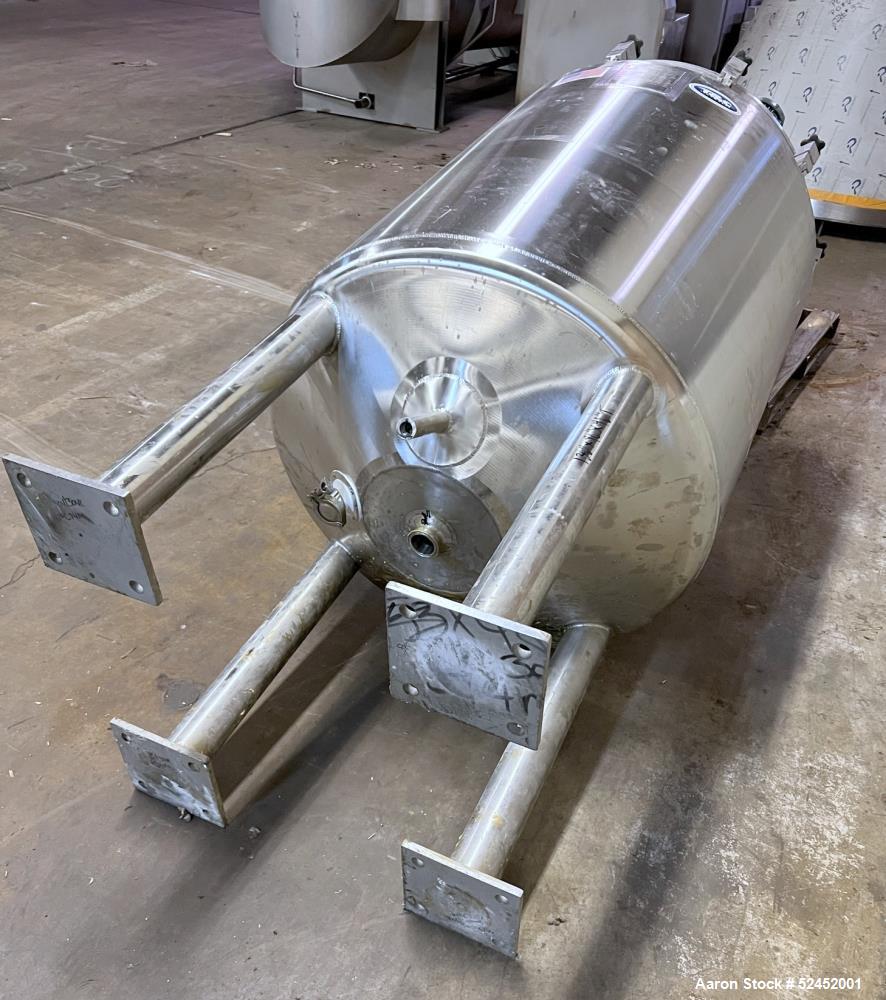

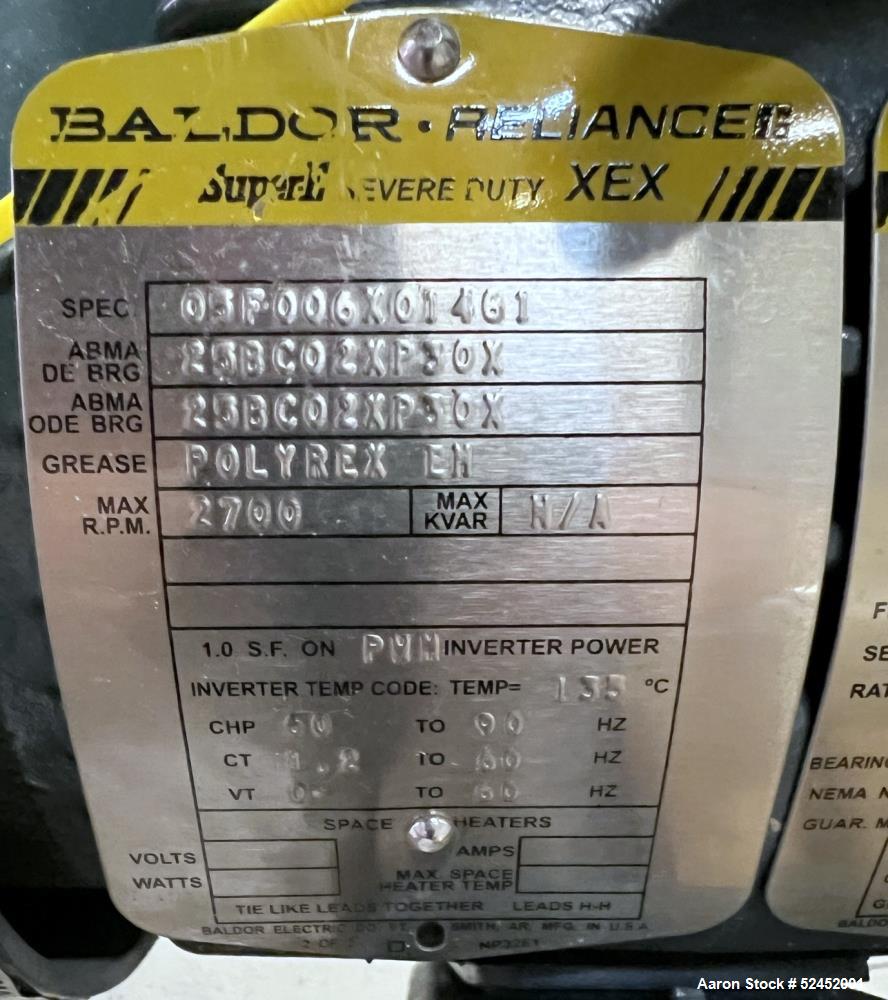

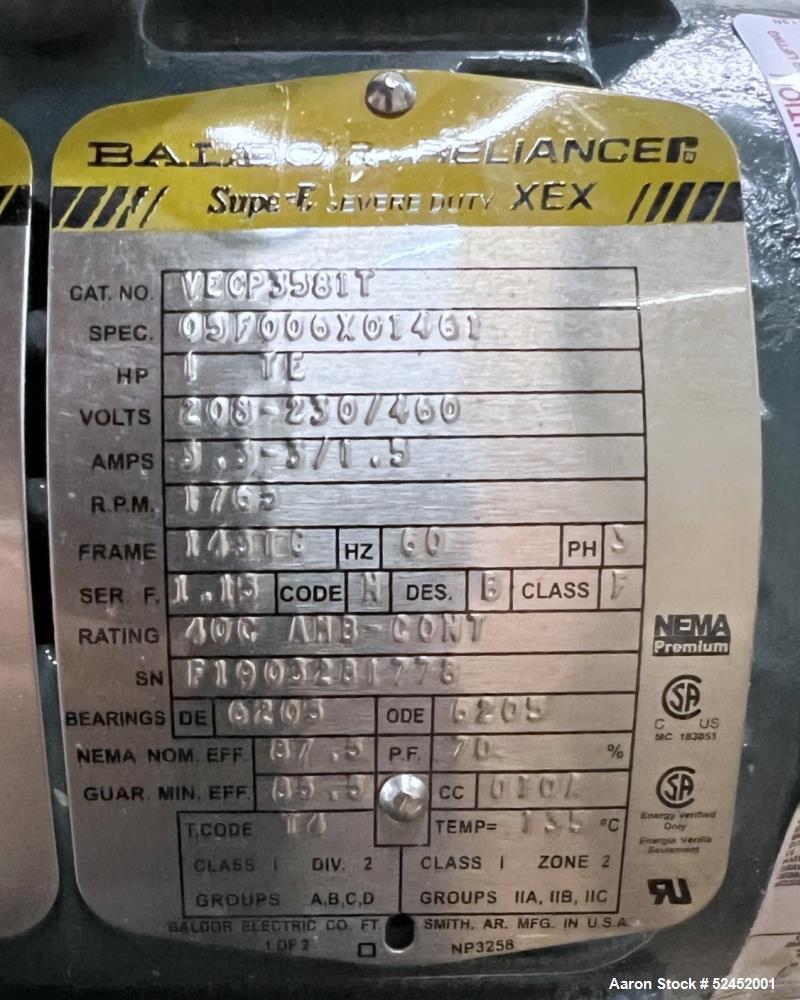

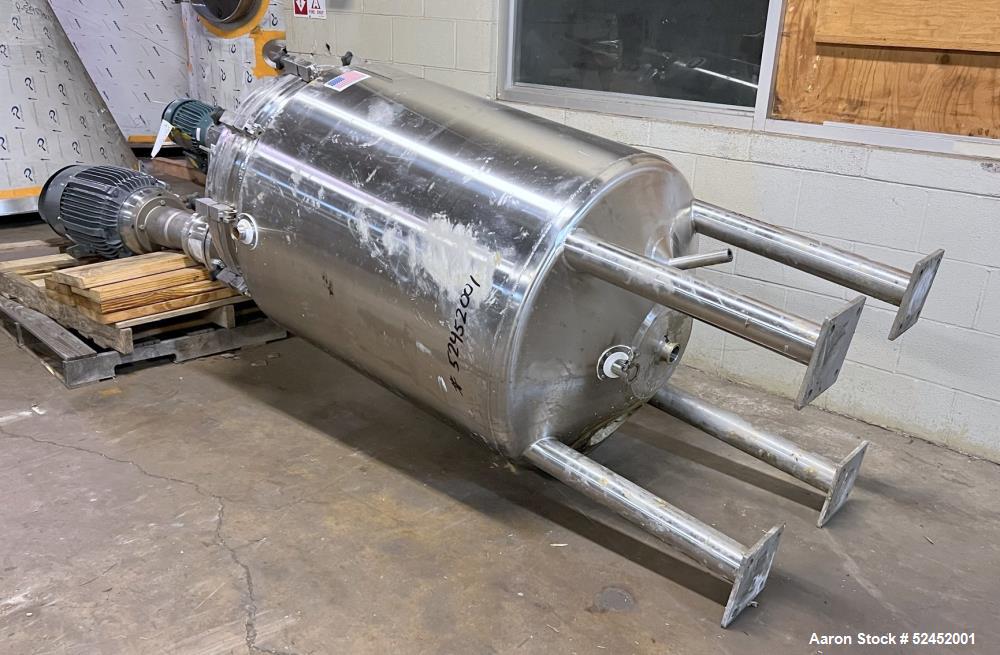

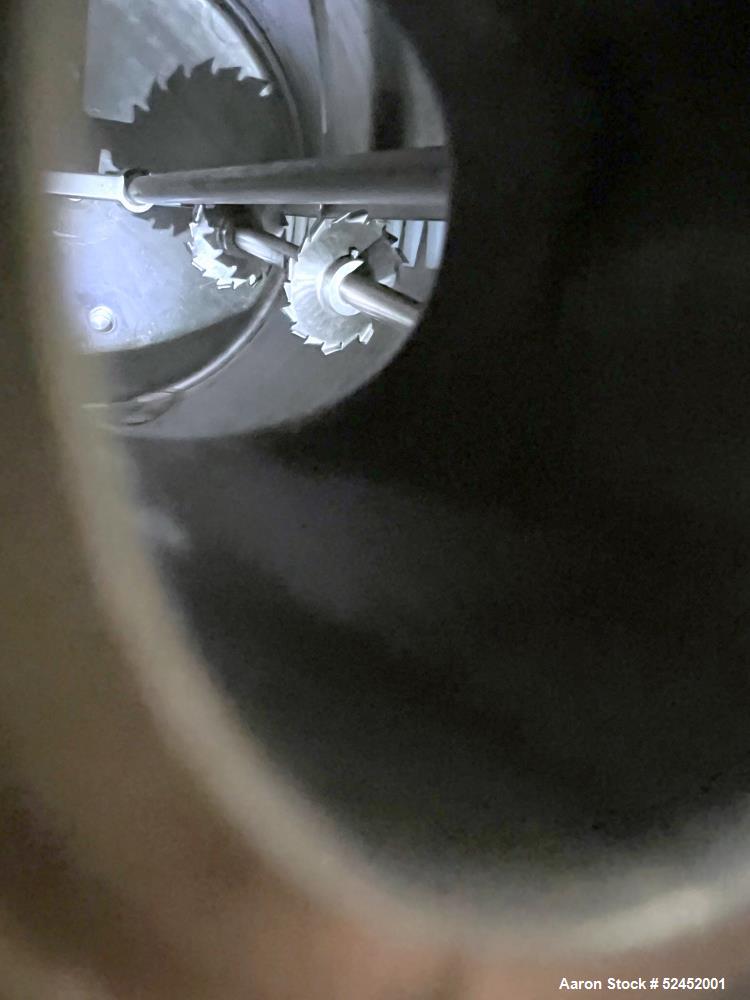

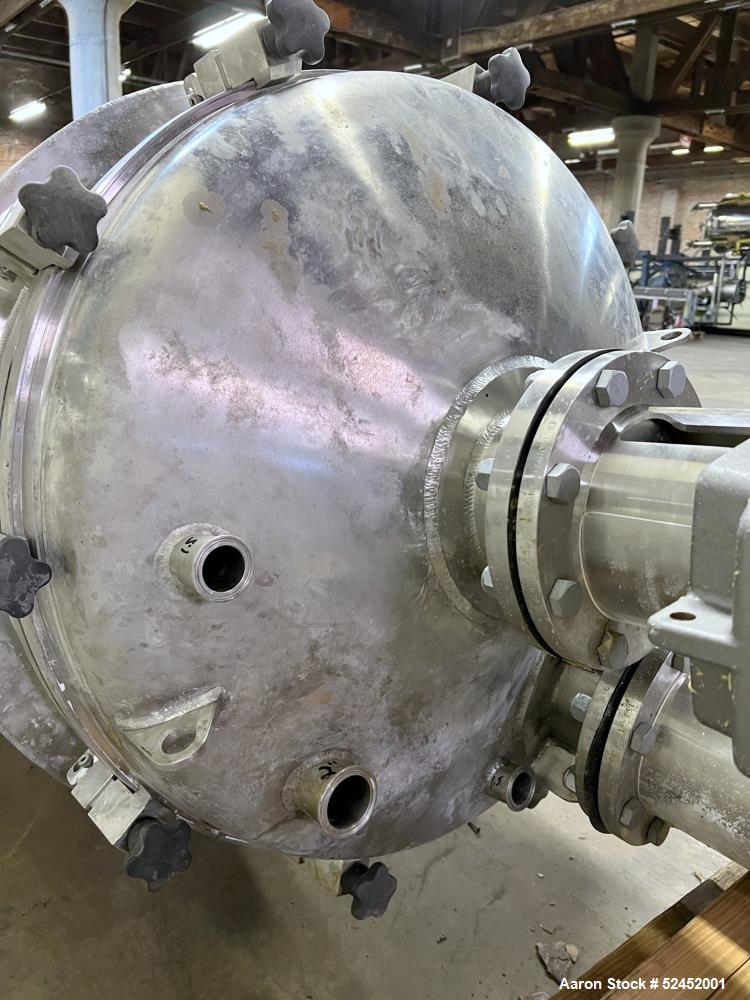

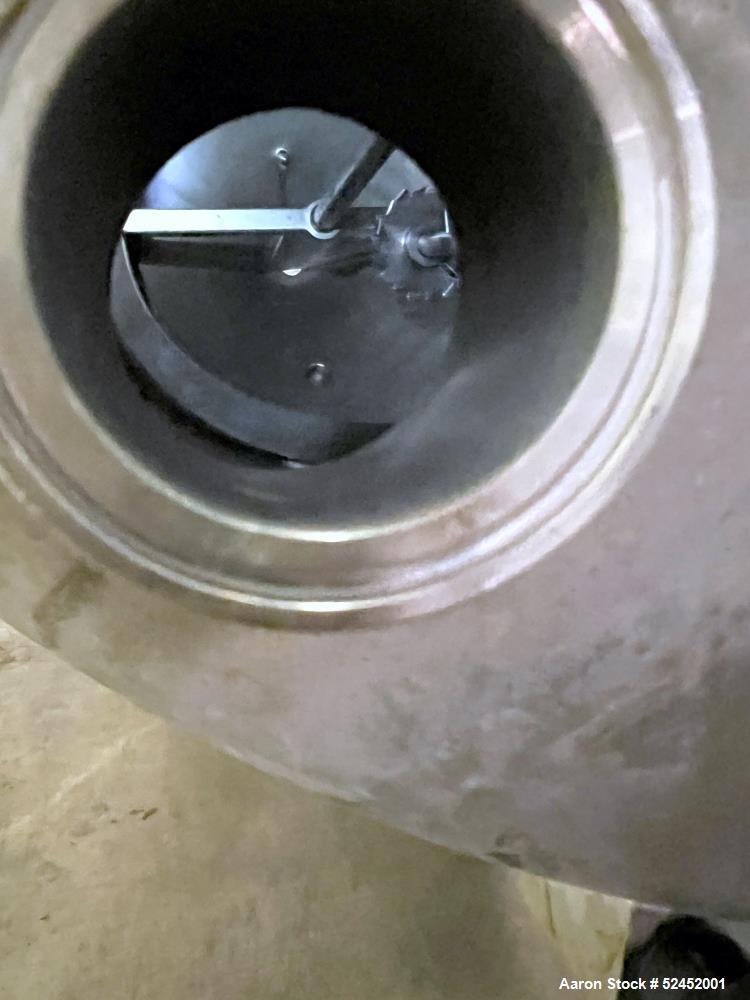

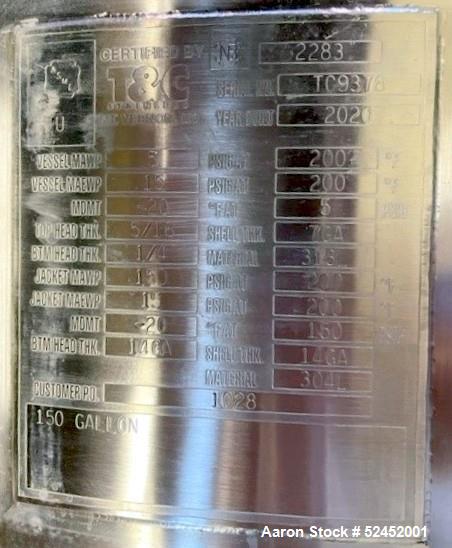

Used T&C Stainless Steel Agitated Reactor, 150 Gallon, 316/316L Stainless Steel, Vertical. Approximate 32" diameter x 47-7/8" straight side, dished clamp on top and dished bottom. Internal rated 15 psi at -20 to 200 degrees F. 304/304L Stainless dimple jacket rated 150 psi at -20 to 200 degrees F. Top mounted agitators, (1) top center entering Fusion fluid model FG-2.5FM1, serial# 200319-2, anchor style with sidewall scrapers and (2) side ribbons, driven by 1hp, 3/60/208-230/460 volt, 1765rpm gearmotor. (1) Top offset Fusion fluid model PXD-12FM-3, dual cowles (sawtooth) agitation, driven by 15hp, 3/60/230/460 volt, 1175 rpm motor. Opening top: (1) 2", (2) 1-1/2". 2" Center bottom outlet. Mounted on 4 legs. Serial# TC9378, National Board#2283, Built 2020.
Used T&C Stainless Steel Agitated Reactor, 150 Gallon, 316/316L Stainless Steel, Vertical. Approximate 32" diameter x 47-7/8" straight side, dished clamp on top and dished bottom. Internal rated 15 psi at -20 to 200 degrees F. 304/304L Stainless dimple jacket rated 150 psi at -20 to 200 degrees F. Top mounted agitators, (1) top center entering Fusion fluid model FG-2.5FM1, serial# 200319-2, anchor style with sidewall scrapers and (2) side ribbons, driven by 1hp, 3/60/208-230/460 volt, 1765rpm gearmotor. (1) Top offset Fusion fluid model PXD-12FM-3, dual cowles (sawtooth) agitation, driven by 15hp, 3/60/230/460 volt, 1175 rpm motor. Opening top: (1) 2", (2) 1-1/2". 2" Center bottom outlet. Mounted on 4 legs. Serial# TC9378, National Board#2283, Built 2020.
