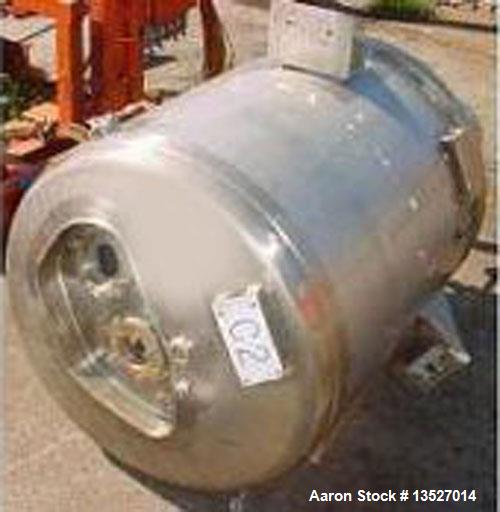

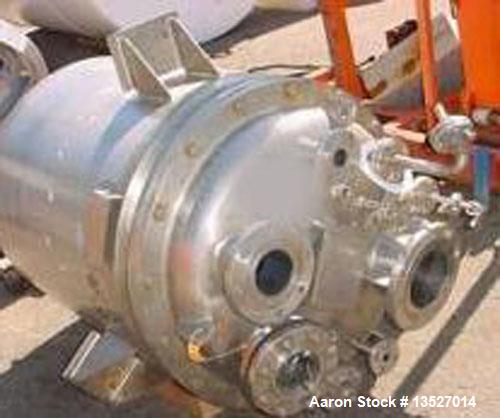

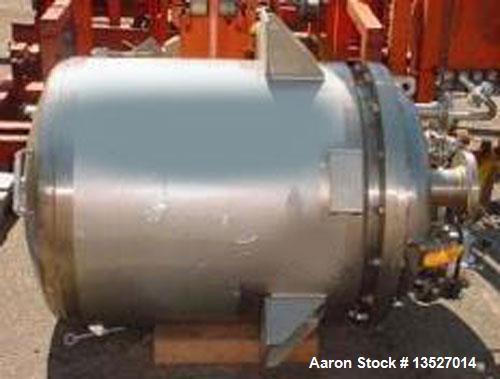

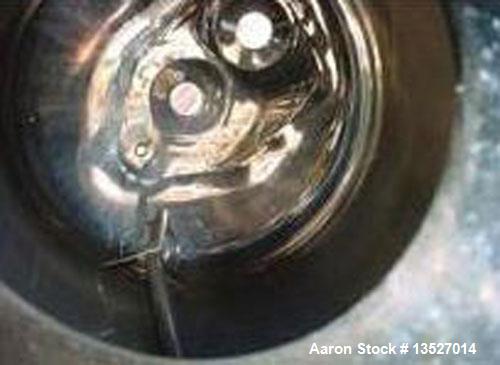

Used Northland Stainless Inc Reactor, Approximately 80 Gallon. T316 stainless steel (8 ga) inner shell, inner top head and inner bottom head. T304 stainless steel jacket shell and jacket head. Johns-Manville 814 insulation and stainless steel sheathing. T316 stainless steel flanges and couplings. 28" ID x 34-1/2" straight side. Shell MAWP 42.7 psi at 176 deg F. Min DWT -20 deg F at 42.7 psi. Stainless jacket MAWP 14.3 psi at 176 deg F. Bolted dish top with misc inlets including 6" flanged opening for agitator drive, 1-3/4", 4" plus additional small inlets..5 hp Lightnin Vektor drive. UL listed. 230/460V, 1725 rpm. Pressurized mechanical seal. Vektor model V5S37, serial #95/E35630. Stainless steel shaft inside vessel with 3 pitched turbine blades and stabilizer ring. Unit built in 1995. Shell, head and jacket thickness .165". Lug mounted with structural supports (included). Approximate 3" center bottom outlet; approximate 2-1/2" bottom outlet.
Used Northland Stainless Inc Reactor, Approximately 80 Gallon. T316 stainless steel (8 ga) inner shell, inner top head and inner bottom head. T304 stainless steel jacket shell and jacket head. Johns-Manville 814 insulation and stainless steel sheathing. T316 stainless steel flanges and couplings. 28" ID x 34-1/2" straight side. Shell MAWP 42.7 psi at 176 deg F. Min DWT -20 deg F at 42.7 psi. Stainless jacket MAWP 14.3 psi at 176 deg F. Bolted dish top with misc inlets including 6" flanged opening for agitator drive, 1-3/4", 4" plus additional small inlets..5 hp Lightnin Vektor drive. UL listed. 230/460V, 1725 rpm. Pressurized mechanical seal. Vektor model V5S37, serial #95/E35630. Stainless steel shaft inside vessel with 3 pitched turbine blades and stabilizer ring. Unit built in 1995. Shell, head and jacket thickness .165". Lug mounted with structural supports (included). Approximate 3" center bottom outlet; approximate 2-1/2" bottom outlet.
