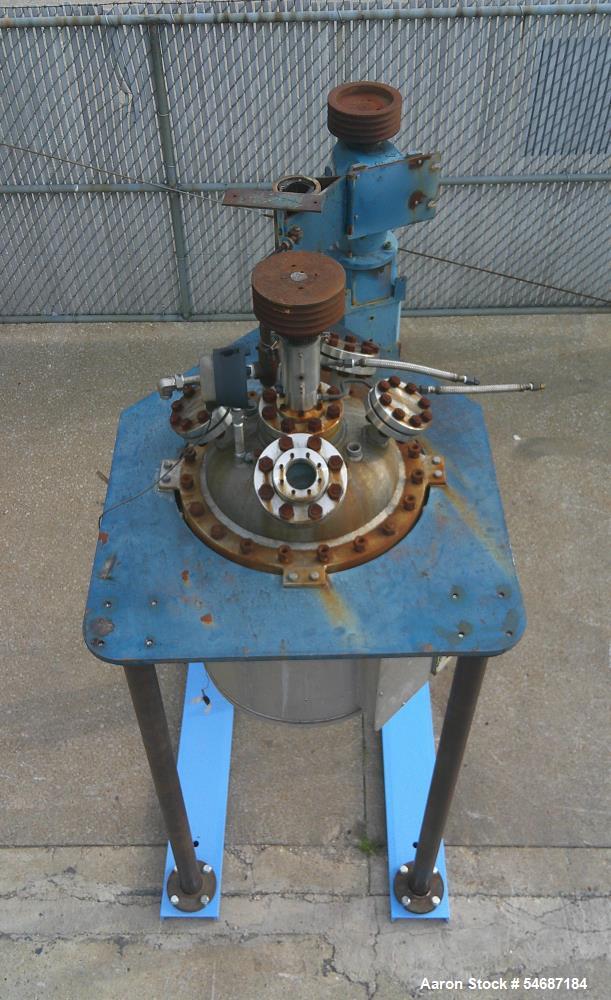

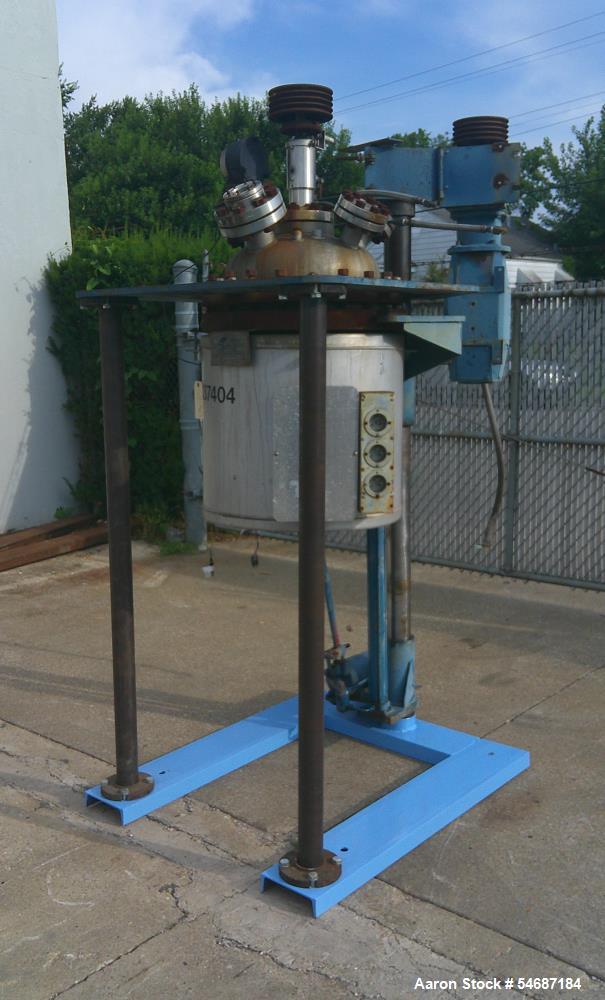

Used 30 gallon Hoppes chemical reactor, 300 psi internal pressure @ 500 degrees F with 3 HP double helix with sweep agitator and 3HP DC-TENV motor 1750 RPM. 20" diameter x 21" straight side with body...

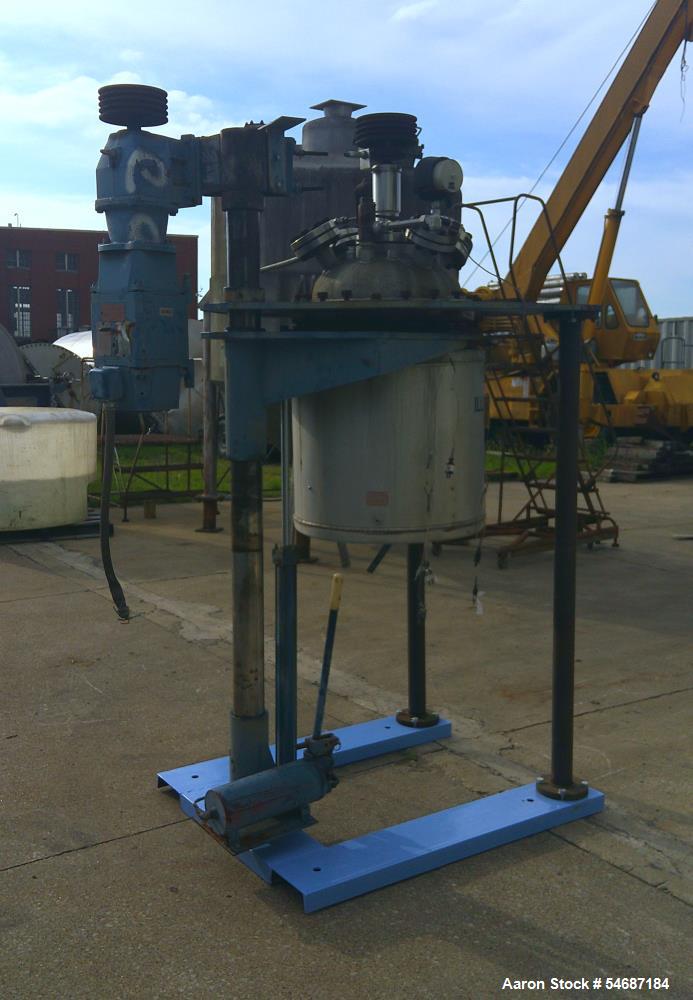

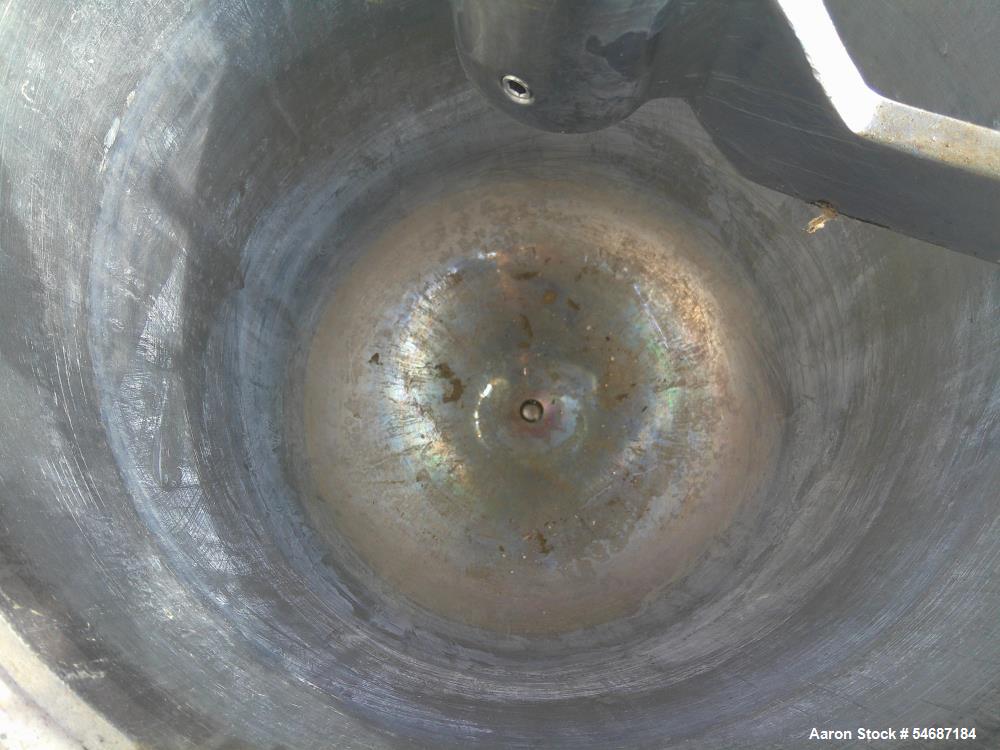

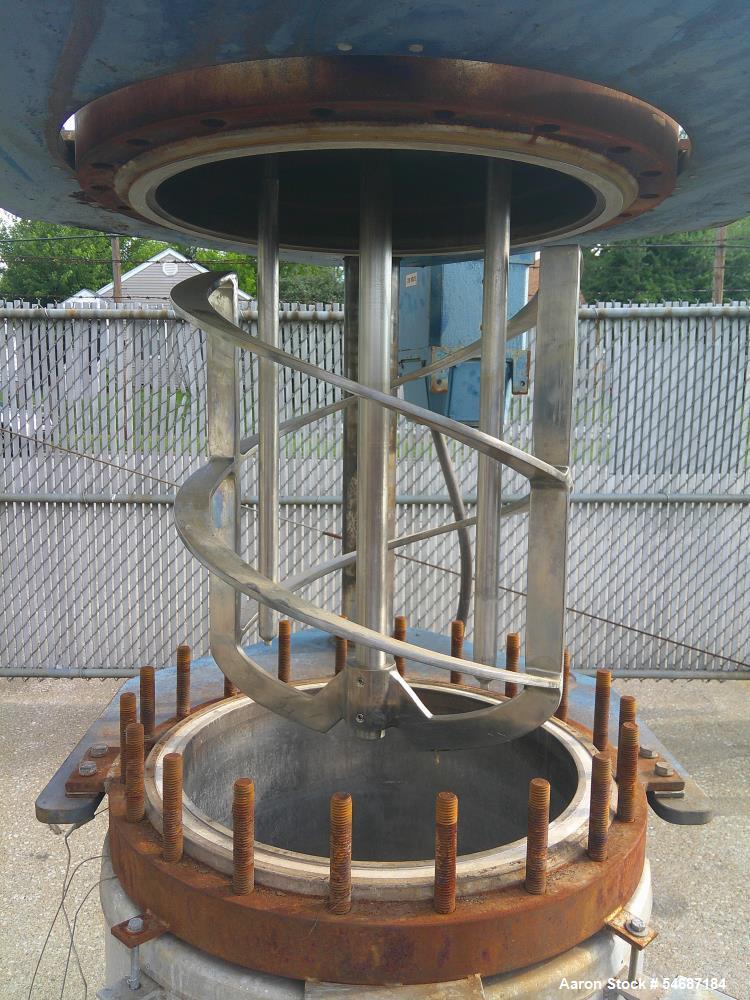

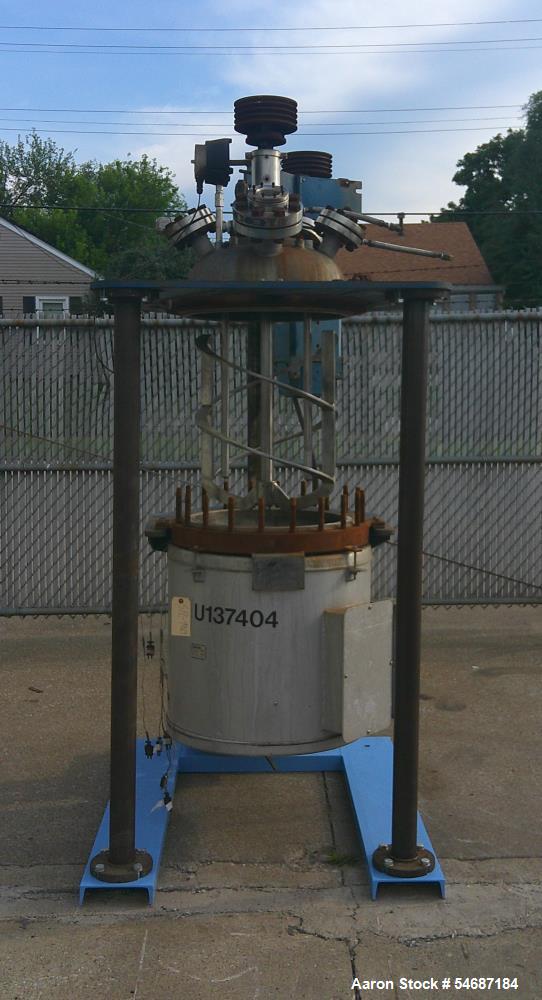

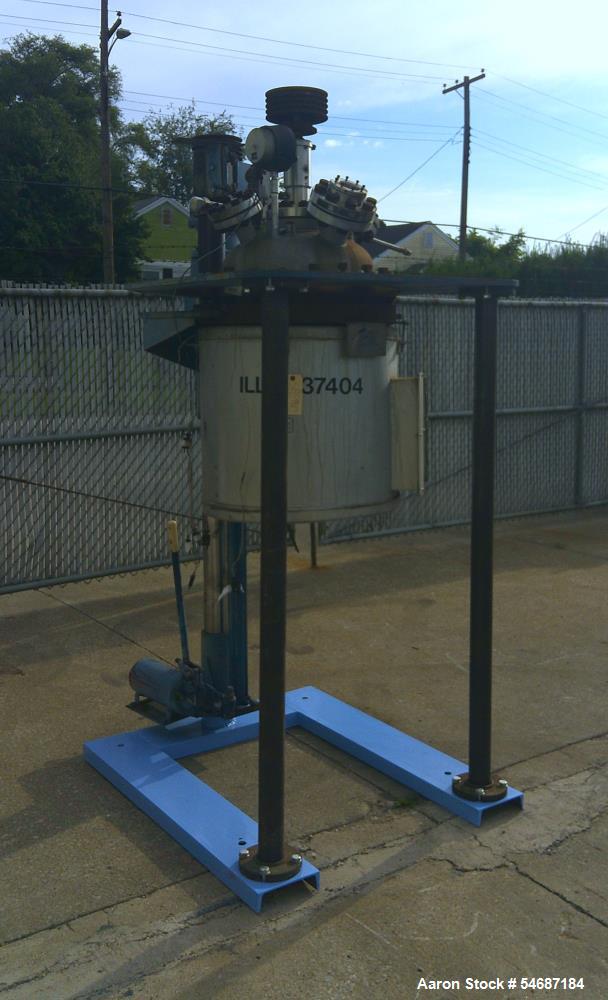

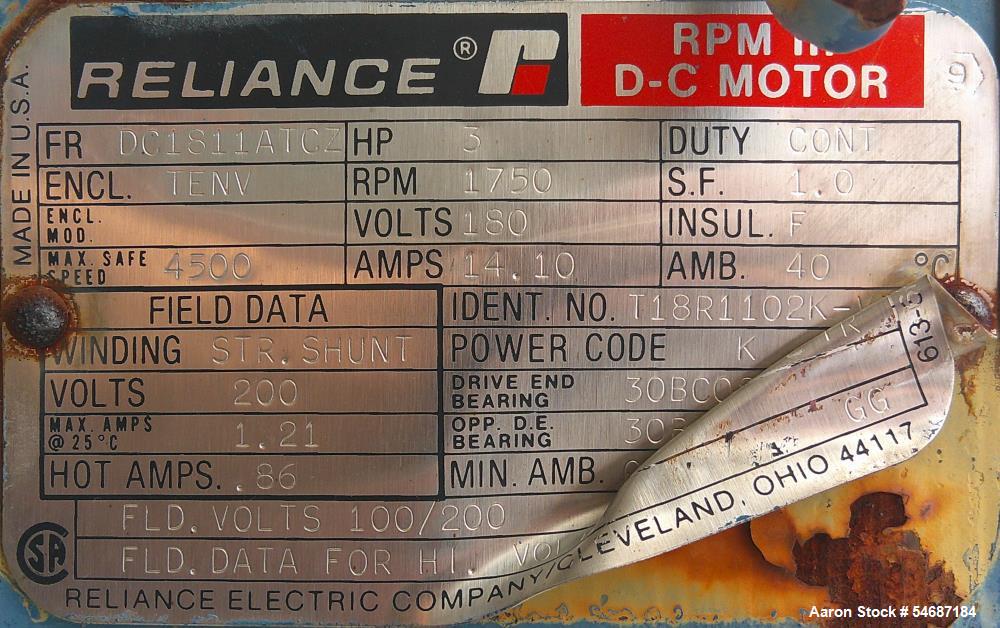

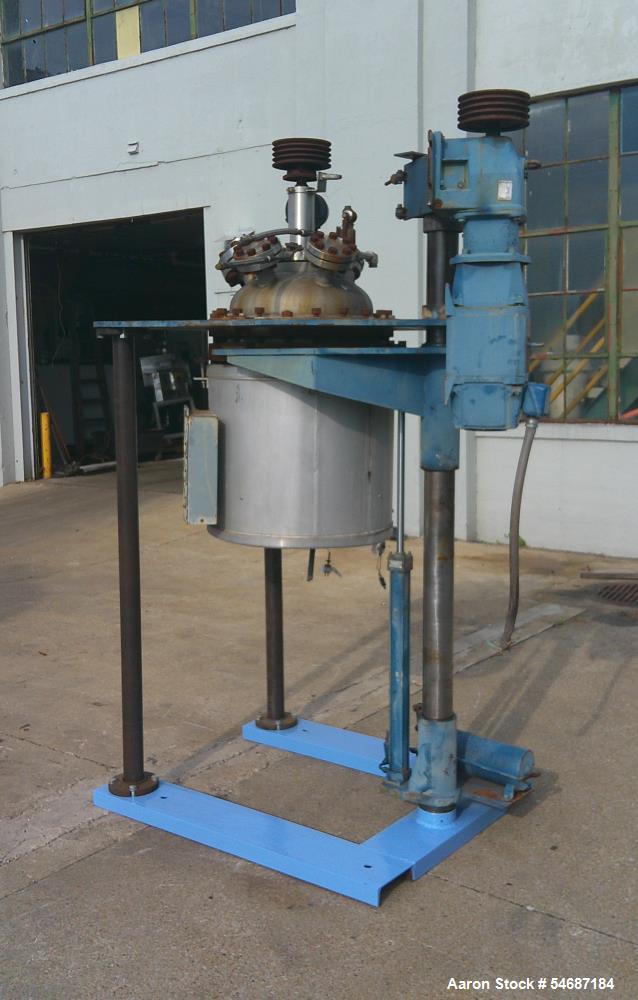

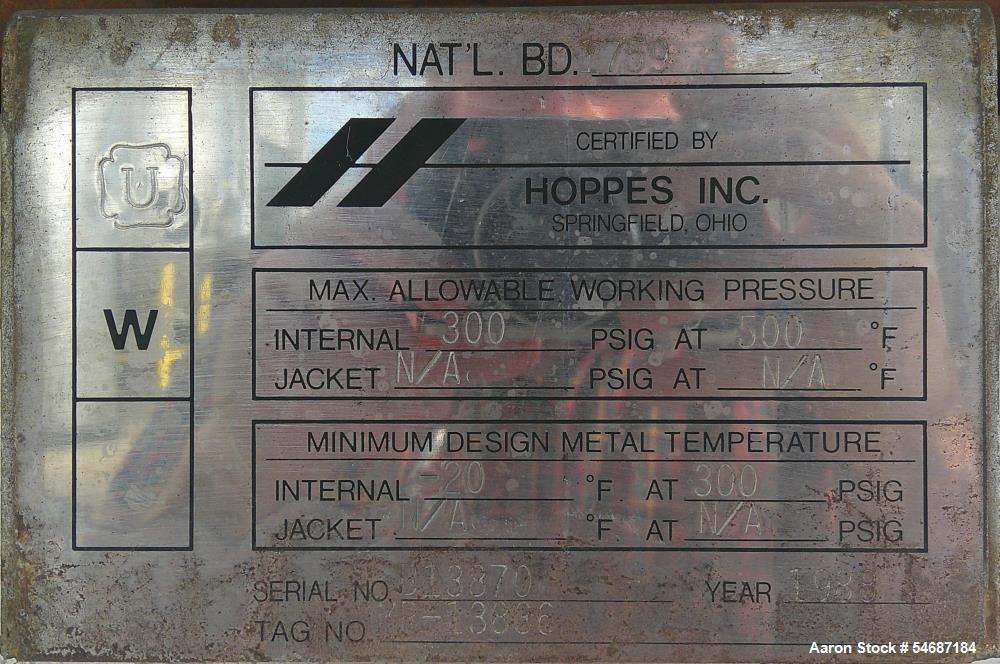

Used-30 gallon Hoppes chemical reactor, 300 psi internal pressure @ 500 degrees F with 3 HP double helix with sweep agitator and 3HP DC-TENV motor 1750 RPM. 20" diameter x 21" straight side with body flange. Glass Col 9 circuit electric jacket heat with 9 each 1,650 circuits. One 3" 300# RFSO with sight glass, one 3" 300# pad flange, three 2" 300# RFSO flnges, one 1" 3000# coupling, one 1" flush mount bottom ball valve., three 3000# couplings, and three 1/2" 3000# couplings. Tank on a stand. Material 316 stainless steel. ASME "U" stamped. National Board Number1759. Internal welds has #3 polish.
