264 Gallon Jacketed Tank (Reactor)

Description

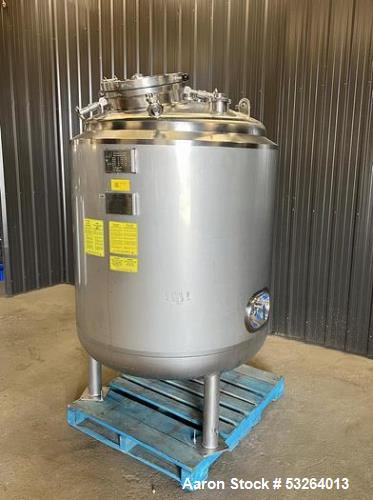

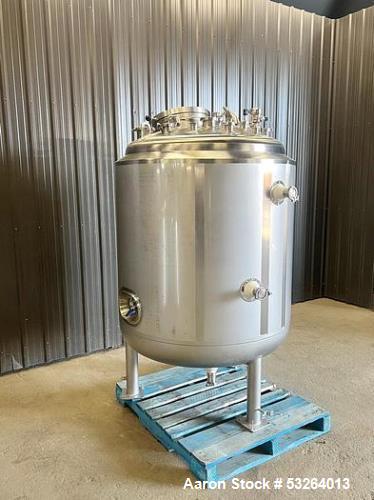

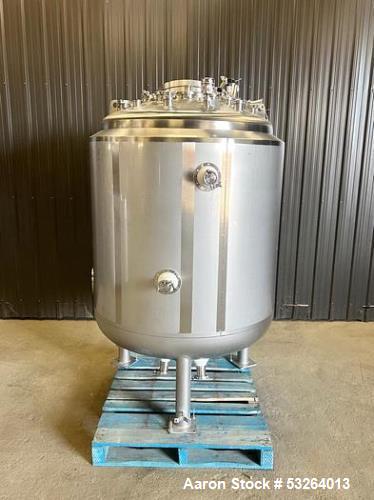

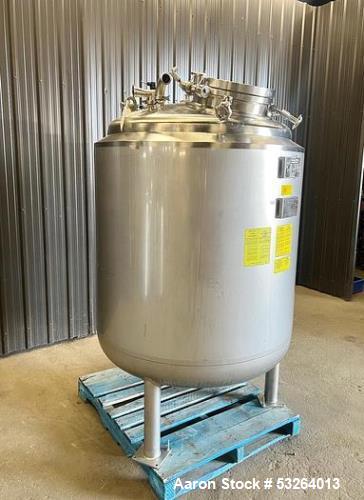

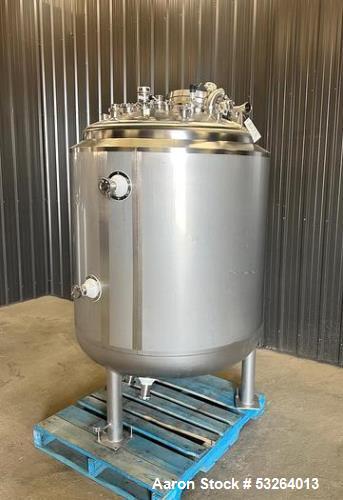

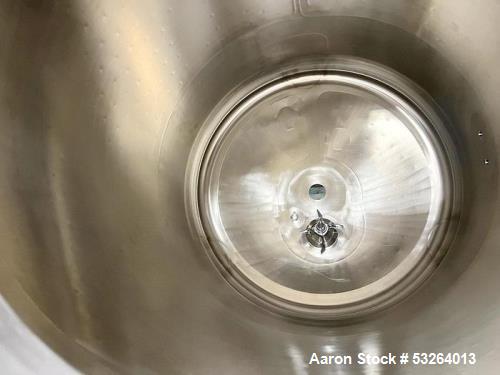

This used 264-gallon jacketed tank (reactor) is a high-quality 316L stainless steel vessel designed for industrial processing applications. It features a two-zone jacket rated for 100 psi at 300°F, with a maximum allowable working pressure (MAWP) of 50 psi at 300°F. The vessel is fully vacuum-rated, insulated, and includes a pressure-rated sight glass type manway for monitoring. The sanitary interior polish ensures suitability for food, pharmaceutical, and chemical applications. The tank is equipped with a bottom-mount agitator (motor required), multiple top inlets, a center discharge, and a dish top and bottom. It sits on three stainless steel legs with lifting lugs for secure handling.

Specifications

• Capacity: 264 gallons
• Material: 316L Stainless Steel
• Jacket Rating: 100 psi @ 300°F (Two-Zone)

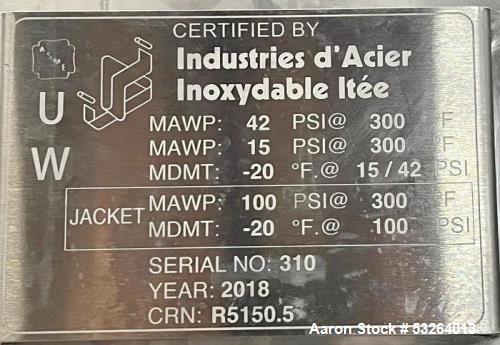

• Vessel MAWP: 50 psi @ 300°F
• Vacuum Rating: Full Vacuum
• Insulation: Yes

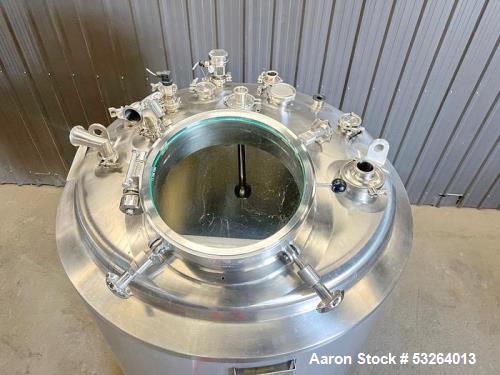

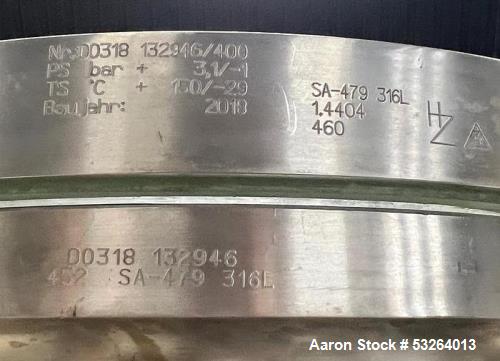

• Manway: Pressure-rated sight glass type
• Interior Finish: Sanitary polished

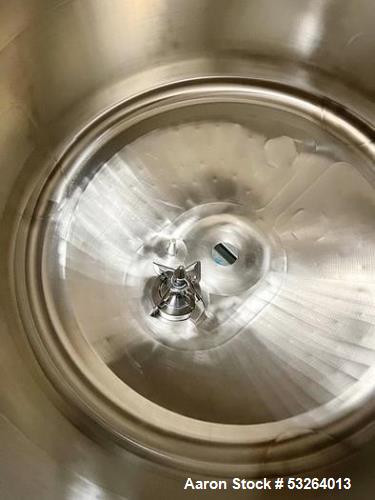

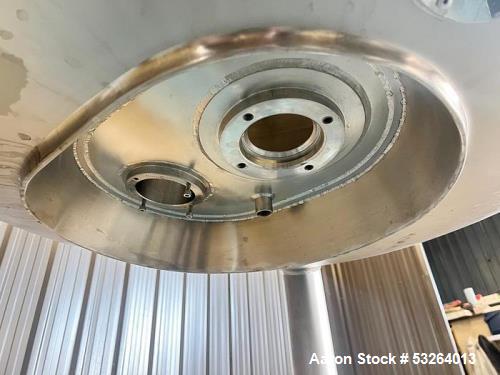

• Agitator: Bottom-mount (motor required)

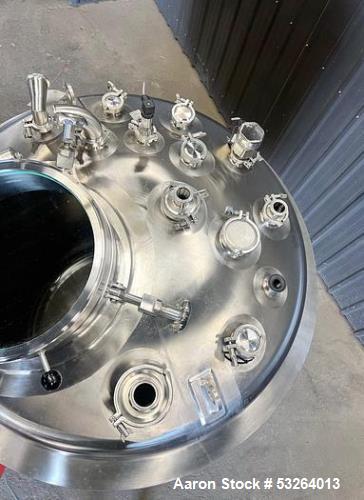

• Top Inlets:
  • (1) 4''
  • (2) 3''
  • (5) 2''
  • (4) 1.5''

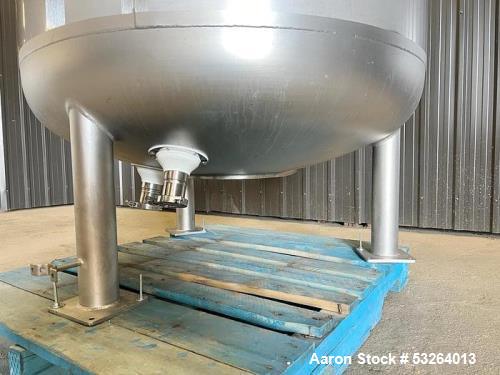

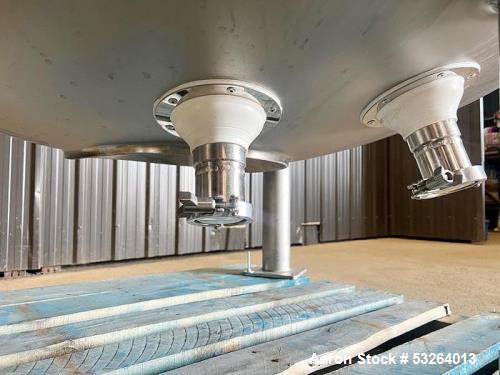

• Center Discharge: 3''
• Dish Top & Bottom: Yes
• Additional Features:

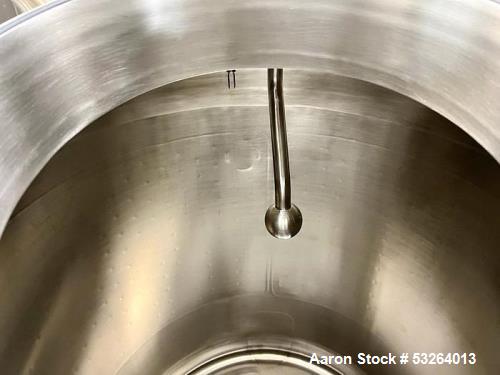

  • Top CIP Spray Ball
  • Temperature Probe
  • Three Stainless Steel Legs with Pads & Lifting Lugs

Applications

This jacketed tank reactor is ideal for use in:

• Pharmaceutical Processing – Mixing, reacting, and heating of ingredients.
• Chemical Manufacturing – Batch processing and chemical reaction control.
• Food & Beverage Production – Sanitary mixing and storage of liquids.
• Cosmetic & Personal Care – Lotion, cream, and gel formulation.
• Biotech & Lab Applications – Controlled reaction environments.

Compatible Products

This stainless steel jacketed tank can be used with:

• Pharmaceutical and biotech processing systems
• Chemical reaction and mixing processes
• Food-grade liquid and paste processing
• Cosmetic and skincare formulation equipment
• Vacuum and pressure applications
