Stock No.: 11690031
Used Tetra Pak (Scanima) STM-1250V Aseptic Mixing Reactor | 1,500L High Shear Vacuum Vessel

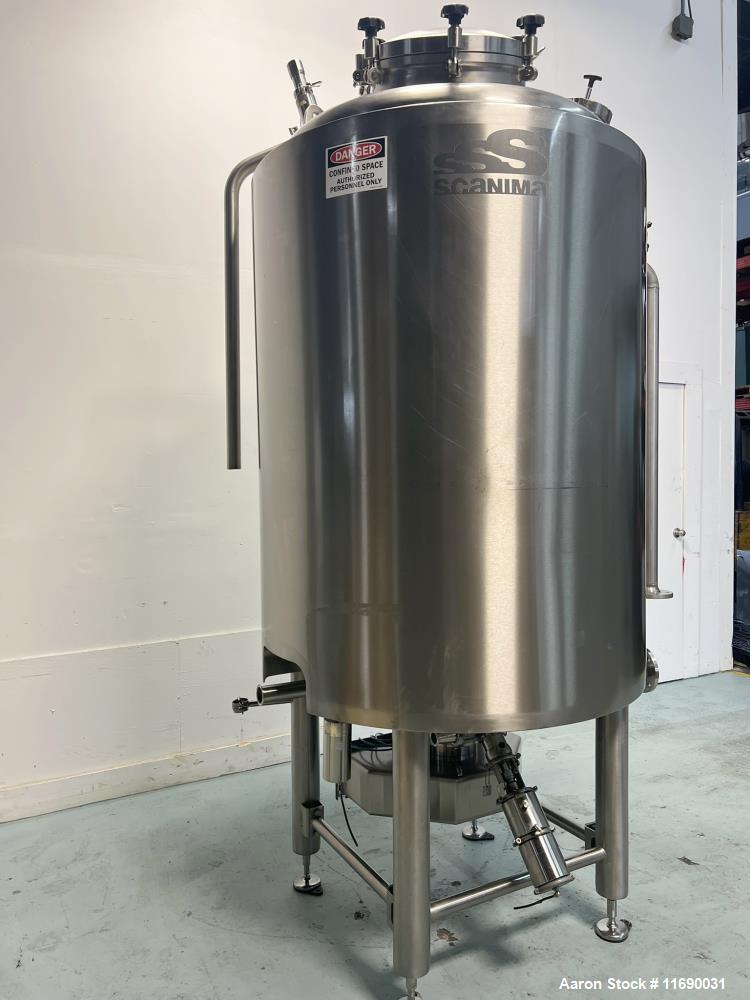

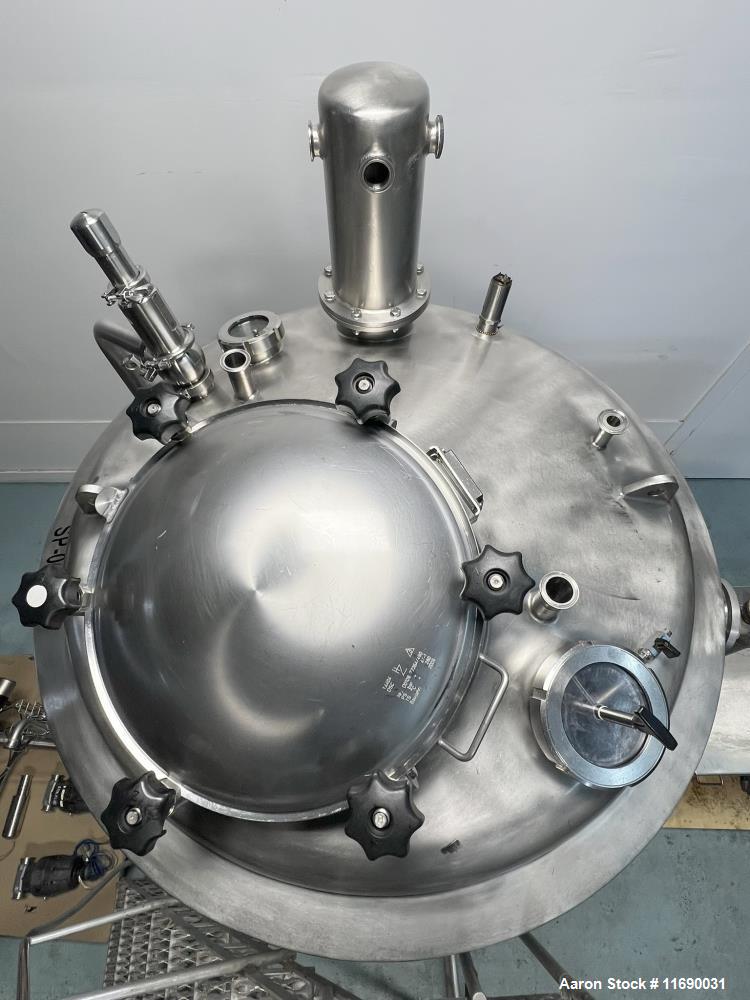

Used- Tetrapak (Scanima) 1,500 Liters (396 Gallon) 316 Stainless Steel Vacuum and Pressure Jacketed Aseptic High Shear Mixing Reactor, Model STM-1250V. The vessel is rated full vacuum /45 PSI internal pressure, and is jacketed for 75 PSI maximum pressure, maximum jacket temperature is 150 Degrees C. Bottom entering high shear agitator driven by a 50 HP (3/60/460V) motor. Includes a 2" Pneumatic discharge valve and 2" recirculation valve. Includes a control panel with VFD, a pneumatic panel and an operator PC station. Built 2009.
-
ManufacturerTetraPak
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
Used equipment facts about this machine
Manufacturer Information
Manufacturer: Tetra Pak (Scanima)
Model: STM-1250V
Equipment Type: Aseptic High Shear Mixing Reactor
Capacity: 1,500 Liters (396 Gallons)
Material: 316 Stainless Steel
Condition: Used
Year Built: 2009
Description
Used Tetra Pak (Scanima) STM-1250V aseptic high shear mixing reactor designed for precision blending, emulsification, and thermal processing in sanitary environments. Constructed from 316 stainless steel, this vessel is ideal for food, dairy, pharmaceutical, and cosmetic applications requiring strict hygiene standards.
The reactor is rated for full vacuum and up to 45 PSI internal pressure, with a jacket rated to 75 PSI and maximum temperature of 150°C, enabling efficient heating and cooling. The system features a powerful bottom-entering high shear agitator driven by a 50 HP motor, delivering excellent mixing performance and product consistency.
This unit includes a 2” pneumatic discharge valve and 2” recirculation valve for process flexibility. The system is complete with a control panel featuring VFD, pneumatic panel, and operator PC station, making it a fully integrated solution for automated processing.
Specifications
- Manufacturer: Tetra Pak (Scanima)
- Model: STM-1250V
- Capacity: 1,500 liters (396 gallons)
- Type: Aseptic high shear mixing reactor
- Material: 316 stainless steel
Pressure & Temperature Ratings
- Internal: Full vacuum / 45 PSI
- Jacket: 75 PSI
- Max Jacket Temperature: 150°C
Agitation System

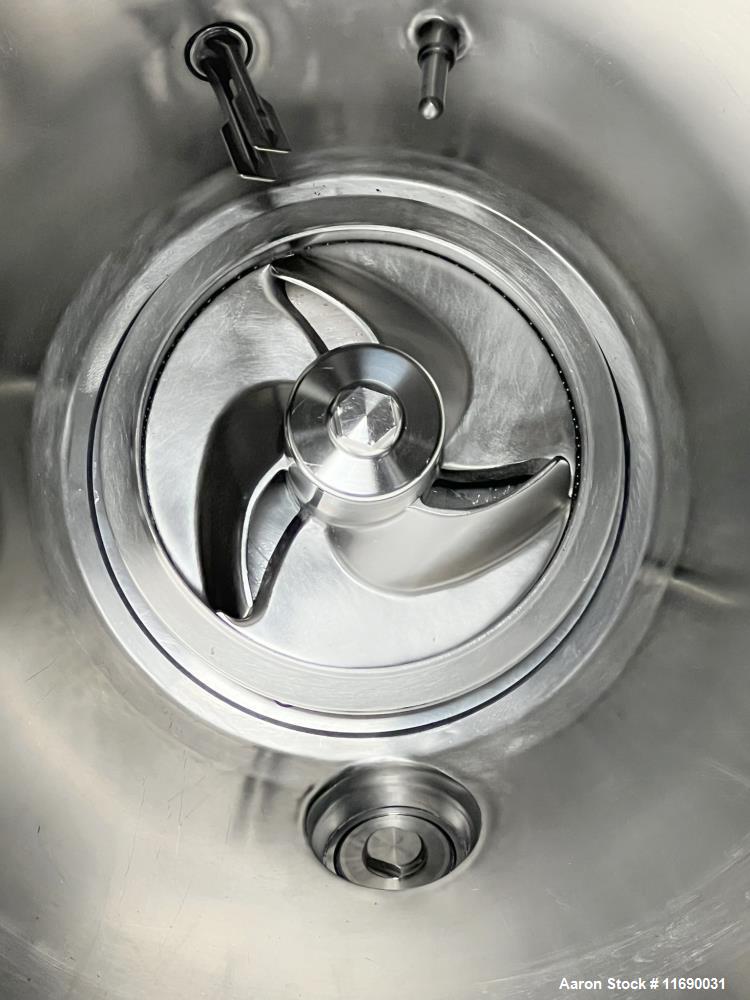

- Bottom-entering high shear mixer

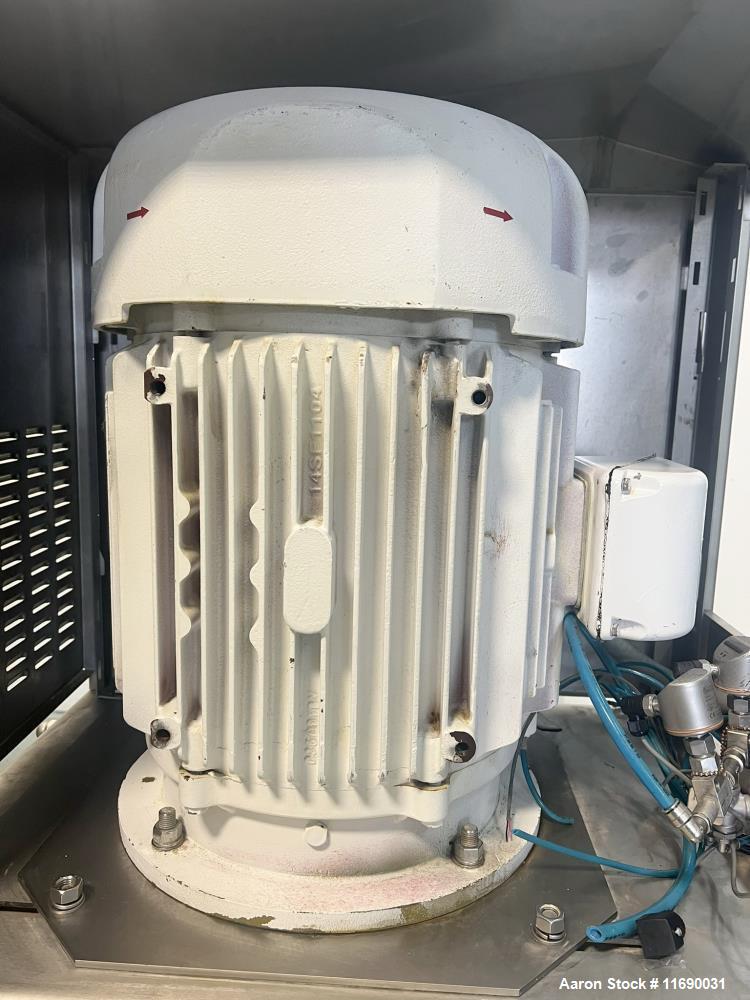

- Motor: 50 HP
- Electrical: 3 Phase / 60 Hz / 460V
Features

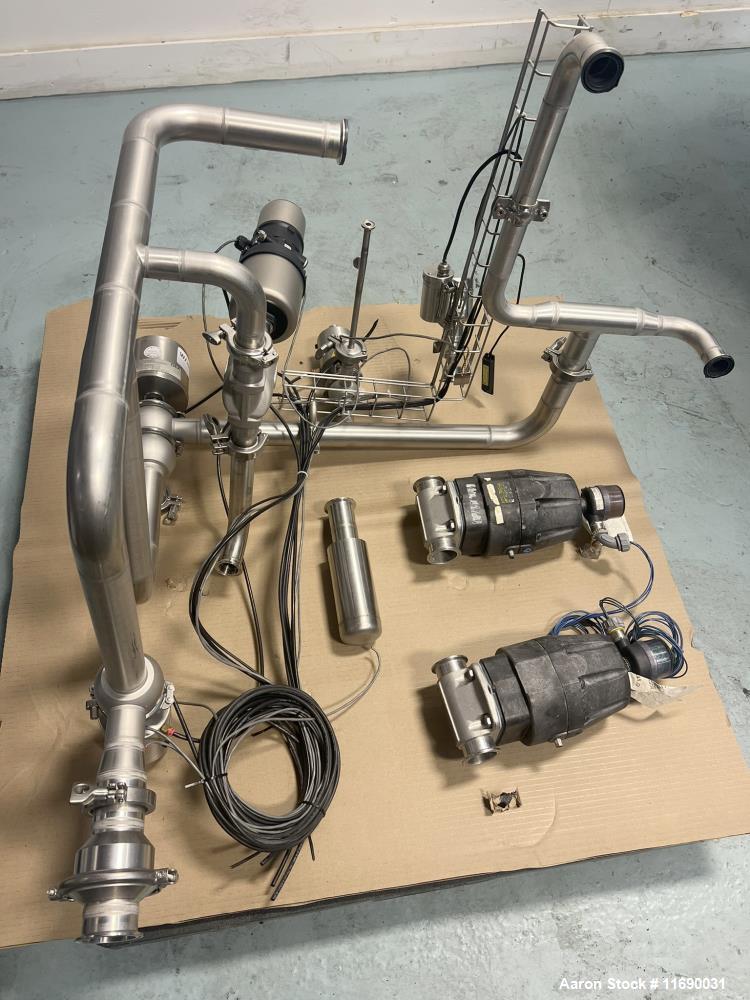

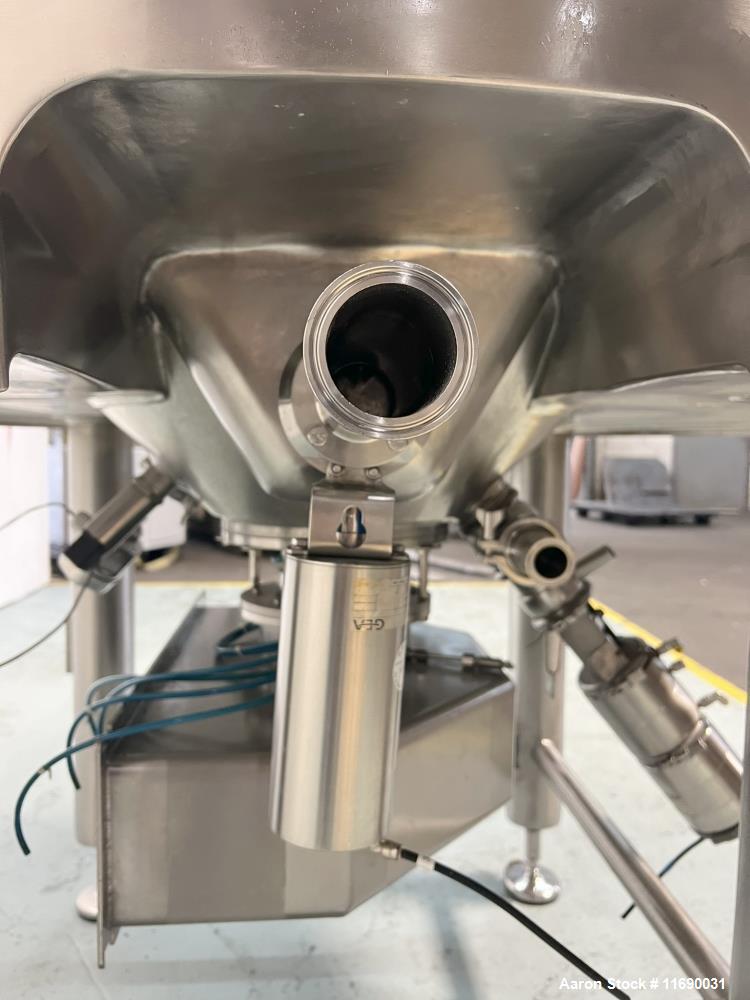

- 2” pneumatic discharge valve
- 2” recirculation valve
- Control panel with VFD
- Pneumatic control panel
- Operator PC station
- Year Built: 2009
Applications
Ideal for aseptic processing, emulsification, and high shear mixing in regulated industries.
