Stock No.: 47719003

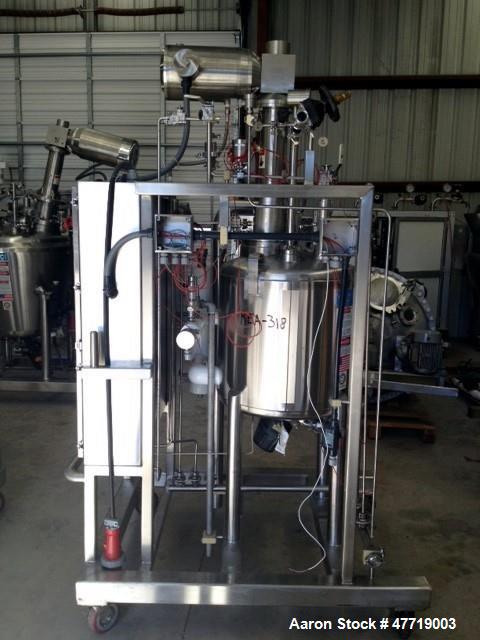

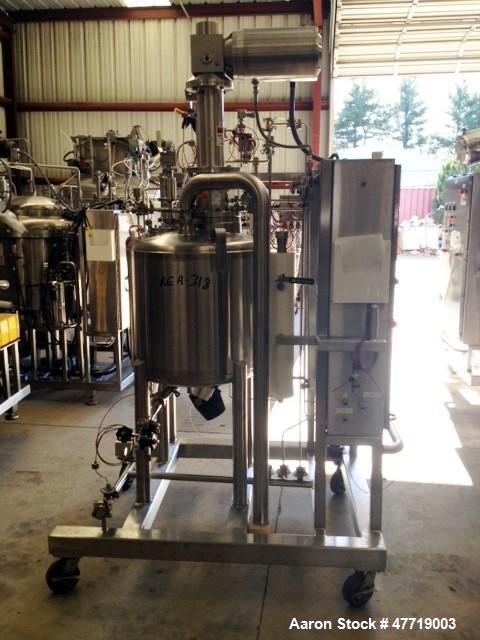

Used DCI 100-Liter Reactor – 316L Stainless Steel, 10HP Admix Rotosolver, Jacketed

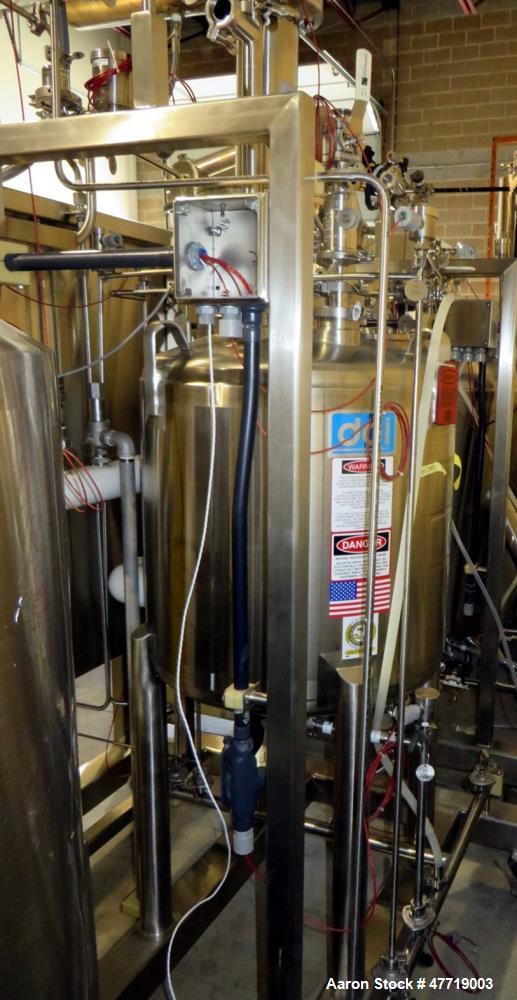

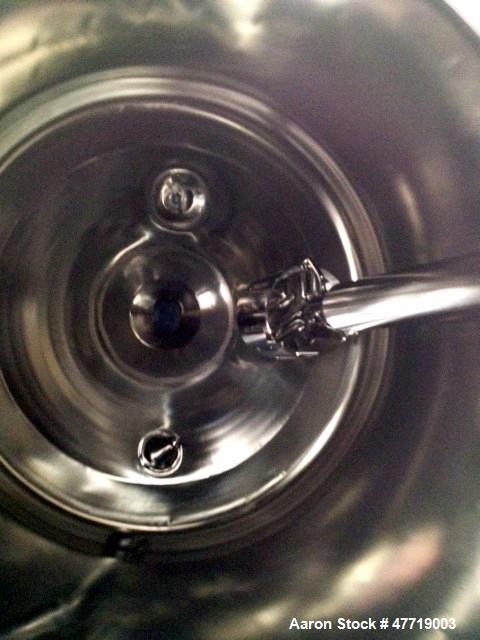

Used- DCI Reactor, 100 Liter (26.4 Gallon), 316L Stainless Steel, Vertical. 22" Diameter x 20-1/2" straight side, dished top and bottom. Electro polished internal rated 125/-15 psi at -20 to 70 degrees F. 304 Stainless Steel dimple jacket rated 135/-15 psi at -20 to 358 degrees F. Insulated with 2" chloride free ceramic fiber and 304 stainless steel sheathing. Off center top entering Admix Rotosolver, Model 132RS101SS, Serial # 18792-3. Driven by a 10 hp, 3/60/208-230/460 volt, 3450 rpm motor. Openings top 1-1/2" tri-clamp, (3) 3" tri-clamp, 4", 6" drive. 2" Tri-clamp center bottom outlet. Mounted on 4 stainless steel legs on a stainless steel frame. Serial # JS2696. National Board # 5740. Built 2004.
-
ManufacturerDCI
-
Serial #JS2696
-
CategoryReactors
-
SubcategoryStainless Steel 0-499 Gallon
-
Gallons26.4
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter22"
-
Straight Side20-1/2"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure125/-15
-
Internal Temperature-20 to 70 degrees F
-
Pressure Jacket135/-15
-
Temperature Jacket-20 to 358 degrees F
-

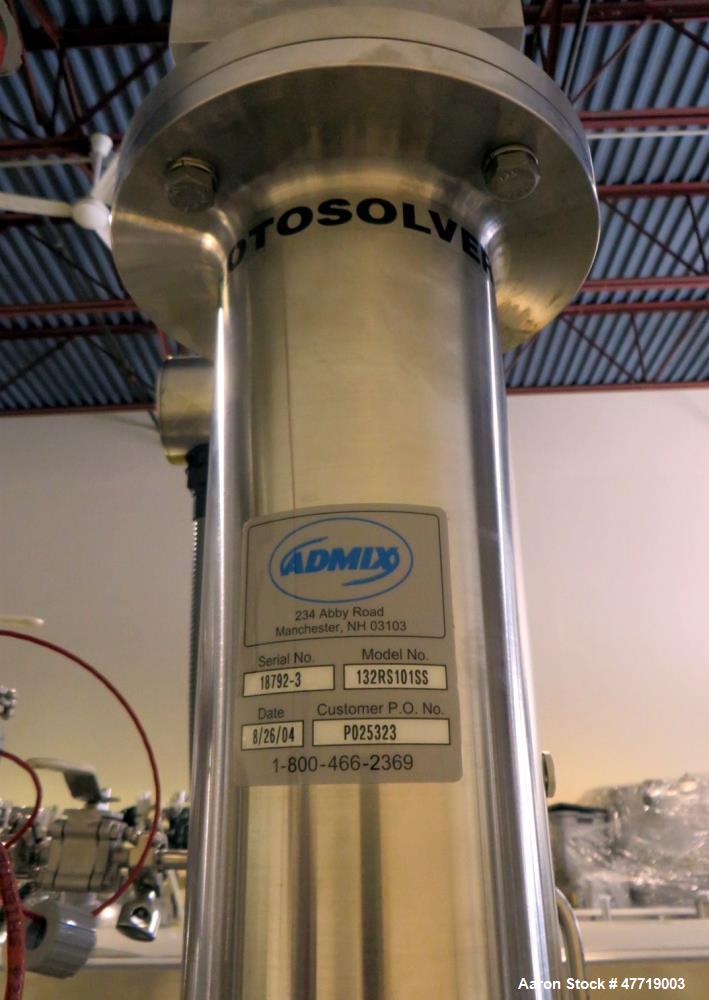

Agitator ManufacturerAdmix Rotosolver
-
Agitator Model13RS101SS
-
Agitator Serial No.18792-3
-
Agitator Hp10
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm3450
-
Opening1-1/2" tri-clamp, (3) 3" tri-clamp, 4", 6" drive
-
Opening CoverYes
-

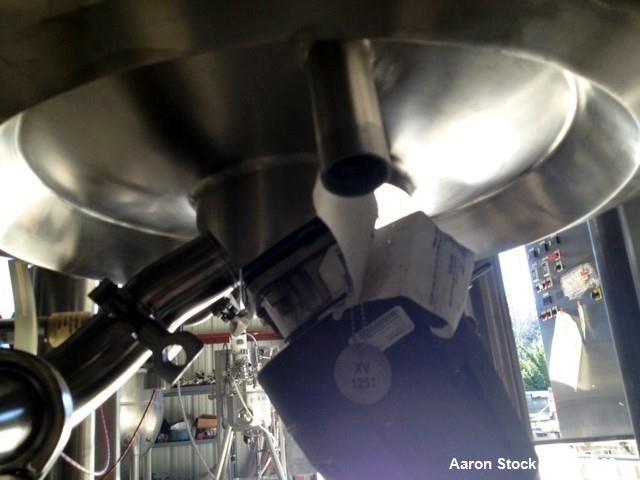

Outlet Size2"
-
Outlet LocationBottom
-
MountedFrame Mounted
-
Overall Dimensions60" x 48" x 102-1/2"
-

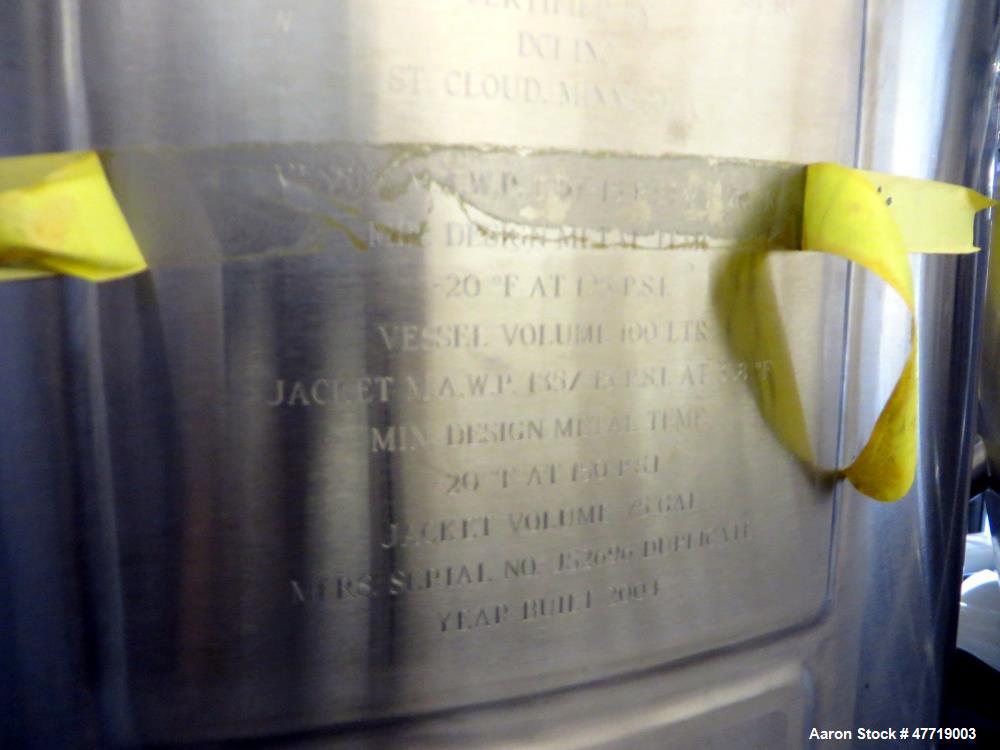

National Board No.5740
-
Year Built2004
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Brand: DCI
- Type: Reactor
- Capacity: 100 Liters (26.4 Gallons)
- Material: 316L Stainless Steel (Vessel), 304 Stainless Steel (Dimple Jacket & Sheathing)
- Serial #: JS2696
- National Board #: 5740
- Year Built: 2004
Description:
This used DCI 100-liter vertical reactor is a high-performance processing vessel, designed for precise temperature control and mixing in pharmaceutical, chemical, food, and cosmetic industries.
Constructed from 316L stainless steel, the electropolished interior ensures corrosion resistance and high-purity processing. The 304 stainless steel dimple jacket, rated 135/-15 psi at -20 to 358°F, provides efficient heating and cooling, while the 2” chloride-free ceramic fiber insulation with 304 stainless steel sheathing enhances thermal efficiency.

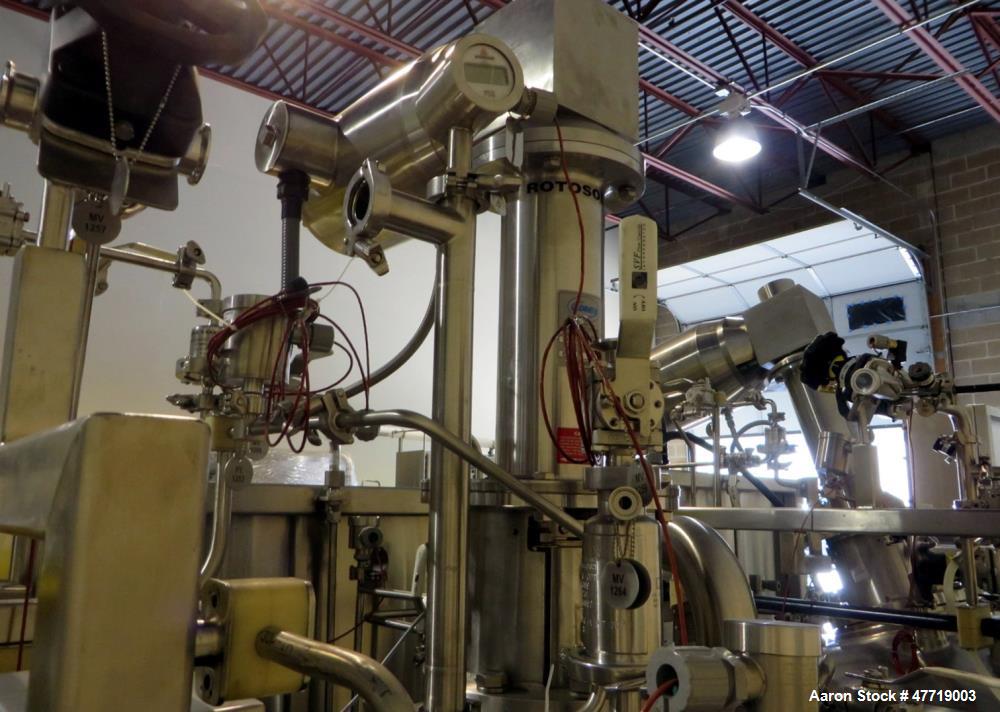

This reactor features an off-center top entering Admix Rotosolver Model 132RS101SS high-shear mixer, powered by a 10HP, 3/60/208-230/460V, 3450 RPM motor, ensuring thorough mixing and dispersion.
Equipped with multiple process connections, including tri-clamp ports and a 2” tri-clamp center bottom outlet, this reactor is mounted on a sturdy stainless steel frame with four legs for enhanced stability.
Key Features:
- 100-Liter (26.4 Gallon) Capacity, 316L Stainless Steel Vessel
- Electropolished Internal Surface for High-Purity Processing
- 304 Stainless Steel Dimple Jacket (135/-15 psi, -20 to 358°F) for Heating & Cooling
- 2” Chloride-Free Ceramic Fiber Insulation with 304 Stainless Steel Sheathing
- Admix Rotosolver Model 132RS101SS High-Shear Mixer
- 10HP, 3/60/208-230/460V, 3450 RPM Motor
- Off-Center Top Entry Mixing for Efficient Shear & Dispersion
- Multiple Process Openings for Flexible Operation
- (1) 1.5” Tri-Clamp Port
- (3) 3” Tri-Clamp Ports
- (1) 4” Port
- (1) 6” Drive Port
- (1) 2” Tri-Clamp Center Bottom Outlet
- Mounted on a Stainless Steel Frame with 4 Stainless Steel Legs
- Serial #: JS2696 | National Board #: 5740 | Built 2004
Specifications:
- Material: 316L Stainless Steel (Vessel), 304 Stainless Steel (Jacket & Sheathing)
- Capacity: 100 Liters (26.4 Gallons)
- Orientation: Vertical
- Dimensions: 22” Diameter x 20.5” Straight Side
- Head & Bottom: Dished Top & Bottom
- Internal Pressure Rating: 125/-15 psi at -20 to 70°F
- Jacket Pressure Rating: 135/-15 psi at -20 to 358°F
- Insulation: 2” Chloride-Free Ceramic Fiber with 304 Stainless Steel Sheathing
- Mixer: Admix Rotosolver Model 132RS101SS
- Motor: 10HP, 3/60/208-230/460V, 3450 RPM
- Mounting: 4 Stainless Steel Legs on a Stainless Steel Frame
- Serial #: JS2696
- National Board #: 5740
- Year Built: 2004
Applications:
- Pharmaceutical Processing – High-shear mixing for active ingredients and formulations
- Chemical Reactions & Blending – Controlled environment for specialty chemical production
- Food & Beverage Processing – Batch mixing, emulsification, and dispersion
- Cosmetic & Personal Care – Cream, lotion, and gel formulation
- Biotech & Research Applications – High-purity batch reactions and ingredient dispersion
What Products Would This Be Used For?
- Pharmaceutical liquid formulations and suspensions
- High-shear chemical blending and emulsification
- Food-grade ingredient mixing and reaction processing
- Cosmetic creams, lotions, and emulsions
- Industrial and specialty chemical processing
Product Details
- DCI reactor
- Used stainless steel reactor
- High-shear mixing reactor
- Jacketed mixing vessel
- Industrial batch reactor
- DCI reactor
- Used stainless steel reactor
- High-shear mixing reactor
- Jacketed mixing vessel
- Industrial batch reactor
- Used DCI 100-liter stainless steel reactor with high-shear mixer
- Pharmaceutical-grade reactor with electropolished interior
- 316L stainless steel reactor with jacketed heating and cooling system
- Industrial mixing vessel with 10HP Admix Rotosolver
- Jacketed batch reactor for food, chemical, and cosmetic processing
- Used DCI 100-liter stainless steel reactor with dimple jacket, high-shear mixer, and thermal insulation
- Industrial-grade vertical batch reactor with 10HP motor and electropolished interior for pharmaceutical applications
- Food and cosmetic processing reactor with off-center Admix Rotosolver and multiple tri-clamp connections
- High-shear emulsification and blending reactor with 2” bottom outlet and 304 stainless steel sheathing
- Used stainless steel reactor with integrated heating, cooling, and mixing system for precise material processing
