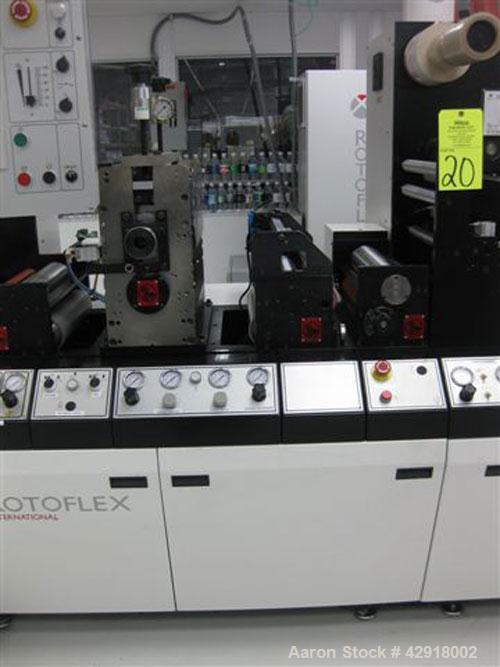

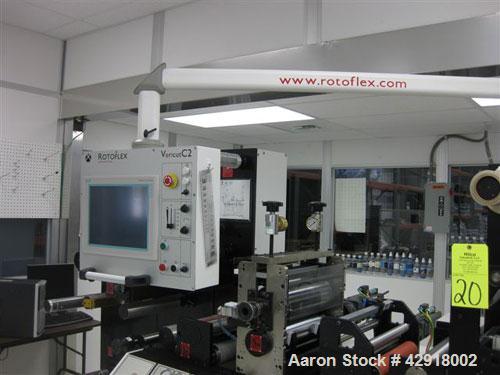

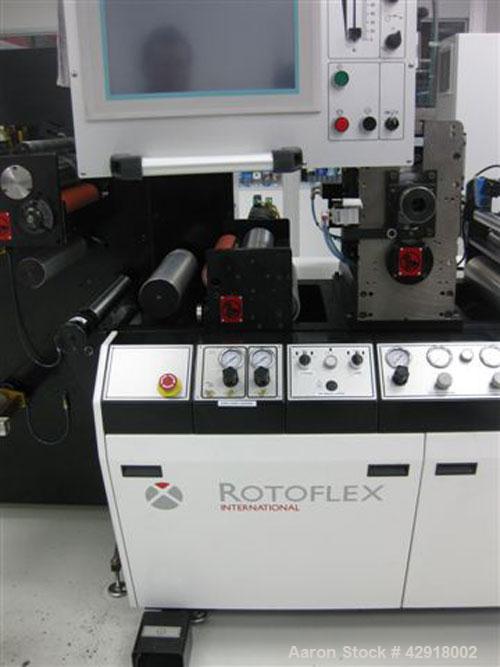

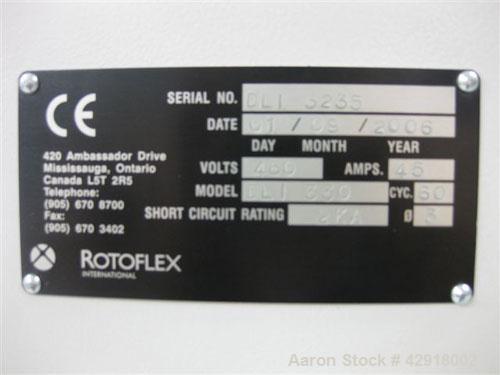

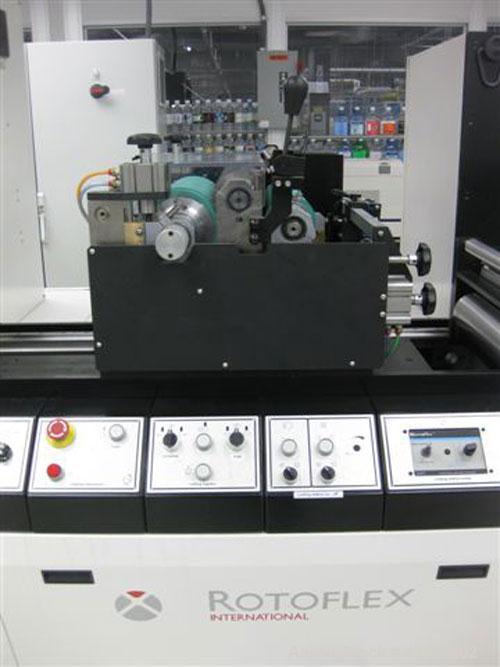

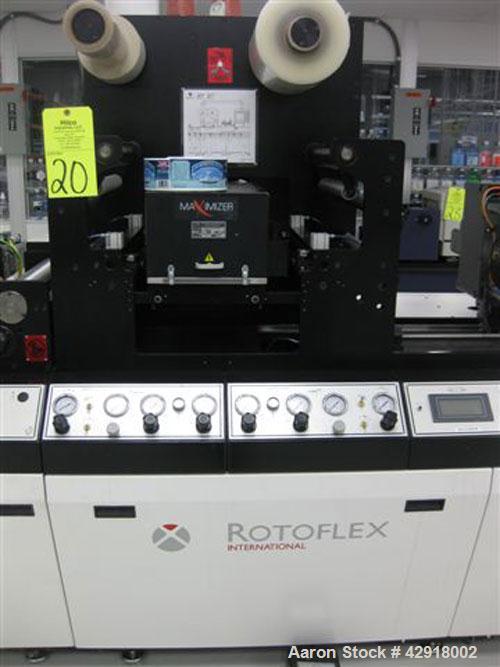

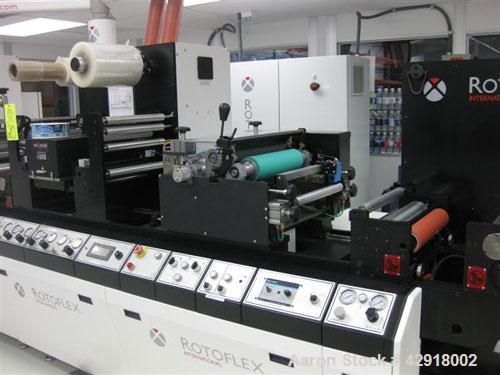

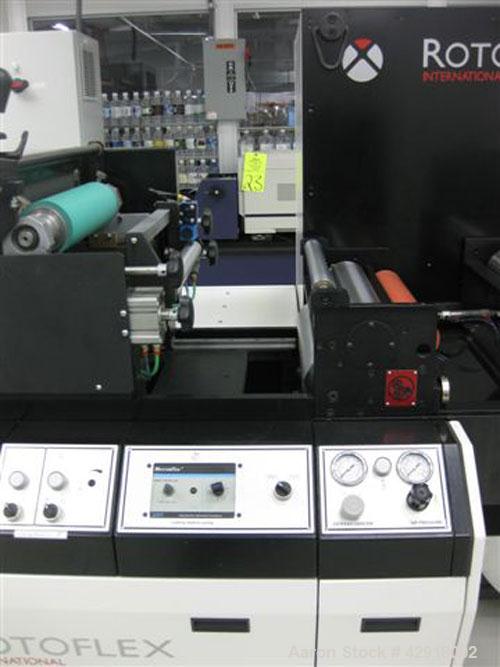

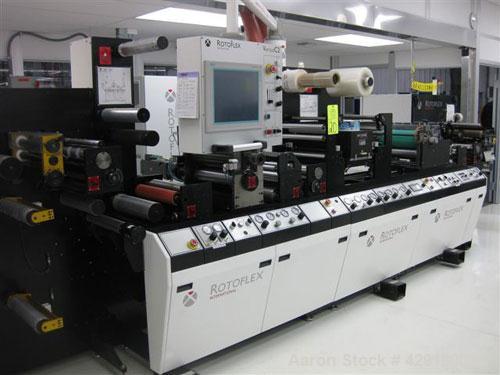

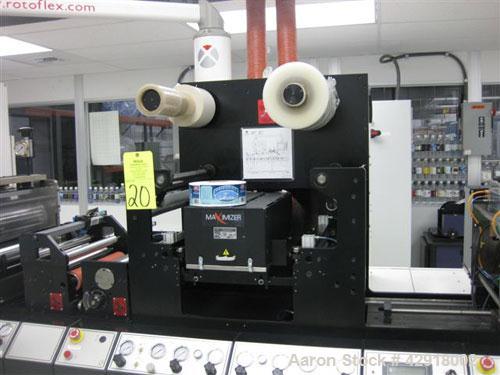

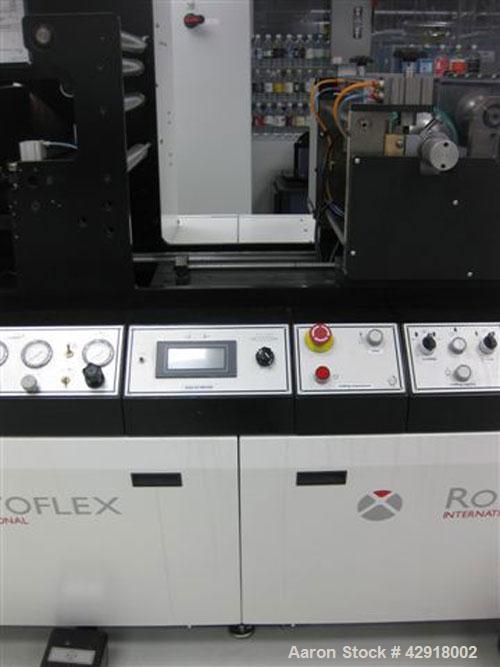

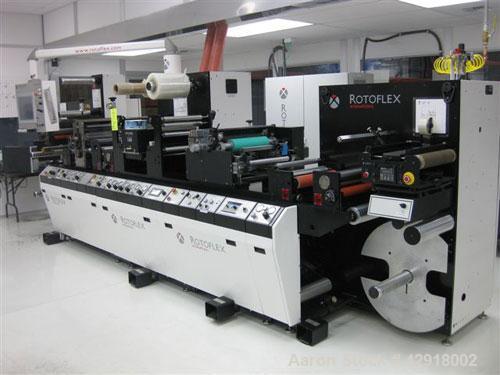

Used Rotoflex DLI 330 die cutting and laminating line with Vericut C2 die cutter. Maximum web width: 13" (330MM) Minimum Web width: 8" or 200mm. One 3" (76mm) pneumatic core type unwind, one 3" (76mm) pneumatic core type rewind. Servo driven draw stations (pneumatically controlled nip roller). User friendly interface screen panel (includes paramater set up, alarms, web speed display, tension): Automatic registration c/w continuous correction. Easy load die station (15" repat fixed anvil c/w wipers and stripping idler). Auto positioning (reduces waste during set up). Auto learn feature dynamically compensates for web print variables. Maximum matrix rewind roll diameter of 27" or 686mm (includes manuual tension adjustment on rewind and capstan roller. Max machine speed in variable repeat mode 165/ft per min (50m/min). Maximum machine speed in constant repeat mode 300 ft/min (91m/min). Has 19" repeat magnetic die cylinder included. Min flexible die repeat of 8", Max 17" in variable repeat mode). Min die repeat of 8", Max 19" (Contstant repeat mode). Die cutting accuracies of +/- 0.15mm (.006") depending on print quality.3/60/460V 45 amps. CE Certified Mfg in 2006.
