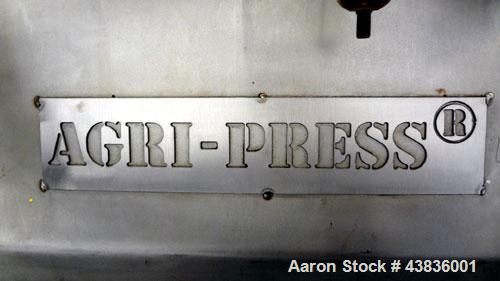

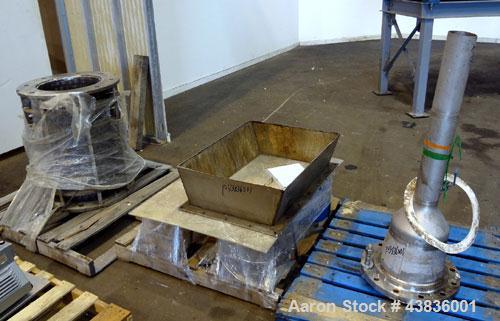

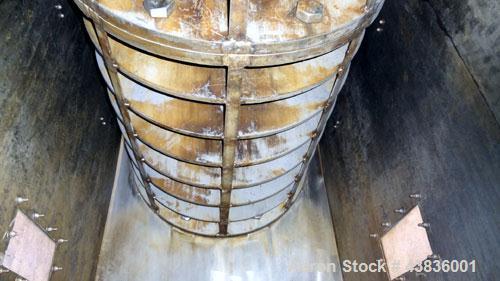

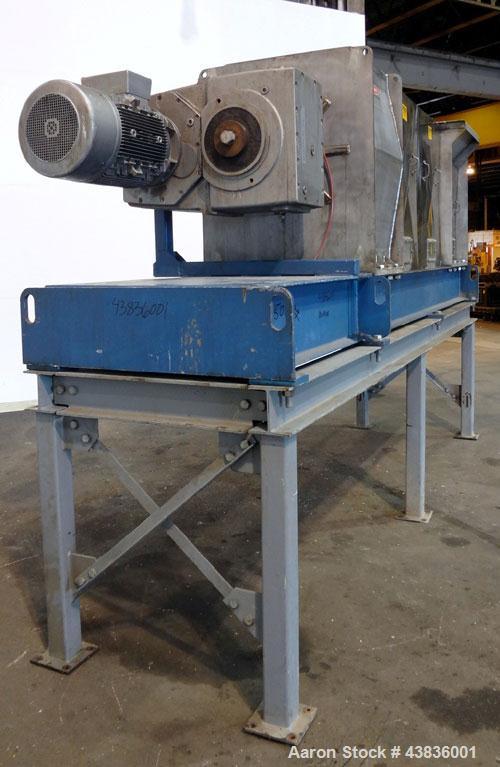

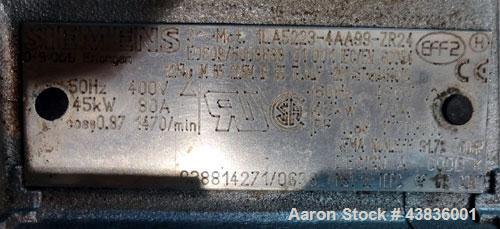

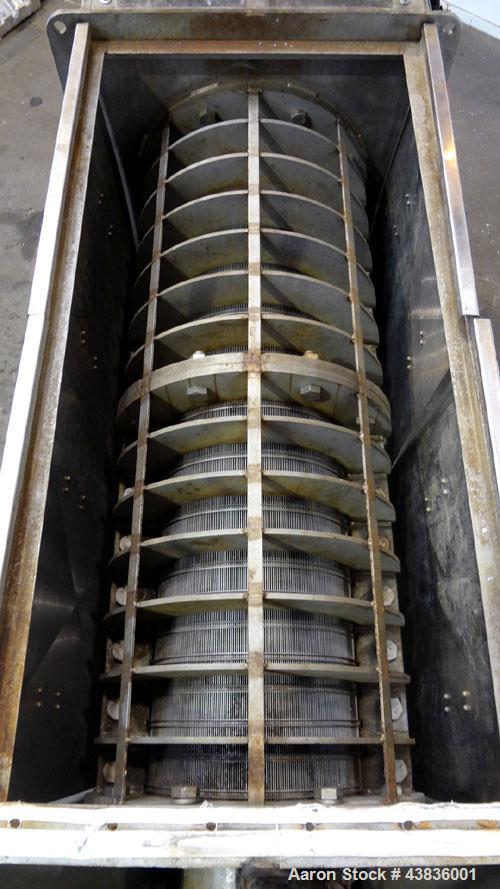

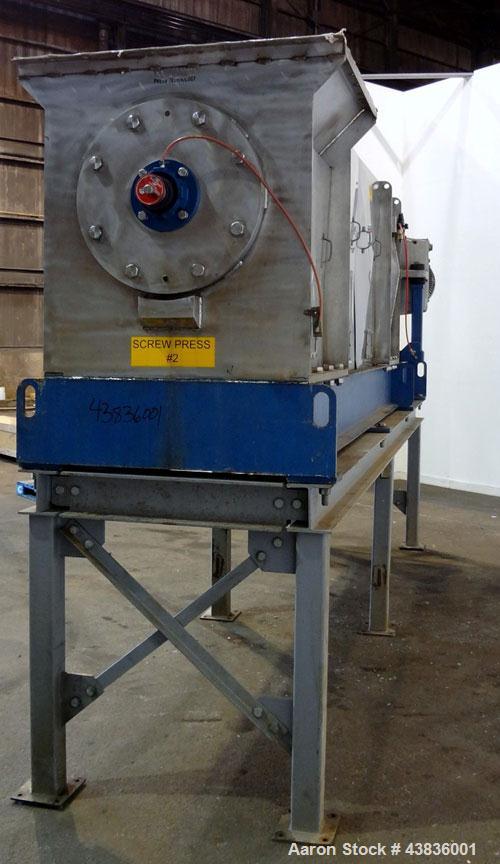

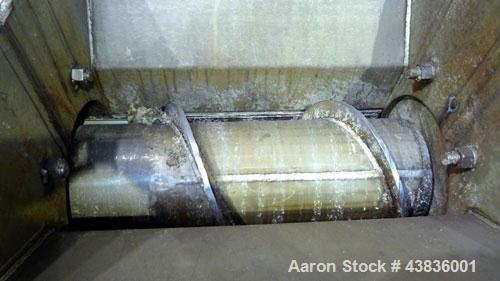

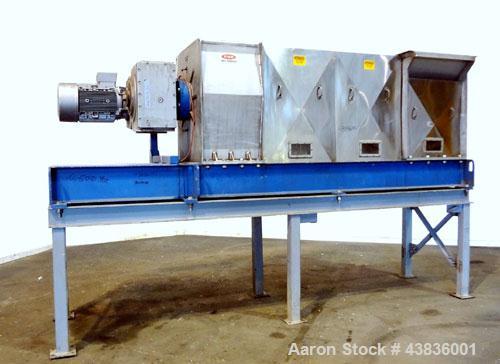

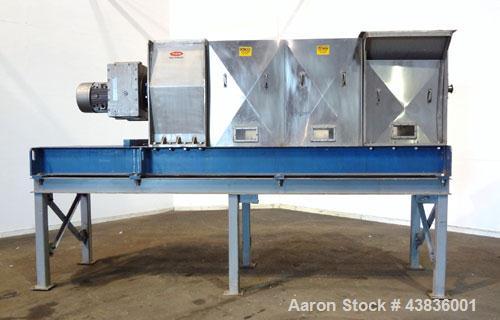

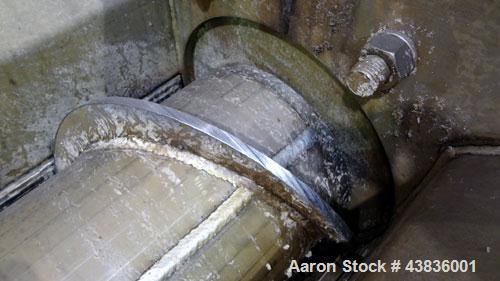

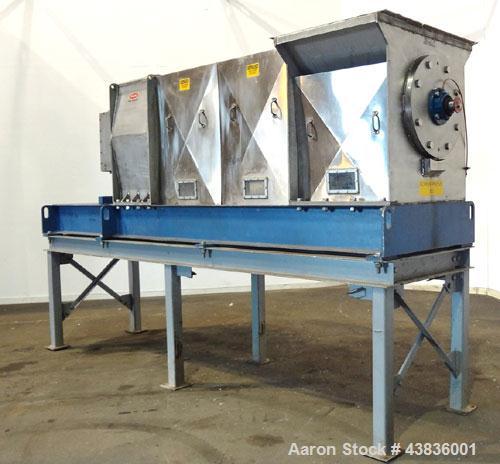

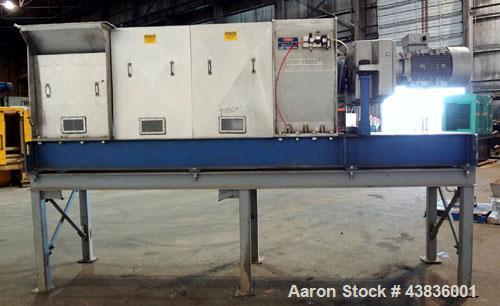

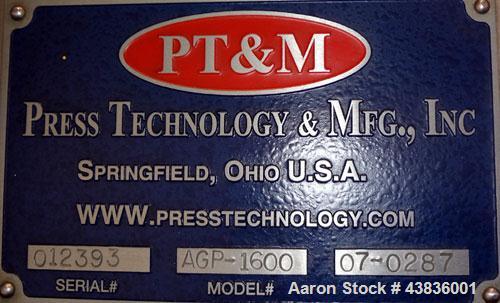

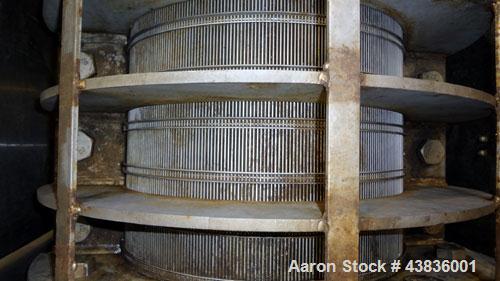

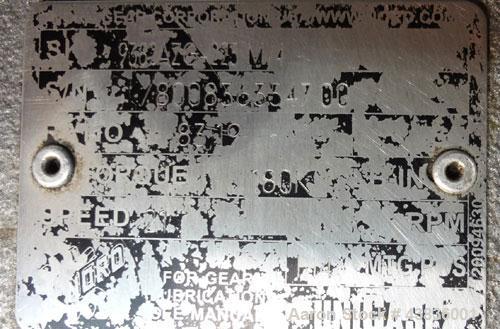

Used Press Technology & Manufacturing (PT&M) Style AGP Agri-Press, Model AGP-1600, 304 Stainless Steel. Approximate capacity is around 40 to 60 TPD depending on the moisture percentage of the inlet material. 6" Diameter x 142" long tapered screw shaft with a gradual constant and reducing flight pitch, compression ratio is 2 to 1. Split cone assembly, (1) 30" long cage assembly with replaceable inner wedge wire screen, approximate 0.008 slot openings, (1) 32" long cage assembly with replaceable inner wedge wire screen, approximate 0.010 slot openings, removable screen covers. (1) Bottom filtrate pan with a 12" outlet, end top feed with chute, end bottom discharge. Driven by a 45 kw (60 hp), 3/60/460 volt, 1770 rpm motor thru a reducer, ratio 83.19 to 1. Mounted on a 48" tall carbon steel frame.
