Used-Handle Double Screw Press, type EDR 21-A. Material of construction is stainless steel. Screw diameter 8.2" (210 mm) dia...

Stock# 10147082

DOWNLOAD ALL PHOTOS FOR THIS ITEM

Stock # 10147082

ITEM SOLD!

View All 10 available items

or

HAVE A SIMILAR MACHINE FOR SALE?

DESCRIPTION

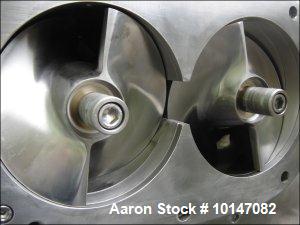

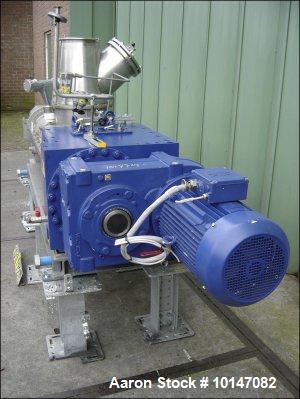

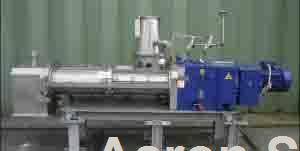

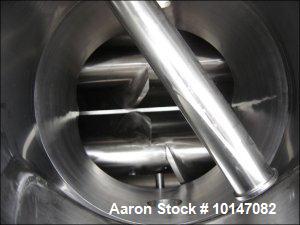

Used-Handle Double Screw Press, type EDR 21-A. Material of construction is stainless steel. Screw diameter 8.2" (210 mm) diameter x 54.6" (1400 mm) straight side. Jacketed 90 psi (6 bar). Screw speed 43 rpm via a gearbox by a 33 hp/22 kW, 400/690 volt-50 cycle-3 ph motor. Product inlet 9.6" (245 mm) diameter. On 6 legs. Overall dimensions: 11.7" x 2'9" x 4'3" (3600 mm x 900 mm x 1300 mm high).

DESCRIPTION

Used-Handle Double Screw Press, type EDR 21-A. Material of construction is stainless steel. Screw diameter 8.2" (210 mm) diameter x 54.6" (1400 mm) straight side. Jacketed 90 psi (6 bar). Screw speed 43 rpm via a gearbox by a 33 hp/22 kW, 400/690 volt-50 cycle-3 ph motor. Product inlet 9.6" (245 mm) diameter. On 6 legs. Overall dimensions: 11.7" x 2'9" x 4'3" (3600 mm x 900 mm x 1300 mm high).
