Used Plastics Dual Rotor and Single Rotor Shredders

Stock# 42275045

Used- Morando Dual Shaft Shredder, Model T15-150B. 1.500x1.000 mm shredding block, 4-hook and 1-hook knives, 55 mm thick, (2) epicyclic gearboxes, (2) oleodynamic motors 1x75 kw + 37 kw, (2) Bosch rexroth pumps, hydraulic power station with 4m piping, approximately 10 kg. Reported to be reconditioned with new feeding hopper, shredding chamber, pumps and electric cabinet.

Stock# 50524001

Used- Mercador GmbH Shredder, Model ZM54. Cutting device (mm):1100 x 750 mm. 1100mm (43.3") x 750mm (29.5"). Approximate (21) 1.87" wide knives. Capacity/h:1000 - 2000 kg. Mechanically driven by a 30 hp, 3/60/460 volt motor. Weight (kg): 6000 kg. Application: Large-volume industrial waste - sheet metal and plastic drums up to 200 L, Cardboard, paper and pallets. Car tires, production waste. Serial # 14. Built 2000.

Stock# 50999001

Used-Avian Single Shaft Shredder; Model ASG 1500; 64" x 59" Hopper Opening; 81-162 cubic ft volume; 20" Rotor diameter; 84 rotor knives; 1/2 - 3 1/2" screen; 75/90/110 HP Motor; 5 HP hydraulic; 110" L x 103" W x 121" L; 70-120 rpm; Approximately 11,000 lbs

Stock# 51047012

Used- Tornado 36" Pulpler. Standard 9-vane rotor/stator set. Stainless Steel Construction. Includes TP tank, set of sheaves and belts. 350 hp 575-volt motor and starter. Includes belt guard. 3" diameter LT near bottom, 4" drain, with sloped bottom towards drain and mixing rotor. Also an approximately 30" square manway with fastening lugs. 17-4PH.

Stock# 50588001

Used- Zhengzhou Huahong Double Shaft Shredder. Crushing Chamber 400mm x 400mm. Out put 0.3-1.5t/h. Revolving Speed 30r/min. Output size 10-50mm. 11kw. Overall size 1600mm x 1200mm x 1500mm. Approximately 800 kg.

Stock# 409332

Used- Dual Rotor Shredder. Feed opening and hopper. (21) Knives 1-1/4"W x 6"dia. Driven by 15 hp, 3/60/230/460 volt, 1740 rpm gear motor, ratio 19.57 to 1. 33"w x 35"L x 35"T hopper. Mounted on a painted carbon steel frame.

Stock# 40646021

Unused- JWC Environmental Industrial Dry Grinder, Model 7-Shred-3000. Specifically designed for critical size reduction applications in a wide variety of industries. 2-shafted shredding system delivers slow speed and high torque to precondition, shred, or delump a wide range of materials. Cutters and Spacers. Hardened alloy steel Shafts. Hardened hexagonal steelGrinder Body. Cast ductile iron Hoppers and Stands. Stainless steel or alloy steel Motor & Gear Reducer 30 hp / 87:1, 60 hp / 59:1, 100 hp / 29:1. Controls PLC with Touchscreen Operator Interface, NEMA 4X Enclosure Overload Protection. Anti-jam logic and high current transducer.

Stock# 48826001

Used- Zeno Low Noise Grinder, Model ZTLL 1200 x 1600, Carbon Steel. Feed opening 47" (1200mm) wide x 68" (1600mm) long. Approximate 15" (380mm) rotor flight circle with 22 cutting inserts. Rotor driven by a rated 34.5 kW (46 hp), 3/60/480 volt, 1760 rpm motor. Serial # 10A-5894. Built 2011.

Stock# 48691001

Used- Vecoplan VAZ 1300 M KN Single Rotor Shredder. Capacity of 1.5 tonnes per hr. 14.4" (370 mm) diameter x 50.7" (1300 mm) straight side rotor with 132 rpm speed by a 67.50 hp/45Kw-415volt/50 cycle/3 Ph motor. 37 cutting rows with 1.56" (40 mm) x (1.56") 40 mm teeth. 56.6" (1450 mm) x 50.9" (1305 mm) product inlet. Including hopper: (1) Inclined belt conveyer and control panel. New 2008. Less than 300 hours in operation.

Stock# 50187001

Used- Vecoplan Single Shaft Rotary Grinder, Model RG 52/100SWU Short, Carbon Steel. Approximately 15" diameter x 51-9/64" wide rotor with bolt-on cutting inserts. Approximate 52" x 48" feed opening, no hopper. Horizontal hydraulic feed ram with a 3.3 kw (4.4hp) power pack. End discharge with 3" diameter screen holes. Shredder driven by a 67.11 kw (89 hp), 3/60/460 volt, 1784 rpm motor thru a Flender reducer. Includes a control panel with a Vecoplan operator panel Model XBTF034510, Serial # 7268, Allen-Bradley Micrologix 1200. Approximate 18,000 pounds per hour throughput. Shredder Serial # 8325010. Built 2005.

Stock# 43742002

Used- Eidal Dual Rotor Shredder. Approximately 25" x 52" feed, approximately 2" thick blades. Driven by a 100 hp AC motor. Includes an operator panel and motor starter.

Stock# 50189001

Used- ENMA Shredder; Model EBS 1200; 90 KW motor; 150 rotor knives; high speed; energy efficient; designed for film shredding before extrusion to repro pellets.

Stock# 90261

Used- Zeno Single Roll Shredder, Type ZTLL 2000 x 1900. Material of construction is carbon steel. 27.7" diameter x 78" straight side (710 mm x 2000 mm) roll with hydraulic ram feed. 54 interchangeable knives. 5.46" diameter (140 mm) bottom screen. Maximum roll speed 120 rpm via an SEW 135 hp/90 kW, type MC2PLHT07 gearbox by an Elektron 165 hp/110 kW, 380/420/440/480 volt, 50 cycle, 3 ph belt driven motor. Includes operating hydraulics and hopper. Overall dimensions: 15'6" long x 12'3" wide x 9'1" high (4800 mm x 3700 mm x 2500 mm).

Stock# 45282002

Used- Vecoplan Single-Shaft Rotary Grinder, Model RG62/150 SPKFF, Carbon Steel. Approximately 14.57" diameter x 62.99" wide cored fiber rotor with approximate 74 bolt-on cutting inserts, speed 145 rpm. Feed opening 63" wide x 80" long with a bolt on hopper. Horizontal hydraulic feed ram. End discharge with 2" diameter screen holes. Shredder driven by a 150 hp, 3/60/460 volt, 1784 rpm motor thru a Flender reducer. Approximate up to 25,000 pounds an hour throughput depending on product. Includes a control panel with a Vecoplan Touch screen panel, and a 55" wide x 234" long rubber belt conveyor, driven by a 1.5 hp gear motor. Serial # 7661010. Built 2004.

Stock# 10875014

Used- Conair Shredder 54" x 80", Model 1554. 4" thick wall, planked and cut into 5' or less lengths and also pre-chipped pipe, Thru-put rate is 2000 pounds/hour, 40mm Dagger-Cut Knives, Single Shaft Shredder, 54" Single Piece Solid Forged Rotor, 150 hp Drive 480V/3 phase/60HZ Drive, 15" Diameter Rotor 2 Row of Cutters, Dual Pump High Speed Hydraulic Ram Control, Color touch screen LCD Human Machine Interface(HMI), Allen Bradley MicroLogix 1500 controls. Mfg. 2017.

Stock# 42275047

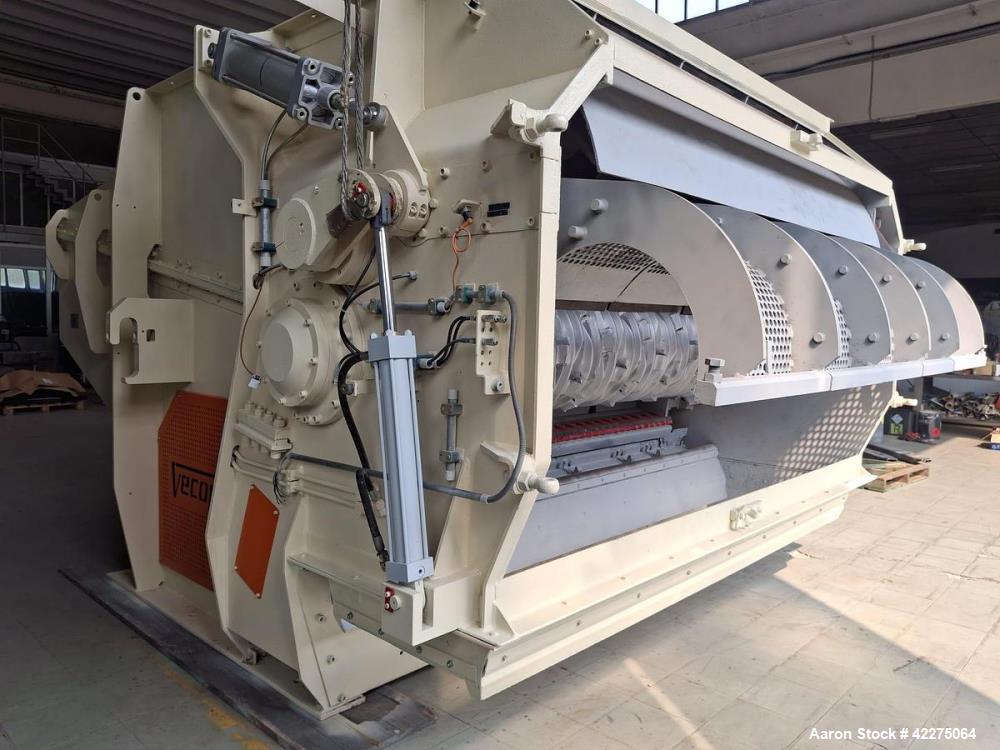

Used- Vecoplan Single Roll Shredder, Model VAZ 200. 78,74" (2.000 mm) wide x 19,68" (500 mm) diameter roll. Maximum 145 rpm roll speed. 62 interchangeable blades size 2,36" x 2,36" (60x60 mm). Driven 165 HP/110 KW-400 volt-50cycle/3phase motor. New gearbox. Hydraulic ram hydraulic power station loading hopper with level sensor fitted with 30 mm hole grid electric cabinet. Overall dimensions: 182" long x 145" width x 93.50" high (4640 mm long x 3690 mm width x 2375 mm). Total weight approximate 16 tonnes. Includes Extraction belt lined in PVC size 27,55" (700 mm) width x 275,5" (7.000 mm.) long. 66,14" (1.680 mm -adjustable) discharging height. Complete with control panel. Reported to be reconditioned.

Stock# 10755128

Used- Lindner Model MS2000-S, Super Micromat Single Shaft Vari-Speed Shredder. 65" x 80" Feed Opening. 22" Diameter x 80" Wide Water Cooled Rotor with (104) Cutters in a Mono-Fix System. 3-Piece Counter Knife, 3-Piece Scraper Knife. 132 Kw Main Motor (175 hp). 150-345 rpm, Vari-Speed Rotor Range. 10.5 Kw Hydraulic Ram (14 hp). 1 hp Water Circulation Pump/Cooler. 460 V Controls with Vari-Speed Drive in Stand Alone Control Cabinet. Siemens OP7 Touch Screen Controls. Built in 2003.

Stock# 50788002

Used- Lindner Single Shaft Shredder, Model Universo 220. Throughput Capacity of up to 15 tons/hr (9 lbs/sec) with Output Granulation of approximately 80 mm. (138) Knives, (4) Screens, 3985 mm x 1600 mm Feed Opening, 3,7 m3 Hopper Space, 2135 mm x 1525 mm Shredding Area, 2115 mm Rotor Length, 740 mm Rotor Periphery, 80 RPM Rotor Speed, 1 x 132 kW Drive Poser, 7,5 kW Hydraulic Pusher System, End Grain Size 20 mm-600 mm. Include Spare Teeth, Spare Ledger and (2) Screens; 1 1/4" and 3". 60/580 Volt. Built 2013. 1100 Repored Hours. 18,000 kg 6000 mm x 2900 mm x 3950 mm. Last used for recycled plastic.

Stock# 49921001

Used- Vecoplan VAZ 160/125 SL Single Rotor Shredder. Capacity of 1.5 tonnes per hour. 24.9" (640 mm) diameter x 48.1" (1235 mm) straight side water cooled rotor. With interchangeable bolt-on cutting inserts. Maximum rotor speed 330 rpm by a 198 hp/132 Kw-400volt/50 cycle/3 Ph-1485 rpm belt driven motor. Turbo coupling, 2-part product discharge screen. Including hopper, Control panel and Hydraulic unit, 5.5HP/6.6HP-3.7/4.4 KW, 2250 psi (150 bar). New 2003. Weight 10.5 tonnes. Includes technical documentation. Previously used on hard plastic recycling.

Stock# 50902001

Used- Tornado 36" Pulpler. Standard 9-vane rotor/stator set. Stainless Steel Construction. Includes TP tank, set of sheaves and belts. 350 hp 575-volt motor and starter. Includes belt guard. 3" diameter LT near bottom, 4" drain, with sloped bottom towards drain and mixing rotor. Also an approximately 30" square manway with fastening lugs. 17-4PH.
