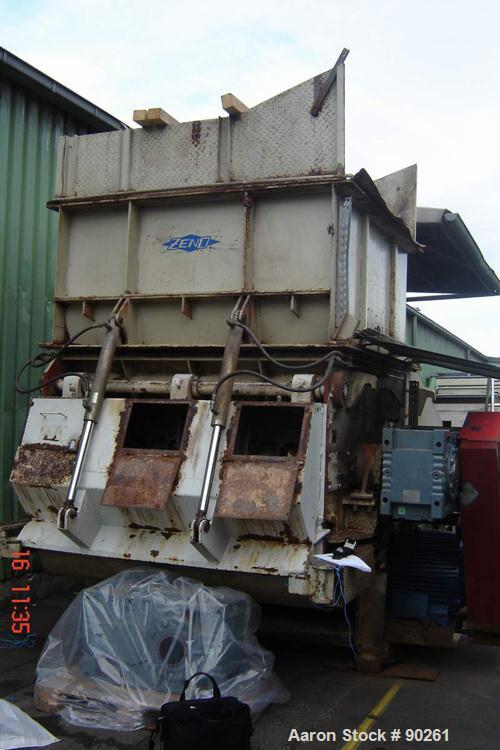

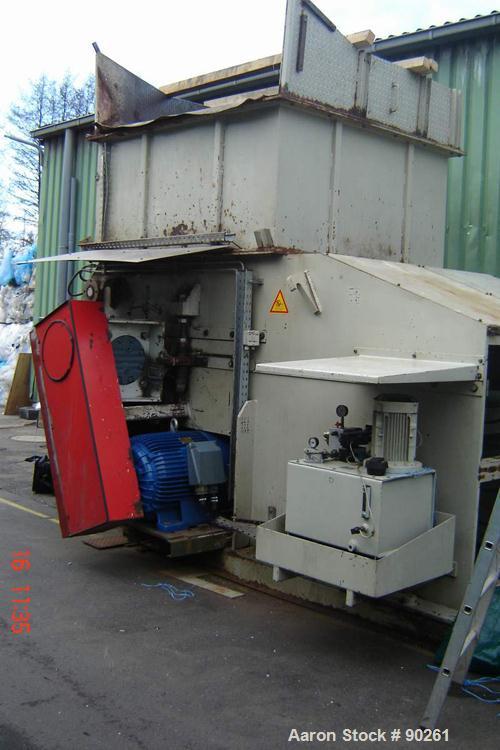

Used Carbon Steel Zeno Single Roll Shredder, Type ZTLL 2000 x 1900

Manufacturer: Zeno
Type: Single Roll Shredder
Model: ZTLL 2000 x 1900

Description:

The Zeno Single Roll Shredder, Type ZTLL 2000 x 1900 is a heavy-duty shredding solution designed for efficient size reduction of various materials. Constructed from durable carbon steel, the shredder features a large 27.7" diameter x 78" wide (710 mm x 2000 mm) roll equipped with 54 interchangeable knives for aggressive material processing. A hydraulic ram feed ensures consistent material flow, while a 5.46" diameter (140 mm) bottom screen controls particle size. Powered by an Elektron 165 HP (110 kW) motor with an SEW 135 HP (90 kW) gearbox, the roll achieves speeds up to 120 RPM. The unit includes operating hydraulics, a hopper, and is belt-driven for reliable operation.

Specifications:

• Manufacturer: Zeno
• Model: ZTLL 2000 x 1900
• Construction Material: Carbon Steel

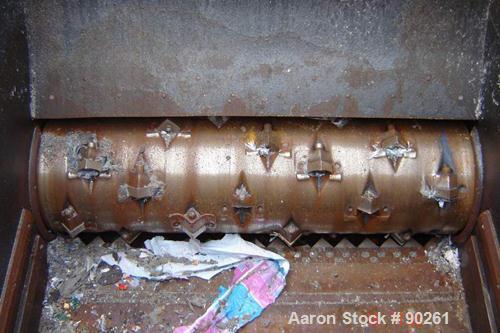

• Shredder Roll:
  • Diameter: 27.7" (710 mm)
  • Width: 78" (2000 mm)
  • Speed: Up to 120 RPM

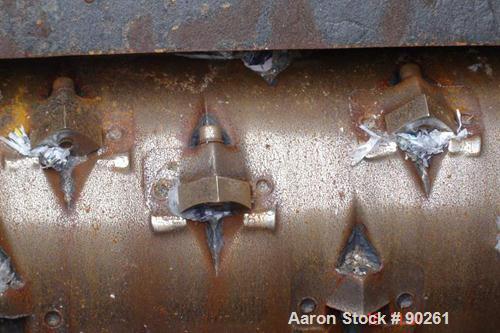

  • Knives: 54 Interchangeable

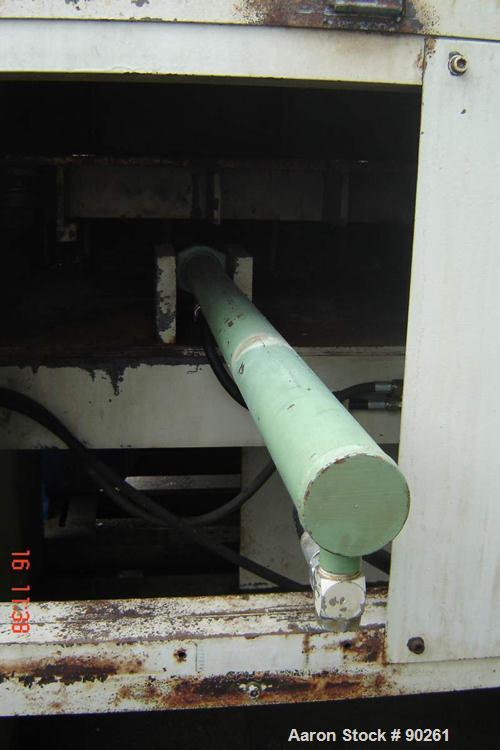

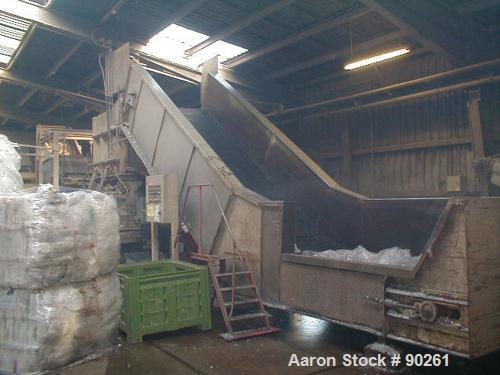

• Feed System: Hydraulic Ram Feed

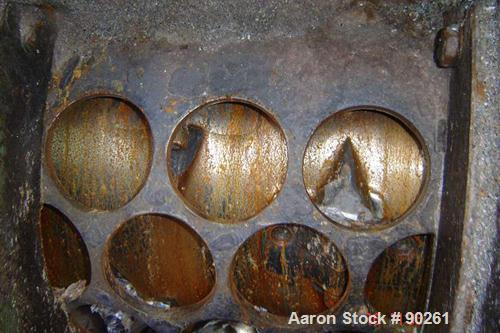

• Bottom Screen: 5.46" Diameter (140 mm)
• Drive System:

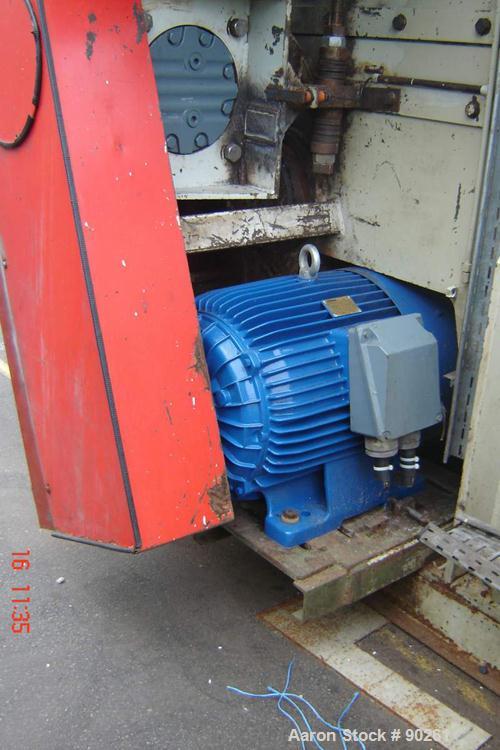

  • Motor: Elektron 165 HP (110 kW), 380/420/440/480 Volt, 50 Hz, 3 Phase

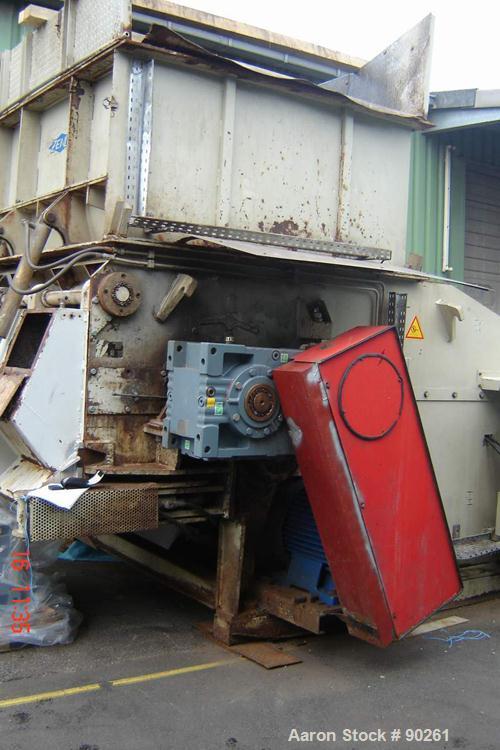

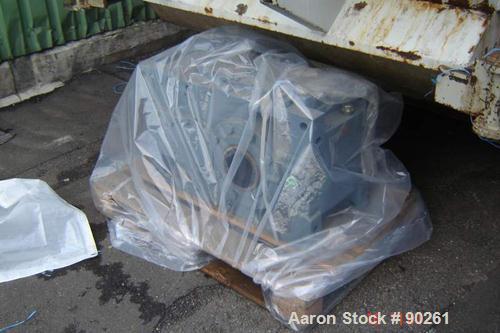

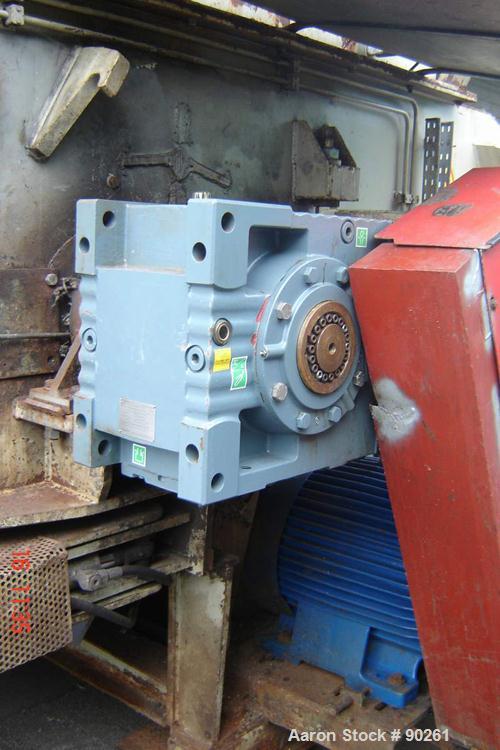

  • Gearbox: SEW 135 HP (90 kW), Type MC2PLHT07
  • Belt Driven: Yes
• Additional Features:

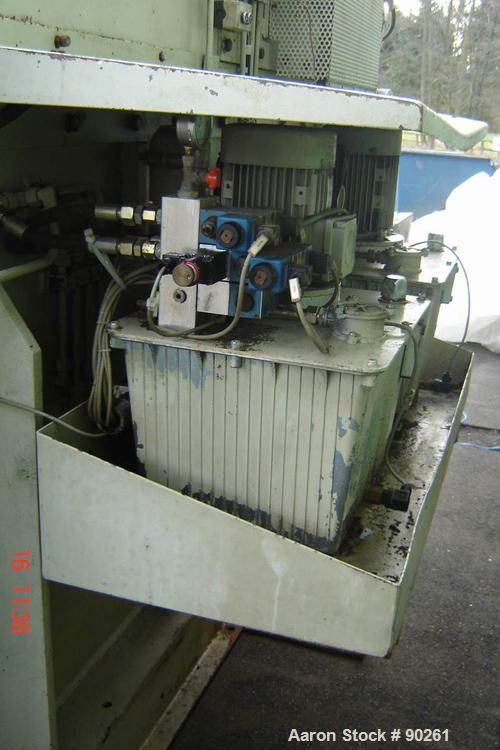

  • Operating Hydraulics
  • Hopper Included
• Overall Dimensions: 15'6" L x 12'3" W x 9'1" H

Applications:

The Zeno ZTLL 2000 x 1900 Single Roll Shredder is ideal for a wide range of industrial material shredding applications, including:

• Plastic Recycling
• Wood Waste Processing
• Metal Scrap Shredding
• Paper & Cardboard Recycling
• Rubber and Tire Shredding
• Electronic Waste (E-Waste) Processing
• General Industrial Waste Reduction

Used For:

• Size reduction of bulky or tough materials
• Shredding plastics, wood, metals, and composites
• Pre-processing for recycling or waste management
• Consistent particle sizing with interchangeable knives and bottom screen
• Heavy-duty industrial shredding applications
