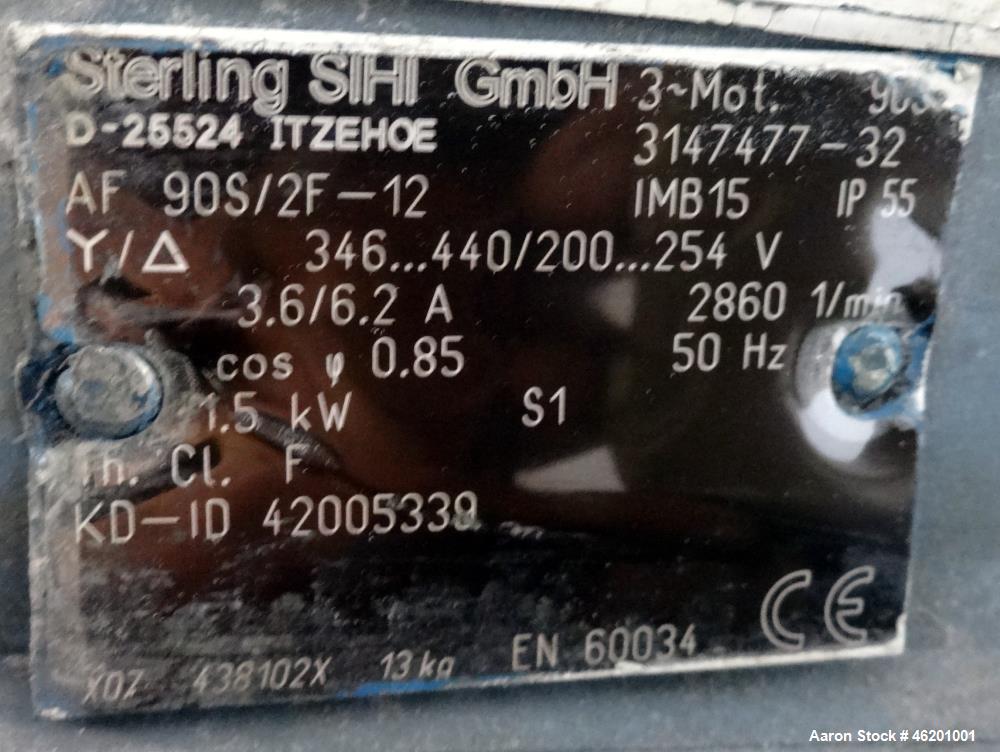

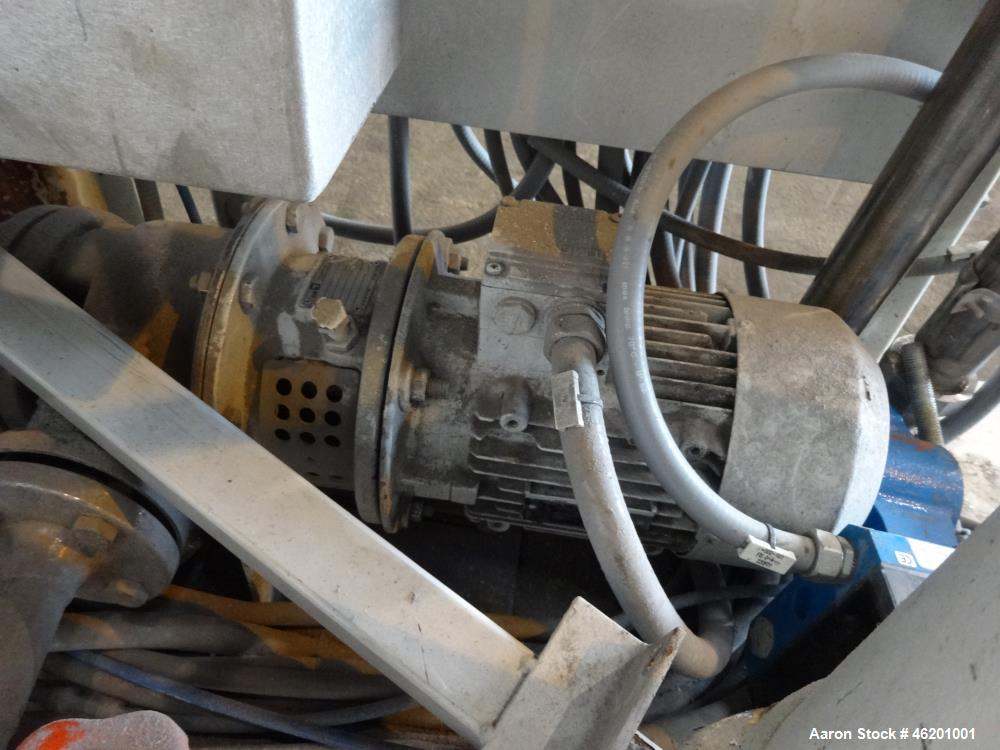

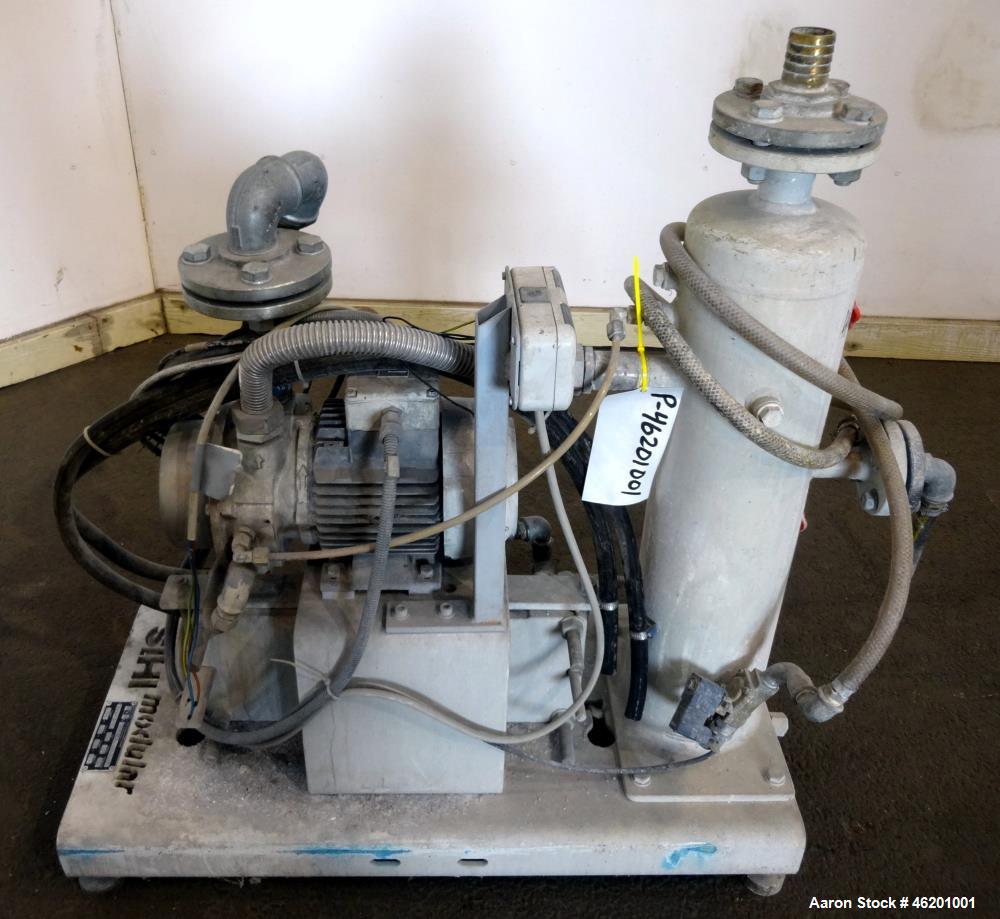

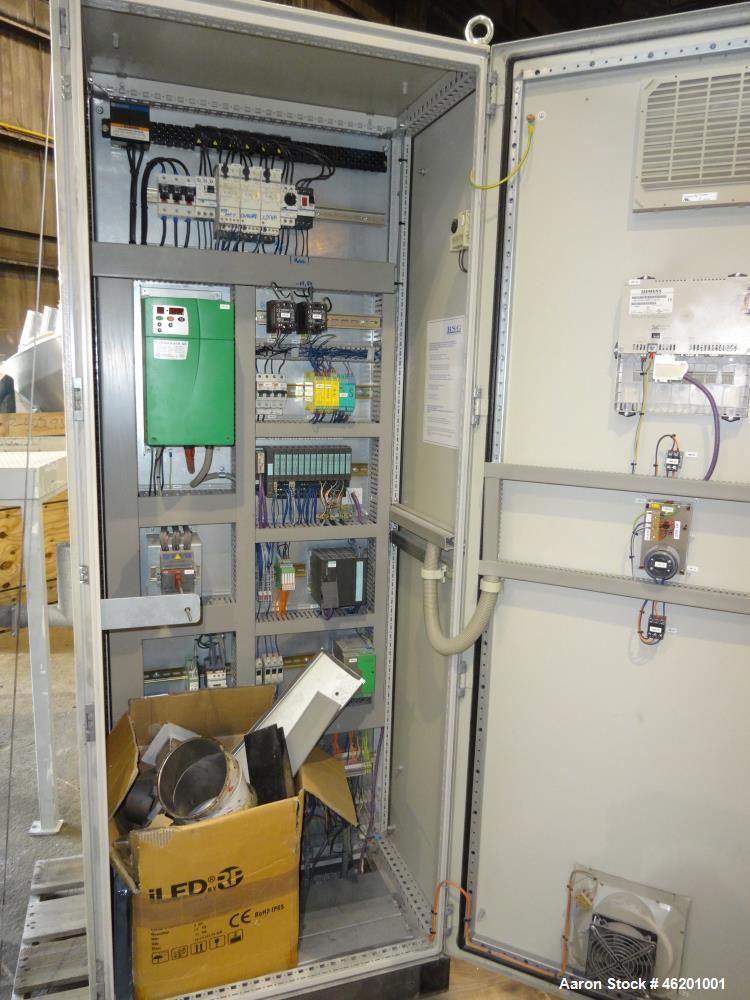

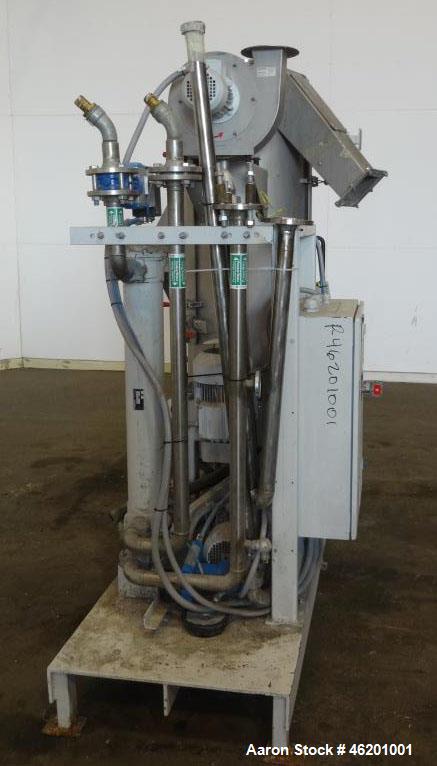

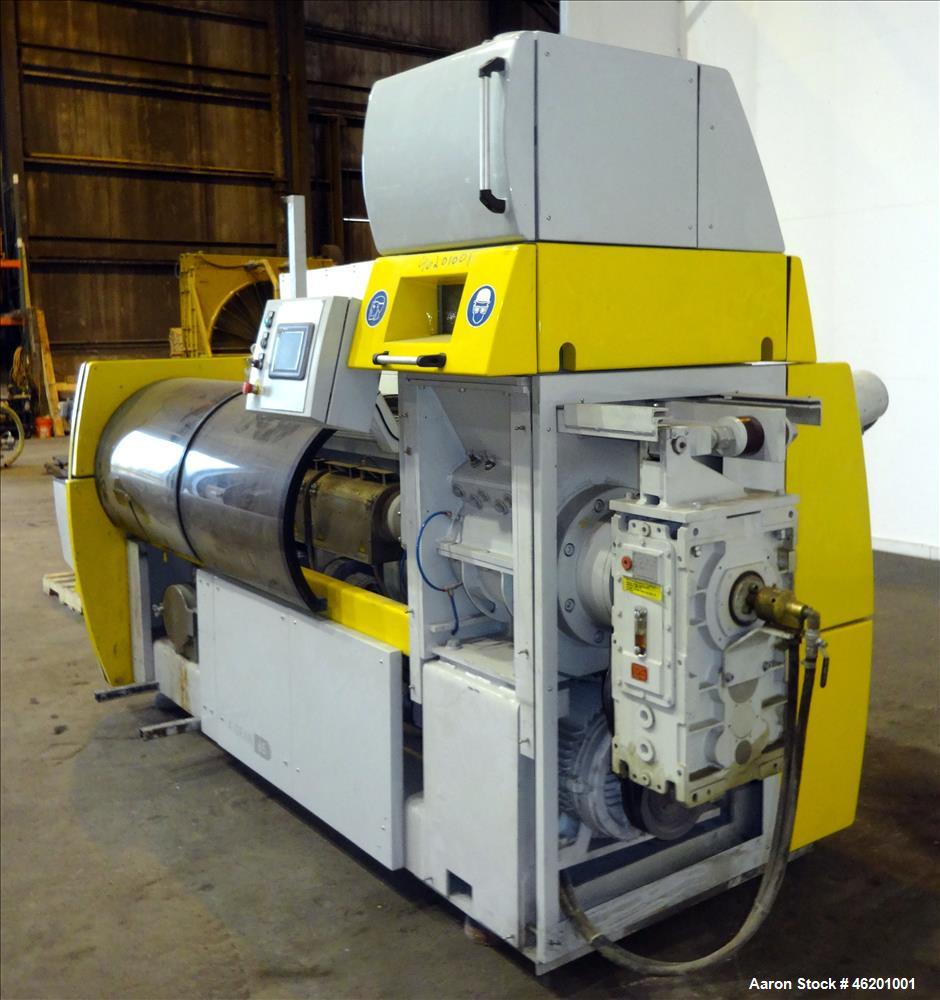

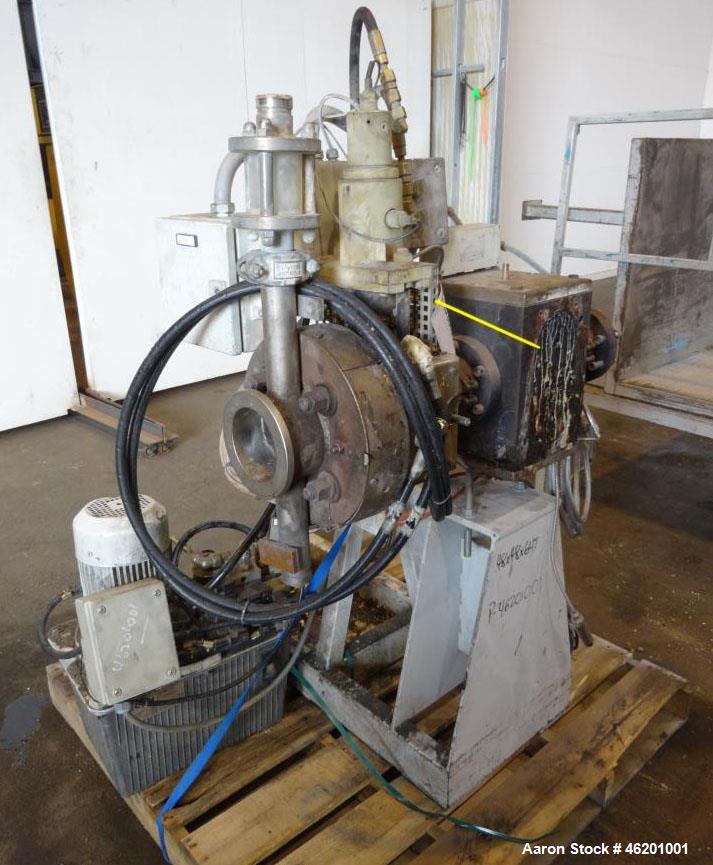

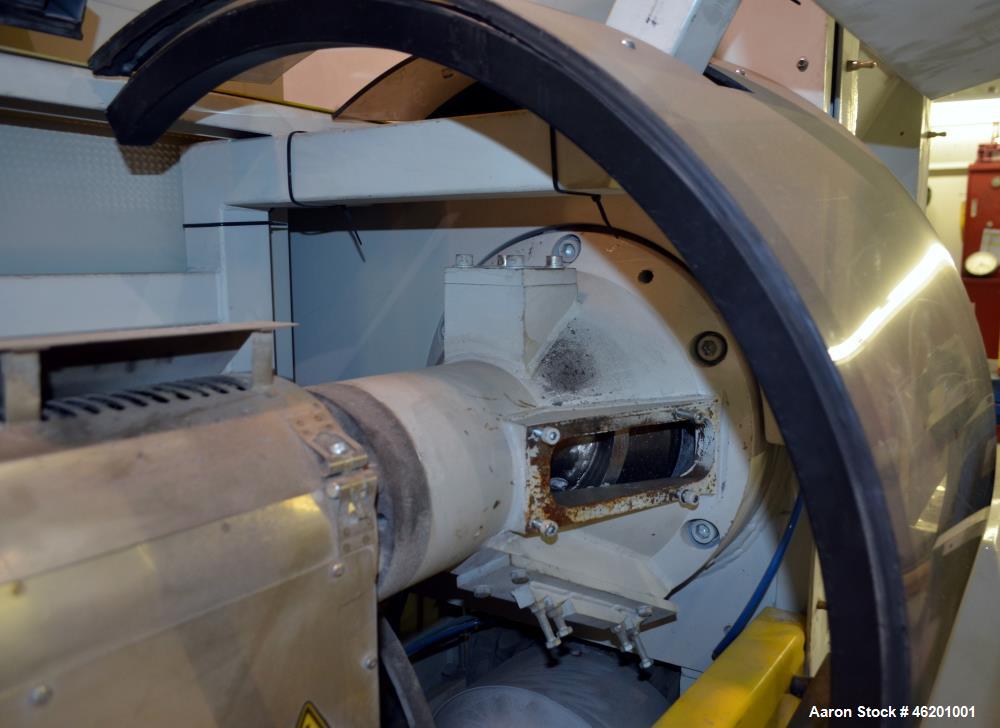

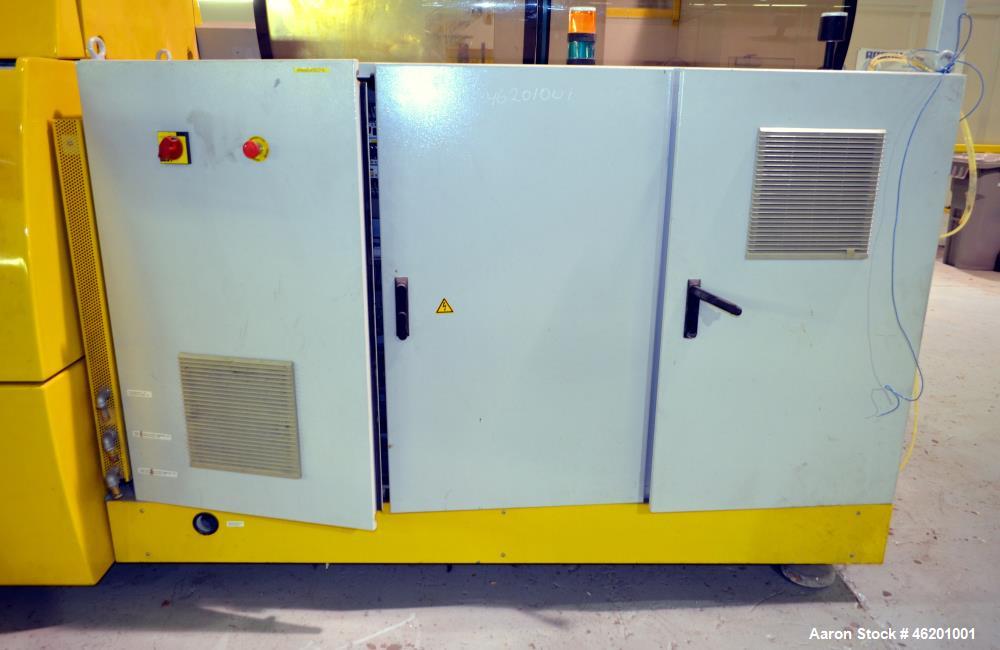

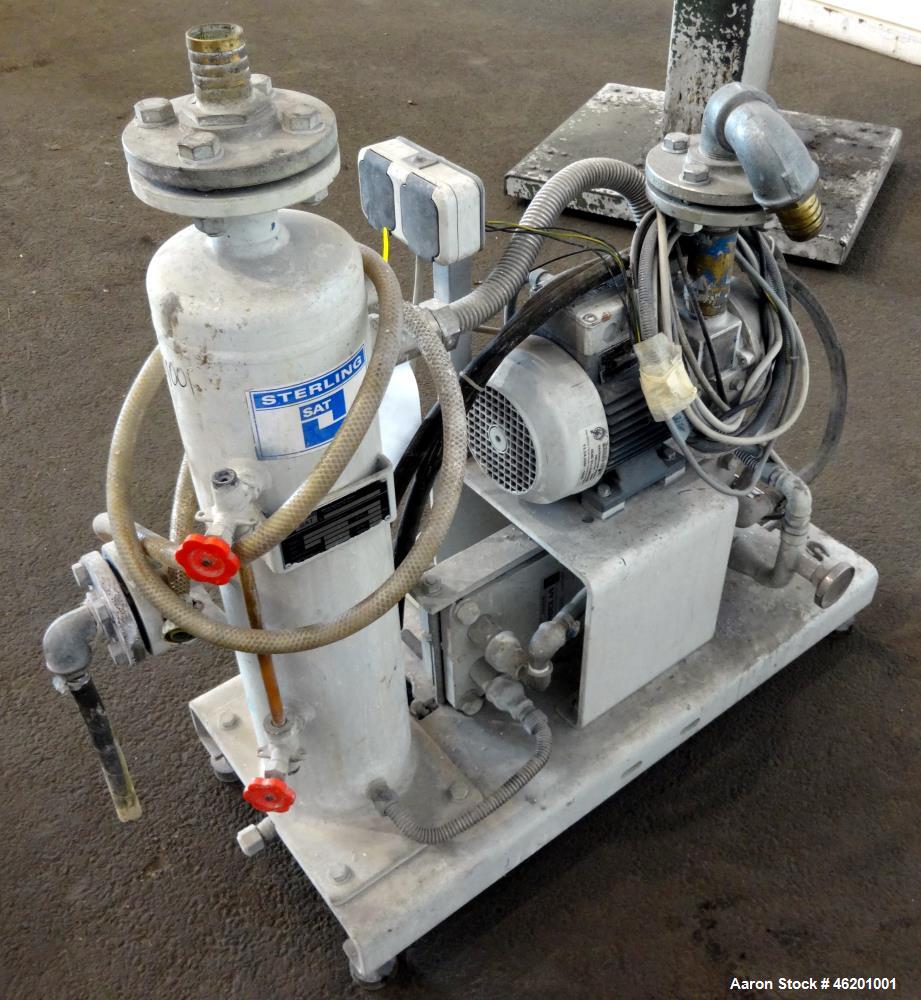

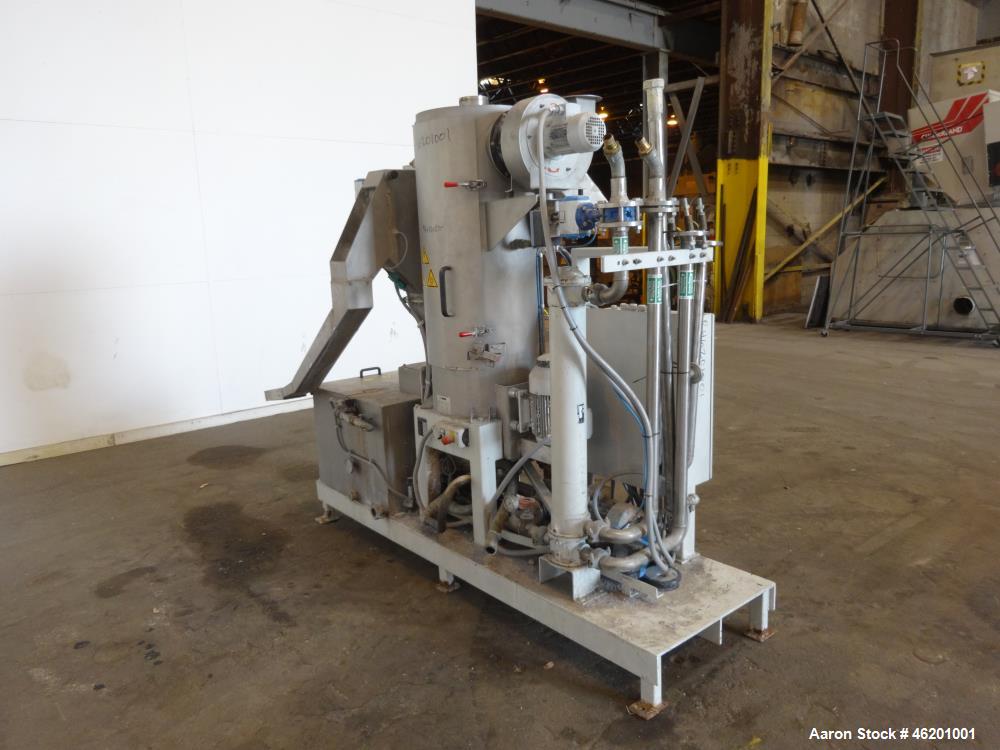

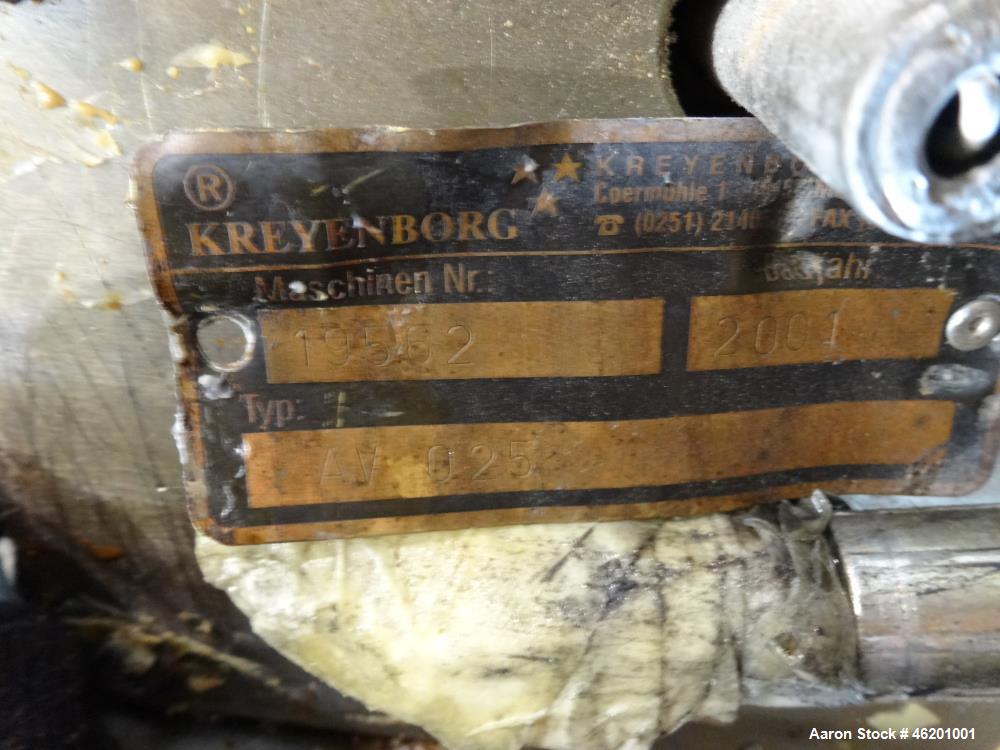

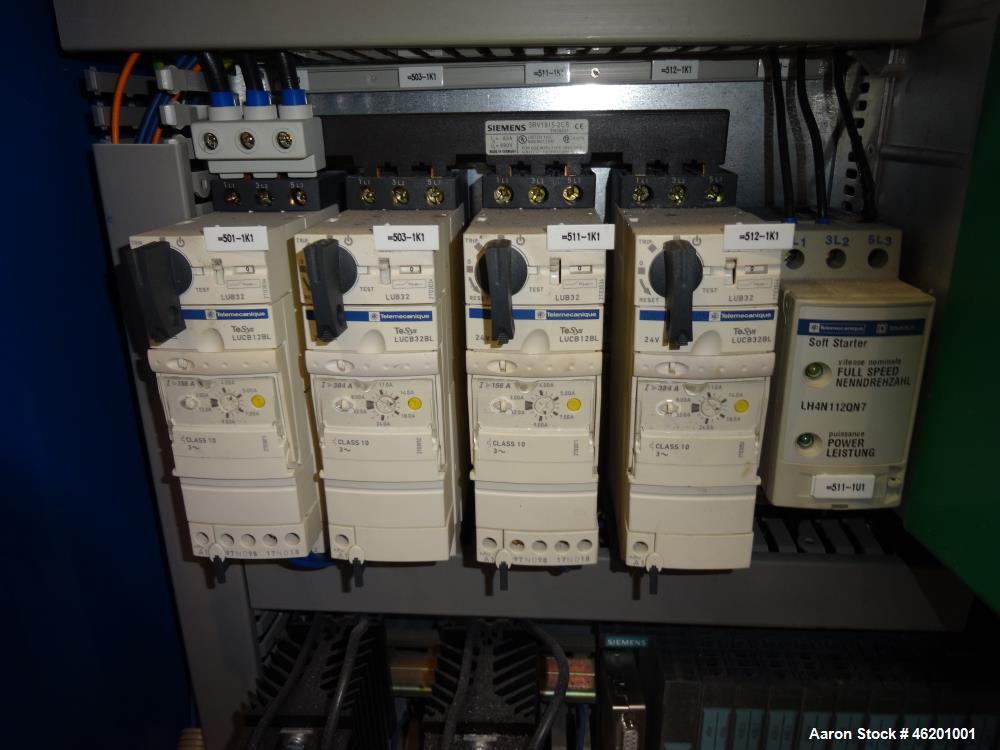

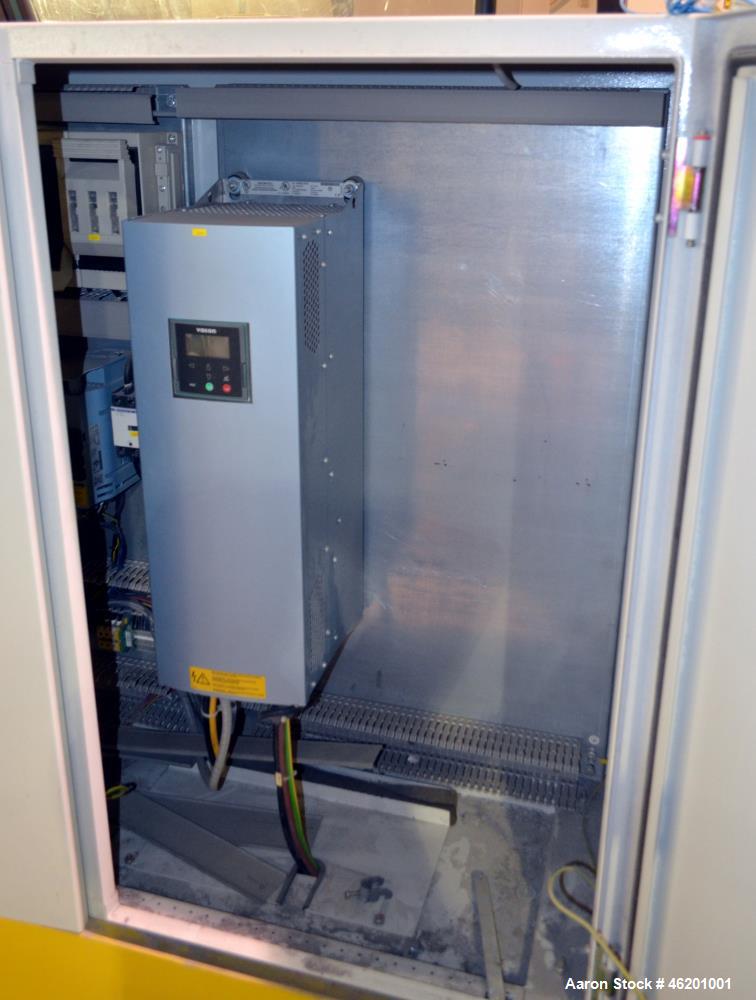

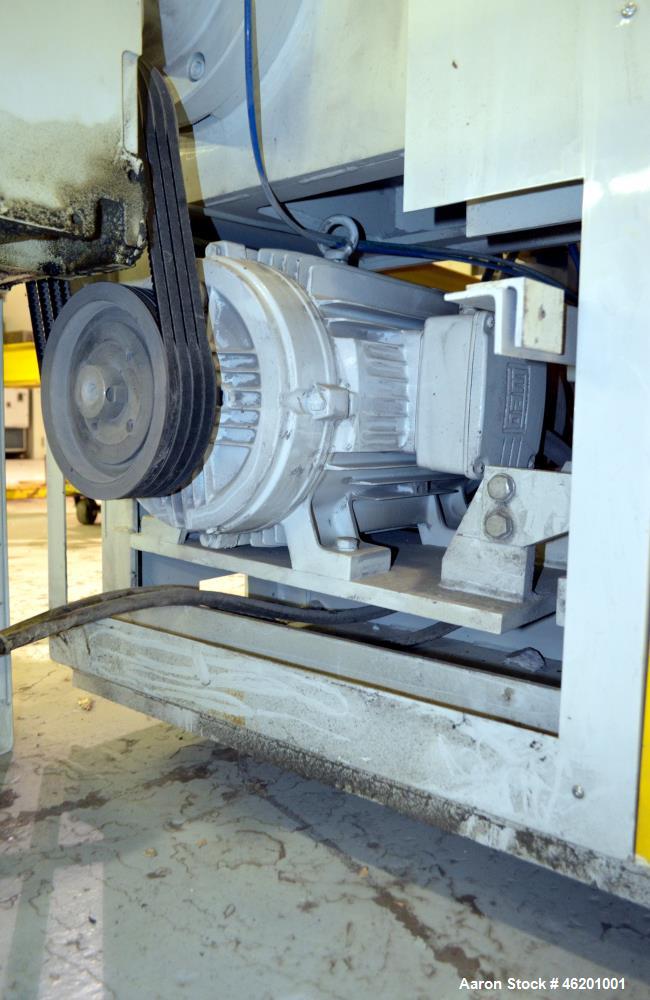

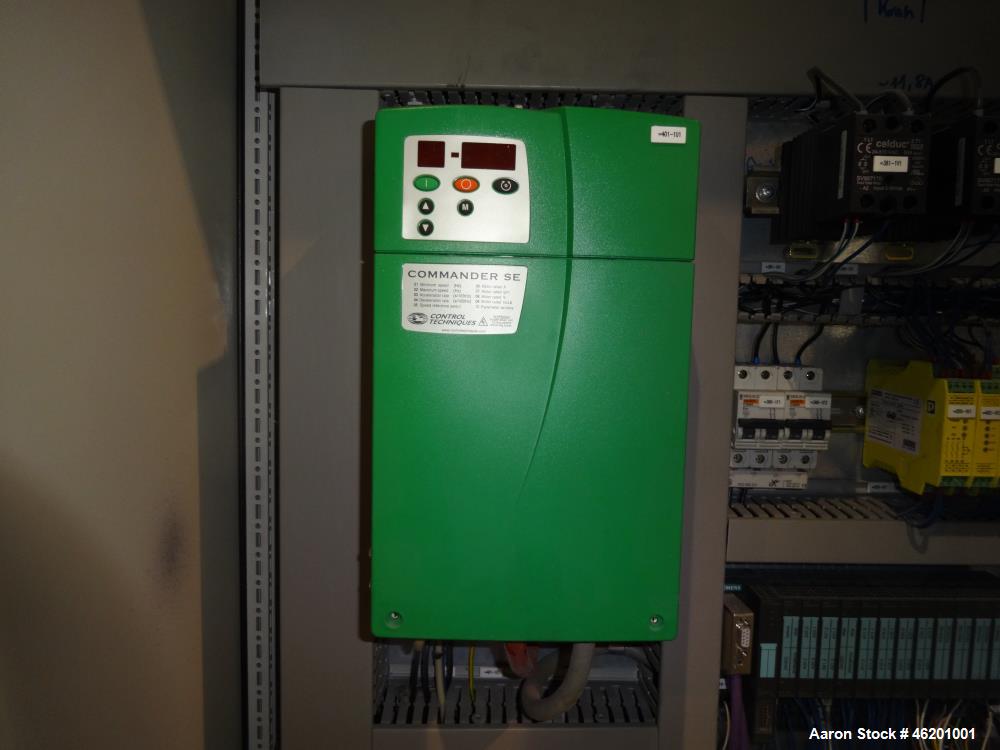

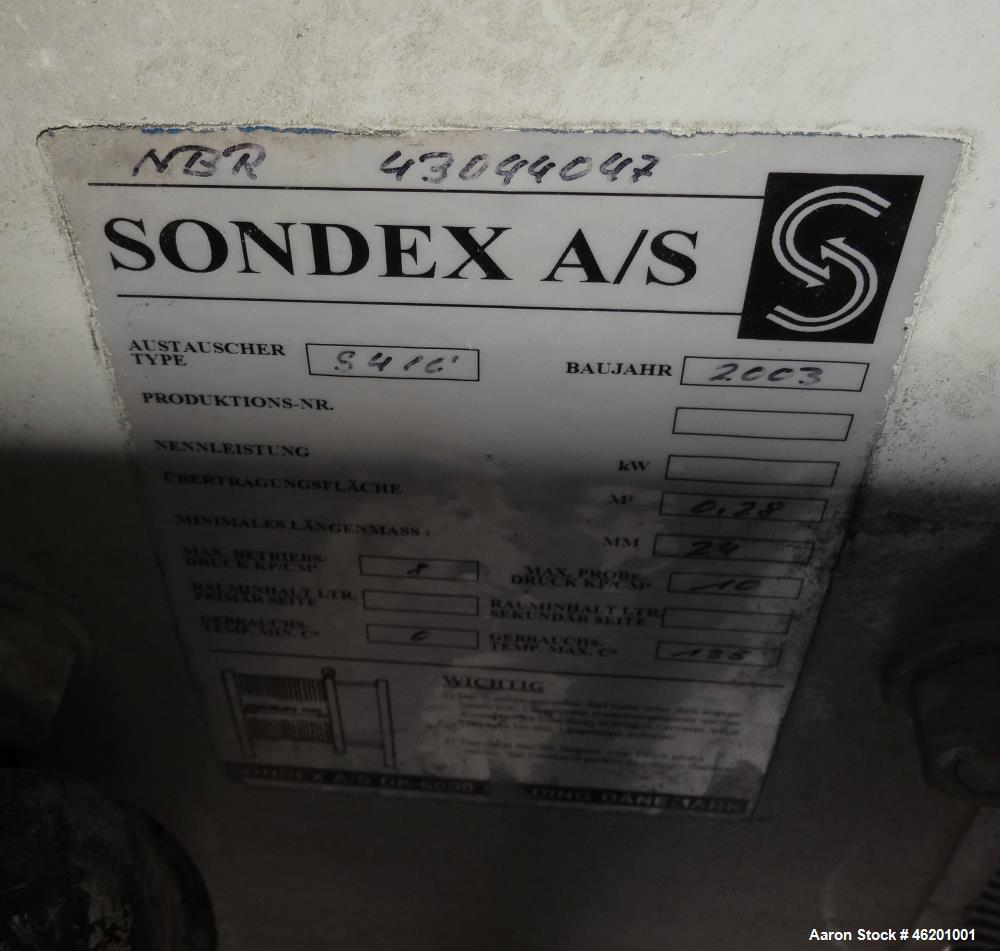

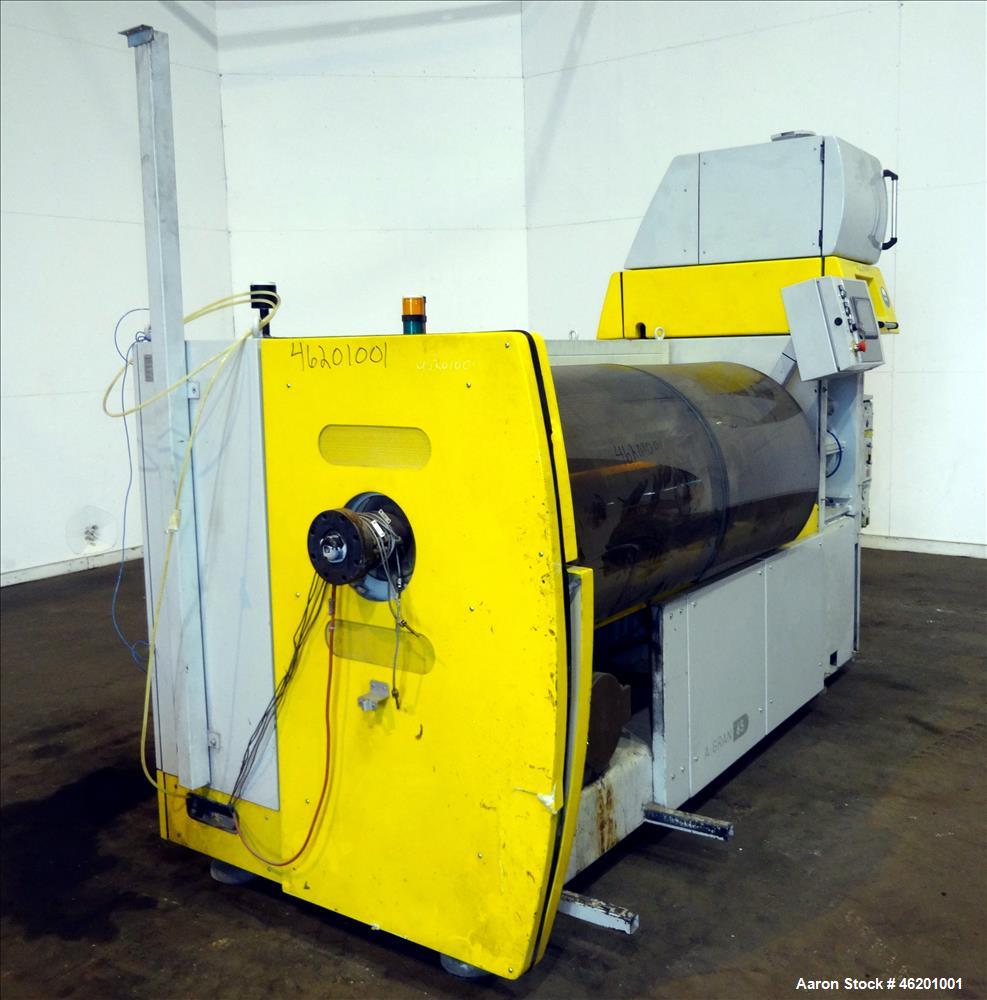

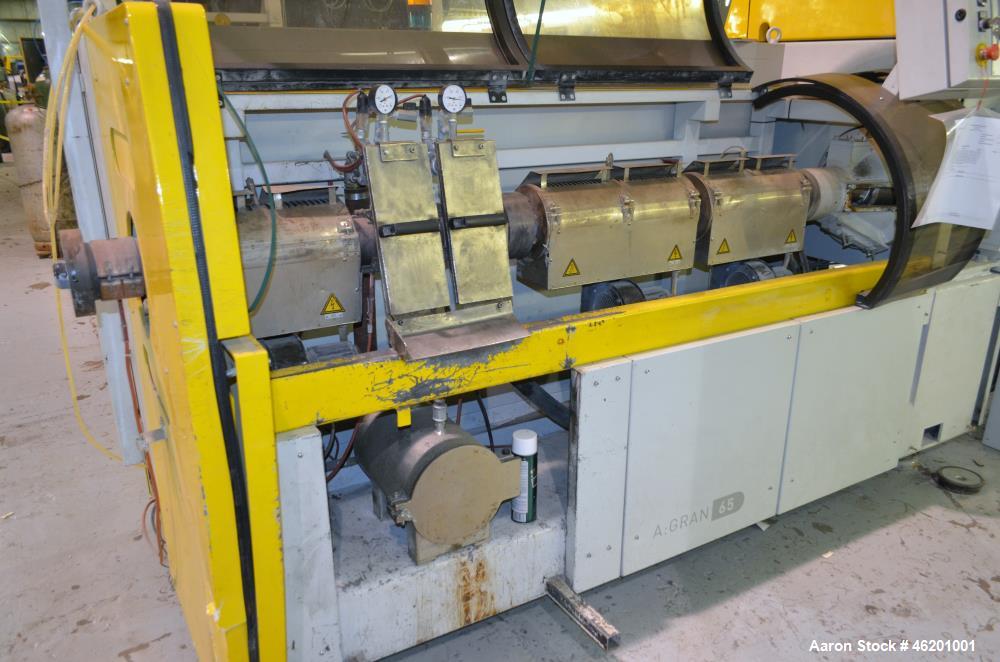

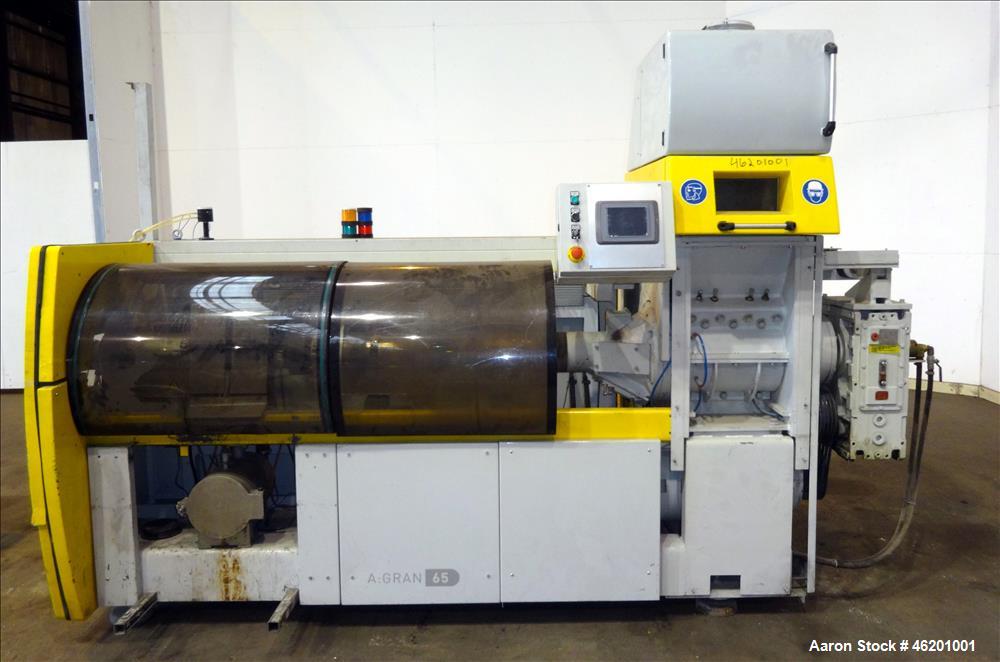

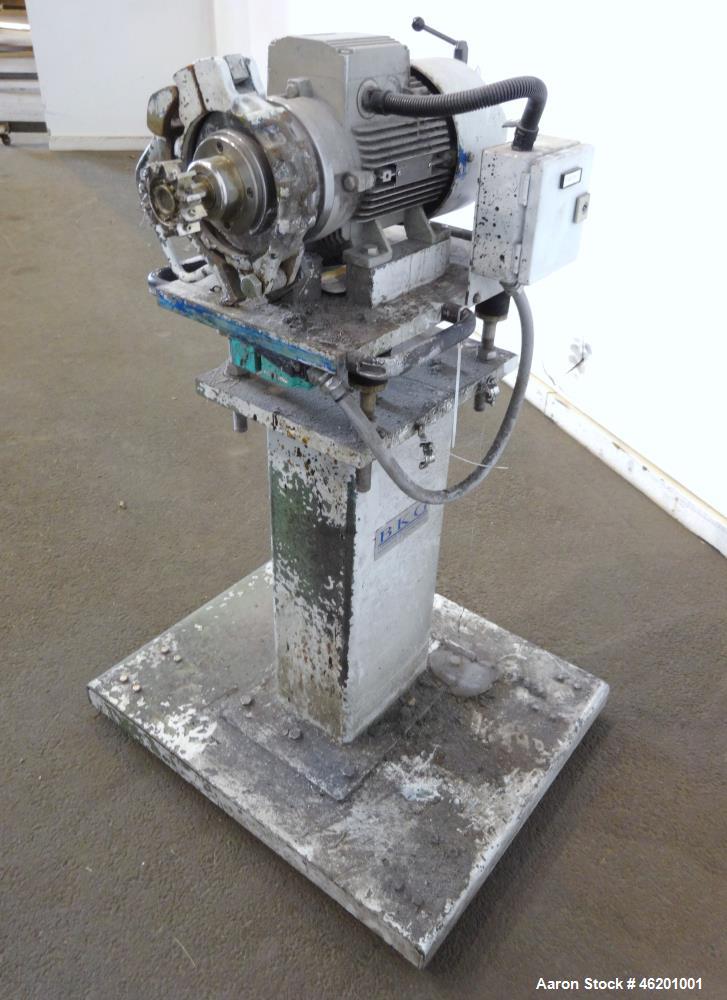

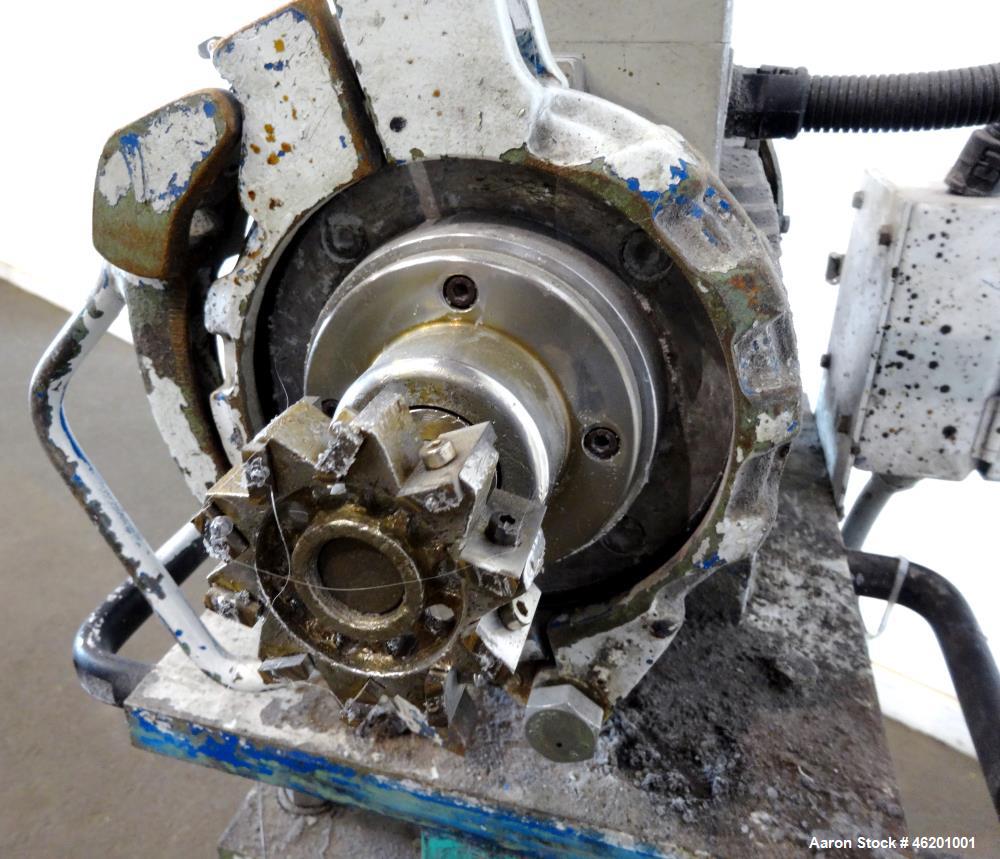

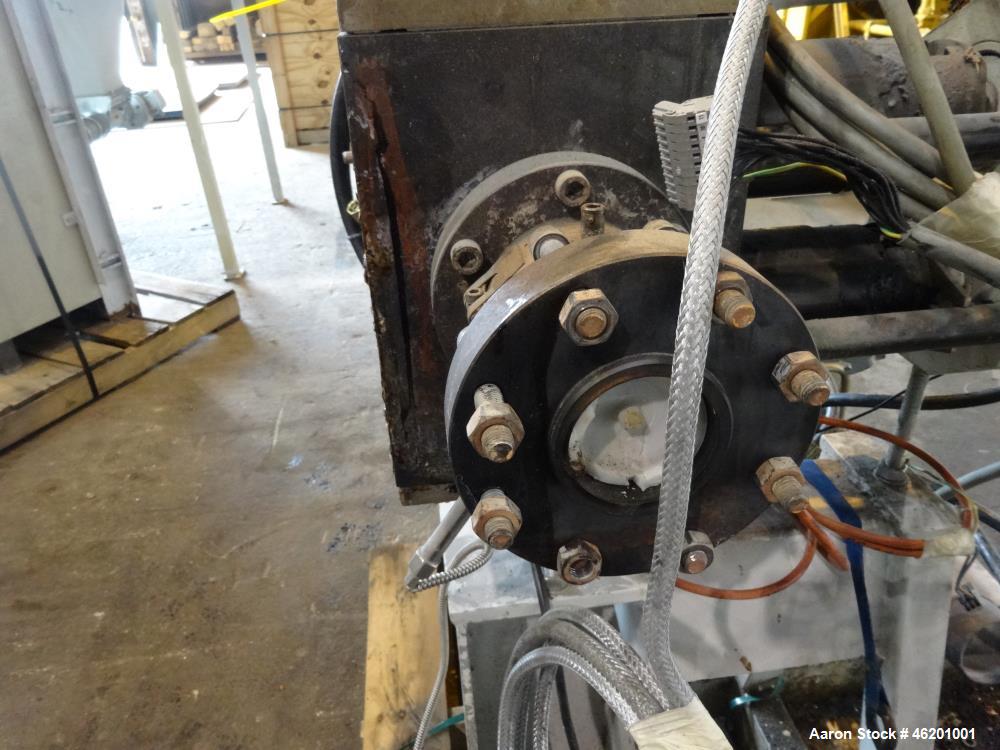

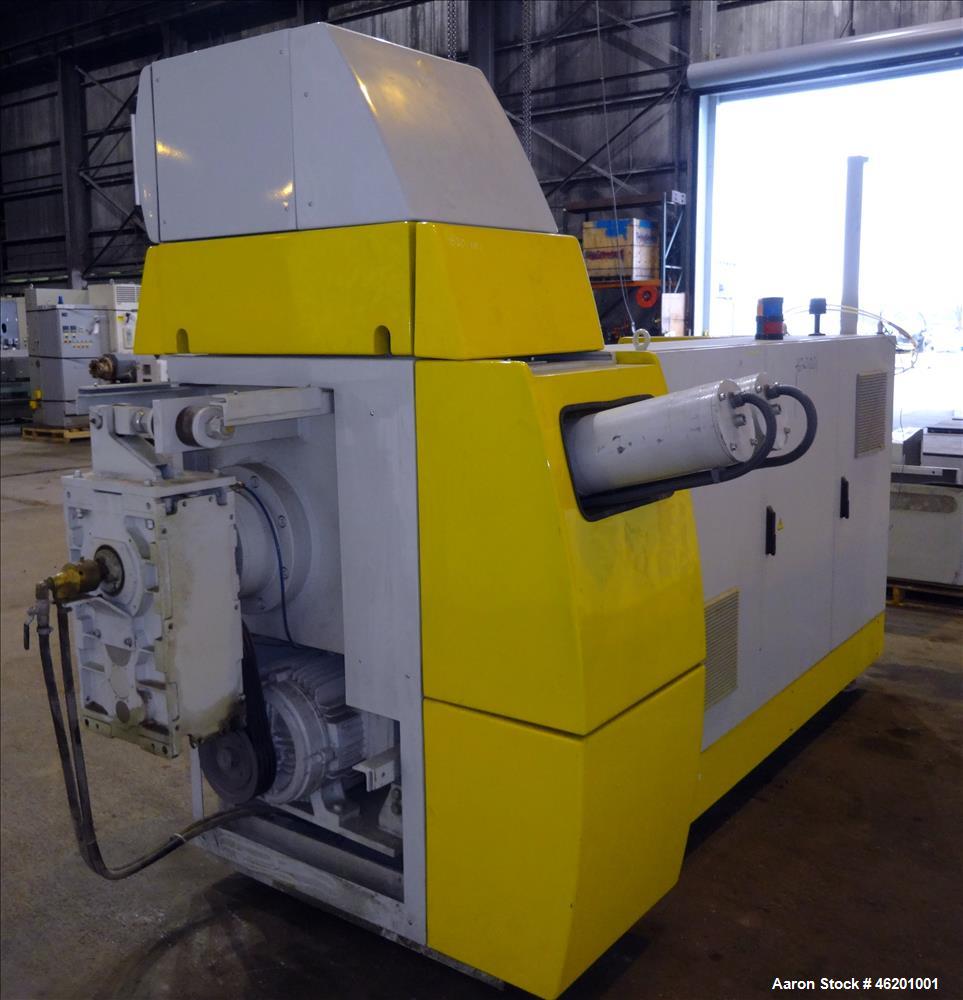

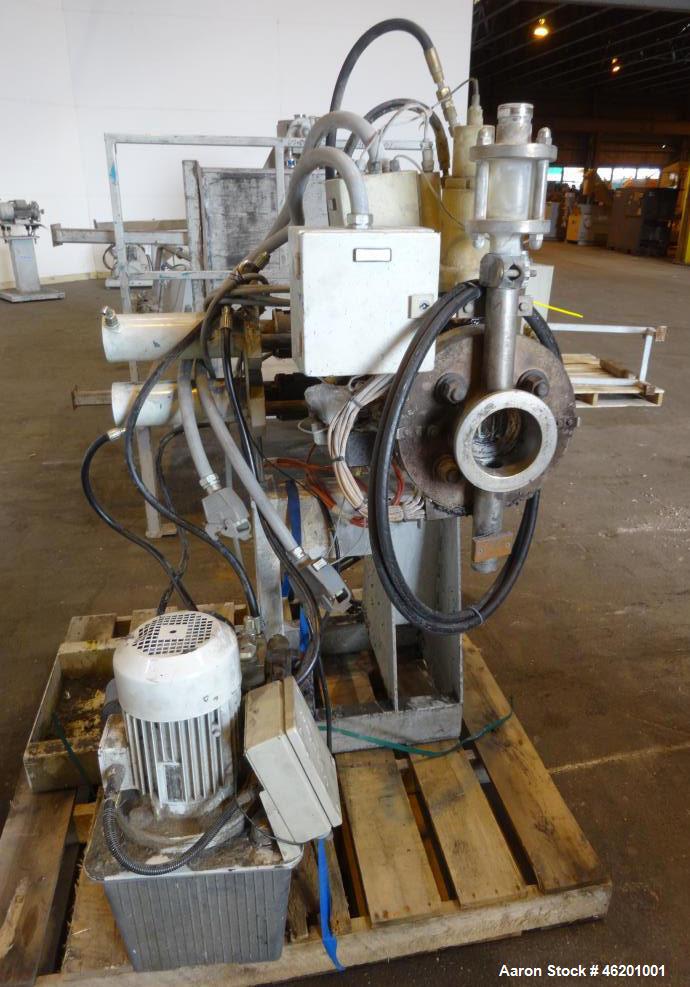

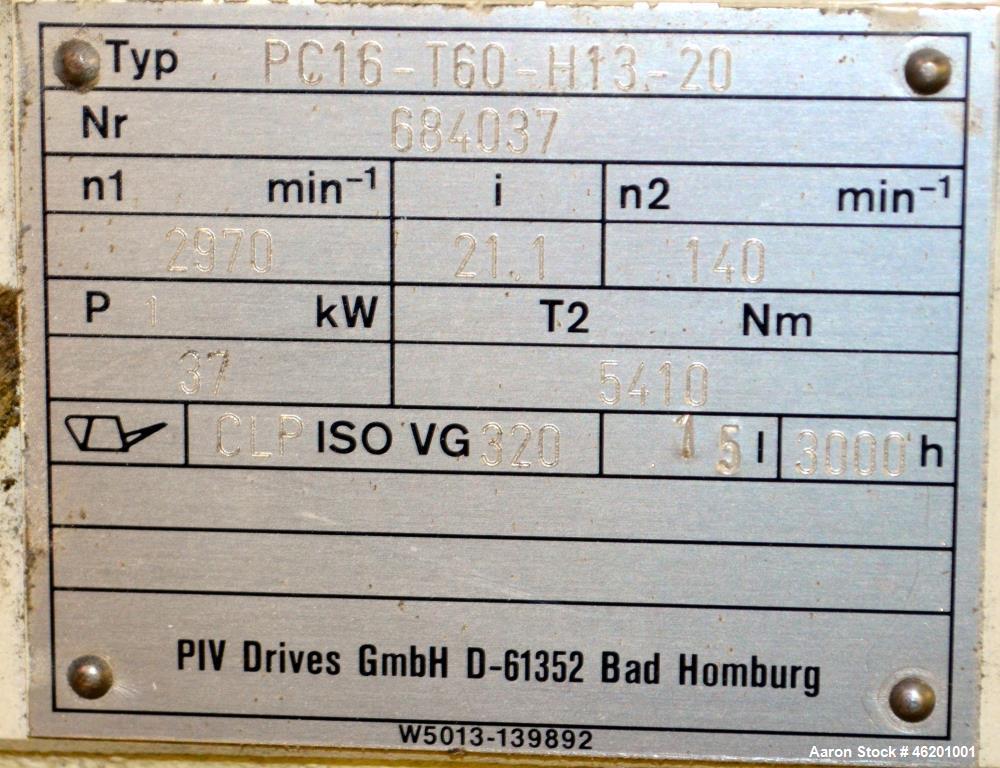

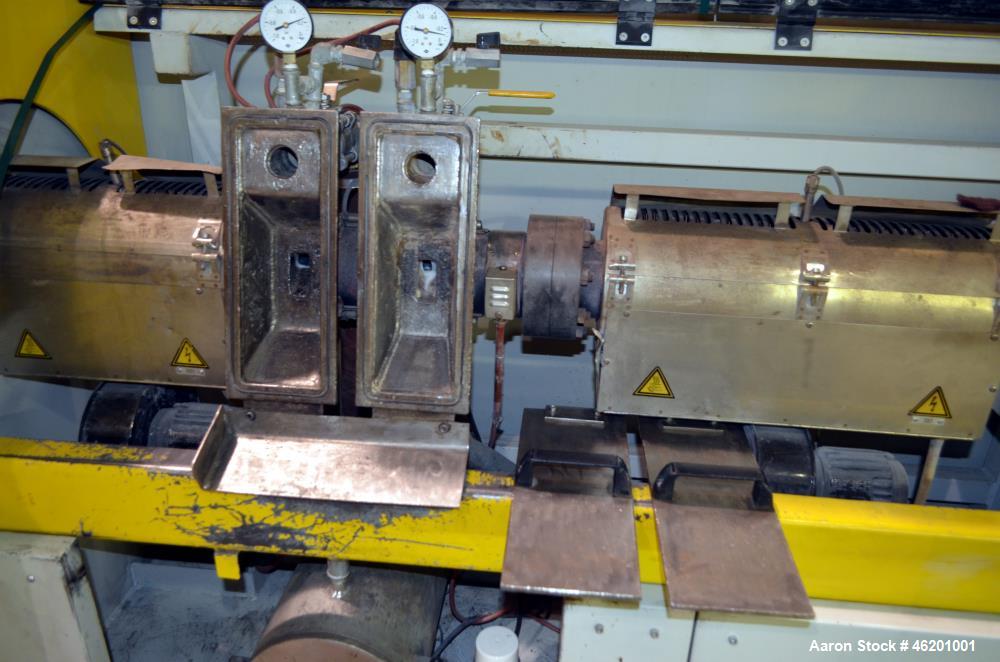

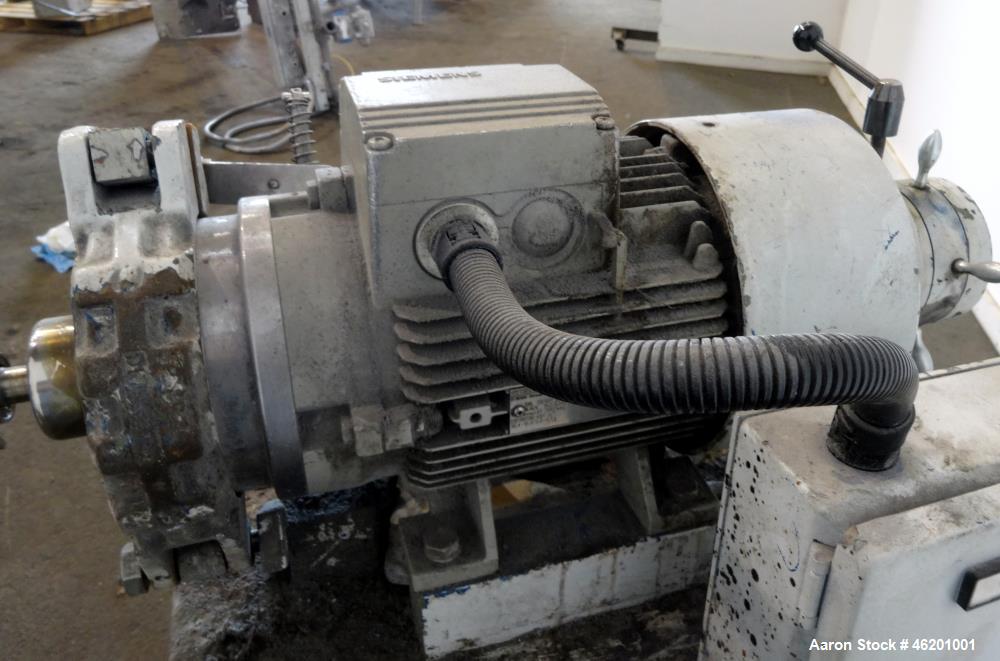

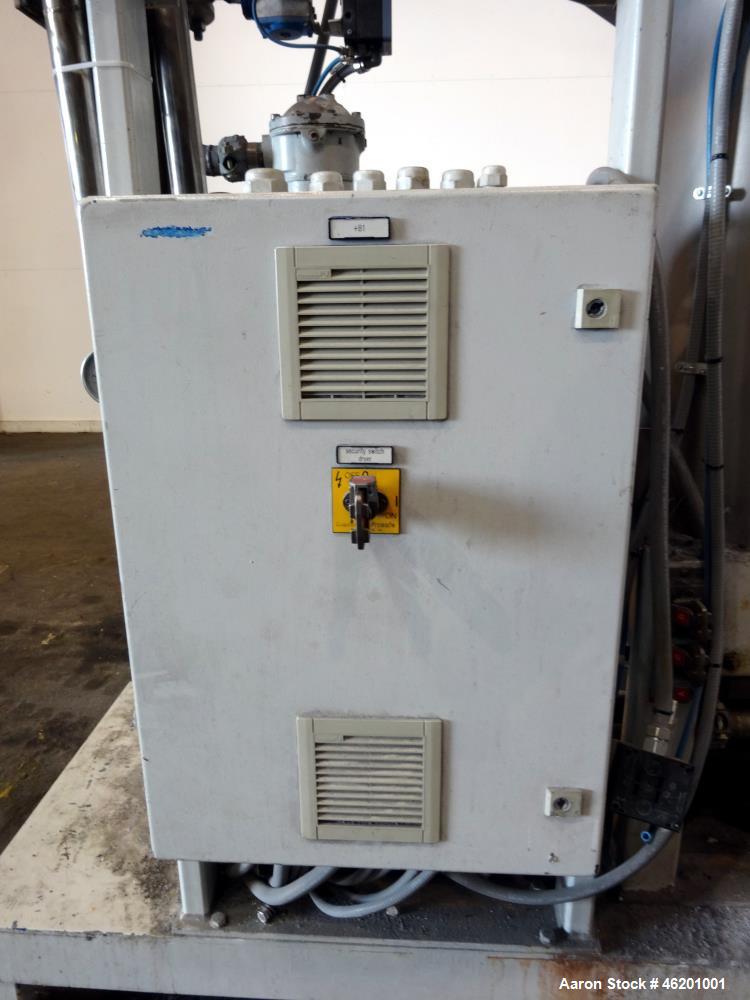

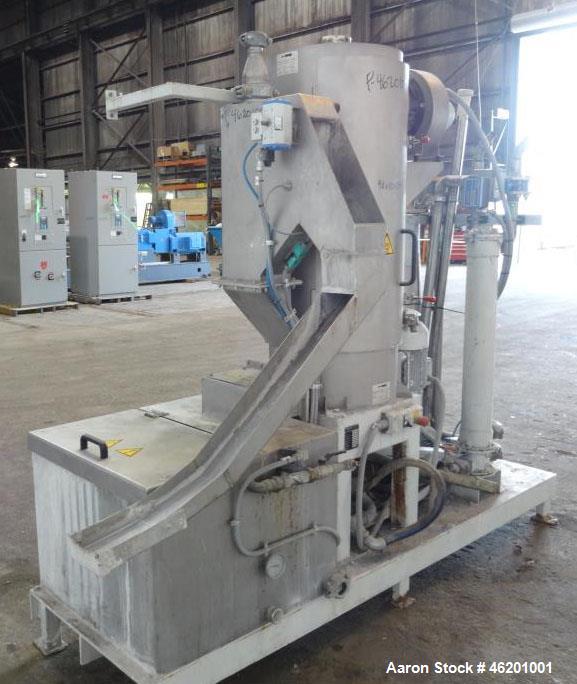

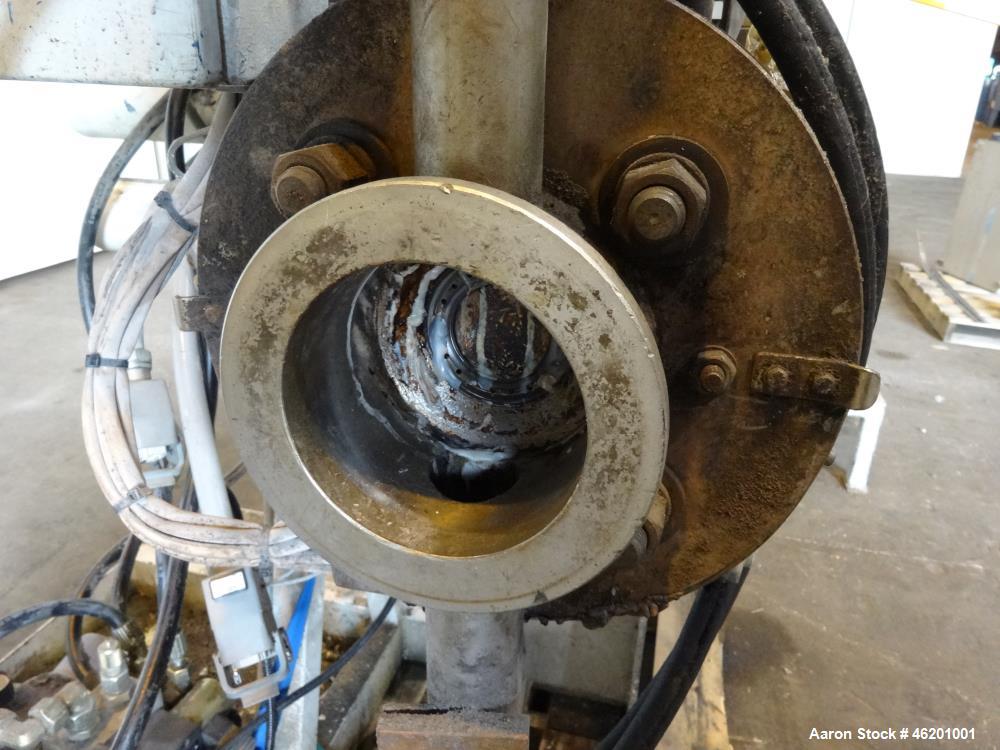

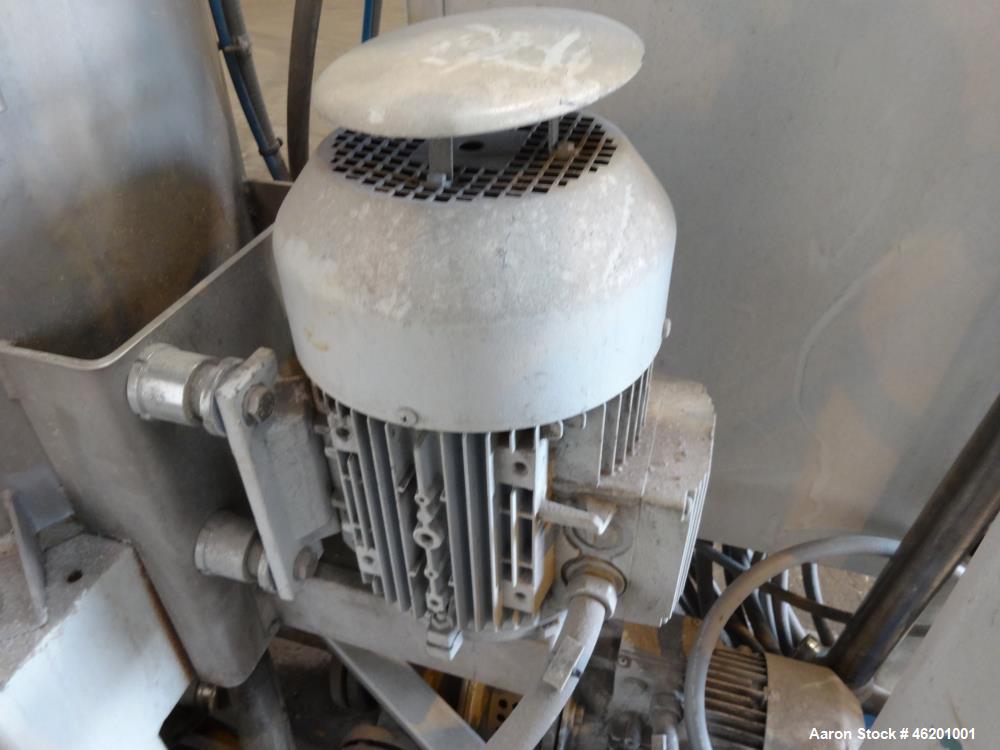

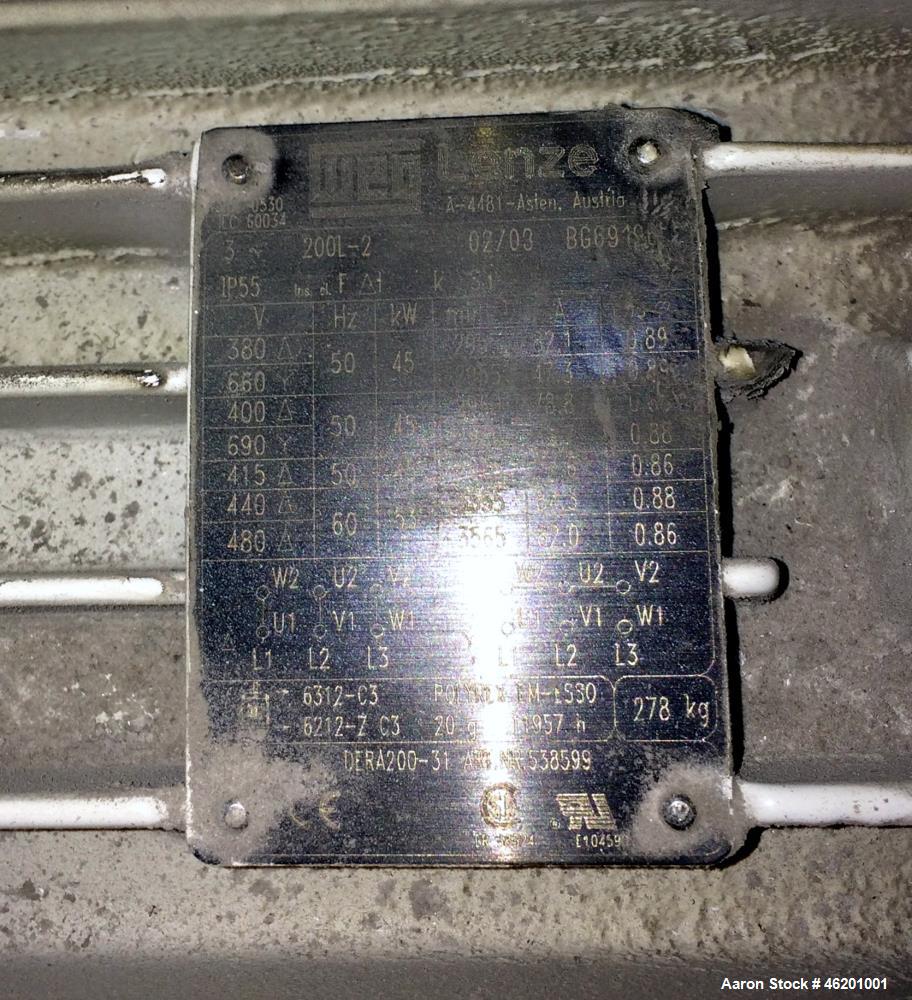

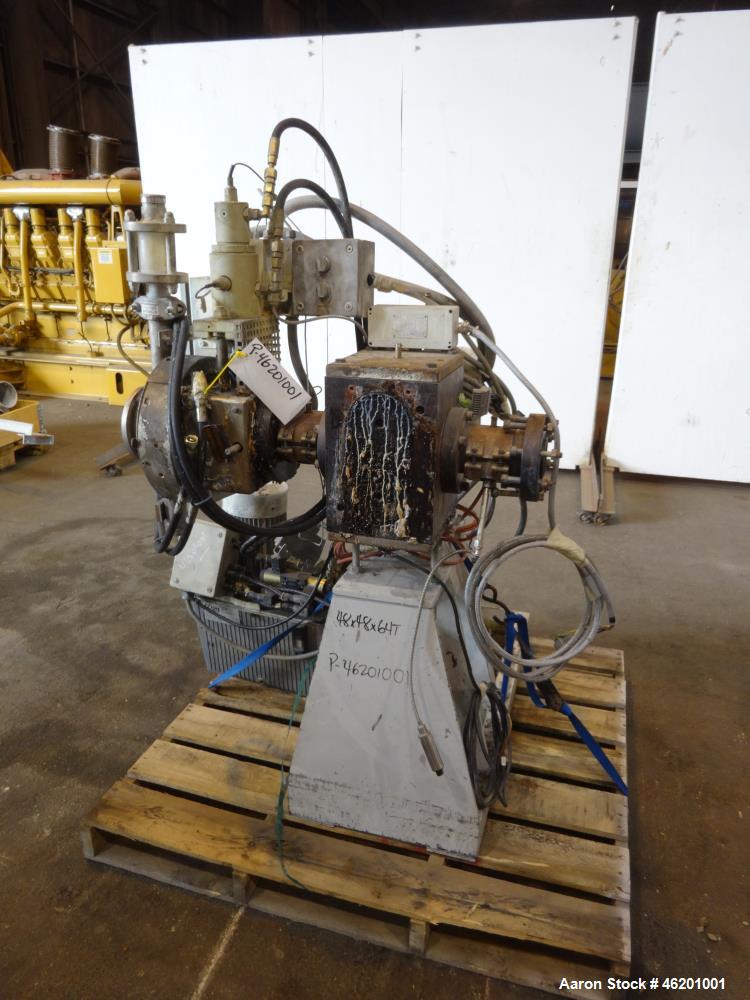

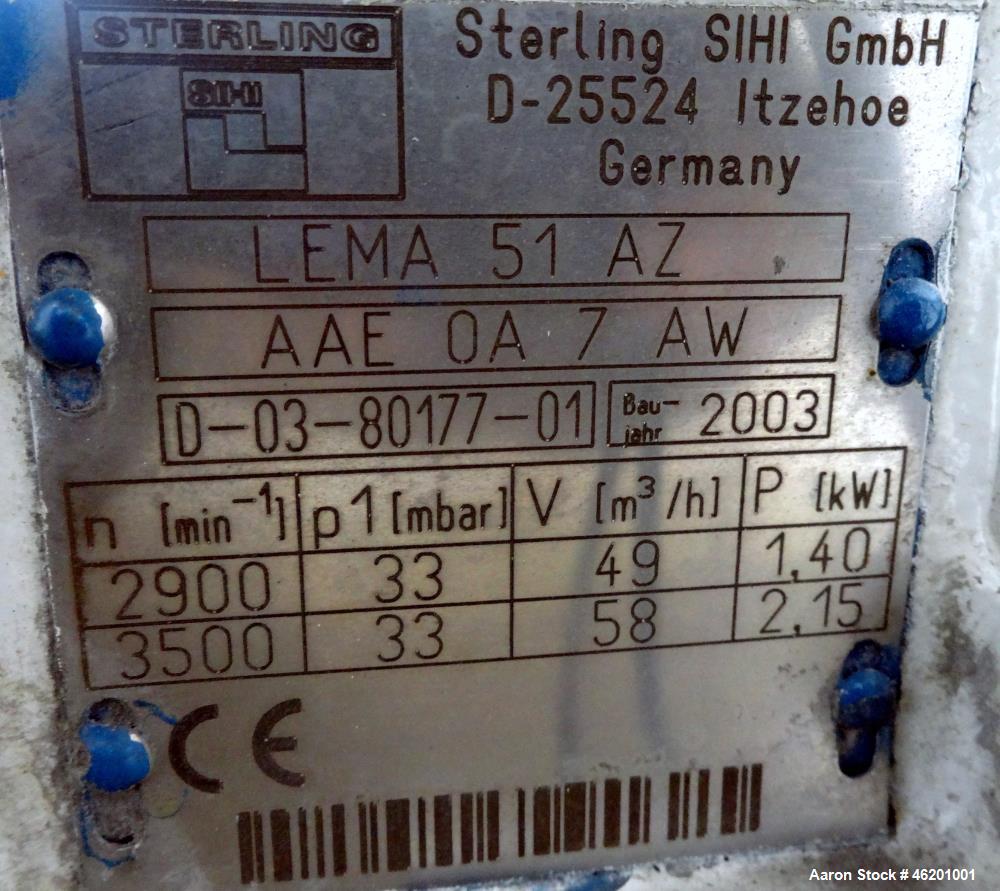

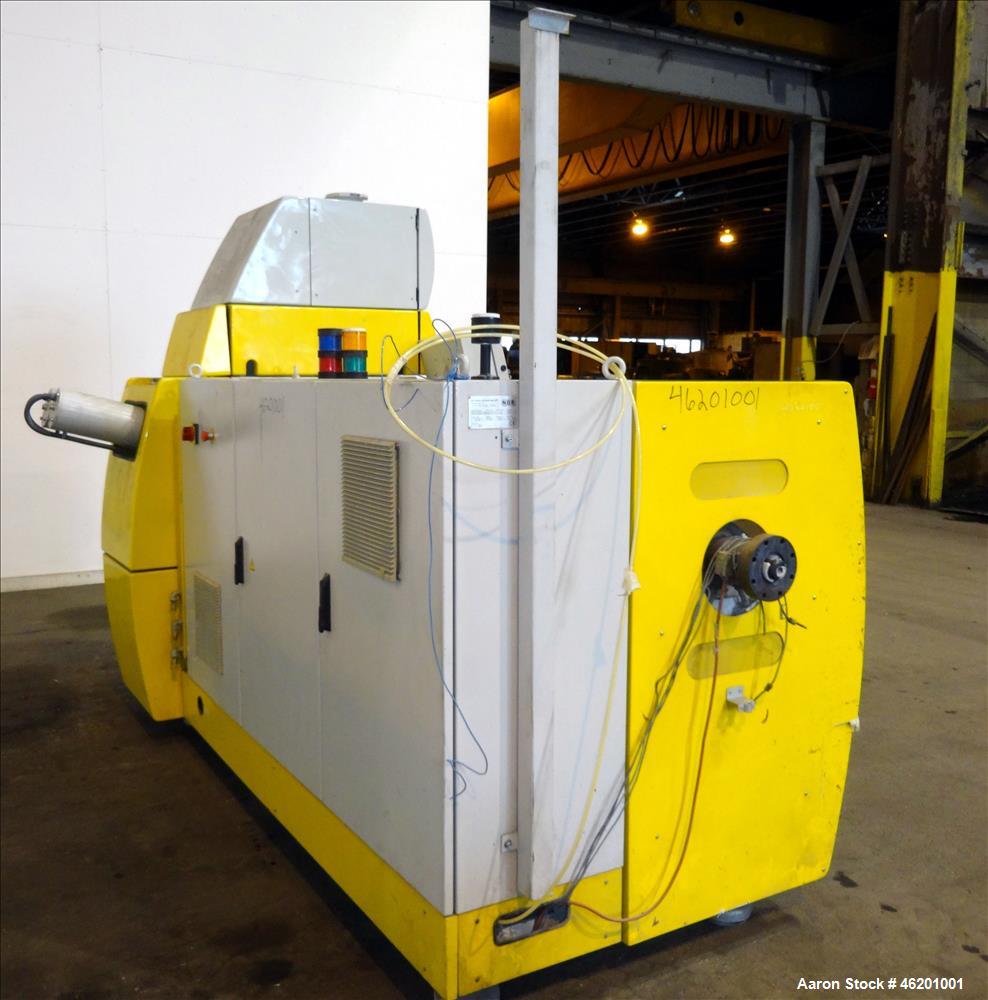

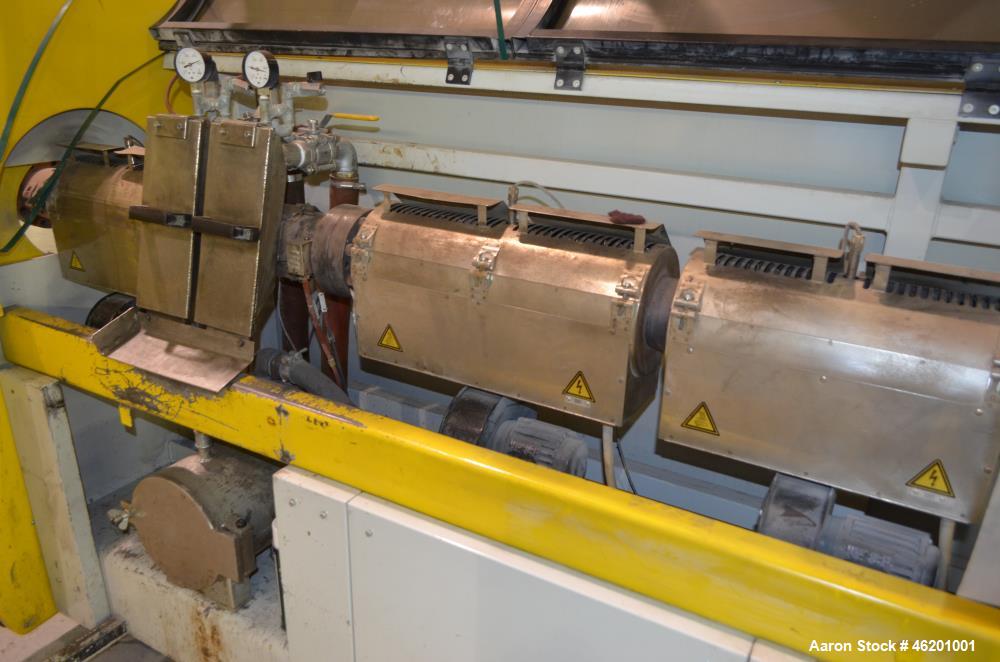

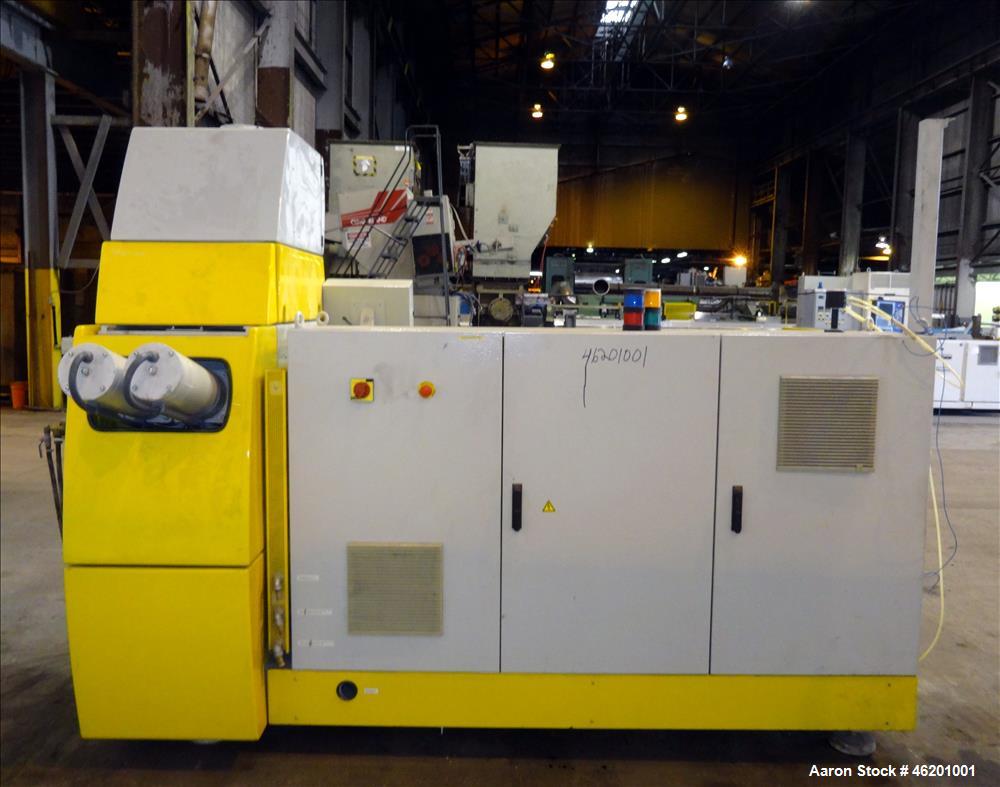

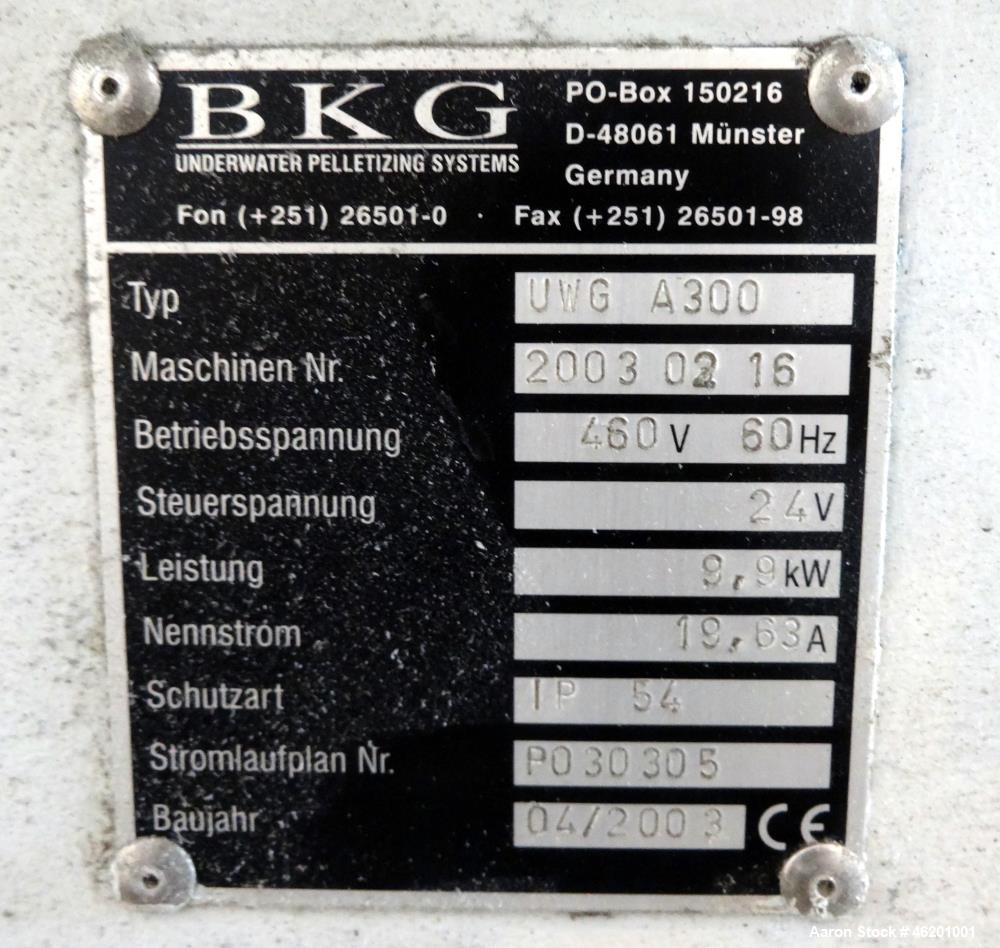

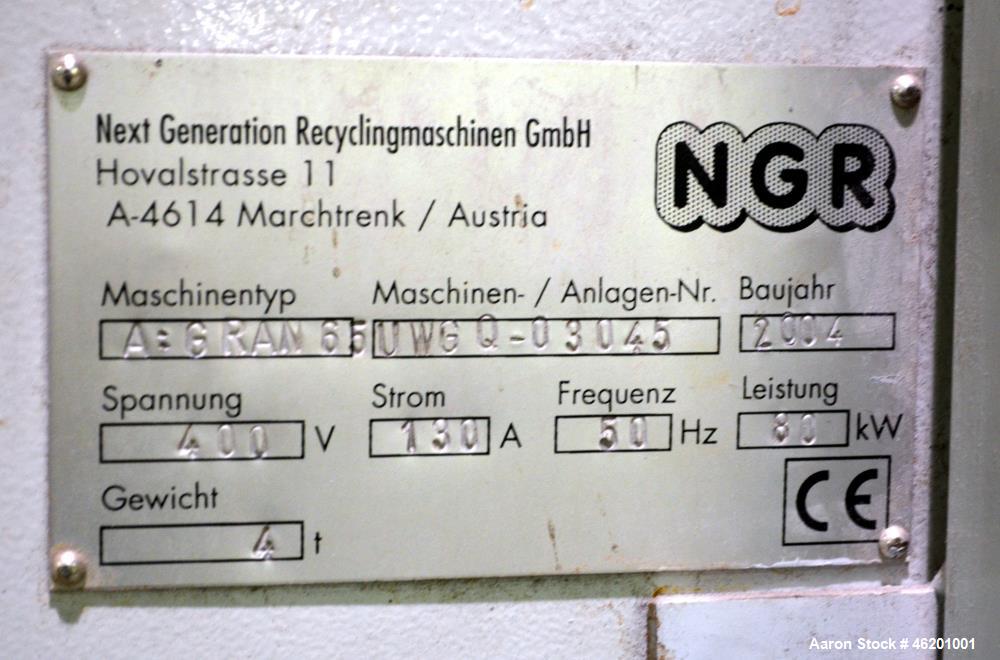

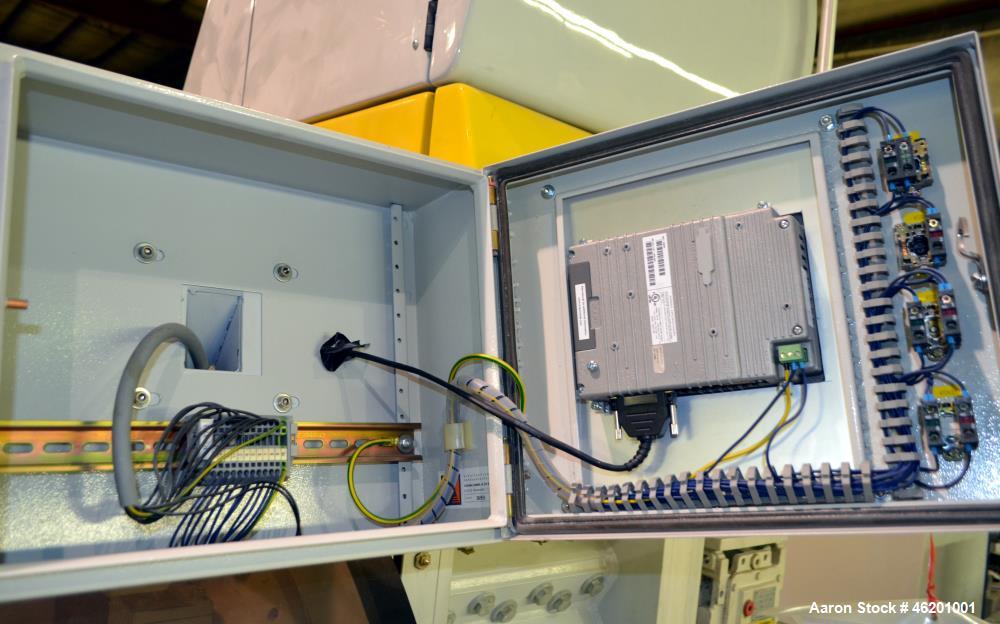

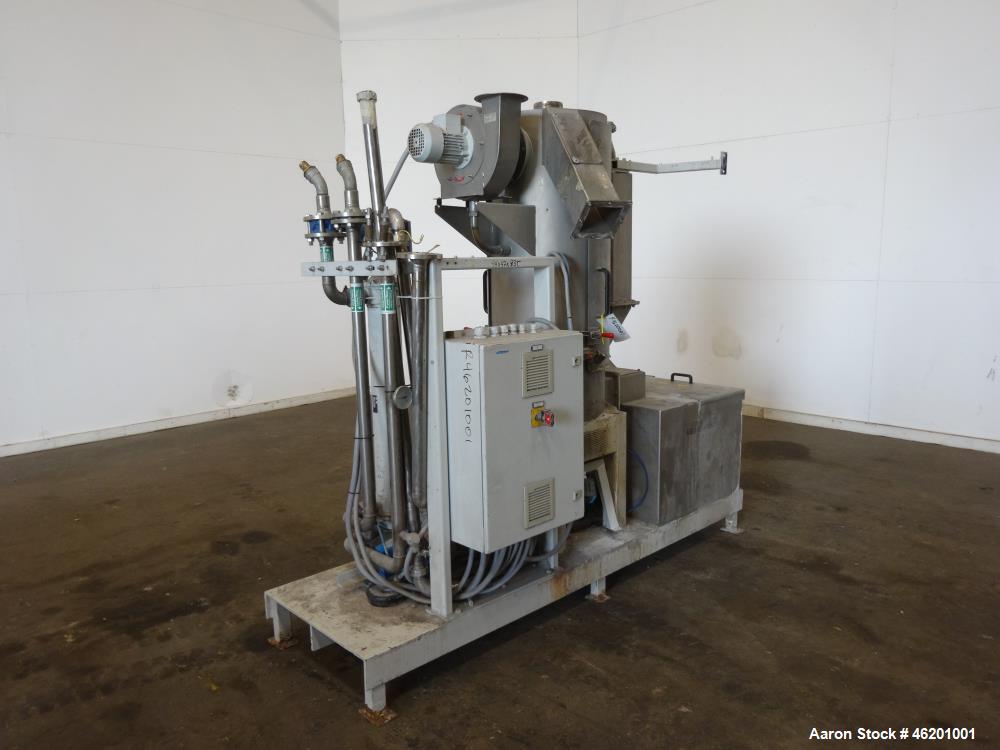

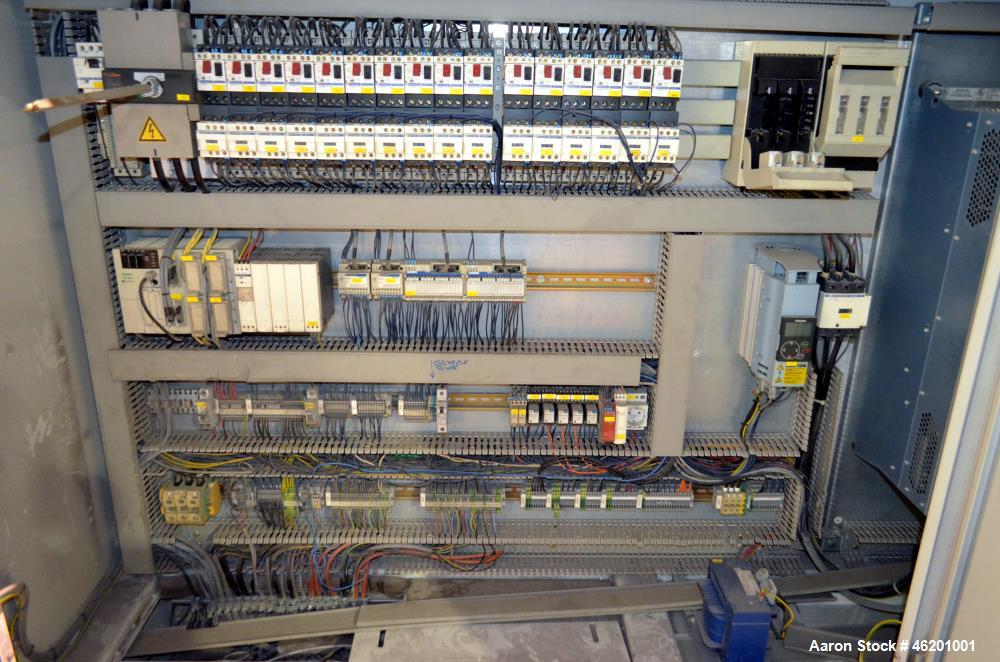

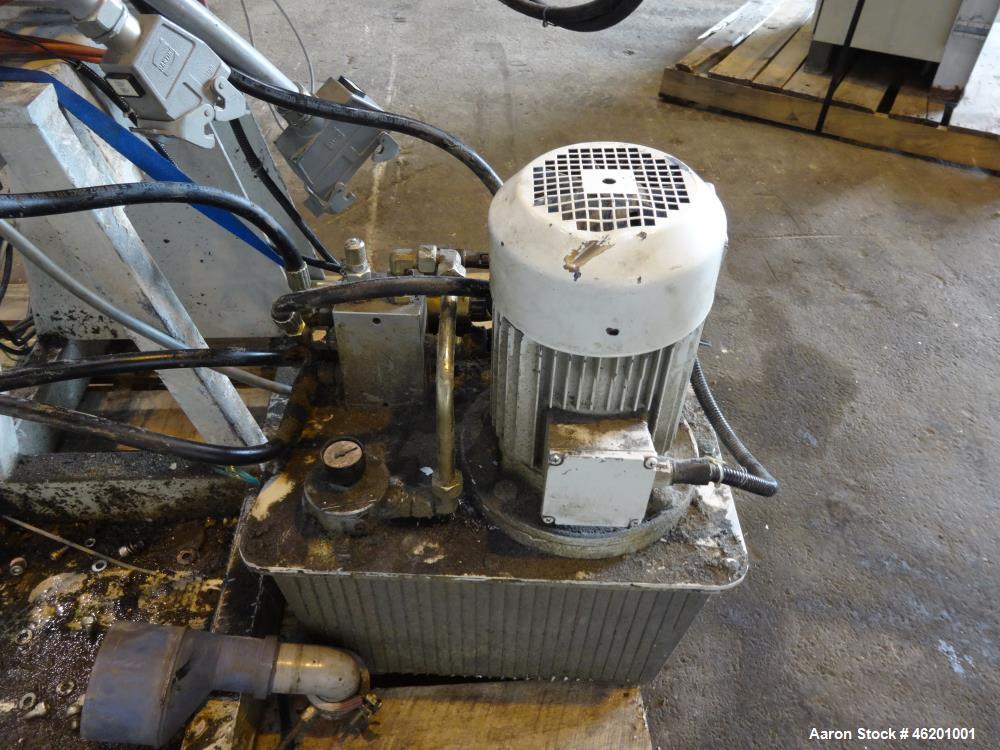

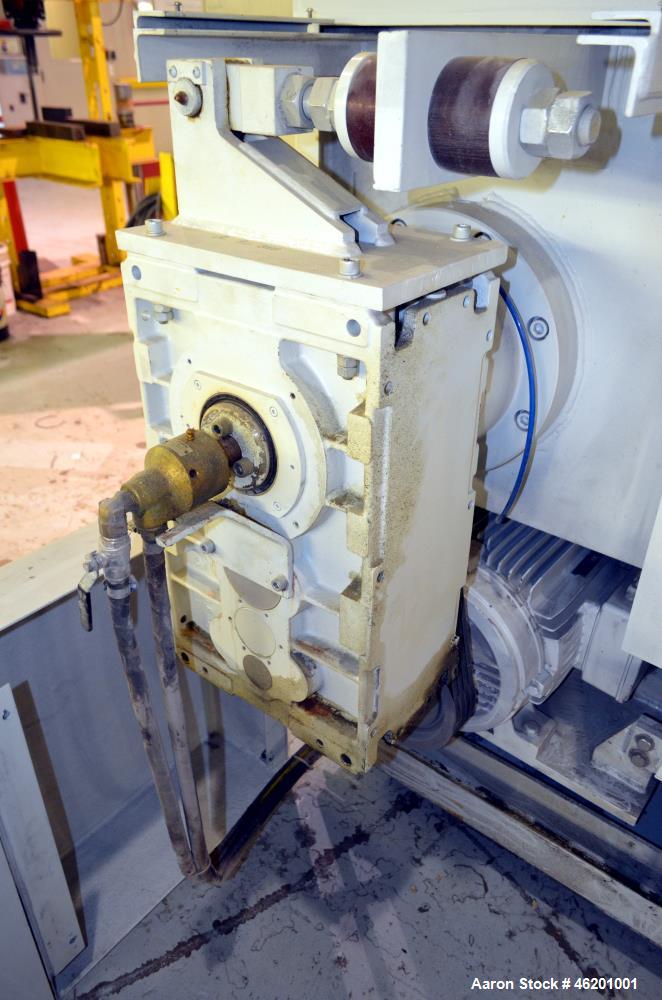

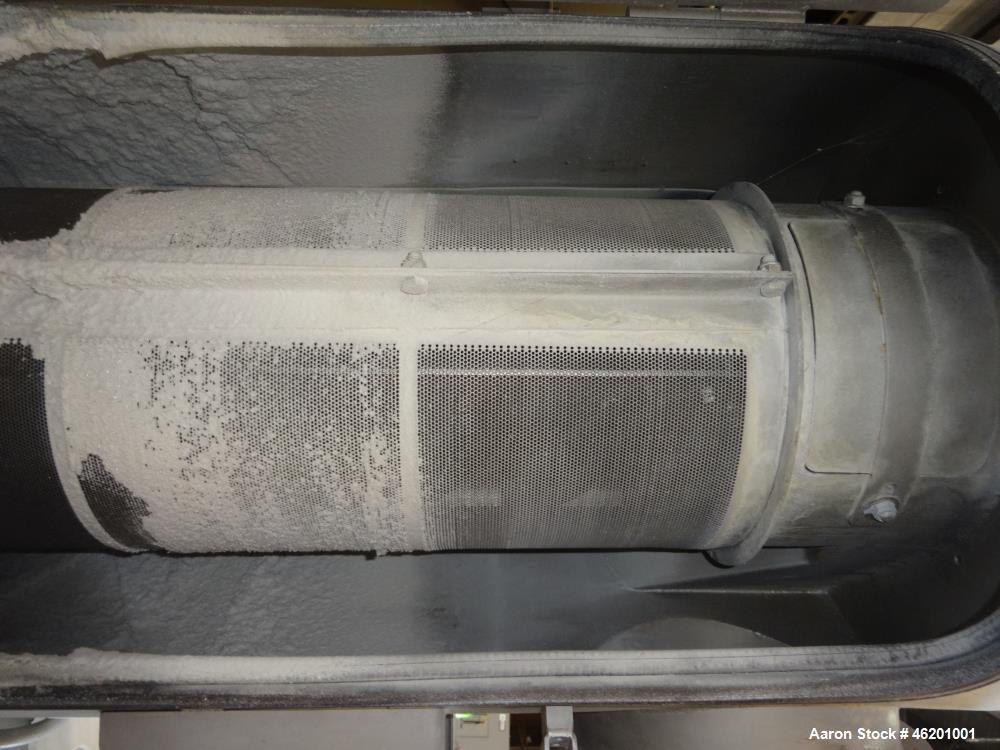

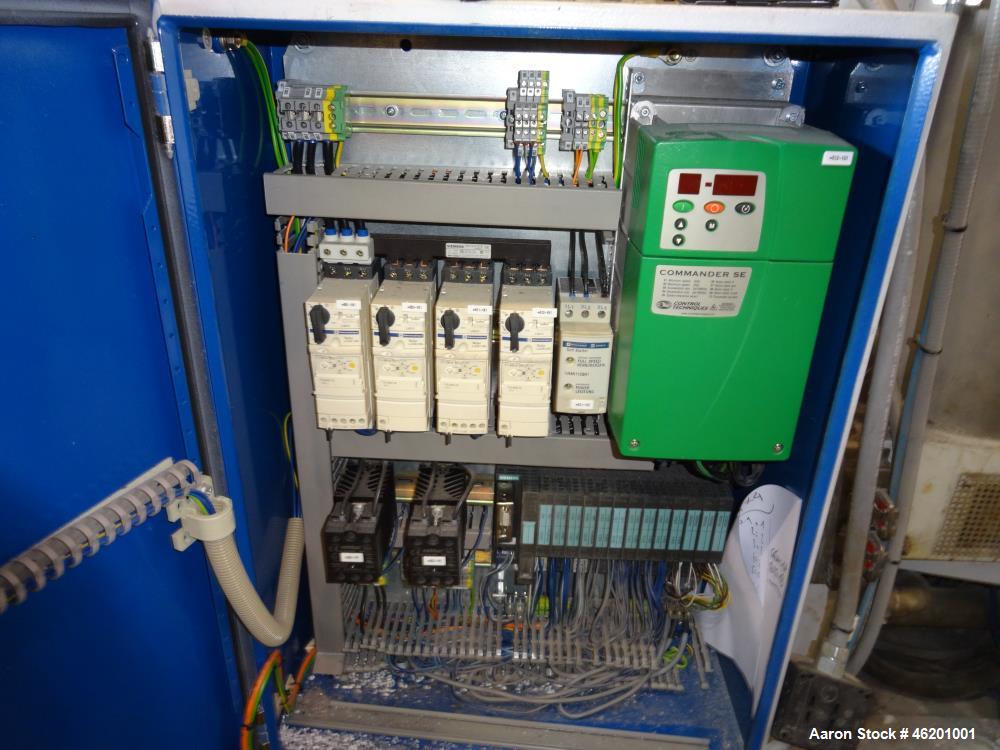

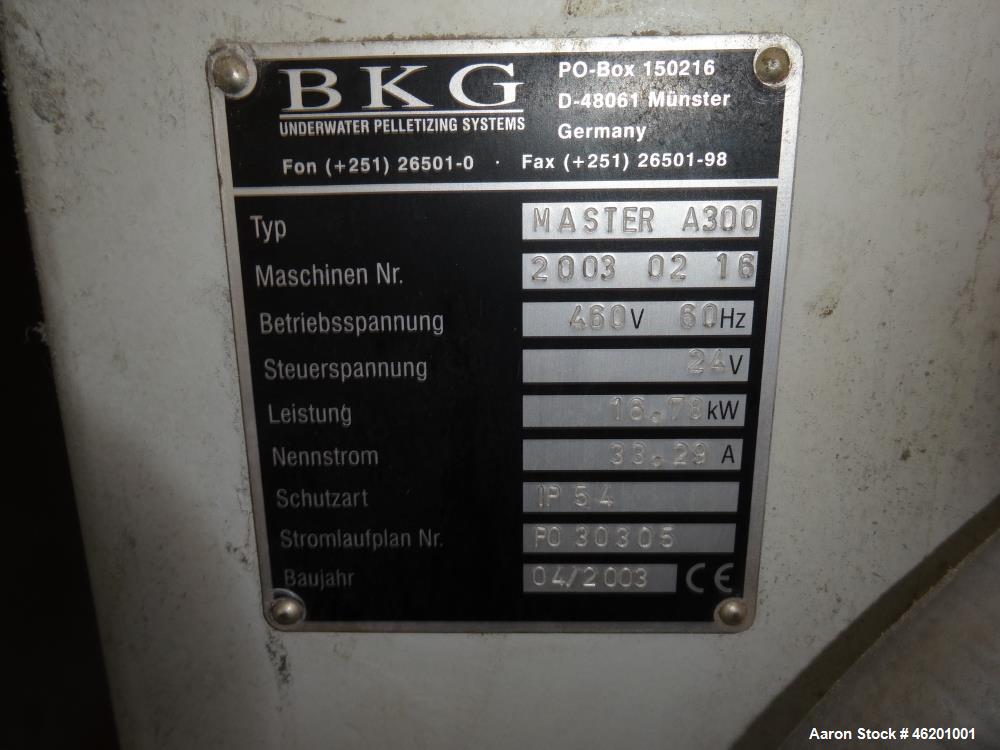

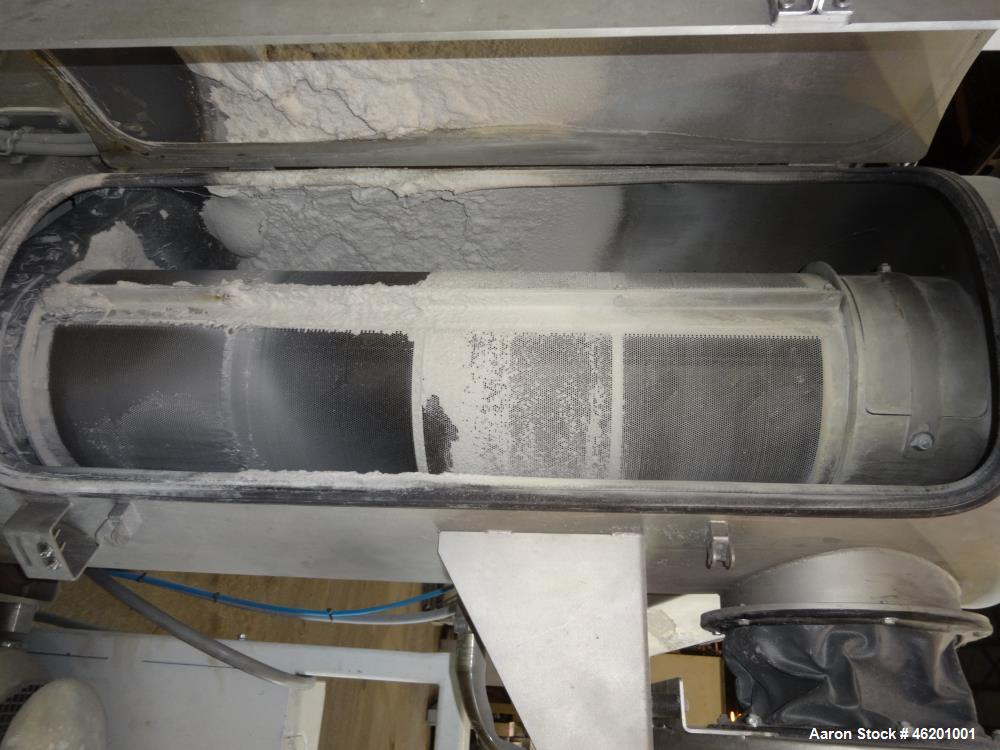

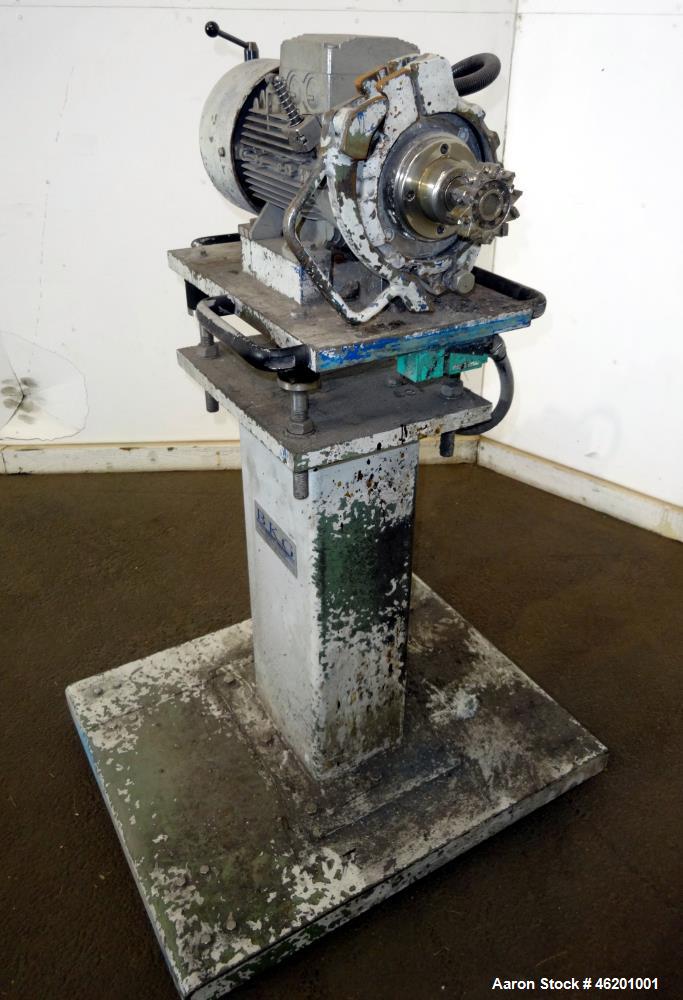

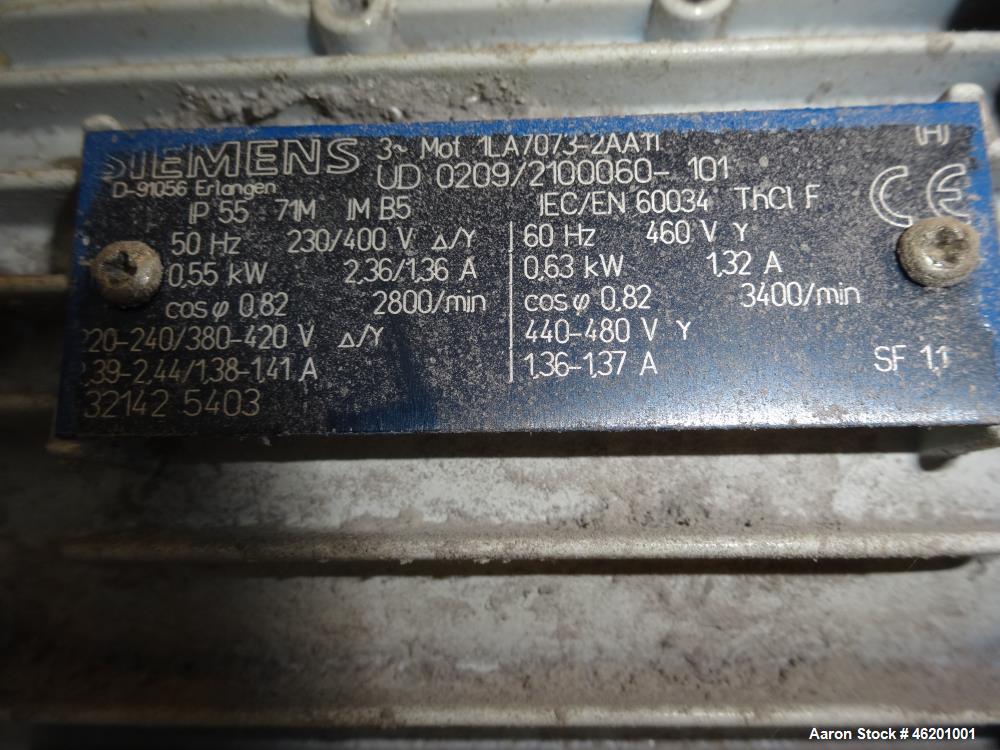

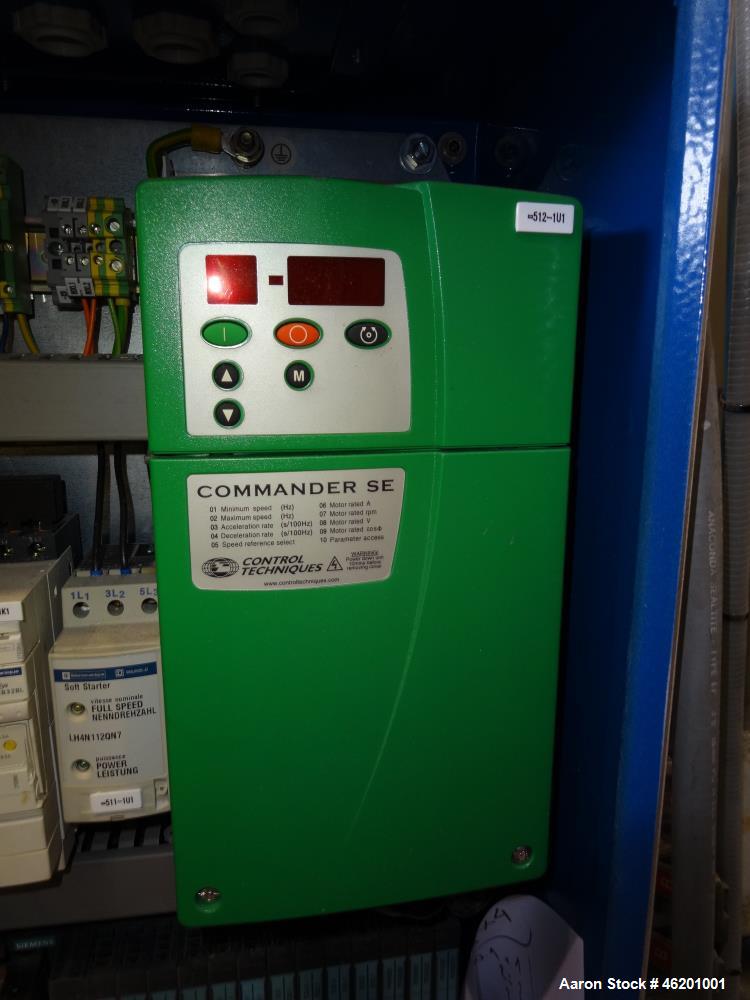

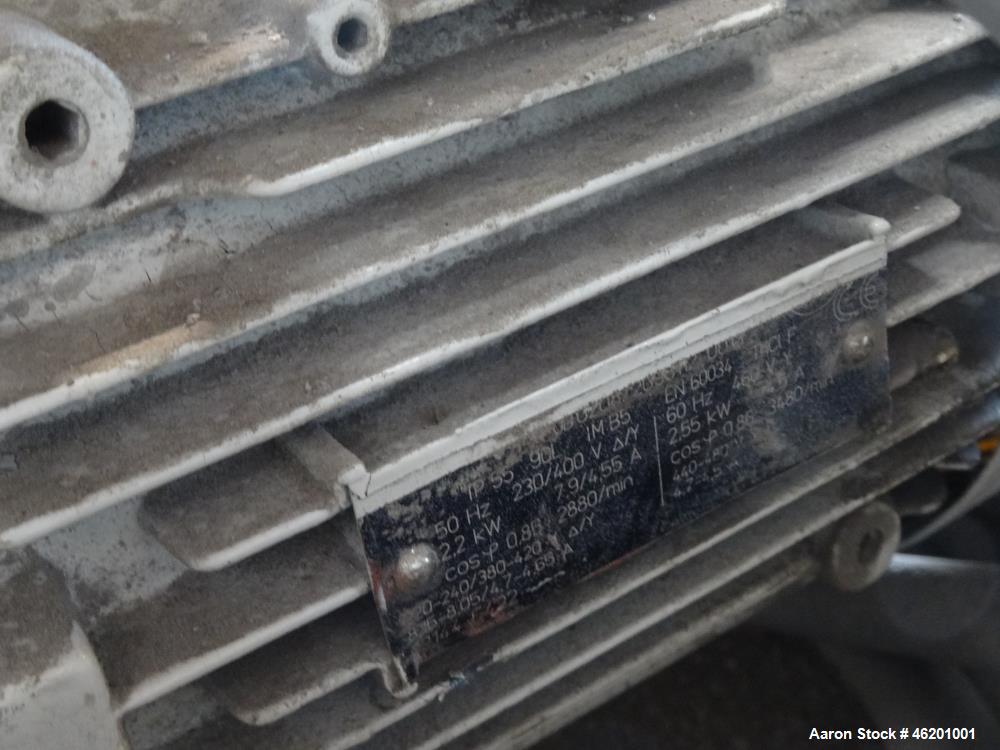

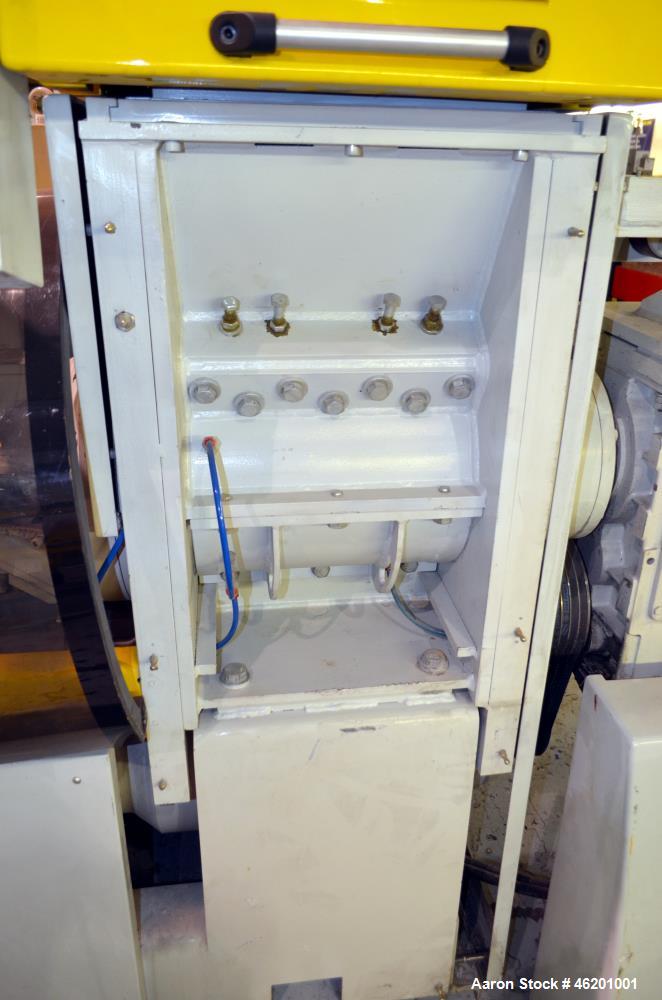

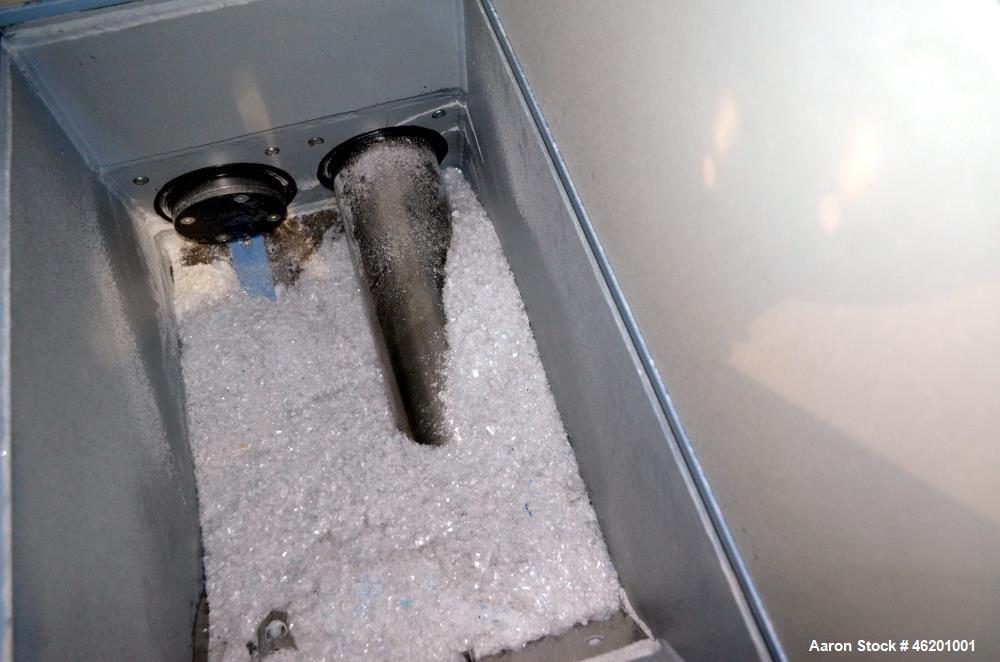

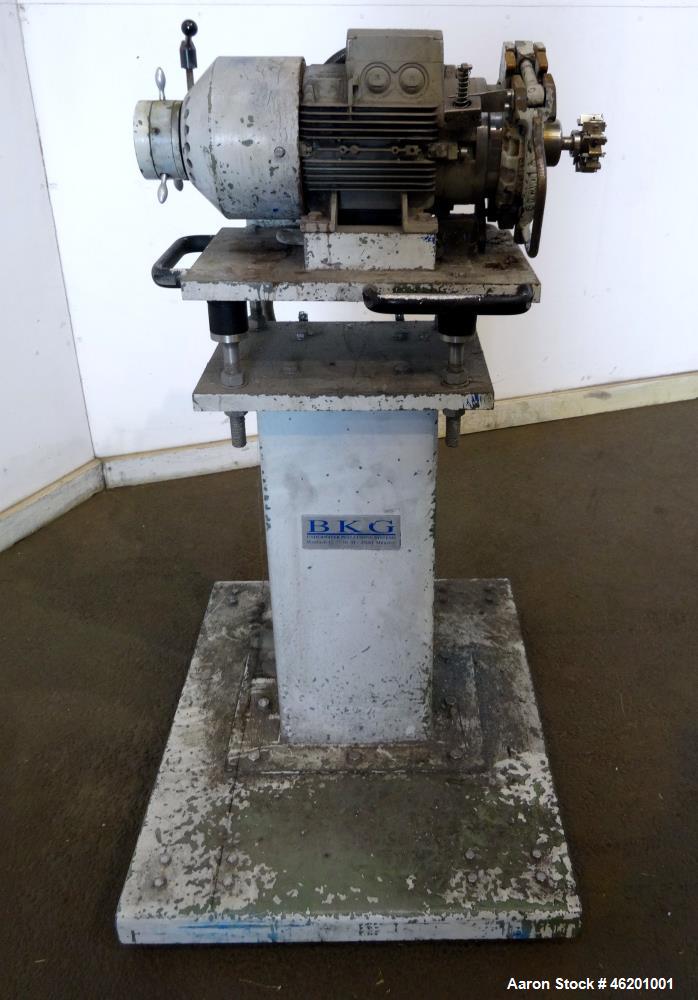

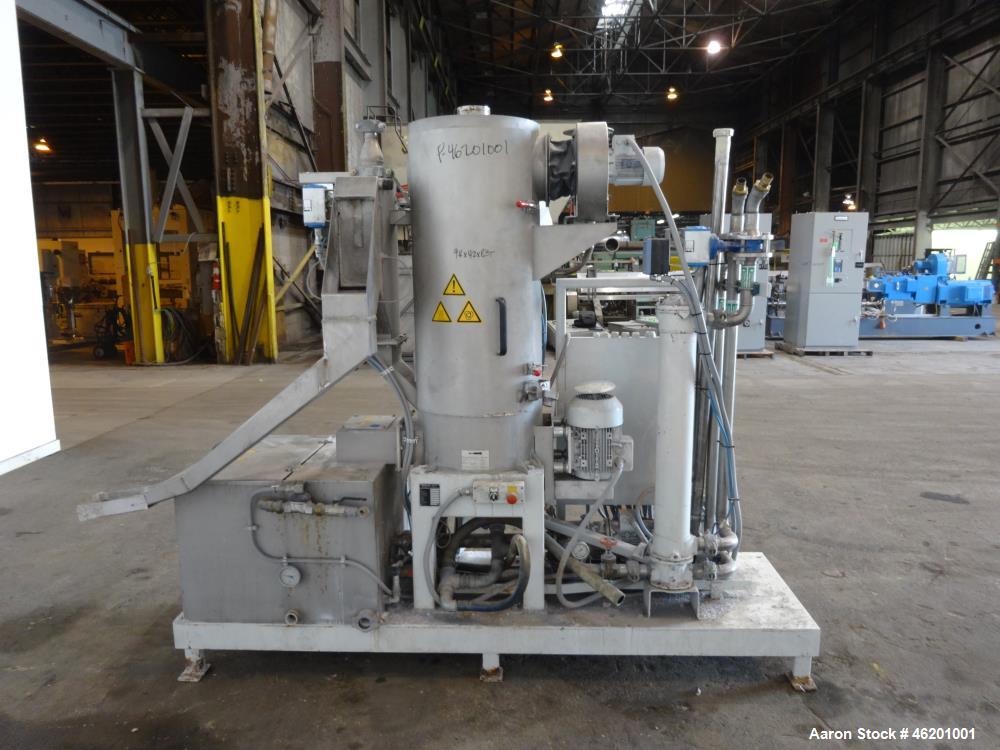

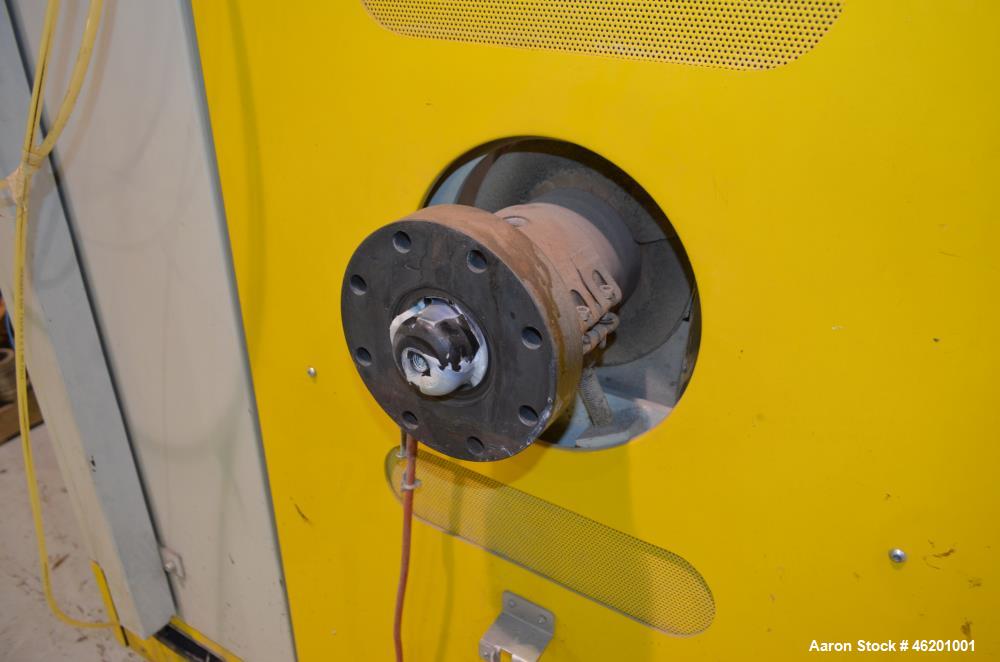

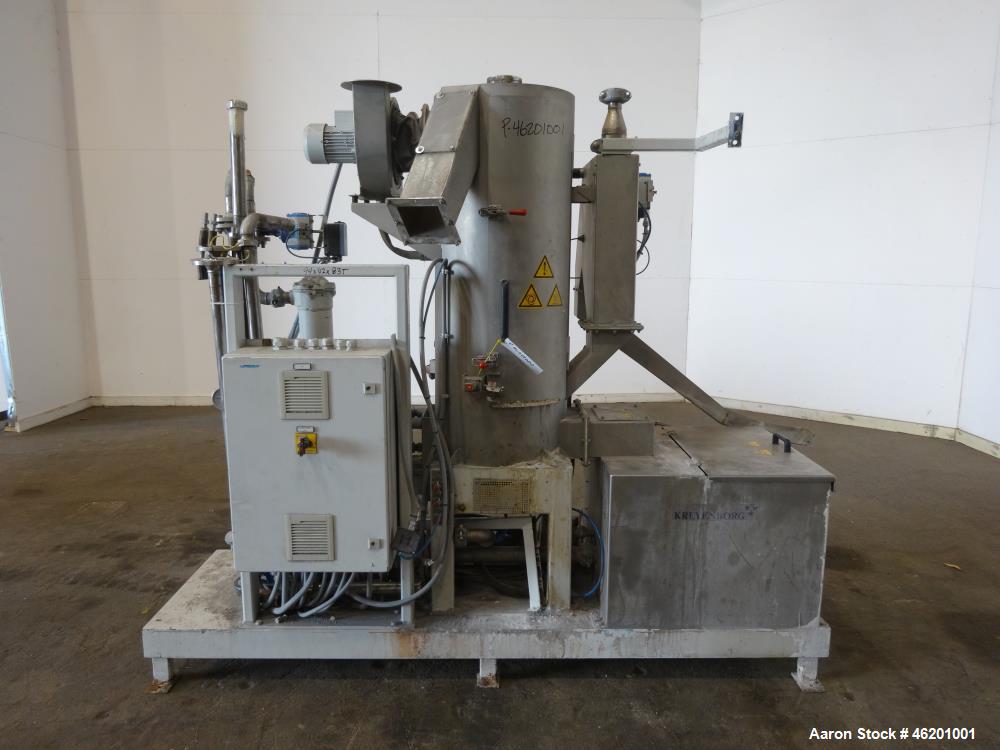

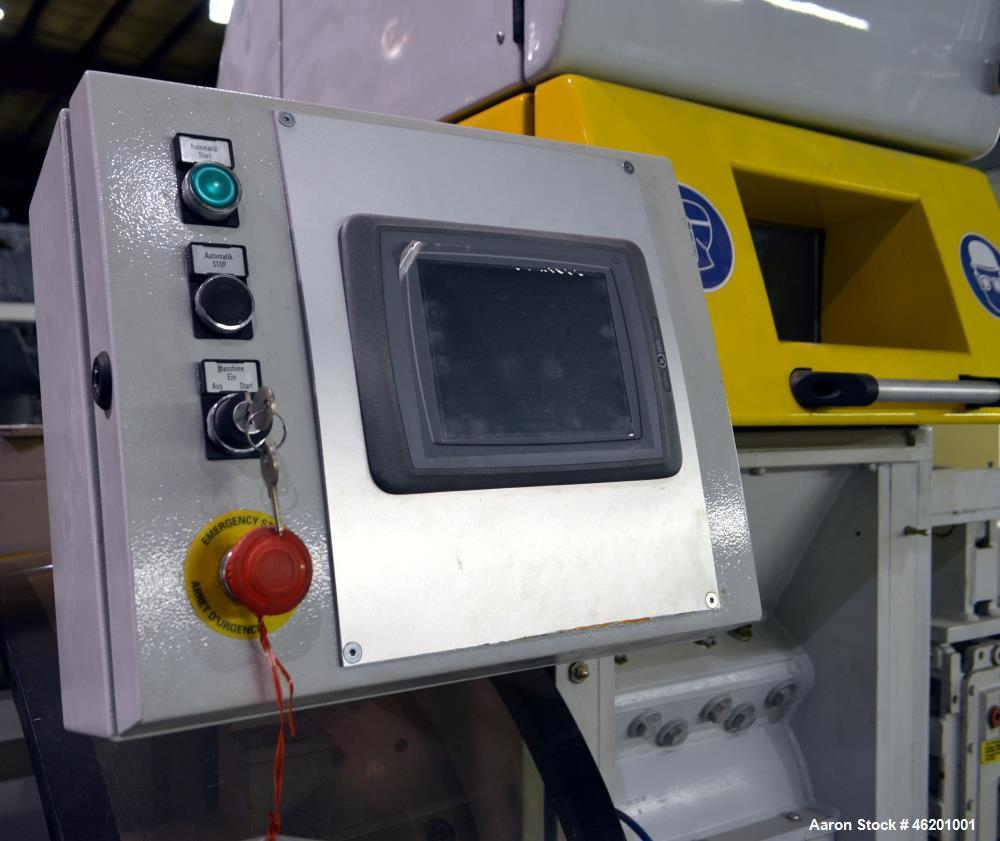

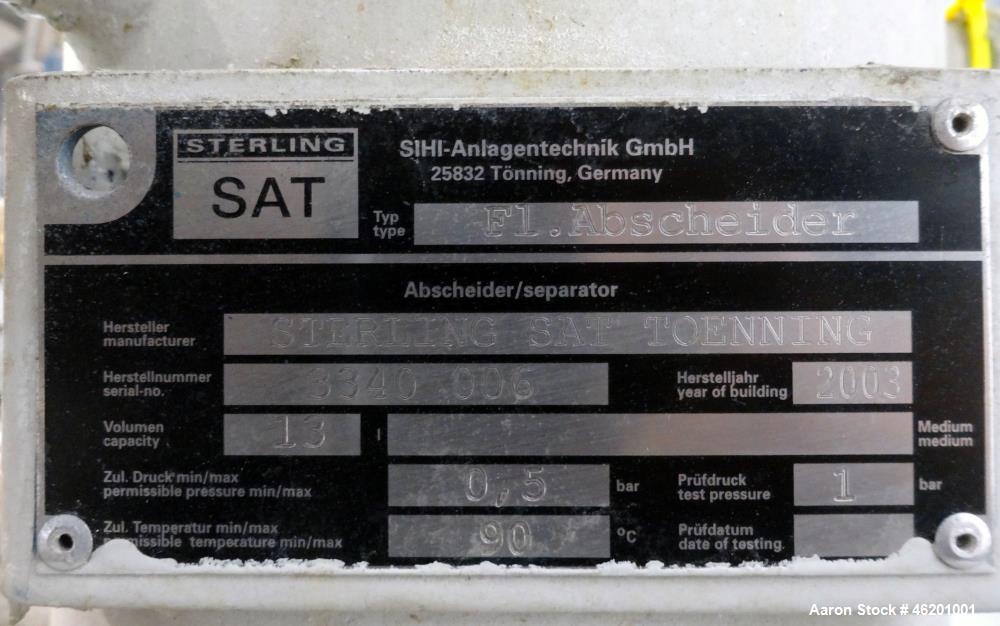

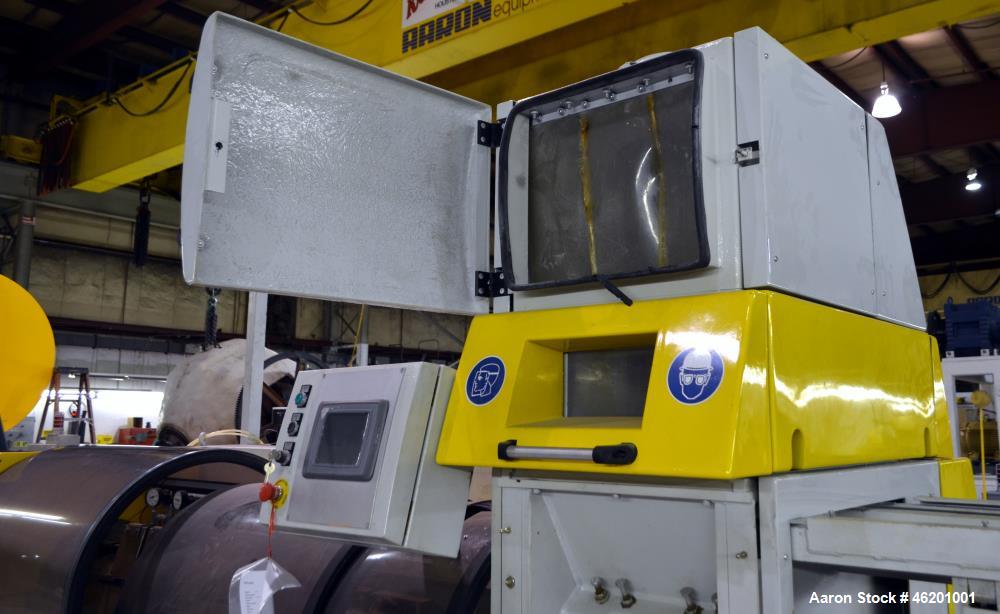

Used NGR Next Generation Underwater Granulation Recycling Line Rated Up To 220 Pounds Per Hour (100 Kg). System consists of: (1) NGR 2-1/2" (65mm) cutter feeder single screw extruder, type A-Gran 65. Approximate 33 to 1 L/D ratio. Electrically heated, air cooled, dual side vented barrel with maintenance covers and a Sihi modular vacuum pump system, Model LEMA51AZAAE0A7AW, Serial # D-03-80177-01, driven by a 1.5 kw motor, with a Sondex Type S41C heat exchanger, Serial # 43044047, and Sterling separator tank. Extruder and grinder both driven by (1) 45 kw motor thru a PIV gearbox, Type PC16-T60-H13-20, ratio 21.1 to 1. Enclosed feed throat with a rotary cutter, (2) pneumatic piston ram, tapered feed screw, and a feed hopper with sight window. Approximate 42" centerline height. Includes a control panel with a Vacon drive, and an operator panel with a Mitsubishi E1071 touch screen. Serial # UWGQ-03045, built 2004. (1) Kreyenborg screen changer, Model AV025, Serial # 19562, built 2001, (1) Econ 2.2 kw power pack, (1) BKG underwater pelletizer, Type UWB-A300, Serial # 2003-02-16. Includes a cutting chamber, driven by a 4.4 kw motor, mounted on a stand. (1) BKG stainless steel spin dryer, Type Master A 300, Serial # 2003-02-16. Approximate 12" diameter x 36" tall rotor with screen, driven by a 4 kw motor. Includes a Lammers Type LAF010/17-52-2 0.55 kw blower, KSB 2.2 kw centrifugal pump, (1) Kreyenborg stainless steel holding tank, (1) Funke heat exchanger. All mounted on a common base with (2) control panels with Commander SE drives.
Used NGR Next Generation Underwater Granulation Recycling Line Rated Up To 220 Pounds Per Hour (100 Kg). System consists of: (1) NGR 2-1/2" (65mm) cutter feeder single screw extruder, type A-Gran 65. Approximate 33 to 1 L/D ratio. Electrically heated, air cooled, dual side vented barrel with maintenance covers and a Sihi modular vacuum pump system, Model LEMA51AZAAE0A7AW, Serial # D-03-80177-01, driven by a 1.5 kw motor, with a Sondex Type S41C heat exchanger, Serial # 43044047, and Sterling separator tank. Extruder and grinder both driven by (1) 45 kw motor thru a PIV gearbox, Type PC16-T60-H13-20, ratio 21.1 to 1. Enclosed feed throat with a rotary cutter, (2) pneumatic piston ram, tapered feed screw, and a feed hopper with sight window. Approximate 42" centerline height. Includes a control panel with a Vacon drive, and an operator panel with a Mitsubishi E1071 touch screen. Serial # UWGQ-03045, built 2004. (1) Kreyenborg screen changer, Model AV025, Serial # 19562, built 2001, (1) Econ 2.2 kw power pack, (1) BKG underwater pelletizer, Type UWB-A300, Serial # 2003-02-16. Includes a cutting chamber, driven by a 4.4 kw motor, mounted on a stand. (1) BKG stainless steel spin dryer, Type Master A 300, Serial # 2003-02-16. Approximate 12" diameter x 36" tall rotor with screen, driven by a 4 kw motor. Includes a Lammers Type LAF010/17-52-2 0.55 kw blower, KSB 2.2 kw centrifugal pump, (1) Kreyenborg stainless steel holding tank, (1) Funke heat exchanger. All mounted on a common base with (2) control panels with Commander SE drives.
