Unused Lancaster K-8 High Intensity Mixer – 3,000L Capacity, Dual Rotor, 125 HP Motors

Description:

The Lancaster K-8 High Intensity Mixer is a high-performance dual-rotor mixer, designed for intensive material blending and rapid mixing of bulk materials. This mixer is constructed from carbon steel with a 316 stainless steel liner, ensuring durability, corrosion resistance, and high sanitary standards for industrial processing applications.

The unit features a clockwise-rotating pan and a counterclockwise rotating mixing plow, creating three-dimensional macro mixing streams. These streams are redirected through two stationary side scrapers into the two counterclockwise rotors, achieving efficient high-intensity mixing.

The maximum batch capacity is 3,000 liters (1,680 kg of damp sulfur mix) at a nominal loose bulk density of 560 kg/m³. It has a maximum working capacity of 105 cubic feet (10,500 lbs) with a material density of 100 lbs/cu.ft.

The mixing system is powered by two (2) 125 HP high-speed rotor drive motors, while the mixing pan drive and plow drive are each powered by a 30 HP motor. The mixer is equipped with a hydraulically operated bottom pan discharge valve, allowing fast and controlled material discharge.

Specifications:

• Mixer Type: Dual Rotor High Intensity Mixer
• Batch Capacity: 3,000 Liters (~1,680 kg of Damp Sulfur Mix @ 560 kg/m³)
• Maximum Working Capacity: 105 Cubic Feet / 10,500 lbs (@ 100 lbs/cu.ft Material Density)
• Construction Material: Carbon Steel with 316 Stainless Steel Liner
• Rotors: Counterclockwise Rotating Dual Rotor System
• Mixing System:
  • Clockwise Rotating Pan
  • Counterclockwise Rotating Mixing Plow
  • Two Stationary Side Scrapers
• Motor Drives:

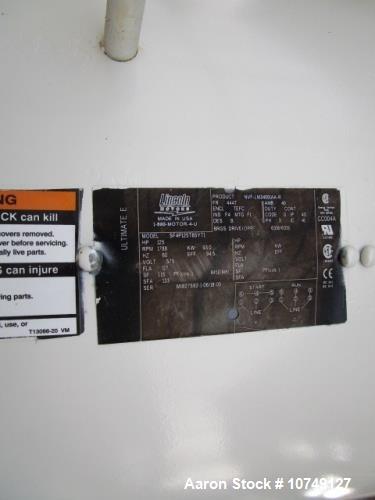

  • High-Speed Rotor Drive: (2) 125 HP Motors, 575V AC, 3-Phase, 60 Hz (Belt Drive)
  • Mixing Pan Drive: 30 HP Motor, 575V AC, 3-Phase, 60 Hz (Gear Type)
  • Plow Drive: 30 HP Motor, 575V AC, 3-Phase, 60 Hz (Gear Type)
• Discharge System: Hydraulically Operated Bottom Pan Discharge Valve
• Overall Dimensions:
  • Height: 9'7 3/8"
  • Length: 13'6"
  • Width: 8'9 1/2"
• Condition: Unused & Uninstalled (Sold As-Is, Where-Is)

Applications:

This high-intensity industrial mixer is designed for rapid and uniform mixing of bulk materials, making it ideal for industries such as:

• Chemical Processing – High-intensity mixing of specialty chemicals and reactive compounds
• Metallurgical & Powder Processing – Blending of metal powders, minerals, and ceramic materials
• Sulfur & Fertilizer Processing – Intensive blending of sulfur-based and fertilizer compounds
• Pharmaceutical & Nutraceutical Processing – Homogeneous mixing of powders and granulated materials
• Plastics & Polymer Compounding – Uniform blending of plastic resins, masterbatches, and additives
• Food & Beverage Industry – Industrial-scale ingredient mixing for food additives
• Refractory & Construction Materials – Blending of cement, mortar, and refractory compounds
• Battery & Energy Materials – Mixing of battery pastes, anode, and cathode materials

What Products Would This Be Used For?

This high-speed mixer is suitable for processing:

• Powdered chemicals and specialty blends
• Fertilizer, sulfur, and mineral processing
• Pharmaceutical and nutraceutical powders
• Plastic resin and polymer mixing
• Metallurgical and refractory compounds
• Dry food ingredients and additives
• Pigments, dyes, and industrial colorants
• Battery-grade powders for energy storage applications
